Baileigh Sheet Metal Brake - (HB-4816E) 1004650 Applications
- HVAC ductwork and ventilation component fabrication.
- General sheet metal fabrication and repair work.
- Architectural and decorative metal forming projects.
- Maintenance shops and facility repair departments.
- Educational and vocational training environments.
- Agricultural and industrial equipment fabrication.
- Production bending of brackets, panels, covers, and enclosures.
- Custom metalworking projects requiring accurate straight bends.
An excellent solution for shops that require accurate manual bending, repeatable results, and durable construction for daily fabrication operations.
Baileigh Sheet Metal Brake - (HB-4816E) 1004650 Specifications
| Model Number | HB-4816E |
|---|---|
| Product Keyword | Baileigh Sheet Metal Brake - (HB-4816E) 1004650 |
| Machine Type | Manual Straight Metal Brake |
| Bending Width | 48 in. (4 ft.) |
| Bending Capacity Length | 48 in. |
| Mild Steel Capacity | 16 Gauge |
| Maximum Bend Angle | 135° |
| Input Power | Manual Operation |
| Frame Construction | Fully Welded Steel Frame with Support Rods |
| Blade Gap Adjustment | Adjustable for Various Material Thicknesses |
| Clamping System | Dual End Material Clamps |
| Repeatability Feature | Adjustable Stop Rod Included |
| Stand Type | Bolt-Together Floor Stand Included |
| Apron Assist | Counterweight Lift Assist |
| Net Weight | 500 lbs. |
| Gross Weight | 500 lbs. |
| UPC | 731325406979 |
| Warranty | 1 Year |
Baileigh Sheet Metal Brake - (HB-4816E) 1004650 Performance & Construction

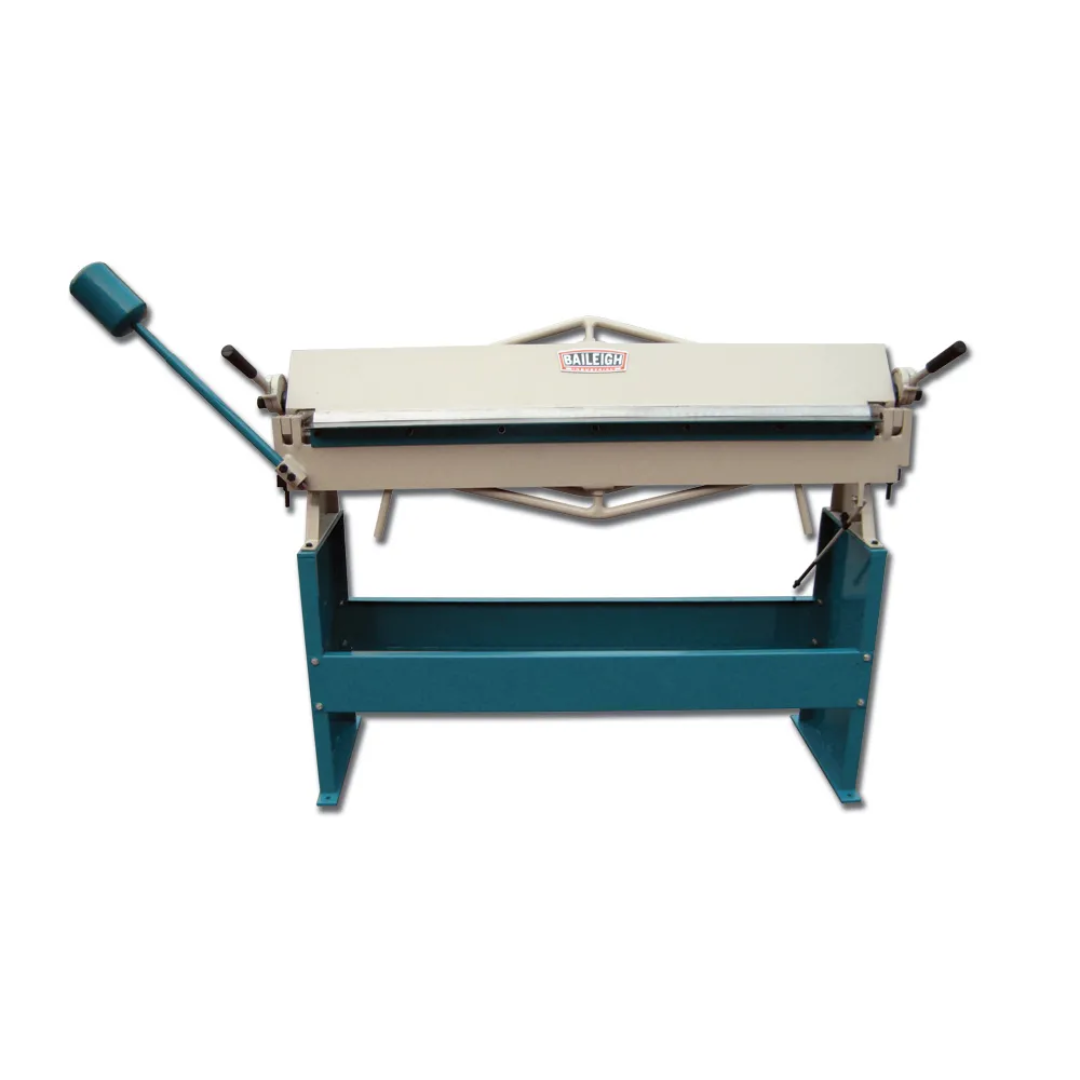

- 48-inch working width accommodates full 4-foot sheet metal panels and a wide variety of fabrication projects.
- 16 gauge mild steel capacity allows bending of common fabrication materials across the machine's full width.
- Maximum 135-degree bend capability provides flexibility for creating channels, brackets, boxes, panels, and custom formed components.

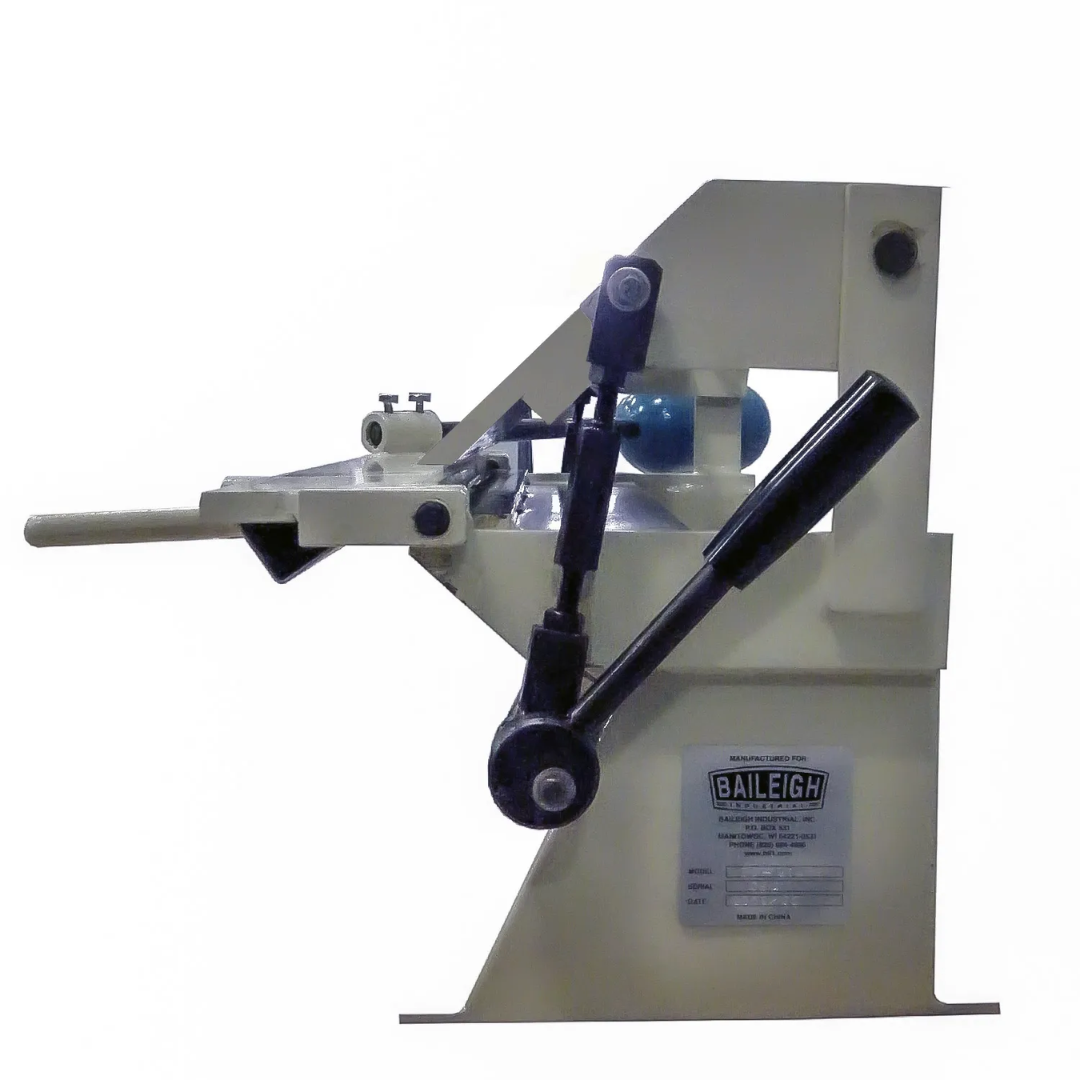

- Fully welded steel frame construction delivers exceptional rigidity and minimizes deflection during heavy bending operations.
- Integrated support rods reinforce the frame structure for improved strength and long-term accuracy.

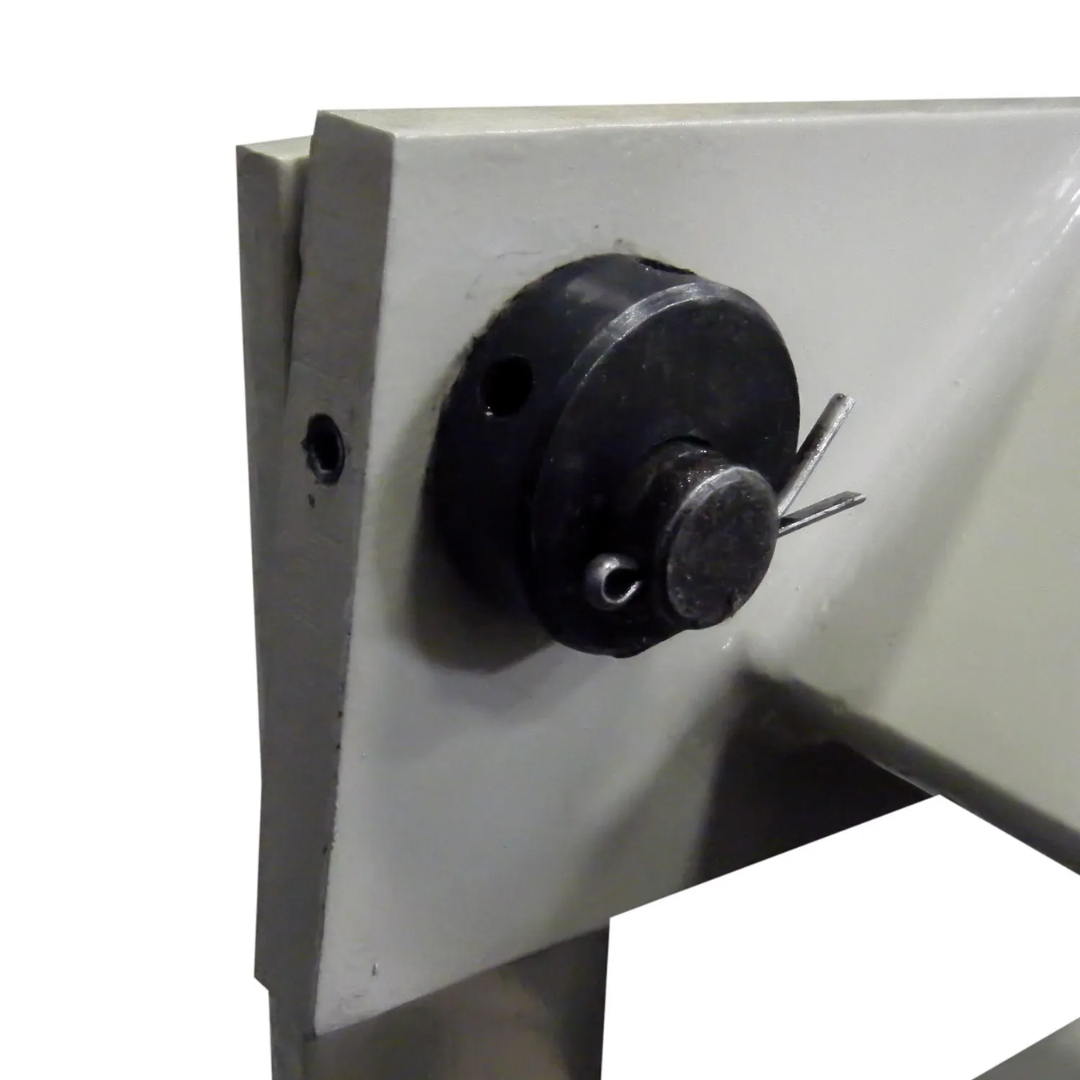

- Precision-machined steel pivots ensure smooth movement and repeatable bend quality throughout the machine's service life.
- Adjustable blade gap system enables operators to accommodate different material thicknesses while maintaining clean bend quality.

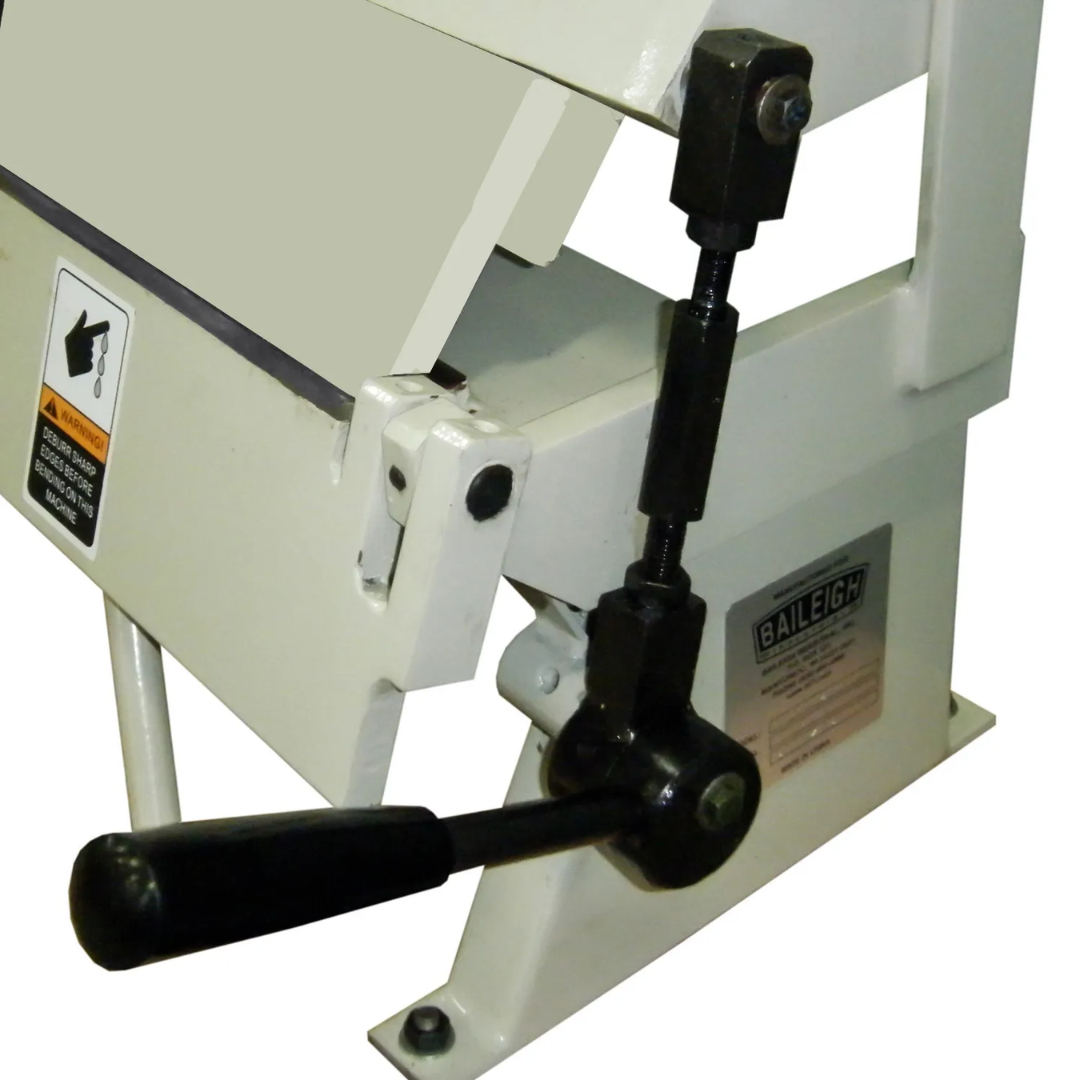

- Dual material clamps apply even pressure across the workpiece for accurate and consistent bending results.
- Adjustable stop rod simplifies repeat production work by providing consistent bend locations.

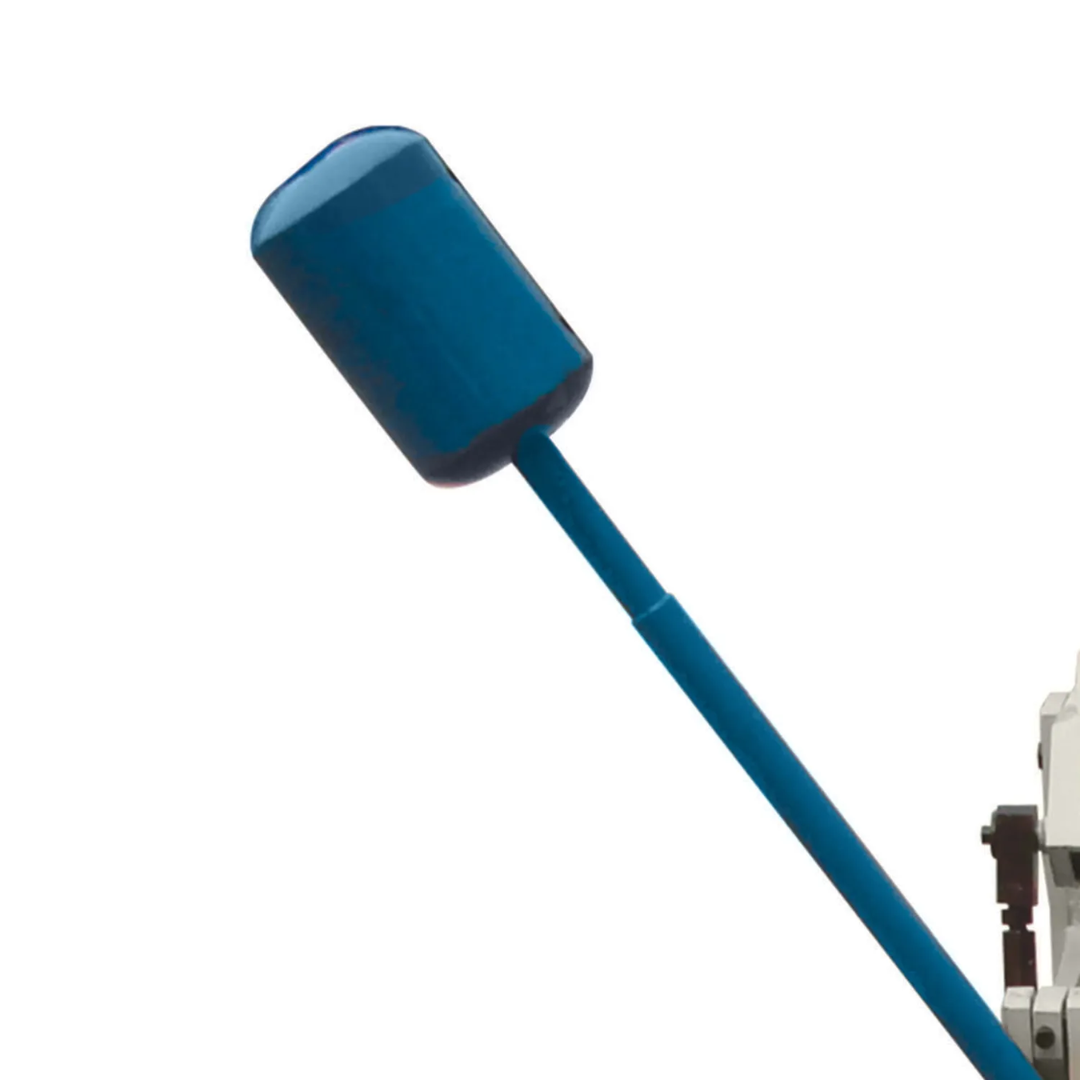

- Counterweight apron lift assist reduces operator effort and improves usability when bending heavier materials.
- Bolt-together floor stand provides stable support and an ergonomic working height for daily operation.
- Manual operation offers reliable performance without requiring electrical power, making it ideal for versatile shop environments.
Why Choose the Baileigh Sheet Metal Brake - (HB-4816E) 1004650
- Bends 16 gauge mild steel across a full 48-inch working width.
- Produces precise bends up to 135 degrees for versatile forming applications.
- Heavy-duty welded frame construction provides lasting durability and accuracy.
- Adjustable blade gap accommodates varying material thicknesses.
- Stop rod improves consistency and productivity during repetitive jobs.
- Counterweight-assisted apron reduces operator fatigue and improves efficiency.
- Ideal for fabrication shops, HVAC contractors, schools, and maintenance departments.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Sheet Metal Brake - (HB-4816E) 1004650 combines rugged welded-steel construction, precise bending performance, and user-friendly features to provide fabrication professionals with a dependable manual brake capable of producing accurate bends on 16 gauge mild steel across a full 4-foot working width.
