Baileigh Sheet Metal Brake (HB-4816) 1004646 Applications
- General sheet metal fabrication and repair work.
- HVAC ductwork, transitions, and custom fittings.
- Roofing trim, flashing, fascia, and architectural sheet metal.
- Agricultural equipment repairs and replacement panels.
- Manufacturing brackets, channels, trays, and enclosures.
- Maintenance departments and fabrication shops requiring dependable manual bending.

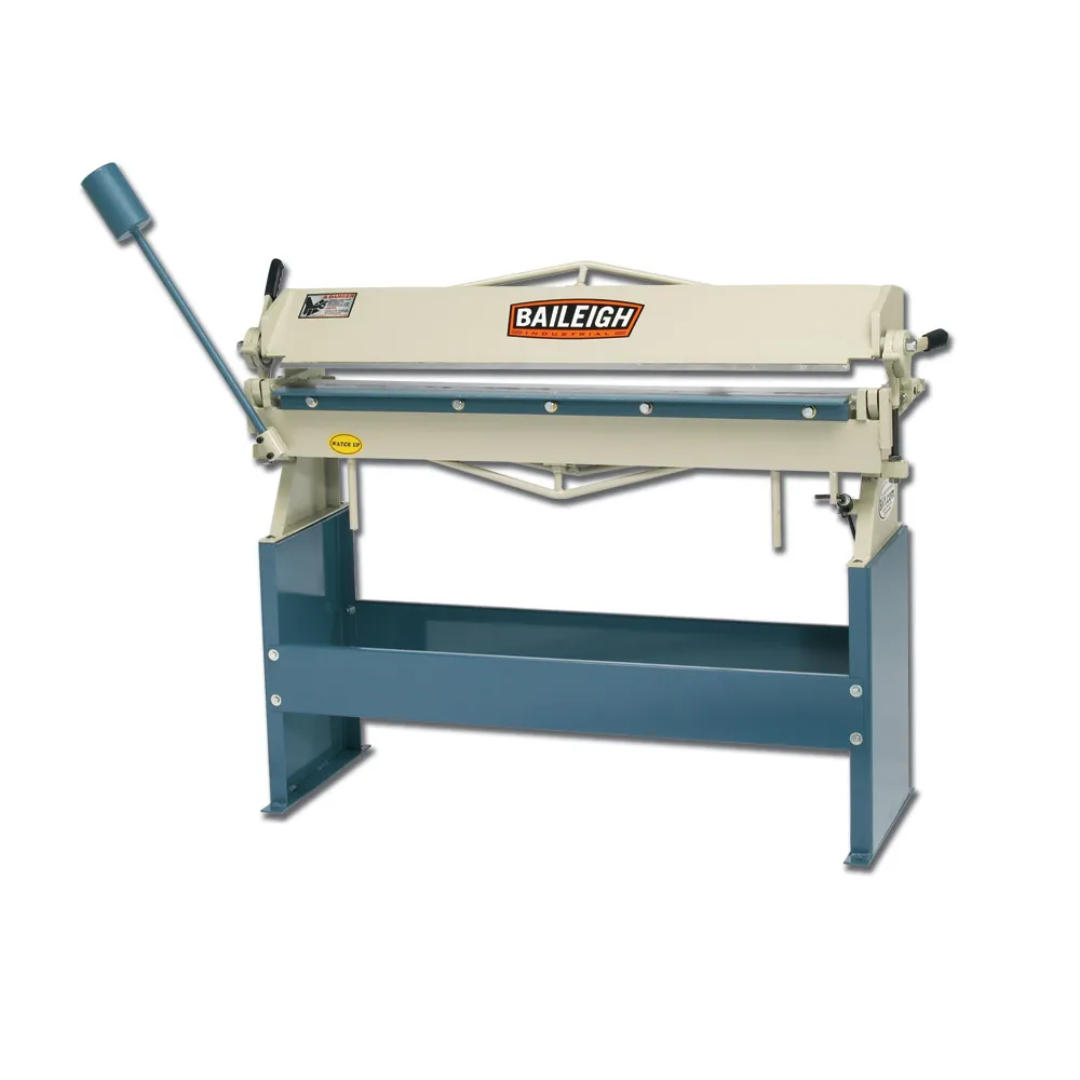

The Baileigh Sheet Metal Brake (HB-4816) 1004646 provides professional-grade manual bending performance for shops that require precision, repeatability, and industrial durability in a compact 4-foot sheet metal brake.
Baileigh Sheet Metal Brake (HB-4816) 1004646 Specifications
| Model | HB-4816 |
|---|---|
| Part Number | 1004646 |
| Machine Type | Manual Straight Sheet Metal Brake |
| Working Width | 48 in. (4 ft.) |
| Bending Capacity | 48 in. |
| Mild Steel Capacity | 16 Gauge |
| Maximum Bend Angle | 135° |
| Operation | Manual |
| Clamping System | Dual Precision Material Clamps with Cam Operation |
| Blade Adjustment | Adjustable Blade Gap for Various Material Thicknesses |
| Repeatability | Standard Stop Rod Included |
| Counterbalance | Heavy Counterweight Assist |
| Frame Construction | Fully Welded Steel Frame with Structural Support Trusses |
| Stand | Heavy-Duty Modular Steel Stand with Floor Mount Capability |
| Net Weight | 480 lbs. |
| Gross Weight | 480 lbs. |
| Warranty | 1 Year Parts Warranty |
Baileigh Sheet Metal Brake (HB-4816) 1004646 Performance & Construction
- 48-inch working width provides ample capacity for fabrication, HVAC, maintenance, and custom sheet metal applications.
- 16 gauge mild steel capacity delivers dependable bending performance for everyday professional fabrication projects.
- Maximum 135° bend angle allows production of channels, boxes, flanges, brackets, pans, and numerous custom formed components.
- Fully welded steel frame with structural support trusses minimizes flex under load to ensure accurate, repeatable bends across the full working width.
- Dual precision material clamps securely grip sheet metal using cam-operated clamping mechanisms for improved bend consistency.
- Adjustable blade gap enables operators to optimize bending performance for different sheet metal thicknesses and material types.
- Heavy counterweight assist system reduces operator effort while improving control during full-capacity bending operations.
- Standard stop rod simplifies repetitive production work by allowing fast, consistent positioning for identical bends.
- Precision-machined pivot and clamping components contribute to smooth brake movement, long service life, and consistent bend quality.
- Heavy-duty modular steel stand can be securely bolted to the floor to maximize stability during demanding shop use.
- Manual operation eliminates electrical and hydraulic requirements while providing dependable, low-maintenance performance.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for added long-term confidence.
Why Choose the Baileigh Sheet Metal Brake (HB-4816) 1004646
- Professional 48-inch manual straight brake for fabrication and HVAC applications.
- Bends up to 16 gauge mild steel with precise 135° forming capability.
- Fully welded reinforced frame provides exceptional rigidity and long-term accuracy.
- Dual cam-operated material clamps securely hold workpieces during bending.
- Adjustable blade clearance accommodates multiple material thicknesses.
- Heavy counterweight reduces operator fatigue while improving control.
- Included stop rod enhances production efficiency with repeatable bends.
- Manual design requires no electrical power, reducing operating costs and maintenance.
- Supported by Baileigh's 1-year warranty and lifetime technical assistance.
The Baileigh Sheet Metal Brake (HB-4816) 1004646 delivers industrial-grade manual bending performance in a compact and durable package. Combining reinforced welded construction, precision clamping, adjustable blade clearance, and smooth counterweighted operation, this heavy-duty straight brake is an excellent solution for professionals demanding reliable accuracy and repeatable results in daily sheet metal fabrication.
