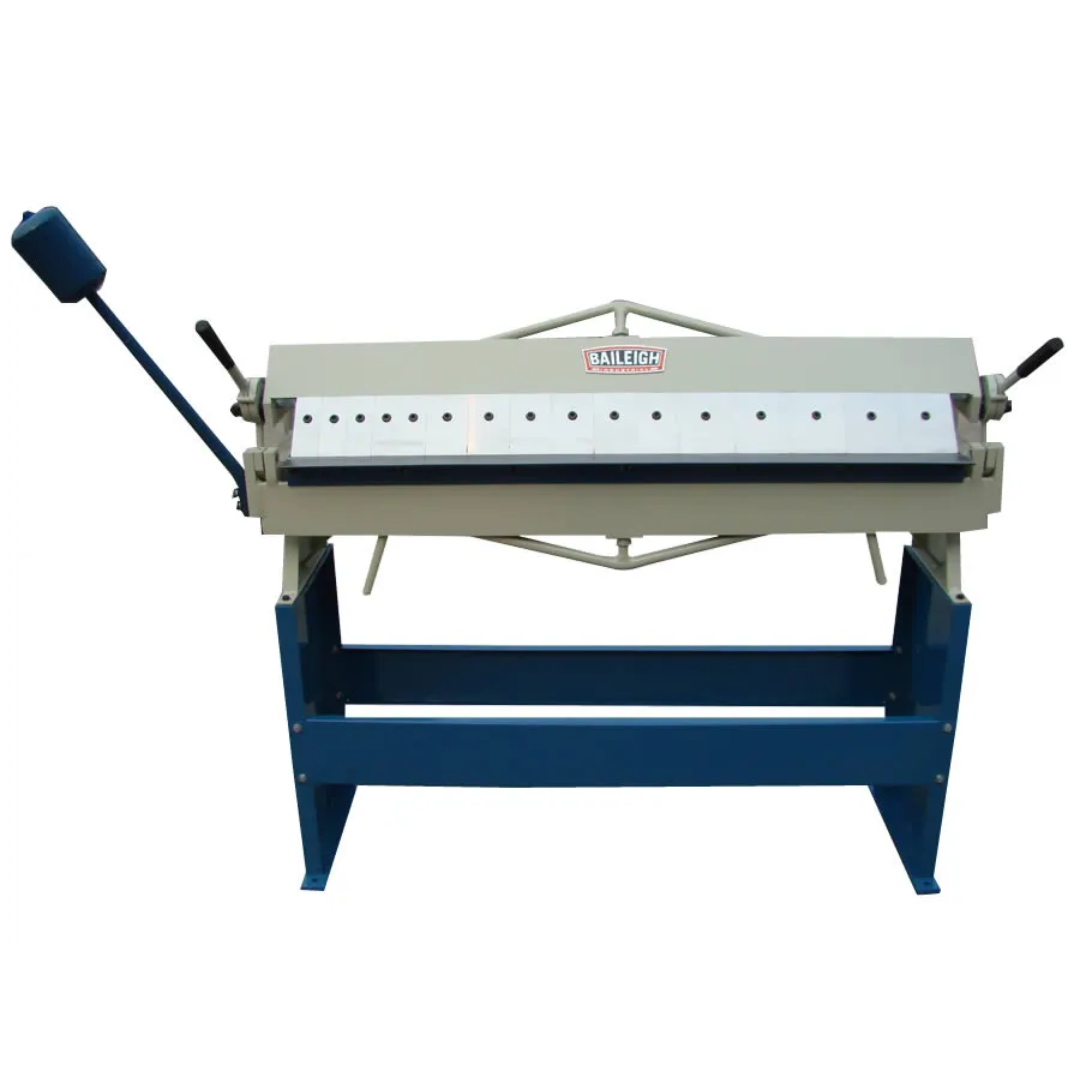

Baileigh Sheet Metal Brake - (BB-4816E) 1000475 Applications
- HVAC duct and ventilation component fabrication.
- Custom sheet metal boxes, pans, trays, and enclosures.
- Automotive restoration and custom fabrication projects.
- Maintenance and repair departments requiring precision bends.
- Prototype development and small production runs.
- Agricultural equipment repair and component manufacturing.
- General metal fabrication and light industrial applications.
- Educational and vocational metalworking facilities.
An excellent solution for shops requiring a compact yet capable manual box and pan brake with professional bending accuracy and versatile finger configurations.
Baileigh Sheet Metal Brake - (BB-4816E) 1000475 Specifications
| Model Number | BB-4816E |
|---|---|
| Product Number | 1000475 |
| Bending Capacity Length | 48 in. (4 ft.) |
| Mild Steel Capacity | 16 Gauge |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 1.5 in. |
| Operation Type | Manual |
| Finger Configuration | 16 Hardened Fingers |
| Frame Construction | Fully Welded Steel Plate Framework |
| Net Weight | 540 lbs. |
| Gross Weight | 540 lbs. |
| UPC | 731325392937 |
| Warranty | 1 Year |
Baileigh Sheet Metal Brake - (BB-4816E) 1000475 Performance & Construction
- 16-gauge mild steel capacity allows the machine to handle common fabrication materials with dependable accuracy and repeatability.
- 48-inch working width accommodates larger sheet metal panels while remaining compact enough for smaller fabrication shops.
- 135-degree maximum bend capability provides flexibility for producing channels, brackets, enclosures, and specialty formed parts.
- 16 hardened removable fingers enable multiple box and pan configurations for custom fabrication projects.
- Finger setback adjustment allows quick adaptation to different material thicknesses while maintaining proper bend quality.

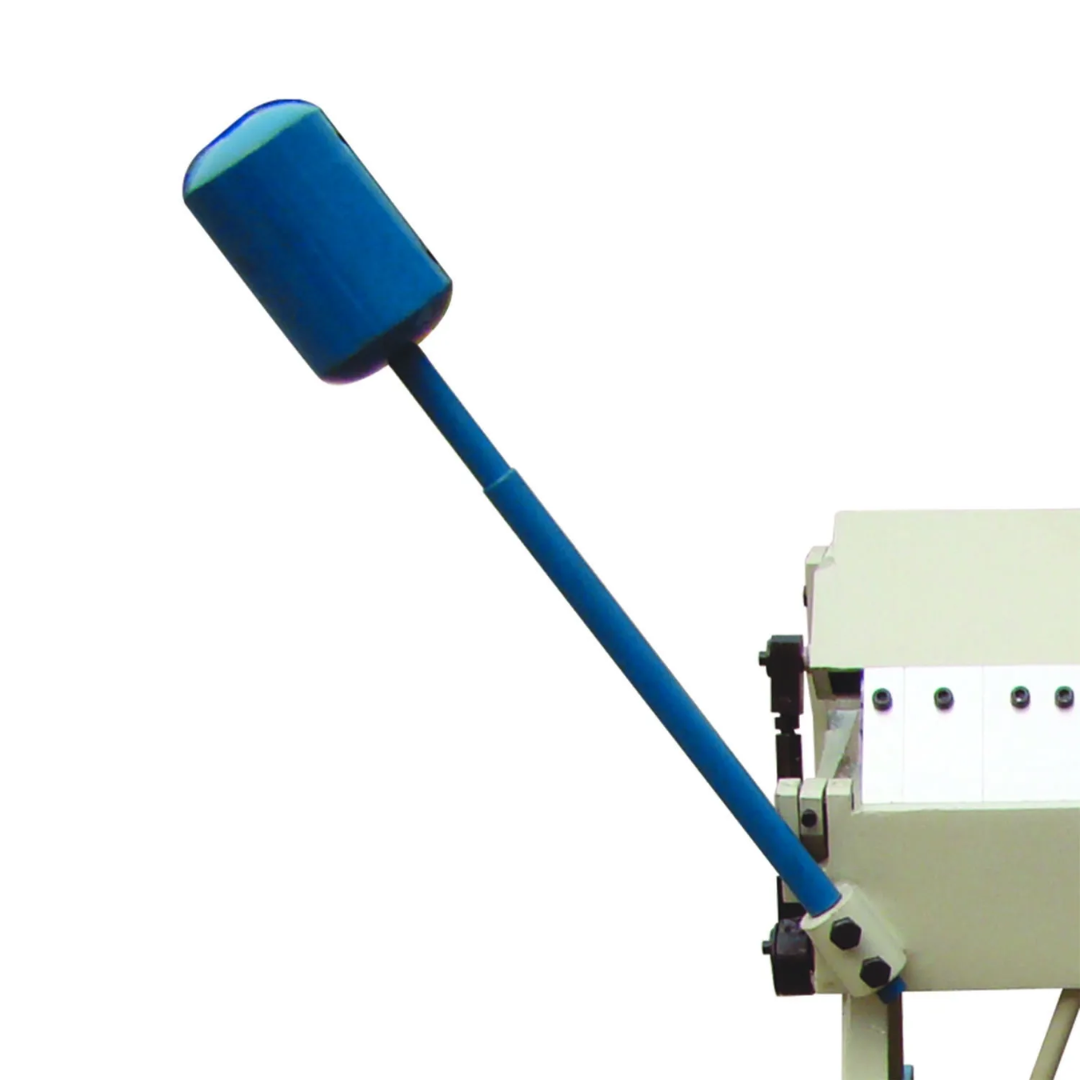

- Counterweight apron lift assist helps reduce operator effort during bending operations, especially when working near maximum material capacity.
- Fully welded steel plate construction enhances rigidity, minimizes flex, and improves overall bending precision.
- Manual operation eliminates the need for electrical power, making installation simple and operation reliable in virtually any workspace.
- 1.5-inch box depth capability supports the production of boxes, pans, trays, and formed components for numerous industries.
- Heavy-duty floor stand included provides stability during operation and improves overall workplace ergonomics.
- Built for repetitive daily use while maintaining accuracy and dependable forming performance.
- Backed by Baileigh support including a 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh Sheet Metal Brake - (BB-4816E) 1000475
- Professional-grade manual box and pan brake for precision fabrication work.
- 48-inch bending width provides excellent versatility for a wide range of projects.
- Capable of bending 16-gauge mild steel with up to 135° bend angles.
- 16 removable hardened fingers support numerous box and pan configurations.
- Counterweight-assisted apron reduces operator fatigue and improves productivity.
- Fully welded steel construction delivers long-term durability and dependable performance.
- Includes a floor stand and requires no external power source.
The Baileigh Sheet Metal Brake - (BB-4816E) 1000475 combines precision bending performance, rugged welded construction, and versatile box-and-pan forming capabilities, making it an excellent choice for fabrication professionals seeking reliable manual sheet metal forming equipment.
