Baileigh Shear Brake and Roll SBR-5220 1007002 Applications
- General sheet metal fabrication shops.
- HVAC duct and fitting fabrication.
- Maintenance and repair departments.
- Prototype and research & development facilities.
- Agricultural equipment repair.
- Automotive restoration and custom fabrication.
- Educational and vocational training workshops.
- Production of brackets, trays, channels, boxes, and rolled sheet metal components.

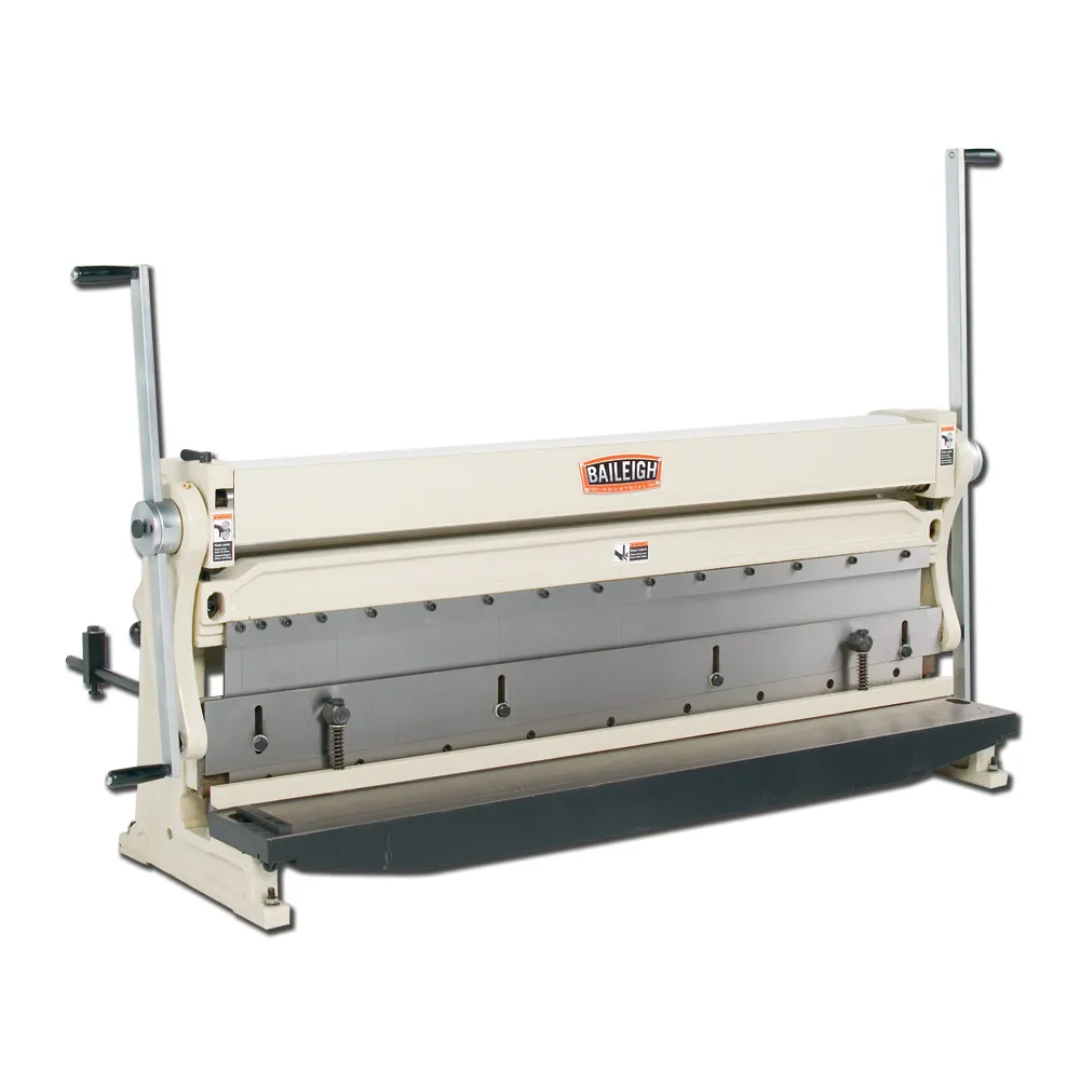

The Baileigh Shear Brake and Roll SBR-5220 1007002 is an ideal all-in-one fabrication solution for shops that need professional shearing, bending, and rolling capabilities while maximizing valuable floor space.
Baileigh Shear Brake and Roll SBR-5220 1007002 Specifications
| Model | SBR-5220 |
|---|---|
| Part Number | 1007002 |
| Machine Type | 3-in-1 Manual Shear, Brake & Roll |
| Operation | Manual |
| Working Width | 52" |
| Bending Length | 52" |
| Mild Steel Capacity | 20 Gauge |
| Aluminum Capacity | 16 Gauge |
| Shear Capacity | 20 Gauge (0.0396") Mild Steel |
| Rolling Capacity | 20 Gauge (0.0396") Mild Steel |
| Maximum Bend Angle | 90° Recommended (135° Maximum Machine Capability) |
| Minimum Roll Diameter | 2" |
| Slip Roll Features | Wire Forming Grooves |
| Brake Tooling | Removable Hardened Finger Dies |
| Shear Blades | Hardened and Reversible |
| Back Gauge | Included |
| Frame Construction | Heavy-Duty Steel Frame |
| Net Weight | 860 lbs. |
| Gross Weight | 860 lbs. |
| UPC | 731325412727 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh Shear Brake and Roll SBR-5220 1007002 Performance & Construction
- Three machines in one compact footprint combine manual shearing, bending, and slip rolling to maximize shop efficiency while minimizing floor space requirements.
- 52-inch working width easily accommodates standard 4-foot sheet metal, making it ideal for fabrication, repair, and production work.
- 20-gauge mild steel and 16-gauge aluminum capacity provide excellent versatility for common fabrication materials across all three machine functions.

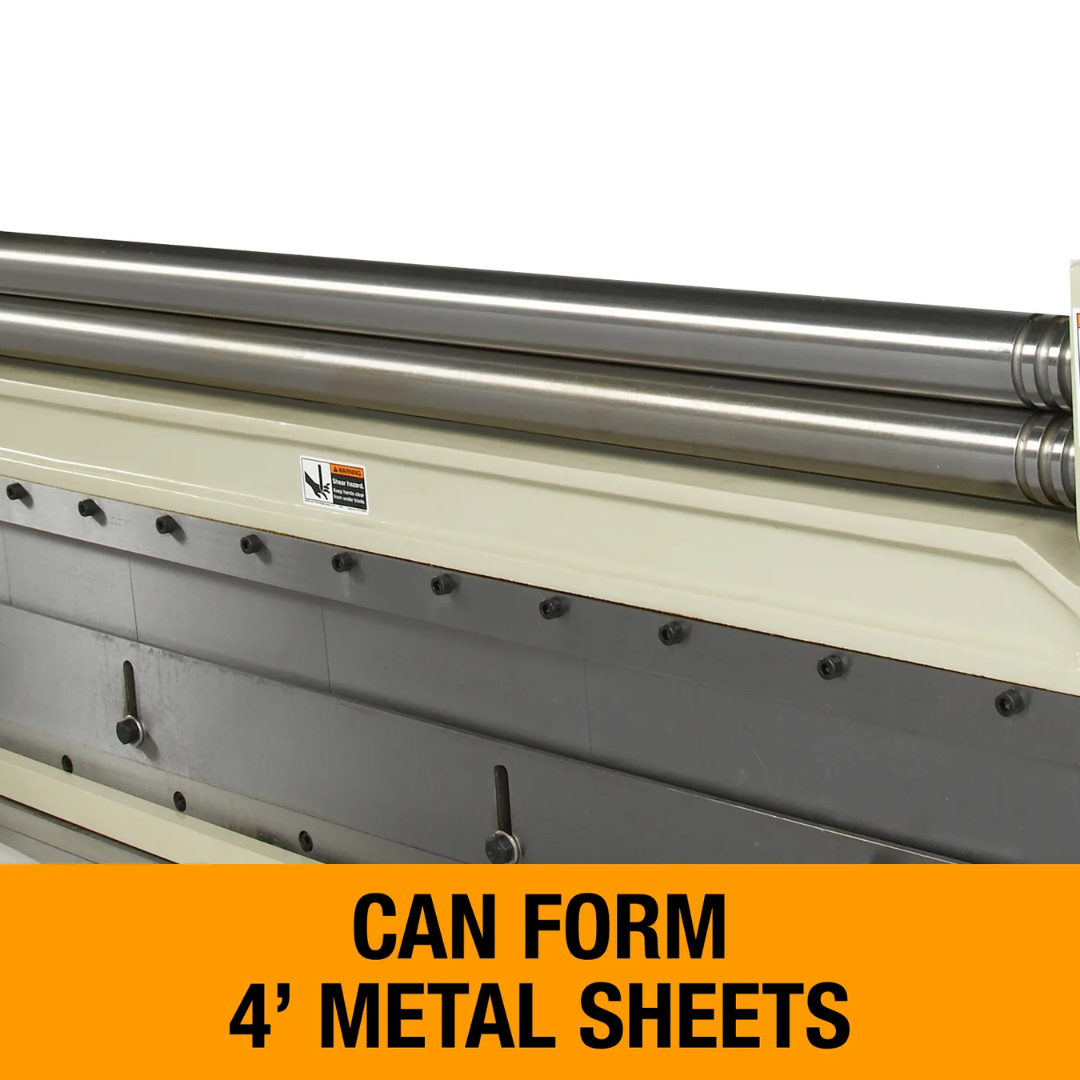

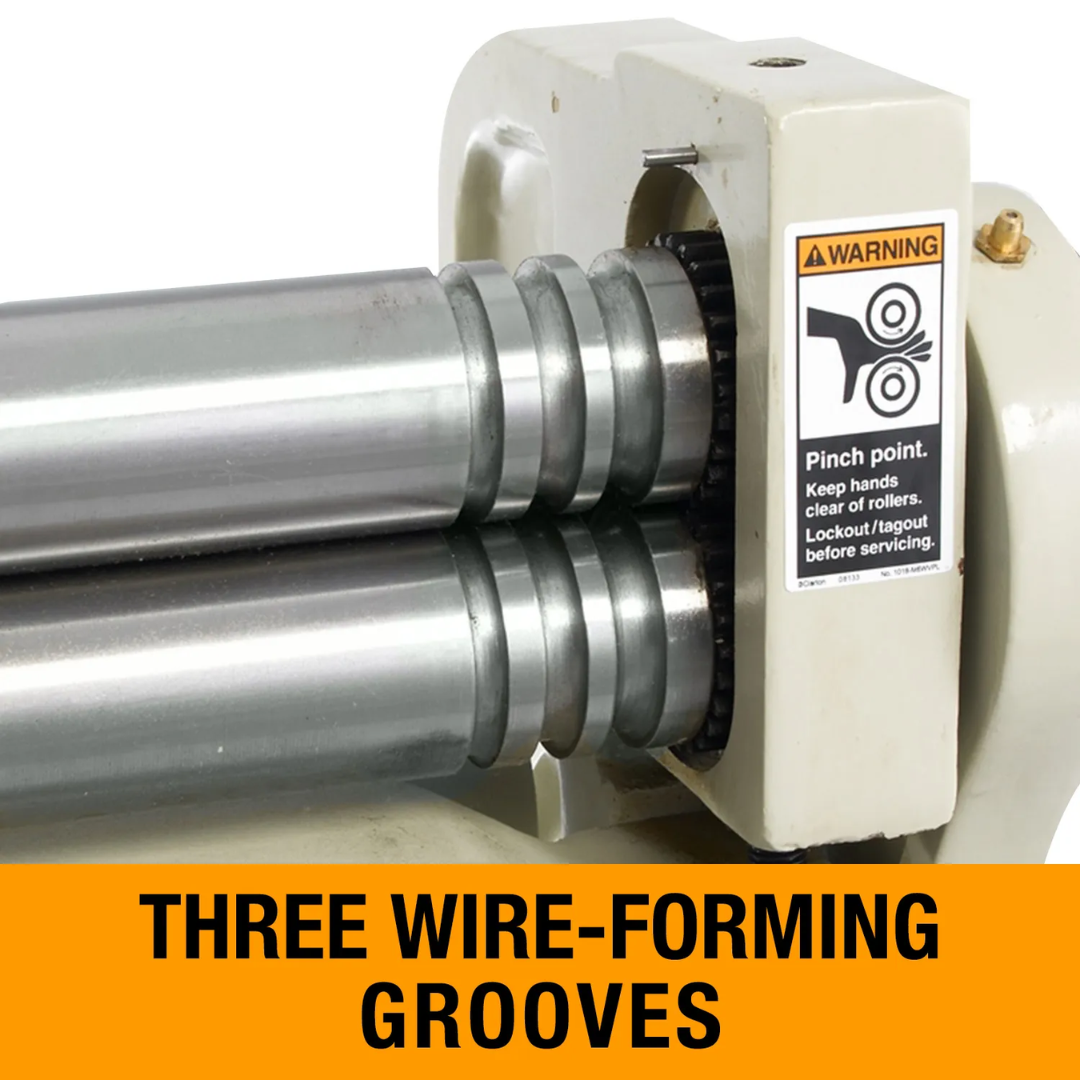

- Heavy-duty manual slip roll forms cylinders, curved panels, and rolled components while featuring integrated wire-forming grooves for reinforcing sheet metal edges.
- 2-inch minimum roll diameter allows tight-radius rolling for a wide variety of fabrication applications.

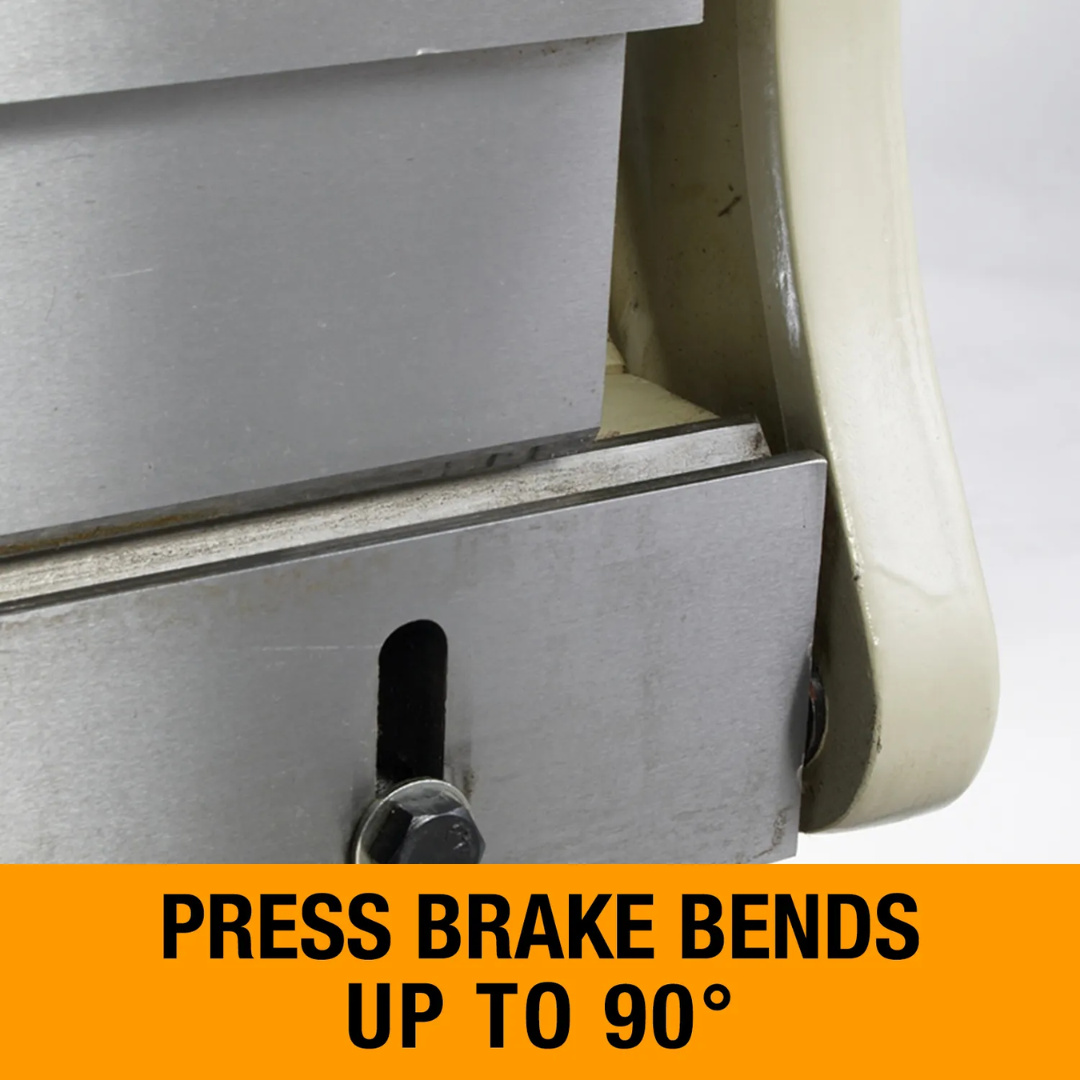

- Manual press brake features removable hardened finger dies for producing boxes, pans, channels, and custom bent components with exceptional flexibility.
- 90° recommended bending capability with a maximum machine bend capability of 135° expands forming possibilities for custom fabrication projects.

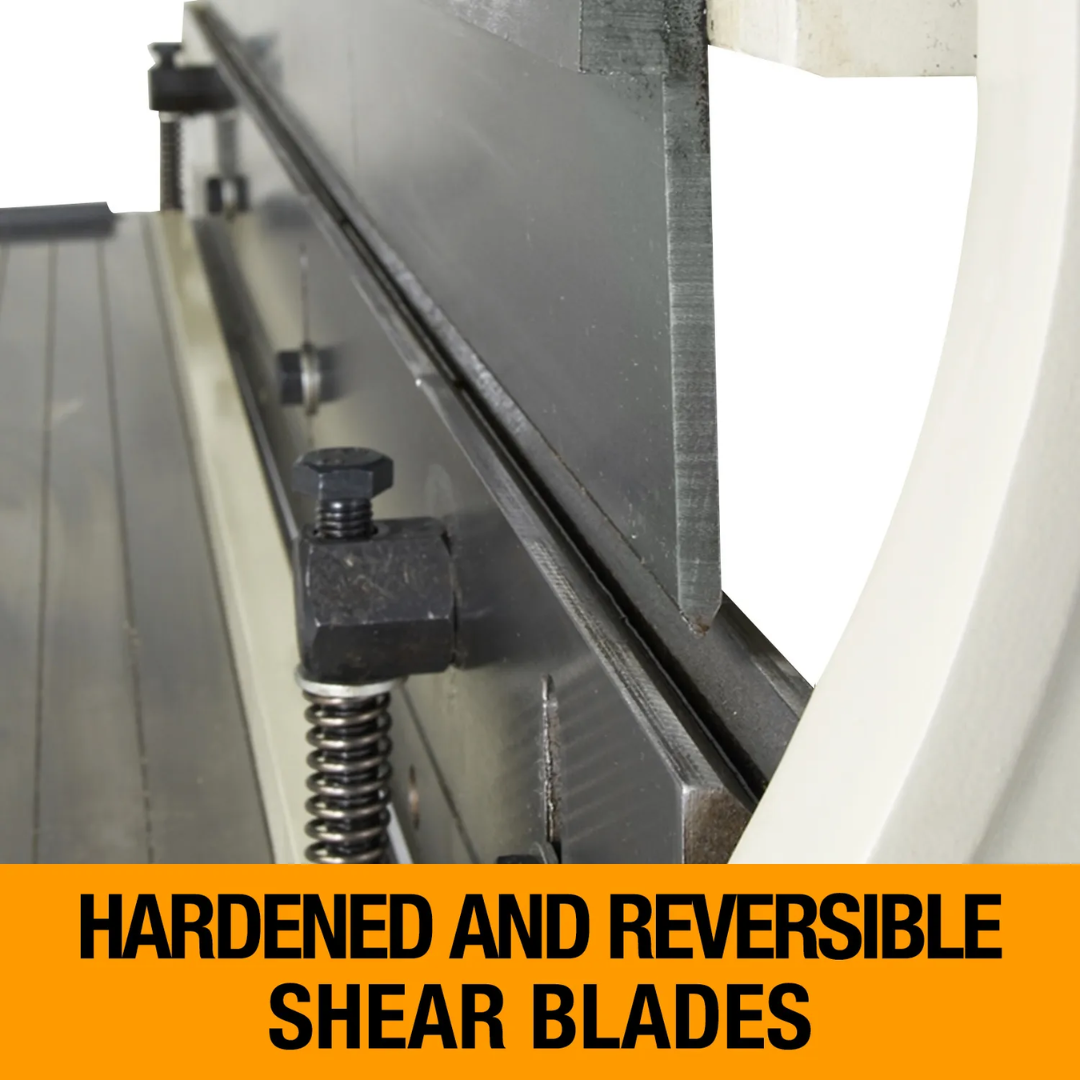

- Manual shear with hardened reversible blades produces clean, accurate cuts while extending blade service life through reversible cutting edges.
- Integrated back gauge improves repeatability and production efficiency when manufacturing multiple identical parts.
- Rigid heavy steel frame construction minimizes flex during shearing, bending, and rolling operations to maintain accuracy throughout the machine's full working width.
- Manual operation requires no electrical power, making the machine ideal for virtually any workshop, maintenance department, or field fabrication environment.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Shear Brake and Roll SBR-5220 1007002
- Three fabrication functions combined into one space-saving machine.
- 52-inch capacity accommodates standard 4-foot sheet metal.
- Handles 20-gauge mild steel and 16-gauge aluminum across all functions.
- Slip roll with wire grooves forms cylinders and reinforced edges.
- Removable hardened brake fingers allow box and pan fabrication.
- Hardened reversible shear blades provide long service life and clean cuts.
- Integrated back gauge improves production consistency.
- Heavy-duty steel frame delivers excellent rigidity and accuracy.
- Manual operation eliminates electrical requirements and simplifies installation.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Shear Brake and Roll SBR-5220 1007002 is a professional-grade 3-in-1 sheet metal fabrication machine that delivers dependable shearing, precision bending, and smooth rolling performance in one rugged, compact platform. Its heavy-duty construction, versatile tooling, and full 52-inch working width make it an outstanding solution for fabrication shops, maintenance departments, educational facilities, and prototype manufacturing.
