Baileigh Semi-Automatic Cold Saw CS-C485SA 1002634 Applications
- Industrial metal fabrication facilities.
- Structural steel and tube fabrication.
- Machine shops producing precision-cut components.
- Production cutting of round tube, pipe, and solid stock.
- Automotive, aerospace, and equipment manufacturing.
- Welding and fabrication departments requiring burr-free cuts.
- High-volume production environments requiring repeatable part lengths.
- General manufacturing and maintenance operations.

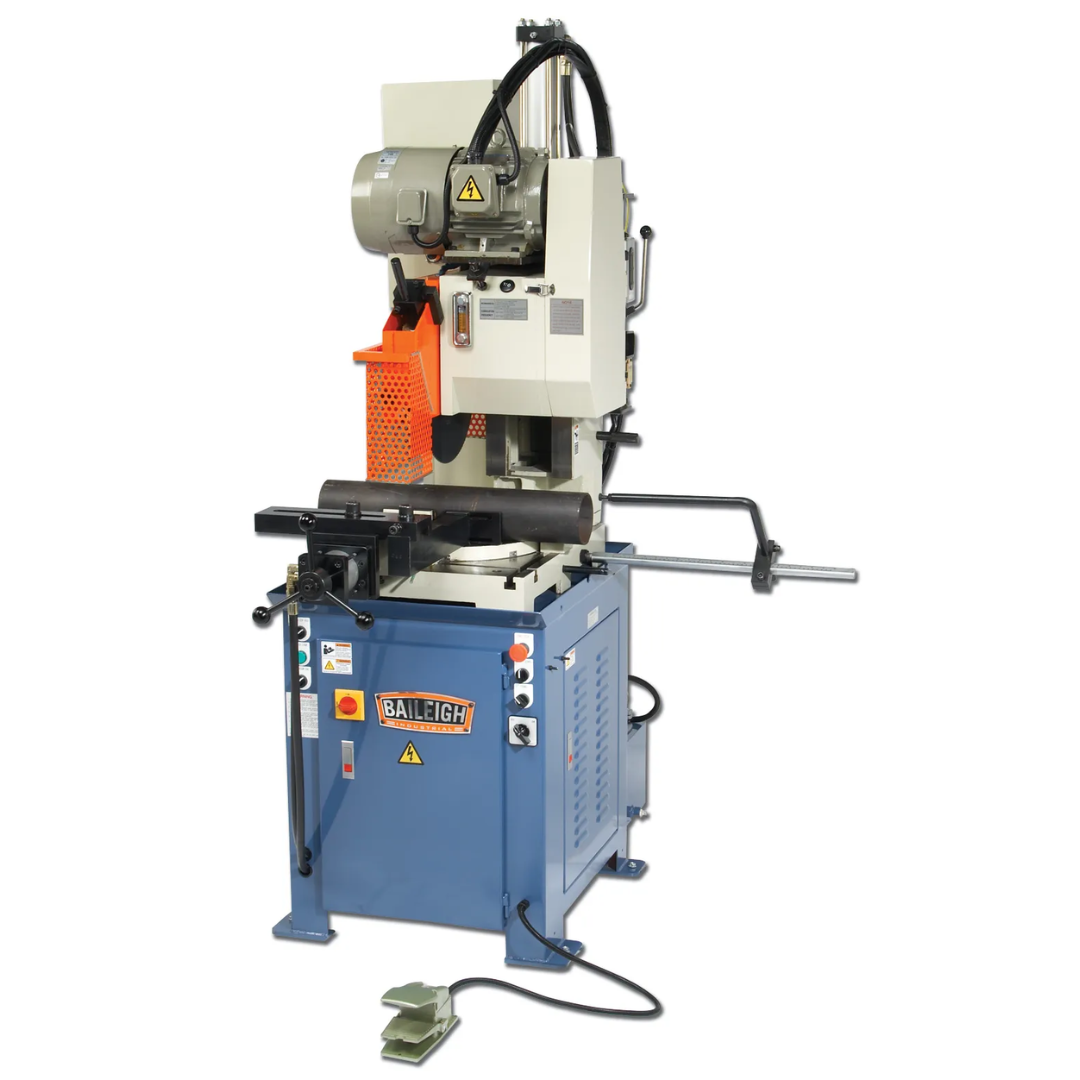

The Baileigh Semi-Automatic Cold Saw CS-C485SA 1002634 is designed for shops that require fast, repeatable, high-quality cuts while minimizing secondary finishing operations and maximizing production efficiency.
Baileigh Semi-Automatic Cold Saw CS-C485SA 1002634 Specifications
| Model | CS-C485SA |
|---|---|
| Manufacturer | Baileigh Industrial |
| Product Number | 1002634 |
| Machine Type | Semi-Automatic Cold Saw |
| Blade Size | 16.5 in. |
| Motor | 5 HP |
| Input Power | 220V Three Phase |
| Variable Blade Speed | 40 – 240 RPM |
| Maximum Round Tube Capacity | 2.75 in. |
| Miter Range | 30° Right / 45° Left |
| Vise Style | Hydraulic Self-Centering Vise |
| Stop System | Metered Stop Rod |
| Coolant System | Flood Coolant with Integrated Chip Brush |
| Net Weight | 1,900 lbs. |
| Gross Weight | 1,900 lbs. |
| Warranty | 1 Year |
| UPC | 19907702986 |
Baileigh Semi-Automatic Cold Saw CS-C485SA 1002634 Performance & Construction
- Powerful 5 HP industrial motor delivers dependable cutting performance for demanding production applications.
- 220V three-phase electrical operation provides consistent power for continuous fabrication and manufacturing environments.
- 16.5-inch cold saw blade capacity allows large-capacity cutting while maintaining exceptional surface finish and dimensional accuracy.
- Inverter-controlled variable blade speed adjusts from 40 to 240 RPM, allowing operators to optimize cutting speed for different materials and cross sections.
- Hydraulic self-centering vise securely clamps material while automatically centering stock for improved cutting precision and repeatability.
- 2.75-inch round tube cutting capacity handles common tubing and pipe sizes used in fabrication, manufacturing, and industrial production.
- Miter capability of 30° right and 45° left provides flexibility for angled cuts without sacrificing accuracy.
- Metered stop rod enables repeatable production lengths for efficient batch processing and minimized measuring time.
- Flood coolant system with integrated chip brush continuously cools the blade, removes chips, improves cut quality, and significantly extends blade life.
- Heavy cast-iron construction minimizes vibration while increasing machine rigidity for smooth, accurate cuts.
- Vertical column design maintains blade alignment throughout the cutting cycle for consistent precision during high-volume production.
- Semi-automatic hydraulic operation reduces operator fatigue while increasing productivity and repeatability.
- Backed by Baileigh's 1-year warranty and supported with lifetime technical assistance for dependable long-term ownership.
Why Choose the Baileigh Semi-Automatic Cold Saw CS-C485SA 1002634
- Industrial-grade semi-automatic cold saw designed for production environments.
- Powerful 5 HP motor with inverter-controlled variable speeds from 40–240 RPM.
- Large 16.5-inch blade handles demanding metal cutting applications.
- Hydraulic self-centering vise improves cutting accuracy and consistency.
- Flood coolant system extends blade life while producing cleaner, burr-free cuts.
- 2.75-inch round tube capacity accommodates common structural materials.
- 30° right and 45° left miter capability increases fabrication versatility.
- Heavy-duty cast-iron construction minimizes vibration for superior cutting precision.
- Metered stop rod simplifies repeat production and improves workflow efficiency.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Semi-Automatic Cold Saw CS-C485SA 1002634 delivers the accuracy, durability, and production efficiency demanded by professional fabrication shops. Combining a rigid cast-iron frame, variable-speed inverter drive, hydraulic self-centering vise, flood coolant system, and semi-automatic operation, this industrial cold saw provides consistently clean, burr-free cuts while maximizing productivity and reducing operator effort in high-volume metalworking applications.
