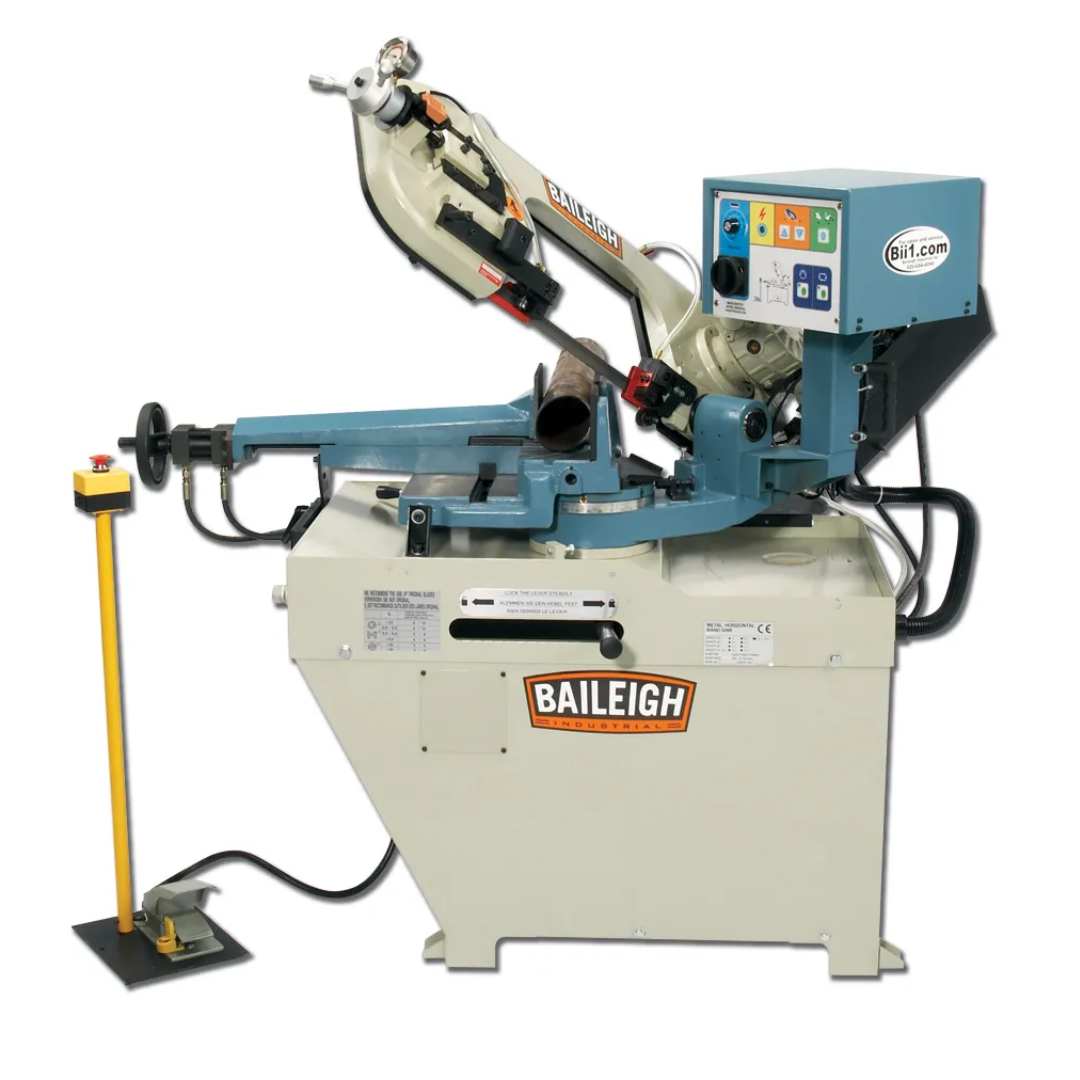

Baileigh Semi-Auto Bandsaw BS-260SA 1001438 Applications
- Production metal fabrication shops.
- Industrial maintenance departments.
- Machine shops and manufacturing facilities.
- Cutting structural steel, tubing, pipe, angle iron, and solid bar.
- Fabrication of frames, machinery, railings, and structural assemblies.
- Repeat production cutting with minimal operator intervention.
- Straight and precision miter cutting for steel, stainless steel, aluminum, and other metals.
The semi-automatic hydraulic operating cycle reduces operator fatigue while increasing production efficiency and delivering highly repeatable cutting performance.
Baileigh Semi-Auto Bandsaw BS-260SA 1001438 Specifications
| Model | BS-260SA |
|---|---|
| Part Number | 1001438 |
| Machine Type | Semi-Automatic Horizontal Metal Bandsaw |
| Motor Power | 1.5 HP |
| Power Requirement | 220V Single-Phase |
| Motor Speed | 1720 RPM |
| Round Cutting Capacity (90°) | 8.93" |
| Notching Capacity | 8.75" OD |
| Blade Width | 1" |
| Blade Speed | 66–280 Variable FPM (AC Inverter Controlled) |
| Blade Guides | Carbide Roller Guides |
| Miter Range | 60° Right / 45° Left |
| Miter Adjustment | Dual Swivel Head |
| Feed Control | Pressure Assist Hydraulic Descent |
| Saw Head Return | Hydraulic Automatic Return |
| Drive System | Gear-Driven Direct Drive |
| Coolant System | Standard Flood Coolant System |
| Construction | Cast Iron Saw Bow and Pivot Head with Reinforced Steel Base |
| Net Weight | 888 lbs. |
| Gross Weight | 888 lbs. |
| UPC | 731325397710 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh Semi-Auto Bandsaw BS-260SA 1001438 Performance & Construction
- Powerful 1.5 HP industrial motor operating on 220V single-phase power delivers reliable cutting performance for demanding fabrication and production environments.
- Semi-automatic hydraulic operation automates material clamping, controlled feed pressure, and hydraulic saw head return to improve productivity while reducing operator fatigue.
- Large 8.93-inch round cutting capacity accommodates pipe, tubing, structural steel, and solid stock for a broad range of fabrication applications.
- Dual-swivel miter head provides cutting angles up to 60° right and 45° left without moving the material, increasing efficiency and setup accuracy.
- Gear-driven direct-drive transmission eliminates belt maintenance while delivering consistent torque and dependable cutting performance.
- Variable blade speed from approximately 66–280 FPM allows operators to optimize blade speed for different materials, improving surface finish and blade life.
- Industrial 1-inch blade compatibility offers excellent beam strength and cutting stability during demanding applications.
- Carbide roller blade guides maintain accurate blade tracking while minimizing blade deflection for straighter, cleaner cuts.
- Pressure-assist hydraulic descent control delivers smooth feed rates that improve cut quality and maximize blade longevity.
- Heavy cast iron saw bow and reinforced steel base minimize vibration while maintaining precise alignment for long-term industrial performance.
- Standard flood coolant system cools the blade, removes chips, and extends blade life during continuous production cutting.
- Designed for production fabrication, maintenance facilities, manufacturing plants, and professional metalworking shops requiring dependable semi-automatic operation.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh Semi-Auto Bandsaw BS-260SA 1001438
- Semi-automatic hydraulic cycle increases production efficiency.
- 1.5 HP industrial motor provides dependable cutting performance.
- Dual-swivel head miters 60° right and 45° left without repositioning material.
- Large 8.93" round cutting capacity handles structural steel and pipe with ease.
- Gear-driven transmission minimizes maintenance while maximizing durability.
- Variable blade speeds optimize cutting across a wide range of metals.
- Pressure-assist hydraulic feed improves cut quality and blade life.
- Heavy-duty cast iron construction delivers exceptional rigidity and accuracy.
- Flood coolant system supports continuous industrial operation.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Semi-Auto Bandsaw BS-260SA 1001438 combines hydraulic automation, dual-swivel miter capability, industrial-grade construction, and variable-speed cutting into one highly productive horizontal bandsaw. Built for fabrication shops, production facilities, and maintenance departments, it delivers precise, repeatable metal cutting while minimizing operator effort and maximizing shop efficiency.
