Baileigh Reversible Finger Brake (BB-5016F-DS) Applications
- Sheet metal fabrication shops.
- HVAC ductwork and transition fabrication.
- Electrical enclosure and cabinet manufacturing.
- Automotive restoration and custom fabrication.
- Architectural sheet metal production.
- Manufacturing boxes, pans, trays, tanks, and channels.
- Creating reverse bends and complex formed sheet metal components.
Ideal for fabricators who need the flexibility to produce complex bends and reverse bends that traditional box and pan brakes cannot easily accomplish.
Baileigh Reversible Finger Brake (BB-5016F-DS) Specifications
| Model | BB-5016F-DS |
|---|---|
| Product Number | 1010428 |
| Operation | Manual |
| Bending Capacity | 50 in. |
| Material Capacity | 16 Gauge Mild Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 2.5 in. |
| Finger Configuration | Segmented Hardened Fingers on Upper and Lower Beams |
| Clamping System | Manual Foot-Operated Clamp |
| Blade Gap Adjustment | Adjustable for Various Material Thicknesses |
| Repeat Stop | Adjustable Stop Rod |
| Net Weight | 1,000 lb |
| Gross Weight | 1,000 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 19907011378 |
Baileigh Reversible Finger Brake (BB-5016F-DS) Performance & Construction
- Reversible finger brake design significantly expands forming capability by allowing reverse bends and complex shapes that are difficult or impossible with conventional sheet metal brakes.
- 50-inch bending capacity accommodates long sheet metal panels for large fabrication projects while maintaining consistent bend accuracy.
- 16-gauge mild steel capacity provides the strength required for professional fabrication, HVAC work, cabinet construction, and industrial manufacturing.

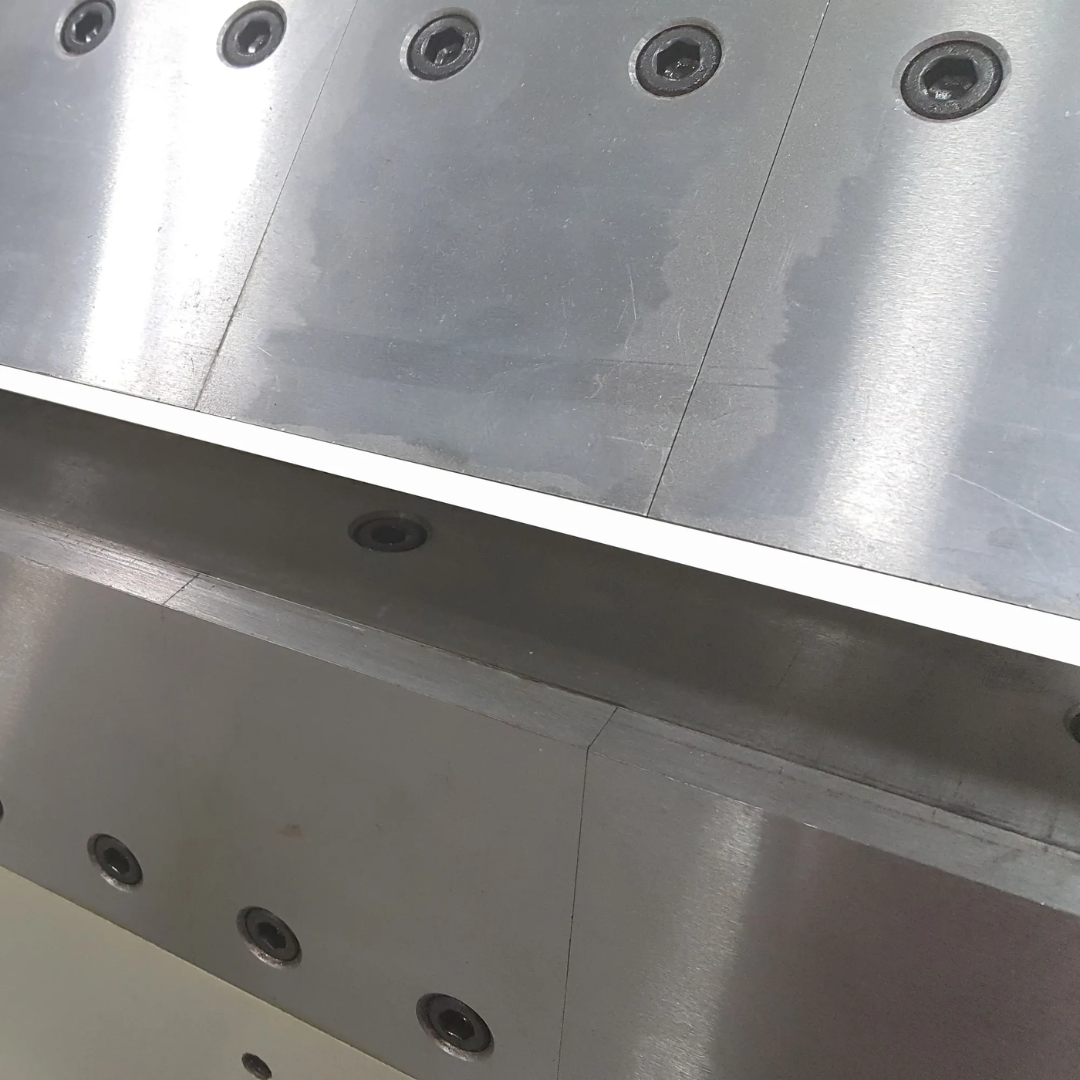

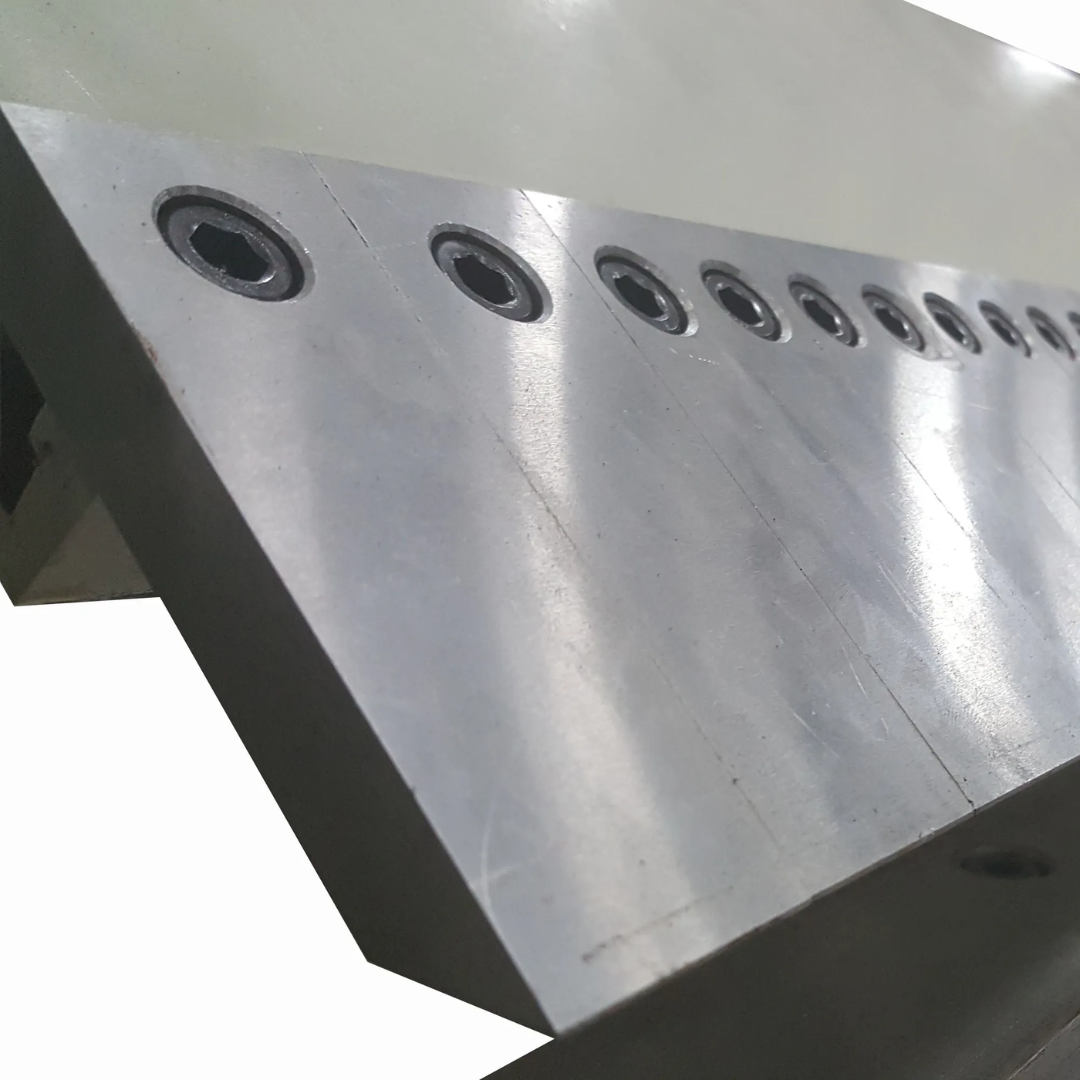

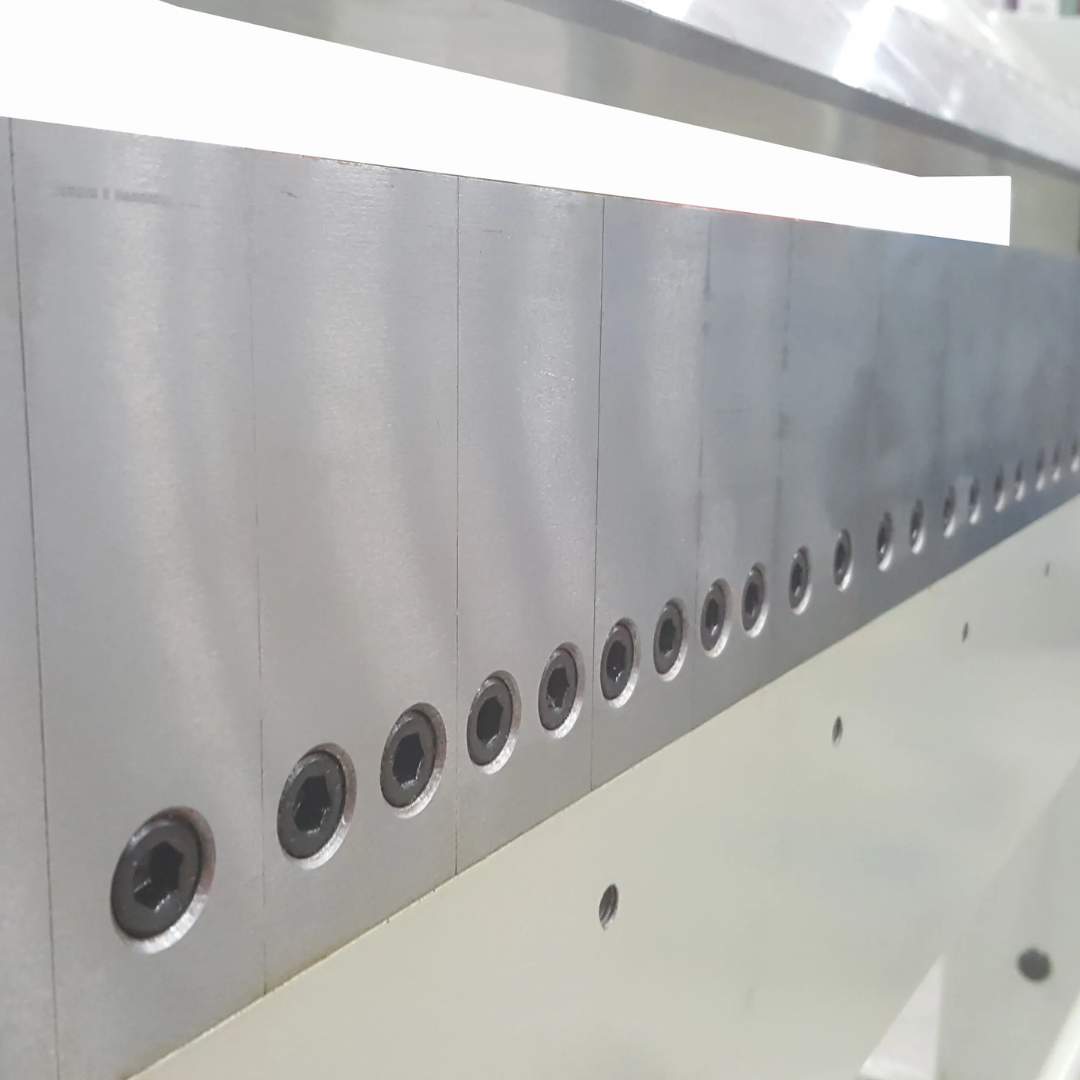

- Segmented hardened fingers on both upper and lower beams offer exceptional flexibility when producing boxes, pans, channels, offsets, and intricate formed parts.

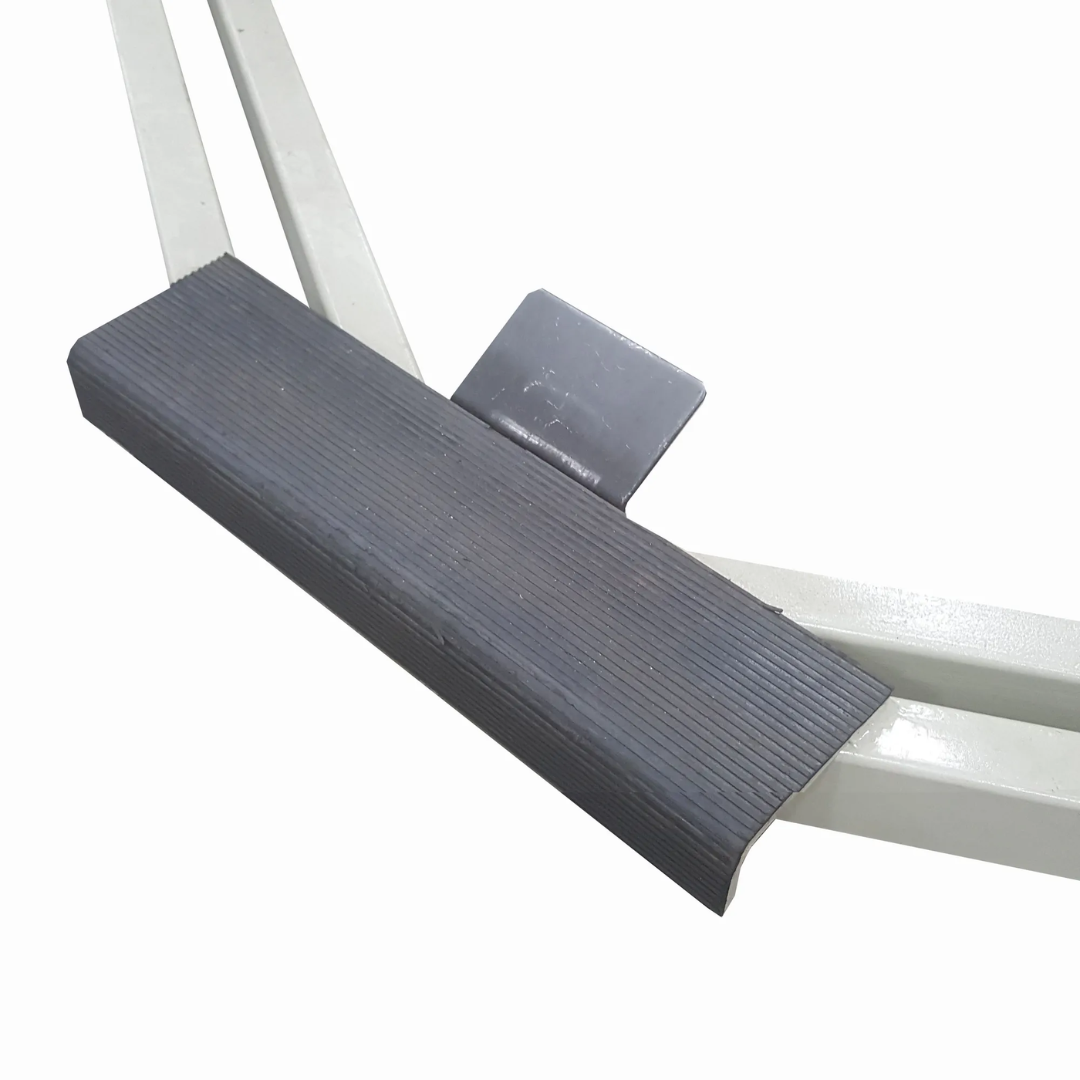

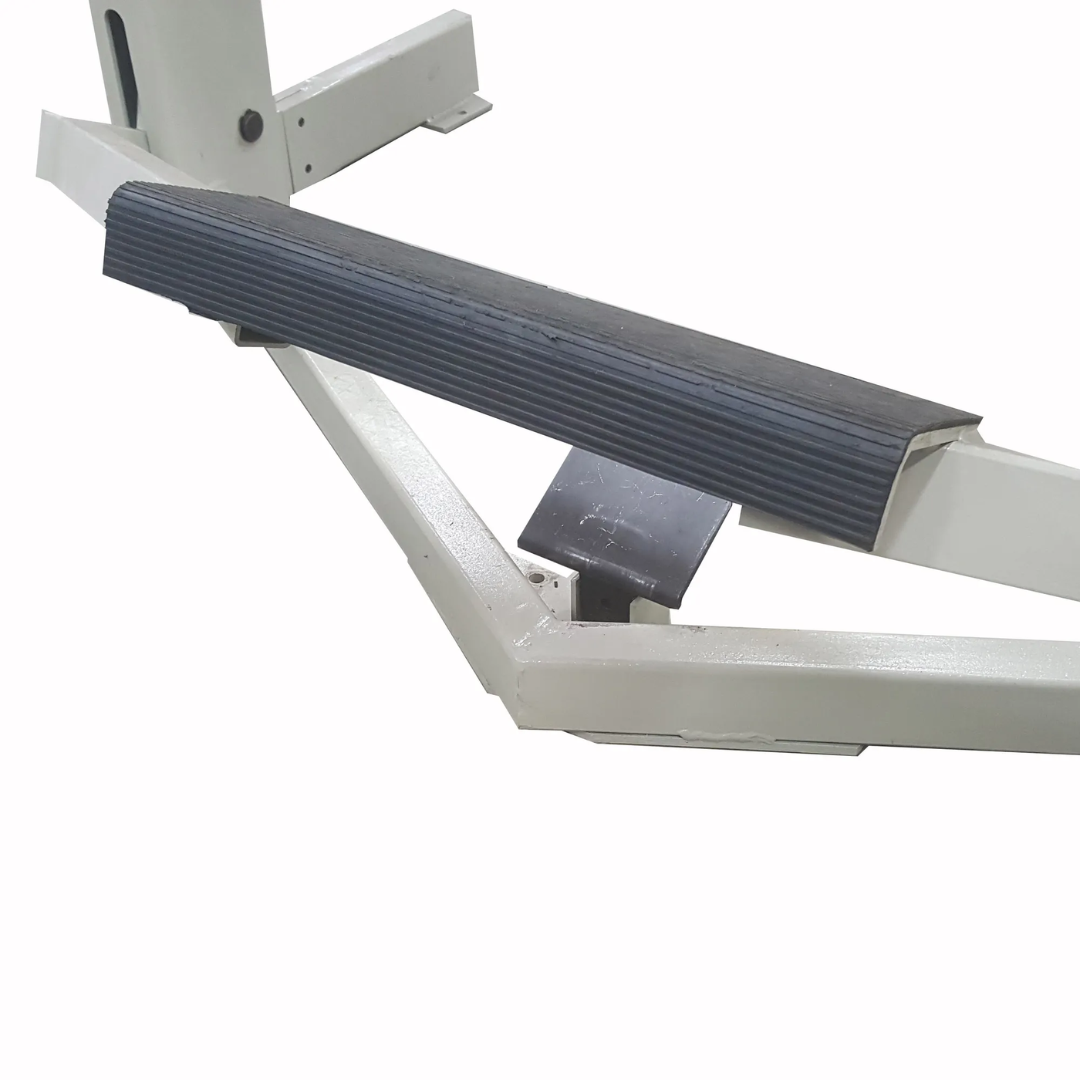

- Manual foot-operated clamping system leaves both hands free to accurately position material before forming, improving productivity and reducing setup errors.

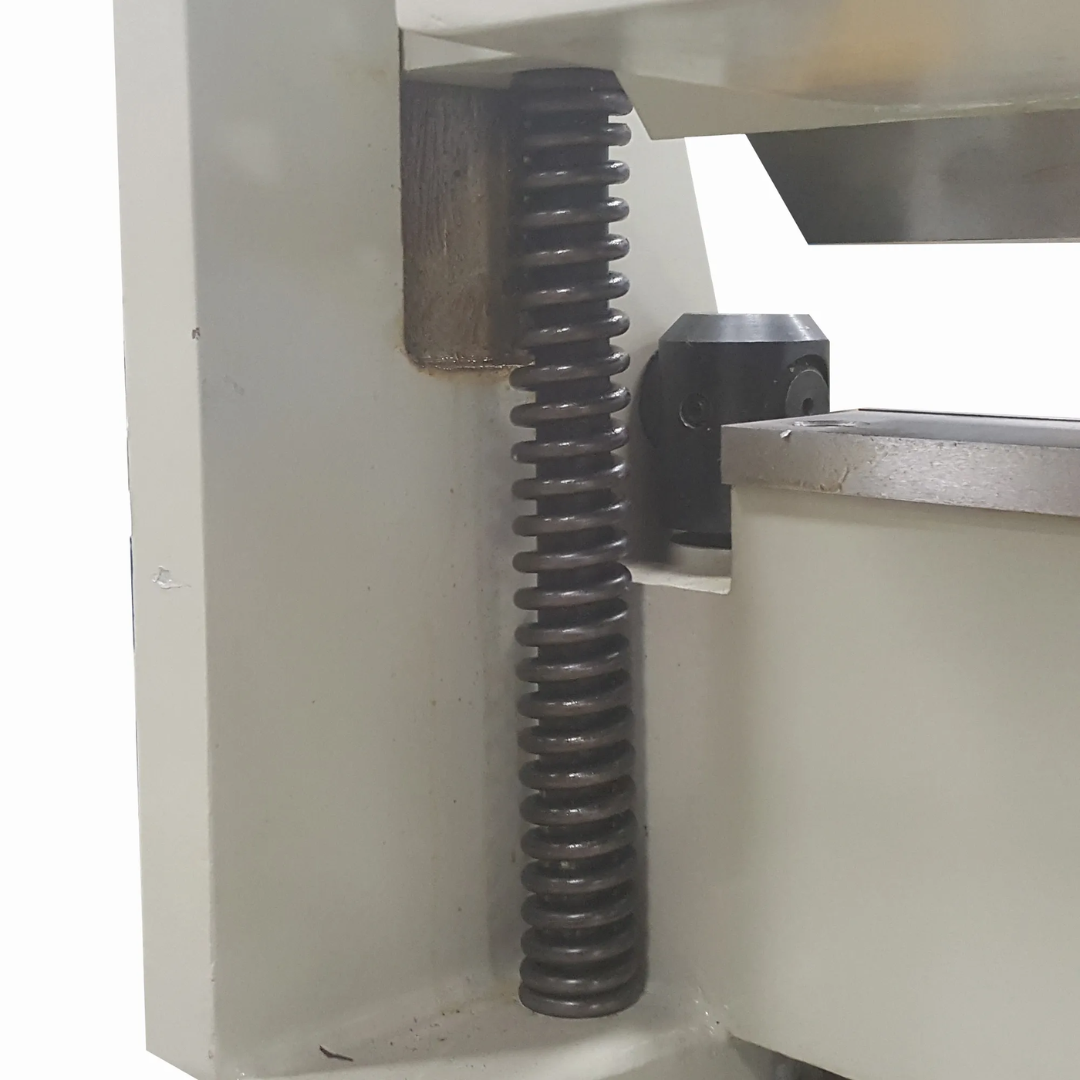

- Spring-assisted apron lifting cylinder helps reduce operator fatigue by making repetitive bending operations smoother and easier.

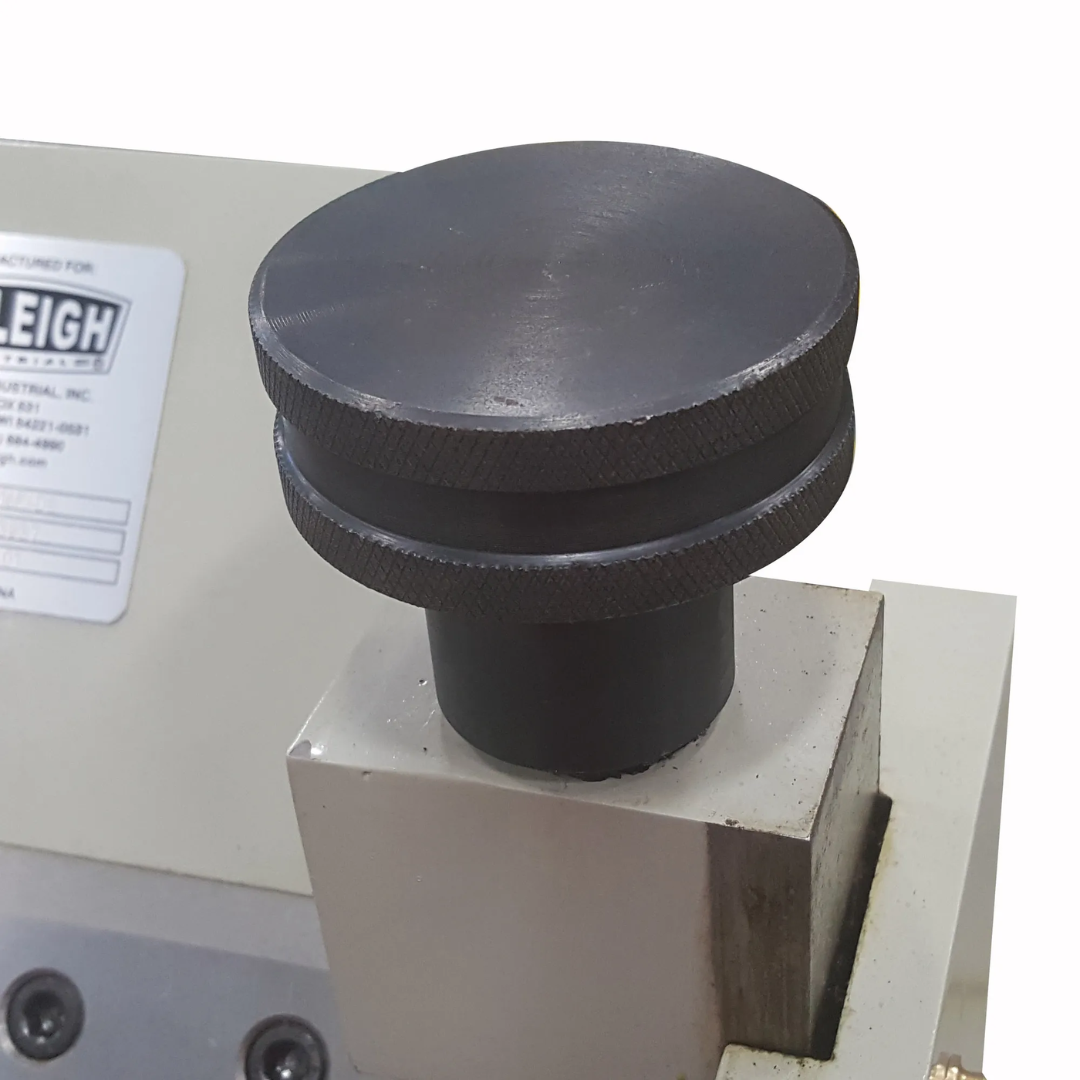

- Adjustable blade gap allows quick setup for different sheet metal thicknesses while maintaining clean, accurate bends.
- Adjustable stop rod enables repeatable bends for production runs, helping maintain dimensional consistency from part to part.
- Maximum 135° bending capability provides flexibility for standard bends, acute angles, and custom forming applications.
- Heavy-duty industrial construction and approximately 1,000-pound machine weight provide outstanding rigidity, stability, and long-term accuracy in demanding fabrication environments.
Baileigh Reversible Finger Brake (BB-5016F-DS) Features & Benefits
- 50-inch working width supports large sheet metal projects.
- Handles up to 16-gauge mild steel.
- Segmented hardened fingers allow complex bends and reverse bends.
- Manual foot-operated clamping system improves material positioning accuracy.
- Maximum 135° bend angle accommodates a wide range of forming applications.
- 2.5-inch maximum box depth for producing boxes, trays, and pans.
- Adjustable blade gap provides fast setup for different material thicknesses.
- Adjustable stop rod increases repeatability during production runs.
- Spring-assisted apron reduces operator effort during repetitive bending.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh Reversible Finger Brake (BB-5016F-DS)
- Produces reverse bends and complex geometries beyond standard box brakes.
- Large 50-inch capacity handles full-size sheet metal fabrication projects.
- Foot-operated clamping improves precision while increasing operator efficiency.
- Segmented finger system offers outstanding versatility for custom fabrication.
- Industrial construction ensures years of dependable service.
- Excellent choice for fabrication shops, HVAC manufacturers, and industrial sheet metal production.

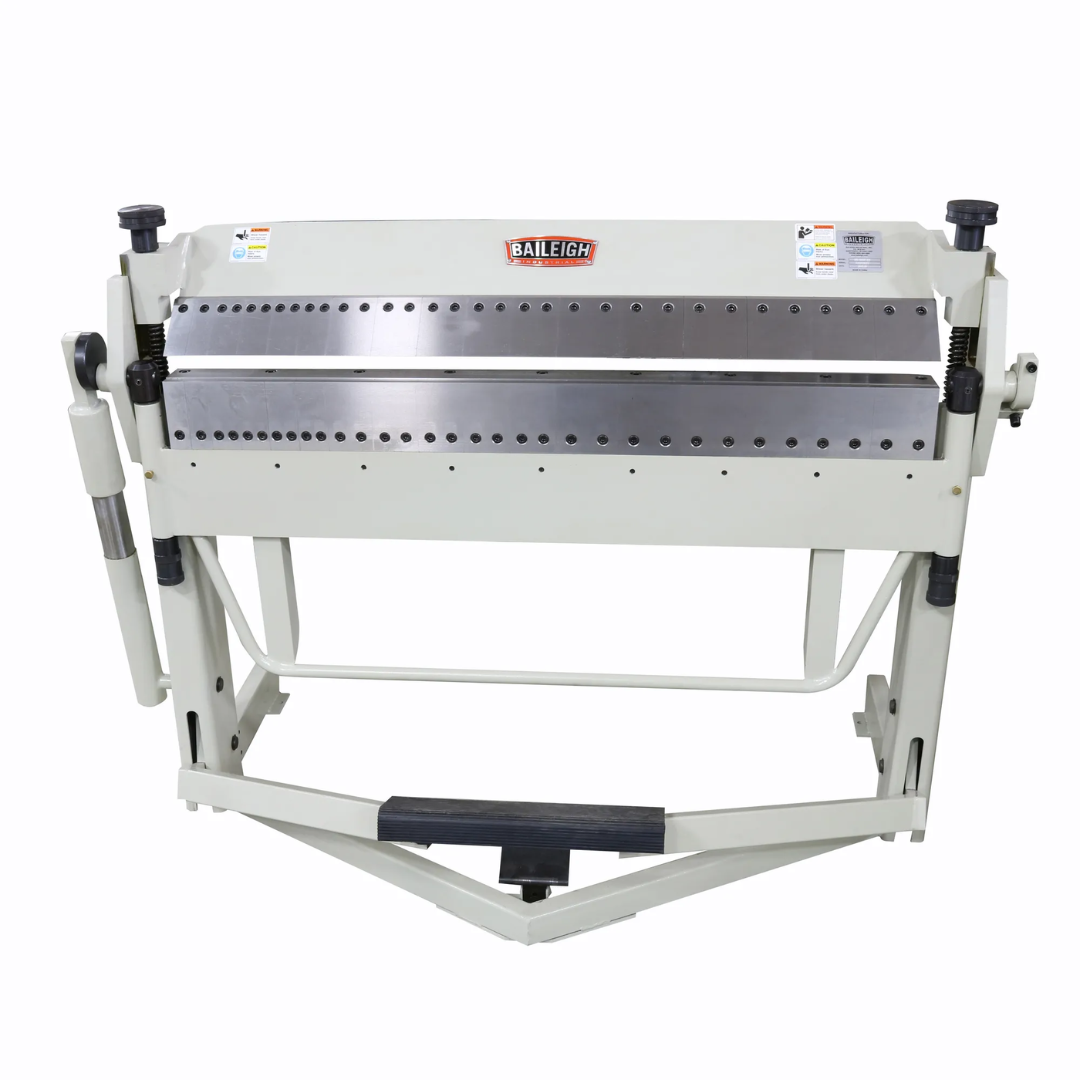

The Baileigh Reversible Finger Brake (BB-5016F-DS) is a versatile industrial sheet metal brake that combines heavy-duty construction, segmented reversible fingers, foot-operated clamping, and precision manual control into one powerful fabrication solution. Designed for professionals who need to create complex bends, reverse bends, boxes, pans, and custom sheet metal components, this machine delivers exceptional flexibility, repeatability, and long-term reliability.
