Baileigh Radial Jaw Tube and Pipe Notcher, 2.5" OD Capacity - (TN-250) BA9-METN250 Applications
- Automotive chassis and roll cage fabrication.
- Custom motorcycle and off-road vehicle construction.
- Handrail, guardrail, and architectural metal fabrication.
- Tube frame manufacturing and structural welding projects.
- Furniture and decorative tubular metal fabrication.
- Race car, drag car, and performance vehicle fabrication.
- Industrial maintenance and custom repair work.
- Precision pipe and tubing coping for welding applications.
Perfect for fabricators who require accurate tube coping, repeatable notch angles, and the flexibility to notch straight or pre-bent tubing without complicated setups.
Baileigh Radial Jaw Tube and Pipe Notcher, 2.5" OD Capacity - (TN-250) BA9-METN250 Specifications
| Model Number | TN-250 |
|---|---|
| Product Keyword | Baileigh Radial Jaw Tube and Pipe Notcher, 2.5" OD Capacity - (TN-250) BA9-METN250 |
| Machine Type | Manual Hole Saw Tube and Pipe Notcher |
| Tube Capacity | 0.5 in. to 2.5 in. OD |
| Maximum Notch Capacity | 2.5 in. OD |
| Notch Angle Range | 0° – 180° |
| Carriage Angle Adjustment | 0° – 220° |
| Pivot Range | 220° Left to Right |
| Input Power | Electric Drill (Not Included) |
| Mounting Rail Offset Capacity | Up to 1 in. |
| Shaft Type | 1.25 in. Thomson® Shaft |
| Bearing System | Sealed and Oiled Needle Bearings |
| Backbone Construction | 0.75 in. Steel Plate |
| Work Height | 47.5 in. |
| Net Weight | 43 lbs. |
| Gross Weight | 43 lbs. |
| UPC | 19907418405 |
| Warranty | 1 Year |
Baileigh Radial Jaw Tube and Pipe Notcher, 2.5" OD Capacity - (TN-250) BA9-METN250 Performance & Construction

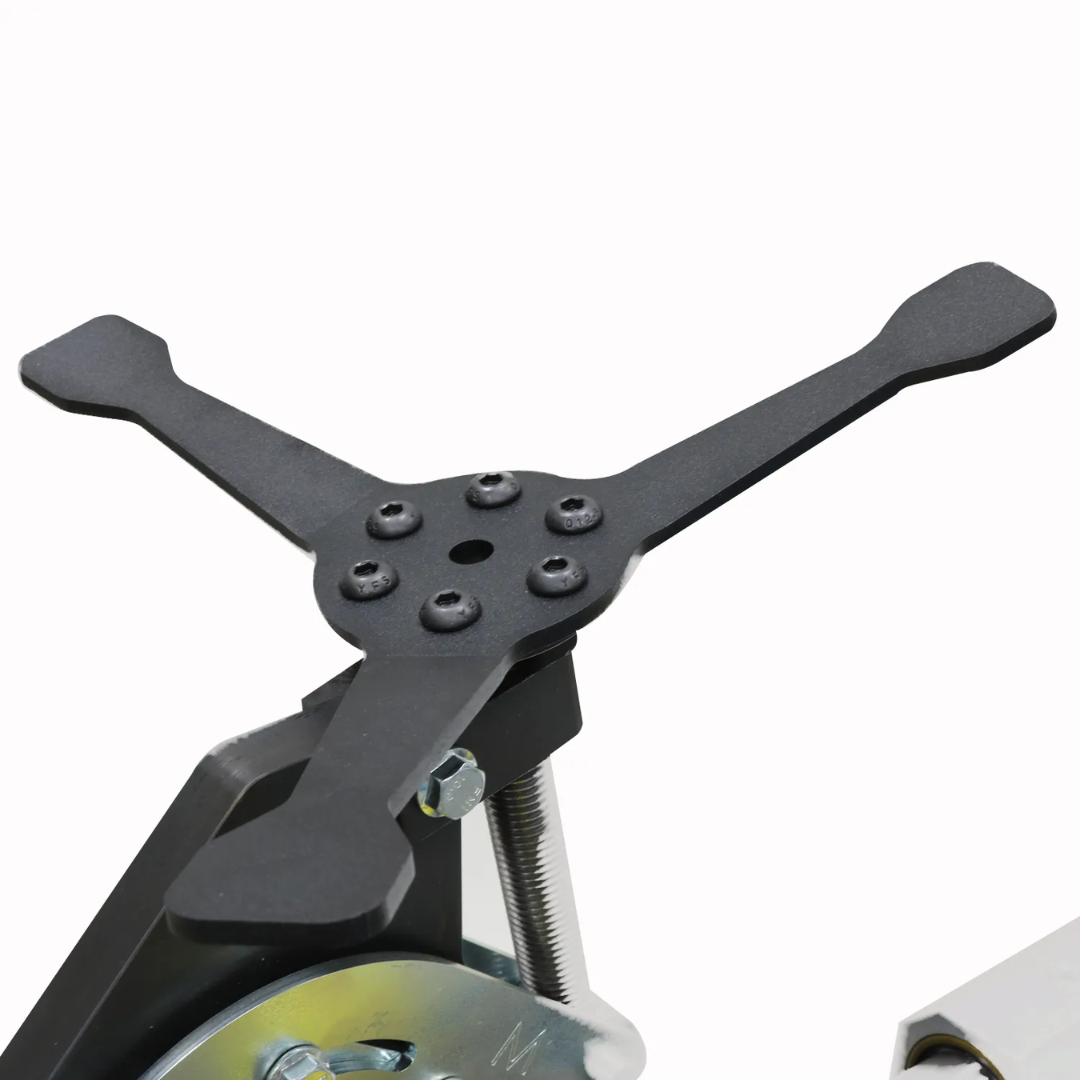

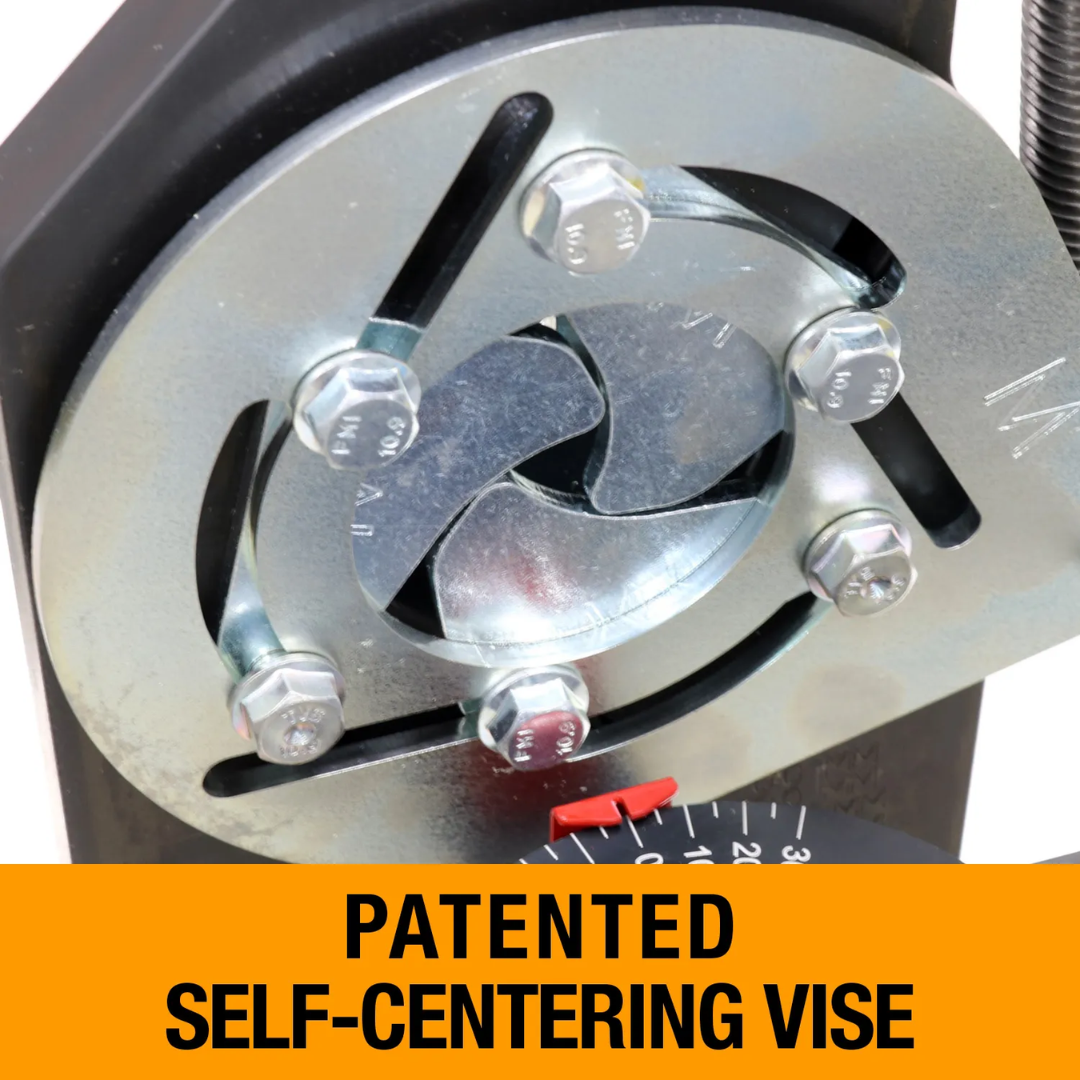

- Patented self-centering radial vise automatically keeps tubing aligned beneath the hole saw for highly accurate and repeatable notch geometry.

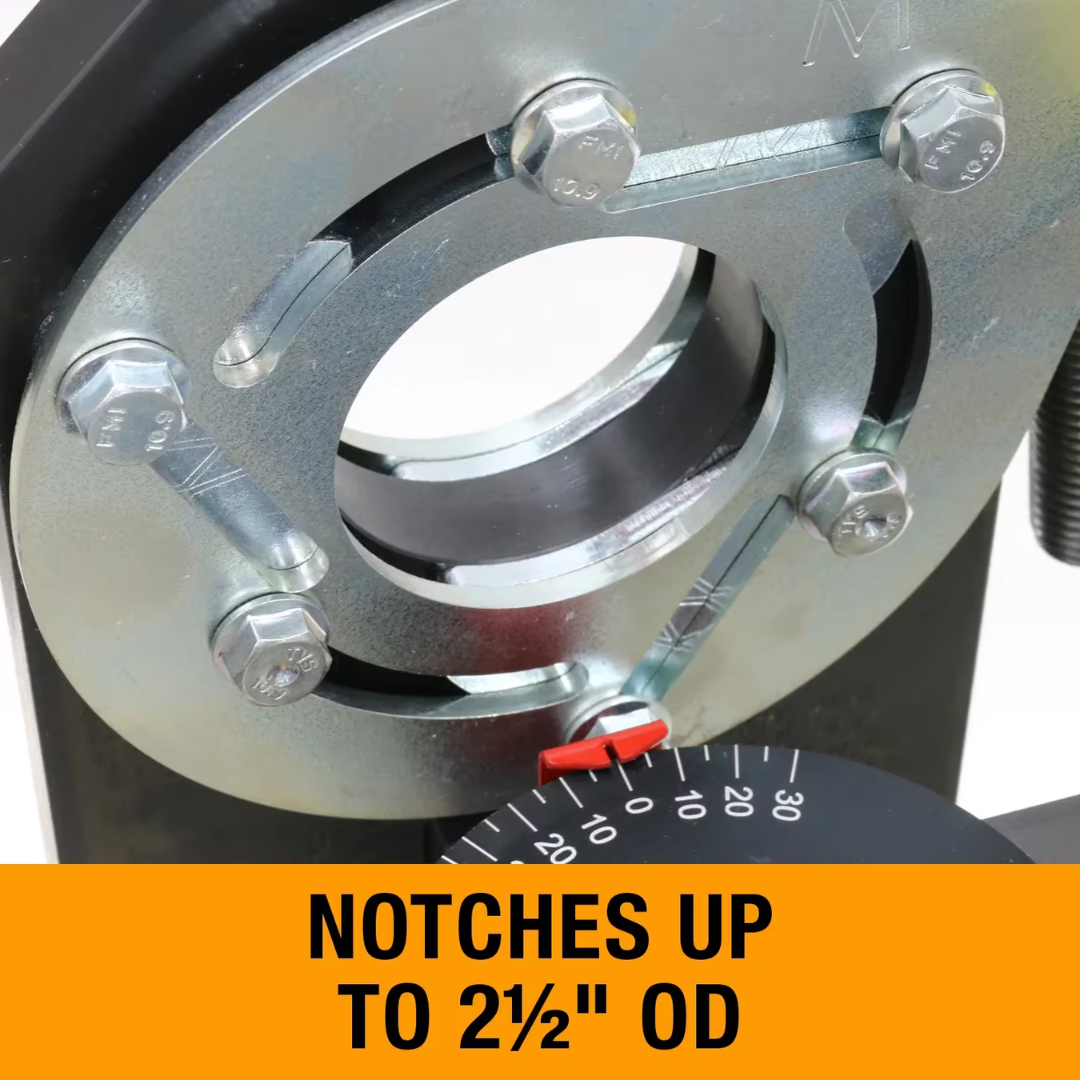

- 0.5-inch to 2.5-inch tube capacity accommodates a wide range of tubing sizes used in fabrication, chassis building, and industrial projects.

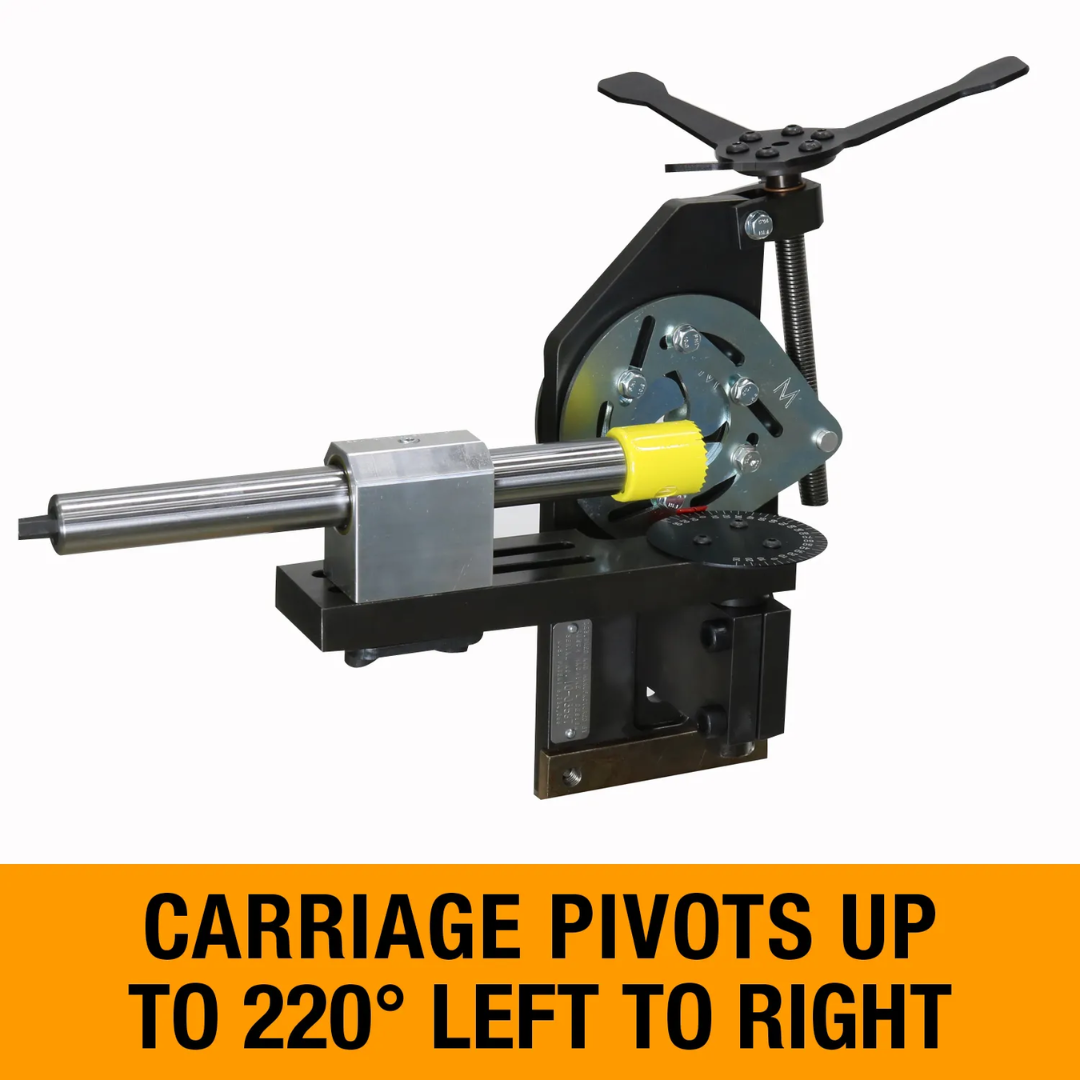

- 220-degree carriage adjustment range enables complex notching operations and backside cuts without repositioning the workpiece.
- Capable of notching tubing on bends thanks to the unique radial vise design that securely grips tubing in virtually any orientation.

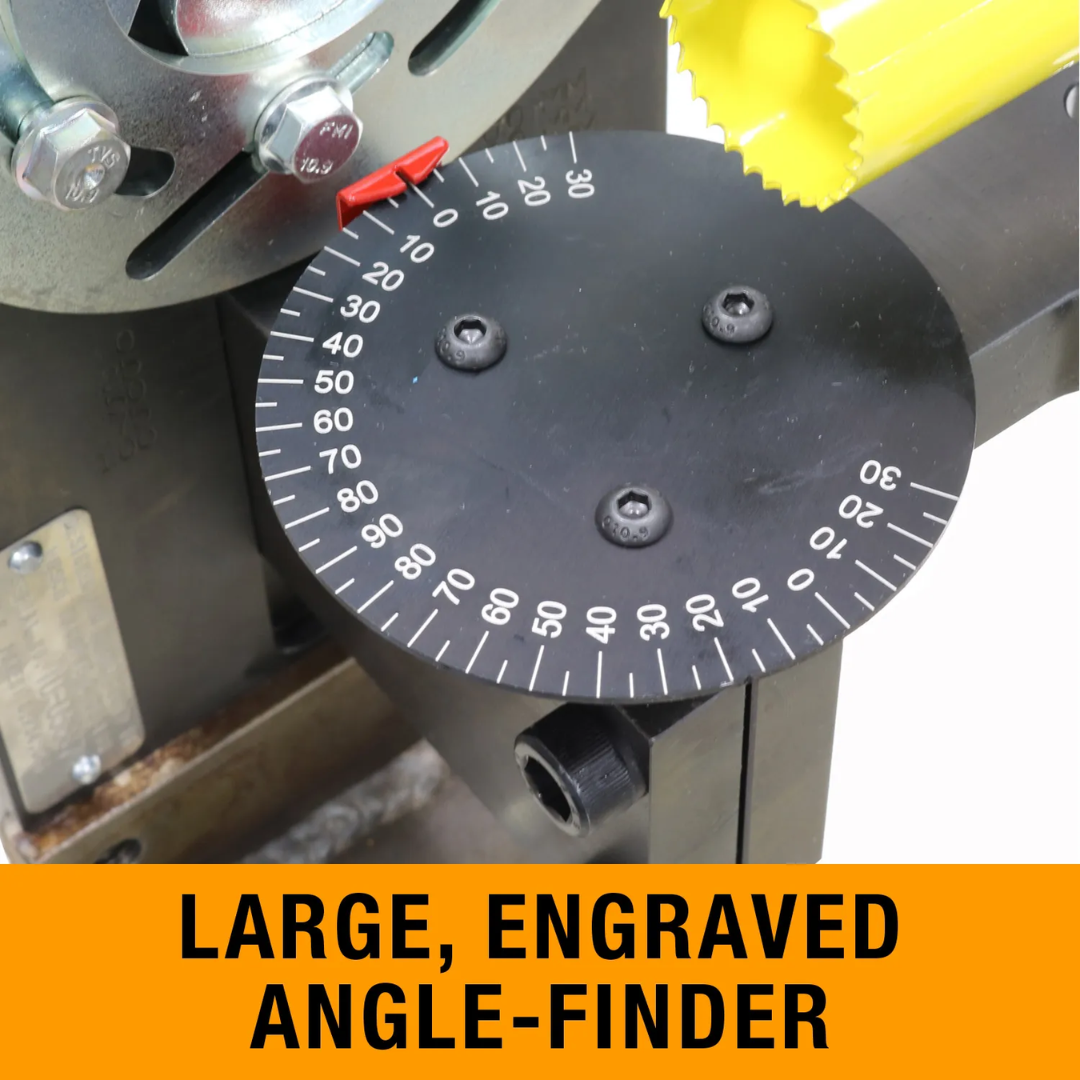

- Large engraved degree dial provides quick visual reference for precise angle setup and repeatable fabrication work.
- Dual slotted mounting rails allow offset notching up to 1 inch for advanced coping and joint preparation applications.

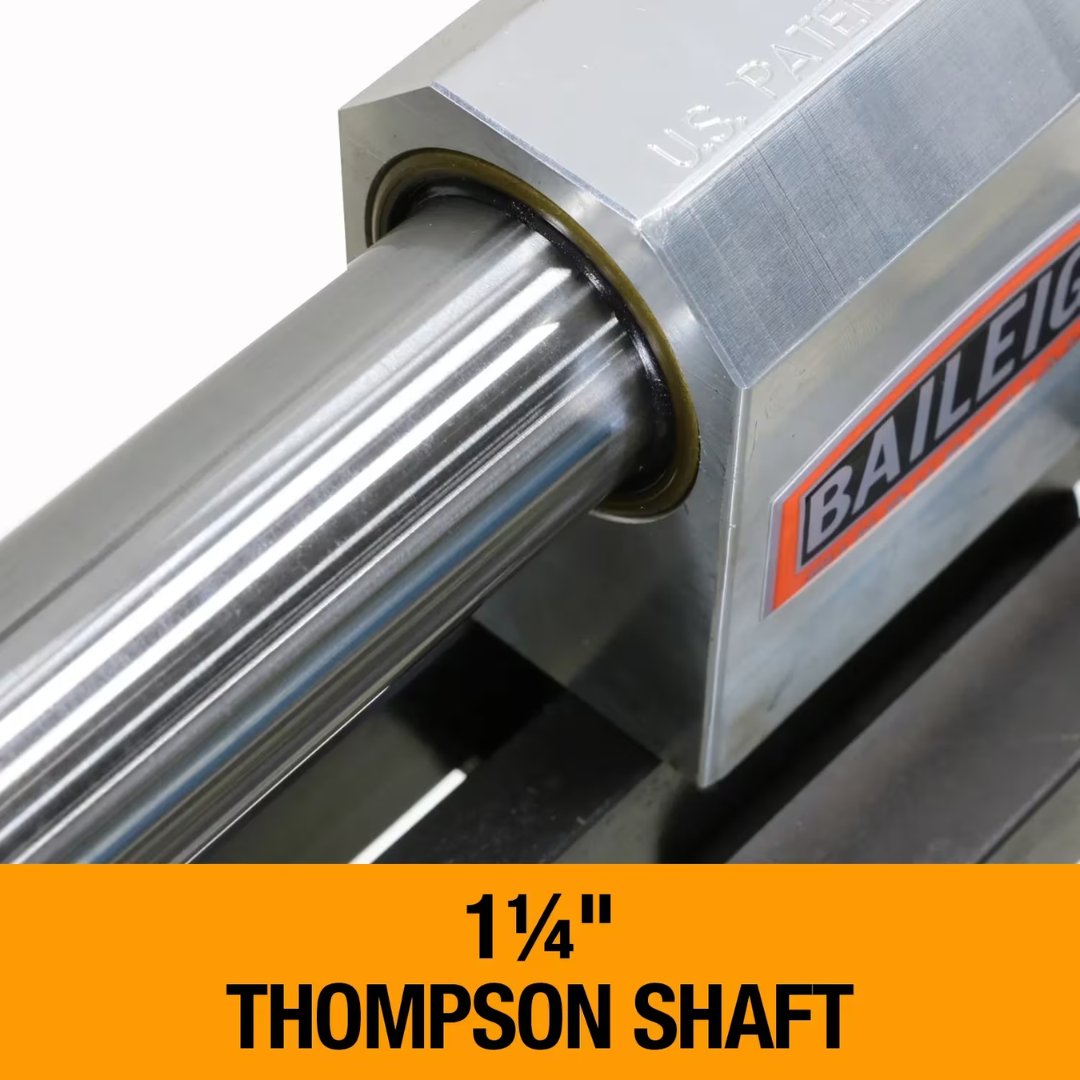

- 1.25-inch Thomson® shaft delivers exceptional rigidity and smooth carriage movement during operation.
- Sealed and lubricated needle bearings reduce friction and improve long-term durability under frequent shop use.
- Heavy-duty 0.75-inch steel plate backbone minimizes flex and maintains alignment throughout demanding fabrication tasks.
- Interlocking structural components improve overall rigidity and help maintain consistent cutting accuracy.

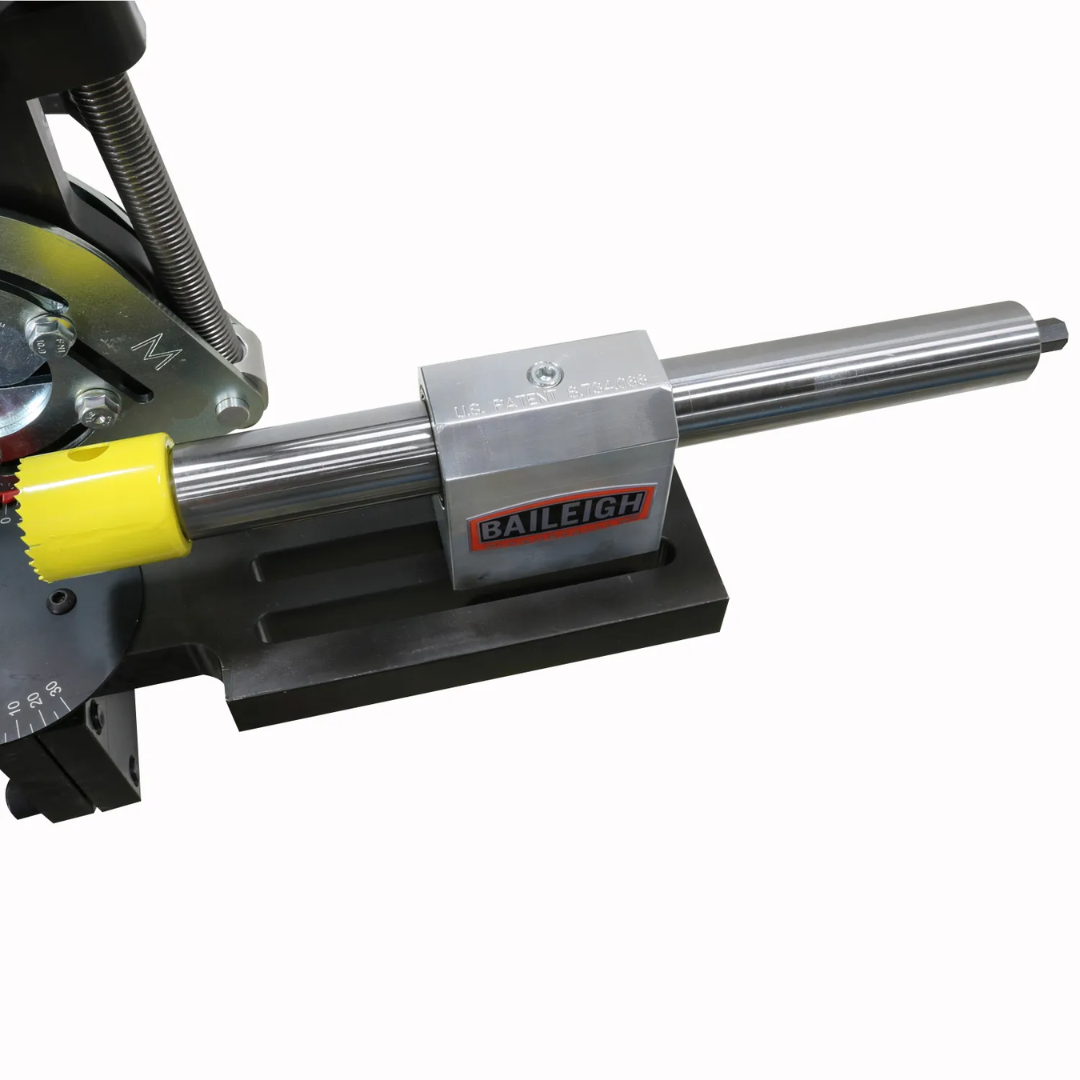

- Manual operation with drill-powered hole saw attachment provides flexibility and portability without requiring dedicated electrical systems.
- Designed for professional fabrication environments where precision tube fitting and repeatable weld preparation are essential.
Why Choose the Baileigh Radial Jaw Tube and Pipe Notcher, 2.5" OD Capacity - (TN-250) BA9-METN250
- Patented self-centering vise ensures consistently accurate tube positioning.
- Handles tubing from 0.5 inch to 2.5 inch OD for exceptional versatility.
- 220-degree adjustment range supports complex fabrication projects.
- Can notch tubing even on existing bends without complicated fixturing.
- Heavy-duty steel construction delivers long-term shop durability.
- Precision bearing-supported carriage provides smooth operation and repeatable results.
- Offset notching capability expands fabrication possibilities.
- Backed by a 1-year parts warranty and lifetime technical support.
The Baileigh Radial Jaw Tube and Pipe Notcher, 2.5" OD Capacity - (TN-250) BA9-METN250 combines innovative self-centering technology, extensive angle adjustment capability, and industrial-grade construction to provide fabricators with one of the most versatile and accurate manual tube notching solutions available for professional welding and fabrication applications.
