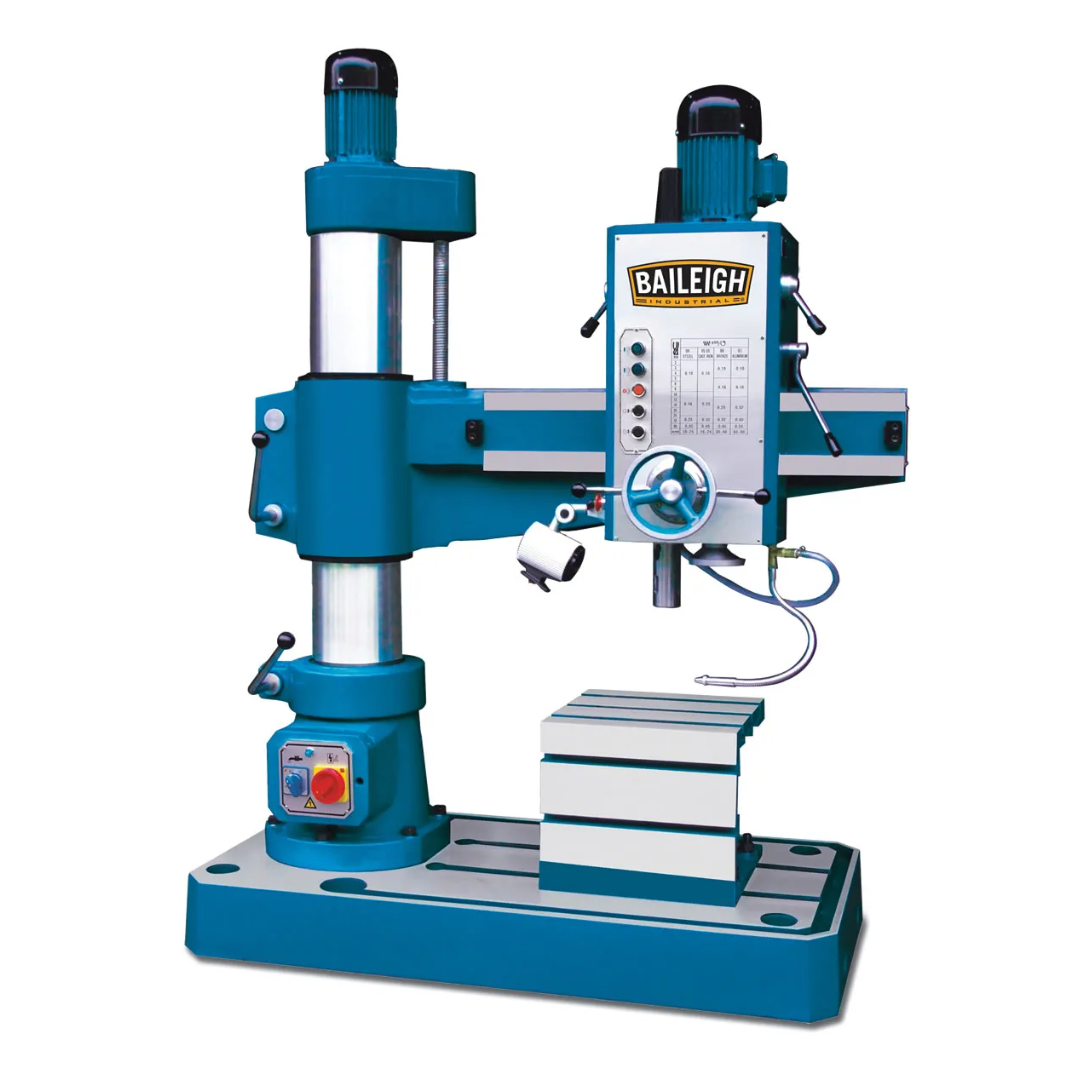

Baileigh Radial Drill RD-1000M 1008487 Applications
- Industrial fabrication and machine shops.
- Structural steel fabrication facilities.
- Large weldment and plate drilling operations.
- Maintenance and repair departments.
- Heavy equipment and machinery manufacturing.
- Tooling, fixture, and die fabrication.
- Production drilling of oversized components.
- General industrial metalworking environments.
The Baileigh Radial Drill RD-1000M 1008487 allows operators to drill large, heavy workpieces without repositioning the material, improving accuracy, efficiency, and overall shop productivity.
Baileigh Radial Drill RD-1000M 1008487 Specifications
| Model | RD-1000M |
|---|---|
| Manufacturer | Baileigh Industrial |
| Product Number | 1008487 |
| Machine Type | Mechanical Radial Drill Press |
| Motor Power | 2 HP |
| Input Power | 220V Three Phase |
| Maximum Drilling Capacity (Mild Steel) | 1.57 in. |
| Spindle Taper | MT4 |
| Spindle Speed Range | 75 – 1,220 RPM |
| Maximum Reach | 39.3 in. (Spindle to Column Center) |
| Column Diameter | 9.4 in. |
| Swing | Adjustable |
| Work Table Size | 15.75 in. × 15.75 in. |
| Feed System | Mechanical Power Down-Feed |
| Included Accessories | Quick Chuck and Tapping Chuck |
| Net Weight | 3,740 lbs. |
| Gross Weight | 3,740 lbs. |
| Warranty | 1 Year |
| UPC | 731325421002 |
Baileigh Radial Drill RD-1000M 1008487 Performance & Construction
- Heavy-duty mechanical radial drill design is engineered for precision drilling of large, heavy, and difficult-to-position workpieces commonly found in industrial fabrication.
- 220V three-phase electrical operation provides dependable industrial power for continuous production environments.
- Maximum drilling capacity of 1.57 inches in mild steel enables efficient machining of structural steel, heavy plate, and fabricated components.
- MT4 spindle taper securely accepts a wide variety of industrial drilling, boring, and tapping tooling.
- Wide spindle speed range from 75 to 1,220 RPM allows operators to match cutting speed to material type, cutter size, and machining requirements.
- Adjustable radial arm with 39.3-inch maximum reach positions the spindle precisely over large workpieces without moving the material, increasing productivity and setup efficiency.
- Massive 9.4-inch diameter column provides exceptional rigidity and minimizes deflection during heavy drilling operations.
- Mechanical power down-feed system delivers smooth, consistent drilling pressure and repeatable cutting depth for improved machining quality.
- 15.75-inch × 15.75-inch adjustable box-style work table offers a stable support surface for fixtures, vises, and smaller workpieces.
- Quick chuck and tapping chuck included allow operators to begin drilling and tapping operations immediately while increasing overall machine versatility.
- Industrial cast construction minimizes vibration while maintaining outstanding drilling accuracy and long-term durability.
- Designed for oversized fabrication work where adjustable spindle positioning significantly reduces material handling and setup time.
- Backed by Baileigh's 1-year warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Radial Drill RD-1000M 1008487
- Heavy-duty mechanical radial drill designed for industrial production environments.
- Drills up to 1.57-inch holes in mild steel with excellent precision.
- Adjustable radial arm provides up to 39.3-inch spindle reach for oversized workpieces.
- MT4 spindle taper supports a wide range of industrial tooling.
- Multiple spindle speeds from 75–1,220 RPM optimize drilling performance.
- Massive 9.4-inch column delivers exceptional rigidity during demanding machining operations.
- Mechanical power down-feed improves drilling consistency and operator productivity.
- Includes both a quick chuck and tapping chuck for increased versatility.
- Ideal for fabrication shops, machine shops, heavy equipment manufacturers, and industrial maintenance facilities.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Radial Drill RD-1000M 1008487 is a professional-grade industrial drilling solution built for shops that require maximum reach, rigidity, and precision. Combining heavy-duty mechanical construction, an adjustable radial arm, MT4 spindle, power down-feed system, and industrial-grade performance, this radial drill provides dependable accuracy and productivity for large-scale fabrication and manufacturing applications.
