Baileigh Programmable Rotary Draw Bender, 9-Inch Max. CLR (RDB-250) BA9-RDB250220TS Applications
- Race car chassis and roll cage fabrication.
- Custom automotive, off-road, and motorsports manufacturing.
- Handrail, guardrail, and architectural metal fabrication.
- Industrial pipe and tube forming operations.
- Furniture, display, and specialty metal product manufacturing.
- Production environments requiring repeatable multi-bend programs.
- Aerospace, agricultural, and transportation component fabrication.
The programmable control system allows operators to save and instantly recall bend sequences, making the RDB-250 ideal for repetitive production runs and complex multi-bend parts.
Baileigh Programmable Rotary Draw Bender, 9-Inch Max. CLR (RDB-250) BA9-RDB250220TS Specifications
| Model Number | RDB-250 |
|---|---|
| Product Name | Baileigh Programmable Rotary Draw Bender, 9-Inch Max. CLR (RDB-250) |
| Power Requirement | 220V Single Phase |
| Motor Phase | Single Phase |

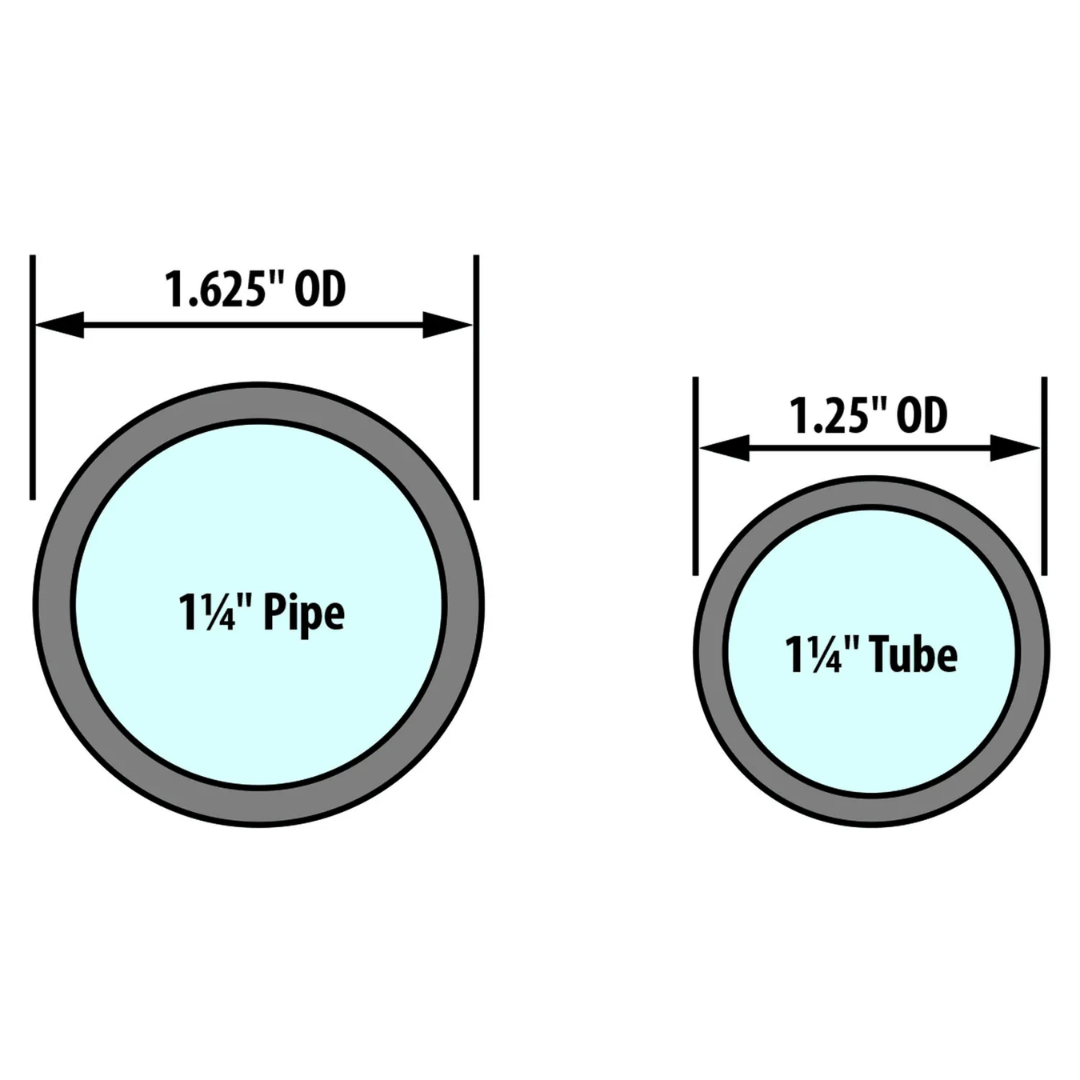

| Round Tube Capacity | 2.5" OD x 0.125" Wall |
| Pipe Capacity | 2" Pipe |
| Schedule 40 Pipe Capacity | 2" |
| Square Tube Capacity | 2" x 0.125" Wall |

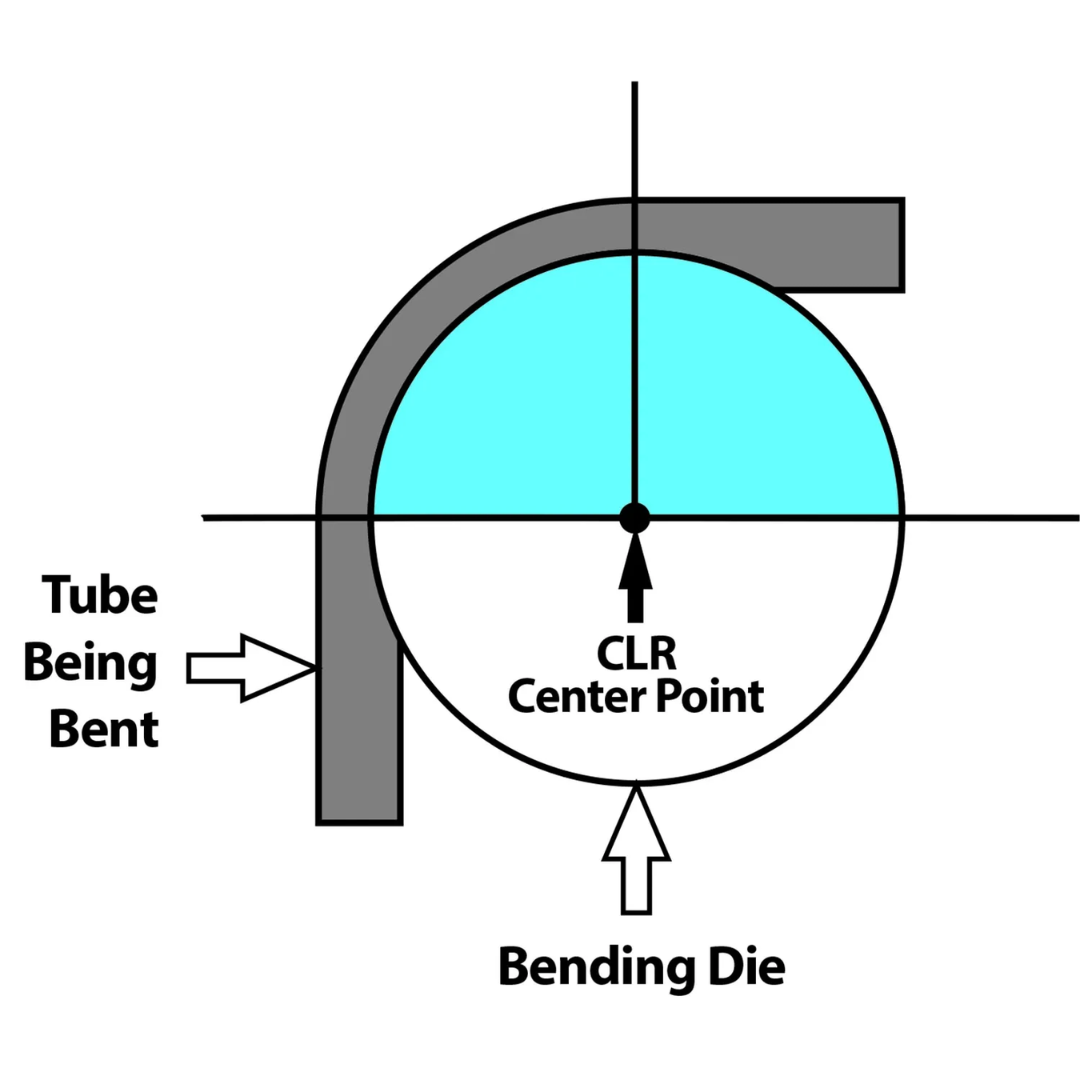

| Maximum Centerline Radius (CLR) | 9" |
| Maximum Bend Angle | 205° |
| Minimum Material OD | 0.25" |
| Program Storage Capacity | 170 Bend Programs |
| Net Weight | 590 lbs |
| Gross Weight | 590 lbs |
| UPC | 19907577324 |
| Warranty | 1 Year |
Baileigh Programmable Rotary Draw Bender, 9-Inch Max. CLR (RDB-250) BA9-RDB250220TS Performance & Construction

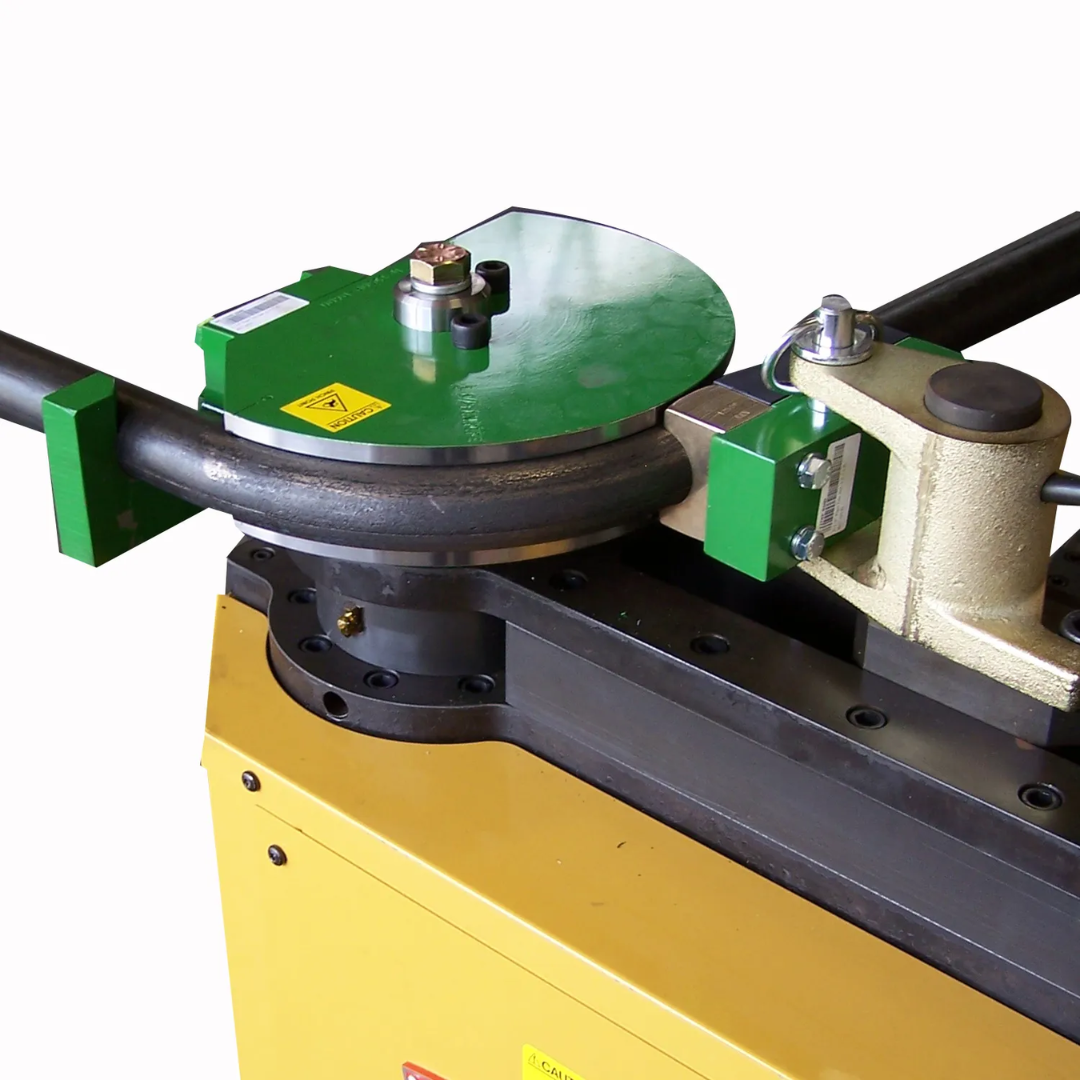

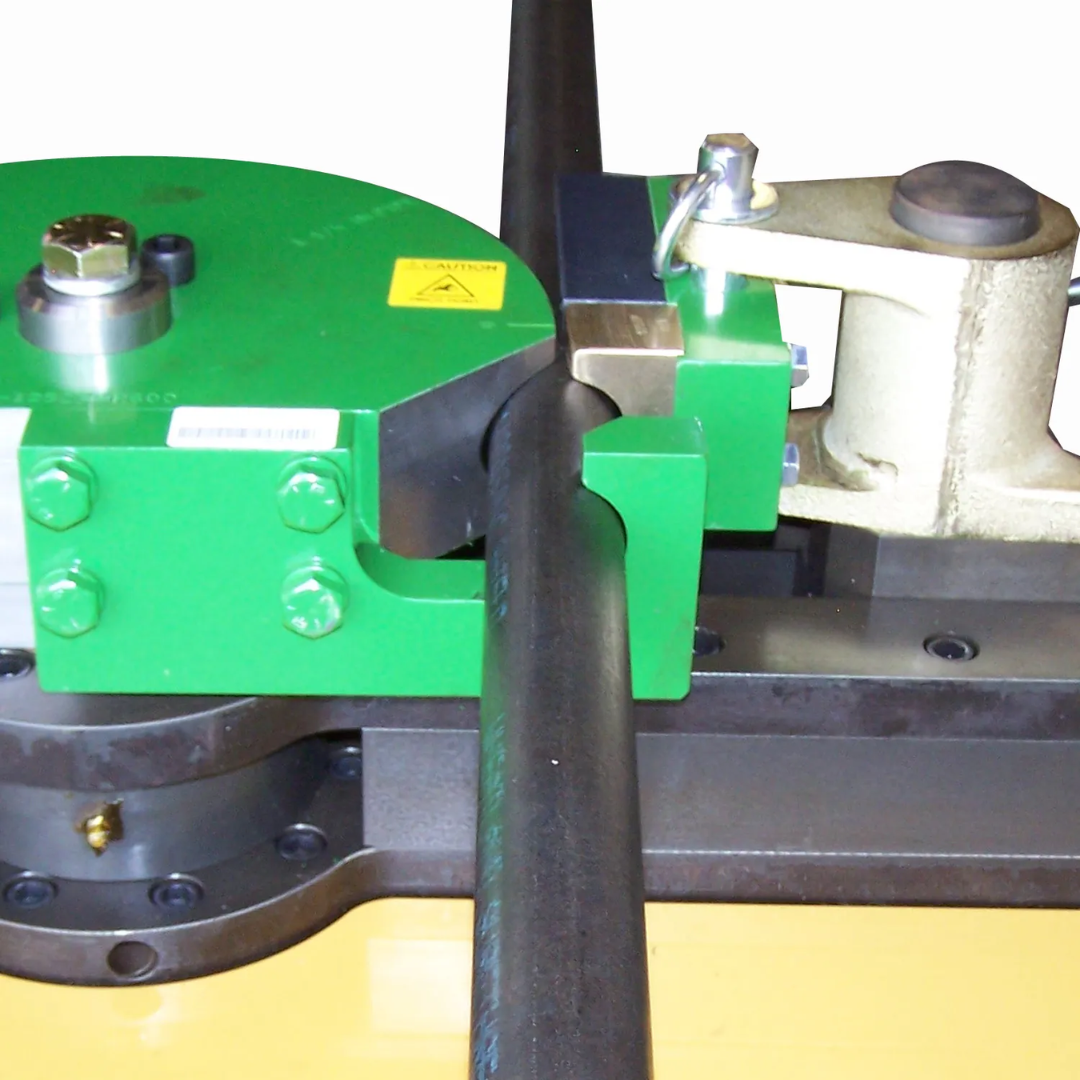

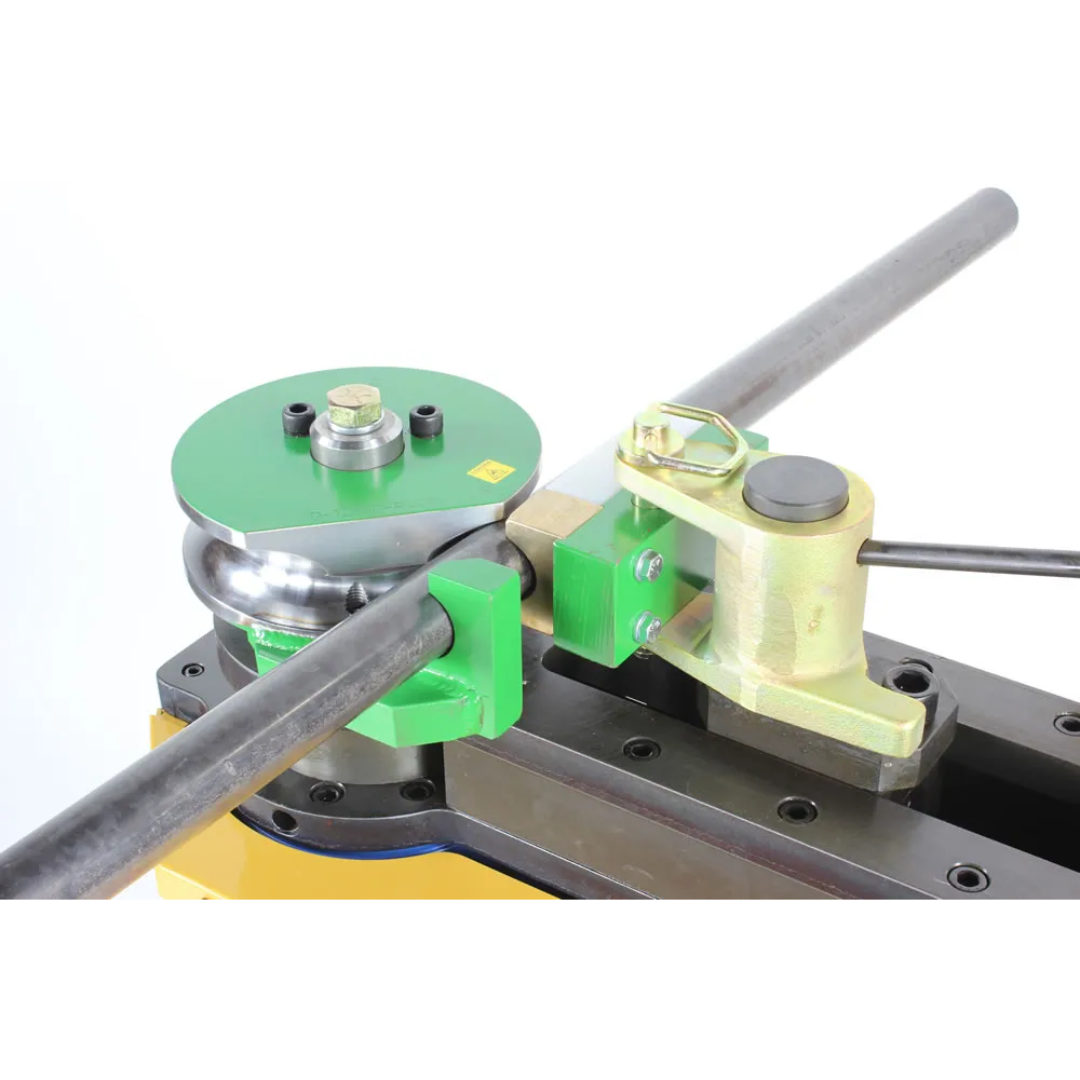

- Programmable Rotary Draw Bending Technology: Produces smooth, accurate bends with excellent repeatability for professional fabrication work.
- 170 Program Memory Capacity: Stores frequently used bend sequences to improve productivity and reduce setup times.

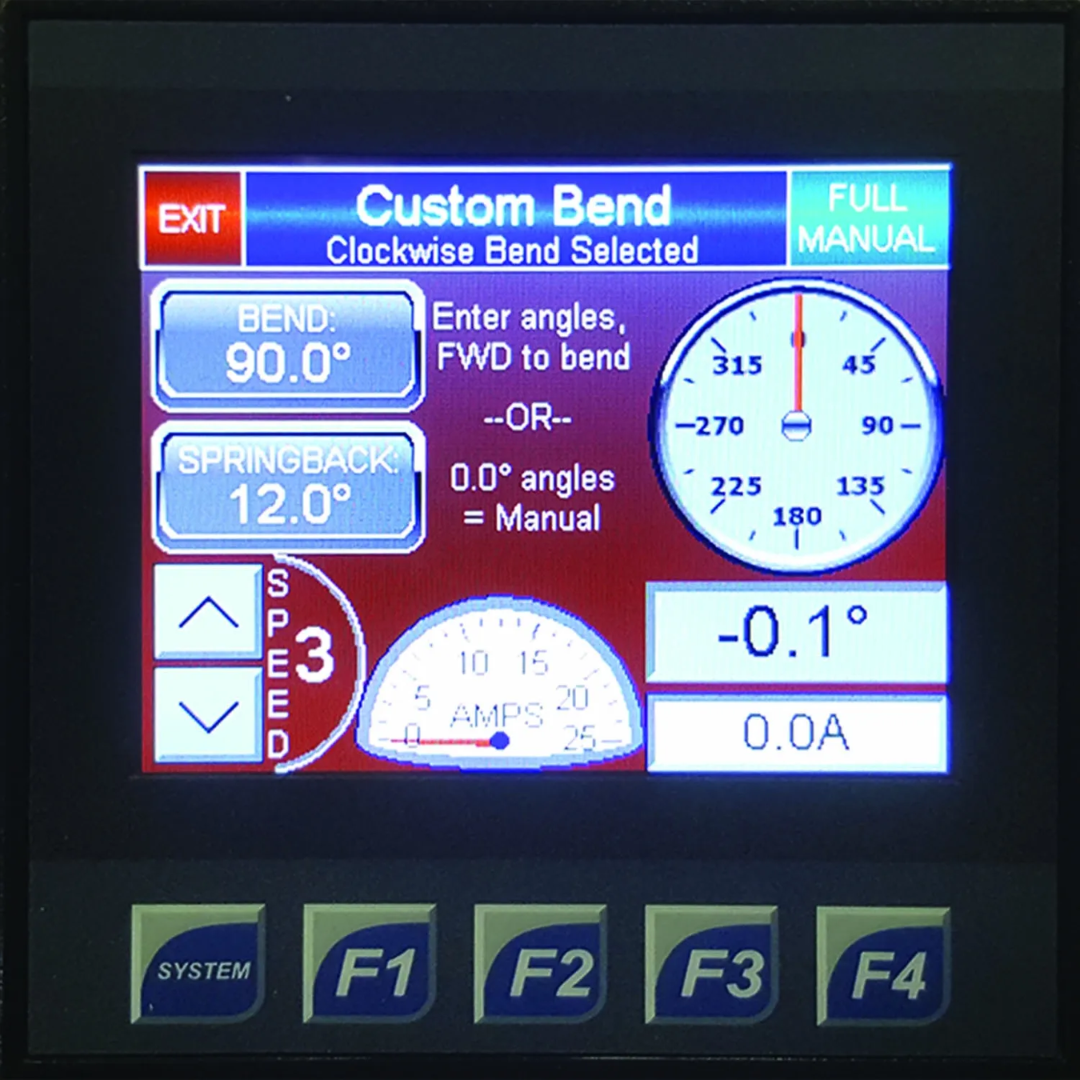

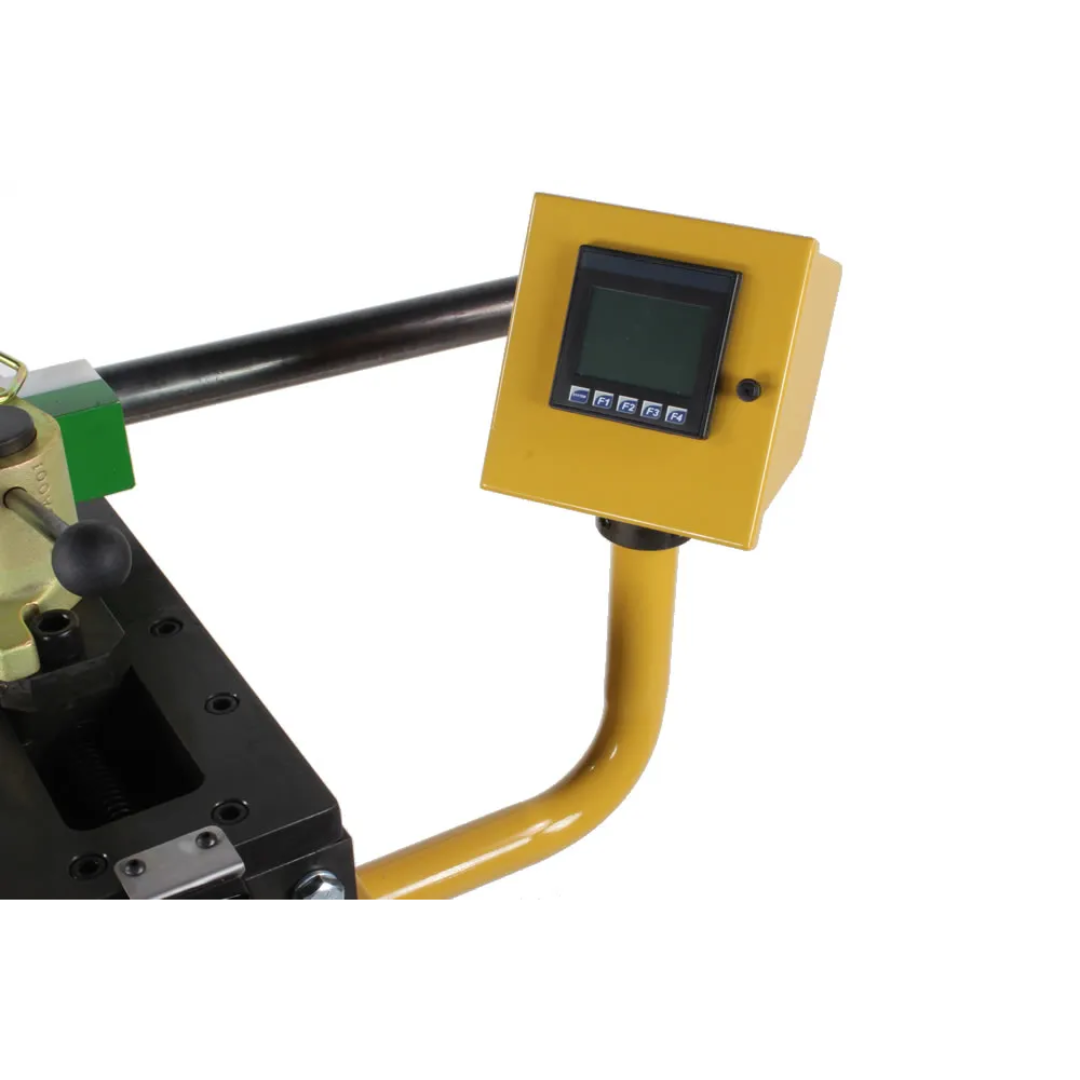

- Touchscreen Control System: Intuitive interface simplifies program creation, editing, and production operation.
- Fast Bending Cycles: Capable of producing 180° bends in approximately 9 seconds, helping maximize throughput.
- 220V Single-Phase Power: Delivers industrial performance while remaining compatible with many shop electrical systems.
- 2.5" Round Tube Capacity: Handles larger tube sizes commonly used in chassis fabrication, structural work, and manufacturing.
- 2" Schedule 40 Pipe Capacity: Provides substantial capability for pipe bending applications.
- Maximum 205° Bend Angle: Allows complex bends and advanced part geometries beyond standard 180° applications.

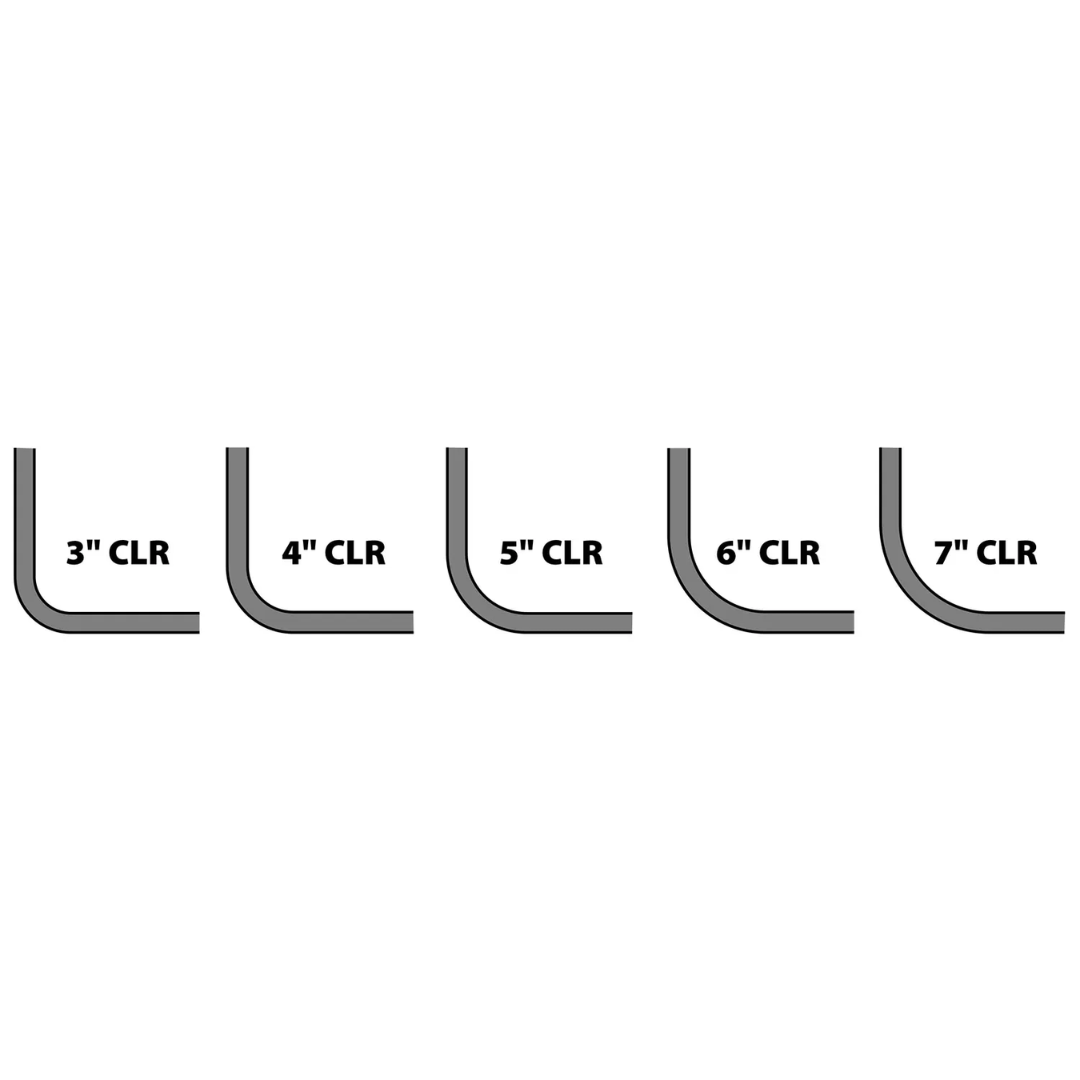

- 9" Maximum CLR: Supports a wide range of tooling configurations and bending requirements.

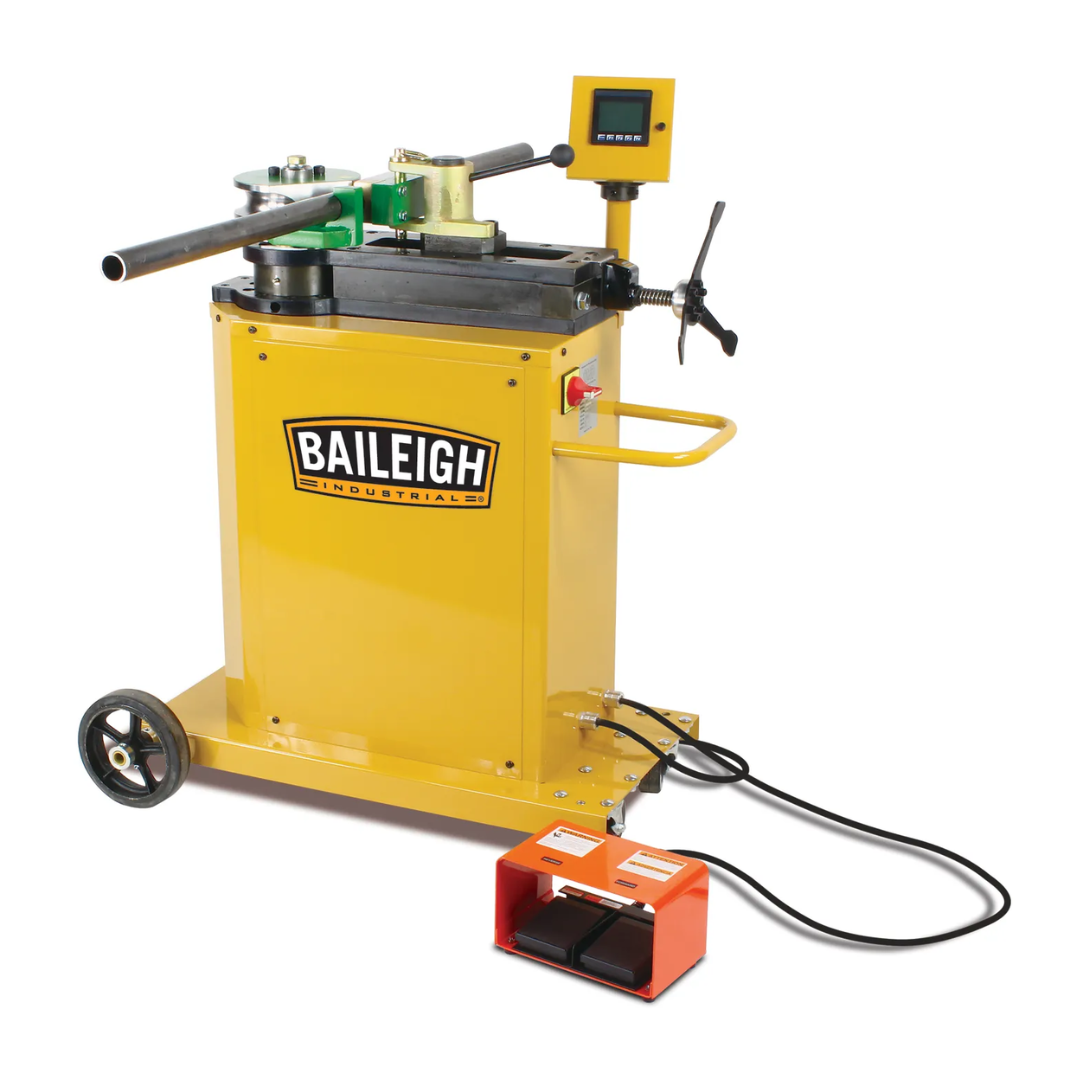

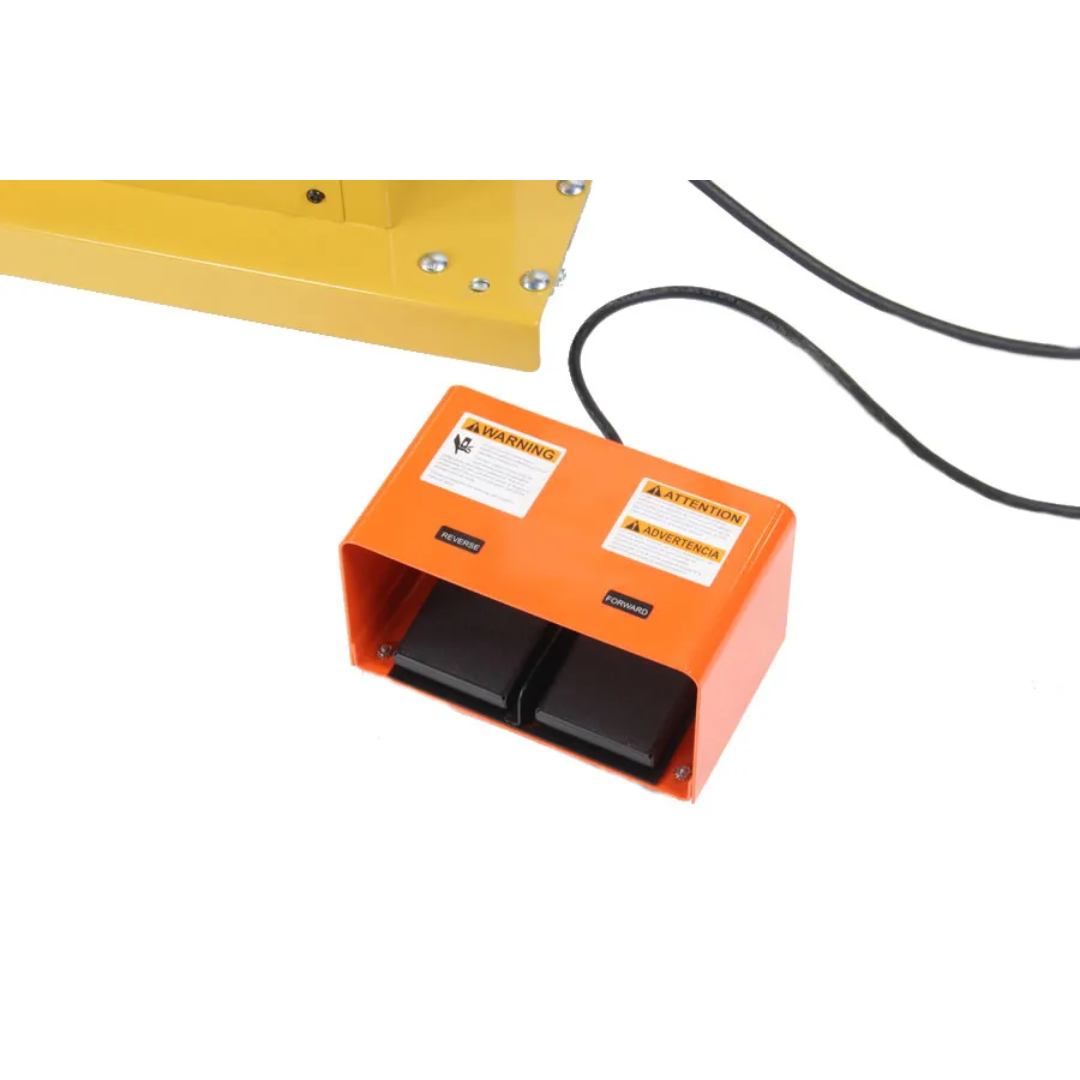

- Variable Foot Pedal Operation: Enables hands-free machine control for improved operator safety and workflow efficiency.
- Heavy-Duty Welded Steel Construction: Built to withstand continuous production use in demanding industrial environments.
- 590 lb Industrial Platform: Provides exceptional stability during high-force bending operations.
Why Choose the Baileigh Programmable Rotary Draw Bender, 9-Inch Max. CLR (RDB-250) BA9-RDB250220TS
- Stores up to 170 bend programs for repeatable production work.
- Produces accurate rotary draw bends with minimal material distortion.
- Fast bending cycles increase shop productivity and efficiency.
- Capable of bending up to 2.5" tubing and 2" schedule 40 pipe.
- Touchscreen controls simplify operation and program management.
- Foot pedal operation provides enhanced control and operator convenience.
- Heavy-duty welded construction supports long-term industrial use.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Programmable Rotary Draw Bender, 9-Inch Max. CLR (RDB-250) BA9-RDB250220TS combines programmable automation, industrial durability, and precision rotary draw bending performance into a powerful fabrication solution designed for professionals who require accuracy, repeatability, and productivity.
