Baileigh Precision Metal Lathe PL-2080 1006176 Applications
- Industrial manufacturing and production machining.
- Machine shops and precision tool rooms.
- Maintenance and repair facilities.
- Turning long shafts, rollers, and large workpieces.
- Precision boring, facing, drilling, and reaming.
- Imperial, metric, diametral pitch, and modular thread cutting.
- Custom component manufacturing and prototype production.
- Heavy-duty machining of steel, stainless steel, cast iron, aluminum, brass, and other machinable materials.
Designed for industrial environments that demand maximum rigidity, high horsepower, and exceptional machining accuracy, the PL-2080 is built to perform under continuous production conditions.
Baileigh Precision Metal Lathe PL-2080 1006176 Specifications
| Model | PL-2080 |
|---|---|
| Part Number | 1006176 |
| Machine Type | Industrial Precision Metal Lathe |
| Motor Power | 15 HP |
| Power Requirement | 220V Three-Phase |
| Swing Over Bed | 20" |
| Distance Between Centers | 80" |
| Spindle Bore | 3.125" |
| Spindle Speeds | 20–1550 RPM |
| Spindle Taper | MT5 with Sleeve |
| Tailstock Quill Taper | MT7 |
| Digital Readout | Mitutoyo® 2-Axis DRO |
| Cross Slide Travel | 12.5" |

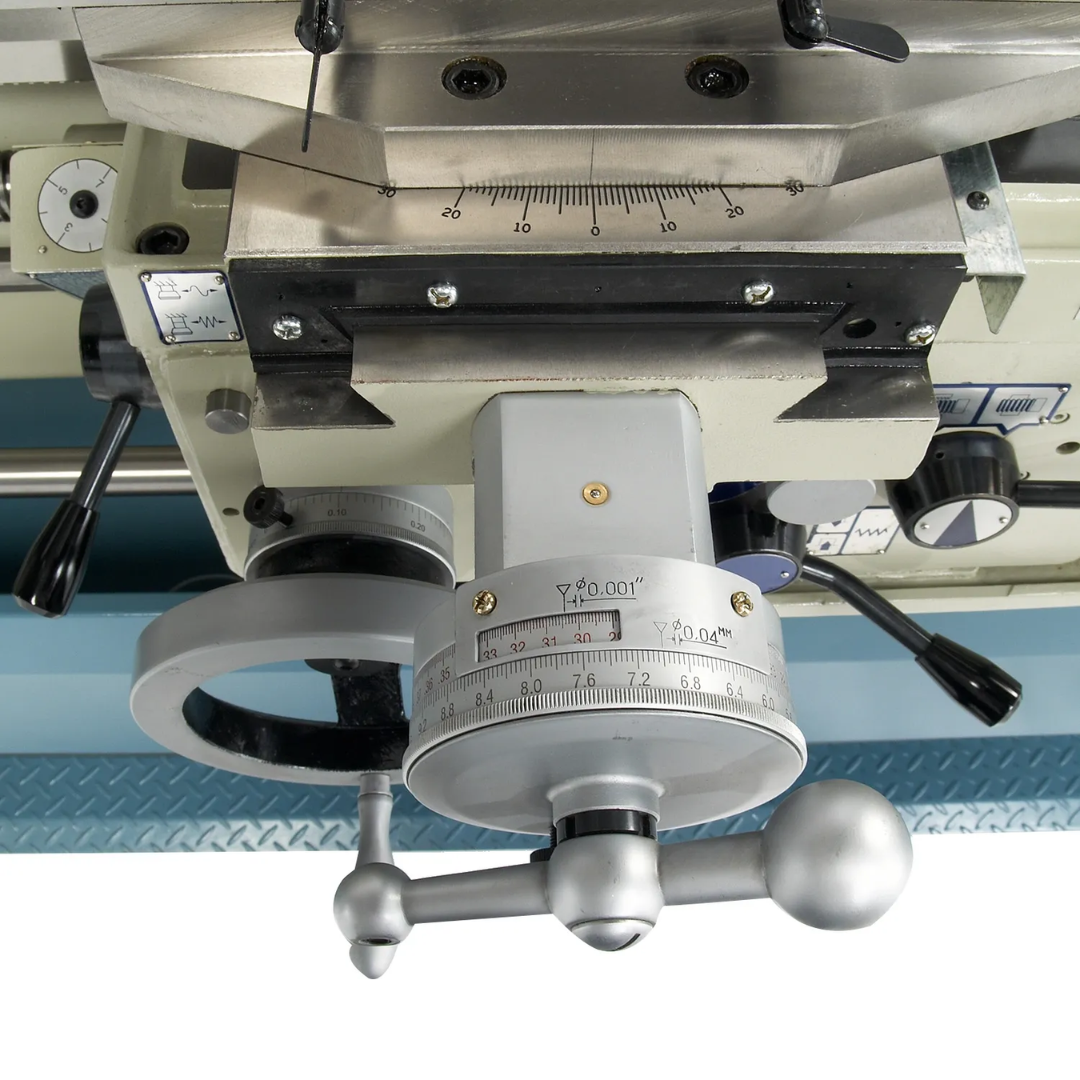

| Compound Rest Travel | 10" |
| Center Height | 10" |
| Lead Screw Diameter | 1.5" |
| Lead Screw Pitch | 4 TPI |
| Longitudinal Feeds (Imperial) | 50 Feed Rates (.0014"–.0387" per Revolution) |
| Longitudinal Feeds (Metric) | 50 Feed Rates (.037–.983 mm per Revolution) |
| Cross Feeds | 50 Feed Rates (.0185–.52 mm per Revolution) |
| Imperial Thread Range | 60 Threads, 2–112 TPI |
| Metric Thread Range | 60 Threads, 0.2–14 mm Pitch |
| Diametral Pitch Threads | 50 Threads, 4–112 D.P. |
| Modular Threads | 50 Threads, 0.2–7 M.P. |
| Construction | Heavy Cast Iron Base with Precision-Ground Bed Ways |
| Standard Accessories | 3-Jaw Universal Chuck, 10" Back Plate, Micrometer Saddle Stop, Steady Rest, Follow Rest, Longitudinal Rapid Traverse |
| Net Weight | 6,050 lbs. |
| Gross Weight | 6,050 lbs. |
| UPC | 19907414889 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh Precision Metal Lathe PL-2080 1006176 Performance & Construction
- Massive heavy cast iron base provides exceptional rigidity, minimizes vibration, and maintains machining accuracy during demanding production work.
- Powerful 15 HP industrial motor supplies high torque for heavy roughing cuts, precision finishing, and continuous-duty machining.
- 20" swing over bed and 80" between centers allow machining of oversized shafts, rollers, tooling, and long industrial workpieces.
- Large 3.125" spindle bore accommodates substantial bar stock for increased machining flexibility and reduced setup time.

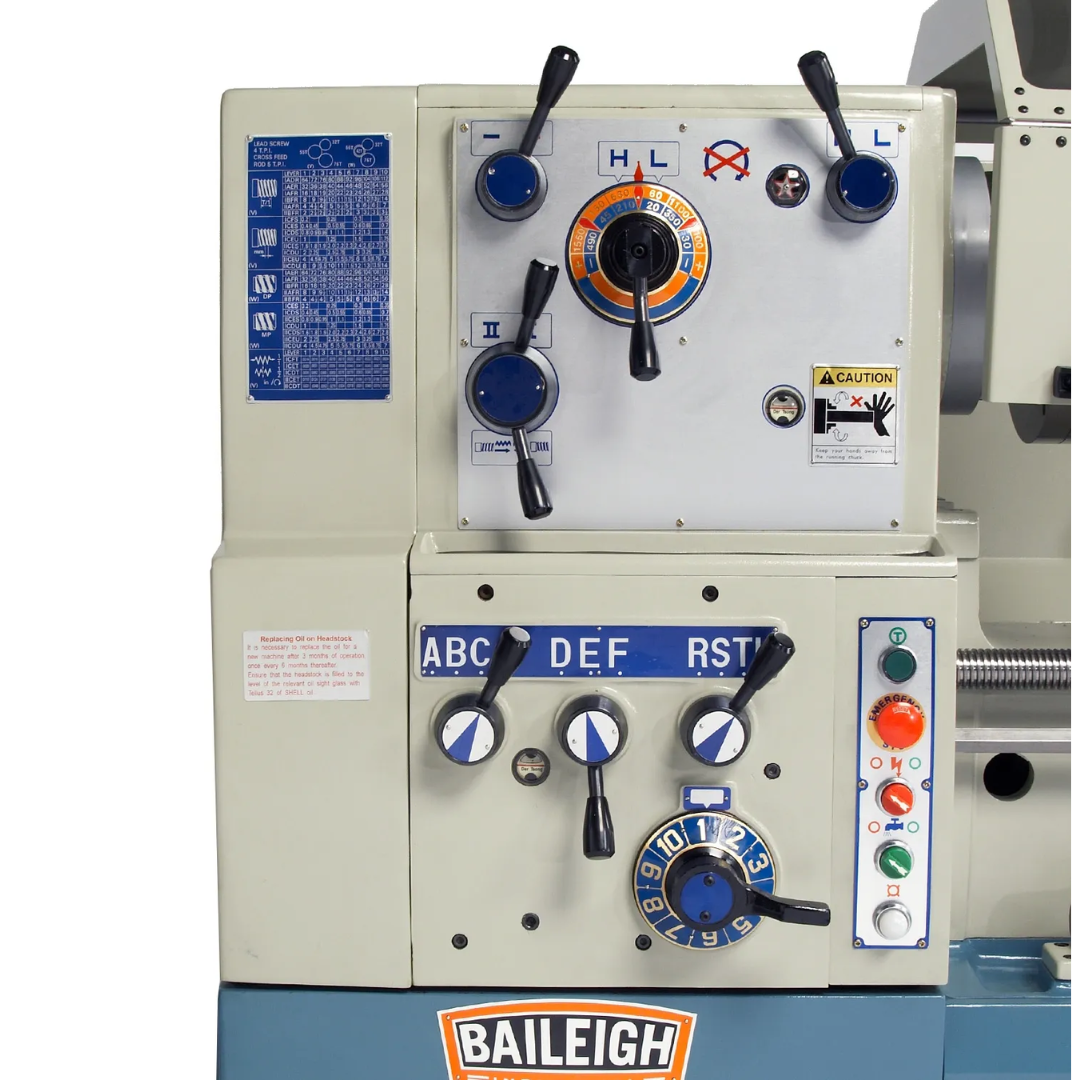

- Geared headstock with spindle speeds from 20 to 1550 RPM delivers dependable torque and optimum cutting performance across a wide range of materials.

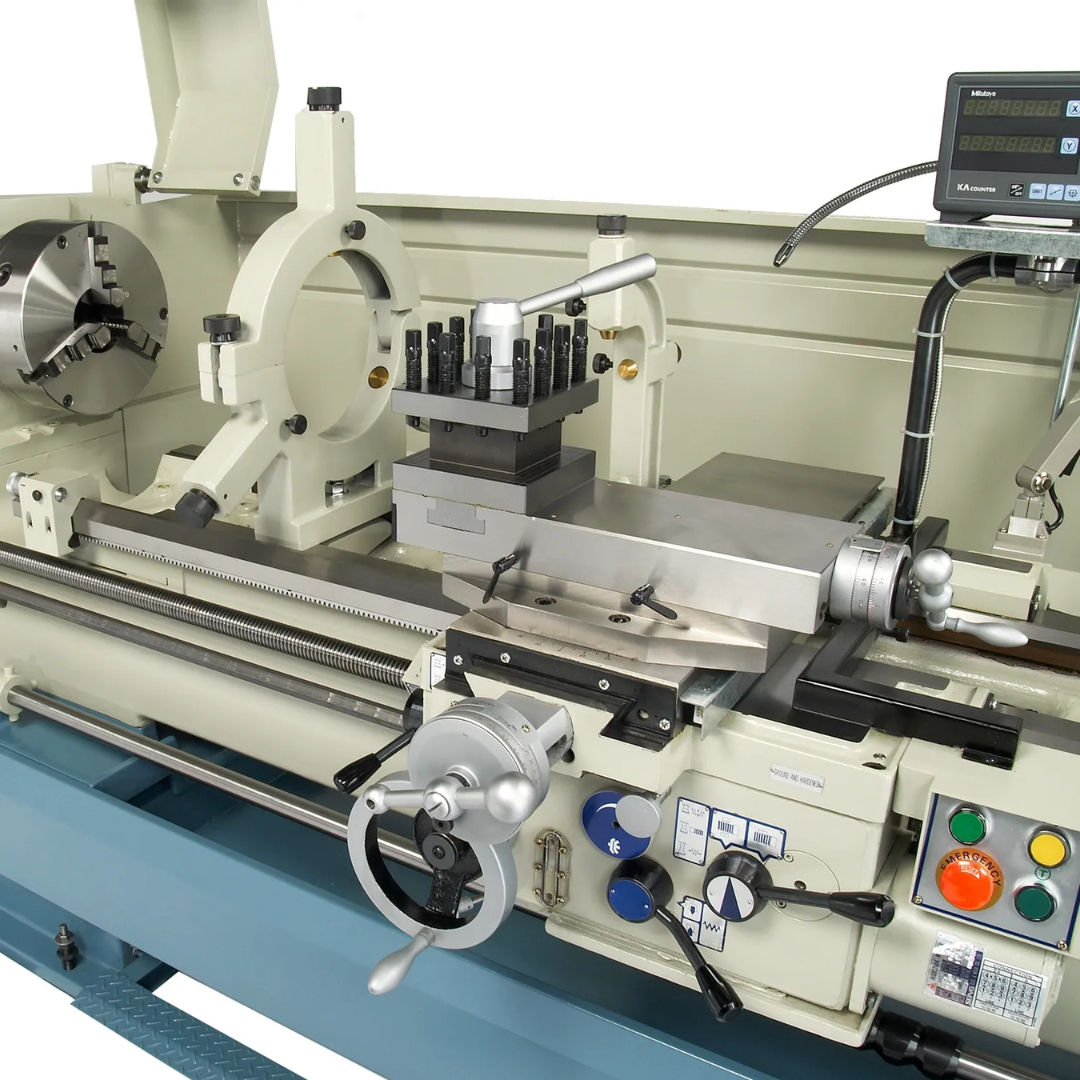

- Mitutoyo® 2-axis digital readout provides precise positioning, improved repeatability, and faster setup for production machining.
- Precision-ground and polished bed ways ensure smooth carriage travel, reduced wear, and long-term machining accuracy.

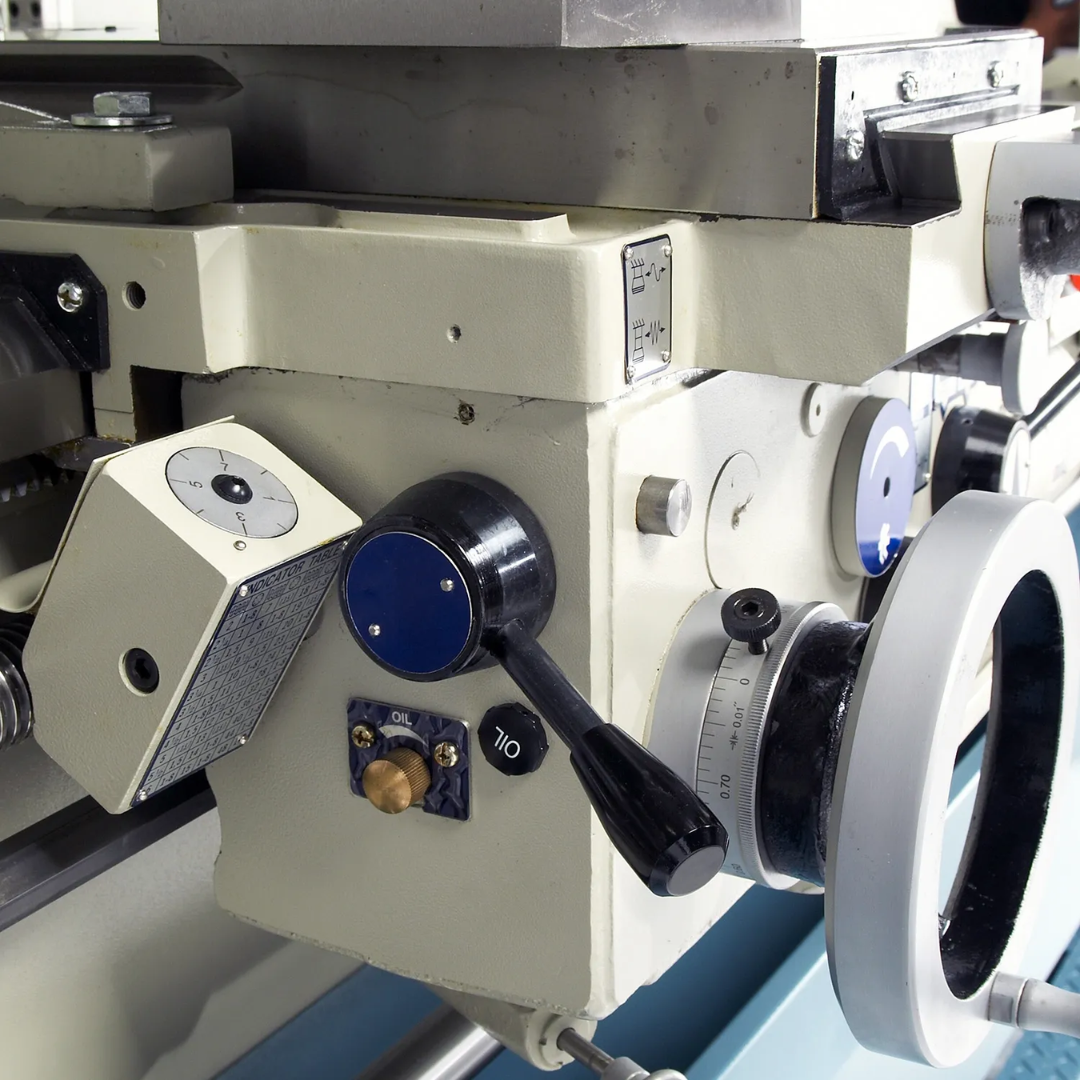

- Extensive threading capabilities support imperial, metric, diametral pitch, and modular thread cutting with numerous feed selections.

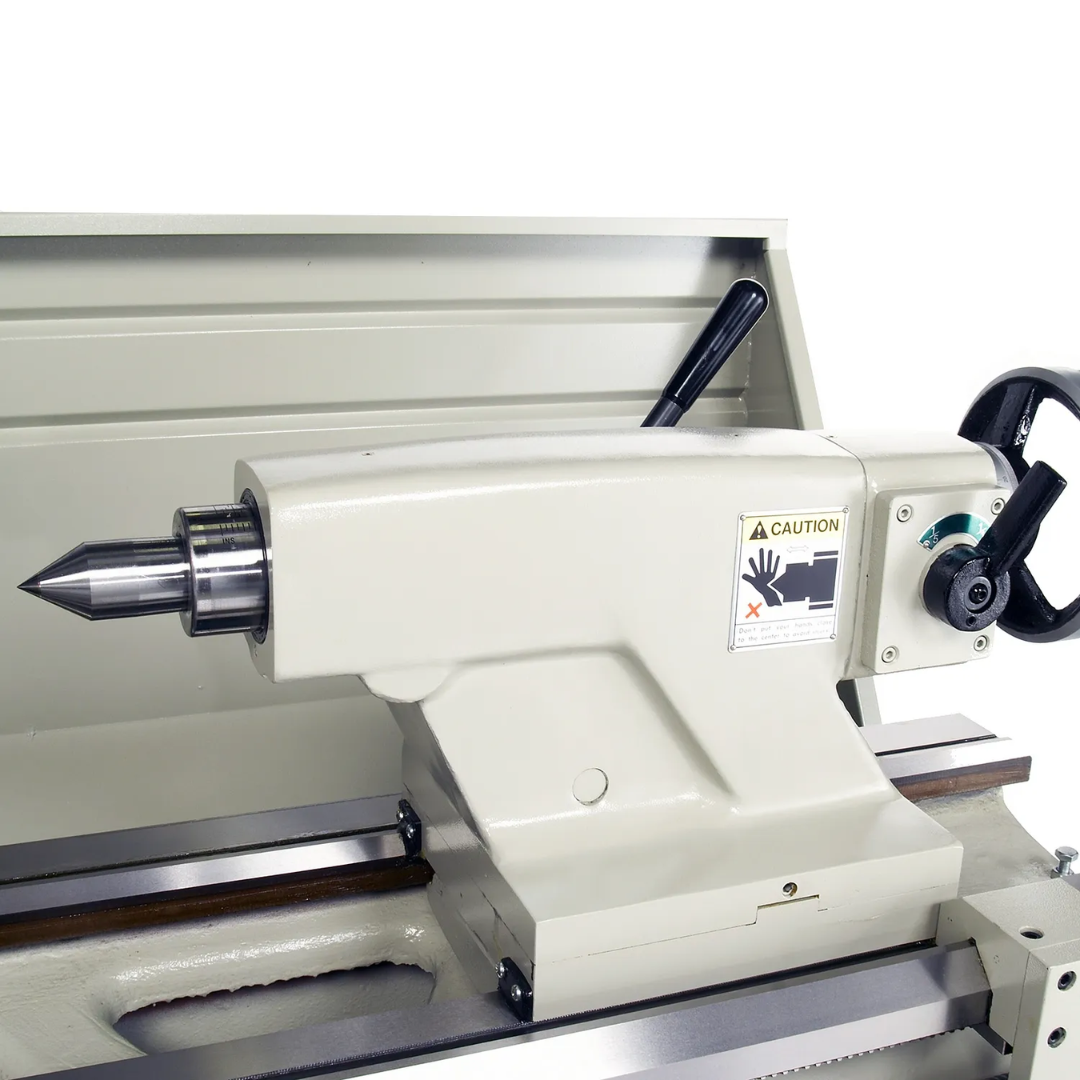

- MT5 spindle taper and MT7 tailstock quill provide compatibility with a broad selection of industrial tooling and accessories.

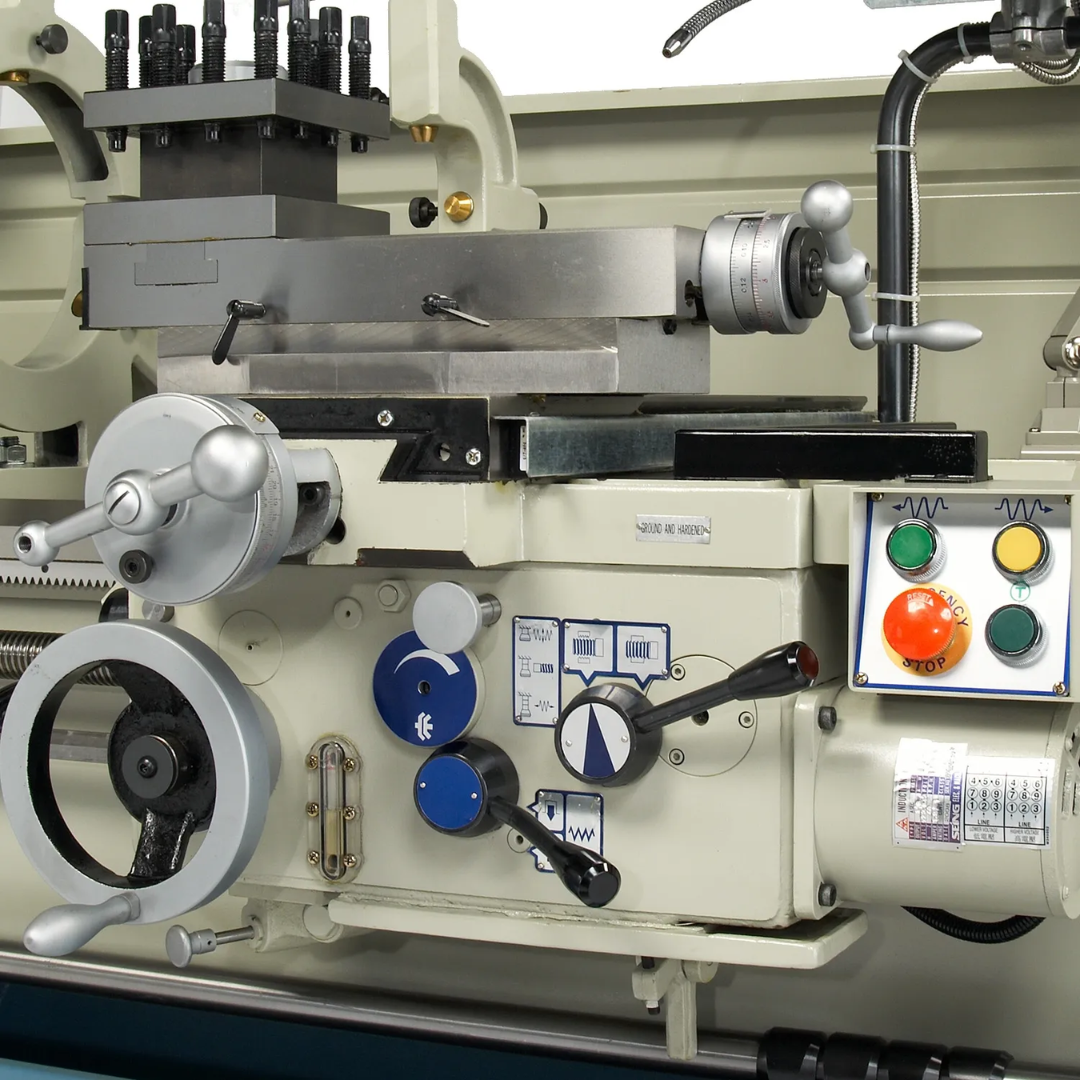

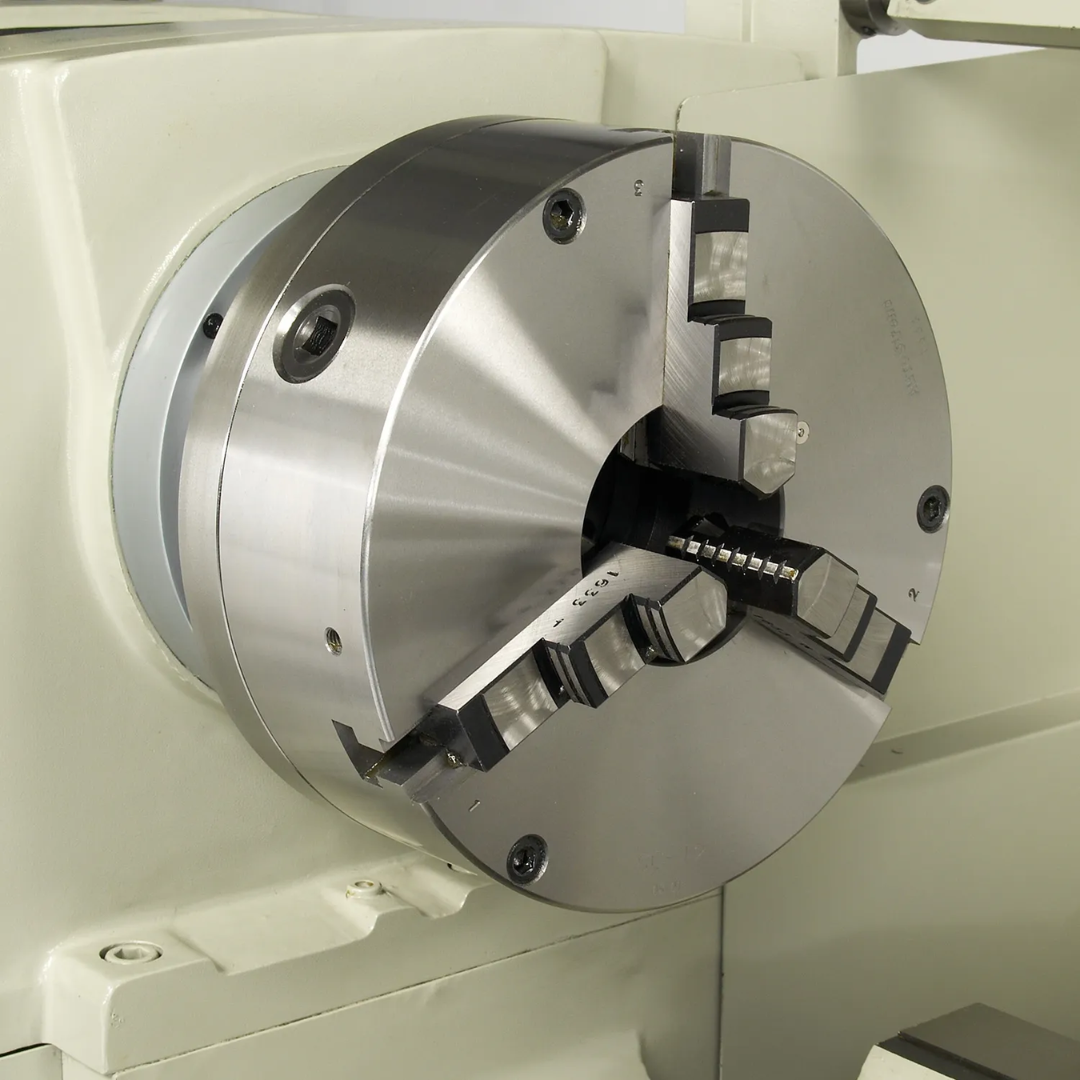

- Professional accessory package includes a 3-jaw universal chuck, 10" back plate, micrometer saddle stop, steady rest, follow rest, and longitudinal rapid traverse to maximize productivity.
- Industrial construction is engineered for machine shops, production facilities, maintenance departments, and vocational training centers requiring dependable precision machining.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for long-term confidence and service.
Why Choose the Baileigh Precision Metal Lathe PL-2080 1006176
- Heavy cast iron construction delivers outstanding rigidity and machining stability.
- 15 HP industrial motor provides exceptional cutting power for demanding applications.
- 20" swing and 80" between centers handle large and extended workpieces with ease.
- Mitutoyo® 2-axis DRO increases machining precision and setup efficiency.
- Wide spindle speed range from 20–1550 RPM supports a variety of turning operations.
- Large 3.125" spindle bore accommodates oversized material.
- Extensive threading and feed selections support advanced machining applications.
- Complete accessory package enhances versatility and shop productivity.
- Designed for industrial production, maintenance, and precision machining environments.
- Supported by Baileigh's 1-year warranty and lifetime technical support.

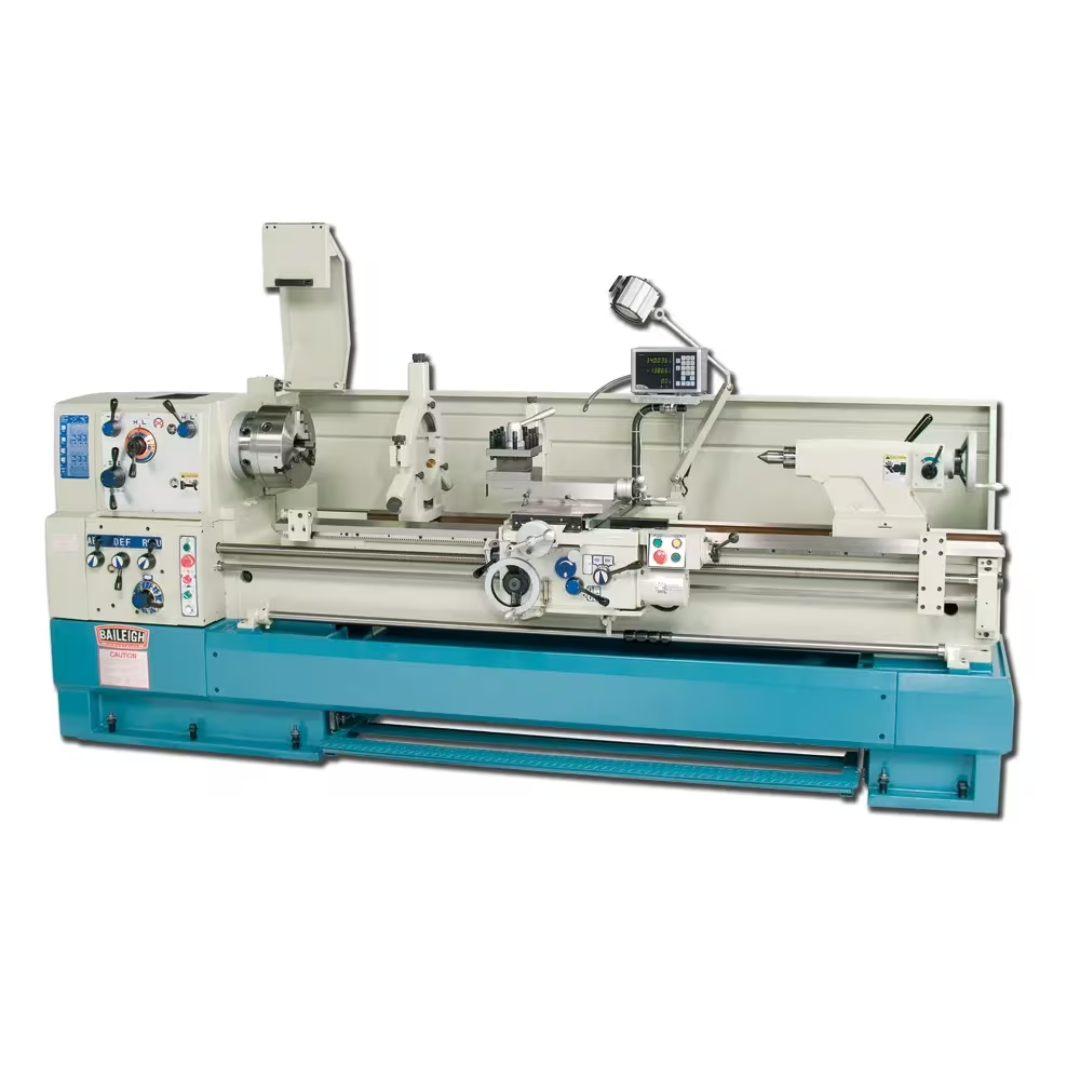

The Baileigh Precision Metal Lathe PL-2080 1006176 combines industrial-grade construction, powerful machining capability, exceptional precision, and a professional accessory package into one dependable engine lathe. With its heavy cast iron base, Mitutoyo® 2-axis DRO, 20" swing, 80" between centers, and high-torque 15 HP motor, it is an outstanding solution for demanding production machining, repair work, and precision manufacturing operations.
