Baileigh Pneumatic Tapping Arm ATM-27-1900 1000327 Applications
- Production tapping and repetitive threading operations.
- Machine shops and CNC machining support stations.
- Fabrication and metalworking facilities.
- Large workpiece manufacturing and assembly operations.
- Maintenance and repair departments.
- Thread creation in steel, aluminum, and other machinable materials.
- Industrial fixtures, weldments, and structural fabrication projects.
- Workstations requiring extended tapping reach and ergonomic operation.
The extended 74.8" working range allows operators to reach large parts and multiple hole locations without repositioning the workpiece, significantly improving productivity.
Baileigh Pneumatic Tapping Arm ATM-27-1900 1000327 Specifications
| Model | ATM-27-1900 |
|---|---|
| Product Type | Pneumatic Tapping Arm |
| Operation Type | Air Powered / Pneumatic |
| Arm Configuration | Double-Arm Articulated Design |
| Tapping Range | .11" to 1" |
| Tapping Capacity (Mild Steel) | 1 in. |
| Spindle Speed Range | 70 – 220 RPM |
| Maximum Spindle Speed | 220 RPM |
| Minimum Work Range | 7.8 in. |
| Maximum Work Range | 74.8 in. |
| Input Power | Pneumatic |
| Motor Power | 7.5 HP Equivalent Pneumatic System |
| Spindle Operation | Pneumatic |
| Included Tap Holders | 1/4", 3/8", 1/2", 5/8", 3/4", and 7/8" |
| Mounting Style | Table Mounted |
| Construction | Heavy-Gauge Industrial Articulated Arm Assembly |
| Net Weight | 80 lbs. |
| Gross Weight | 80 lbs. |
| Warranty | 1 Year |
| UPC | 731325391688 |
Baileigh Pneumatic Tapping Arm ATM-27-1900 1000327 Features & Performance
- Pneumatic Tapping Operation provides smooth, reliable thread creation while eliminating the need for electric drive systems.

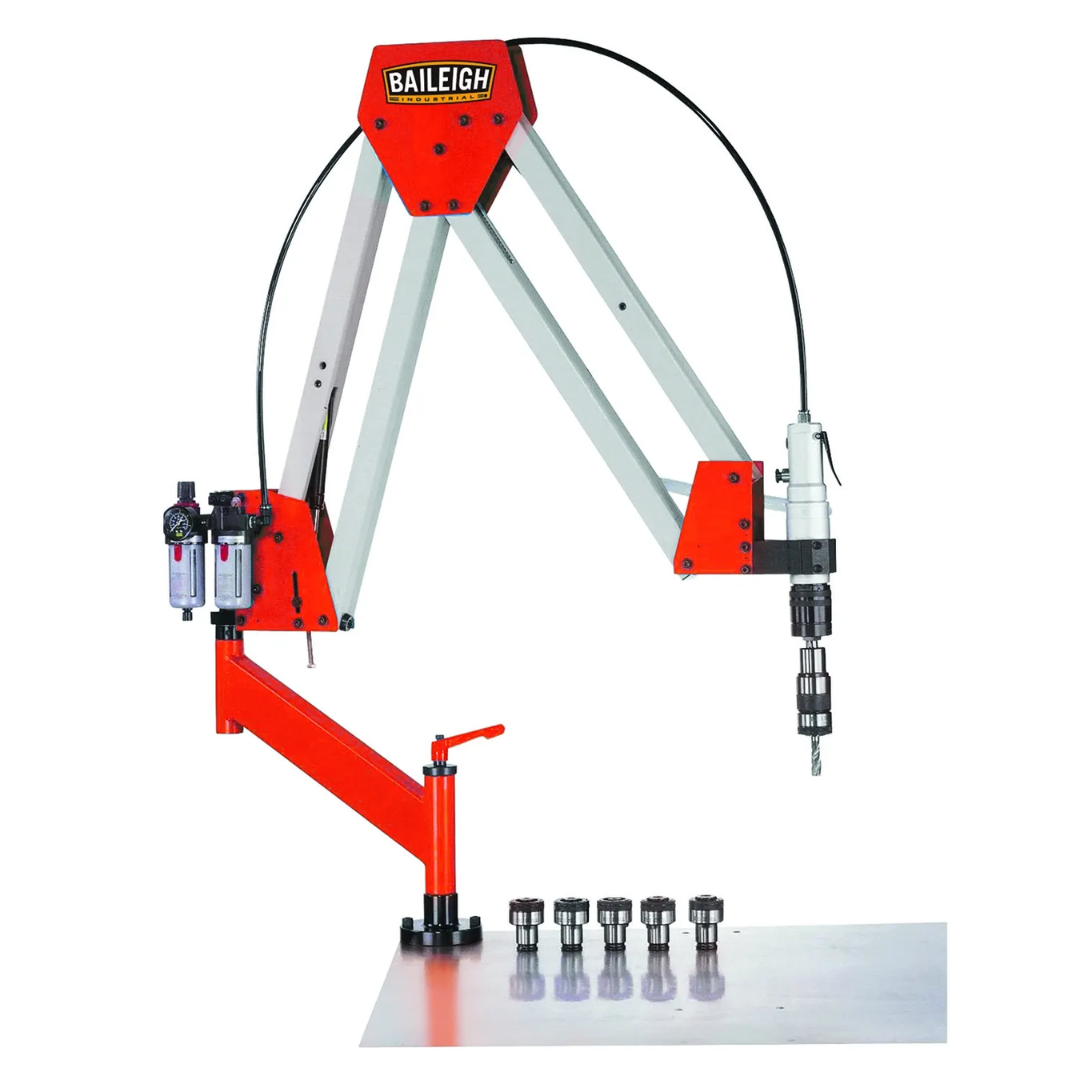

- Double-Articulated Arm Design delivers exceptional maneuverability and positioning flexibility across large work areas.
- .11" to 1" Tapping Capacity accommodates a broad range of thread sizes for fabrication, machining, and production applications.
- 74.8" Maximum Working Reach enables efficient tapping of large assemblies, fixtures, and oversized workpieces without repositioning.
- 7.8" Minimum Reach allows accurate tapping of features located close to the mounting point.

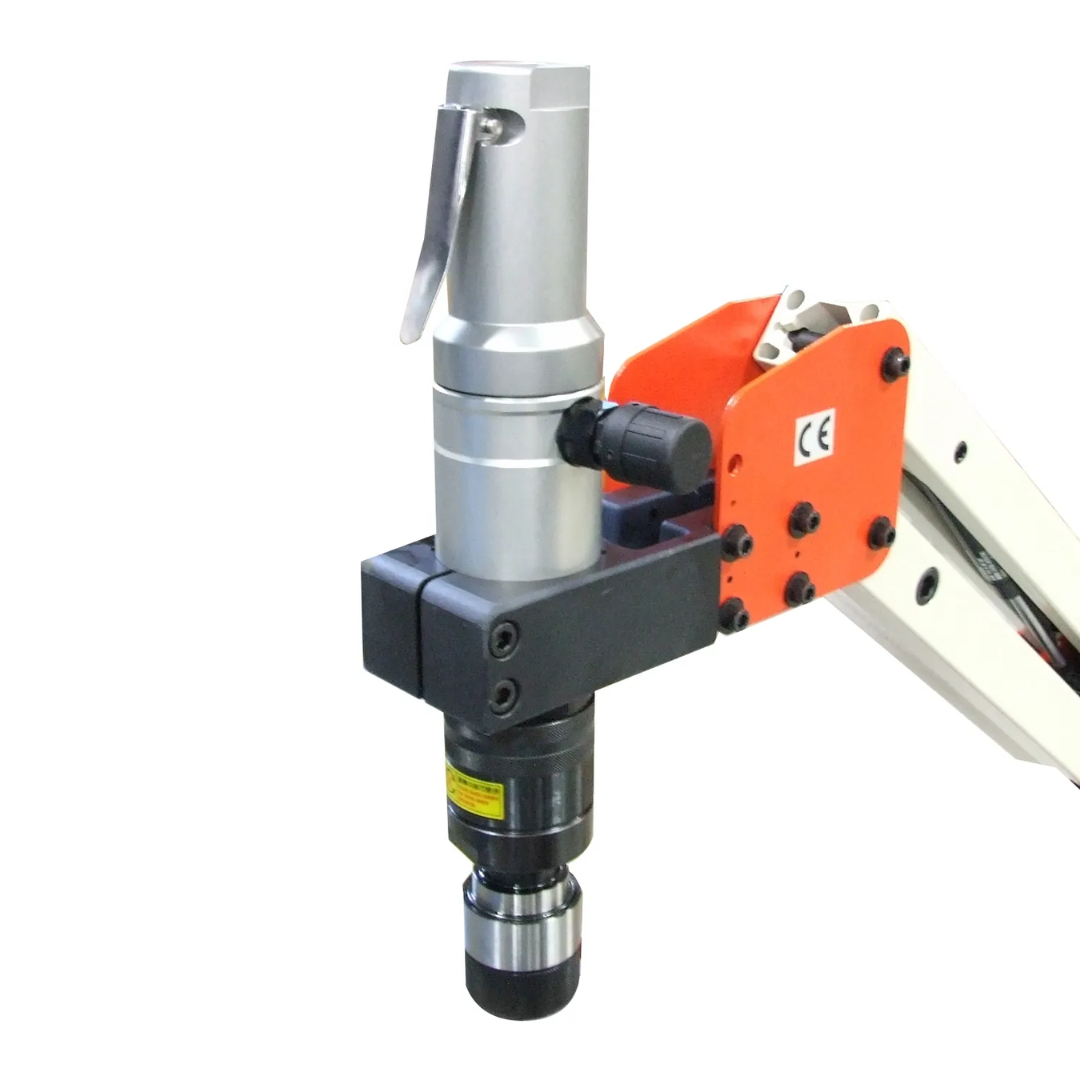

- 70–220 RPM Pneumatic Spindle Speeds provide controlled threading performance across a variety of materials and tap sizes.
- Heavy Cast Iron Swing Components help absorb vibration and resist torque reaction for greater tapping accuracy.
- Heavy-Gauge Arm Construction improves rigidity and maintains precise positioning throughout operation.
- Ergonomic Design significantly reduces operator fatigue during repetitive threading cycles and high-production workloads.
- Table Mount System provides a secure and stable platform for consistent industrial performance.

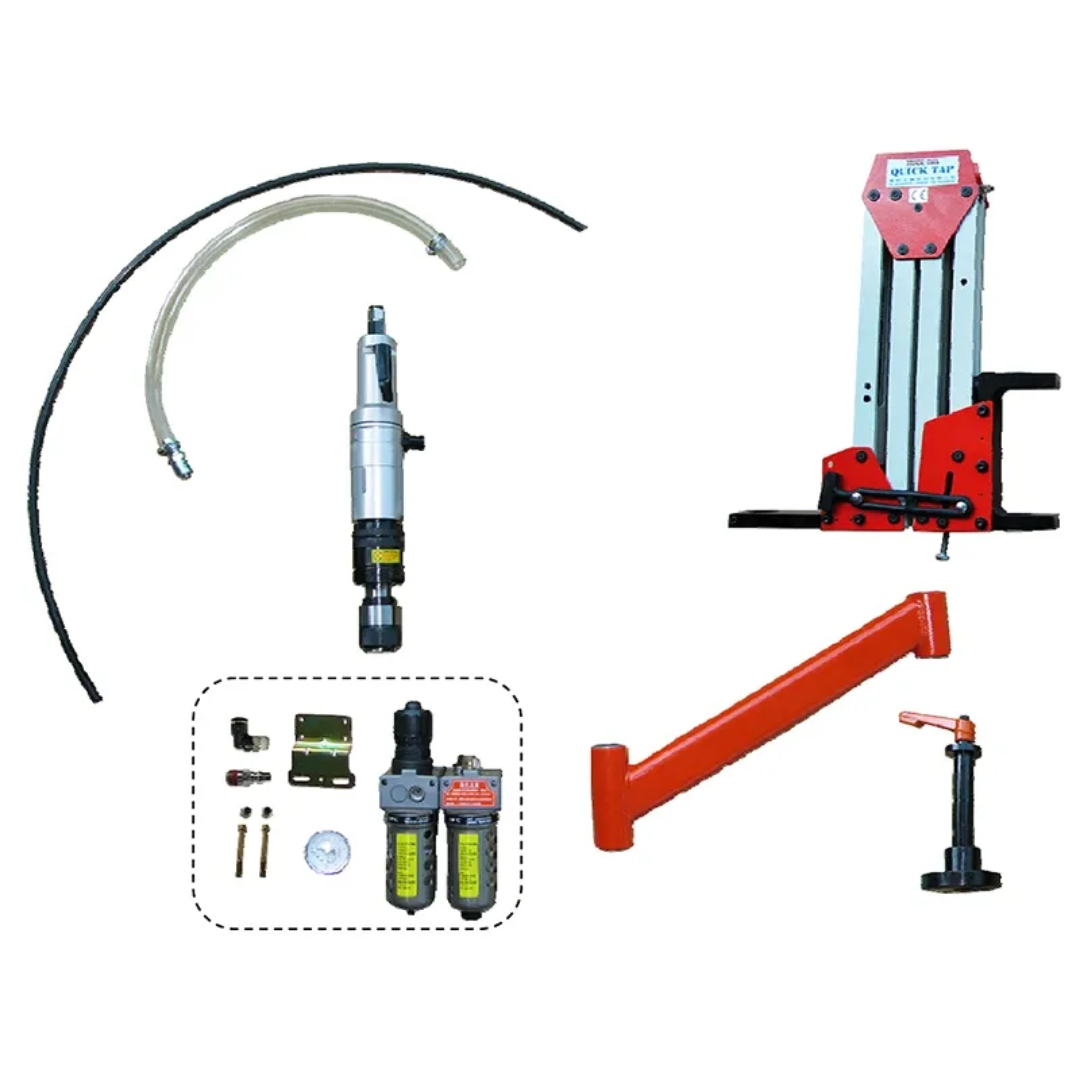

- Six Included Tap Holders support common tapping applications and minimize setup time between jobs.
- Industrial Production Capability is ideal for repetitive threading operations where speed and consistency are critical.

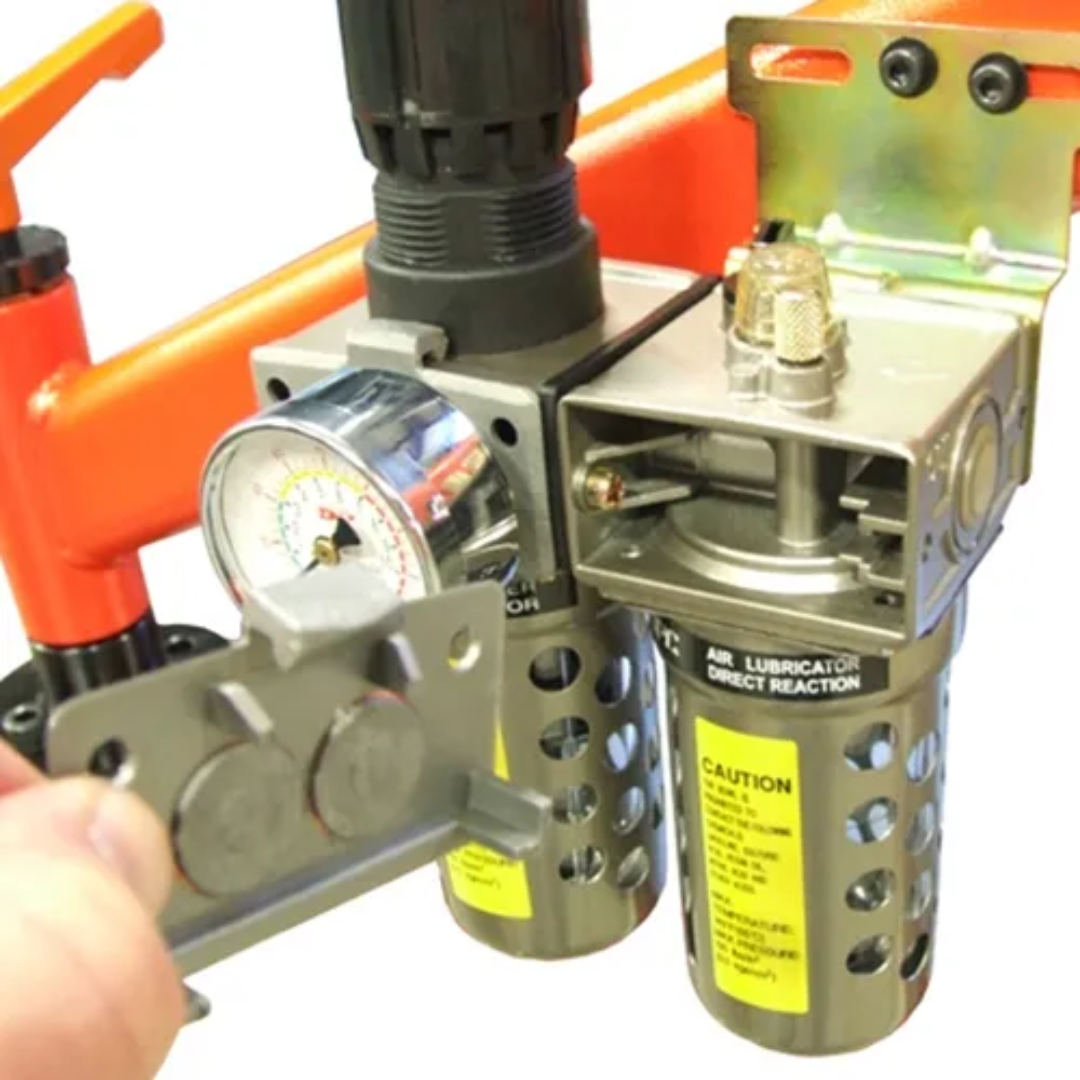

- Compressed Air Powered Operation integrates easily into facilities already equipped with shop air systems.
- Baileigh Warranty & Technical Support includes a 1-year parts warranty and lifetime technical assistance.
Why Choose the Baileigh Pneumatic Tapping Arm ATM-27-1900 1000327
- Extended 74.8" working range handles large parts and fixtures with ease.
- Double-articulated arm provides superior flexibility and positioning control.
- Air-powered spindle delivers smooth, reliable tapping performance.
- Supports tap sizes from .11" to 1" for exceptional application versatility.
- Heavy-duty construction withstands demanding industrial production environments.
- Reduces operator fatigue while improving threading accuracy and consistency.
- Includes six commonly used tap holders for immediate productivity.
- Ideal for fabrication shops, machine shops, manufacturing facilities, and maintenance operations.
The Baileigh Pneumatic Tapping Arm ATM-27-1900 1000327 combines industrial-grade durability, extended reach, and ergonomic pneumatic operation to create an efficient threading solution for demanding production environments. With its 74.8-inch work envelope, double-articulated arm design, and 1-inch tapping capacity, this machine helps maximize productivity while delivering accurate, repeatable threads across a wide range of applications.
