Baileigh Pneumatic Tapping Arm ATM-27-1000 BA9-1000326 Applications
- Production tapping operations in manufacturing facilities.
- Machine shops performing repetitive threading processes.
- Fabrication shops requiring fast and accurate hole tapping.
- Metalworking operations involving mild steel, aluminum, and other machinable materials.
- Maintenance departments producing threaded repair components.
- Industrial assembly lines requiring consistent thread quality.
- Custom manufacturing and prototype development projects.
- Workstations where ergonomic tapping solutions improve productivity.
Ideal for manufacturers seeking a fast, ergonomic, and highly accurate alternative to manual tapping operations.
Baileigh Pneumatic Tapping Arm ATM-27-1000 BA9-1000326 Specifications
| Model | ATM-27-1000 |
|---|---|
| Product Keyword | Baileigh Pneumatic Tapping Arm ATM-27-1000 BA9-1000326 |
| Input Power | Pneumatic |
| Spindle Operation | Pneumatic |
| Tapping Range | 0.11" to 1" |
| Tapping Capacity (Mild Steel) | 1" |
| Spindle Speed Range | 70 to 220 RPM |
| Maximum Spindle Speed | 220 RPM |
| Minimum Work Range | 3.93" |
| Maximum Work Range | 39.3" |
| Arm Configuration | Single-Arm Articulated Design |
| Included Tap Holders | 1/4", 3/8", 1/2", 5/8", 3/4", and 7/8" |
| Mounting Style | Table Mount |
| Construction | Cast Iron and Aluminum Arm Assembly |
| Motor Rating | 7.5 HP |
| Net Weight | 55 lbs |
| Gross Weight | 55 lbs |
| UPC | 731325391671 |
| Warranty | 1 Year |
Baileigh Pneumatic Tapping Arm ATM-27-1000 BA9-1000326 Performance & Construction

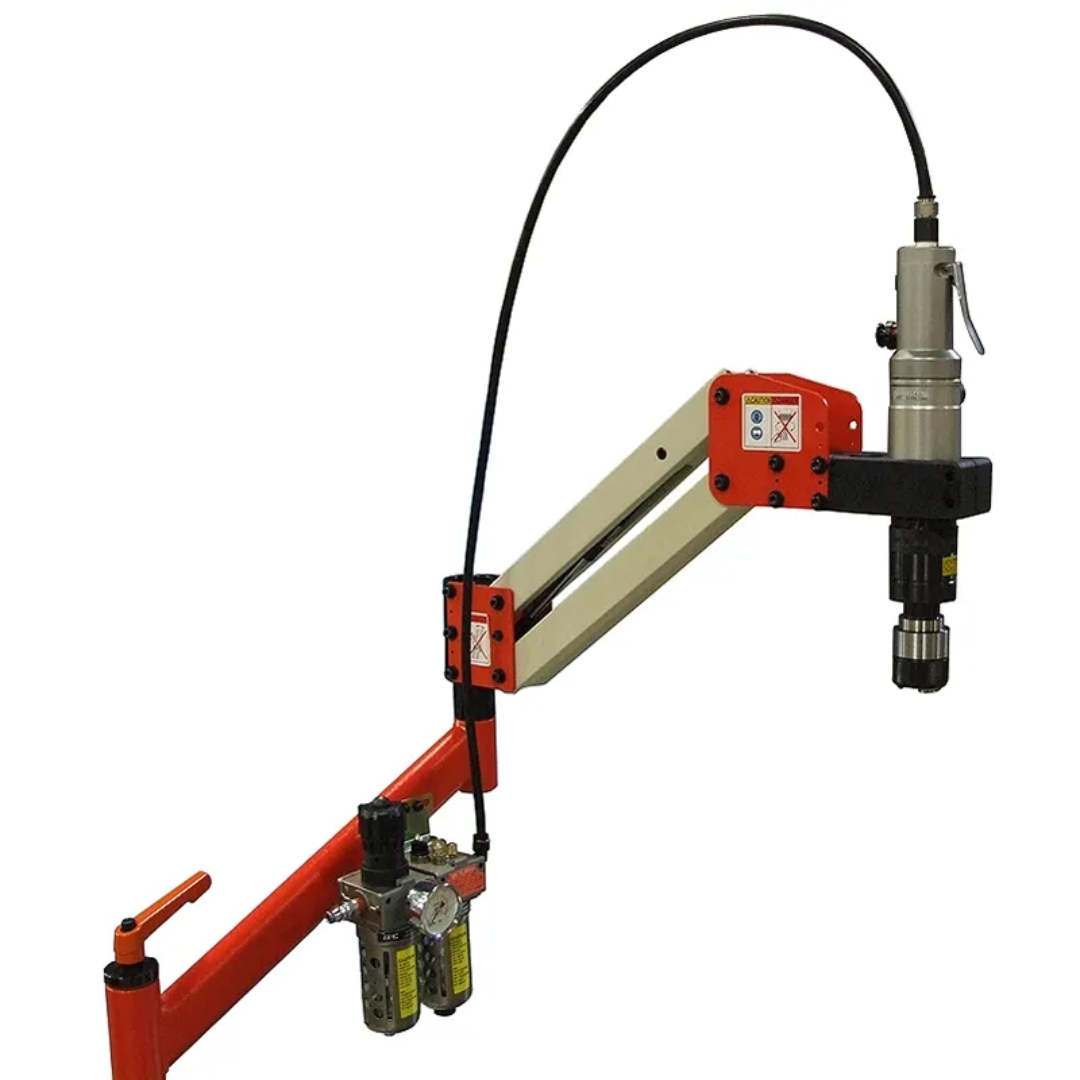

- Single-arm articulated design provides exceptional flexibility and positioning for tapping operations across a wide work area.
- Pneumatic power system eliminates the need for electrical spindle motors while delivering smooth and consistent tapping performance.
- Tapping capacity from 0.11" to 1" supports a broad range of thread sizes for industrial production requirements.
- 220 RPM spindle speed allows efficient thread production while maintaining excellent control and accuracy.
- Variable operating range of 70 to 220 RPM accommodates different materials and tapping requirements.
- Extended 39.3" maximum reach enables access to larger workpieces without repositioning.
- Minimum reach of 3.93" allows accurate tapping of smaller components and confined work areas.
- Heavy cast iron and aluminum construction minimizes vibration and absorbs torque reaction during operation.
- Ergonomic operation significantly reduces operator fatigue during repetitive production runs.

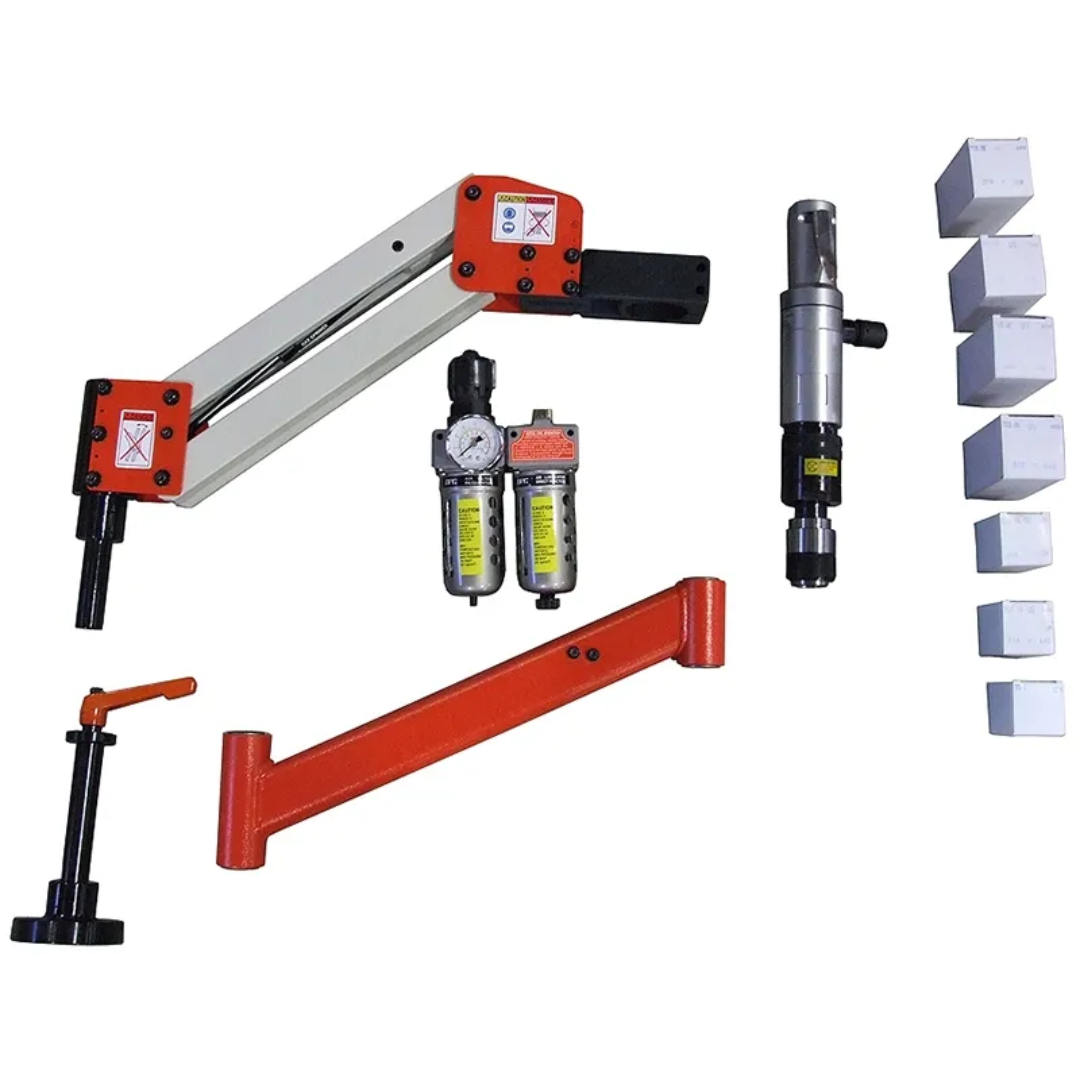

- Included tap holder package provides compatibility with common tapping sizes right out of the box.
- Table-mounted configuration offers a secure and stable platform for precision tapping work.
- Designed for production efficiency with repeatable thread quality and consistent performance.
- Lifetime technical support backed by Baileigh's experienced service team.
Why Choose the Baileigh Pneumatic Tapping Arm ATM-27-1000 BA9-1000326
- Pneumatic operation provides reliable industrial tapping performance.
- Handles thread sizes from 0.11" to 1" for broad application versatility.
- Extended 39.3" reach improves access to large workpieces.
- Articulated arm design delivers smooth movement and precise positioning.
- Heavy-duty cast iron construction reduces vibration and torque reaction.
- Includes multiple tap holders for immediate operational flexibility.
- Improves productivity while reducing operator fatigue.
- Backed by a 1-year warranty and lifetime technical support.

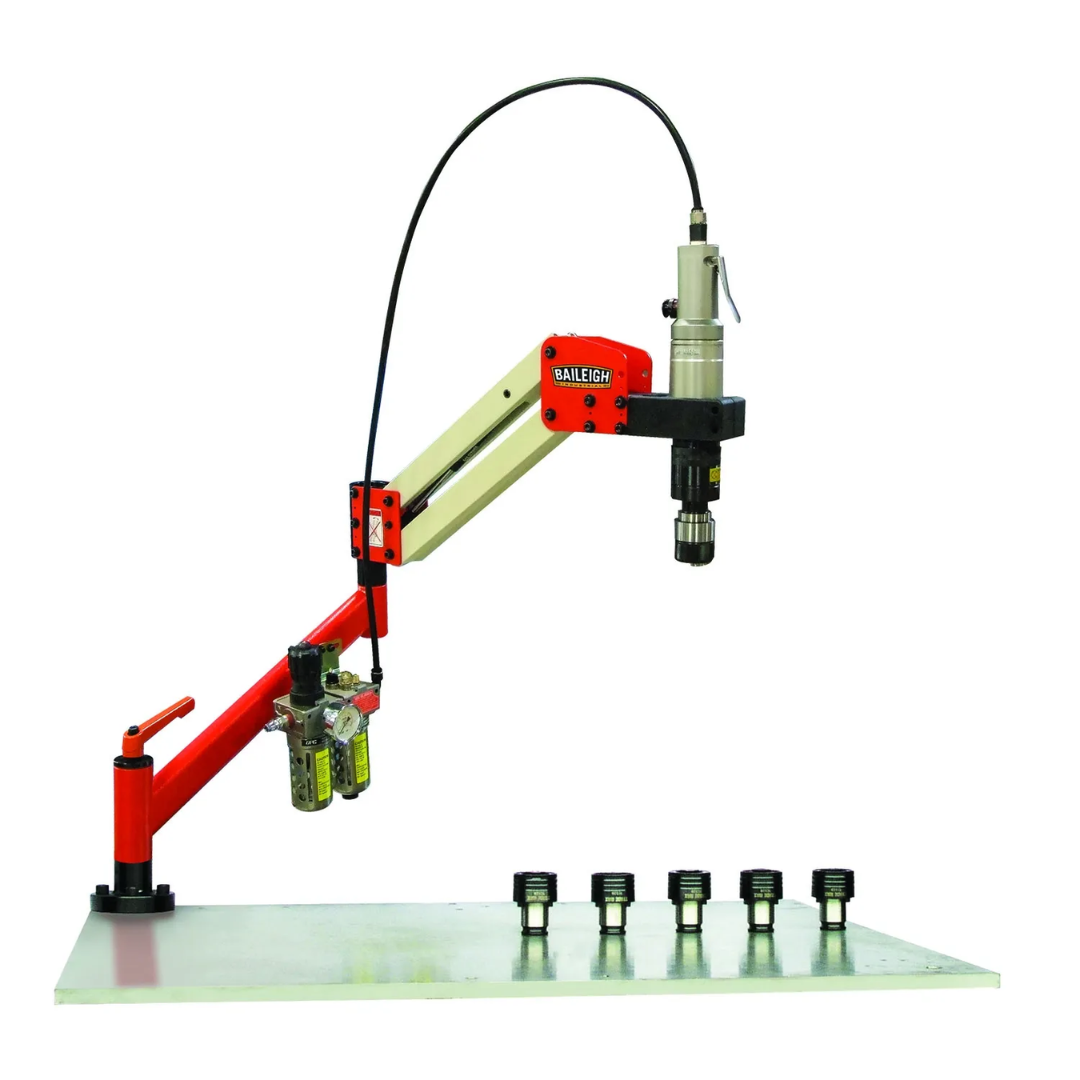

The Baileigh Pneumatic Tapping Arm ATM-27-1000 BA9-1000326 is a powerful and ergonomic tapping solution designed for high-volume production environments. Combining pneumatic efficiency, precision articulation, and heavy-duty industrial construction, this tapping arm helps manufacturers achieve faster throughput, superior thread consistency, and reduced operator strain.
