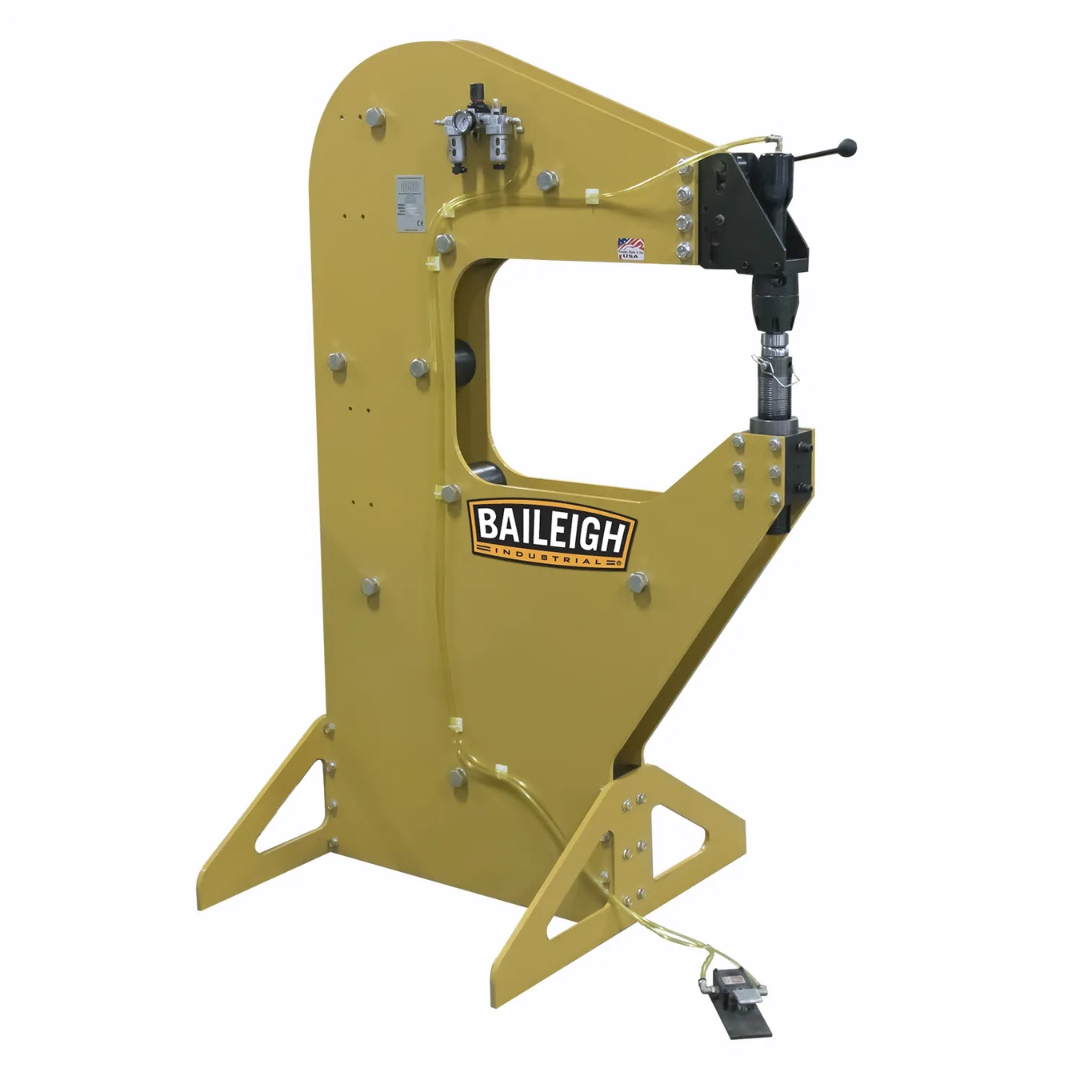

Baileigh Pneumatic Power Hammer (PH-28A) BA9-PH28A Applications
- Custom automotive restoration and body panel fabrication.
- Aircraft sheet metal construction and repair.
- Motorcycle tank and fender fabrication.
- Metal sculpture, ornamental metalworking, and artistic fabrication.
- Shrinking, stretching, planishing, and contouring sheet metal.
- Prototype manufacturing and custom fabrication shops.
The Baileigh Pneumatic Power Hammer (PH-28A) BA9-PH28A is designed for professionals requiring smooth, controlled metal shaping with the flexibility to handle everything from fine detail work to large sheet metal panels.
Baileigh Pneumatic Power Hammer (PH-28A) BA9-PH28A Specifications
| Model | PH-28A |
|---|---|
| Machine Type | Pneumatic Power Hammer |
| Throat Depth | 28 in. |
| Mild Steel Capacity | 16 Gauge |
| Aluminum Capacity | 14 Gauge |
| Operating Speed | Variable 0 – 1,000 Beats Per Minute |

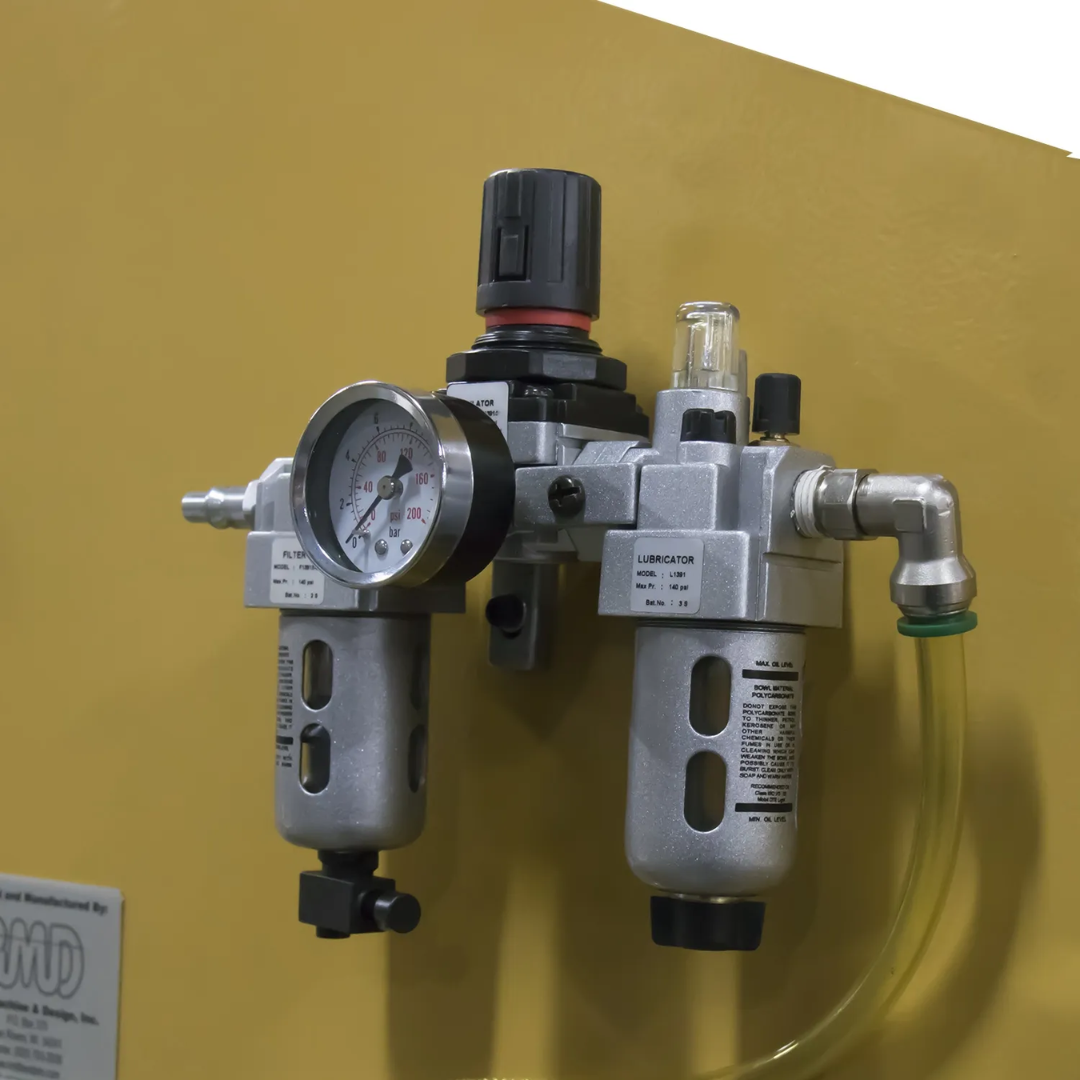

| Air Requirement | 120 PSI Constant Compressed Air Supply |
| Operation | Pneumatic with Foot Pedal Control |

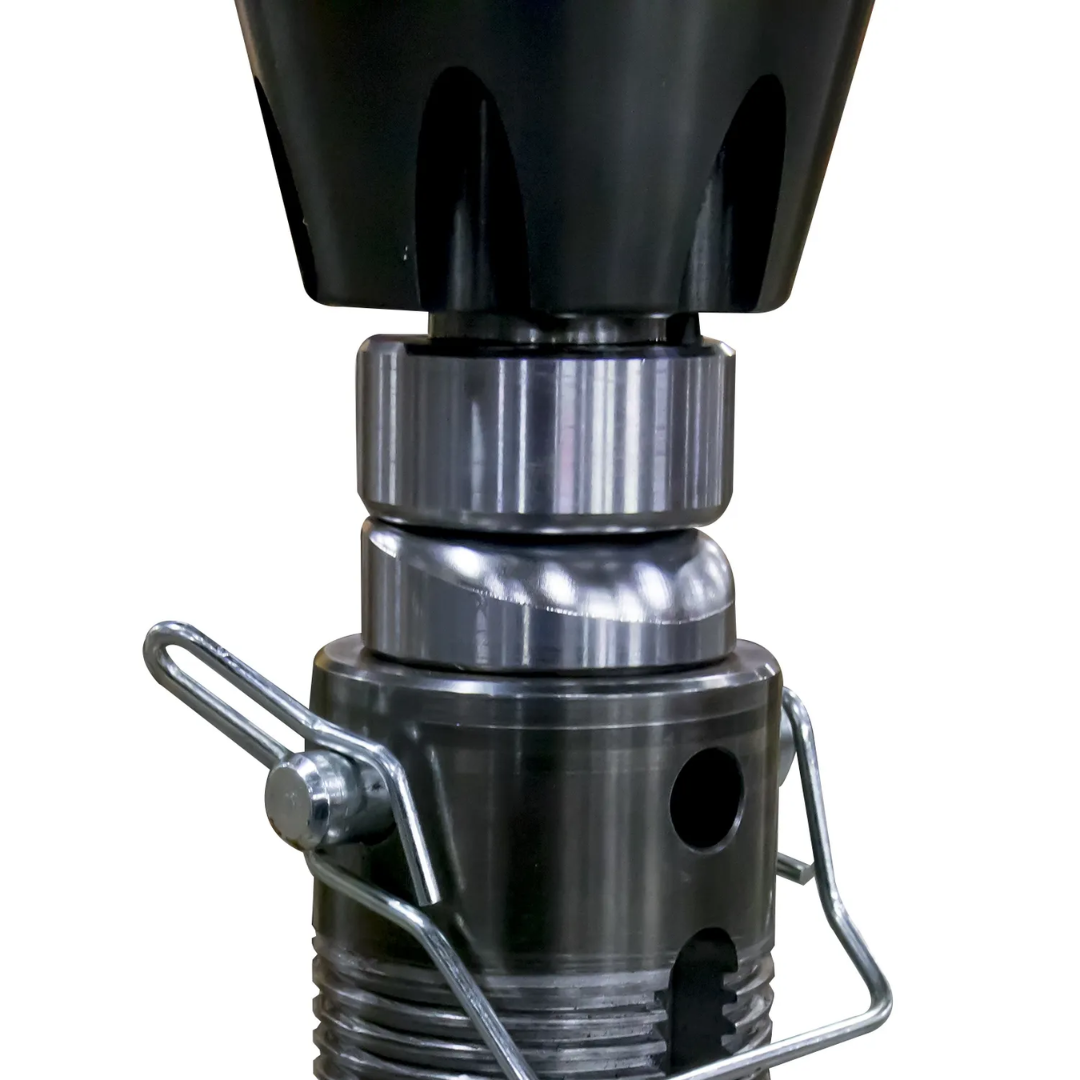

| Included Tooling | 2 Thumbnail Shrinking Dies, 2.5" Master Flat Top Die, 1" Linear Stretch Die, 3" Radius Dies (36", 24", and 12") |
| Construction | Heavy-Duty Industrial Steel Frame |
| Net Weight | 935 lbs. |
| Gross Weight | 935 lbs. |
| Warranty | 1 Year Parts Warranty |
Baileigh Pneumatic Power Hammer (PH-28A) BA9-PH28A Performance & Construction
- Large 28-inch throat depth allows operators to work with larger sheet metal panels than compact power hammers, making it ideal for automotive, aircraft, and custom fabrication projects.
- 16 gauge mild steel capacity provides the strength needed for demanding professional sheet metal forming applications.
- 14 gauge aluminum capacity enables efficient shaping of lightweight materials commonly used in motorsports, aviation, and restoration work.
- Variable speed control from 0 to 1,000 beats per minute gives operators precise control over shrinking, stretching, planishing, and contouring operations.

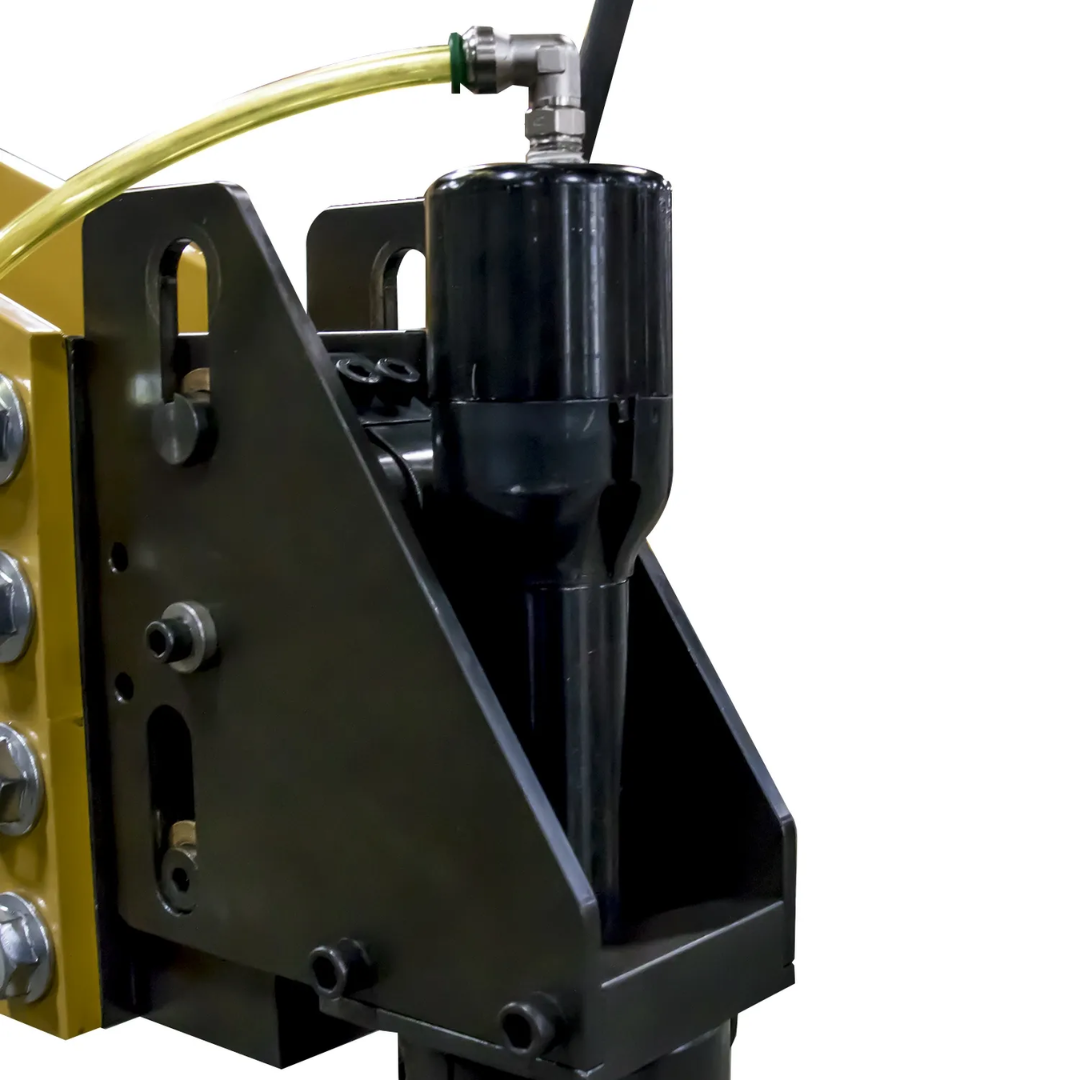

- Pneumatic operation powered by a constant 120 PSI compressed air supply delivers smooth, consistent hammering action with quieter operation than many mechanical power hammers.
- Comprehensive starter tooling package allows immediate operation without purchasing additional tooling, making setup fast and economical.

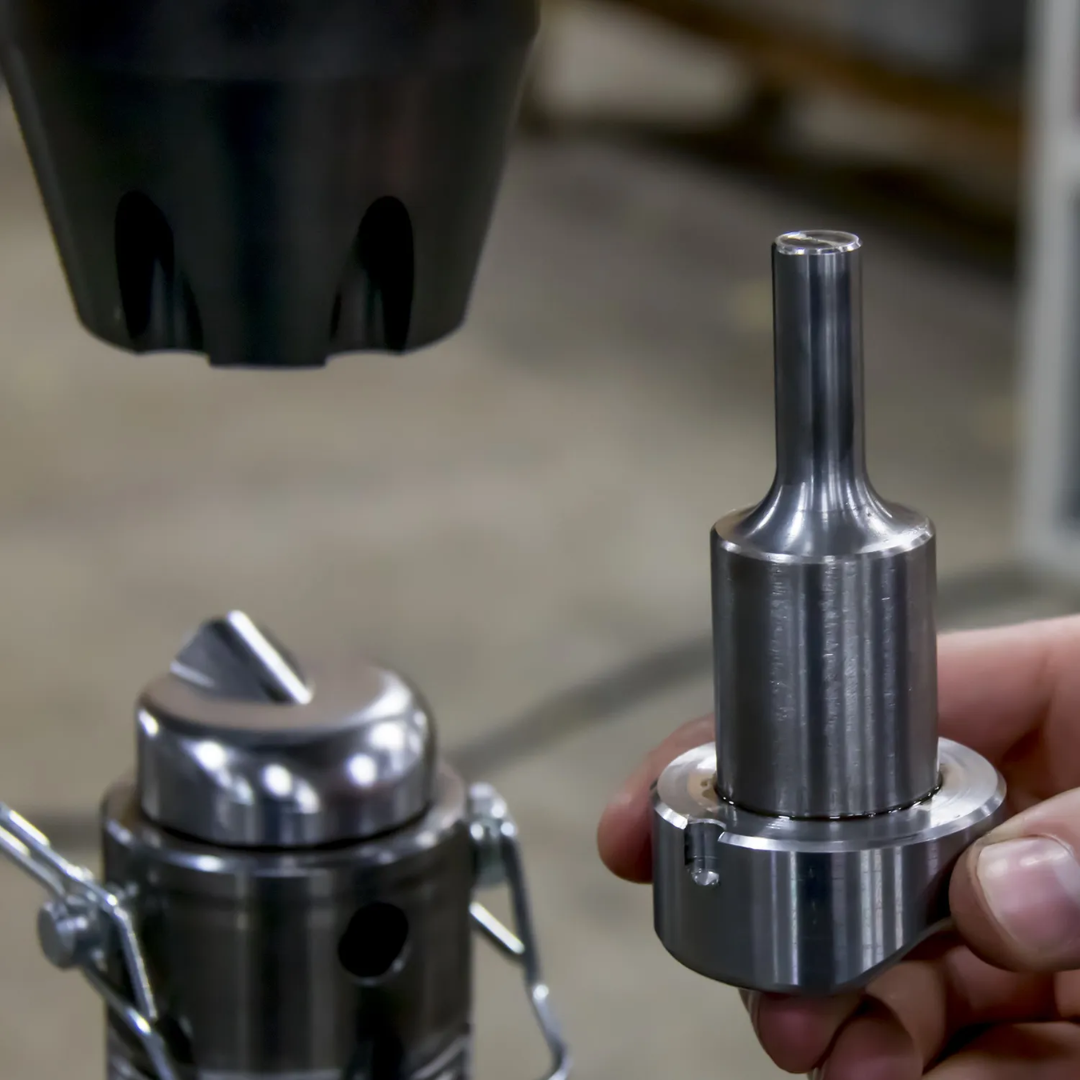

- Includes two thumbnail shrinking dies for controlled material shrinking and contour development.

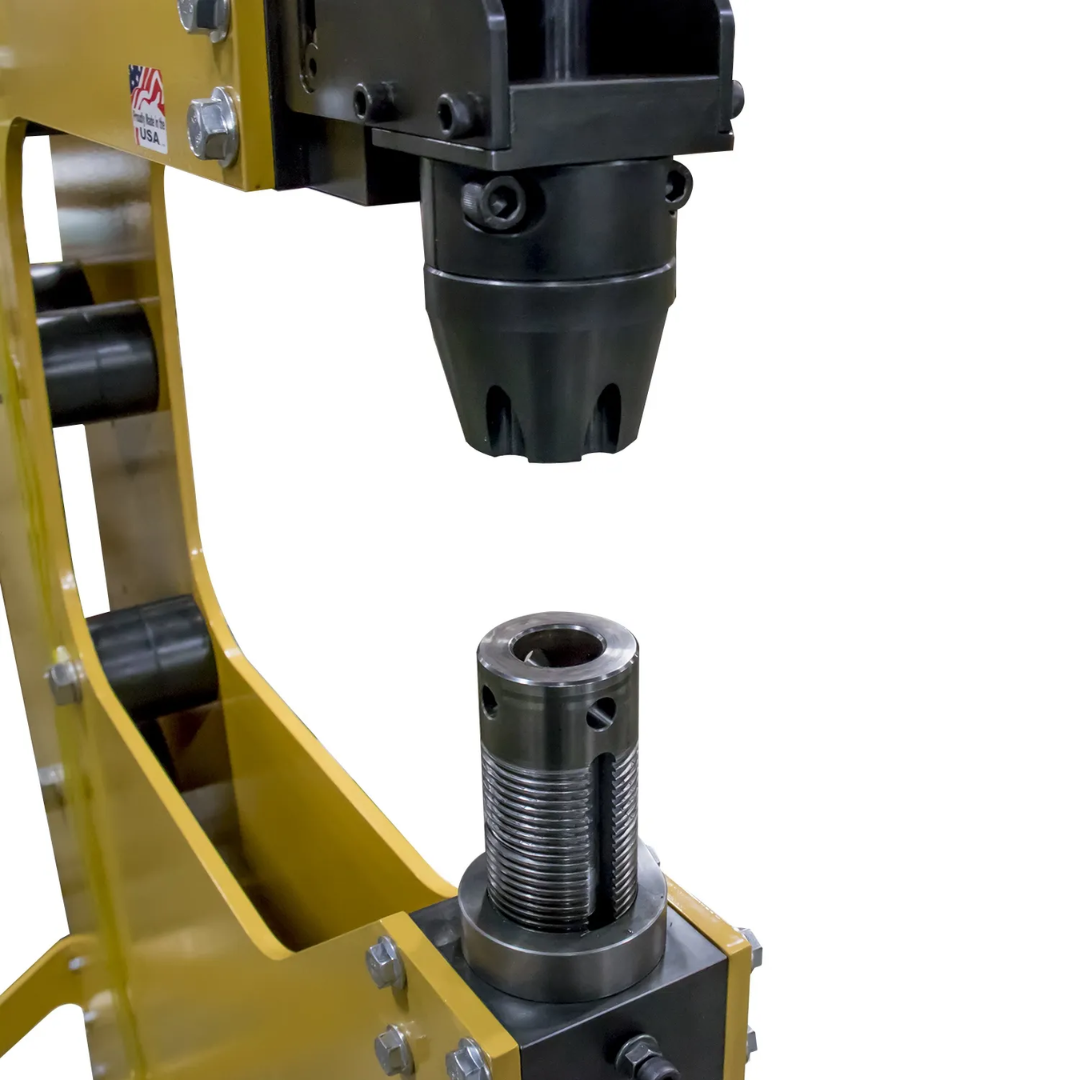

- Master flat top die and linear stretch die support precision planishing and controlled stretching for smooth panel finishing.
- Three radius dies in 36", 24", and 12" configurations provide flexibility for producing a wide variety of curves and compound shapes.
- Foot pedal control leaves both hands free to manipulate workpieces, improving precision, safety, and overall productivity.

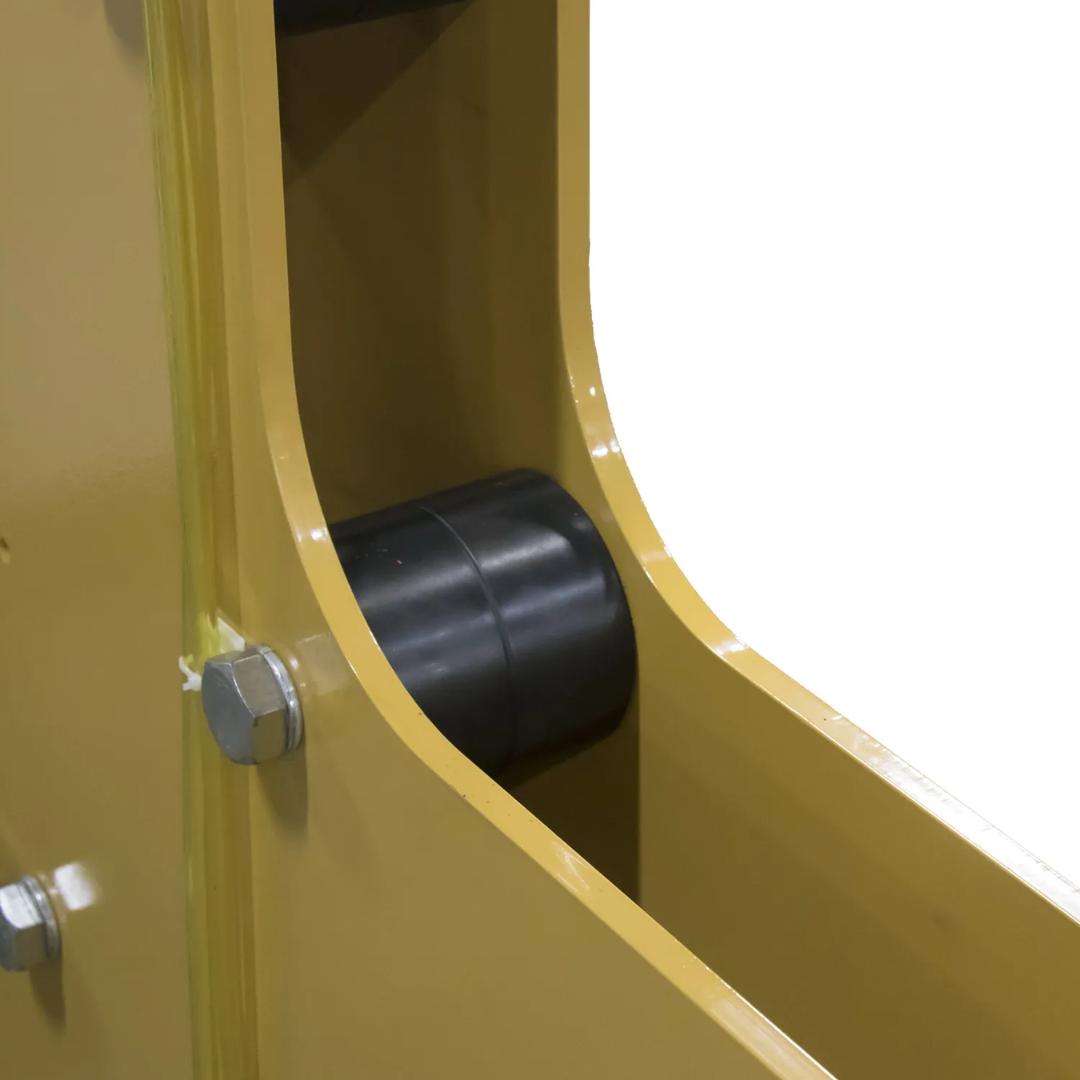

- Heavy-duty industrial steel construction provides outstanding rigidity and vibration control for accurate, repeatable forming performance.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Pneumatic Power Hammer (PH-28A) BA9-PH28A
- Professional pneumatic power hammer for automotive, aircraft, and custom fabrication.
- 28-inch throat depth accommodates larger workpieces and complex panels.
- Variable speed operation from 0–1,000 BPM provides exceptional forming control.
- Handles up to 16 gauge mild steel and 14 gauge aluminum.
- Complete starter tooling package allows immediate operation.
- Foot pedal control keeps both hands free for precise material handling.
- Quiet, smooth pneumatic operation improves control compared to many mechanical hammers.
- Heavy-duty steel construction delivers industrial durability and long service life.
- Ideal for shrinking, stretching, planishing, contouring, and precision metal shaping.
- Supported by Baileigh's 1-year warranty and lifetime technical assistance.
The Baileigh Pneumatic Power Hammer (PH-28A) BA9-PH28A delivers professional-quality sheet metal shaping performance in a rugged, industrial platform. Combining a generous 28-inch throat depth, precise variable-speed pneumatic operation, foot pedal control, and an extensive starter tooling package, this machine is an outstanding solution for fabricators who demand accuracy, versatility, and long-term reliability.
