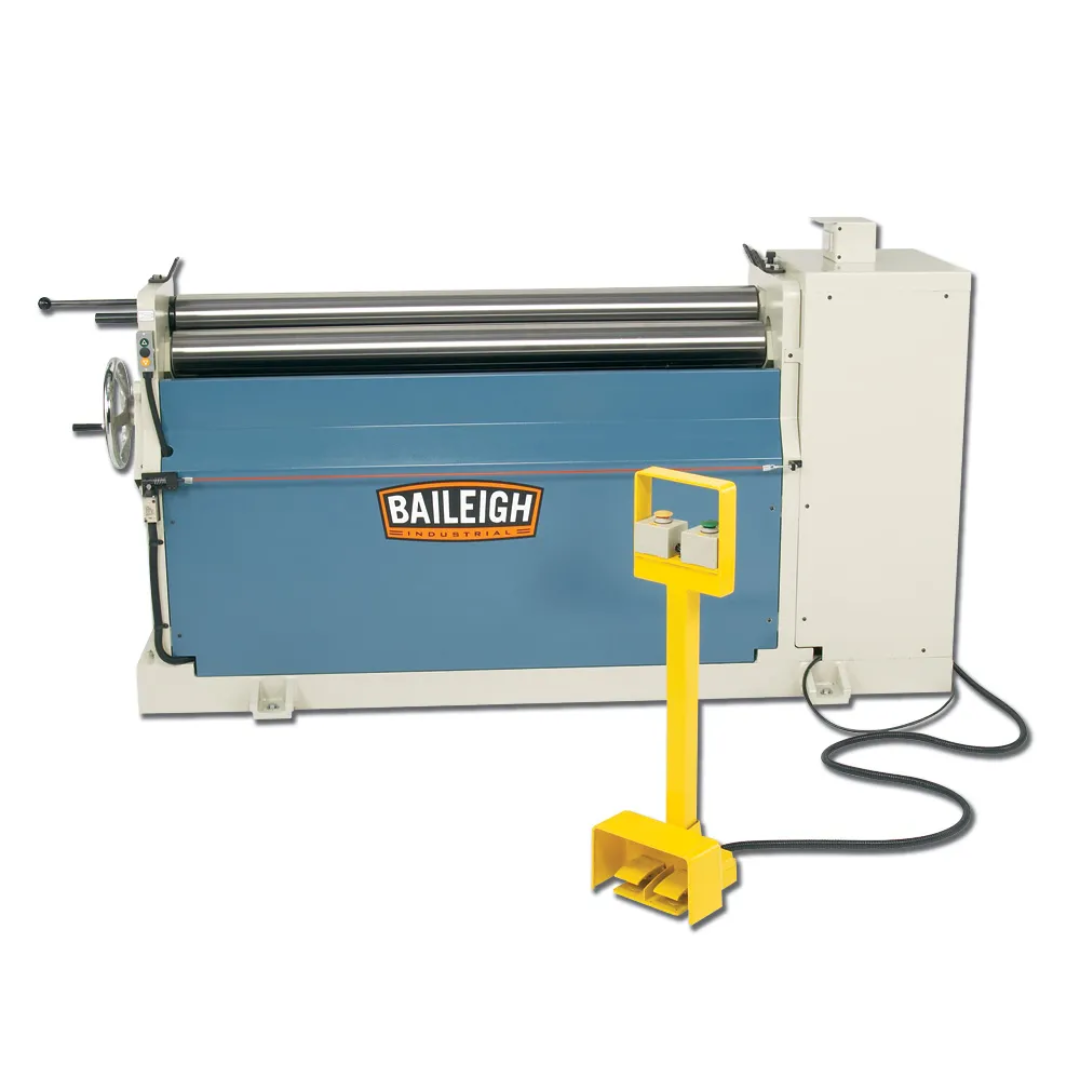

Baileigh Plate Roller PR-510 1006533 Applications
- General sheet metal fabrication shops
- HVAC duct and ventilation manufacturing
- Industrial production facilities
- Architectural and ornamental metal fabrication
- Agricultural and construction equipment manufacturing
- Tank, cylinder, and curved panel fabrication
- Prototype and custom metalworking projects
- Production environments requiring repeatable hydraulic plate rolling
Designed for fabrication professionals requiring reliable hydraulic plate rolling, precise roll positioning, and consistent results across a full 60-inch working width.
Baileigh Plate Roller PR-510 1006533 Specifications
| Model Number | PR-510 |
|---|---|
| Product Number | 1006533 |
| Machine Type | Hydraulic Plate Roller |
| Working Width | 60" (5 ft) |
| Maximum Forming Width | 60" |
| Mild Steel Capacity | 10 Gauge |
| Main Motor | 2 HP |
| Input Power | 220 Volt, Three Phase |
| Drive System | Three Driven Rolls |
| Back Roll Adjustment | Hydraulic Vertical Movement with Tilt for Coning |
| Position Indicator | Digital Back Roll Position Readout |
| Roll Finish | Hardened and Polished Rolls |
| Frame Construction | Fully Welded Heavy-Duty Steel Frame |
| Net Weight | 2,950 lbs |
| Gross Weight | 2,950 lbs |
| UPC | 731325410969 |
| Warranty | 1-Year Parts Warranty |
| Technical Support | Lifetime Technical Support |
Baileigh Plate Roller PR-510 1006533 Performance & Construction

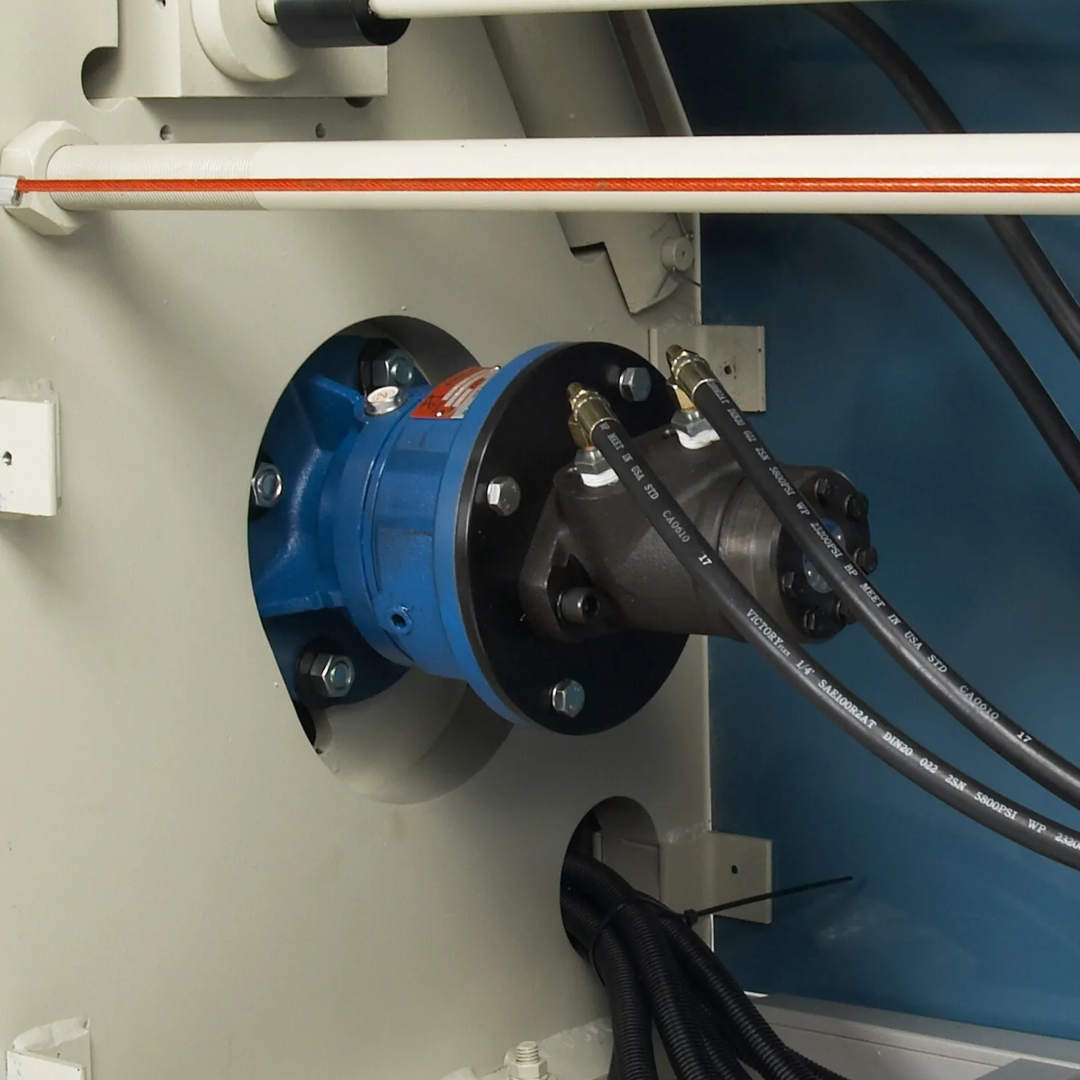

- Three driven rolls provide smooth, controlled material feeding and consistent rolling performance across the entire working width.
- 60-inch (5-foot) forming width accommodates larger sheet metal panels while maintaining excellent forming accuracy.
- Bends up to 10 gauge mild steel, making the machine ideal for fabrication shops handling medium-gauge materials.

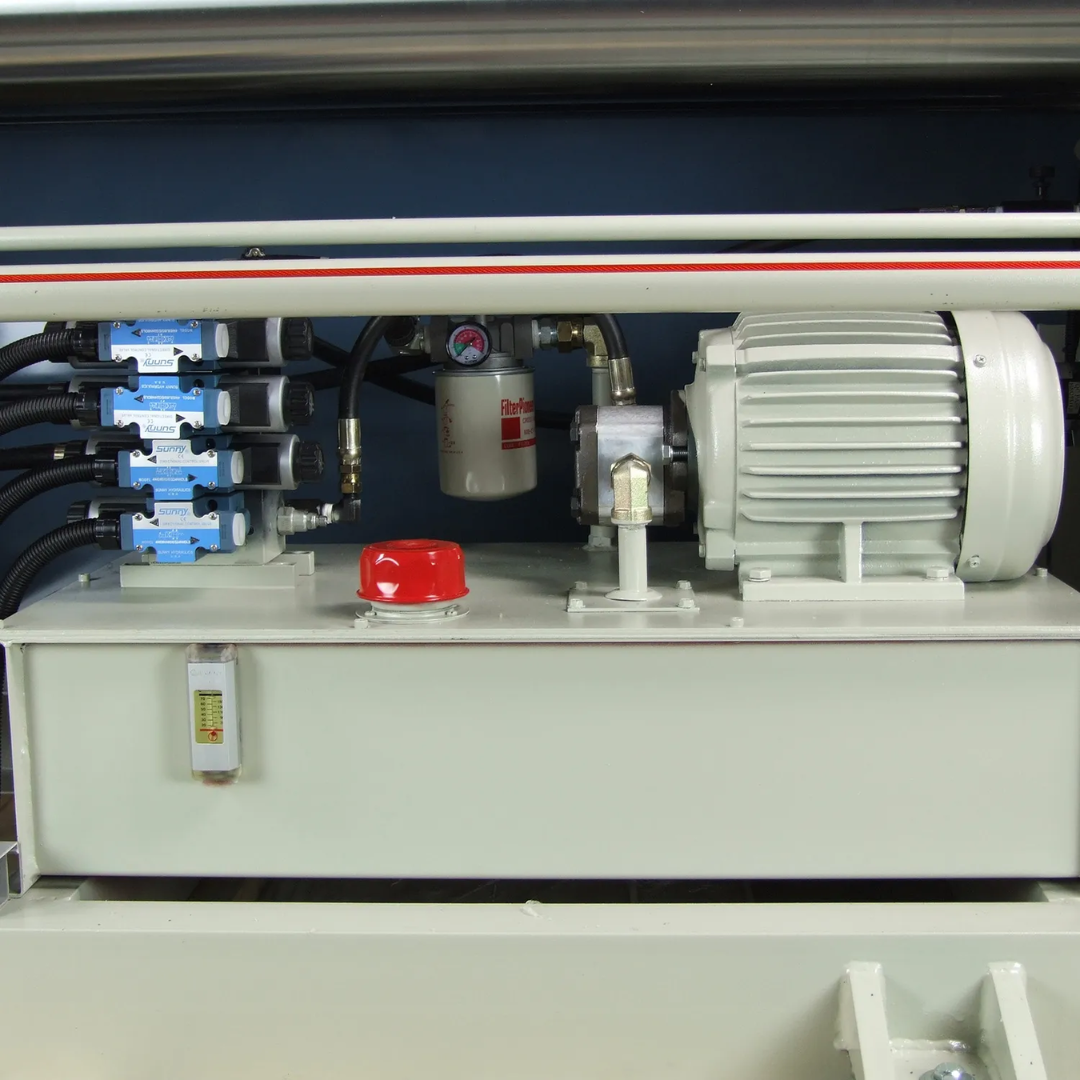

- Reliable 2 HP industrial motor delivers dependable power for continuous hydraulic rolling applications.
- 220-volt, 3-phase electrical system integrates easily into industrial fabrication and manufacturing facilities.
- Hydraulic back roll adjustment provides precise vertical positioning and roll tilt to simplify both standard rolling and coning operations.

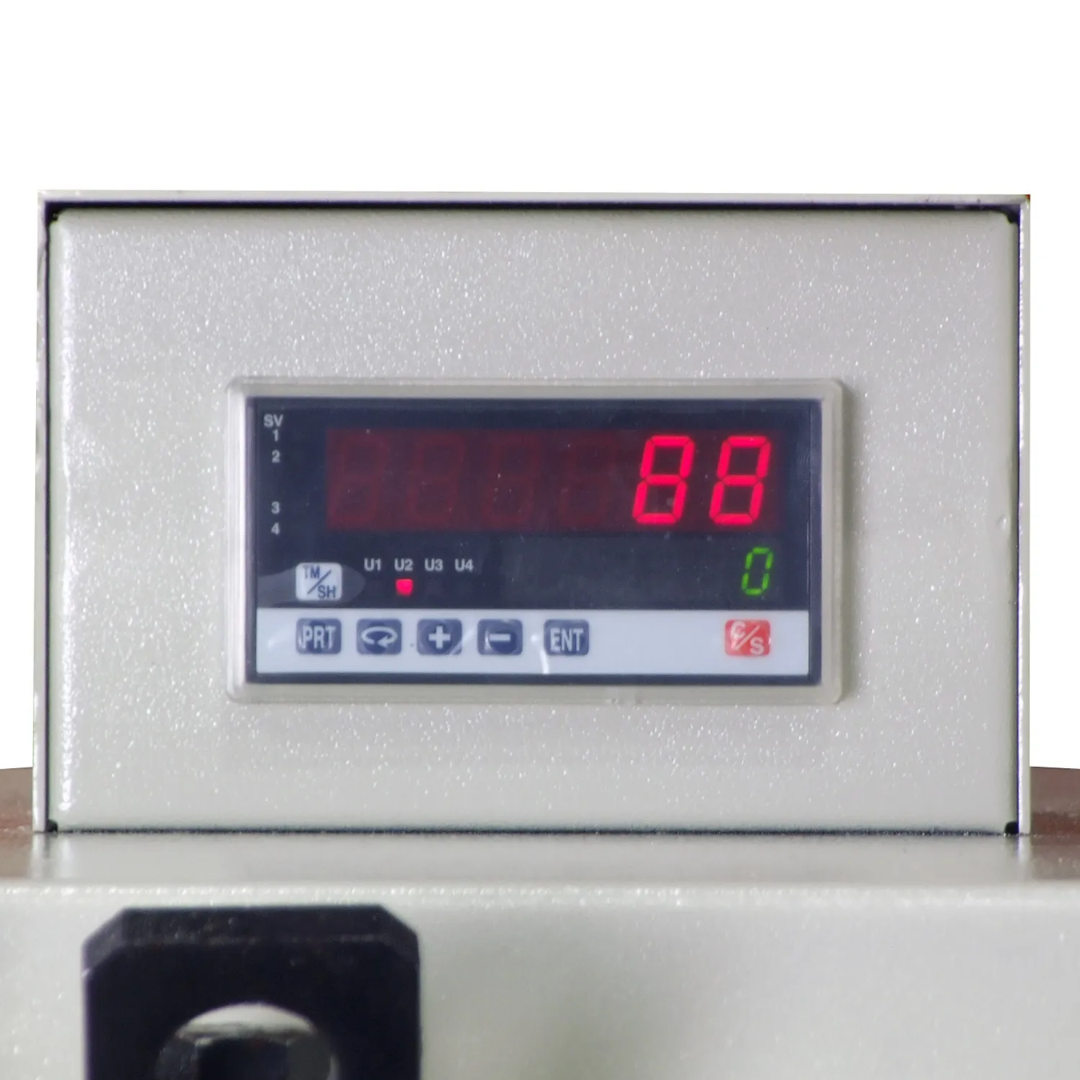

- Digital back roll position readout allows operators to accurately repeat setups for production consistency and reduced setup time.

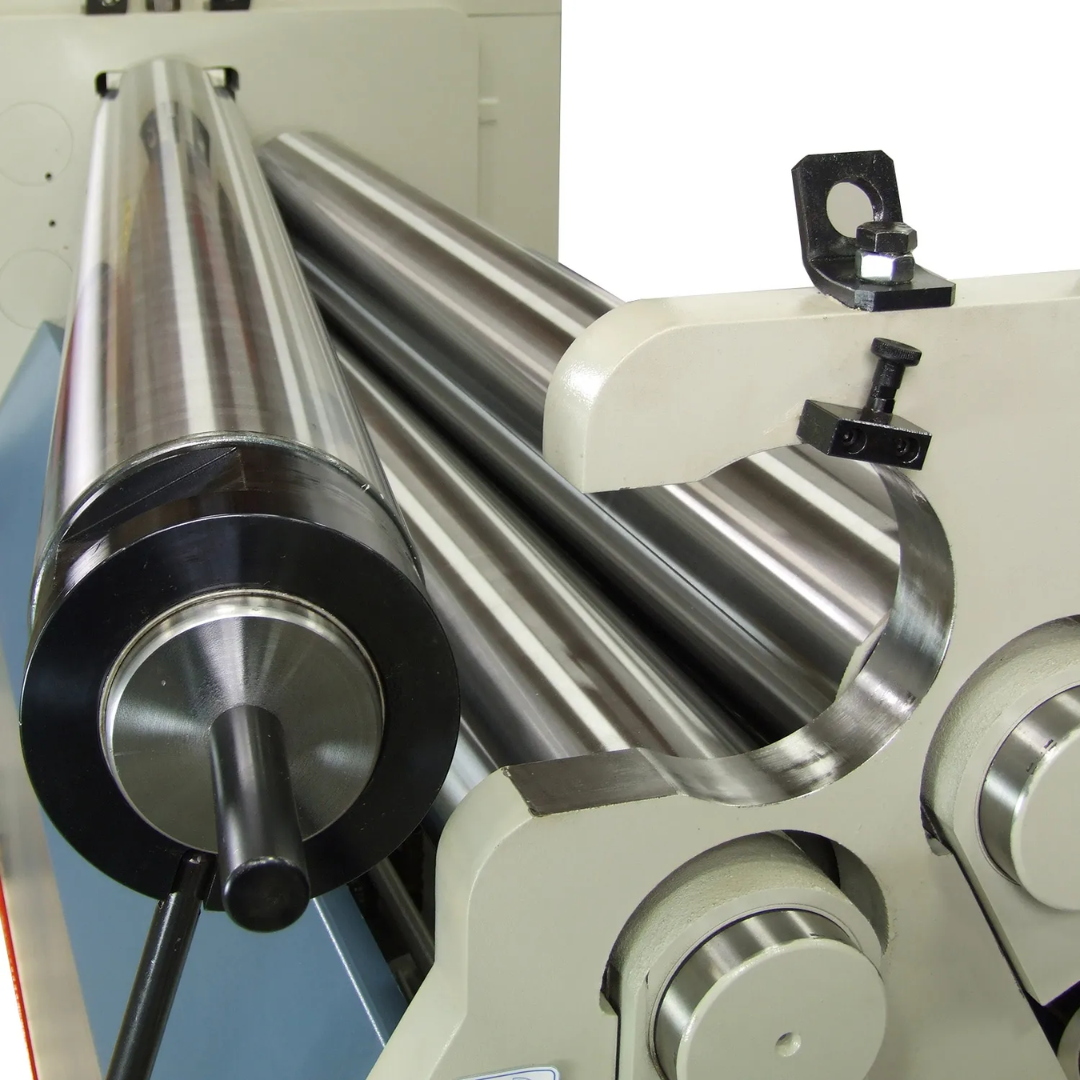

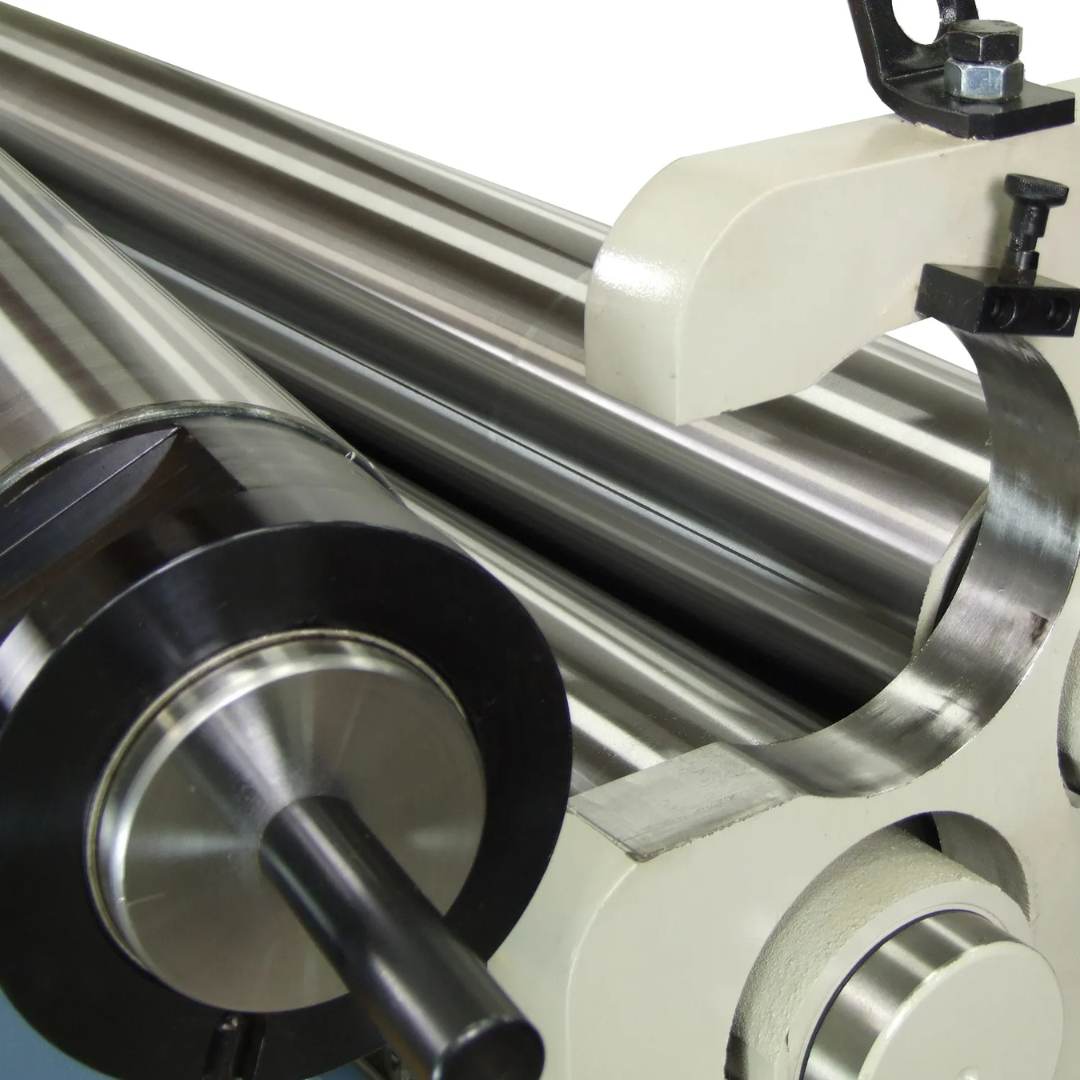

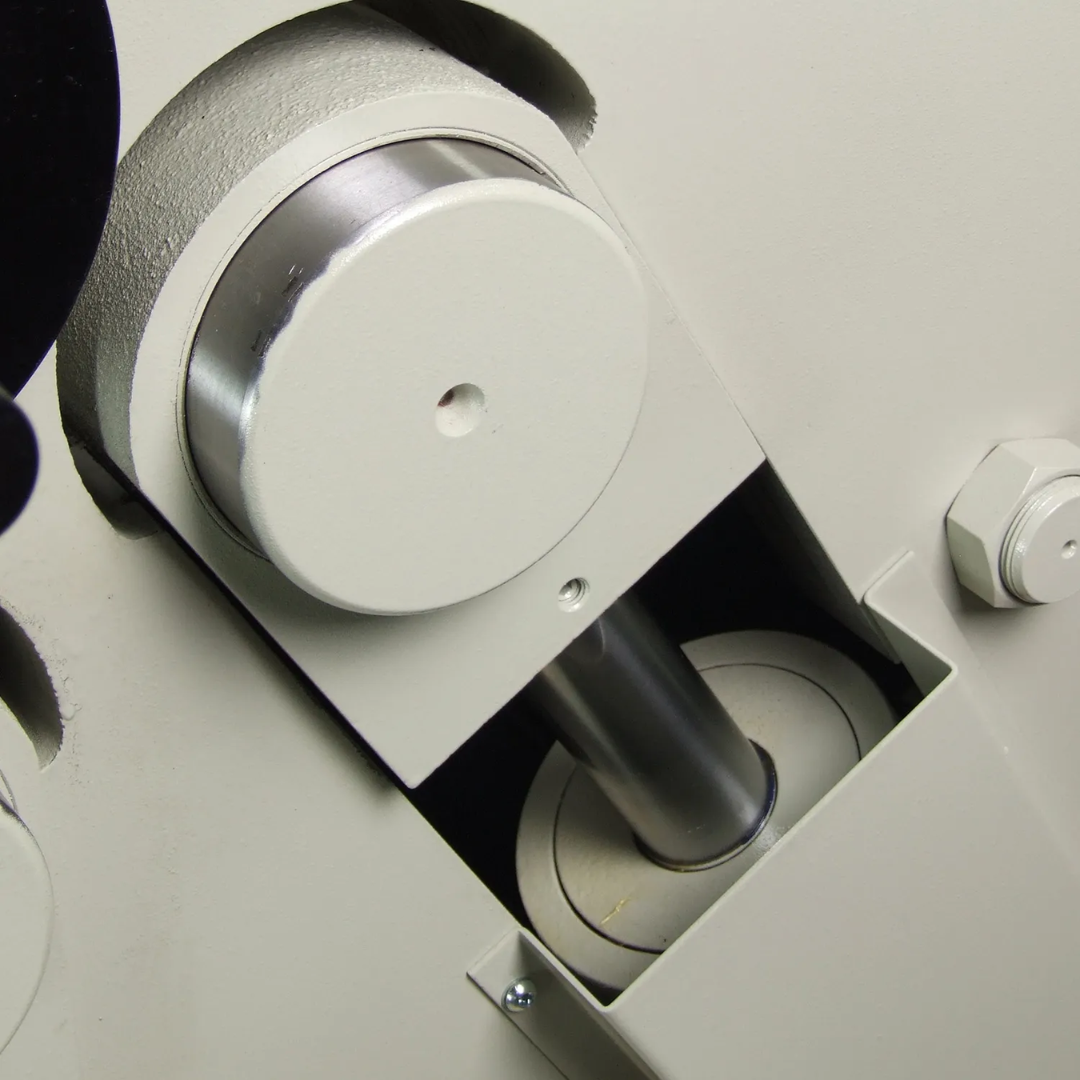

- Hardened, polished rolls minimize marking on finished materials while extending roll service life.
- Fully welded steel frame minimizes roll deflection under load, helping maintain long-term forming accuracy and machine rigidity.
- Built for daily industrial production, offering dependable operation for both custom fabrication and repetitive manufacturing environments.
- Heavy-duty construction ensures reliable long-term performance with minimal maintenance requirements.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for added confidence.
Why Choose the Baileigh Plate Roller PR-510 1006533
- 60-inch forming width for larger sheet metal fabrication projects.
- Three driven rolls provide smooth, consistent material feeding.
- Hydraulic back roll movement with tilt supports standard rolling and cone forming.
- Digital roll position indicator improves repeatability and production efficiency.
- Hardened polished rolls reduce material marking and extend service life.
- Rigid welded steel frame minimizes deflection during heavy-duty operation.
- Reliable 2 HP, 220 V, 3-phase industrial drive system.
- Designed for fabrication shops, production facilities, and industrial manufacturers.
- Supported by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Plate Roller PR-510 1006533 combines hydraulic precision, durable industrial construction, and dependable rolling performance into a versatile sheet metal forming solution. Whether producing cylinders, curved panels, cones, or custom fabricated components, this plate roller delivers the accuracy, repeatability, and durability professionals require for everyday fabrication and production work.
