Baileigh Plate Roll PR-413 1006521 Applications
- General sheet metal fabrication and custom metalworking projects.
- HVAC manufacturing for ductwork, transitions, and round components.
- Rolling cylinders, cones, guards, and curved machine enclosures.
- Industrial maintenance departments producing replacement formed parts.
- Small to medium production environments requiring repeatable plate rolling.
- Fabrication shops needing hydraulic performance with 220V single-phase power.

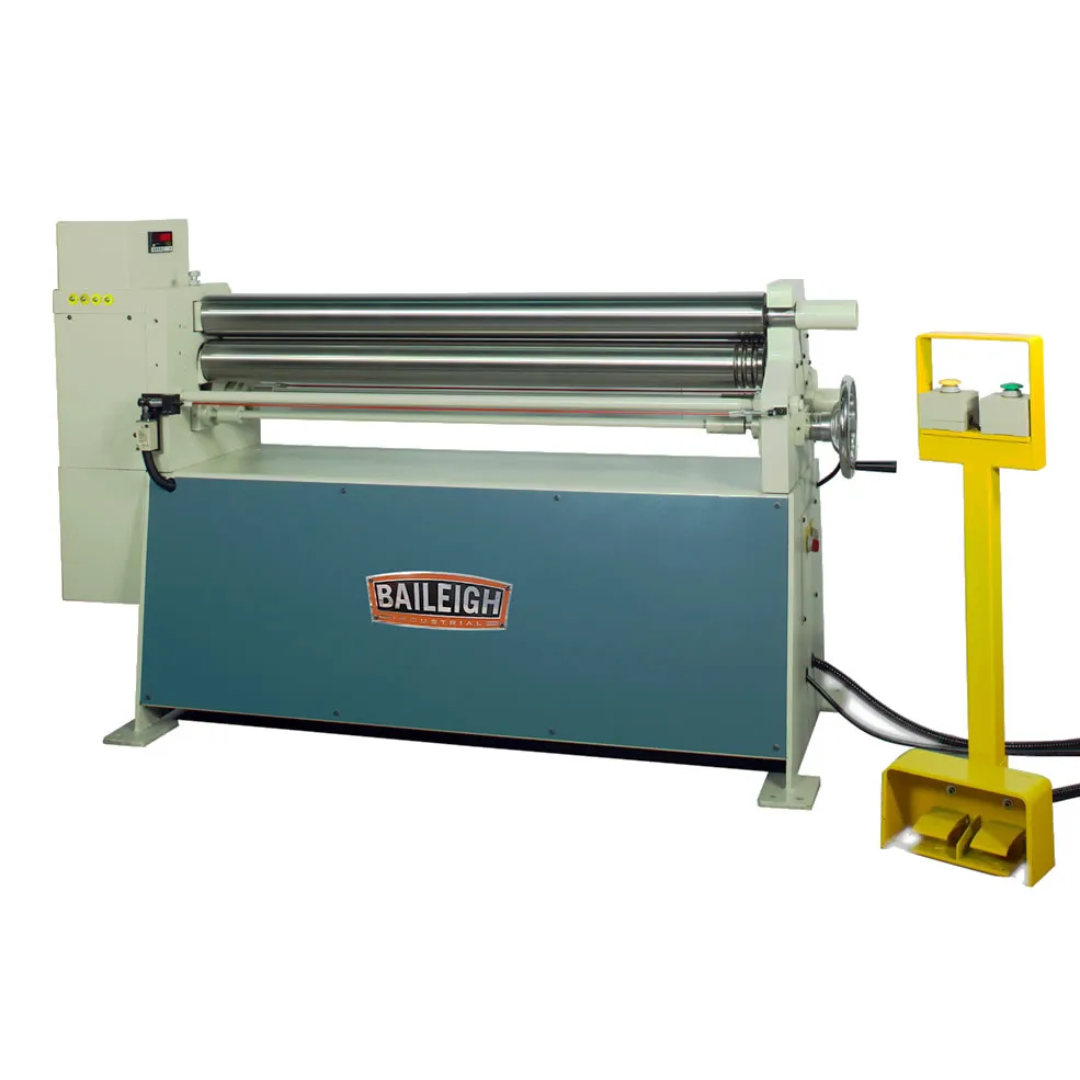

The Baileigh Plate Roll PR-413 1006521 combines hydraulic forming capability, precision controls, and single-phase convenience, making it an excellent solution for professional fabrication shops and industrial maintenance facilities.
Baileigh Plate Roll PR-413 1006521 Specifications
| Model | PR-413 |
|---|---|
| Part Number | 1006521 |
| Maximum Forming Width | 48 in. (4 ft.) |
| Bending Capacity | 48 in. |
| Mild Steel Capacity | 13 Gauge |
| Roll Configuration | Three Driven Rolls |
| Back Roll | Hydraulic Vertical and Tilting Adjustment |
| Digital Readout | Back Roll Position Display |
| Motor | 2 HP |
| Input Power | 220V, Single Phase |
| Frame Construction | Fully Welded Precision-Machined Steel Frame |
| Operator Controls | Control Pedestal with Forward/Reverse Foot Pedals and Hydraulic Back Roll Controls |
| Product Type | Industrial Plate Rolling Machine |
| Net Weight | 1,510 lbs |
| Gross Weight | 1,510 lbs |
| Warranty | 1 Year Parts Warranty |
Baileigh Plate Roll PR-413 1006521 Performance & Construction

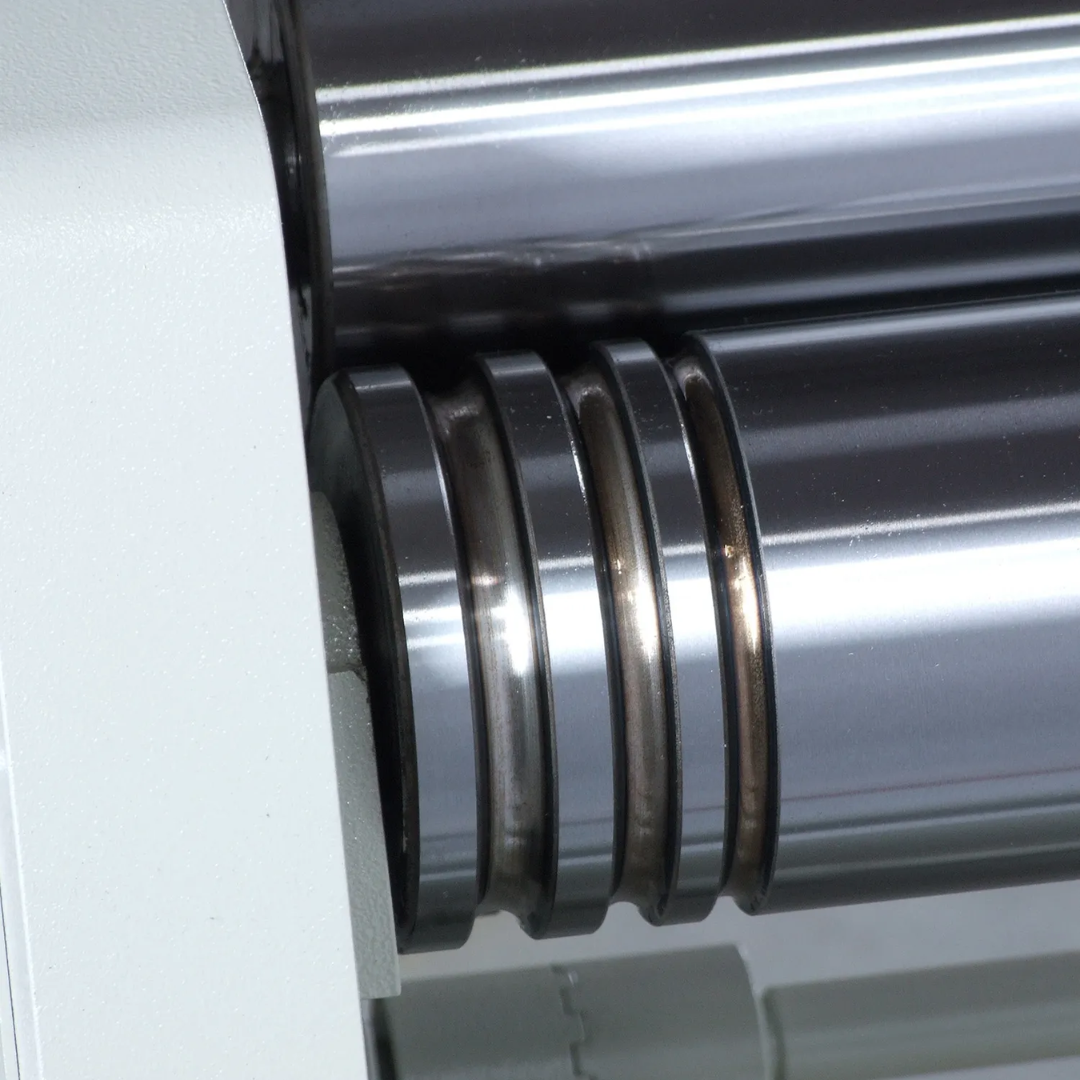

- Fully welded steel frame is precision machined to maintain rigidity, minimize deflection, and deliver consistent forming accuracy.
- 48-inch forming width allows full-length rolling of sheet metal for a wide range of fabrication applications.
- 13 gauge mild steel capacity provides excellent versatility for HVAC fabrication, manufacturing, and general metalworking.

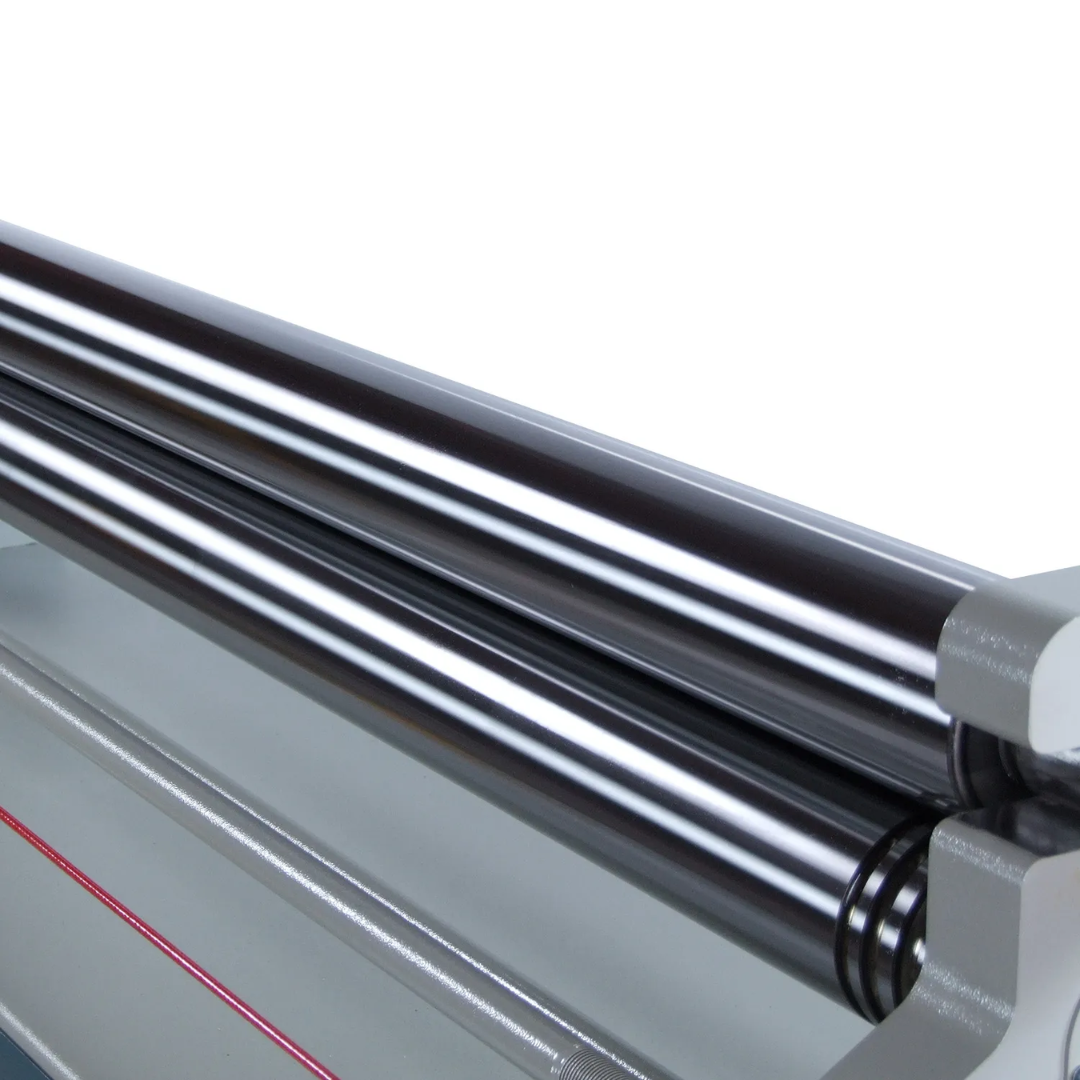

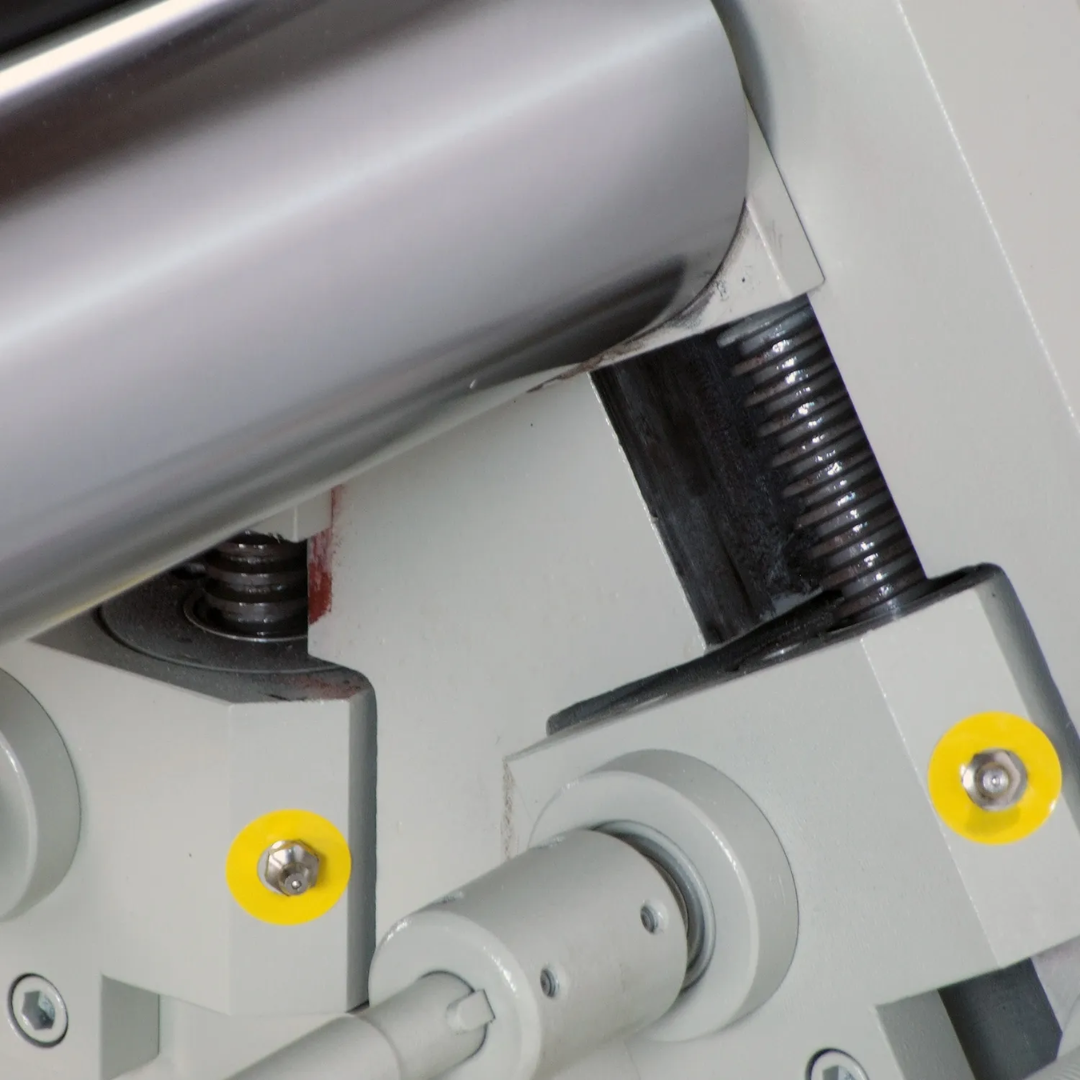

- Three driven rolls ensure smooth material feeding and consistent bending performance throughout the forming process.

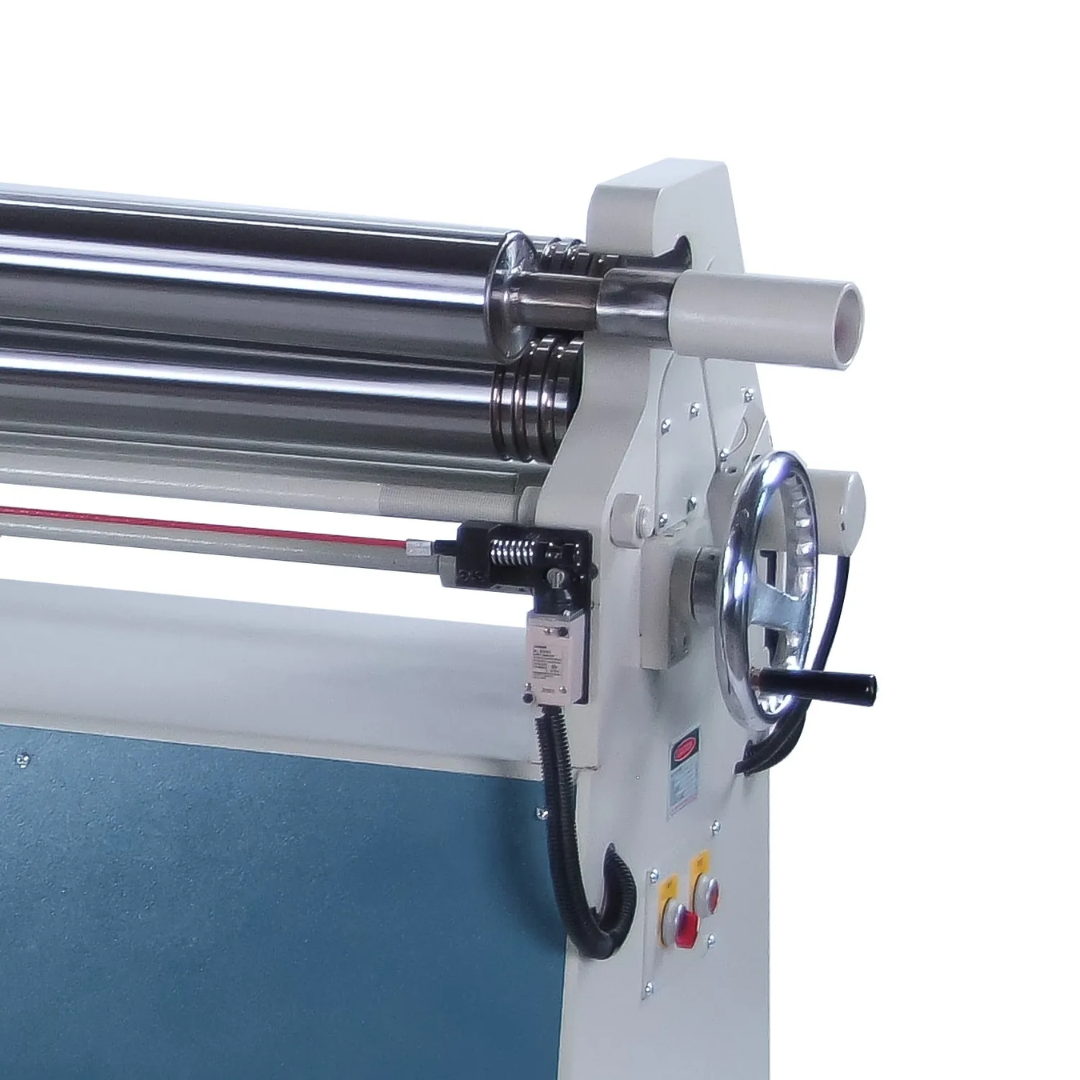

- Hydraulic back roll moves vertically and tilts to improve radius control, simplify setup, and enhance re-roll accuracy.

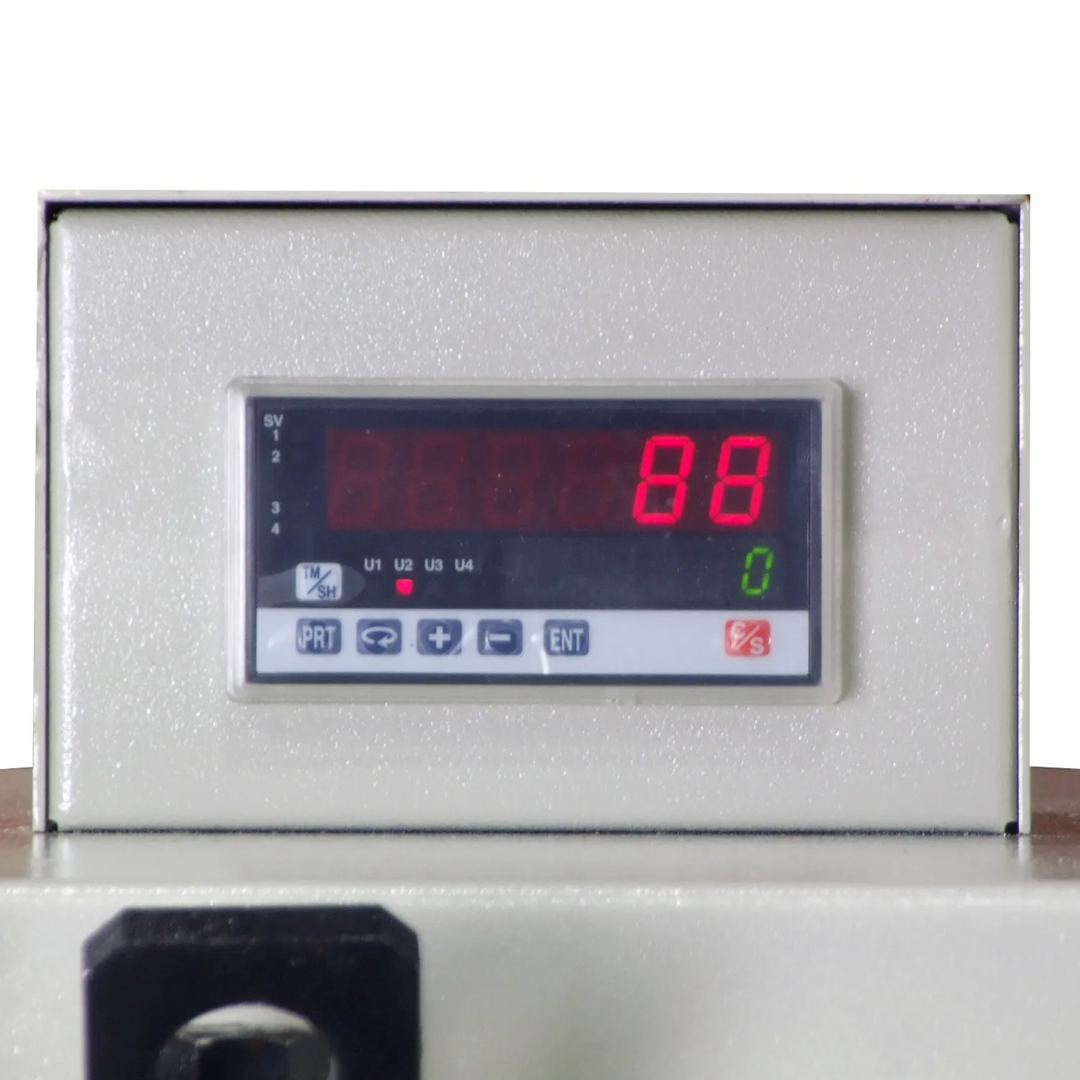

- Digital back roll position display allows operators to duplicate previous settings for highly repeatable production runs.
- 2 HP industrial motor delivers dependable performance while operating from standard 220V single-phase electrical service.

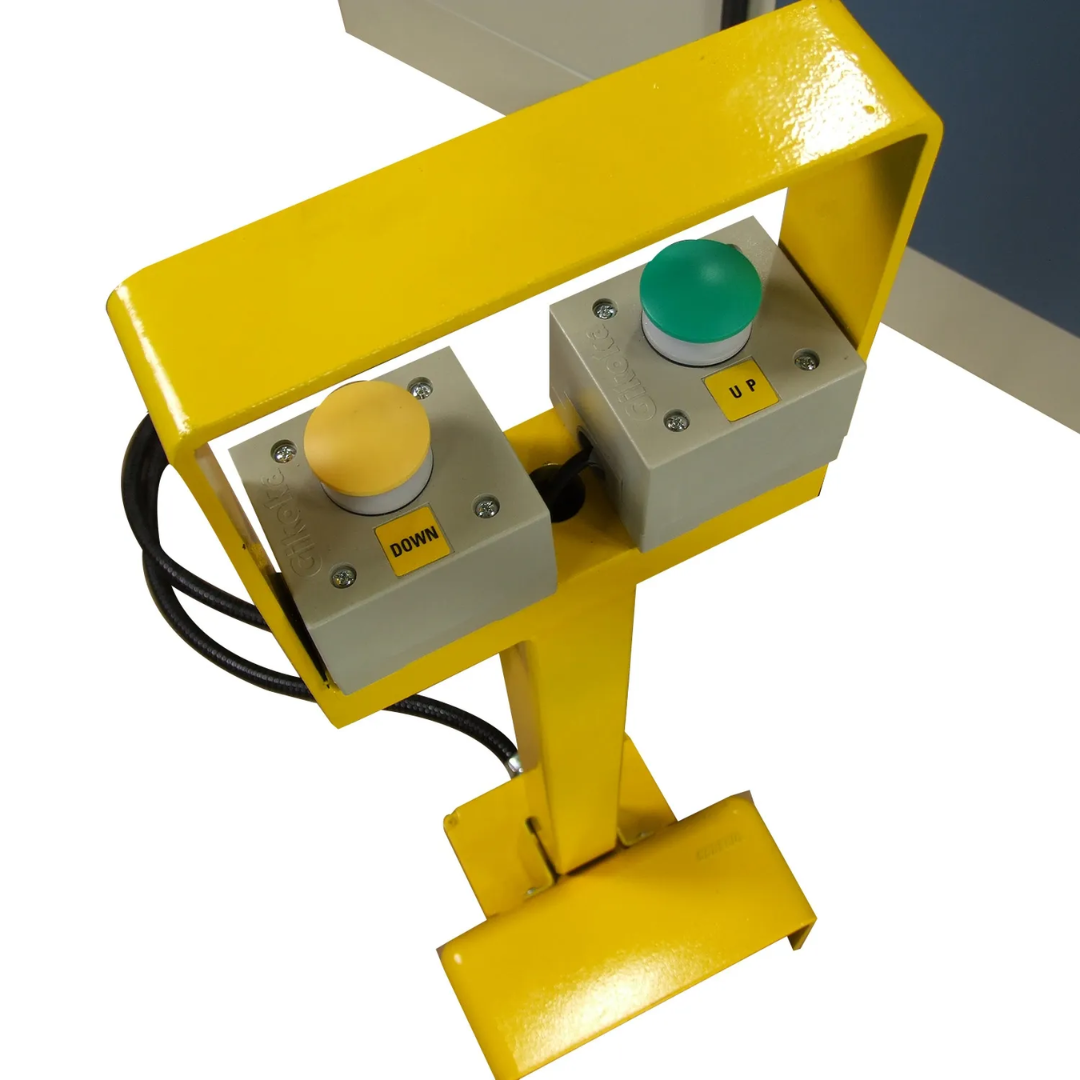

- Convenient control pedestal features forward and reverse foot pedal controls along with hydraulic back roll adjustment for efficient machine operation.
- Hydraulic forming system provides smooth rolling action while reducing operator effort during demanding fabrication work.
- Ideal for fabrication shops producing cylinders, curved panels, machine guards, ductwork, and custom rolled components.
- Heavy-duty industrial construction is engineered for dependable daily performance in professional shop environments.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for long-term reliability.
Why Choose the Baileigh Plate Roll PR-413 1006521
- Hydraulic back roll provides smooth, accurate, and repeatable plate forming.
- 48-inch working width accommodates a wide variety of fabrication projects.
- Bends up to 13 gauge mild steel with dependable hydraulic control.
- 220V single-phase operation makes installation easier in many fabrication shops.
- Digital back roll readout improves repeatability and production consistency.
- Heavy welded steel construction delivers industrial durability and precision.
- Simple pedestal controls improve operator efficiency and workflow.
- Supported by Baileigh's 1-year warranty and lifetime technical assistance.
The Baileigh Plate Roll PR-413 1006521 delivers professional hydraulic plate rolling performance in a compact, single-phase package. Combining heavy-duty construction, hydraulic back roll adjustment, digital positioning, and dependable 48-inch forming capacity, it is an outstanding solution for fabrication shops seeking precision, reliability, and long-term productivity.
