Baileigh Plate Roll PR-409 1006517 Applications
- General sheet metal fabrication and custom metalworking operations.
- Rolling cylinders, tubes, tanks, and pressure vessel components.
- Fabricating cones, curved panels, and architectural metalwork.
- HVAC manufacturing for ductwork and round transition components.
- Industrial maintenance departments producing replacement formed parts.
- Production environments requiring repeatable hydraulic plate rolling performance.

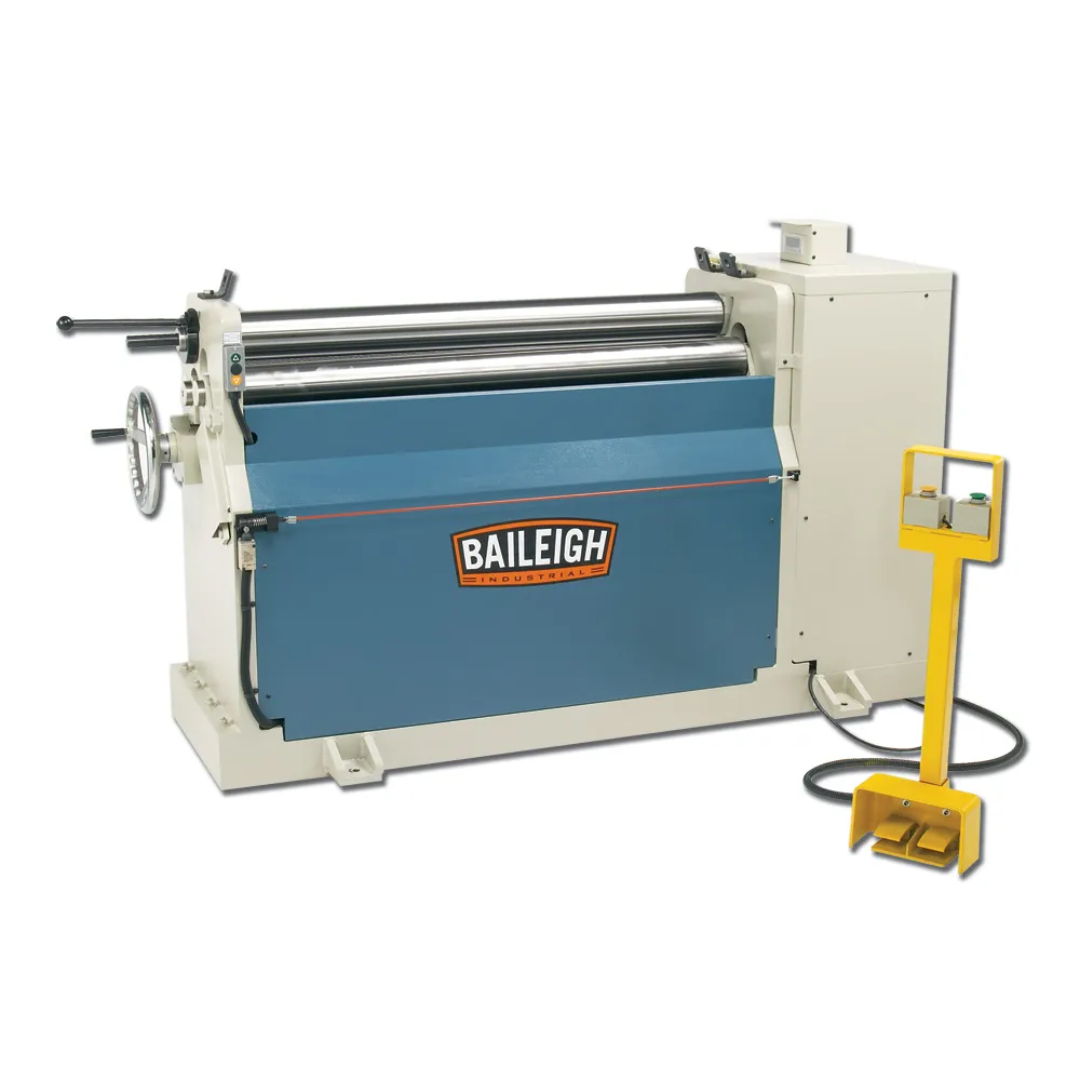

The Baileigh Plate Roll PR-409 1006517 is designed for fabrication professionals who need dependable hydraulic forming, consistent bend quality, and industrial durability in a compact 4-foot plate rolling machine.
Baileigh Plate Roll PR-409 1006517 Specifications
| Model | PR-409 |
|---|---|
| Part Number | 1006517 |
| Maximum Forming Width | 48 in. (4 ft.) |
| Bending Capacity | 48 in. |
| Mild Steel Capacity | 9 Gauge |
| Roll Configuration | Three Hydraulically Driven Rolls |
| Back Roll Adjustment | Hydraulic with Digital Readout |
| Motor | 2 HP |
| Input Power | 220V, Three Phase |
| Frame Construction | Fully Welded Precision-Machined Steel Frame |
| Operator Controls | Freestanding Pedestal with Forward/Reverse Foot Pedals and Hydraulic Back Roll Controls |
| Product Type | Industrial Plate Rolling Machine |
| Net Weight | 3,590 lbs |
| Gross Weight | 3,590 lbs |
| Warranty | 1 Year Parts Warranty |
Baileigh Plate Roll PR-409 1006517 Performance & Construction
- Precision-machined welded steel frame delivers exceptional rigidity while minimizing deflection for consistent forming accuracy.

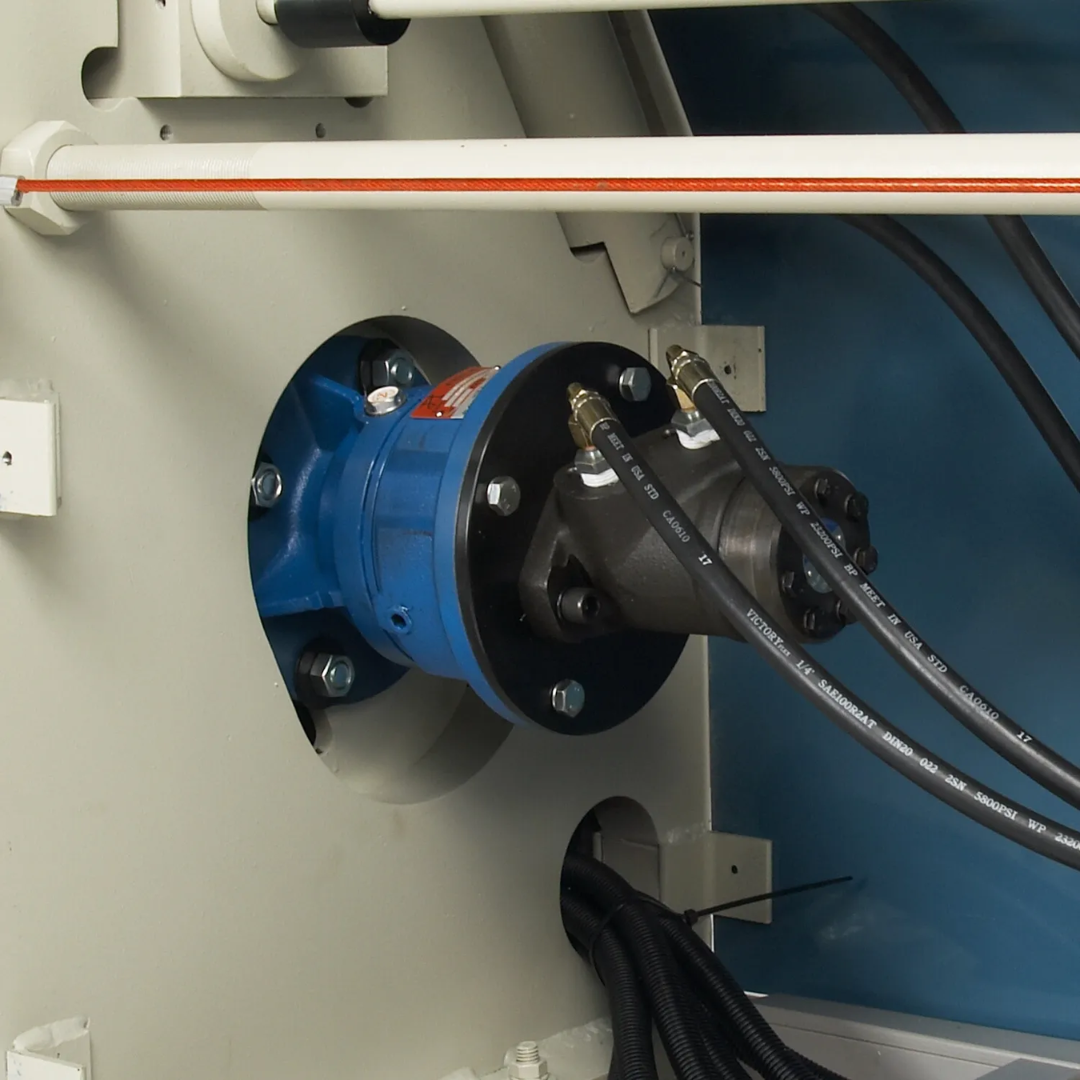

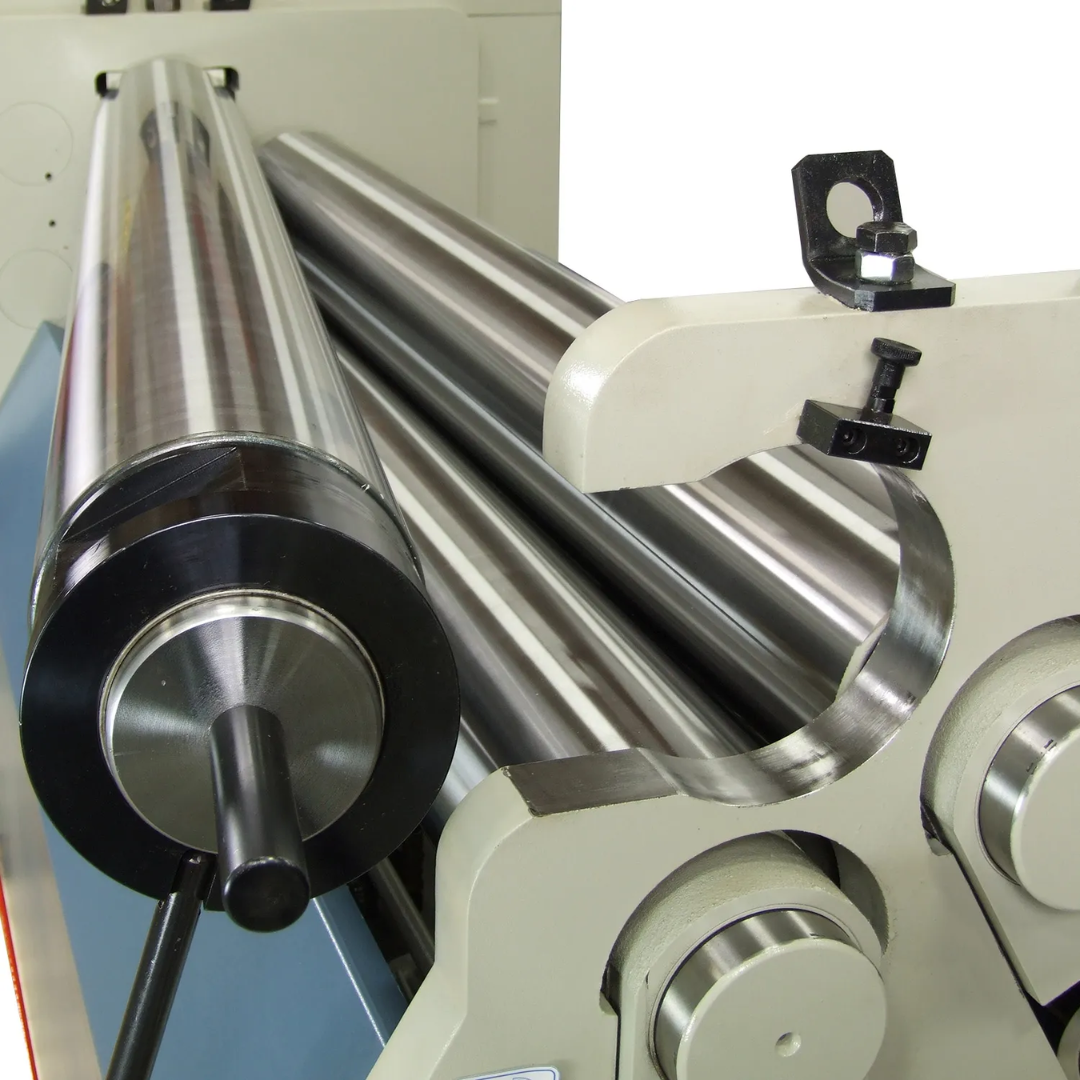

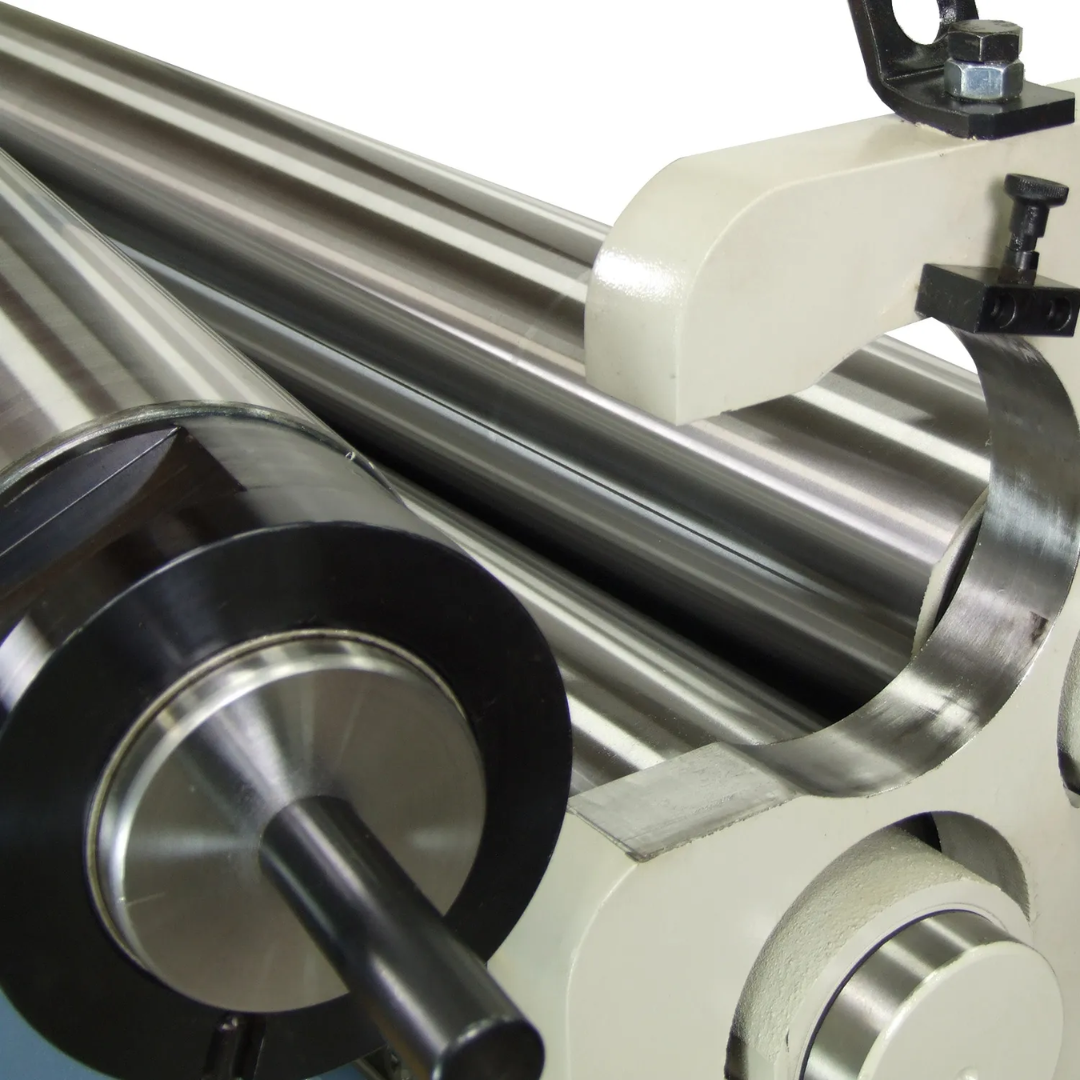

- Three hydraulically driven rolls provide smooth, controlled material feeding and uniform bending across the entire forming width.
- 48-inch forming capacity allows efficient rolling of medium-sized plate and sheet metal components.
- 9 gauge mild steel capacity handles demanding fabrication applications while maintaining excellent bend quality.

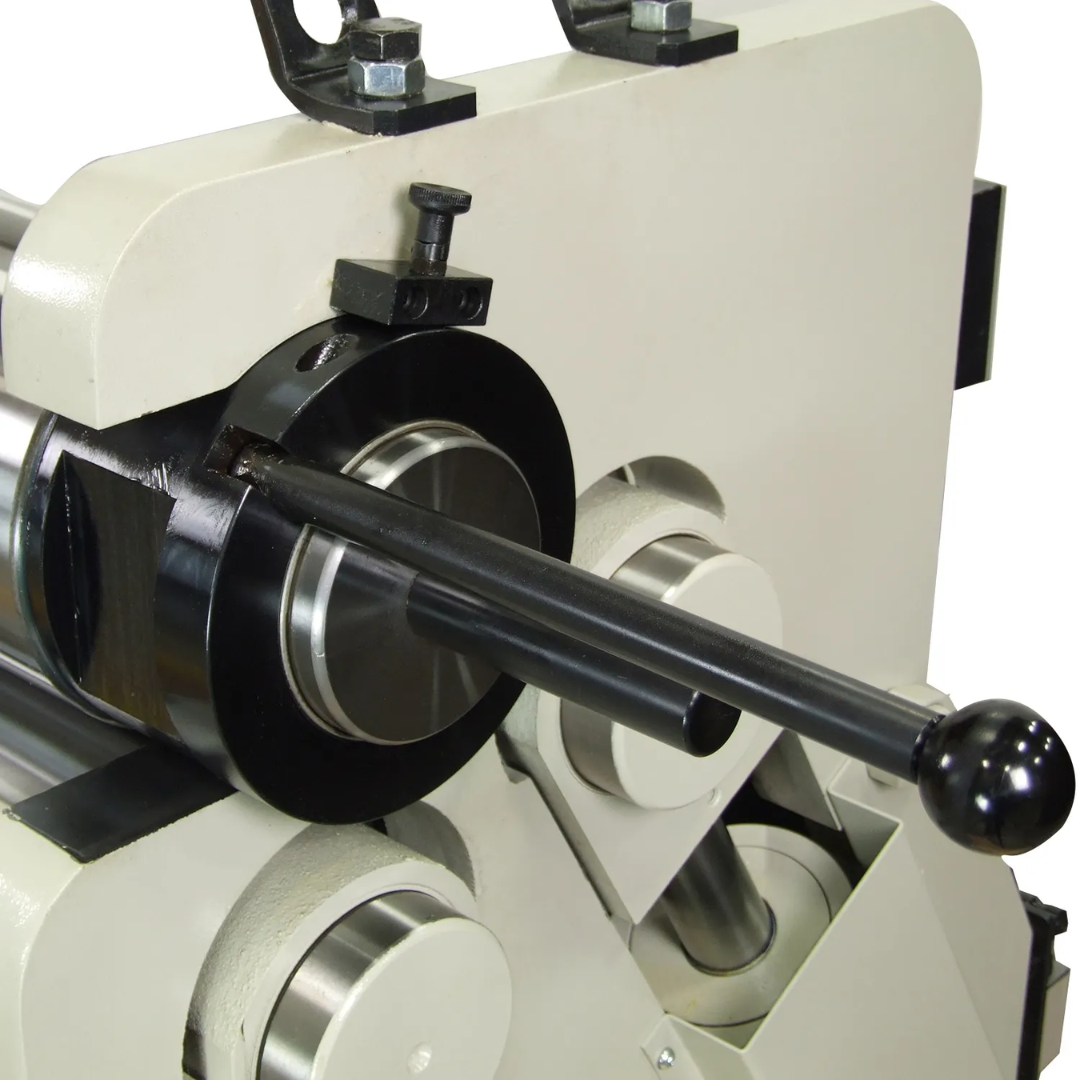

- Hydraulic back roll adjustment provides fast, precise roll positioning for improved radius control and repeatability.

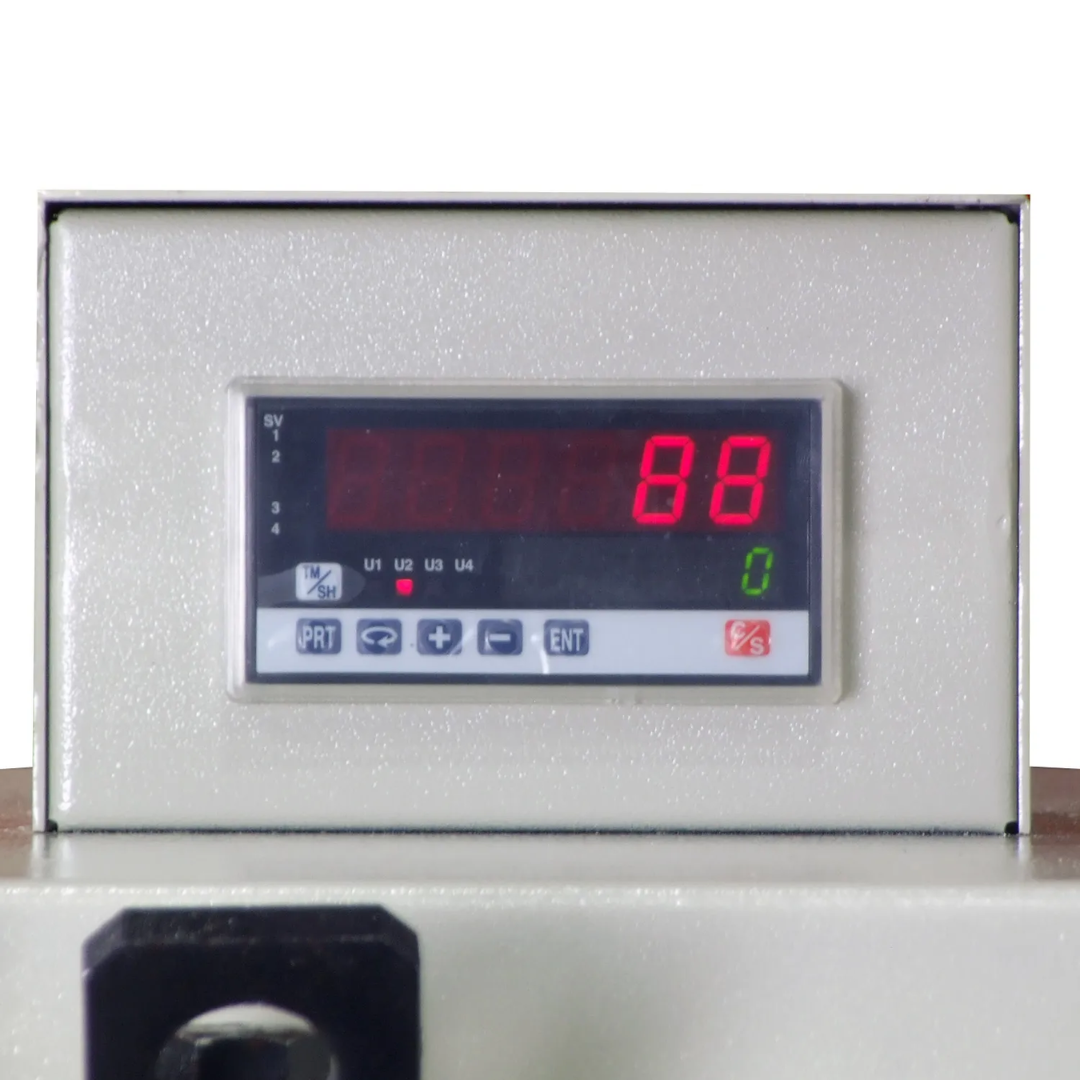

- Digital back roll position display enables accurate setup and repeatable production runs with minimal adjustments.
- 2 HP industrial motor supplies dependable hydraulic power while operating on standard 220V three-phase electrical service.

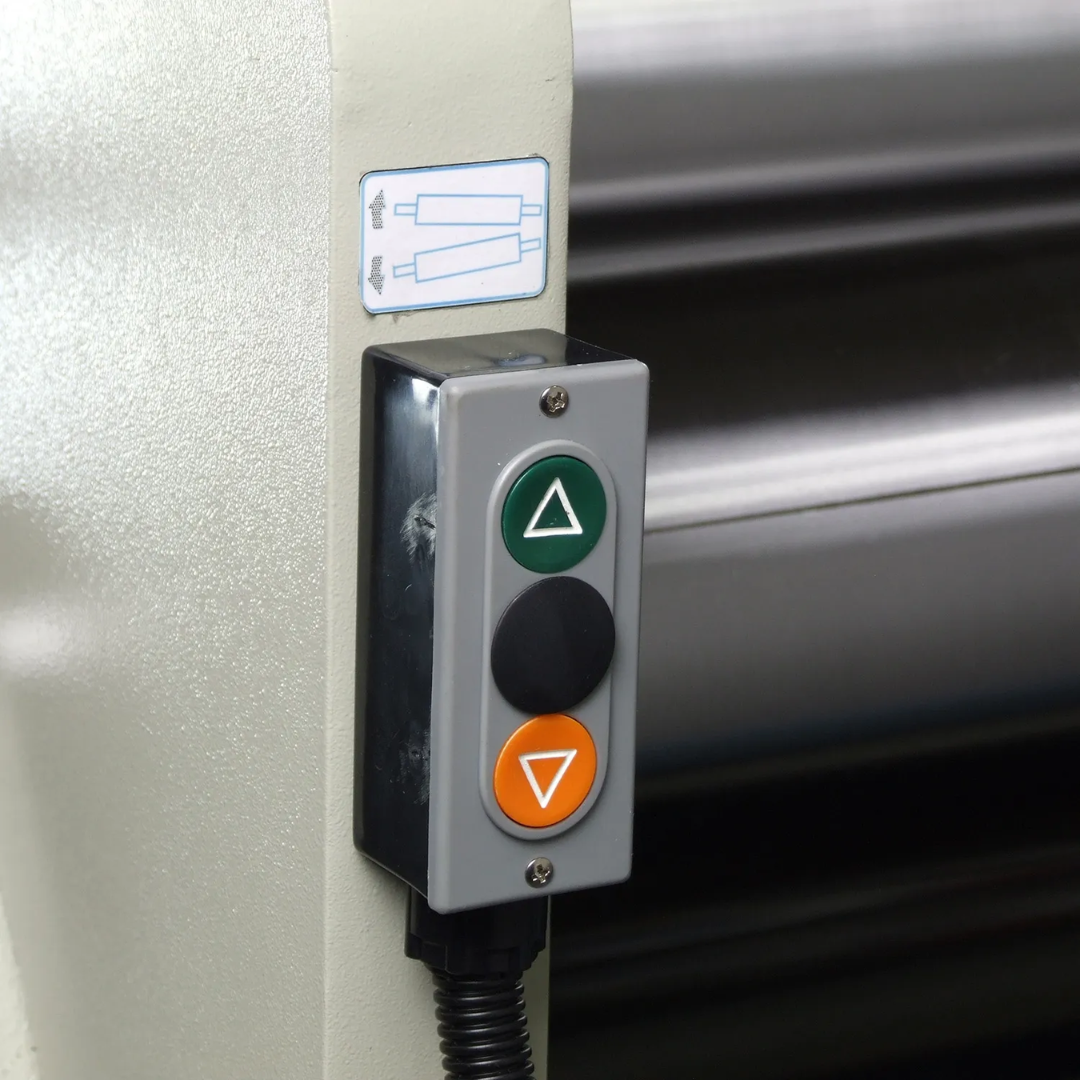

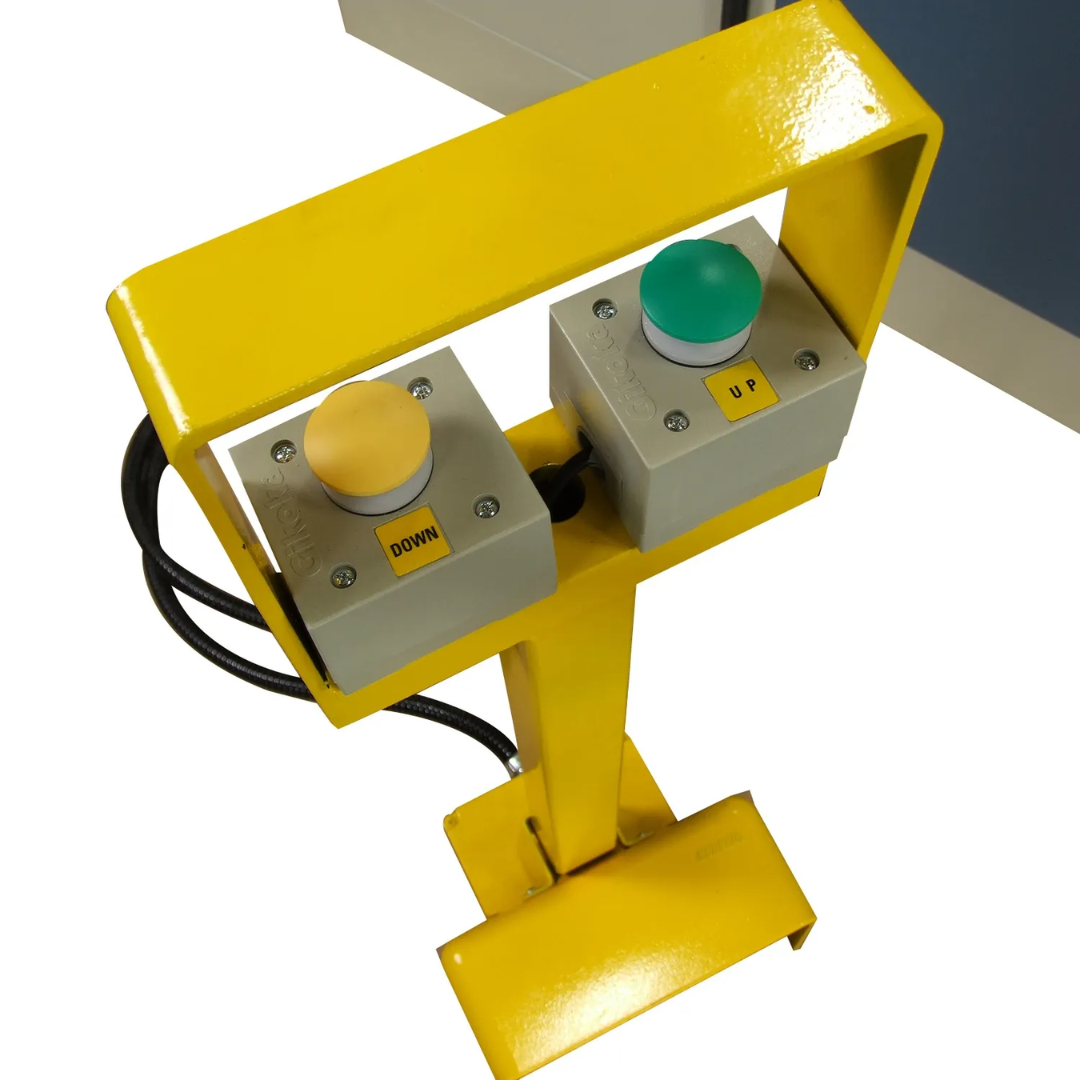

- Pedestal-mounted controls combine forward/reverse foot pedals with hydraulic back roll controls for convenient hands-free operation.

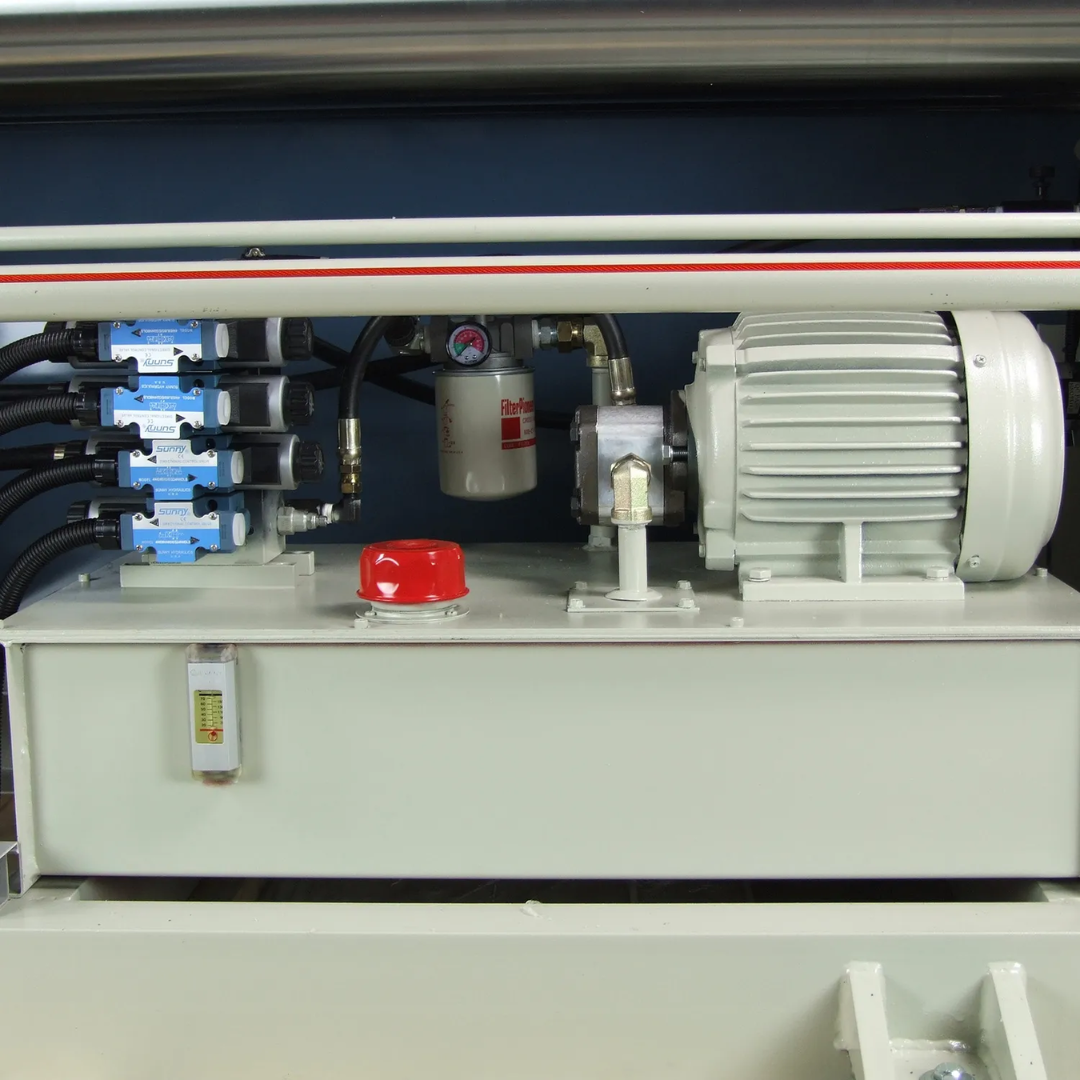

- Industrial hydraulic drive system delivers reliable performance for continuous fabrication and production work.
- Designed for versatility by producing cylinders, rings, cones, curved panels, and numerous custom formed metal components.
- Built for professional shops requiring dependable daily operation with consistent forming accuracy.
- Supported by Baileigh with a 1-year parts warranty and lifetime technical support for long-term confidence.
Why Choose the Baileigh Plate Roll PR-409 1006517
- Heavy-duty hydraulic three-roll system provides smooth and accurate plate rolling.
- Capable of bending up to 9 gauge mild steel across a full 48-inch forming width.
- Precision-machined welded steel construction ensures long-term durability and accuracy.
- Digital back roll positioning improves repeatability and production efficiency.
- Simple pedestal controls with forward/reverse foot pedals enhance operator productivity.
- Ideal for fabrication shops, HVAC manufacturers, maintenance facilities, and industrial production.
- Powered by a reliable 2 HP, 220V three-phase motor for dependable hydraulic operation.
- Supported by Baileigh's 1-year warranty and lifetime technical assistance.
The Baileigh Plate Roll PR-409 1006517 combines hydraulic power, precision-machined construction, and intuitive operator controls into a professional-grade plate rolling solution. Whether producing cylinders, cones, architectural components, or custom fabricated parts, the PR-409 delivers the accuracy, durability, and repeatable performance demanded by modern fabrication shops.
