Baileigh Pipe Notcher TN-300 BA9-TN300 Applications
- Tube and pipe fabrication shops producing precision coping joints.
- Automotive chassis, roll cage, and motorsports fabrication.
- Handrail, guardrail, and architectural metal fabrication projects.
- Welding shops creating pipe intersections and saddle joints.
- Structural steel fabrication requiring accurate tube fit-up.
- Custom furniture and metal artwork manufacturing.
- Industrial maintenance and repair facilities.
- Agricultural, marine, and construction equipment fabrication.
Ideal for fabricators who need repeatable, production-quality pipe and tube notching without relying on handheld drill-based notchers.
Baileigh Pipe Notcher TN-300 BA9-TN300 Specifications
| Model | TN-300 |
|---|---|
| Product Keyword | Baileigh Pipe Notcher TN-300 BA9-TN300 |
| Power Requirement | 110V Single Phase |
| Motor Power | 0.5 HP |
| Tube Capacity | 5/8" to 3" OD |
| Pipe Capacity | 1/2" to 2.5" Schedule 40 Pipe |
| Notch Capacity OD | 3" |
| Notch Angle | 0° to 90° |
| Angle Adjustment | 0° to 220° |
| Operating Speed | 177 RPM |
| Work Height | 47.5" |
| Motor Phase | Single Phase |
| Net Weight | 220 lbs |
| Gross Weight | 220 lbs |
| UPC | 19907418429 |
| Warranty | 1 Year Parts Warranty |
| Country of Manufacture | Made in USA |

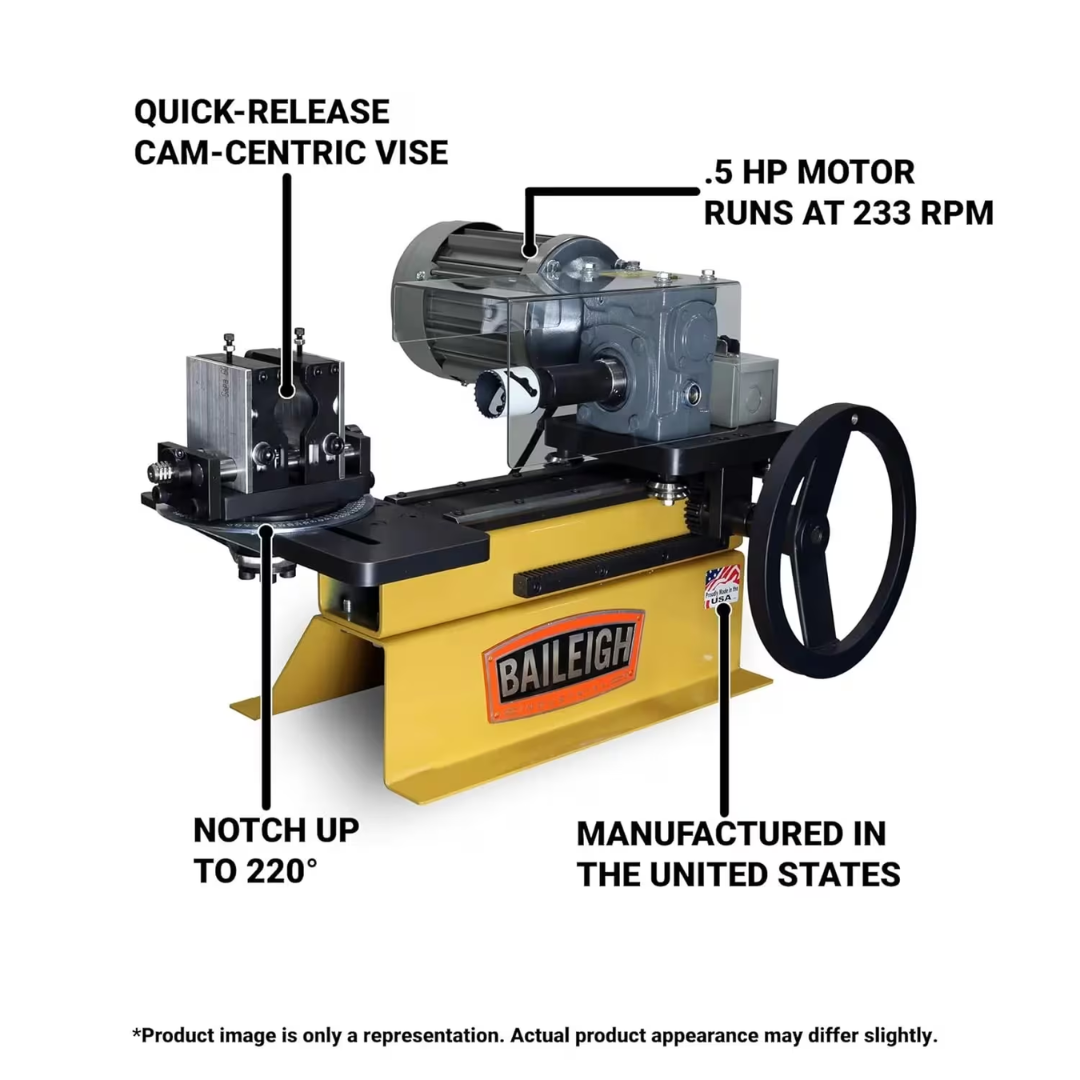

Baileigh Pipe Notcher TN-300 BA9-TN300 Performance & Construction
- Industrial 0.5 HP motor delivers consistent power for smooth and repeatable hole saw notching operations.
- 110V single-phase operation allows easy installation in most fabrication shops without requiring industrial three-phase power.
- 177 RPM spindle speed provides controlled cutting action for improved hole saw performance and longer tooling life.
- Large tube capacity accommodates tubing from 5/8" to 3" OD for exceptional versatility.
- Schedule 40 pipe capability handles pipe sizes from 1/2" to 2.5" for industrial fabrication applications.
- 220-degree adjustable angle system enables complex tube intersections and specialty fabrication projects.

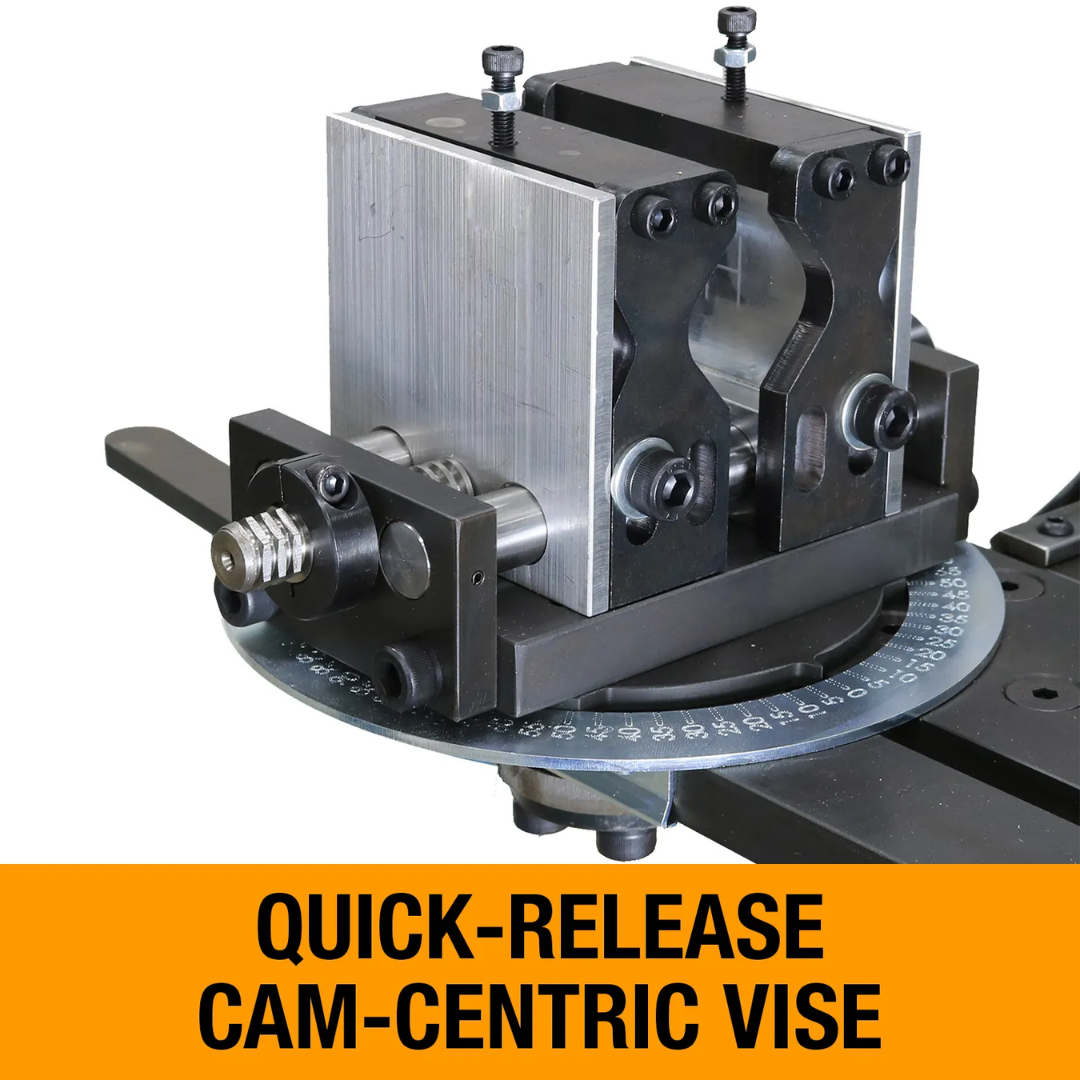

- Quick-release cam-centric vise speeds up material loading and unloading while maintaining secure clamping pressure.
- Solid taper lock design improves stability and positioning accuracy during operation.

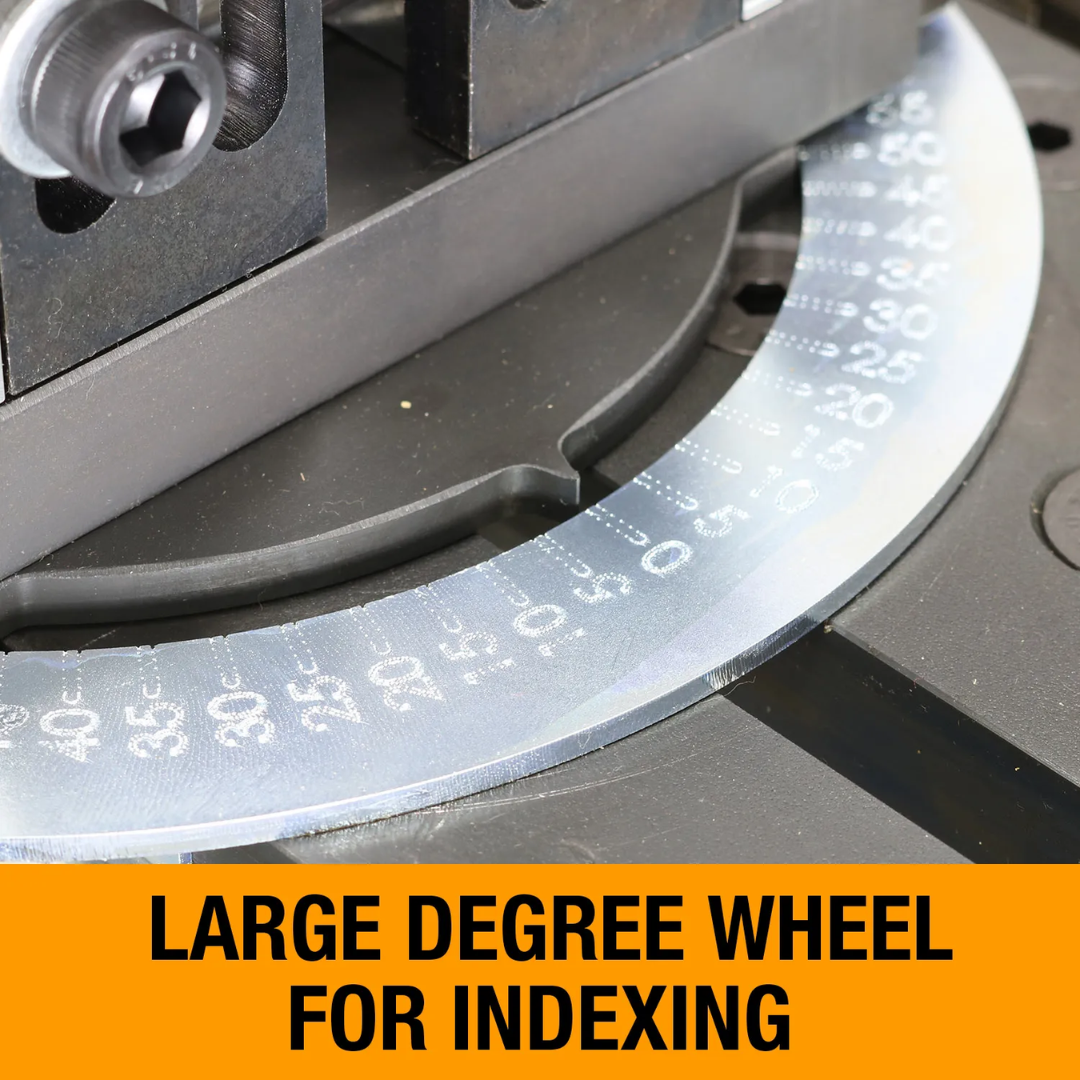

- Large adjustable degree wheel provides easy indexing and accurate angle setup.
- Rigid steel plate base construction minimizes vibration and supports long-term durability in production environments.
- Hole saw driven operation produces clean, accurate coping cuts for superior fit-up before welding.
- Industrial-grade components engineered for dependable daily use in demanding fabrication facilities.
- Lifetime technical support backed by Baileigh's experienced support team.
Why Choose the Baileigh Pipe Notcher TN-300 BA9-TN300
- Eliminates the limitations of handheld drill-based notching systems.
- Handles tubing up to 3" OD and schedule 40 pipe up to 2.5".
- 220° angle adjustment supports advanced fabrication requirements.
- 177 RPM operating speed balances cutting performance and hole saw life.
- Quick-release cam-centric vise improves production efficiency.
- Built in the USA with industrial-quality construction.
- Powered by a reliable 0.5 HP motor on standard 110V service.
- Backed by a 1-year warranty and lifetime technical support.

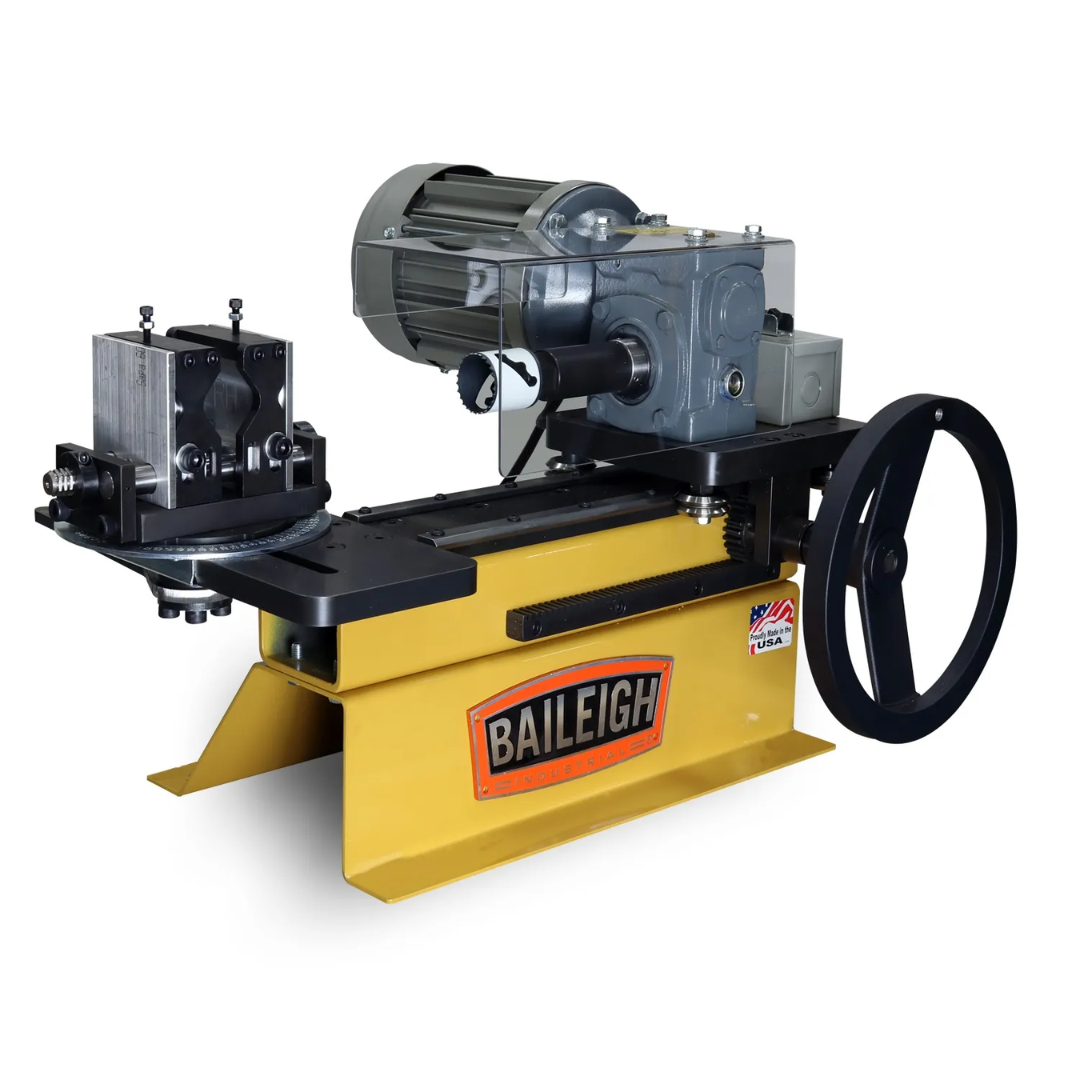

The Baileigh Pipe Notcher TN-300 BA9-TN300 is a robust, precision-engineered notching solution for professional fabricators who require accurate tube coping, versatile angle adjustment, and dependable production performance. Its industrial construction, large capacity range, and user-friendly setup features make it an excellent choice for welding shops, structural fabricators, motorsports builders, and metalworking professionals seeking consistent, high-quality notch results.
