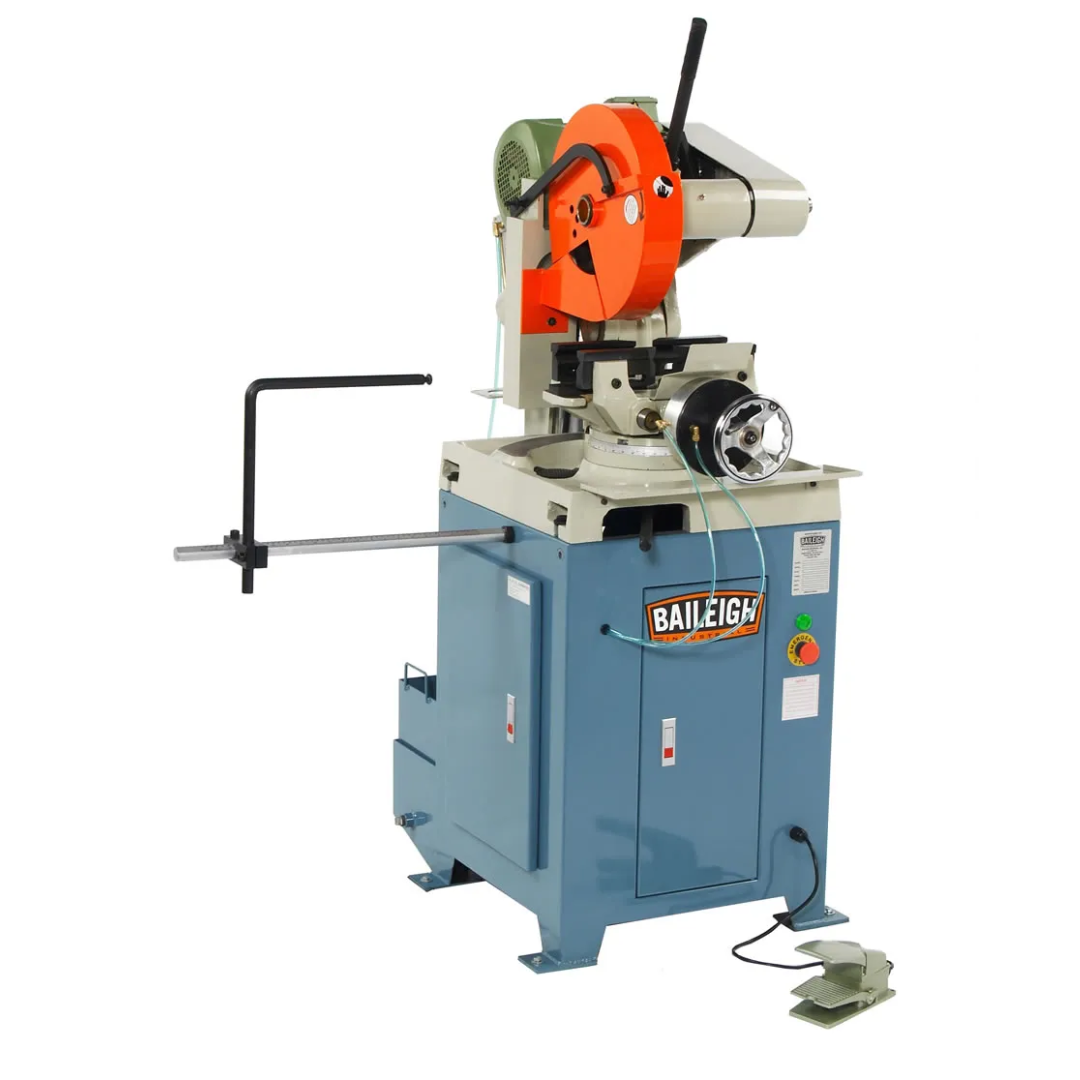

Baileigh n-Ferrous Metal Cutting Cold Saw CS-355SA 1002591 Applications
- Precision cutting of aluminum tubing, pipe, extrusion, and structural profiles.
- Fabrication of copper, brass, and other non-ferrous metal components.
- Window, door, curtain wall, and storefront manufacturing.
- Industrial production lines requiring repeatable high-volume cutting.
- Machine shops, fabrication facilities, and metalworking operations.
- Miter cutting for frames, railings, fixtures, and fabricated assemblies.
Designed for manufacturers that require clean, accurate non-ferrous metal cuts with reduced operator effort, fast cycle times, and repeatable production quality.
Baileigh n-Ferrous Metal Cutting Cold Saw CS-355SA 1002591 Specifications
| Model | CS-355SA |
|---|---|
| Product Number | 1002591 |
| Machine Type | Semi-Automatic Non-Ferrous Metal Cutting Cold Saw |
| Motor | 5.5 HP |
| Input Power | 220V Three Phase |
| Blade Size | 14 in. |
| Blade Speed | 3,200 RPM |
| Maximum Round Capacity (90°) | 4.25 in. |
| Miter Range | 45° Right, 90° Left |
| Vise Type | Pneumatic Self-Centering American-Style Vise |
| Operation | Semi-Automatic |
| Coolant System | Flood Coolant |
| Gross Weight | 860 lbs. |
| Net Weight | 860 lbs. |
| UPC | 731325403121 |
Baileigh n-Ferrous Metal Cutting Cold Saw CS-355SA 1002591 Performance & Features
- Powerful 5.5 HP industrial motor provides dependable performance for continuous production cutting applications.
- High-speed 3,200 RPM spindle is optimized specifically for cutting aluminum and other non-ferrous materials, reducing gumming while producing cleaner finishes.
- Semi-automatic cutting cycle automatically lowers the saw through the workpiece and returns the blade to its home position, improving efficiency and reducing operator fatigue.
- 14-inch cold saw blade capacity delivers precise cuts with minimal burrs, helping reduce secondary finishing operations.
- Pneumatic self-centering American-style vise securely clamps material while automatically centering stock for consistent cutting accuracy.
- Flood coolant system continuously lubricates and cools the blade, extending blade life while improving surface finish and cutting performance.
- Repeat stop rod allows accurate, repeatable material positioning for high-volume production runs.
- 4.25-inch round cutting capacity at 90° accommodates a wide range of tubing, pipe, and solid non-ferrous materials.
- 45° right miter capability provides flexibility for angled fabrication while maintaining cutting precision.
- Heavy-duty industrial construction offers stability, reduced vibration, and dependable long-term operation in demanding shop environments.
- Supported by Baileigh with a 1-year parts warranty and lifetime technical support for added peace of mind.
Why Choose the Baileigh n-Ferrous Metal Cutting Cold Saw CS-355SA 1002591
- Designed specifically for high-speed precision cutting of aluminum and other non-ferrous metals.
- 5.5 HP industrial motor delivers reliable production performance.
- 3,200 RPM cutting speed produces clean, ripple-free finishes with improved blade life.
- Semi-automatic operation increases productivity while reducing operator workload.
- Pneumatic self-centering vise ensures repeatable cutting accuracy.
- Flood coolant system improves cut quality and extends blade performance.
- Ideal for fabrication shops, manufacturers, and industrial production facilities.
The Baileigh n-Ferrous Metal Cutting Cold Saw CS-355SA 1002591 combines industrial power, semi-automatic operation, and precision cutting technology to deliver fast, repeatable, and exceptionally clean cuts in aluminum, copper, brass, and other non-ferrous materials. Built for demanding production environments, it offers the accuracy, reliability, and productivity professionals expect from Baileigh Industrial.
