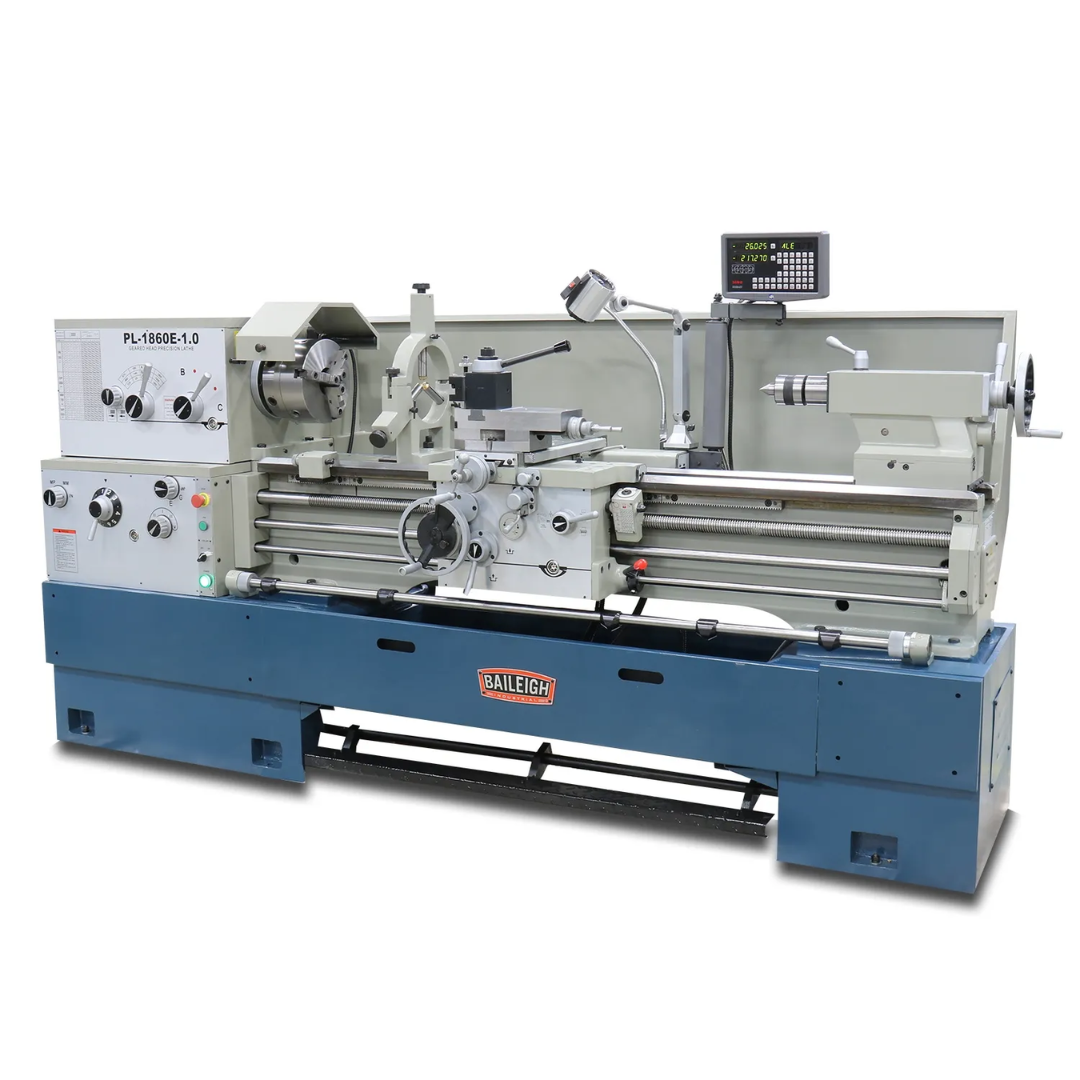

Baileigh Metal Lathe PL-1860E 1016624 Applications
- Industrial machine shops and production machining.
- Tool rooms and maintenance departments.
- Technical schools and vocational training facilities.
- Precision shaft and spindle manufacturing.
- Thread cutting, boring, facing, drilling, and turning operations.
- Repair and rebuilding of industrial equipment.
- Prototype manufacturing and custom component production.
- General-purpose machining of steel, stainless steel, cast iron, aluminum, brass, and other machinable materials.
The Baileigh Metal Lathe PL-1860E 1016624 delivers industrial-grade capacity, precision, and durability for shops requiring accurate machining of long, heavy, and large-diameter workpieces.
Baileigh Metal Lathe PL-1860E 1016624 Specifications
| Model | PL-1860E-1.0 |
|---|---|
| Part Number | 1016624 |
| Machine Type | Geared Head Engine Lathe |
| Motor Power | 7.5 HP |
| Power Requirement | 220V Three-Phase |
| Swing Over Bed | 18" |
| Distance Between Centers | 60" |
| Spindle Bore | 3.125" |
| Spindle Speeds | 12 Speeds, 25–1800 RPM |
| Spindle Taper | MT5 with Sleeve |
| Tailstock Quill Taper | MT7 |
| Digital Readout | 2-Axis DRO |
| Cross Slide Travel | 10-1/2" |
| Compound Rest Travel | 5.13" |
| Lead Screw Diameter | 1.125" |
| Lead Screw Pitch | 4 TPI |
| Longitudinal Feeds | 122 Feed Rates (.0015"–.0913" per Revolution) |
| Imperial Thread Range | 61 Threads, 1-5/8 to 72 TPI |
| Diametral Pitch Threads | 45 Threads, 3-1/2 to 96 D.P. |
| Modular Threads | 21 Sizes, 0.23 M.P. |
| Base Construction | Heavy Sheet Steel and Cast Iron |
| Machine Dimensions | 116" × 45" × 66" |
| Net Weight | 5,650 lbs. |
| Gross Weight | 5,650 lbs. |
| UPC | 731325462784 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh Metal Lathe PL-1860E 1016624 Performance & Construction
- Heavy-duty industrial construction combines a rigid sheet steel base with precision cast iron components to minimize vibration and maximize machining accuracy.
- Powerful 7.5 HP geared-head drive system delivers the torque necessary for heavy roughing cuts, precision finishing, and continuous industrial operation.
- Large 18-inch swing over bed and 60-inch distance between centers provide outstanding capacity for machining long shafts, rollers, bushings, and oversized workpieces.
- Generous 3.125-inch spindle bore accommodates larger diameter bar stock, reducing setup time and increasing machining versatility.

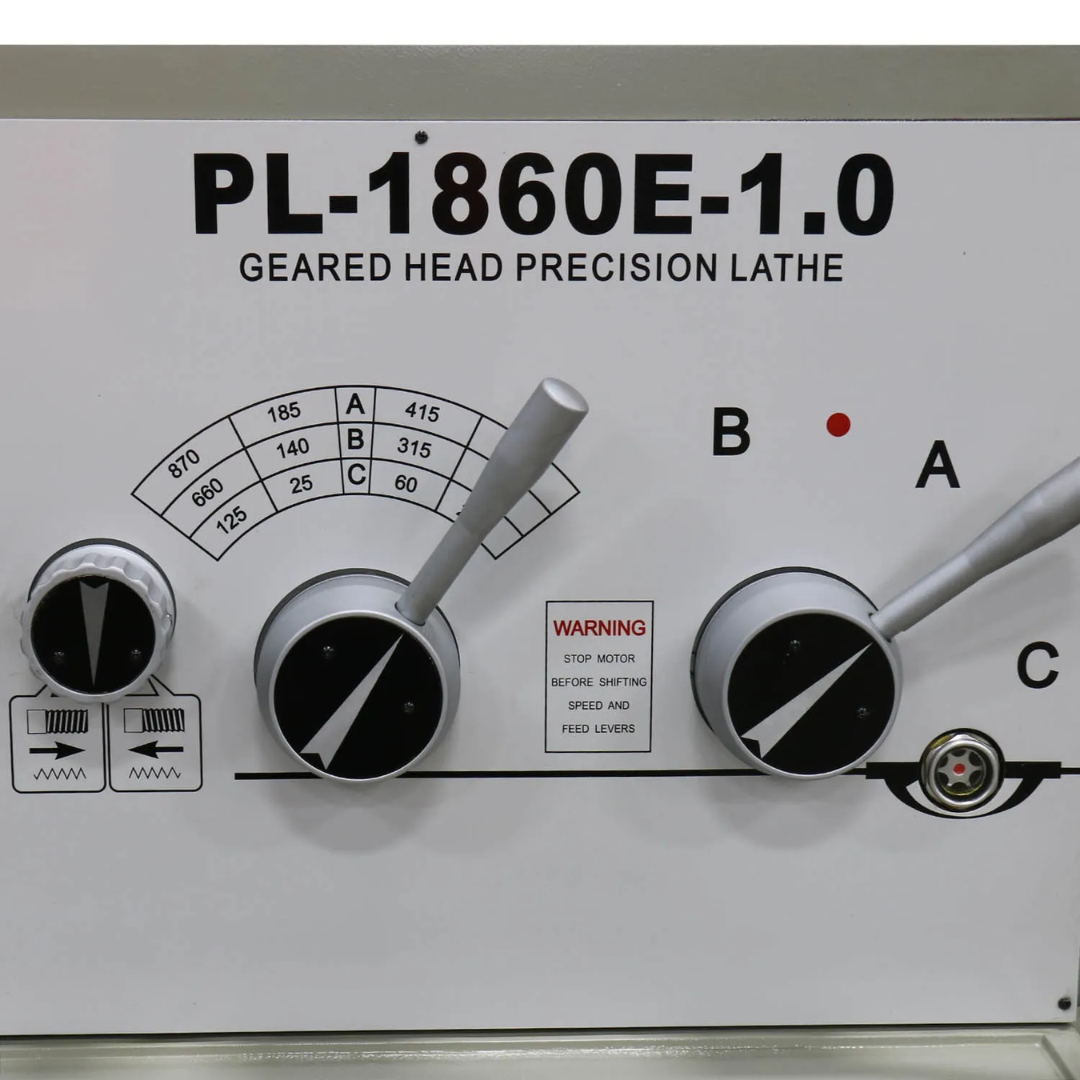

- 12 geared spindle speeds from 25 to 1800 RPM allow operators to select optimal cutting speeds for a broad range of materials, tooling, and machining operations.

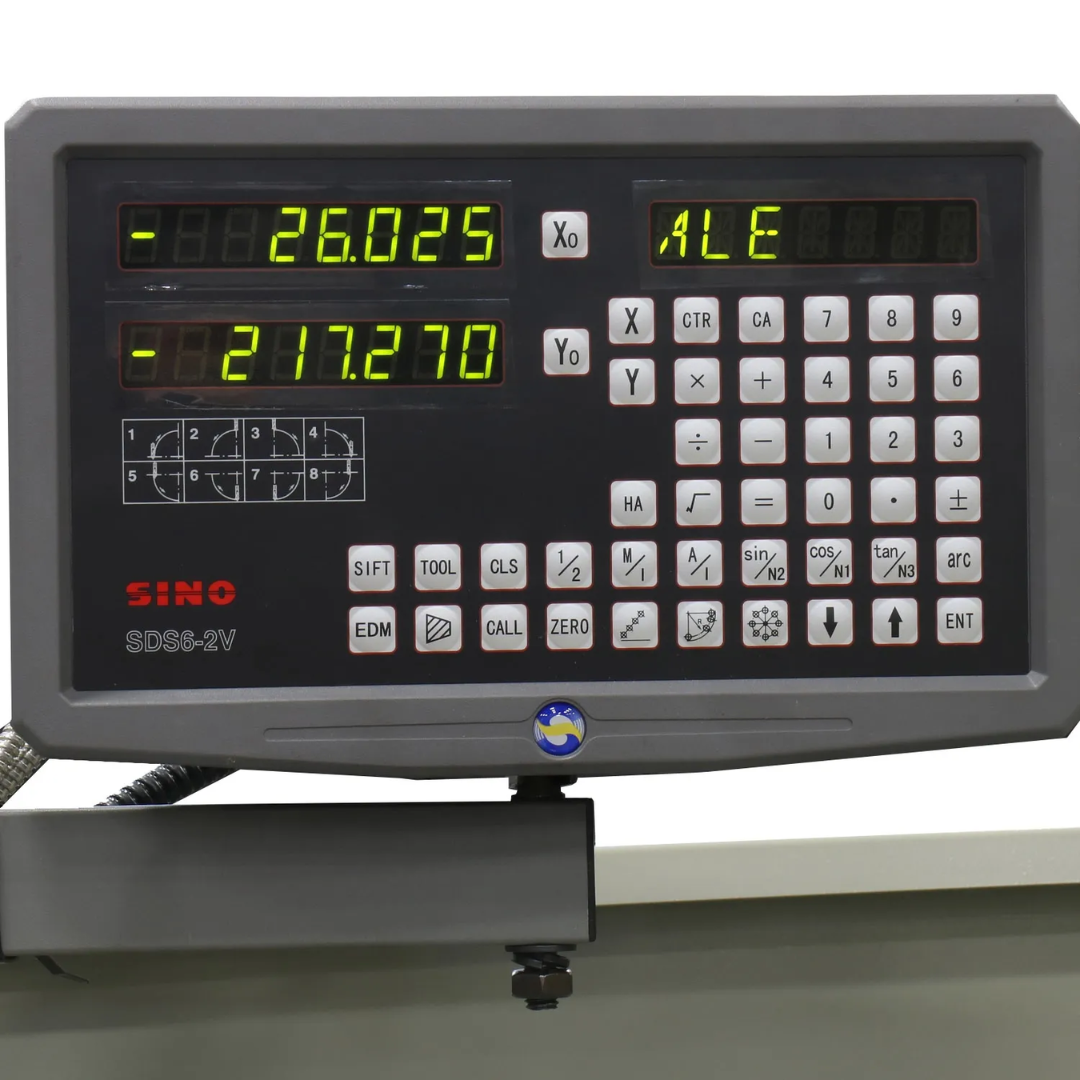

- 2-axis digital readout (DRO) improves positioning accuracy, reduces setup time, and delivers highly repeatable machining results.

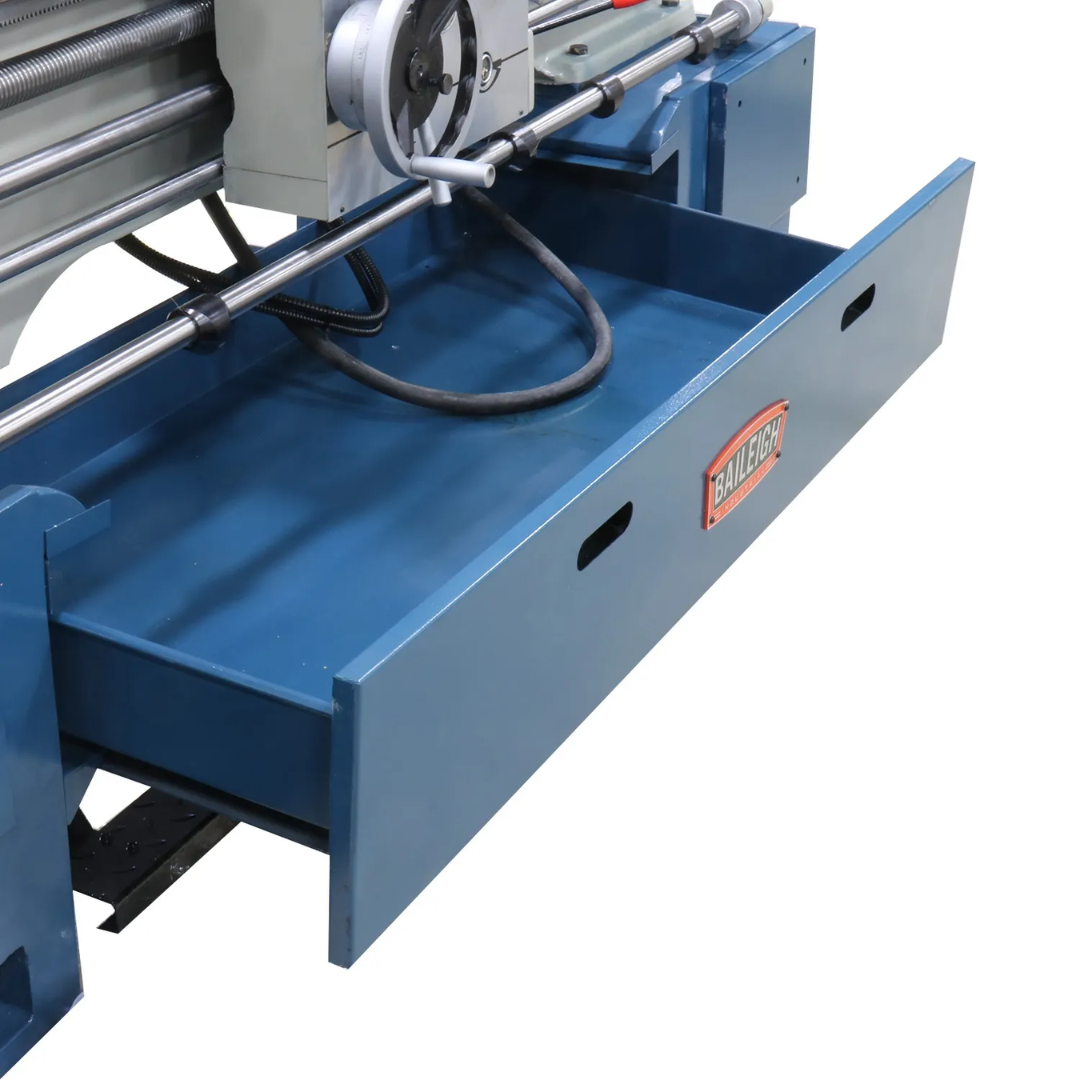

- Precision-ground and polished bed ways ensure smooth carriage movement while maintaining long-term accuracy and wear resistance.

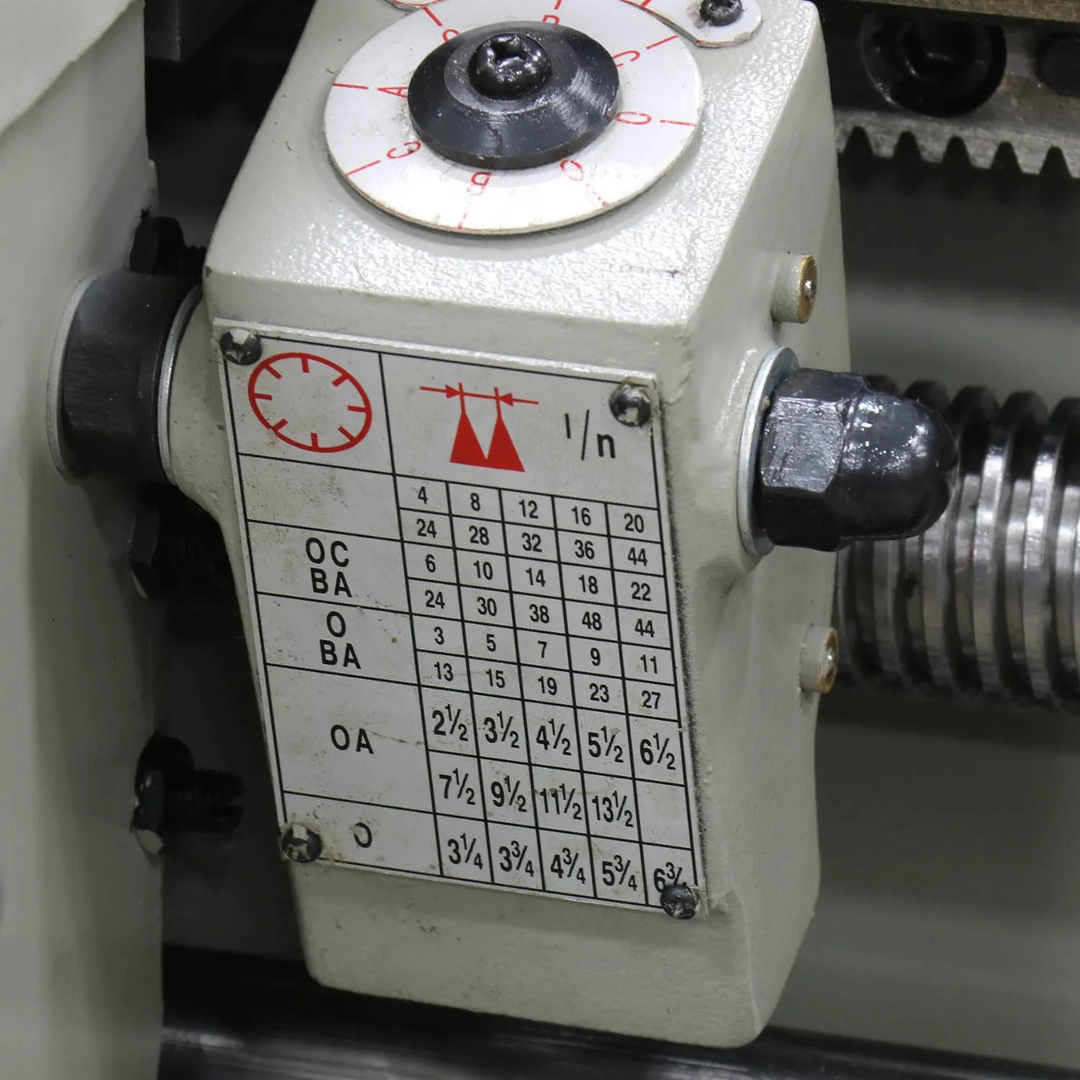

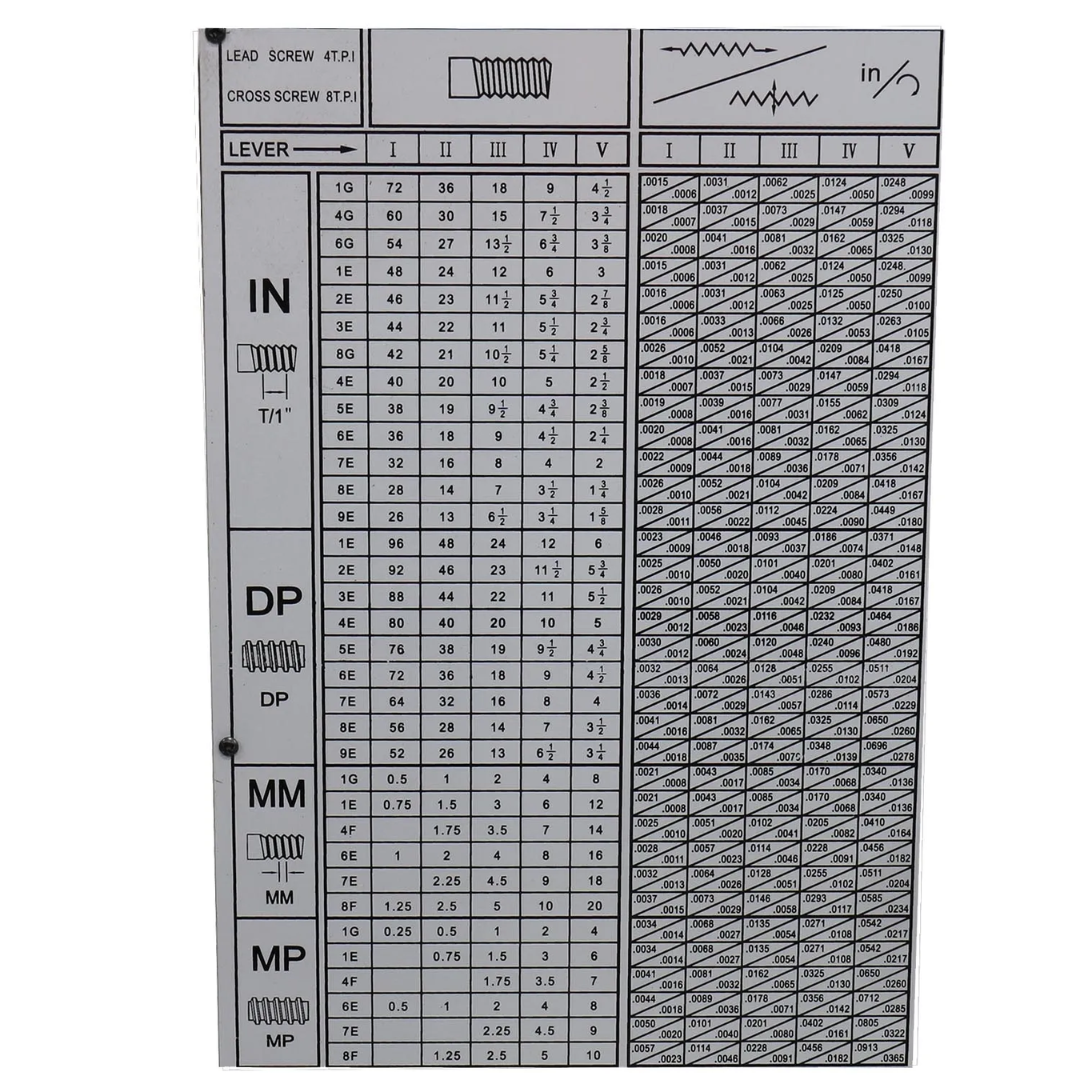

- Extensive threading capability supports imperial, diametral pitch, modular, and multiple feed selections for versatile thread cutting and precision machining.

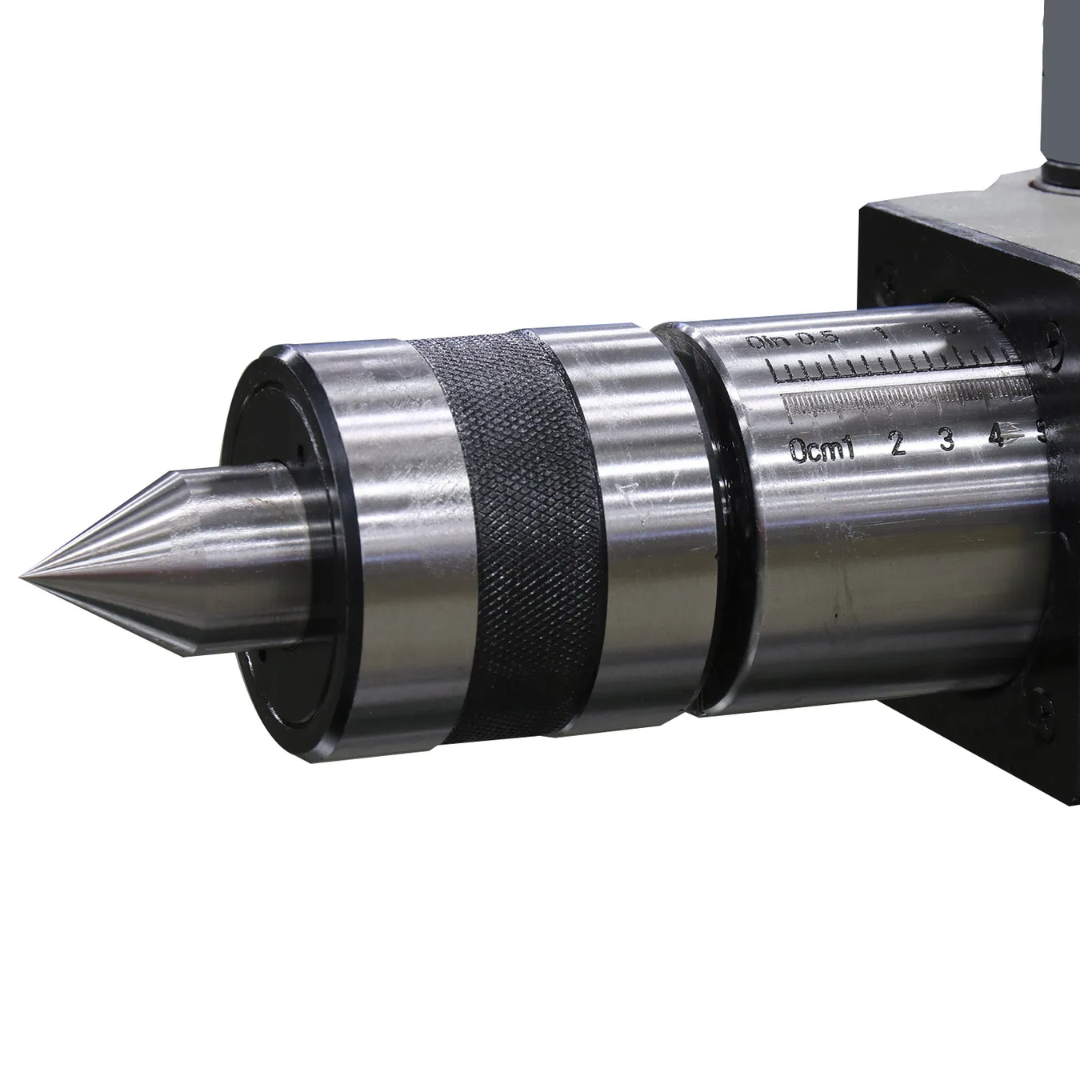

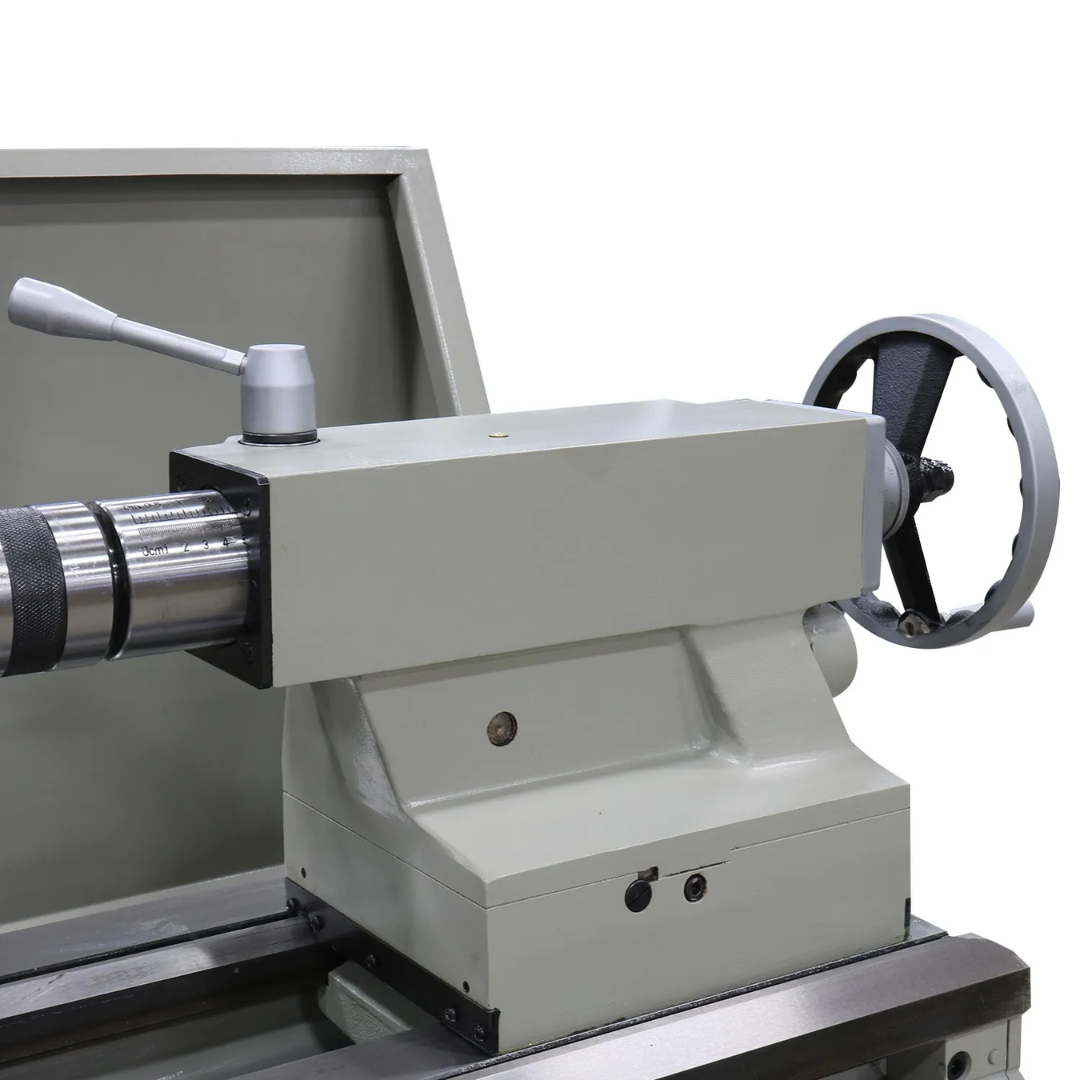

- MT5 spindle taper with MT7 tailstock quill provides compatibility with a wide range of industrial tooling, centers, drill chucks, and turning accessories.

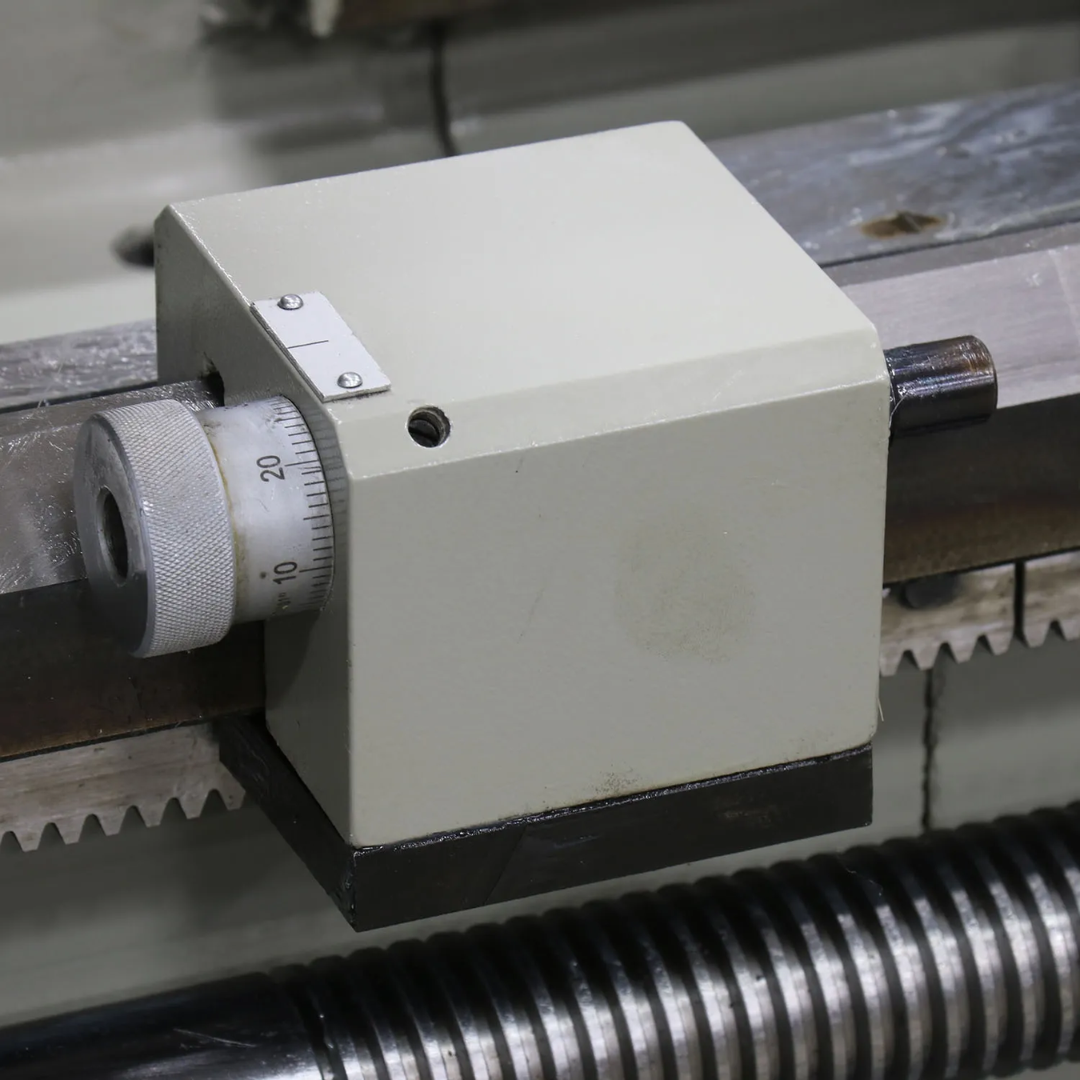

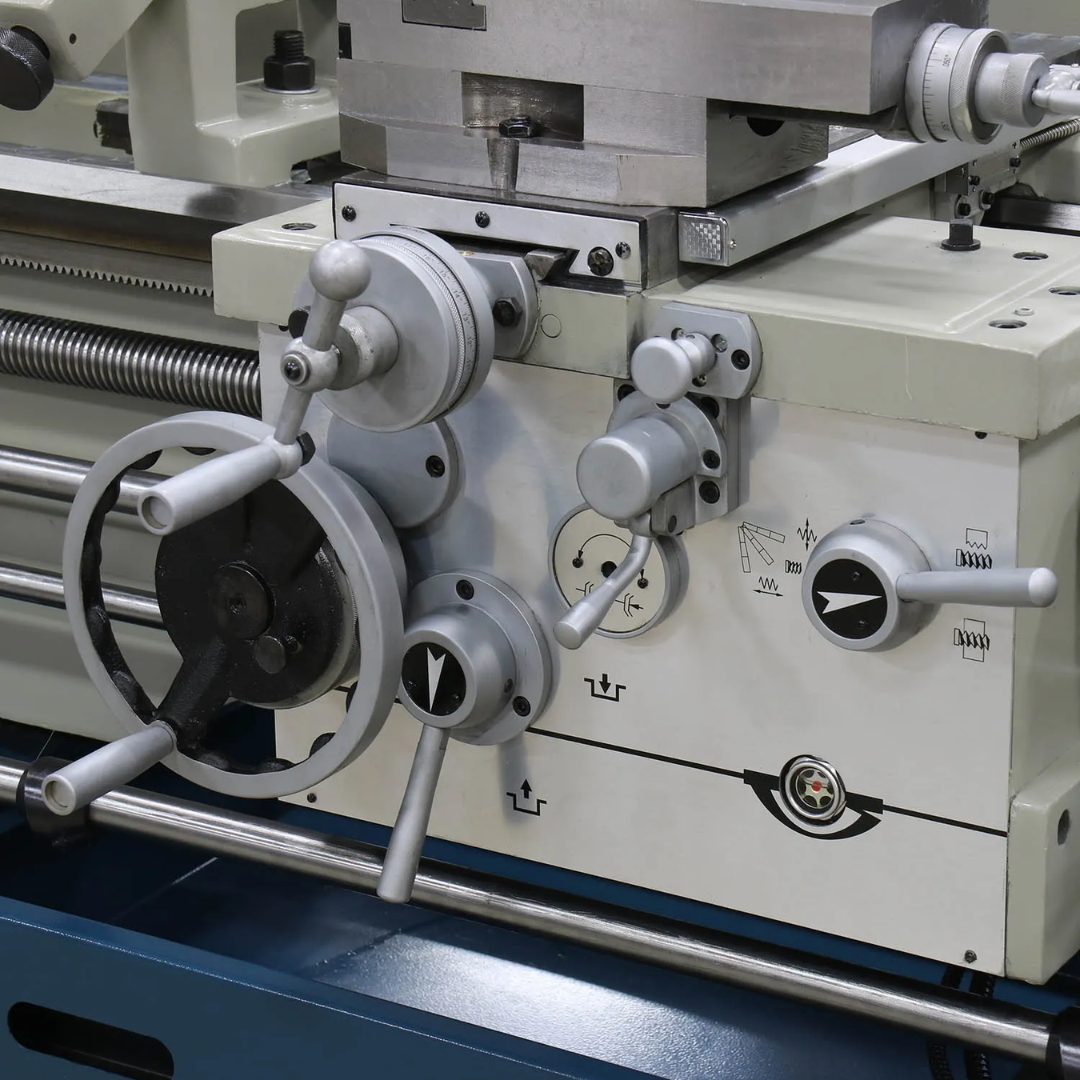

- Robust carriage, cross slide, and compound rest provide smooth manual control for facing, taper turning, threading, and precision finishing operations.
- Designed for industrial productivity in machine shops, maintenance departments, educational facilities, and manufacturing environments requiring dependable long-term performance.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable ownership and professional service.
Why Choose the Baileigh Metal Lathe PL-1860E 1016624
- Heavy-duty 7.5 HP geared-head motor delivers exceptional machining power.
- 18-inch swing and 60-inch between centers accommodate large industrial workpieces.
- 12 spindle speeds from 25–1800 RPM provide machining flexibility.
- Large 3.125-inch spindle bore supports oversized bar stock.
- Precision 2-axis DRO improves machining accuracy and repeatability.
- Heavy cast iron bed ensures long-term rigidity and precision.

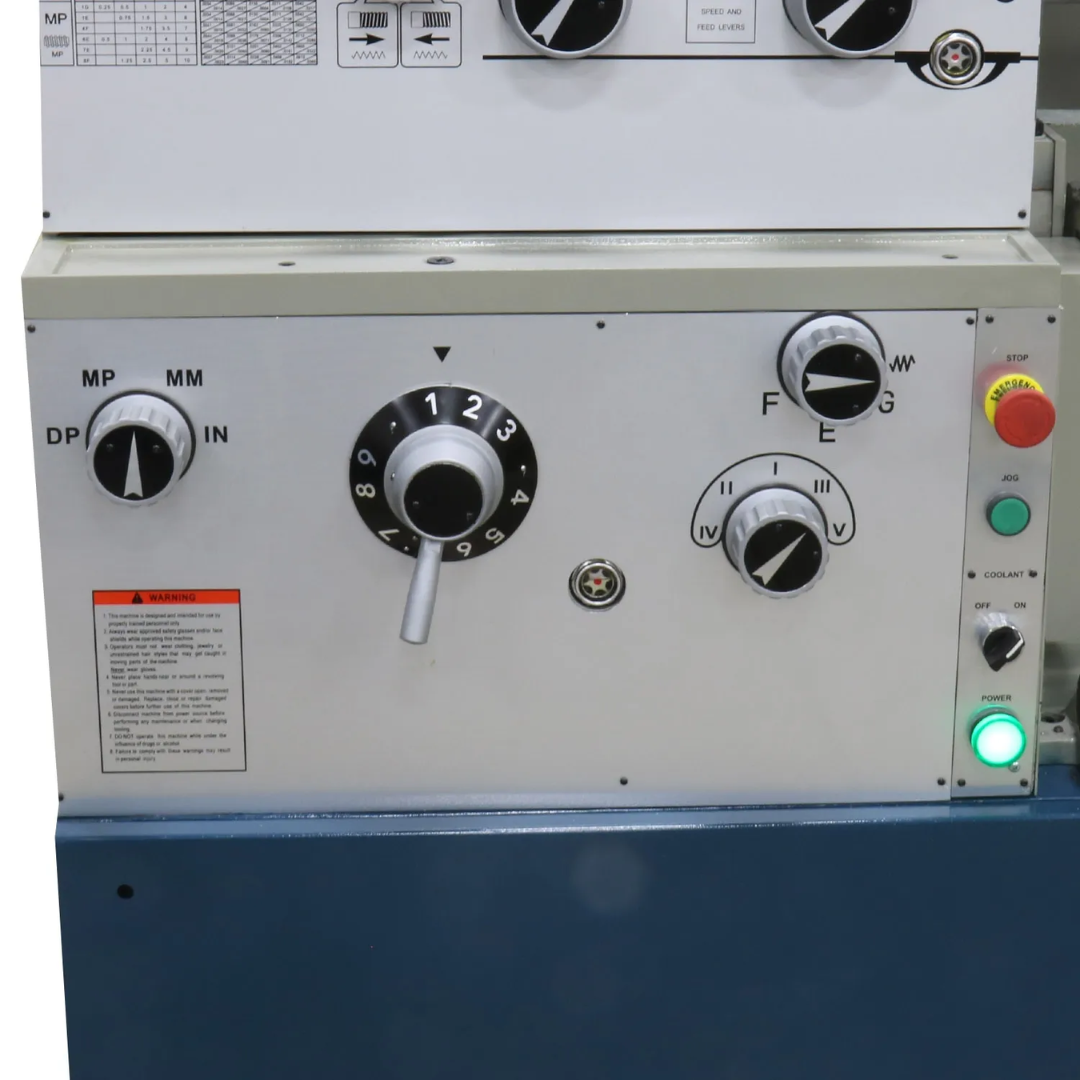

- Comprehensive threading and feed capabilities support a wide variety of machining operations.
- Precision-ground bed ways provide smooth carriage travel and excellent surface finishes.
- Built for industrial machine shops, schools, maintenance departments, and production environments.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Metal Lathe PL-1860E 1016624 is a professional industrial engine lathe designed to deliver exceptional turning accuracy, powerful machining performance, and outstanding durability. Its large-capacity design, precision 2-axis DRO, extensive threading capabilities, and rugged construction make it an excellent choice for demanding production machining, repair work, toolrooms, and precision manufacturing.
