Baileigh Metal Lathe PL-1236E 1016616 Applications
- General-purpose turning and machining operations.
- Maintenance and repair shop component manufacturing.
- Fabrication and prototype development projects.
- Thread cutting, shaft production, and custom part creation.
- Machine shop training and educational machining programs.
- Small-batch manufacturing and production work.
- Facing, boring, chamfering, and precision finishing operations.
The compact footprint of the Baileigh Metal Lathe PL-1236E 1016616 makes it ideal for facilities that require professional machining capability while maximizing available floor space.
Baileigh Metal Lathe PL-1236E 1016616 Specifications
| Model Number | PL-1236E-1.0 |
|---|---|
| Product Name | Baileigh Metal Lathe PL-1236E 1016616 |
| Swing Over Bed | 12" |
| Distance Between Centers | 36" |
| Motor Power | 2 HP |
| Power Requirement | 220V Single Phase |
| Motor Phase | Single Phase |

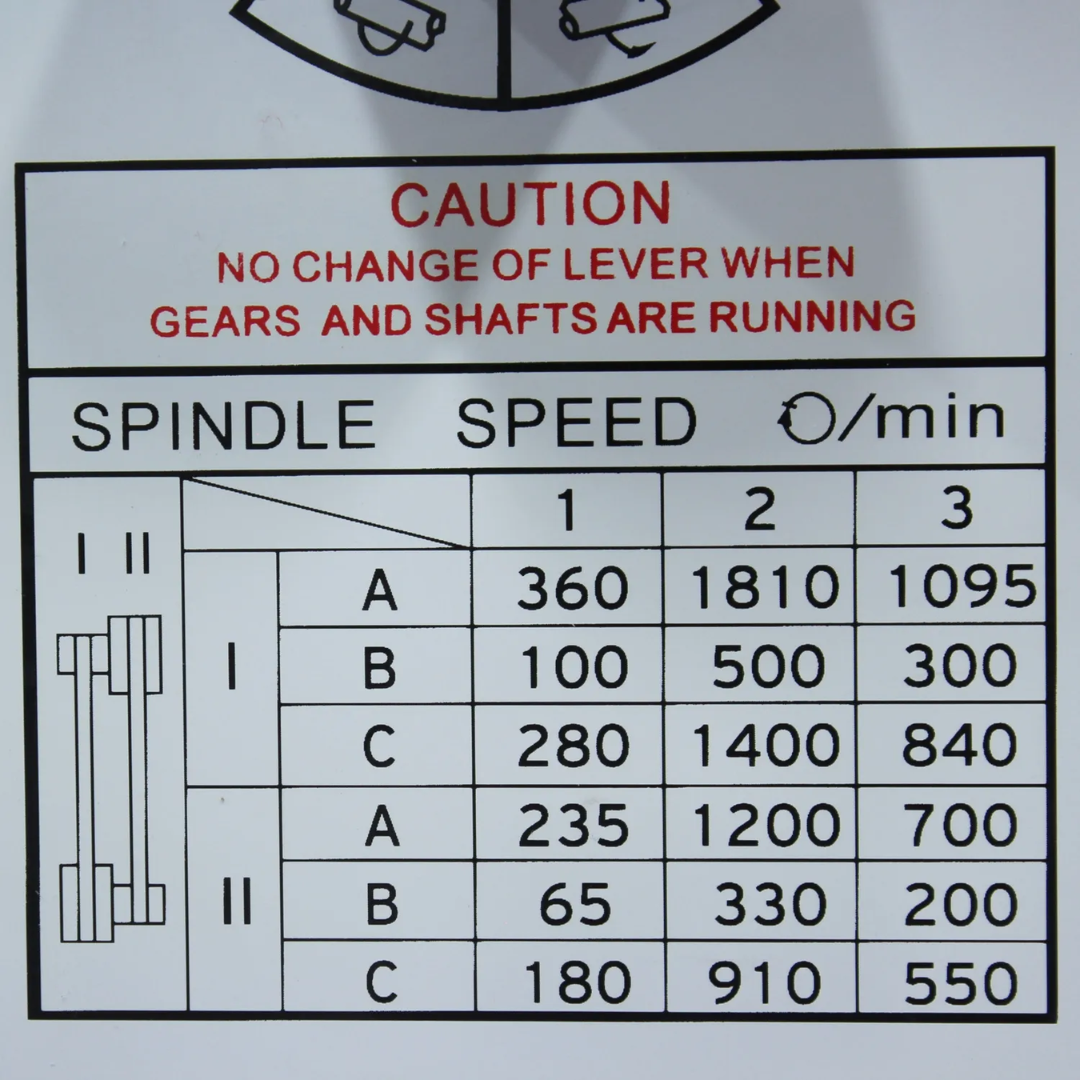

| Spindle Speed Range | 70 – 1400 RPM |
| Spindle Taper | MT3 |
| Spindle Travel | 4" |
| Spindle Bore | 1.5" |
| Leadscrew Thread Pitch | 8 TPI |
| Gap Length | 6" |

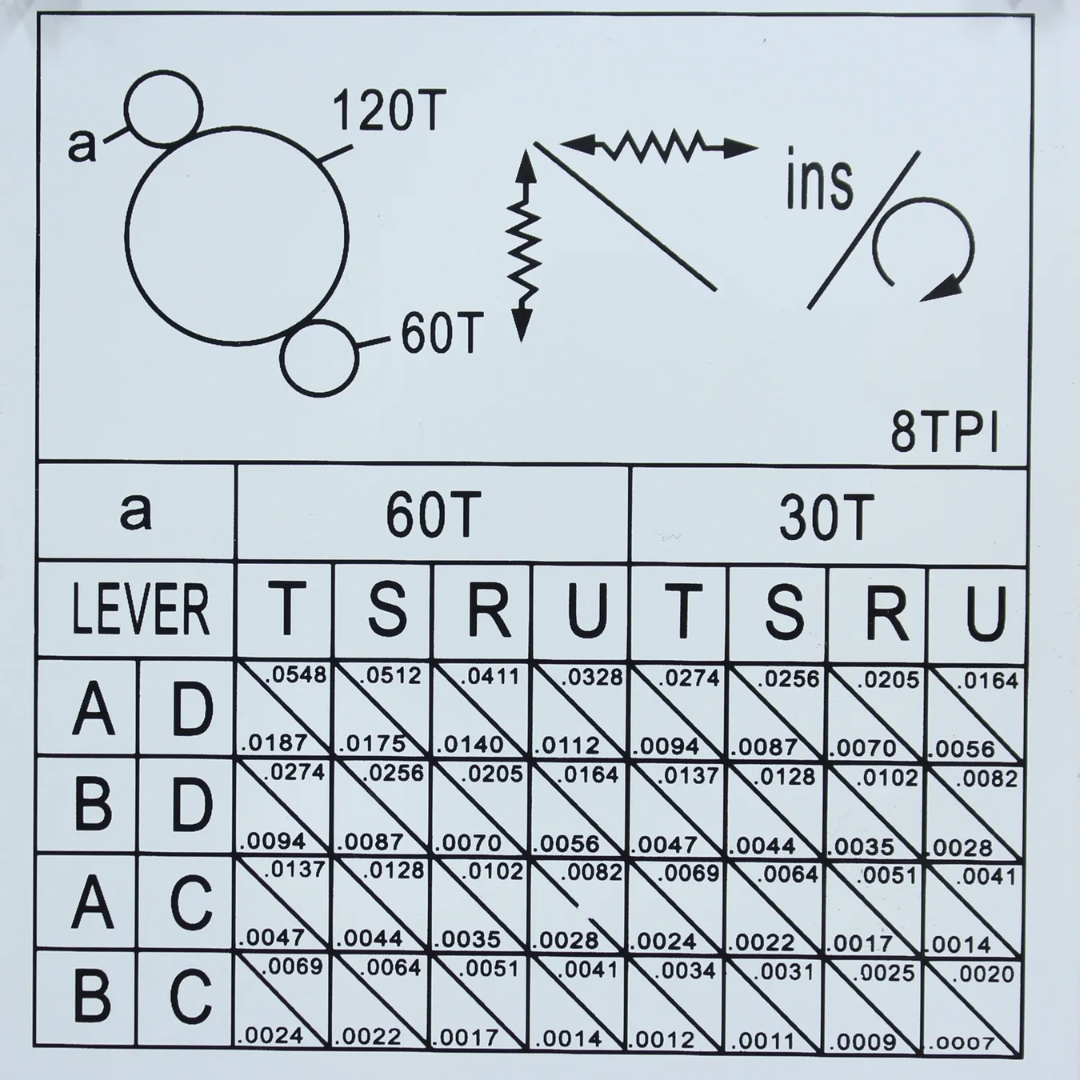

| Longitudinal Feed Range | 0.002" – 0.0548" per Revolution |
| Cross Feed Range | 0.007" – 0.0187" per Revolution |
| Inch Thread Range | 4 – 56 TPI |
| Metric Thread Range | 0.4 – 7 mm |
| Net Weight | 1395 lbs |
| Gross Weight | 1395 lbs |
| UPC | 731325462708 |
| Warranty | 1 Year |
Baileigh Metal Lathe PL-1236E 1016616 Performance & Construction
- 12" Swing Capacity: Accommodates medium-sized workpieces commonly found in repair, fabrication, and manufacturing environments.
- 36" Between Centers: Supports longer shafts, rods, and components while maintaining excellent machining accuracy.
- 2 HP Industrial Motor: Provides dependable power for turning, facing, boring, and threading operations.

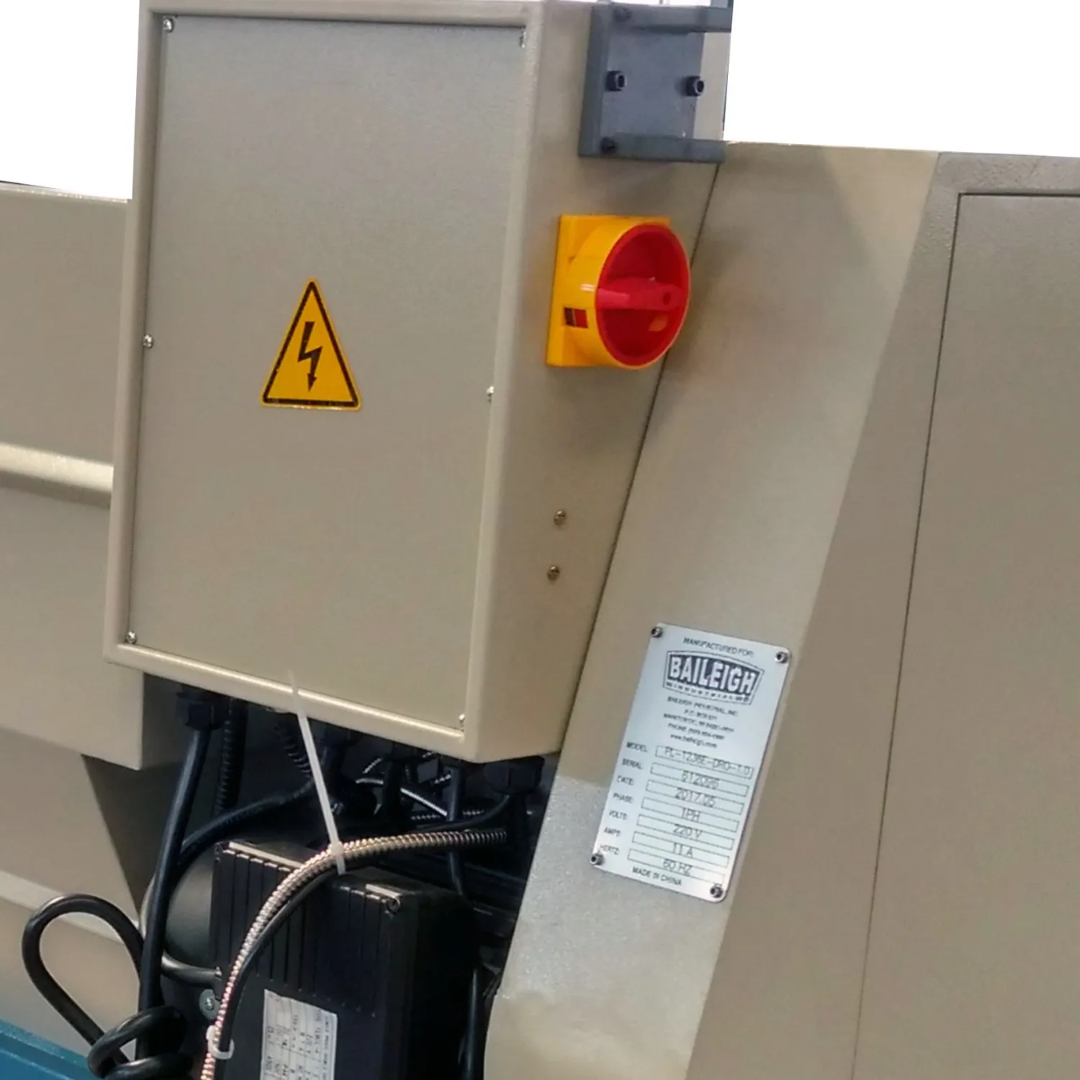

- 220V Single-Phase Operation: Compatible with many commercial and industrial shop electrical systems.

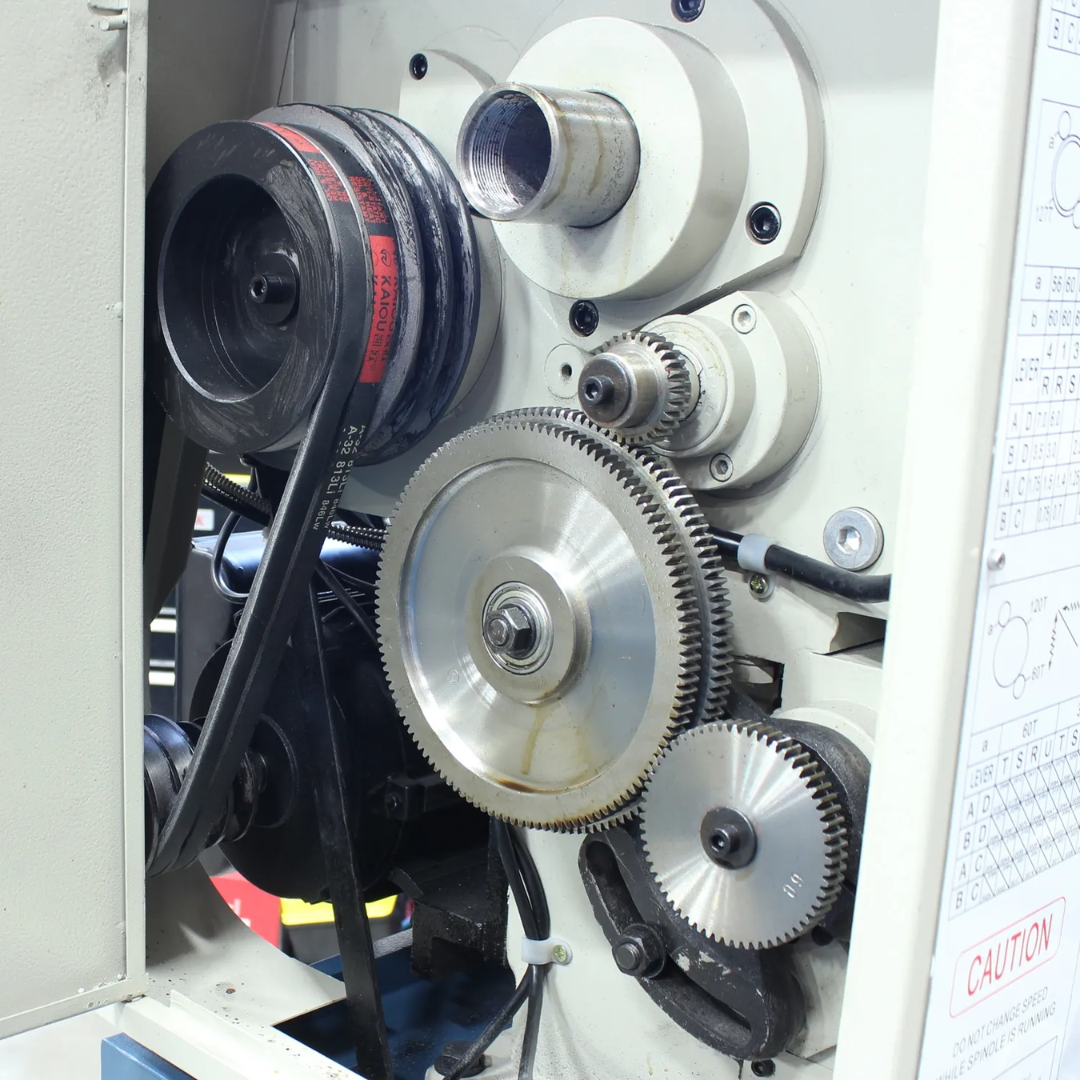

- Geared Headstock Design: Delivers smooth torque transfer and reliable spindle performance across a wide speed range.
- 70–1400 RPM Spindle Speeds: Offers flexibility for machining steel, aluminum, brass, plastics, and other materials.

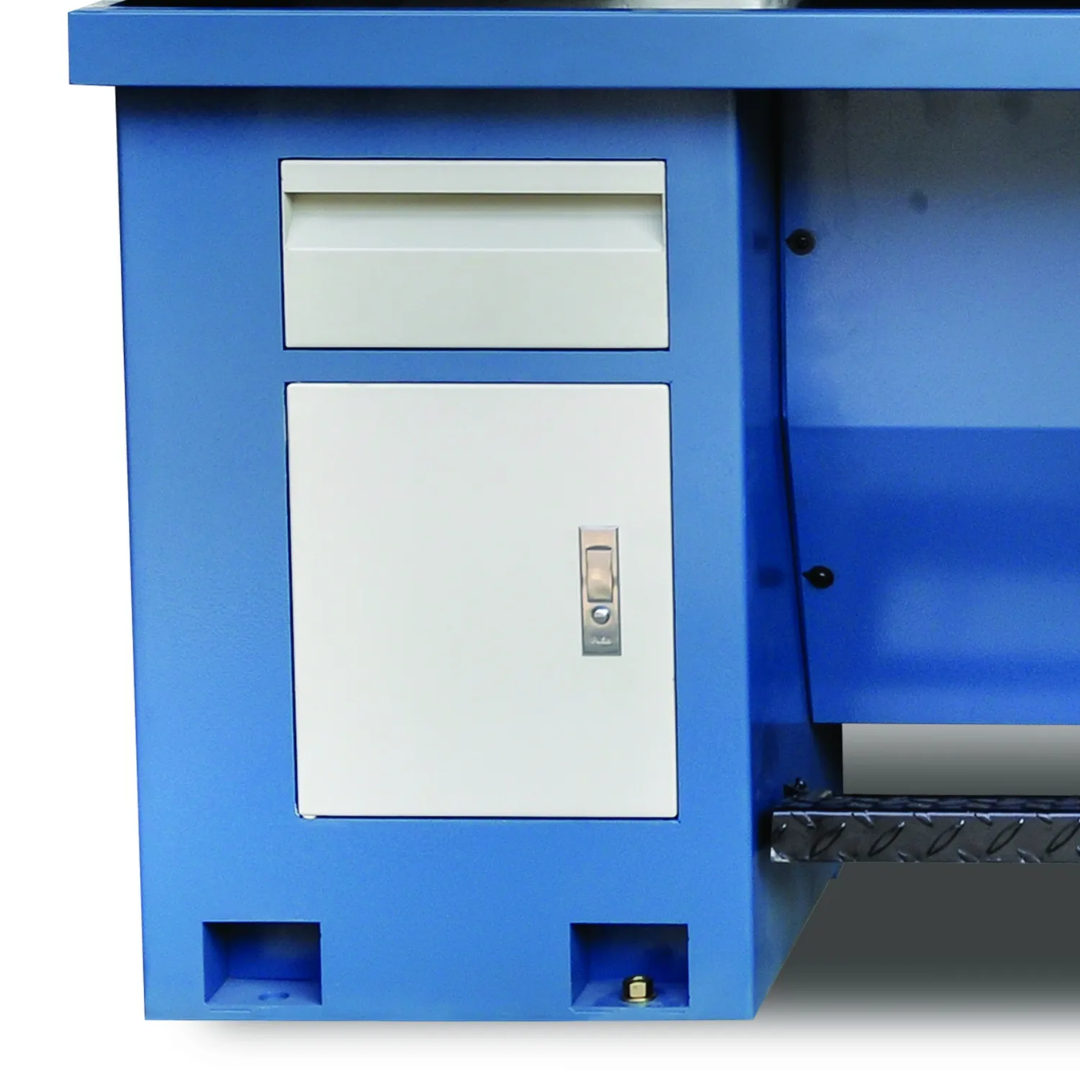

- Heavy Cast-Iron Base: Enhances rigidity, minimizes vibration, and improves surface finish quality.
- Precision-Ground Bed Ways: Help maintain consistent carriage movement and machining accuracy.
- 1.5" Spindle Bore: Allows common bar stock and workpieces to pass through the spindle.

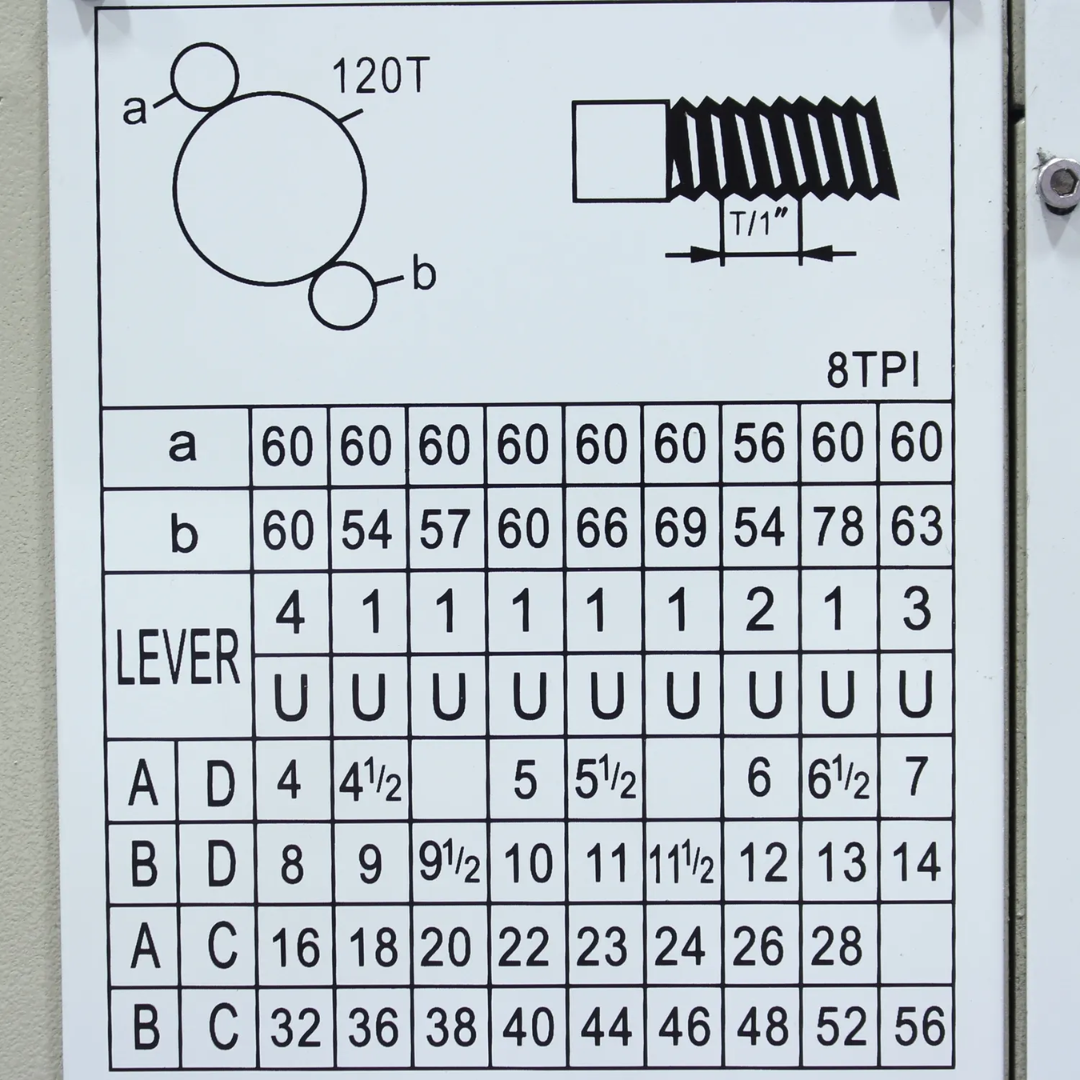

- Threading Capability: Produces both inch and metric threads through a wide selection of feed and threading combinations.
- Wide Feed Range: Supports both roughing and finishing operations for improved machining flexibility.
- Industrial Weight Construction: The 1395 lb machine weight contributes to stability and precision during demanding machining tasks.
Why Choose the Baileigh Metal Lathe PL-1236E 1016616
- Compact industrial design suitable for machine shops and maintenance facilities.
- 12" swing and 36" between centers provide excellent versatility.
- 2 HP motor delivers reliable performance for daily machining operations.
- Wide 70–1400 RPM speed range supports multiple material types and tooling requirements.
- Capable of cutting both inch and metric threads.
- Heavy cast-iron construction improves accuracy and machine longevity.
- Precision-ground bed ways enhance machining consistency and finish quality.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Metal Lathe PL-1236E 1016616 combines industrial-grade construction, versatile machining capacity, and dependable performance into a compact platform that is ideal for turning, threading, facing, and general metalworking applications.
