Baileigh Metal Bench Press - BP-3 1000792 Applications
- Manual metal bending and forming operations.
- Fabricating louvers for ventilation panels and sheet metal assemblies.
- Corner notching and radius notching applications.
- Light-duty press brake work for custom fabrication projects.
- Prototype manufacturing and low-volume production work.
- Maintenance shops requiring portable forming and pressing capabilities.
- Sheet metal fabrication, repair, and customization projects.
- Hole punching, flaring, and shearing operations when equipped with optional tooling.
The Baileigh Metal Bench Press - BP-3 1000792 combines multiple metalworking functions into one compact machine, making it an ideal solution for shops seeking flexibility without sacrificing valuable floor space.
Baileigh Metal Bench Press - BP-3 1000792 Specifications
| Model Number | BP-3 |
|---|---|
| Product Keyword | Baileigh Metal Bench Press - BP-3 1000792 |
| Maximum Capacity | 3 Tons |
| Input Power | Manual |
| Throat Depth | 12" x 3.75" |
| Stroke Length | 3" |
| Frame Construction | Heavy Electro-Welded Steel Plate |
| Slug Ejector | Included |
| Stand | Included Mobile Floor Stand with Wheels |
| Product Type | Machine |
| Net Weight | 320 lbs |
| Gross Weight | 320 lbs |
| UPC | 731325394382 |
| Warranty | 1 Year Parts Warranty |
| California Proposition 65 | Cancer and Reproductive Harm Warning |
Baileigh Metal Bench Press - BP-3 1000792 Performance & Construction
- 3-ton manual pressing capacity provides ample force for forming, bending, notching, and fabrication operations.
- Heavy electro-welded steel frame construction minimizes flex and maintains accuracy during full-capacity operation.
- 12" x 3.75" throat depth allows access to larger panels and workpieces for increased versatility.
- 3" stroke length delivers sufficient travel for a wide range of metal forming applications.
- Manual operation eliminates the need for electrical connections, making the machine suitable for virtually any workspace.
- Integrated slug ejector improves productivity by assisting with material and part removal during punching and forming operations.
- Compact footprint makes the machine ideal for fabrication shops with limited floor space.
- Industrial-grade construction ensures long-term durability in demanding shop environments.

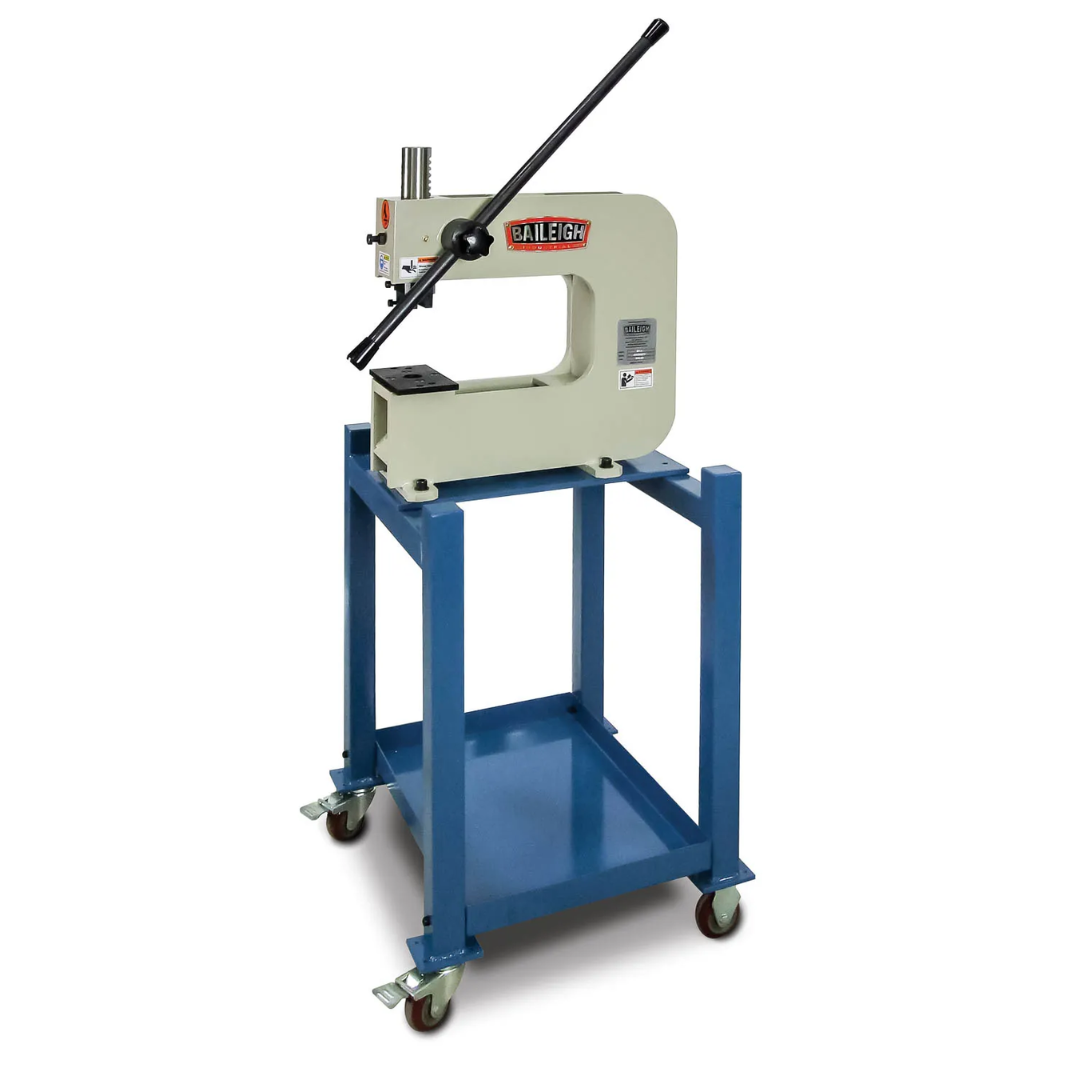

- Mobile floor stand with casters allows easy repositioning throughout the shop as production needs change.
Baileigh Metal Bench Press - BP-3 1000792 Multi-Function Capabilities
- Functions as a manual louver press for producing ventilation louvers and formed sheet metal features.
- Serves as a manual press brake for light bending and forming applications.
- Performs radius and corner notching operations with precision and repeatability.
- Supports custom fabrication projects requiring multiple forming operations.
- Accepts optional tooling for hole punching applications.
- Compatible with optional flaring tooling for specialized metalworking tasks.
- Can be configured for shearing operations with available optional accessories.
- Provides a versatile platform capable of adapting to changing fabrication requirements.
With its multi-purpose design and optional tooling compatibility, the Baileigh Metal Bench Press - BP-3 1000792 can perform several fabrication functions traditionally requiring multiple separate machines.
Why Choose the Baileigh Metal Bench Press - BP-3 1000792
- Industrial 3-ton pressing capacity for demanding fabrication tasks.
- Heavy-duty electro-welded frame designed to withstand continuous use.
- Manual operation eliminates electrical requirements.
- Large throat depth improves access to sheet metal and formed parts.
- Includes stand with wheels for mobility and convenience.
- Multi-function capabilities reduce equipment costs and save shop space.
- Compatible with optional tooling for expanded fabrication possibilities.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Metal Bench Press - BP-3 1000792 delivers dependable manual forming power, exceptional versatility, and industrial-grade construction, making it a valuable addition to fabrication shops, maintenance facilities, and custom metalworking operations.
