Baileigh Manually Operated Arbor Press AP-5 1000264 Applications
- Press fitting bearings, bushings, sleeves, and mechanical components.
- Broaching keyways and precision shop operations.
- Metal fabrication and assembly work.
- Riveting, staking, and swaging applications.
- Forming and bending small metal components.
- Repair and maintenance department operations.
- Fixture assembly and production manufacturing tasks.
- General-purpose industrial pressing applications requiring precise manual control.

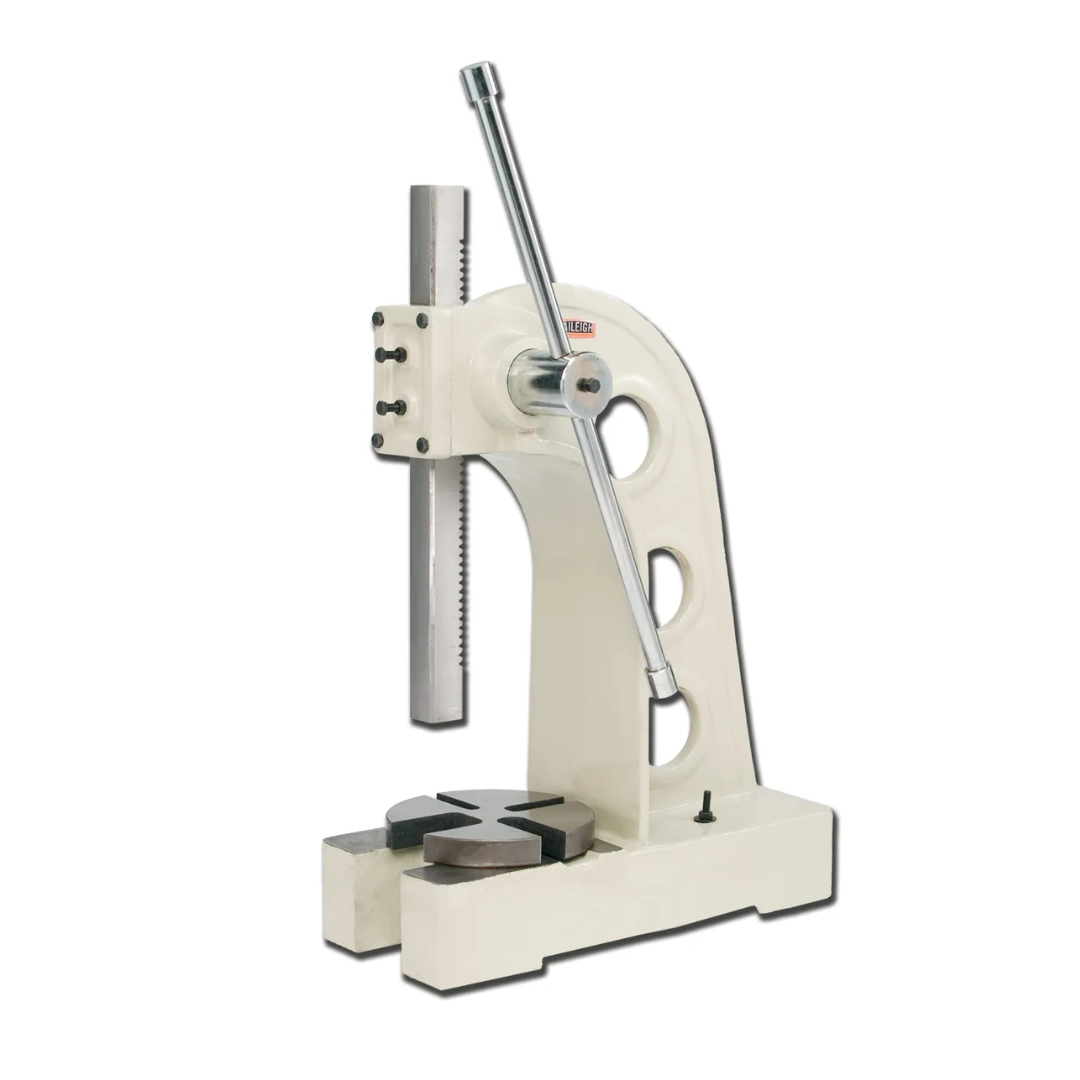

The Baileigh Manually Operated Arbor Press AP-5 1000264 combines high pressing capacity, exceptional rigidity, and precise control to handle demanding shop applications while maintaining accuracy and repeatability.
Baileigh Manually Operated Arbor Press AP-5 1000264 Specifications
| Model Number | AP-5 |
|---|---|
| Product Keyword | Baileigh Manually Operated Arbor Press AP-5 1000264 |
| Machine Type | Manual Arbor Press |
| Rated Capacity | 5.6 Tons |
| Input Power | Manual |
| Throat Depth | 8.89" |
| Maximum Material Height | 15.75" |
| Stroke Length | 15" |
| Ram Size | 2" x 2" Case-Hardened Ram |
| Bottom Plate | 4-Position Machined Bottom Plate |
| Frame Construction | Machined Cast-Iron Housing |
| Mounting Options | Bench Mount or Pedestal Mount |
| Product Type | Machine |
| Net Weight | 440 lbs |
| Gross Weight | 440 lbs |
| UPC | 731325391312 |
| Warranty | 1 Year Parts Warranty |
| California Proposition 65 | Cancer and Reproductive Harm Warning |
Baileigh Manually Operated Arbor Press AP-5 1000264 Performance & Construction
- 5.6-ton pressing capacity delivers substantial force for demanding fabrication, assembly, and repair operations.

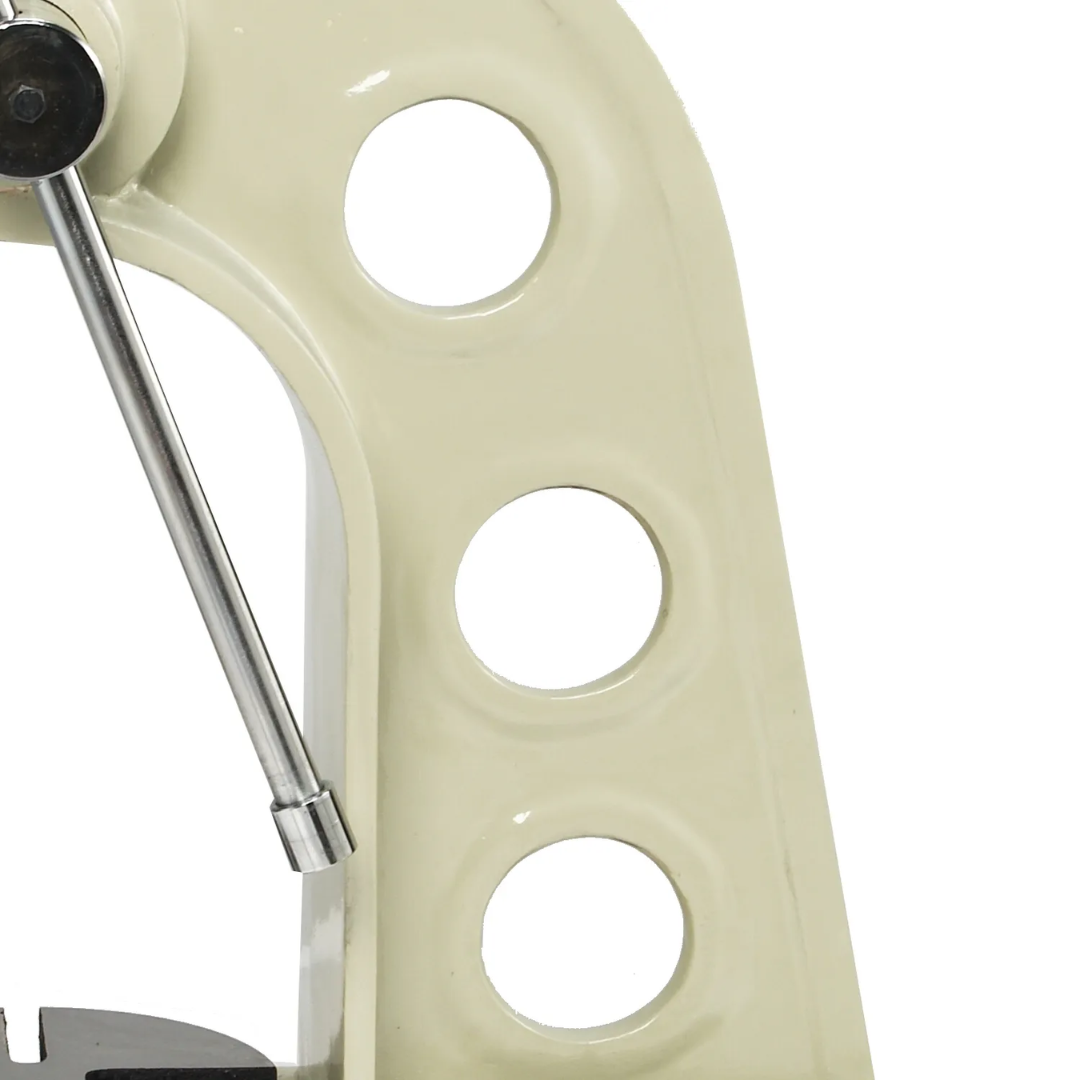

- Heavy machined cast-iron frame resists flex and maintains alignment during high-force applications.
- 2" x 2" case-hardened ram provides exceptional durability, wear resistance, and long-term accuracy.
- 8.89" throat depth offers excellent access for larger workpieces and tooling setups.
- 15.75" maximum material height capacity accommodates tall components and specialized fixtures.
- Long leverage handle multiplies operator force for efficient pressing with reduced physical effort.

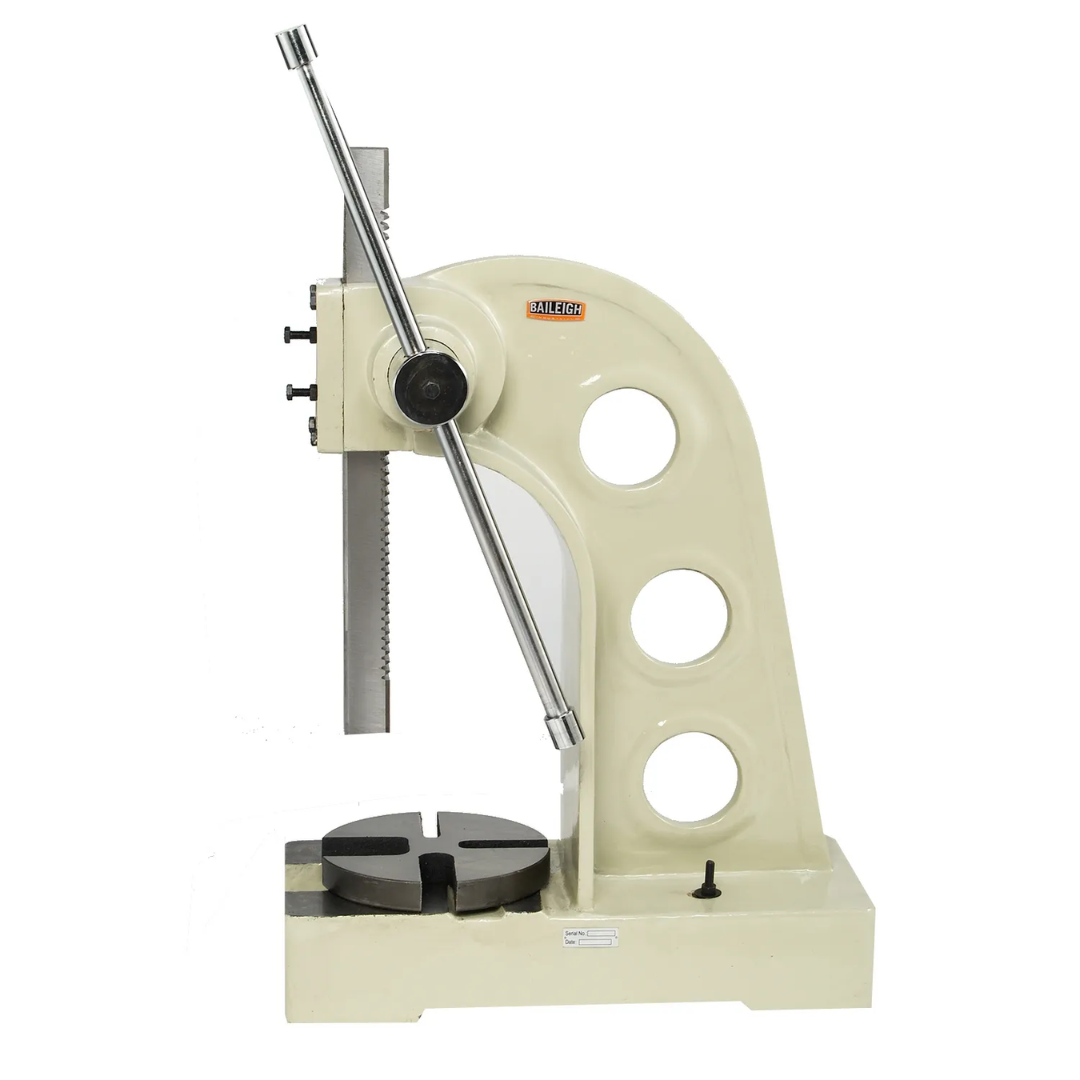

- Adjustable ram cap allows fine-tuning of pressure and working clearance for greater operational control.

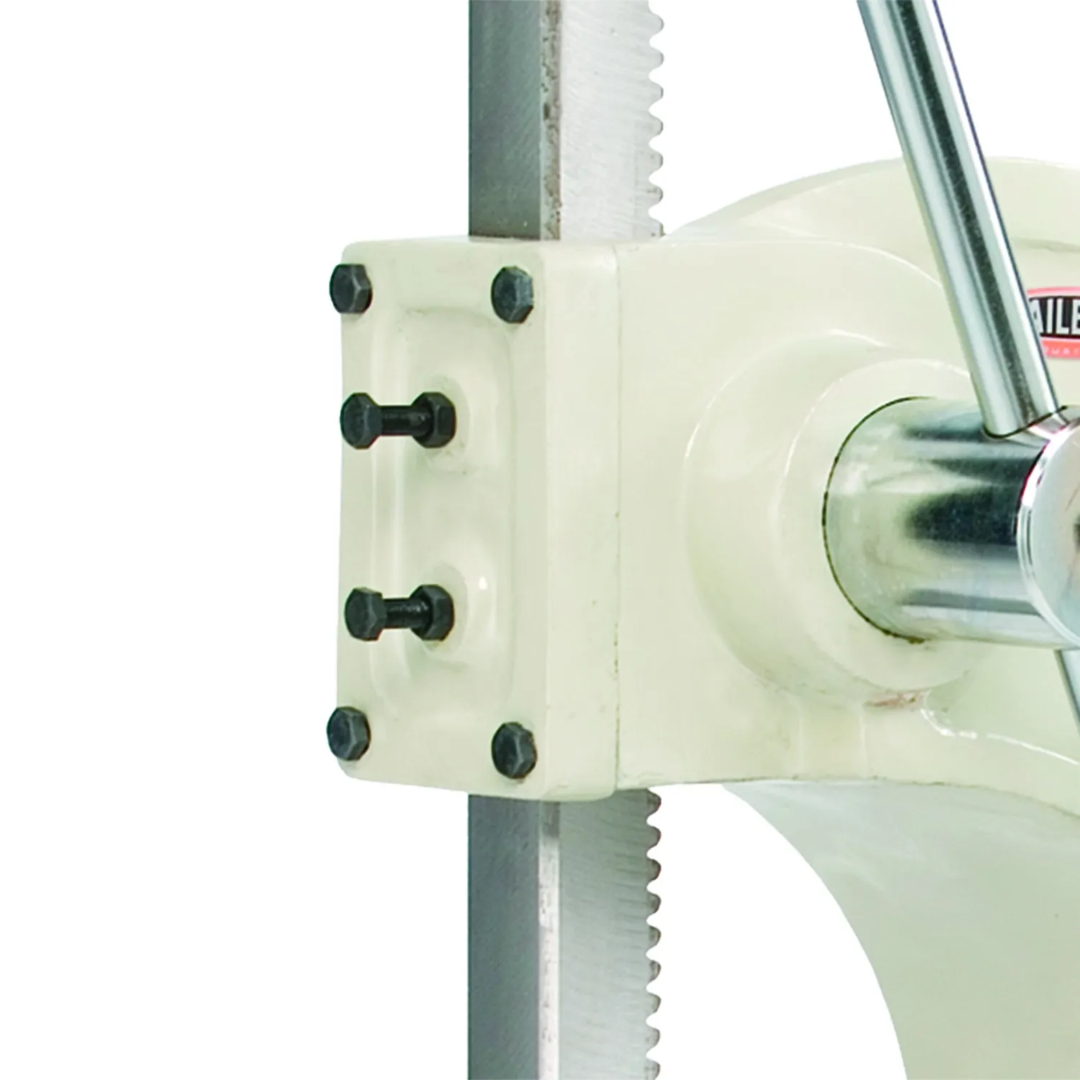

- Precision-machined components help ensure repeatable results and smooth operation.
- Manual operation eliminates electrical requirements and provides direct control over pressing force.
- Industrial-grade construction supports continuous use in demanding shop environments.
Baileigh Manually Operated Arbor Press AP-5 1000264 Operational Flexibility

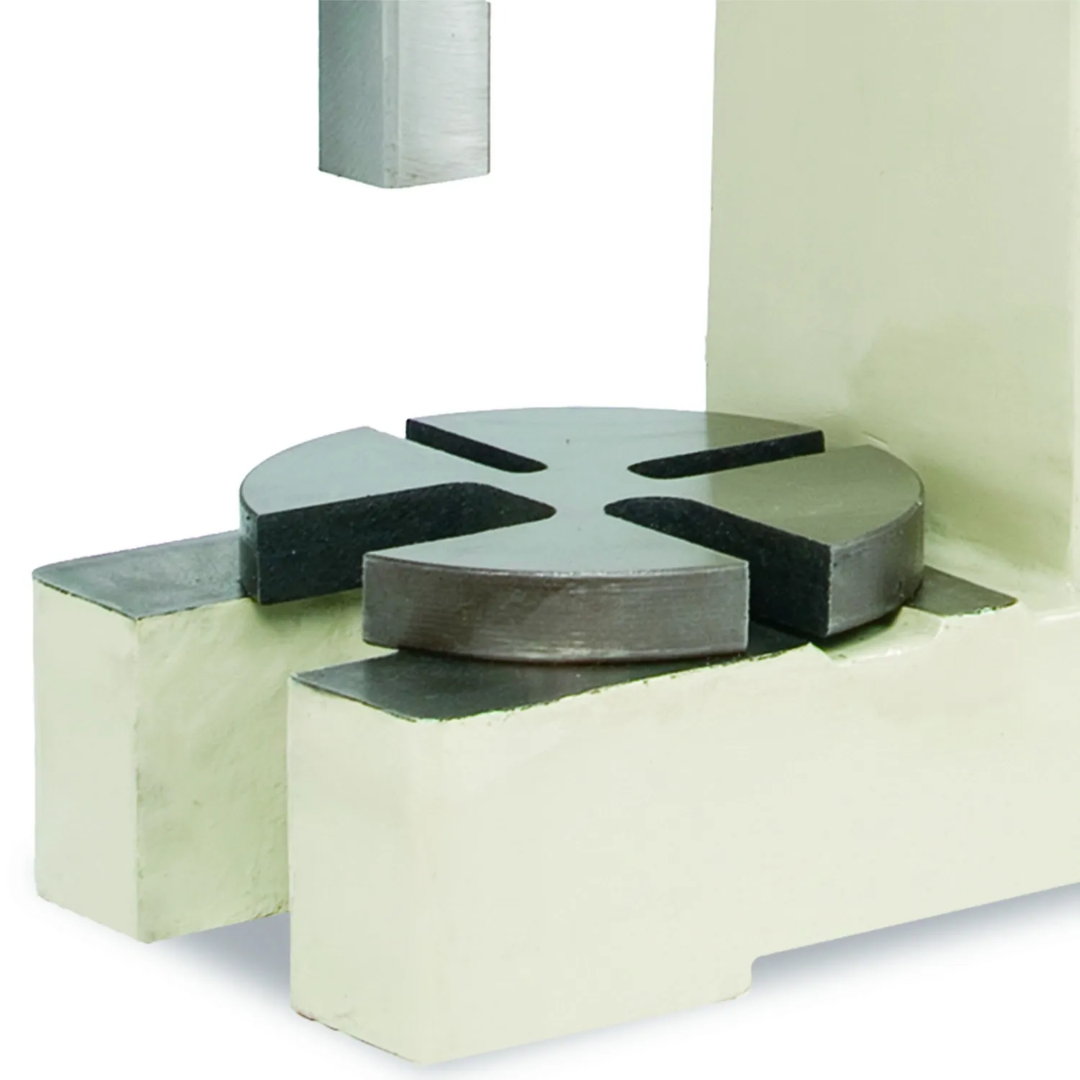

- Includes a durable 4-position bottom plate for versatile work support and tooling configurations.
- Supports broaching, pressing, staking, swaging, forming, and assembly operations.
- Can be mounted on a workbench or pedestal to fit different shop layouts.
- Provides precise manual control for delicate or critical pressing tasks.
- Suitable for production environments, maintenance facilities, and machine shops.
- Large work area accommodates a wide range of component sizes and shapes.
- Designed for long-term service with minimal maintenance requirements.
- Excellent choice for applications where controlled force and accuracy are essential.
The combination of a large throat depth, generous material capacity, adjustable ram system, and four-position bottom plate makes the Baileigh Manually Operated Arbor Press AP-5 1000264 a versatile solution for a broad range of industrial pressing applications.
Why Choose the Baileigh Manually Operated Arbor Press AP-5 1000264
- Powerful 5.6-ton manual pressing capacity.
- Rigid cast-iron construction for maximum durability and precision.
- Large 8.89" throat depth accommodates larger workpieces.
- 15.75" material height capacity expands operational flexibility.
- Heavy-duty 2" x 2" case-hardened ram provides long service life.
- Four-position bottom plate supports multiple tooling and workholding setups.
- Bench or pedestal mounting options adapt to various shop environments.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Manually Operated Arbor Press AP-5 1000264 delivers industrial-grade strength, precision control, and long-lasting durability, making it an excellent choice for fabrication professionals, machinists, maintenance departments, and production facilities.
