Baileigh Manual Slip Roll Machine - (SR-2420M) 1007297 Applications
- Rolling cylinders, tubes, and curved sheet metal sections.
- HVAC ductwork fabrication and custom fittings.
- Prototype development and custom metal fabrication projects.
- Automotive restoration and custom panel forming.
- Architectural and decorative metalworking applications.
- Educational and vocational training programs.
- Light industrial production and repair work.
- Creating cones, curved panels, and specialty formed components.
Ideal for fabricators who need accurate sheet metal rolling performance in a compact benchtop machine that fits easily into smaller workshops and production areas.
Baileigh Manual Slip Roll Machine - (SR-2420M) 1007297 Specifications
| Model | SR-2420M |
|---|---|
| Product Type | Manual Slip Roll Machine |
| Operation | Manual Hand-Powered |
| Forming Width | 24 in. |
| Maximum Forming Length | 24 in. |
| Mild Steel Capacity | 20 Gauge |
| Roll Diameter | 2 in. |
| Minimum Forming Diameter | Approximately 3 in. |
| Wire Grooves | 3 Integrated Grooves |
| Drive System | Manual with 1:1 Gear Ratio |
| Machine Style | Benchtop Model |
| Input Power | Manual |
| Net Weight | 170 lbs. |
| Gross Weight | 170 lbs. |
| Warranty | 1 Year |
| UPC | 731325415148 |
Baileigh Manual Slip Roll Machine - (SR-2420M) 1007297 Features & Performance
- 24" Forming Width provides ample working capacity for a wide variety of sheet metal fabrication projects while maintaining a compact footprint.
- 20 Gauge Mild Steel Capacity allows the machine to form common sheet metal materials across its full working width.

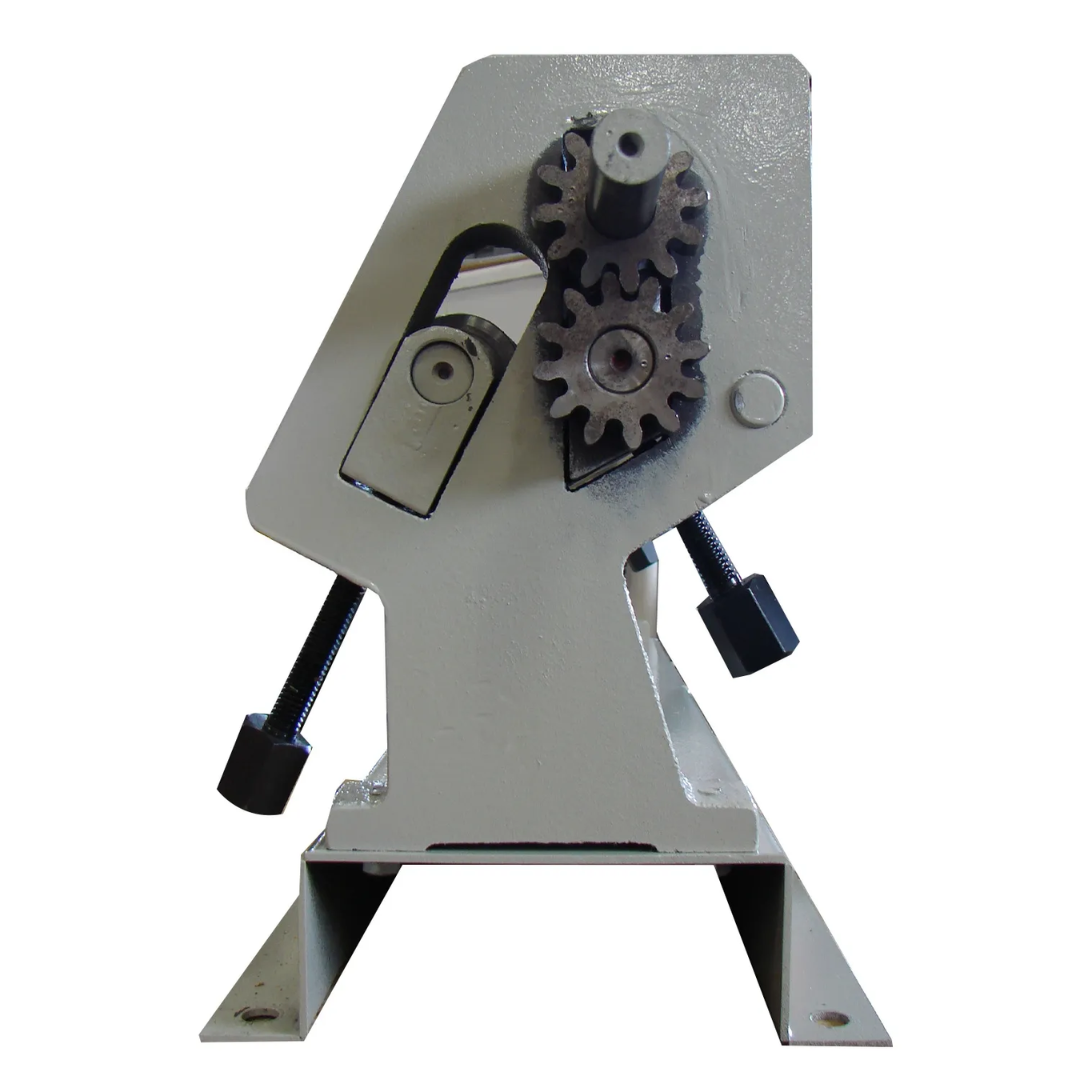

- Fully Integrated Steel Frame maintains roll alignment throughout operation for improved accuracy, repeatability, and forming consistency.

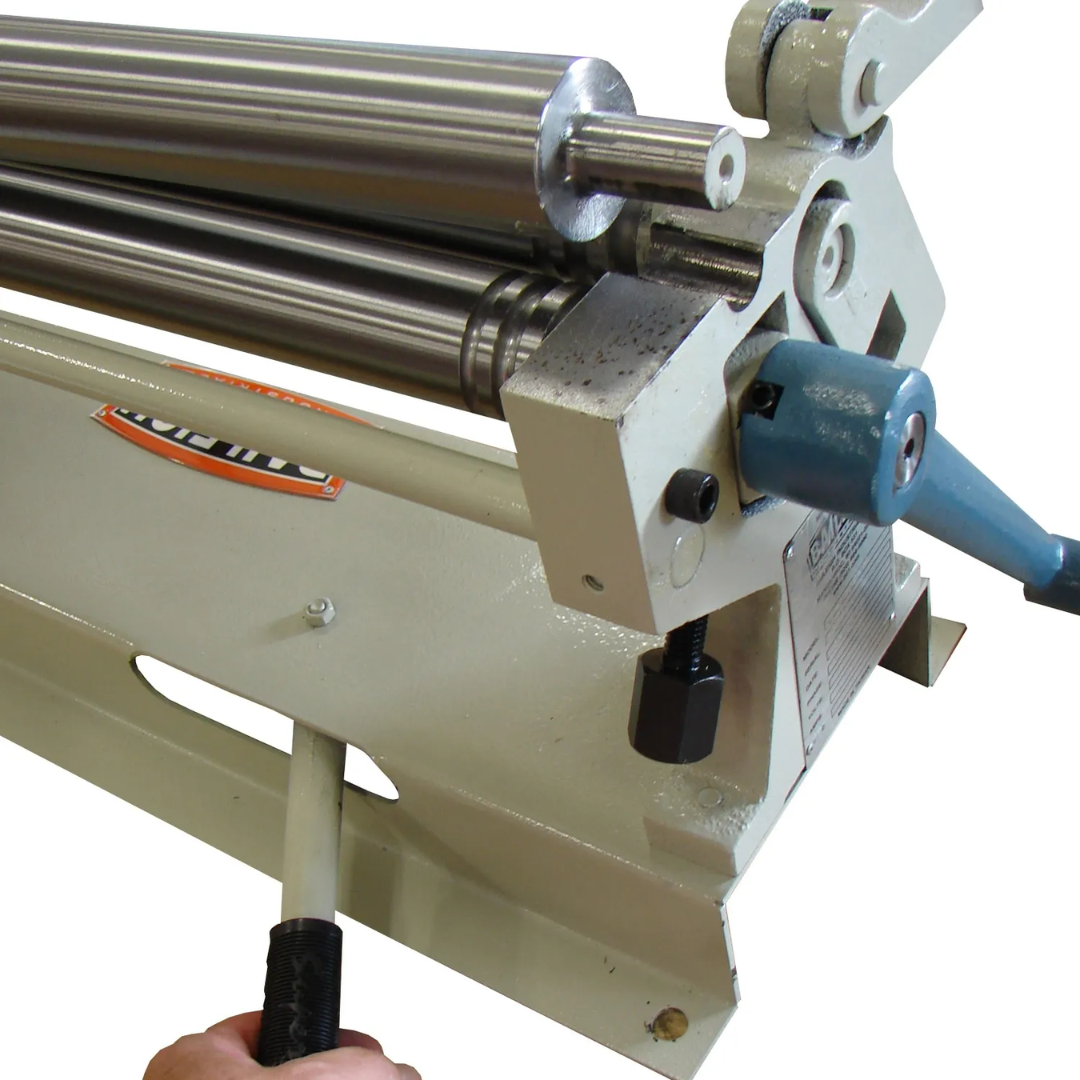

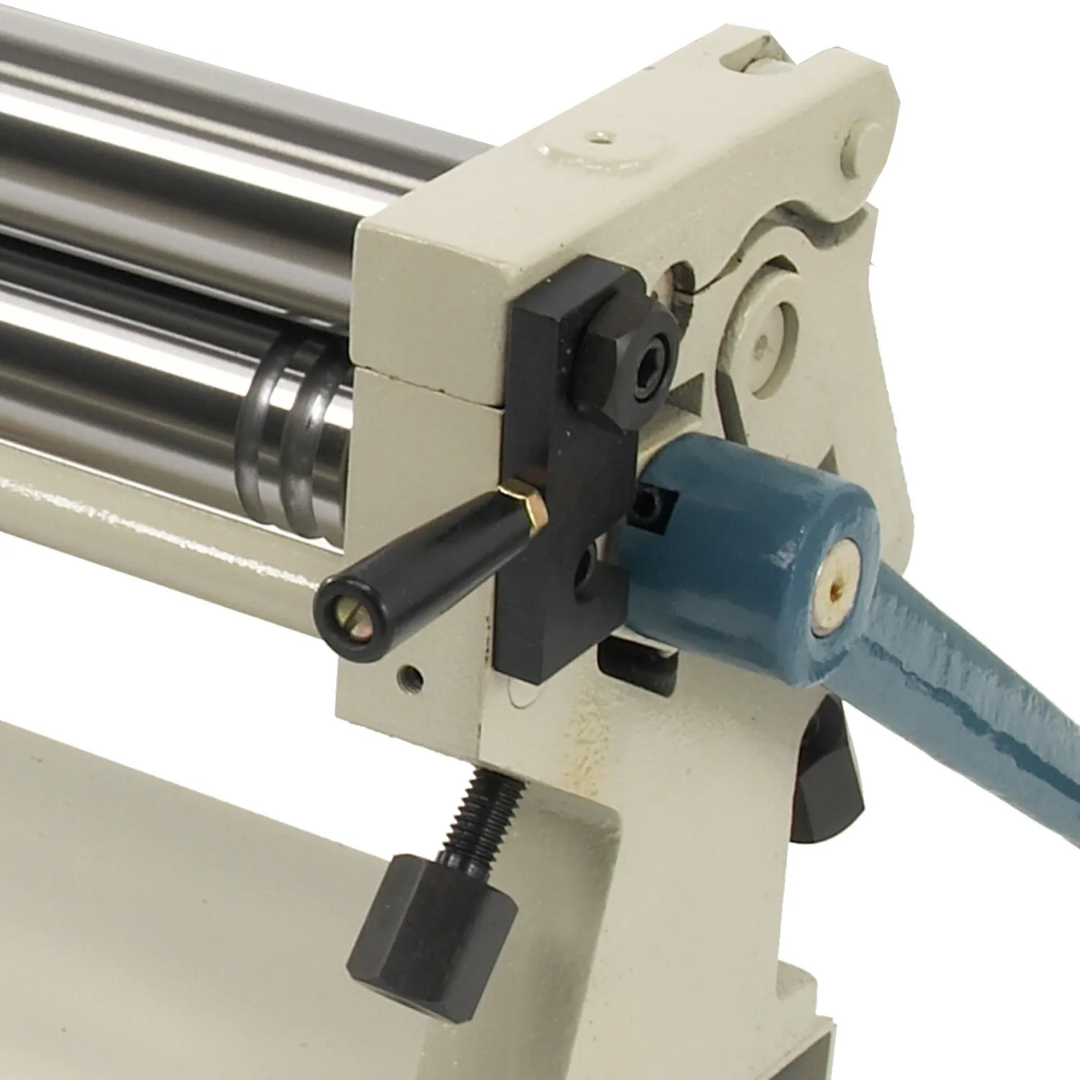

- Manual Operation with 1:1 Gear Ratio offers excellent operator control, making precise adjustments easy during rolling operations.

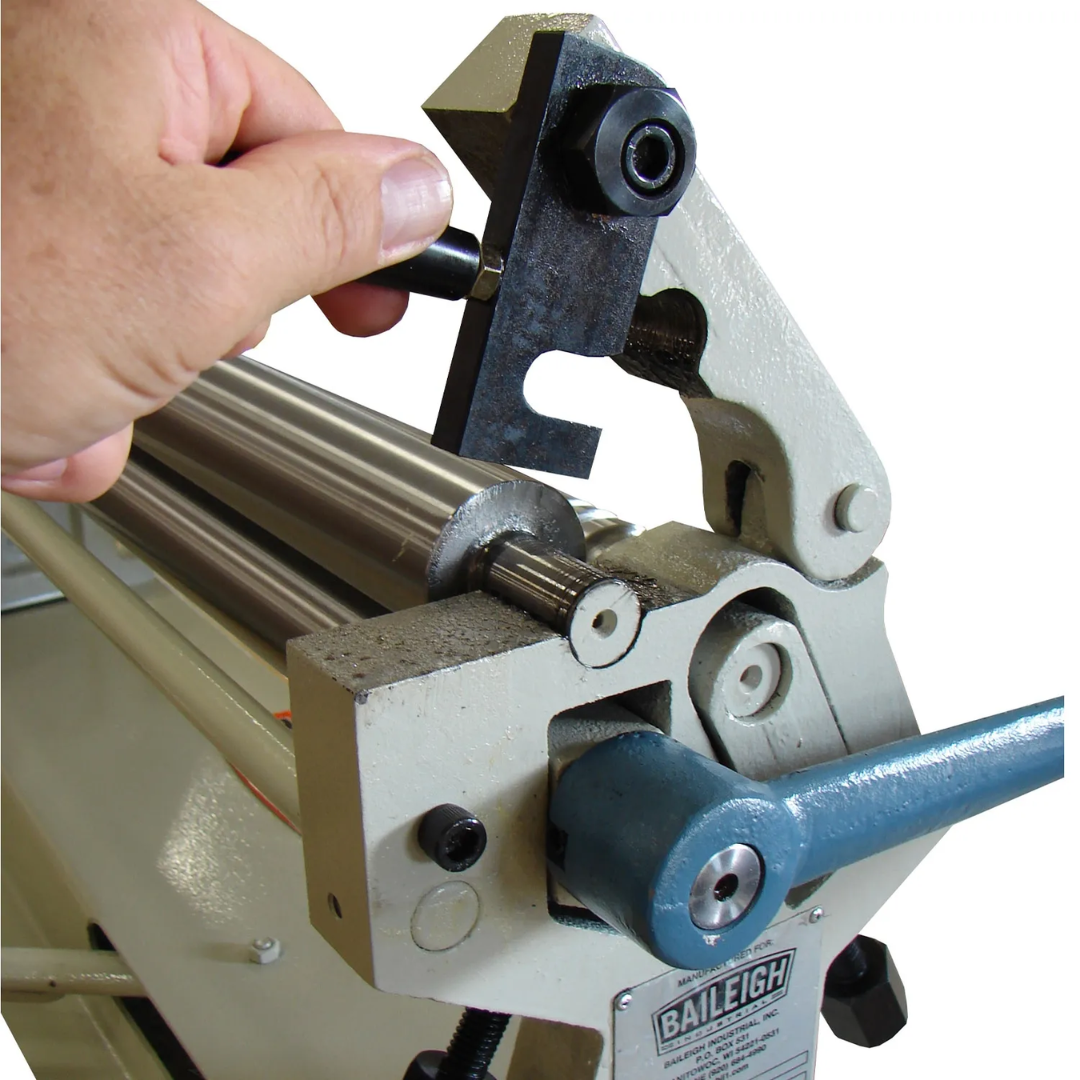

- Quick-Release Top Roll Mechanism enables fast removal of completed cylinders and formed workpieces, improving overall workflow efficiency.
- Three Integrated Wire Grooves expand forming capabilities by allowing specialty bends and wire-reinforced edge applications.

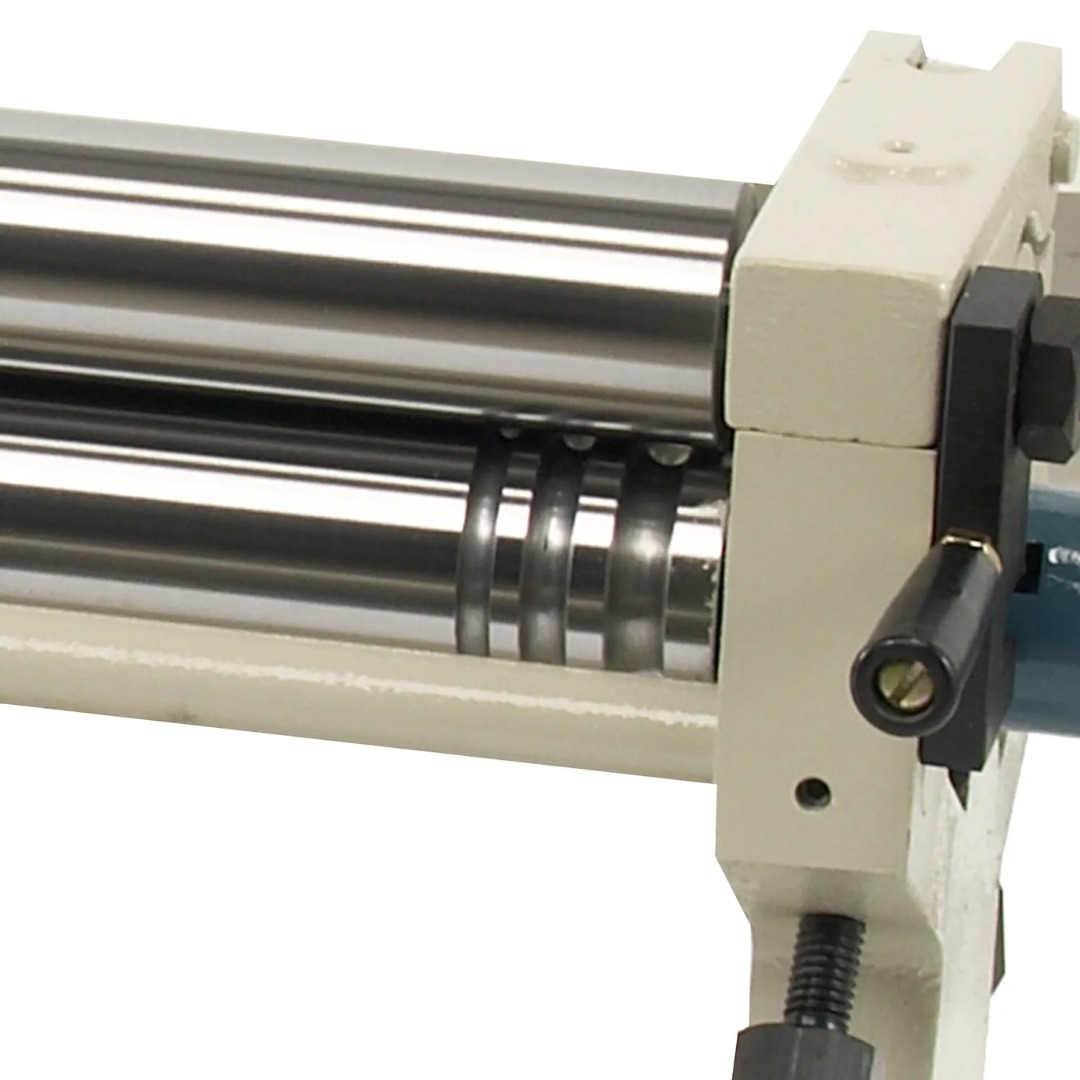

- 2" Diameter Precision Rolls provide durable forming surfaces capable of producing smooth and uniform bends.
- Approximately 3" Minimum Forming Diameter allows tight rolling capabilities for smaller cylindrical components.

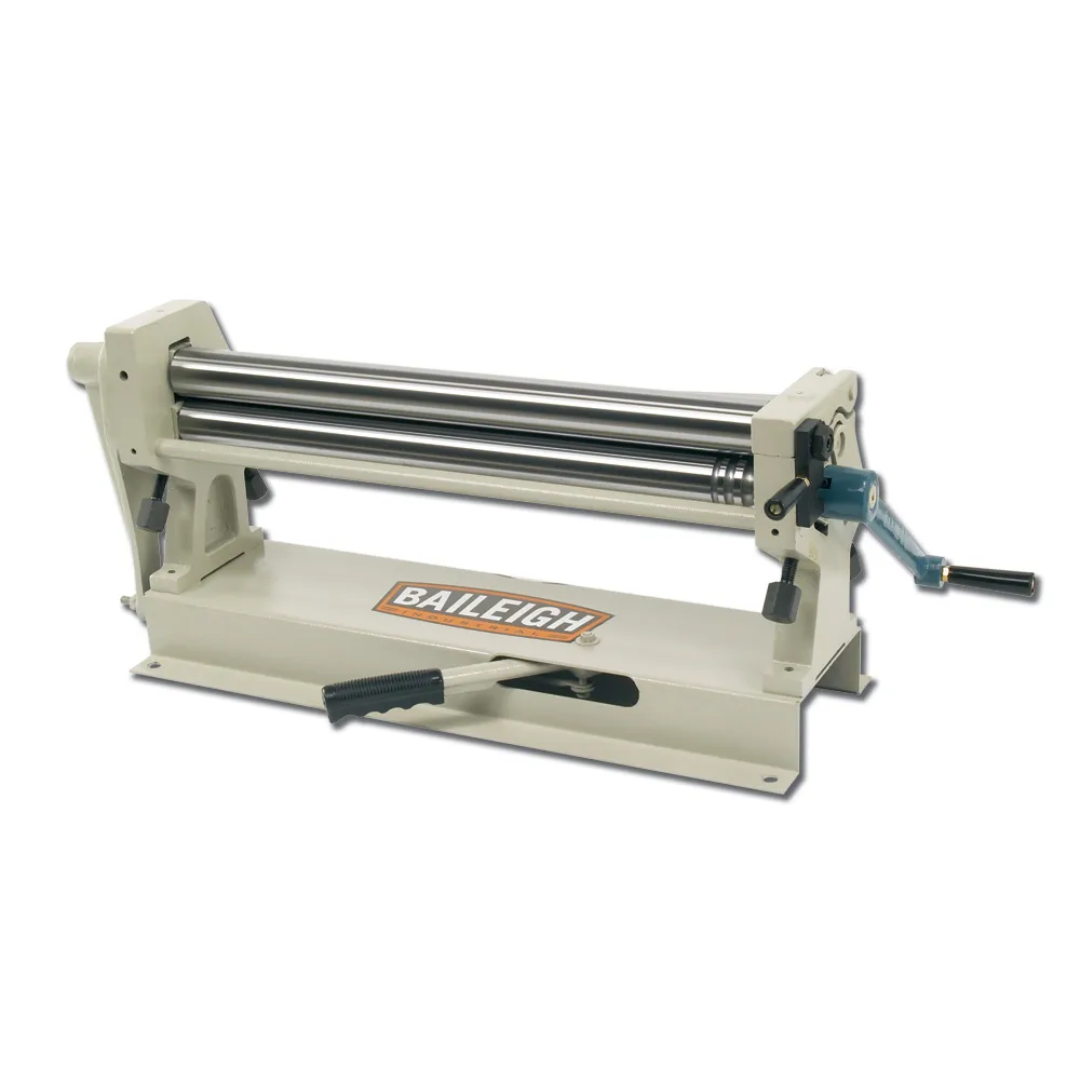

- Compact Benchtop Design fits conveniently into fabrication shops where floor space is limited while still delivering professional-grade performance.

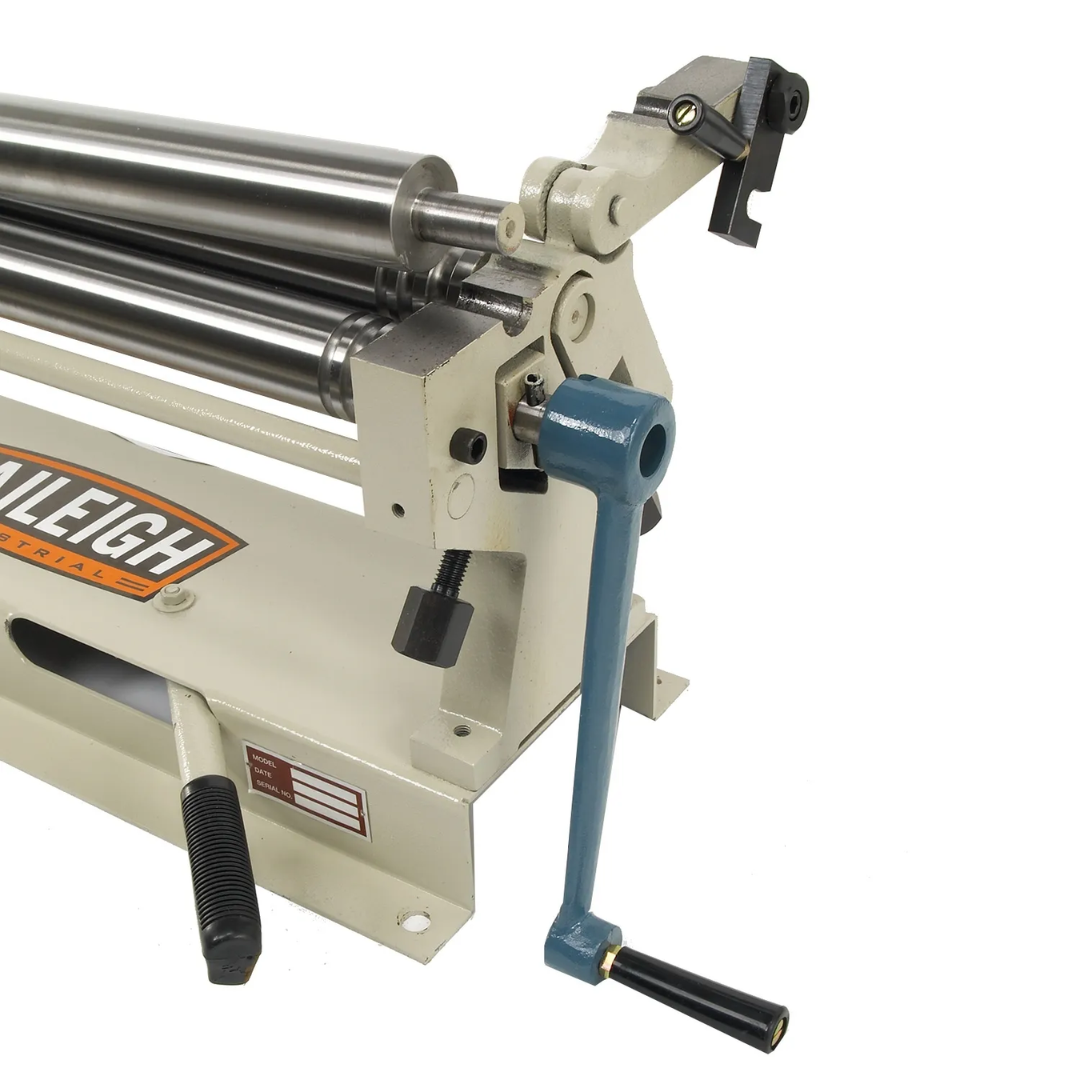

- Heavy-Duty Construction withstands daily shop use and helps maintain consistent results over years of operation.
- Versatile Sheet Metal Forming supports fabrication of cylinders, curved panels, cones, and custom metal shapes.
- No Electrical Power Required allows flexible installation and operation in virtually any workshop environment.
- Baileigh Warranty and Support includes a 1-year parts warranty and lifetime technical support for long-term ownership confidence.
Why Choose the Baileigh Manual Slip Roll Machine - (SR-2420M) 1007297
- 24" forming width handles a broad range of fabrication projects.
- Rolls 20-gauge mild steel across the full working width.
- Integrated steel frame keeps all three rolls aligned for accurate forming.
- Three wire grooves provide added forming versatility.
- Quick-release top roll simplifies workpiece removal.
- Compact benchtop design saves valuable shop space.
- Manual operation delivers precise control without requiring electrical power.
- Ideal for fabrication shops, HVAC contractors, maintenance departments, and educational programs.
The Baileigh Manual Slip Roll Machine - (SR-2420M) 1007297 delivers professional sheet metal rolling capability in a compact, durable, and easy-to-operate benchtop package. Its 24-inch forming width, 20-gauge steel capacity, integrated wire grooves, and precision roll alignment make it an excellent solution for fabricators who need reliable and repeatable forming performance.
