Baileigh Manual Sheet Metal Punch HP-160 1004679 Applications
- Sheet metal fabrication and production work.
- Punching mounting and fastening holes in metal panels.
- HVAC ductwork fabrication and assembly.
- Electrical enclosure and control panel manufacturing.
- Maintenance and repair shop operations.
- Prototype development and custom fabrication projects.
- Educational and vocational training facilities.
- General-purpose metalworking and workshop applications.
The Baileigh Manual Sheet Metal Punch HP-160 1004679 provides accurate, repeatable hole punching without the need for electricity or hydraulic systems, making it ideal for versatile shop use.
Baileigh Manual Sheet Metal Punch HP-160 1004679 Specifications
| Product Name | Baileigh Manual Sheet Metal Punch HP-160 1004679 |
|---|---|
| Model Number | HP-160 |
| Product Type | Manual Sheet Metal Punch |
| Operation Type | Manual Lever-Operated |
| Maximum Material Capacity | .137 in. Mild Steel |
| Punch Maximum Capacity | .137 in. |
| Throat Depth | 6.25 in. |
| Stroke Length | 2 in. |
| Included Punch & Die Sizes | 1/8 in. through 5/8 in. Round Punches and Dies |
| Number of Punch & Die Sets | 9 Sets Included |
| Material Stop | Industrial Adjustable Material Stop |
| Construction | Heavy-Duty Steel Plate Construction |
| Input Power | Manual |
| Net Weight | 230 lbs. |
| Gross Weight | 230 lbs. |
| UPC | 731325407075 |
| Warranty | 1 Year |
Baileigh Manual Sheet Metal Punch HP-160 1004679 Performance & Construction
- Manual lever-operated design provides dependable punching capability without requiring electrical power or hydraulic systems.
- Maximum punching capacity of .137-inch mild steel supports a wide range of fabrication and production applications.
- 6.25-inch throat depth allows operators to position holes farther from material edges for increased flexibility.

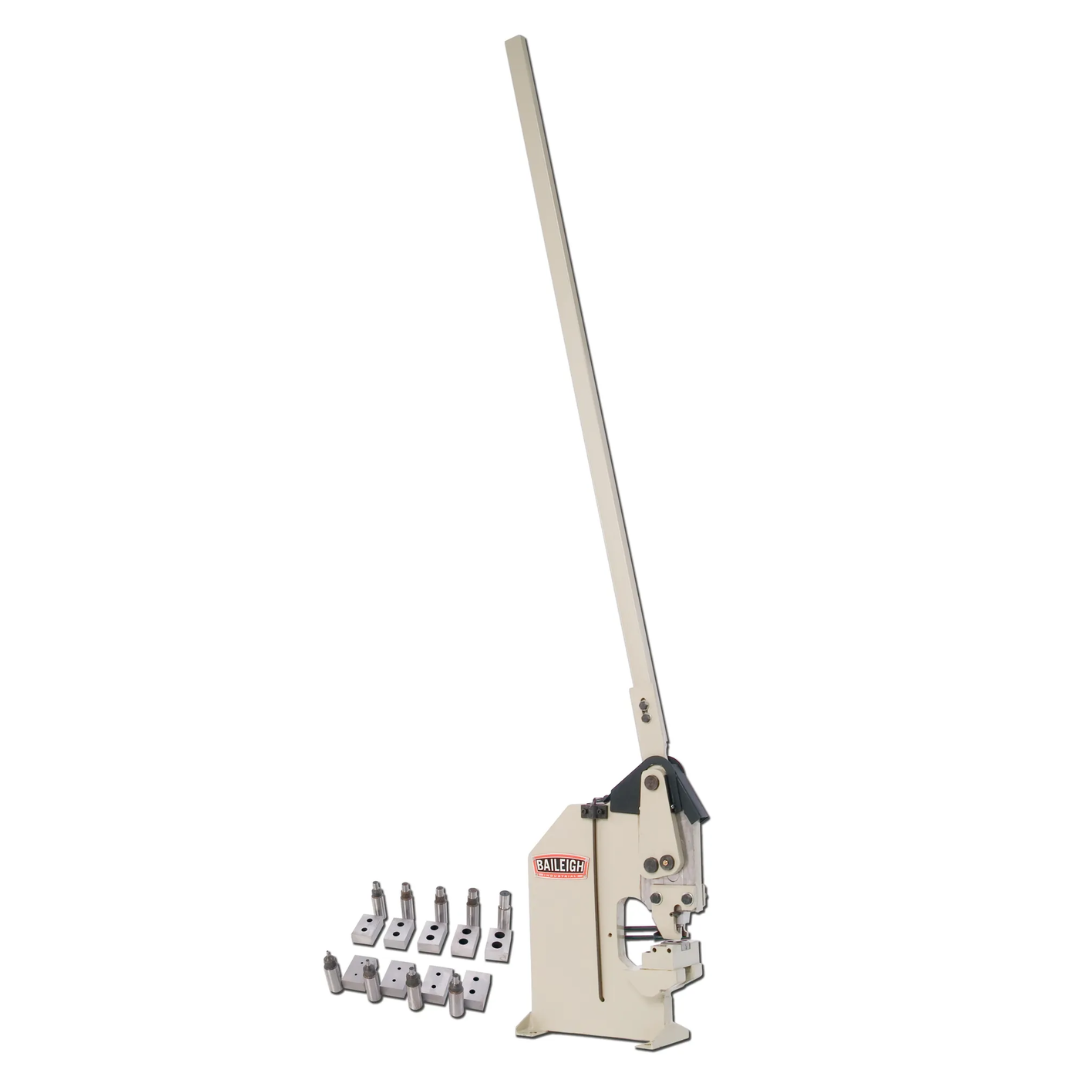

- Long operating handle multiplies user force, making punching easier while reducing operator fatigue.

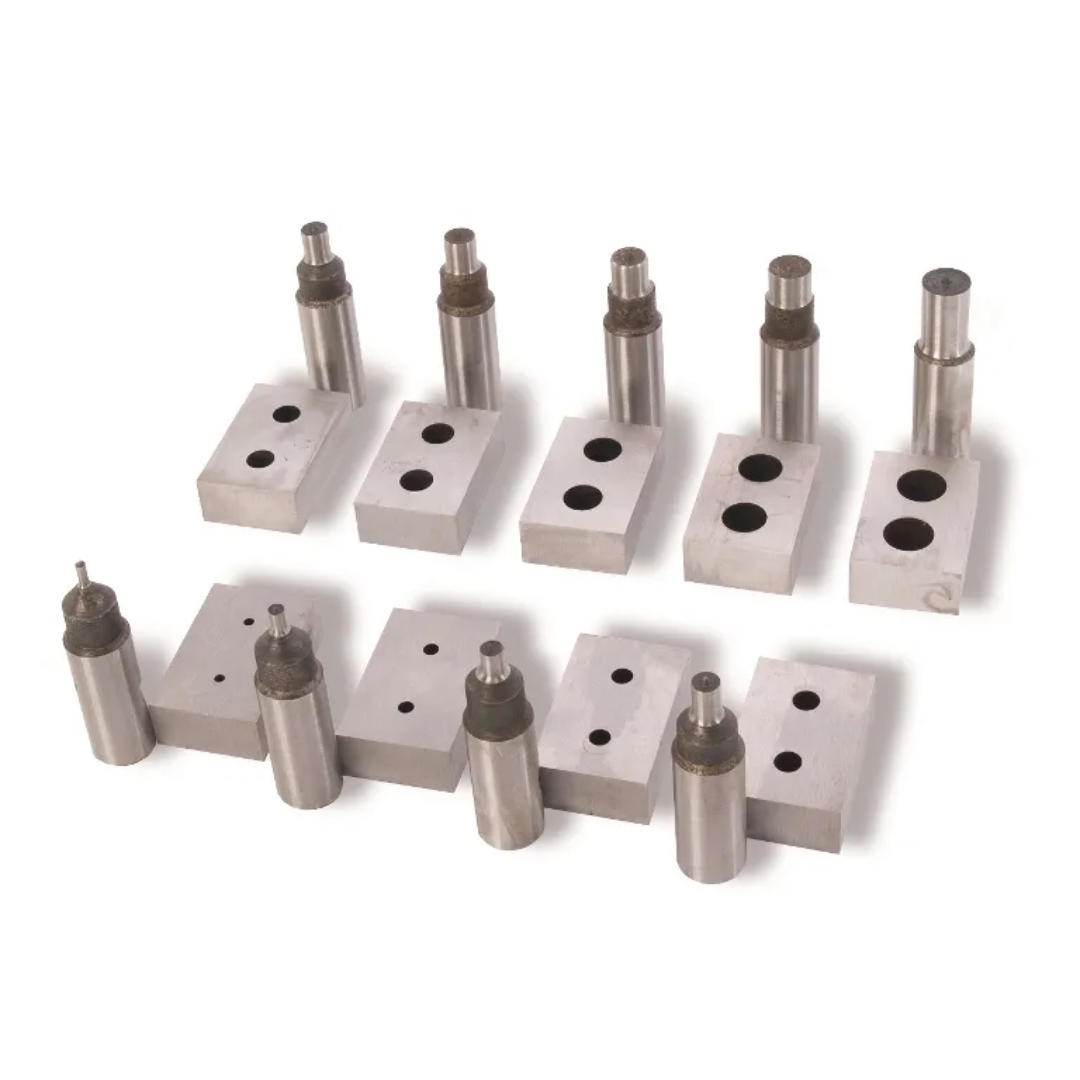

- Includes nine round punch and die sets ranging from 1/8-inch to 5/8-inch for immediate production readiness.
- Industrial material stop improves repeatability and consistency when producing multiple identical parts.

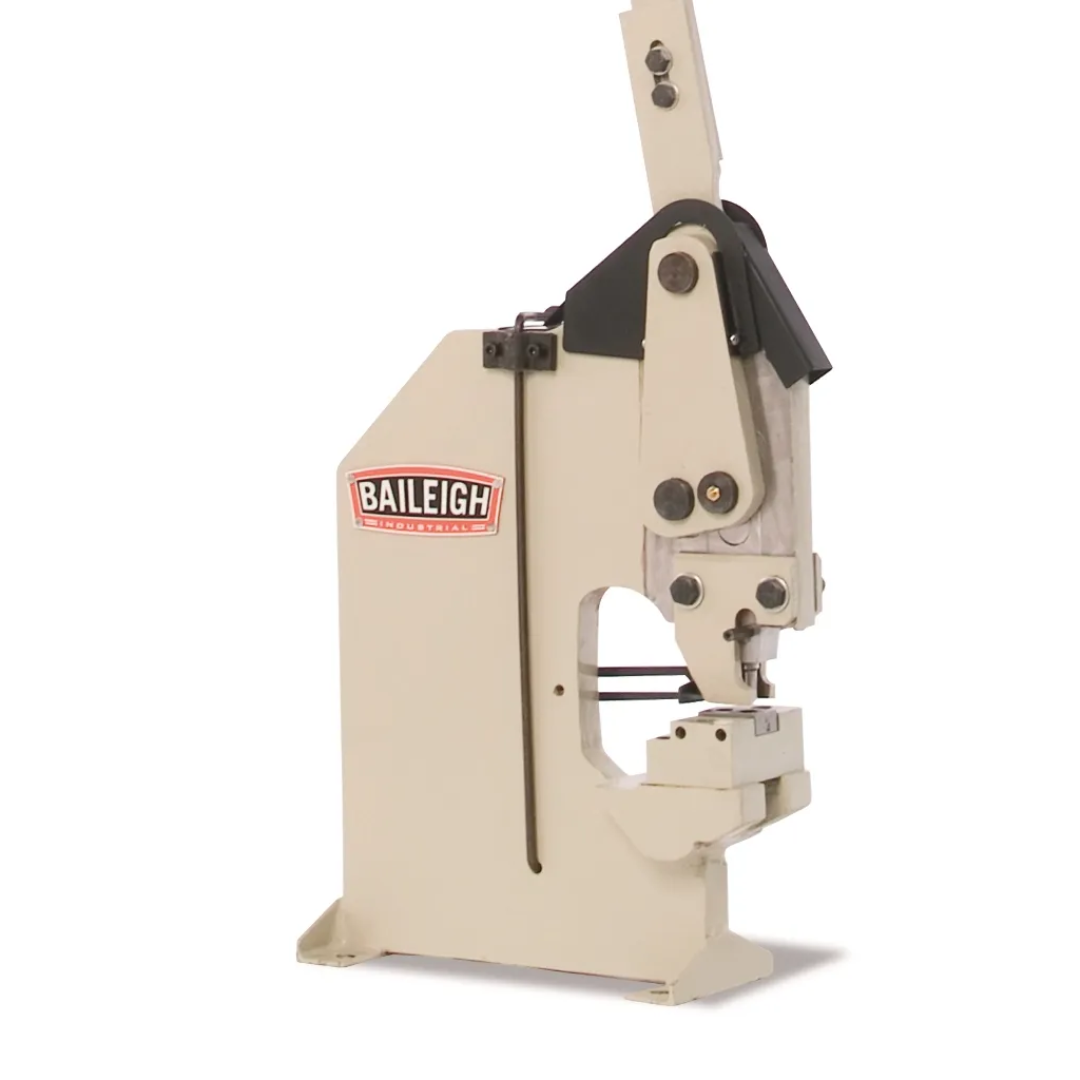

- Heavy-duty steel plate construction withstands demanding shop conditions and years of continuous use.

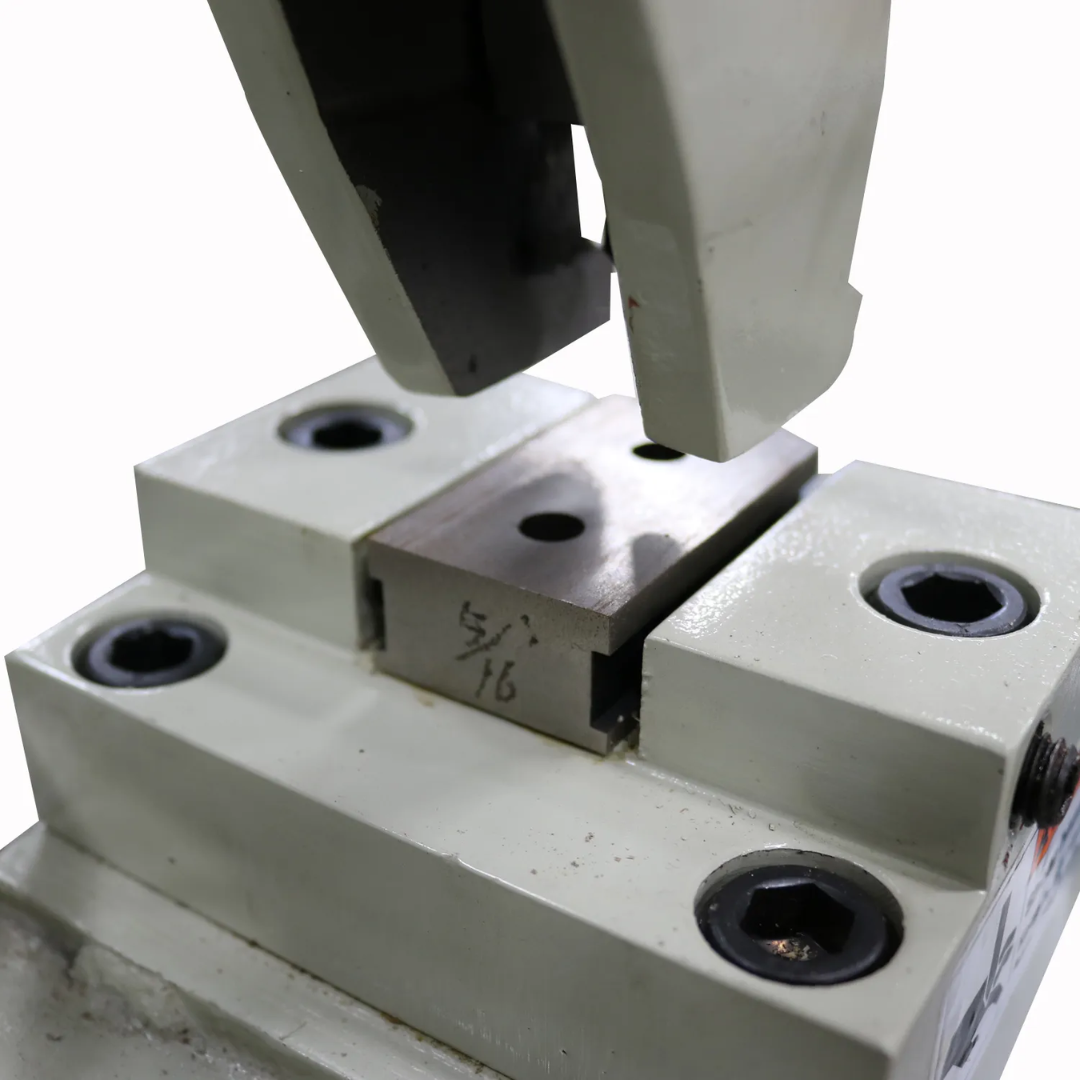

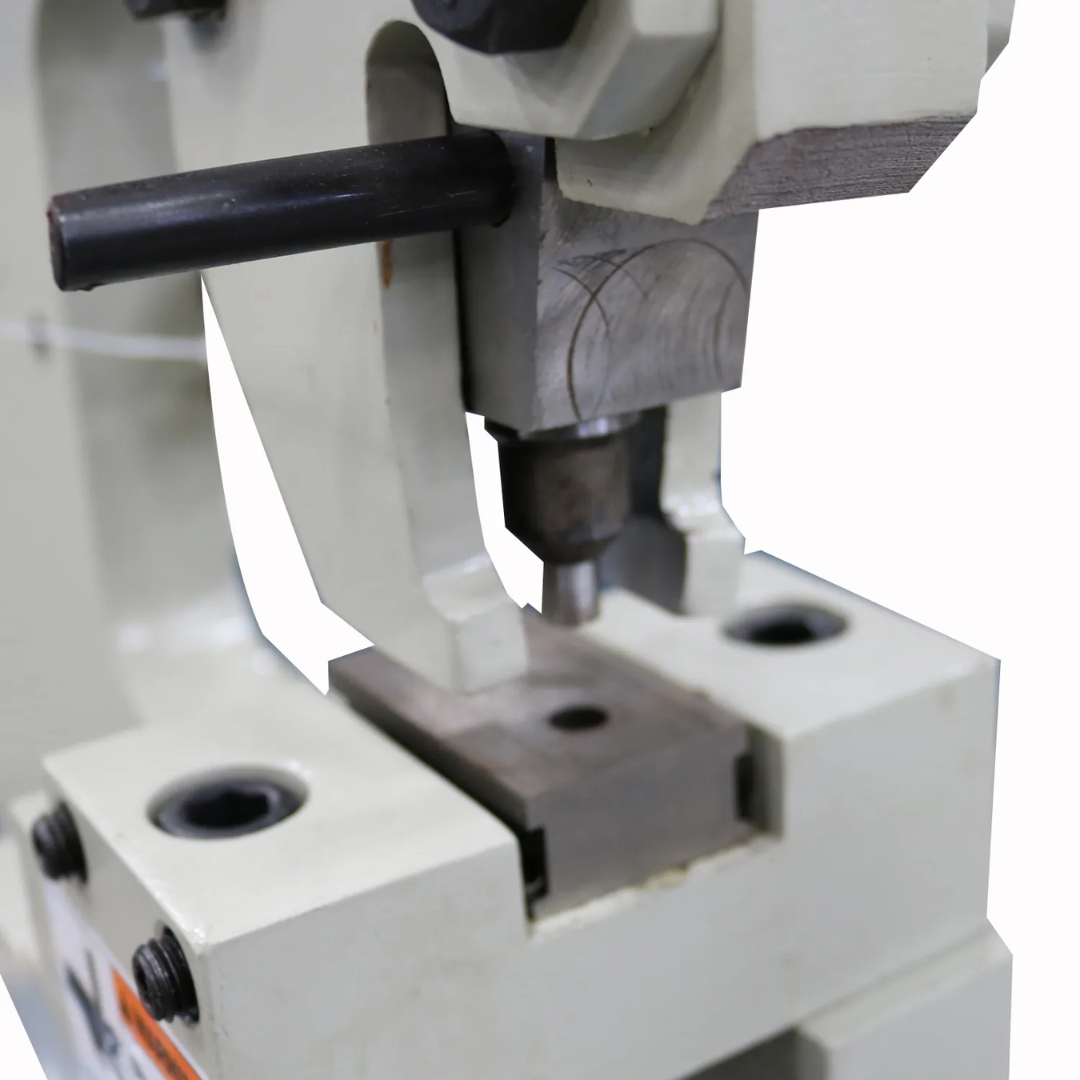

- Precision punch alignment helps create clean, accurate holes with minimal distortion.
- Compact footprint makes the machine suitable for fabrication shops with limited floor space.
- Stable machine design supports accurate operation and dependable performance during repetitive punching tasks.
- Tooling flexibility allows users to accommodate multiple hole sizes using the included punch and die assortment.
Why Choose the Baileigh Manual Sheet Metal Punch HP-160 1004679
- No electrical or hydraulic power required for operation.
- Punches up to .137-inch mild steel with consistent accuracy.
- Includes nine punch and die sets for immediate productivity.
- 6.25-inch throat depth provides versatile hole placement options.
- Industrial material stop improves repeatability and production efficiency.
- Heavy-duty steel construction ensures long service life.
- Compact, reliable design suitable for fabrication and maintenance environments.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Manual Sheet Metal Punch HP-160 1004679 delivers reliable manual punching performance, rugged steel construction, and exceptional versatility in a compact package. With a .137-inch mild steel capacity, 6.25-inch throat depth, and nine included punch and die sets, this machine is an excellent choice for fabrication shops, maintenance departments, and metalworking professionals seeking precise and repeatable hole punching without the complexity of powered equipment.
