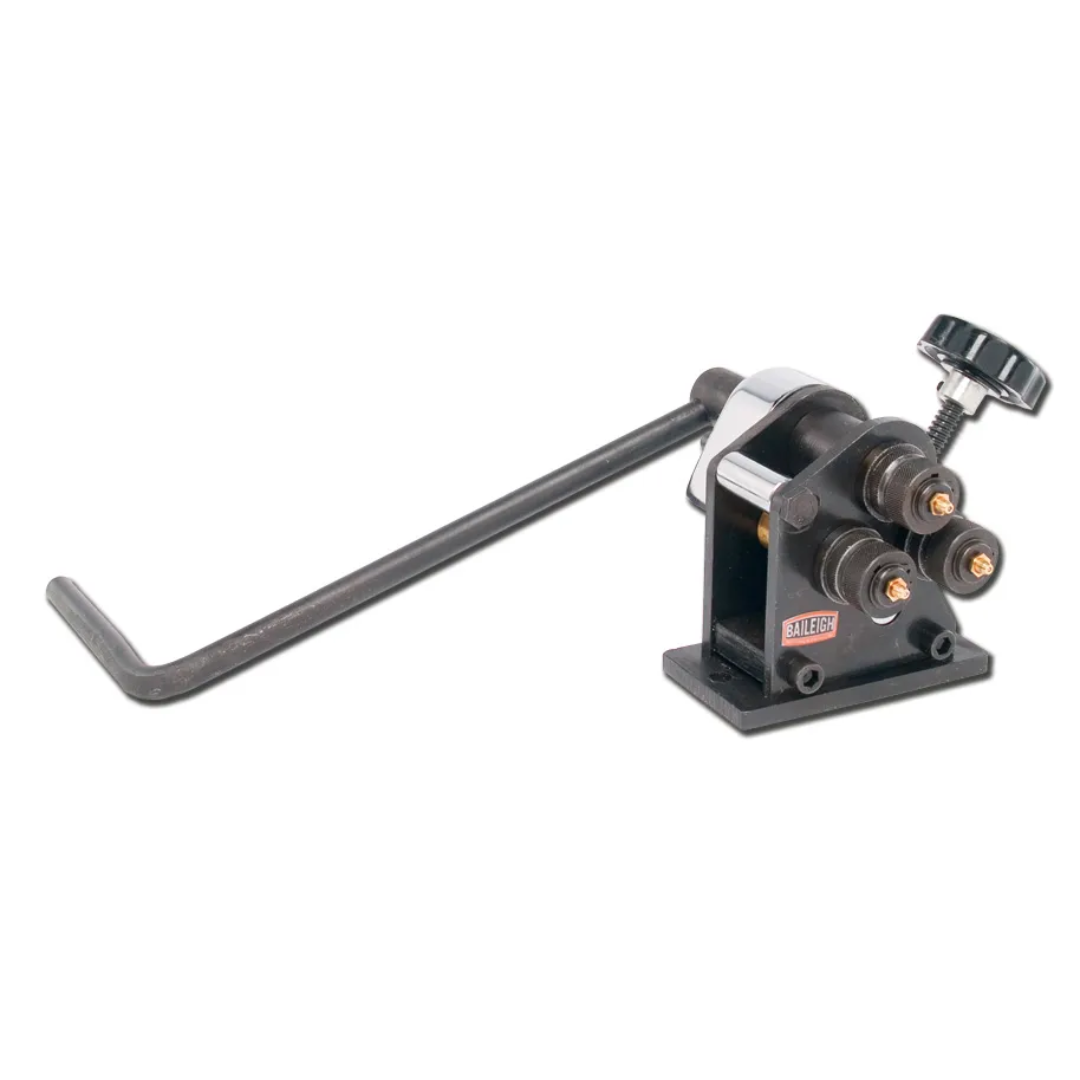

Baileigh Manual Roll Bender - (R-M3) 1006851 Applications
- Forming rings, hoops, and circular metal shapes.
- Bending small diameter rod and bar stock.
- Metal art and decorative fabrication projects.
- Custom railing, gate, and ornamental metalwork production.
- Educational and vocational training workshops.
- Prototype fabrication and light-duty manufacturing.
- Maintenance departments requiring portable forming capability.
- Home workshops and hobby fabrication environments.
Perfect for shops and fabricators looking for an affordable, space-saving manual roll bender capable of producing accurate curves and rings without requiring electrical power.
Baileigh Manual Roll Bender - (R-M3) 1006851 Specifications
| Model Number | R-M3 |
|---|---|
| Product Number | 1006851 |
| Product Type | Manual Roll Bender / Angle Roller |
| Operation | Manual Crank |
| Input Power | Manual |

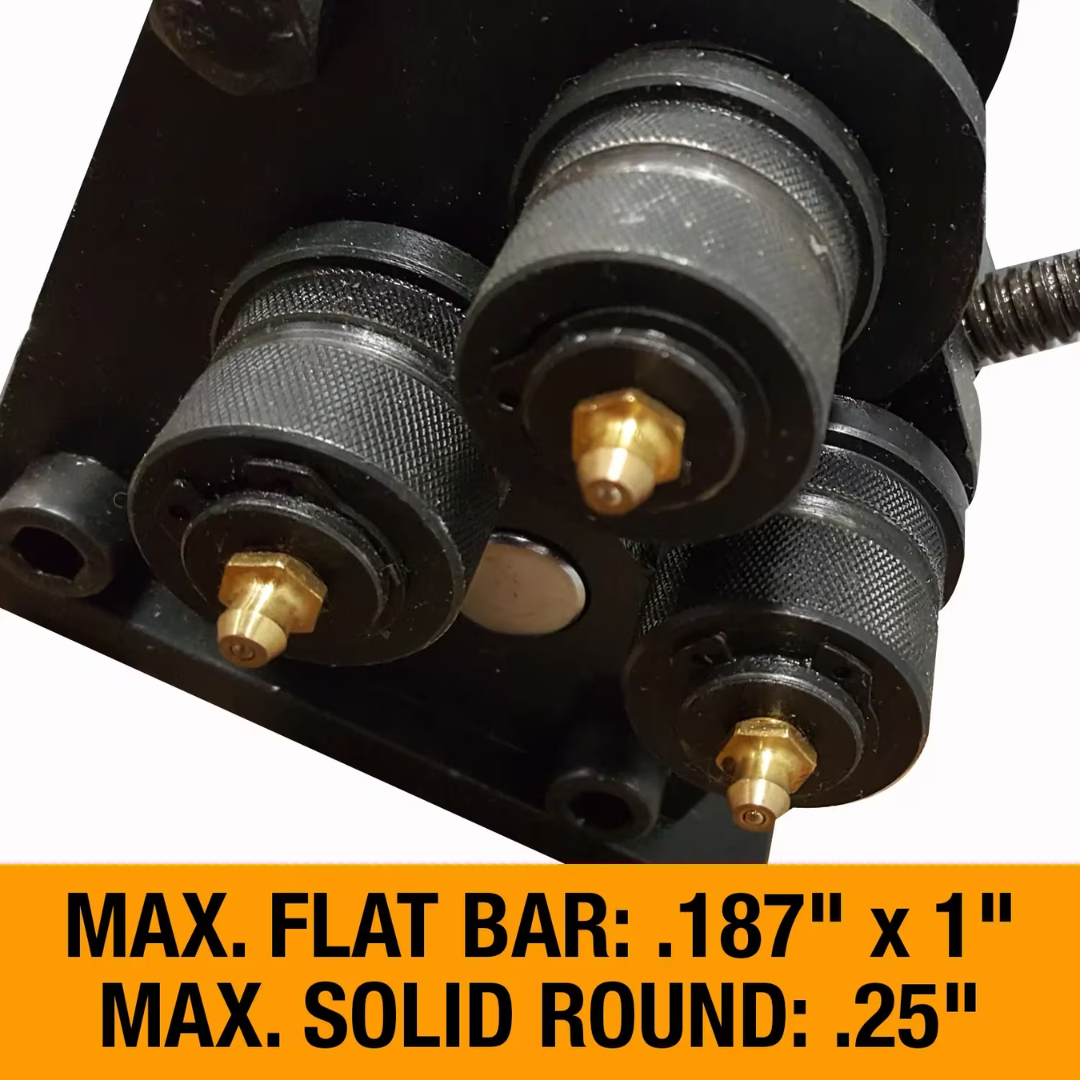

| Maximum Capacity | 0.25" (1/4") OD Rod and Bar Stock |
| Bend Capacity | 0.25" OD |
| Minimum Bending Diameter | 3" |
| Roll Configuration | Three Rolls with Two Driven Rolls |
| Top Roll Adjustment | Manual Adjustable Top Roll |
| Mounting Options | Bench Mount or Pedestal Mount |
| Roll Surface | Knurled Rolls with Grease Fittings |
| Net Weight | 16 lbs |
| Gross Weight | 16 lbs |
| Warranty | 1 Year |
| UPC | 731325411683 |
Baileigh Manual Roll Bender - (R-M3) 1006851 Performance & Construction
- Compact manual roll bending design provides an economical and portable solution for forming rings, curves, and circular shapes without electrical power.

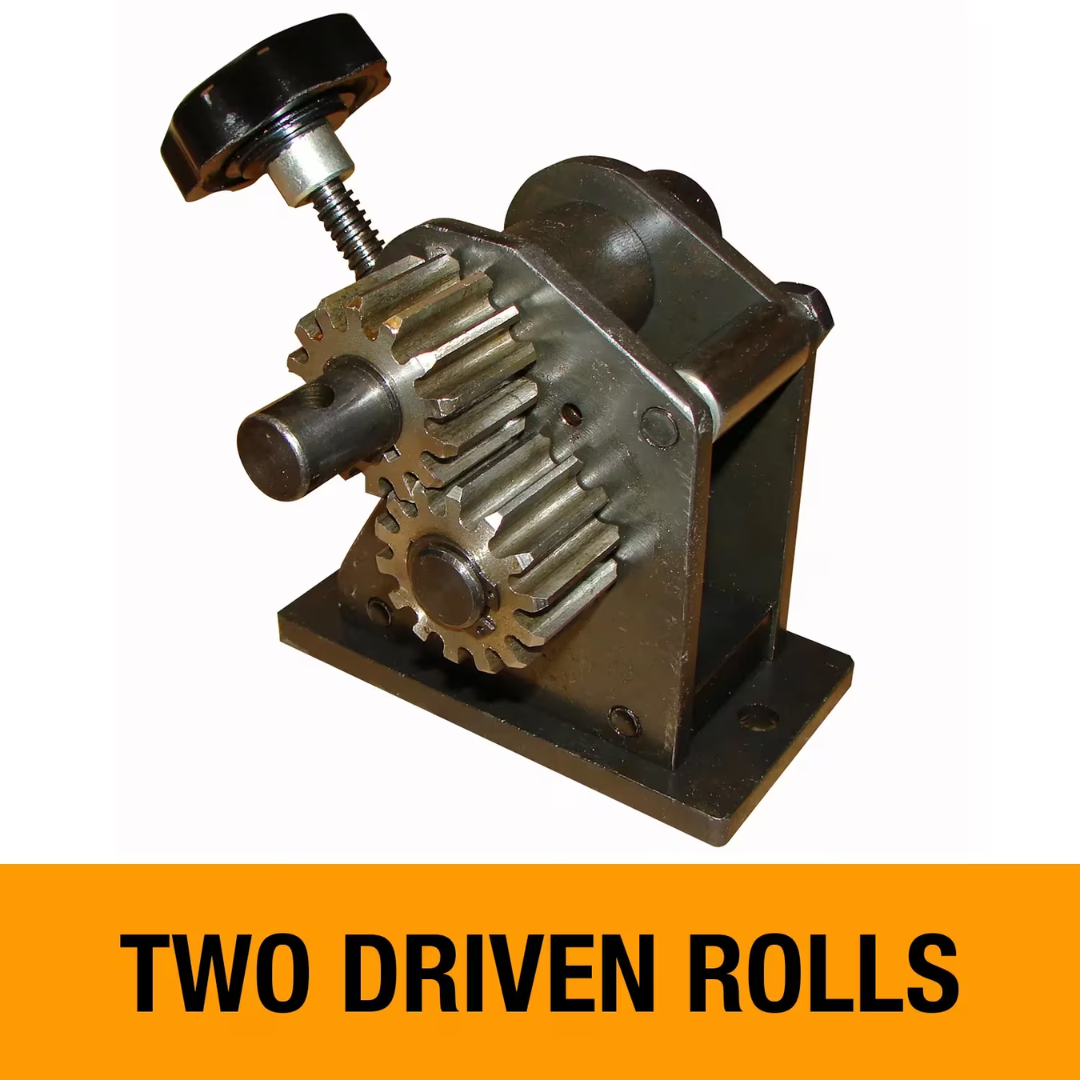

- Three-roll configuration with two driven rolls ensures smooth material feeding and consistent bending performance throughout the rolling process.

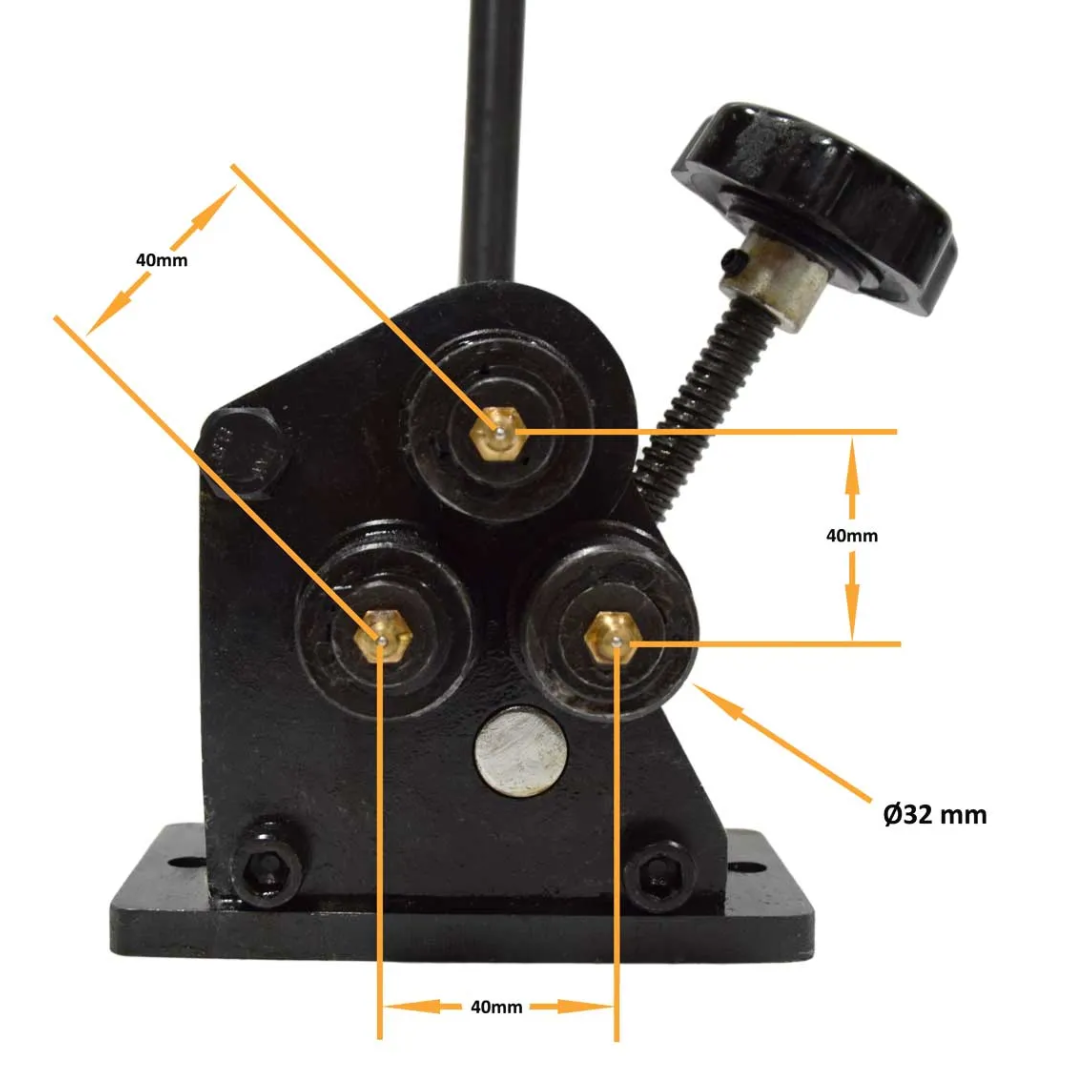

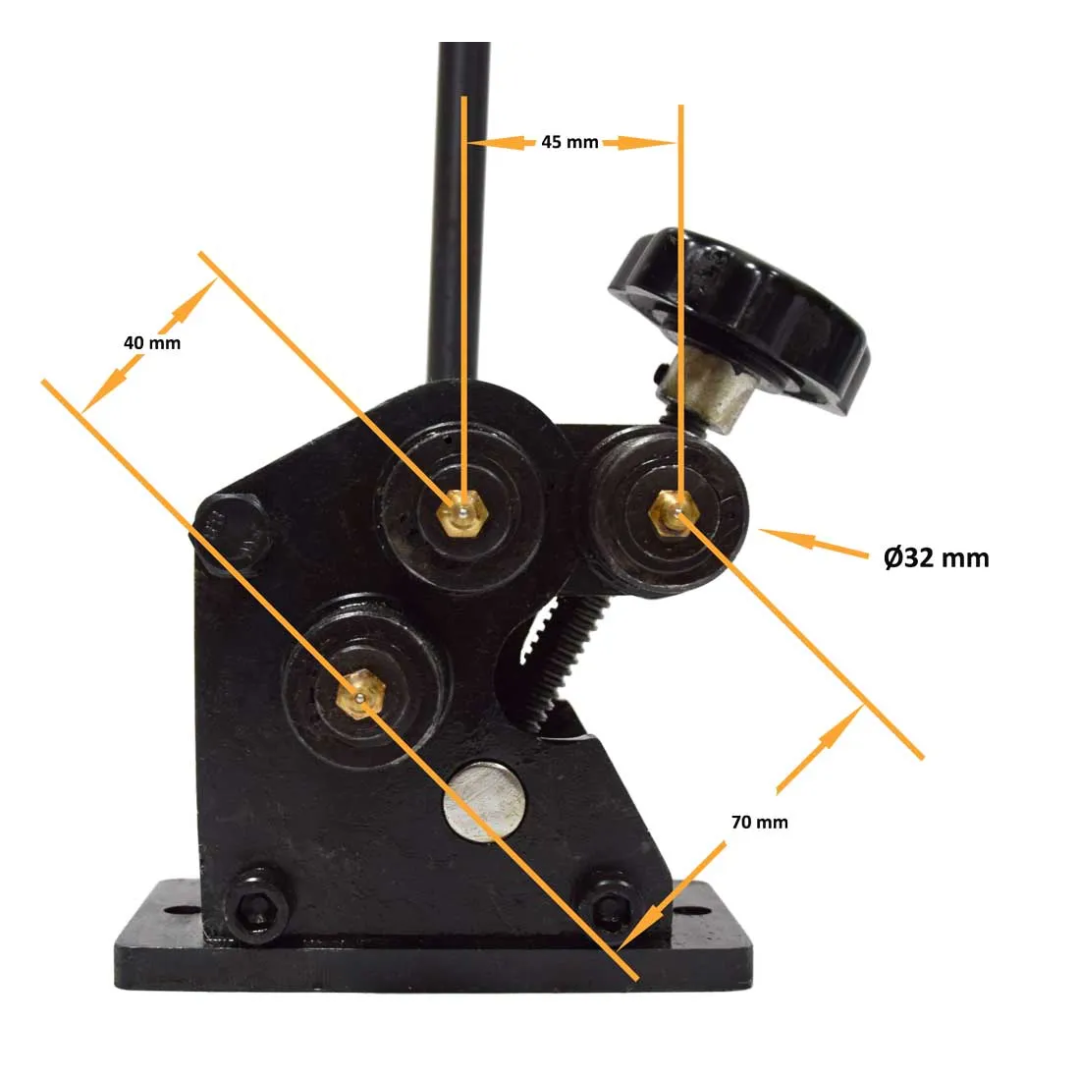

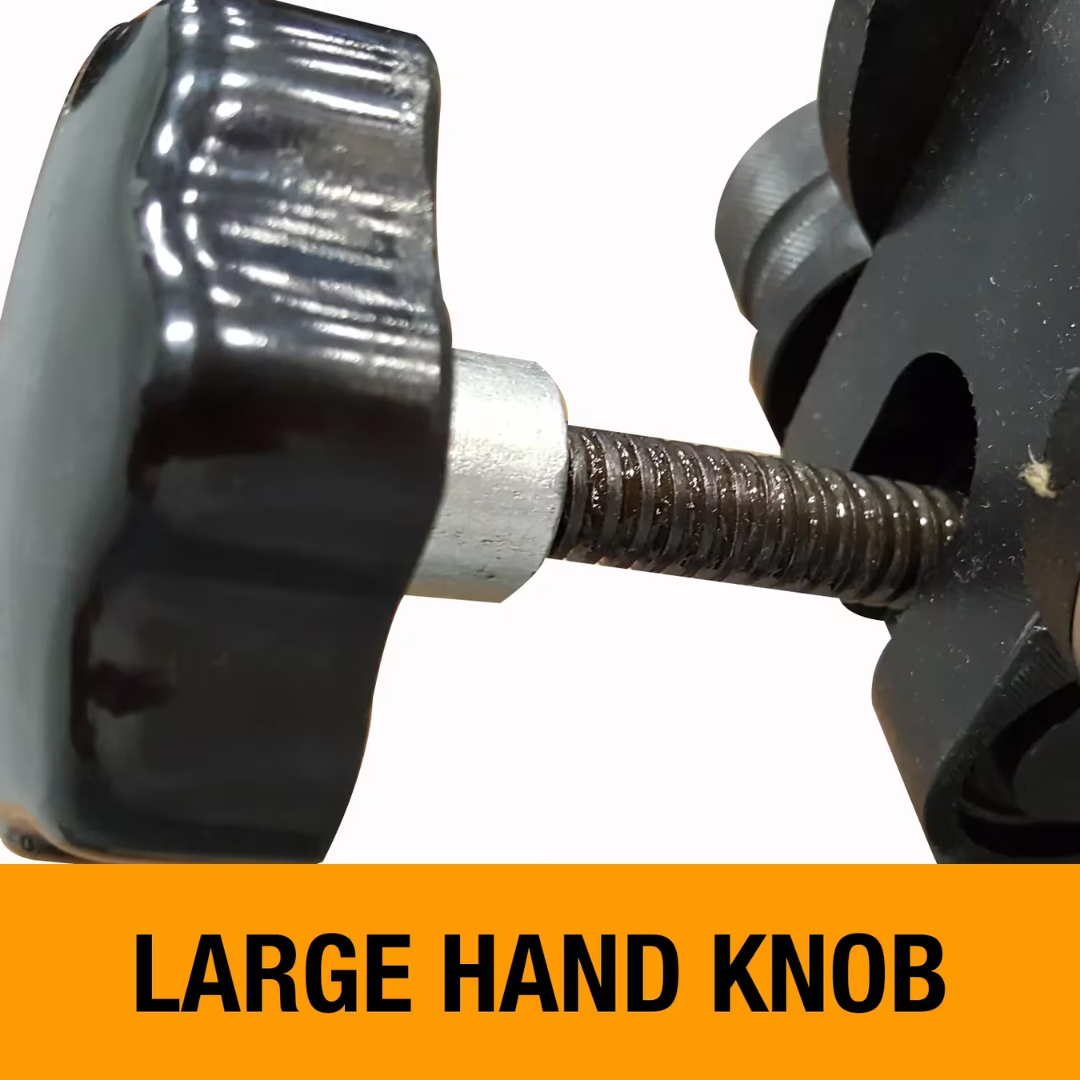

- Adjustable top roll system allows operators to precisely control bend radius, curvature, and finished part dimensions.
- Handles up to 0.25-inch solid rod and bar stock for light-duty fabrication and metal forming applications.
- Heavy-duty steel plate construction delivers excellent rigidity, durability, and long service life in workshop environments.

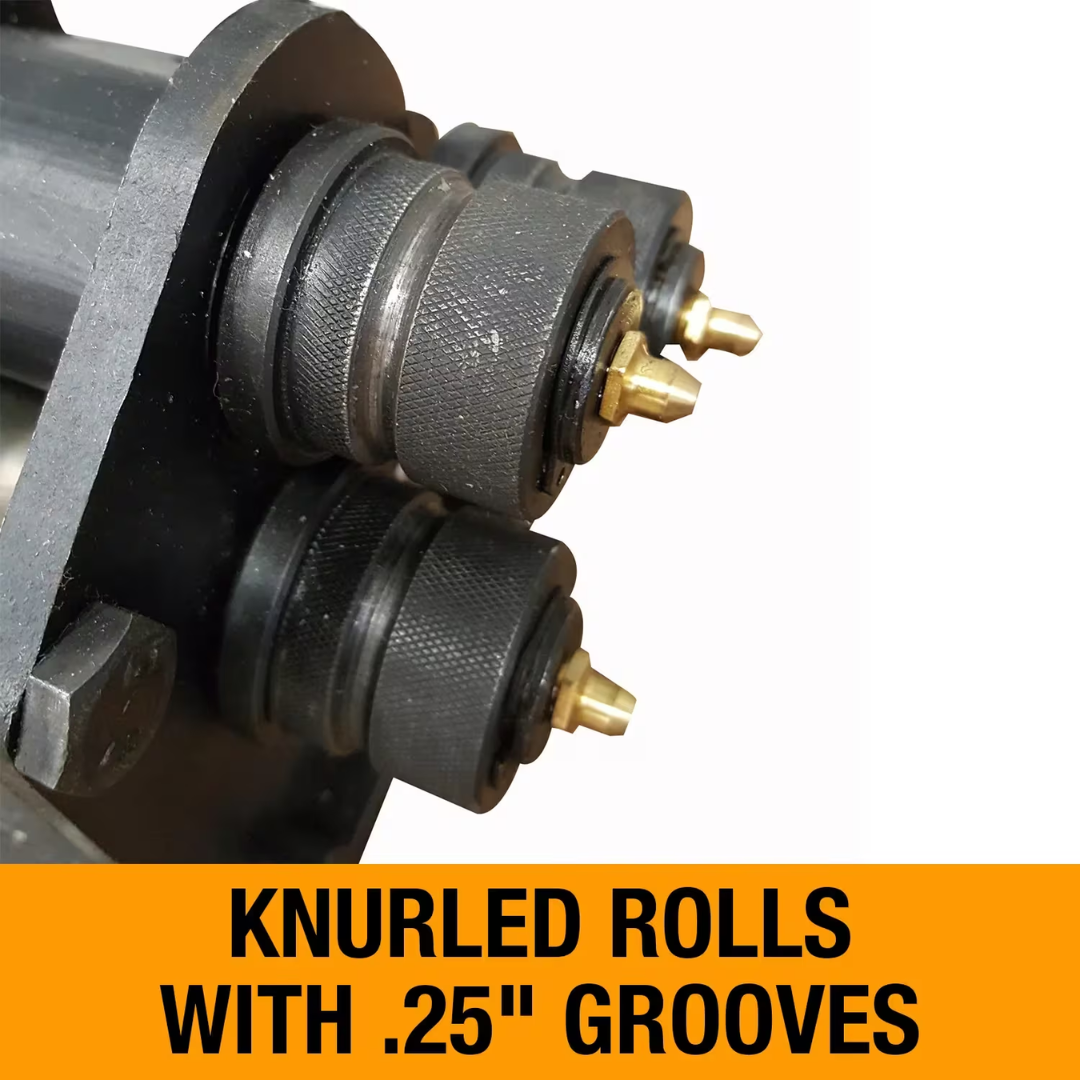

- Knurled roll surfaces improve material grip during operation, helping reduce slippage and improve bending accuracy.
- Integrated grease fittings simplify maintenance and promote extended roll and bearing life.
- Manual crank operation eliminates electrical requirements, making the machine suitable for field use, mobile workstations, and locations without power access.
- 3-inch minimum bending diameter capability allows production of tight-radius rings and curved components.
- Bench or pedestal mounting flexibility enables users to configure the machine according to available workspace and operational preferences.
- Compact footprint conserves valuable shop space while still providing professional-quality forming capability.
- Ideal for repetitive small-part production where consistency and ease of operation are essential.
Why Choose the Baileigh Manual Roll Bender - (R-M3) 1006851
- Simple manual operation requires no electricity.
- Three-roll design with two driven rolls improves forming consistency.
- Adjustable top roll allows precise radius control.
- Heavy-duty steel construction delivers long-term durability.
- Compact size fits easily into small workshops and fabrication areas.
- Bench or pedestal mounting options provide installation flexibility.
- Knurled rolls and grease fittings improve performance and service life.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Manual Roll Bender - (R-M3) 1006851 is an efficient, durable, and easy-to-use forming solution for fabricators, artists, maintenance professionals, and hobbyists who need accurate rolling and ring-forming capabilities in a compact manually powered machine.
