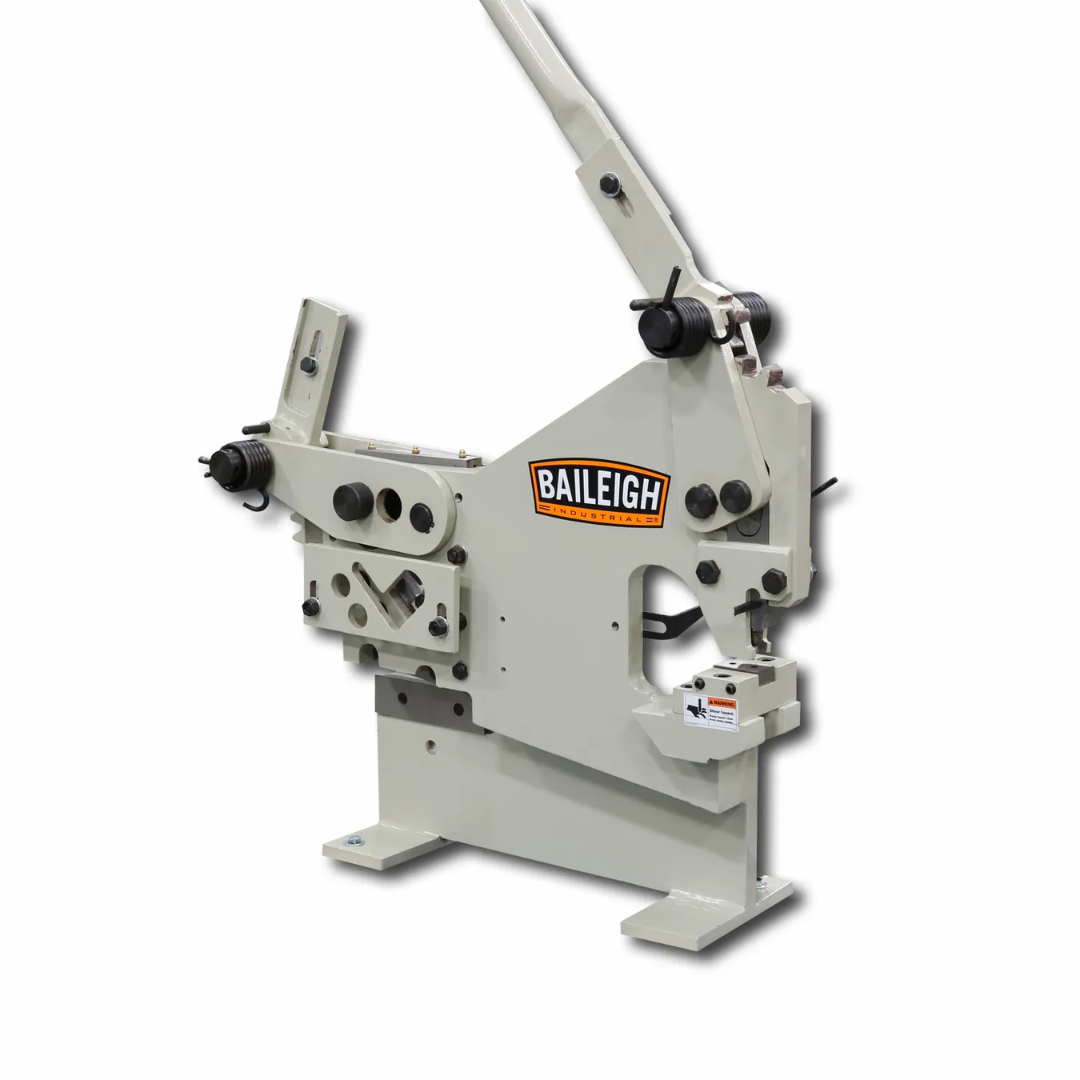

Baileigh Manual Ironworker with Punch SW-22M-P 1010452 Applications
- General metal fabrication and repair shops.
- Maintenance and facility fabrication departments.
- Agricultural equipment repair and manufacturing.
- Automotive and off-road fabrication.
- Educational welding and metalworking programs.
- Structural steel preparation and custom fabrication.
- Prototype manufacturing and low-volume production.
- Punching, trimming, and shearing mild steel stock.
Ideal for fabricators who need multiple metalworking operations in one manually operated machine without sacrificing shop space or versatility.
Baileigh Manual Ironworker with Punch SW-22M-P 1010452 Specifications
| Model Number | SW-22M-P |
|---|---|
| Product Keyword | Baileigh Manual Ironworker with Punch SW-22M-P 1010452 |
| Machine Type | Manual Ironworker with Integrated Punch Station |
| Power Source | Manual Operation |
| Punch Capacity | 0.137 in. Maximum (Mild Steel) |
| Stroke Length | 2 in. |
| Throat Depth | 6.25 in. |
| Solid Round Shearing Capacity | 5/8 in. Mild Steel |
| Solid Square Shearing Capacity | 5/8 in. Mild Steel |
| Flat Bar Capacity | 4 in. × 3/8 in. Mild Steel |
| Angle Iron Capacity | 2 in. × 1/8 in. Mild Steel |
| Included Punch & Die Sets | 9 Sets (1/8 in. to 5/8 in.) |
| Construction | Heavy-Duty Plate Steel |
| Net Weight | 349 lbs |
| Gross Weight | 349 lbs |
| Warranty | 1-Year Parts Warranty |
| Technical Support | Lifetime Technical Support from Baileigh |
| UPC | 19907011385 |
Baileigh Manual Ironworker with Punch SW-22M-P 1010452 Features & Performance

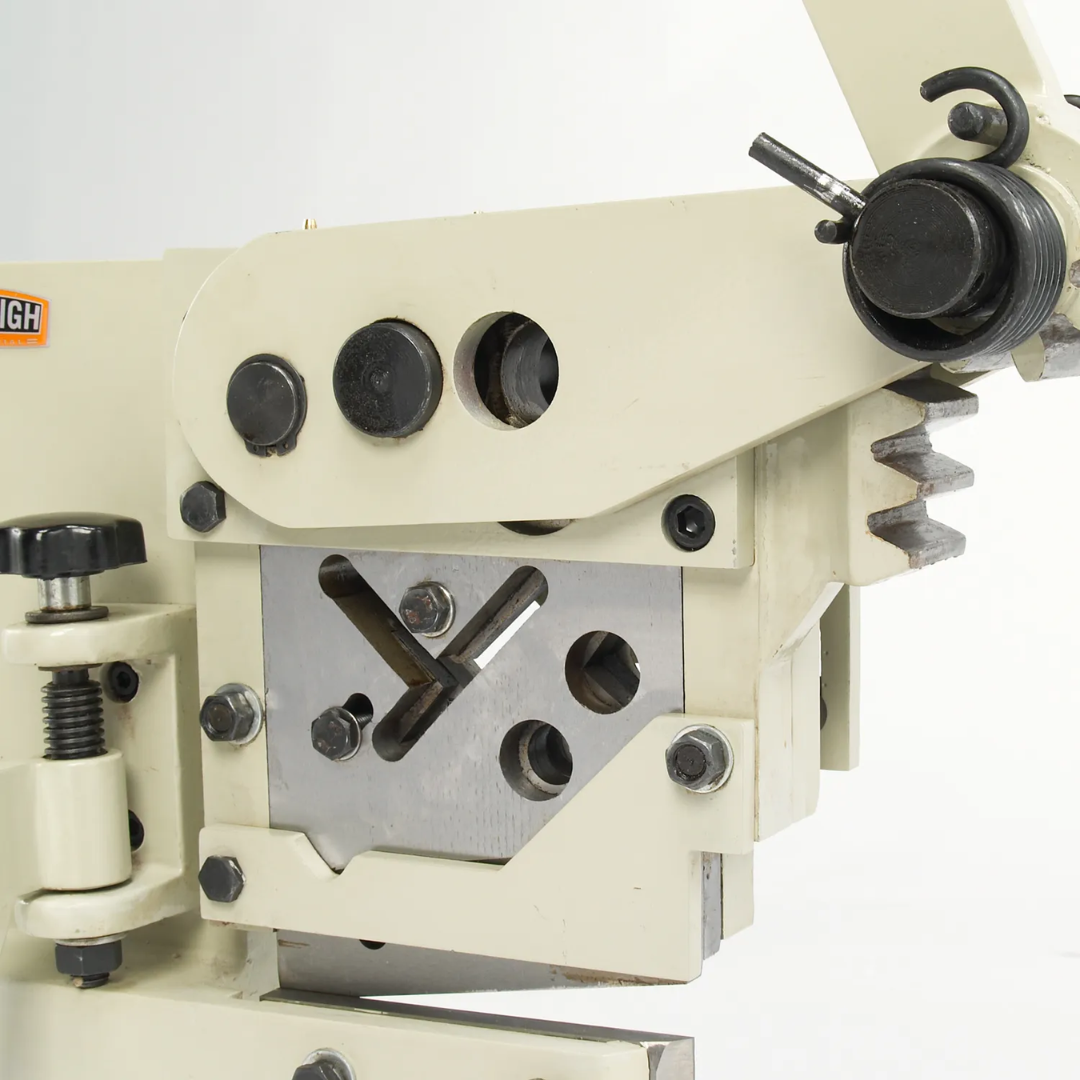

- Integrated manual ironworker and punch station combines multiple fabrication operations into one compact, efficient machine.
- Heavy-duty plate steel construction provides exceptional rigidity, accuracy, and long-lasting durability in demanding shop environments.
- Manual operation eliminates the need for electricity, allowing the machine to be used virtually anywhere while reducing operating costs.

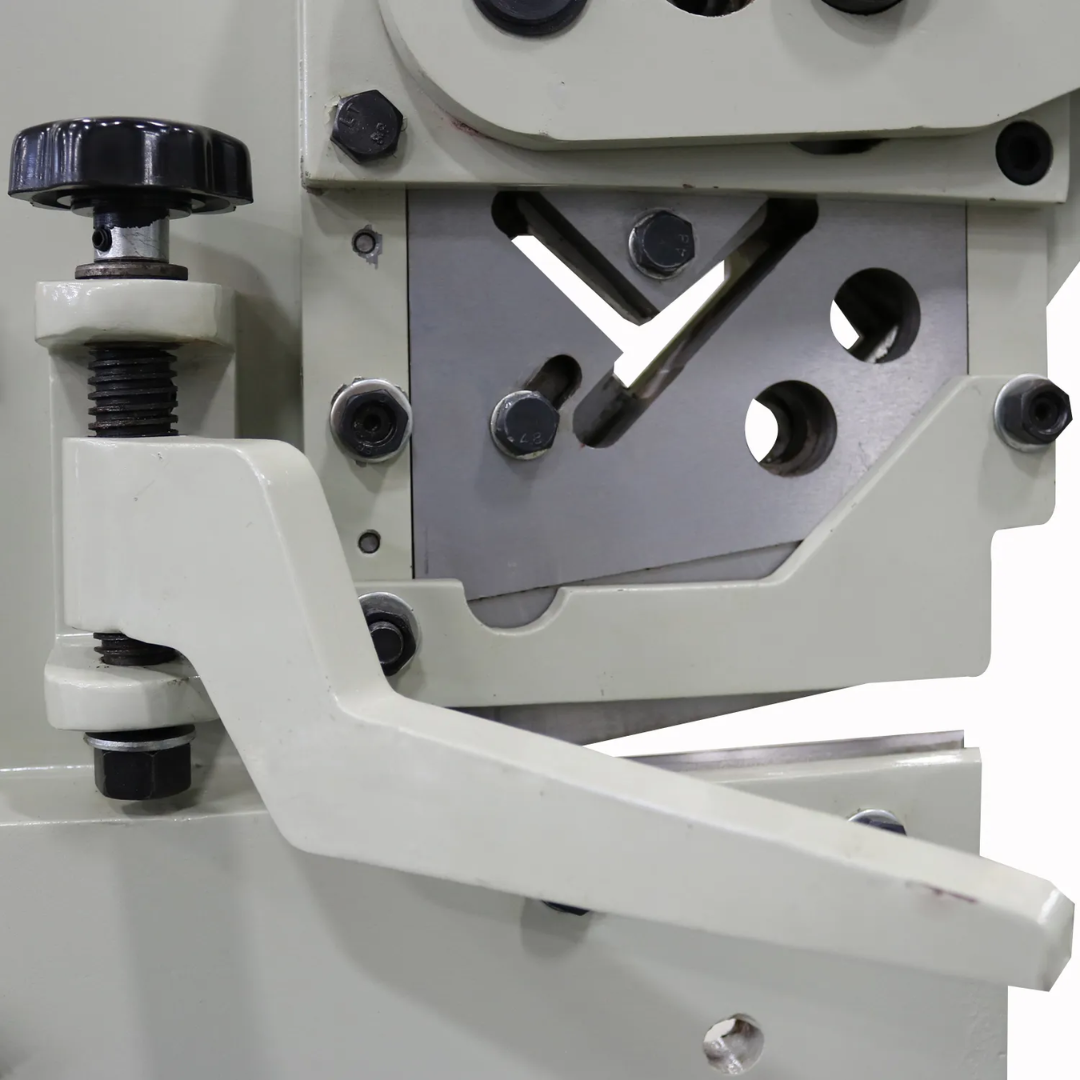

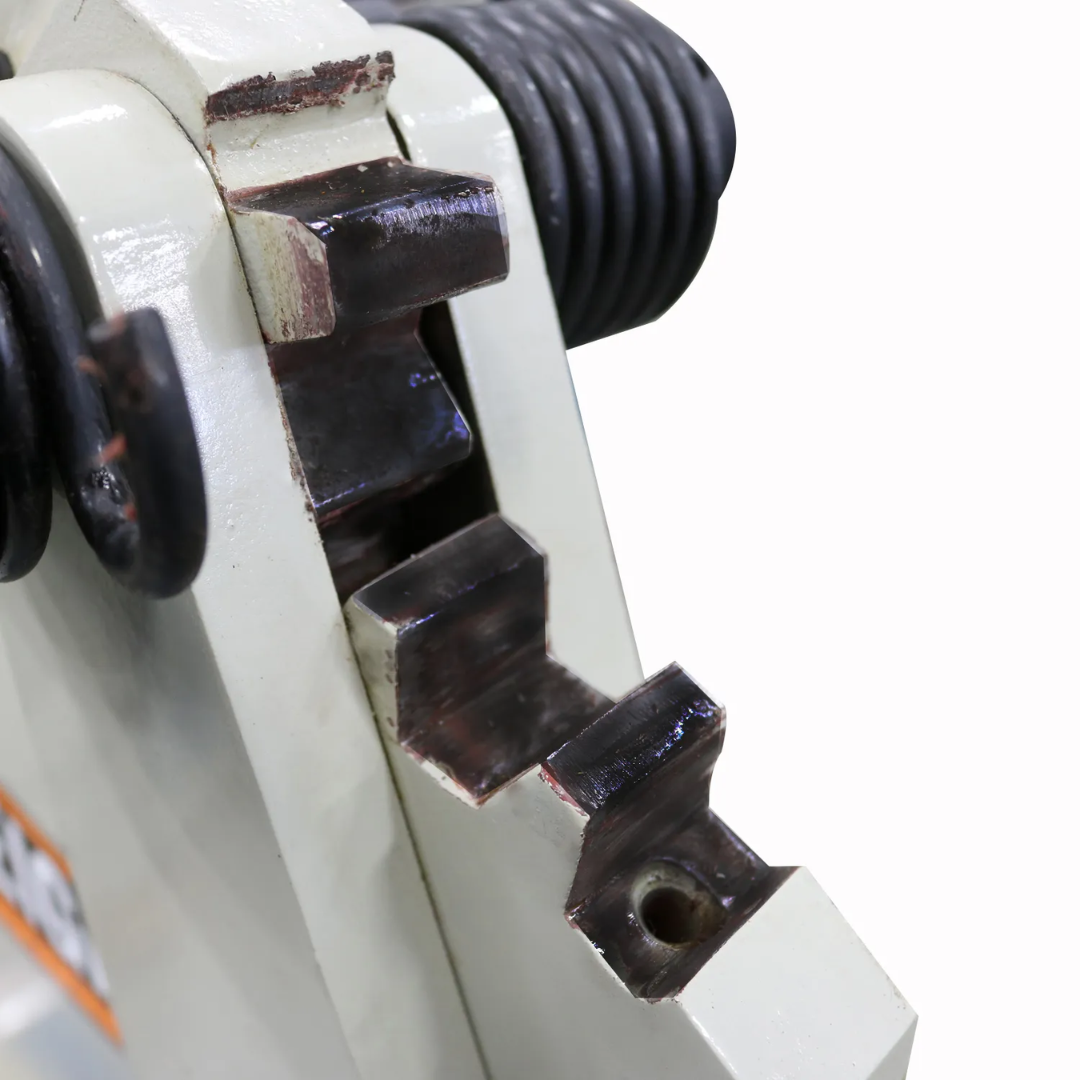

- 5/8-inch solid round and square shearing capacity handles common mild steel stock with ease.

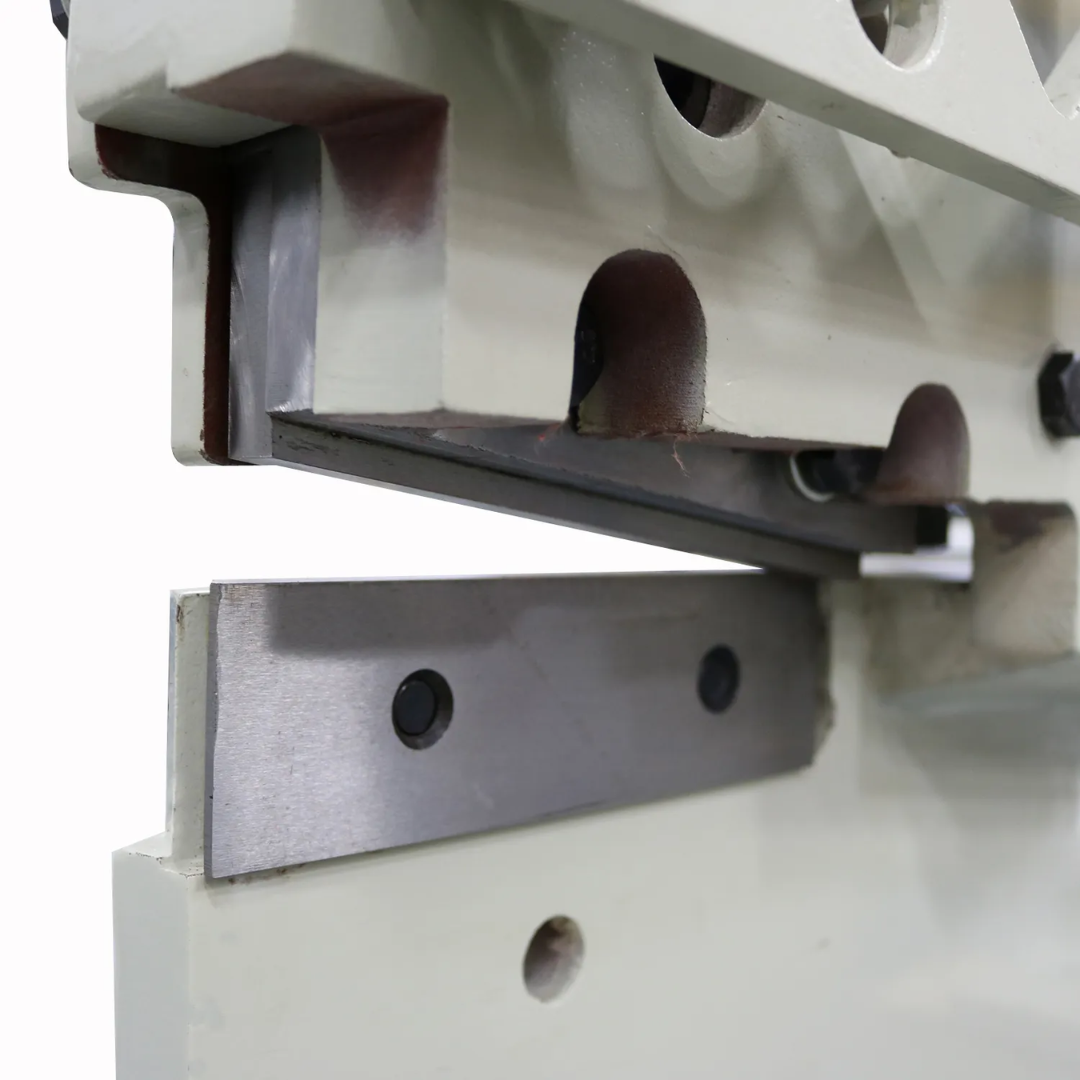

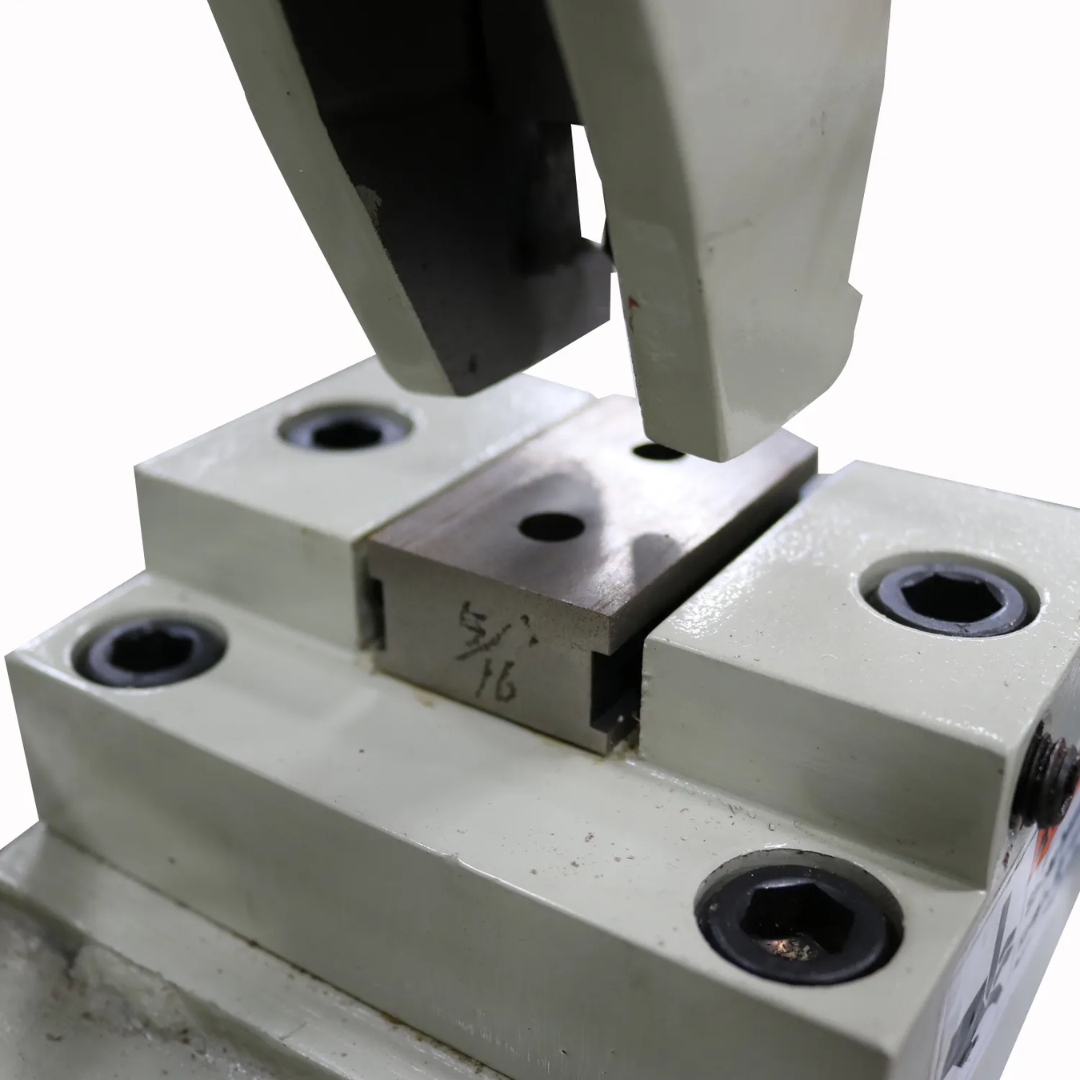

- Flat bar shearing capacity of 4 in. × 3/8 in. makes quick work of brackets, supports, and structural components.
- Angle iron shearing capacity up to 2 in. × 1/8 in. expands the machine's versatility for fabrication projects.

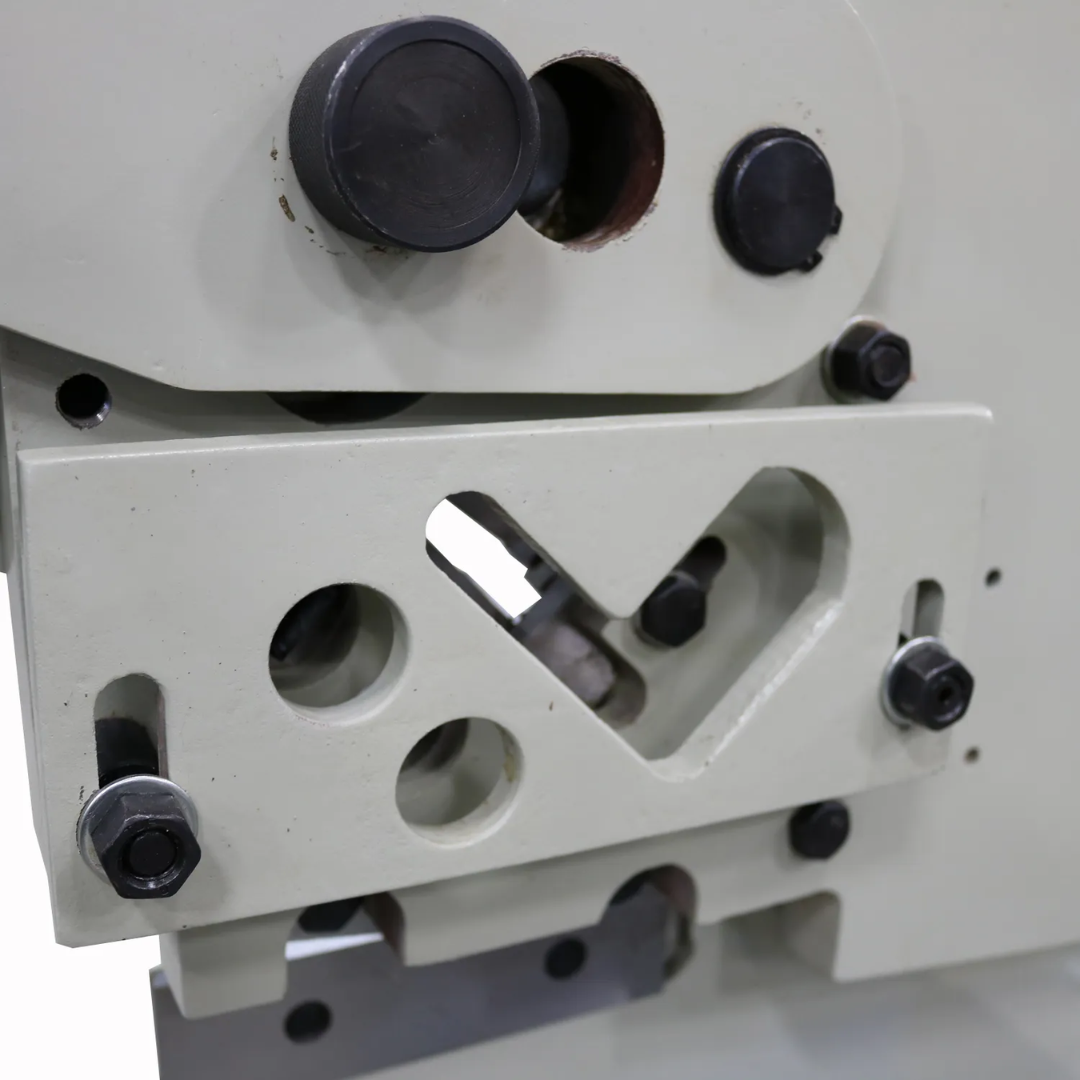

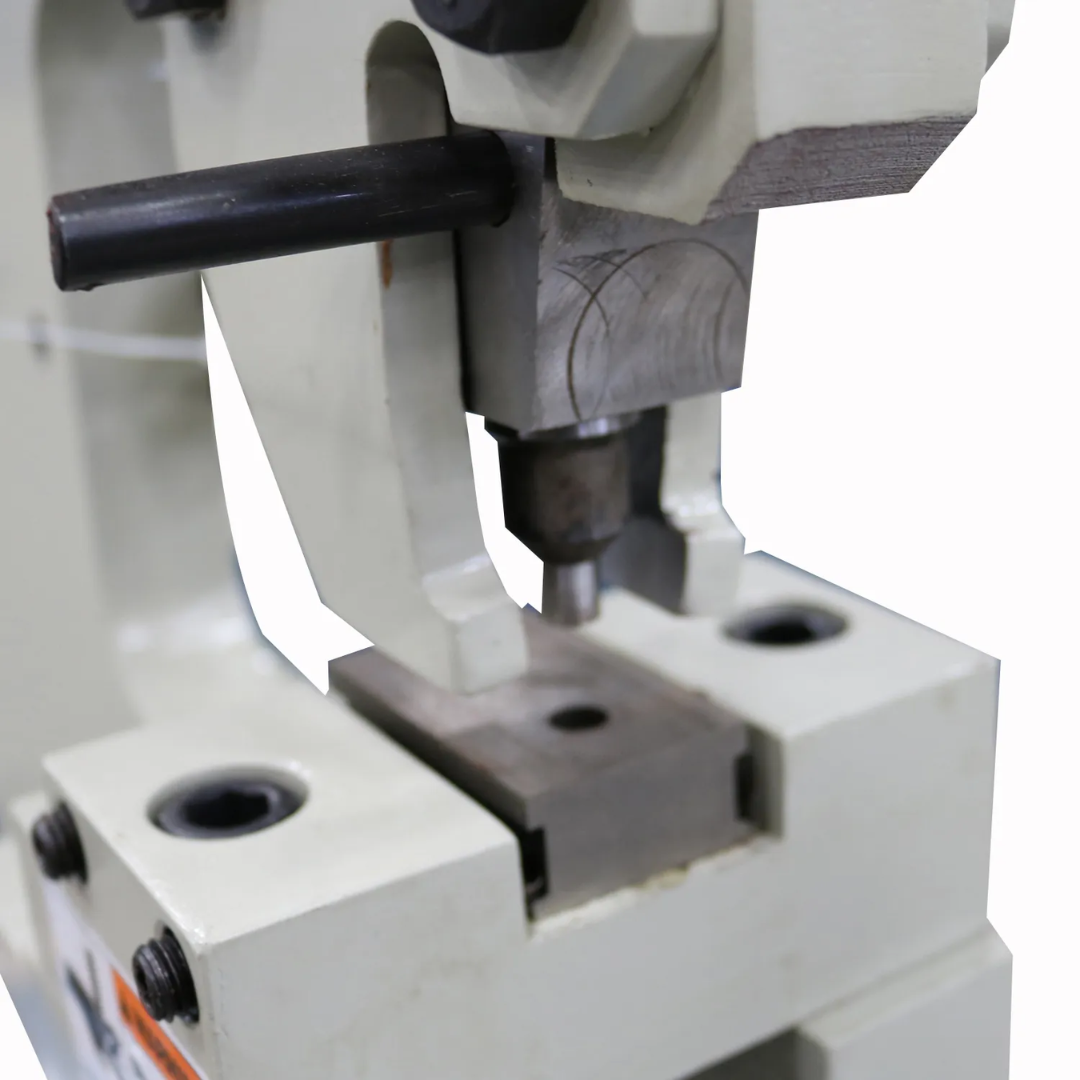

- Integrated punch station provides a maximum punching capacity of 0.137 in. in mild steel for creating accurate holes in a variety of components.

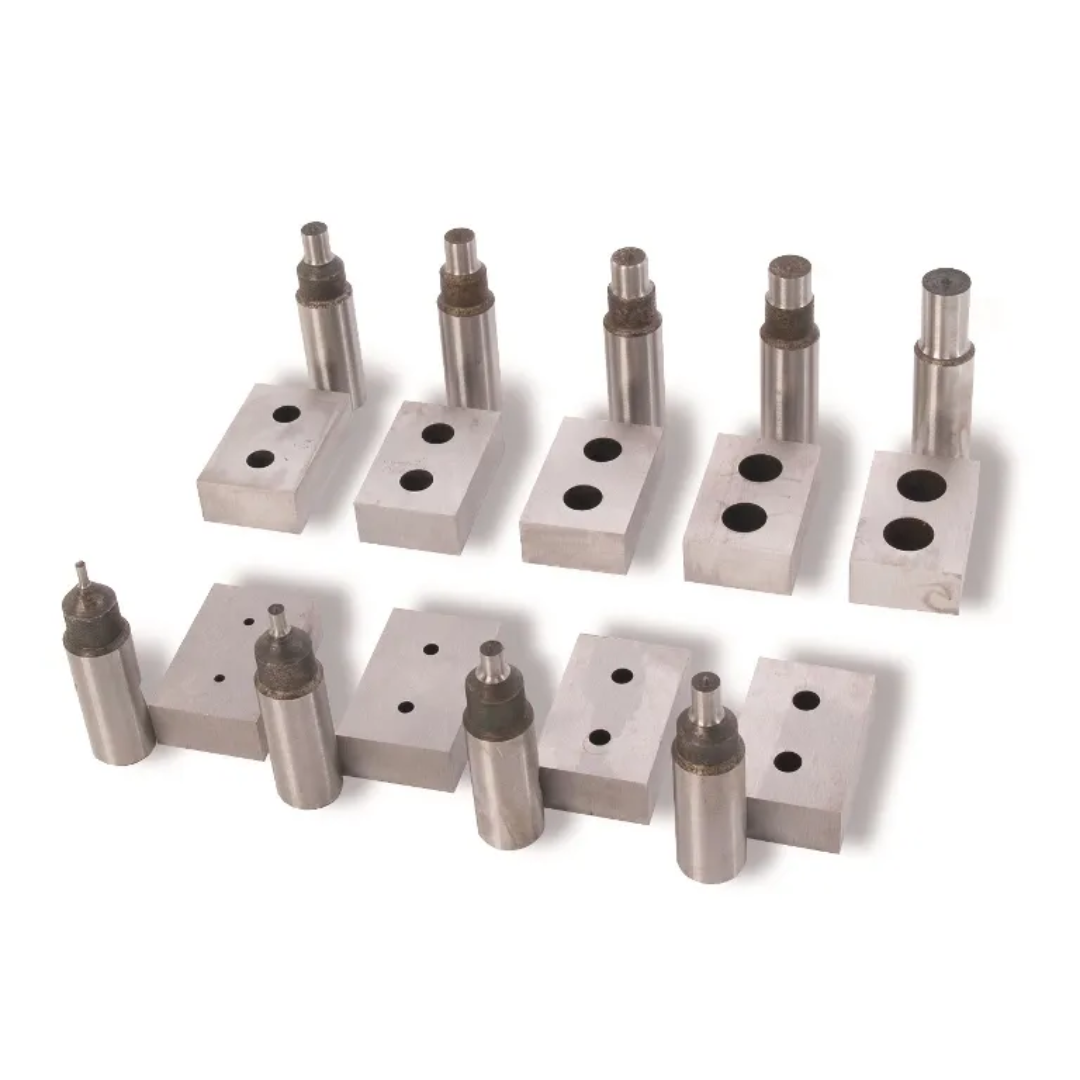

- Includes nine interchangeable punch and die sets ranging from 1/8 inch to 5/8 inch, giving operators the flexibility to produce multiple hole sizes without additional tooling.
- 6.25-inch throat depth offers generous access when positioning material for punching operations.

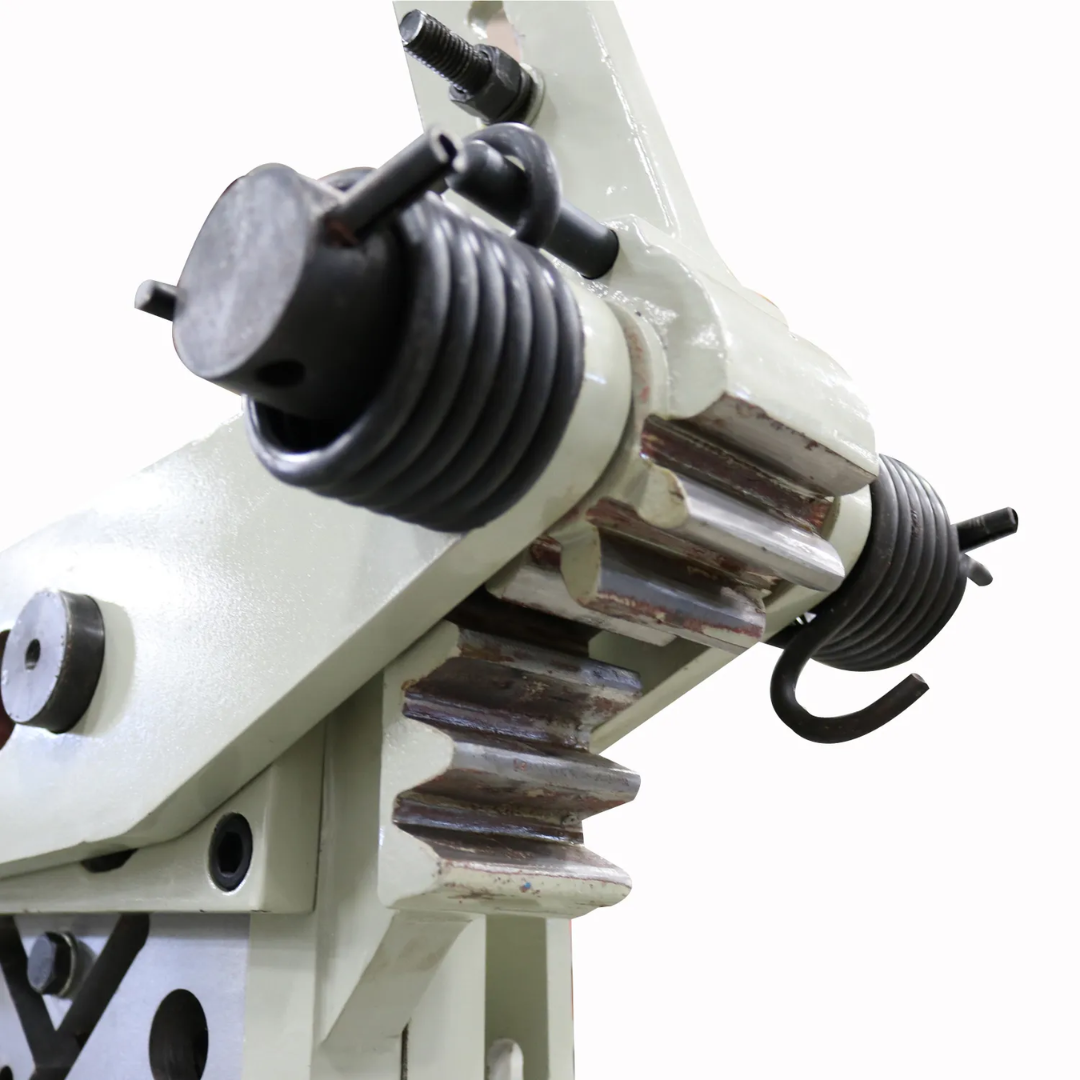

- 2-inch stroke length delivers smooth manual punching action and consistent results.
- Space-saving design combines punching and shearing functions into one workstation, maximizing shop efficiency.
- Ideal for fabrication, repair, maintenance, and prototype work requiring dependable manual metalworking capability.
- Supported by Baileigh with a 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh Manual Ironworker with Punch SW-22M-P 1010452
- Combines punching and multiple shearing functions in one compact machine.
- Heavy-duty plate steel construction built for professional fabrication environments.
- No electrical power required for operation.
- Shears flat bar, angle iron, solid round, and solid square mild steel.
- Includes nine punch and die sets for immediate production capability.
- Compact footprint saves valuable floor space.
- Excellent solution for fabrication shops, maintenance departments, and educational facilities.
- Backed by Baileigh's trusted 1-year warranty and lifetime technical support.
The Baileigh Manual Ironworker with Punch SW-22M-P 1010452 is a versatile, industrial-quality manual fabrication machine that combines punching and multiple shearing operations into one rugged platform. Its durable construction, included punch tooling, and wide range of cutting capabilities make it an excellent choice for professionals seeking dependable metalworking performance without the need for electrical power.
