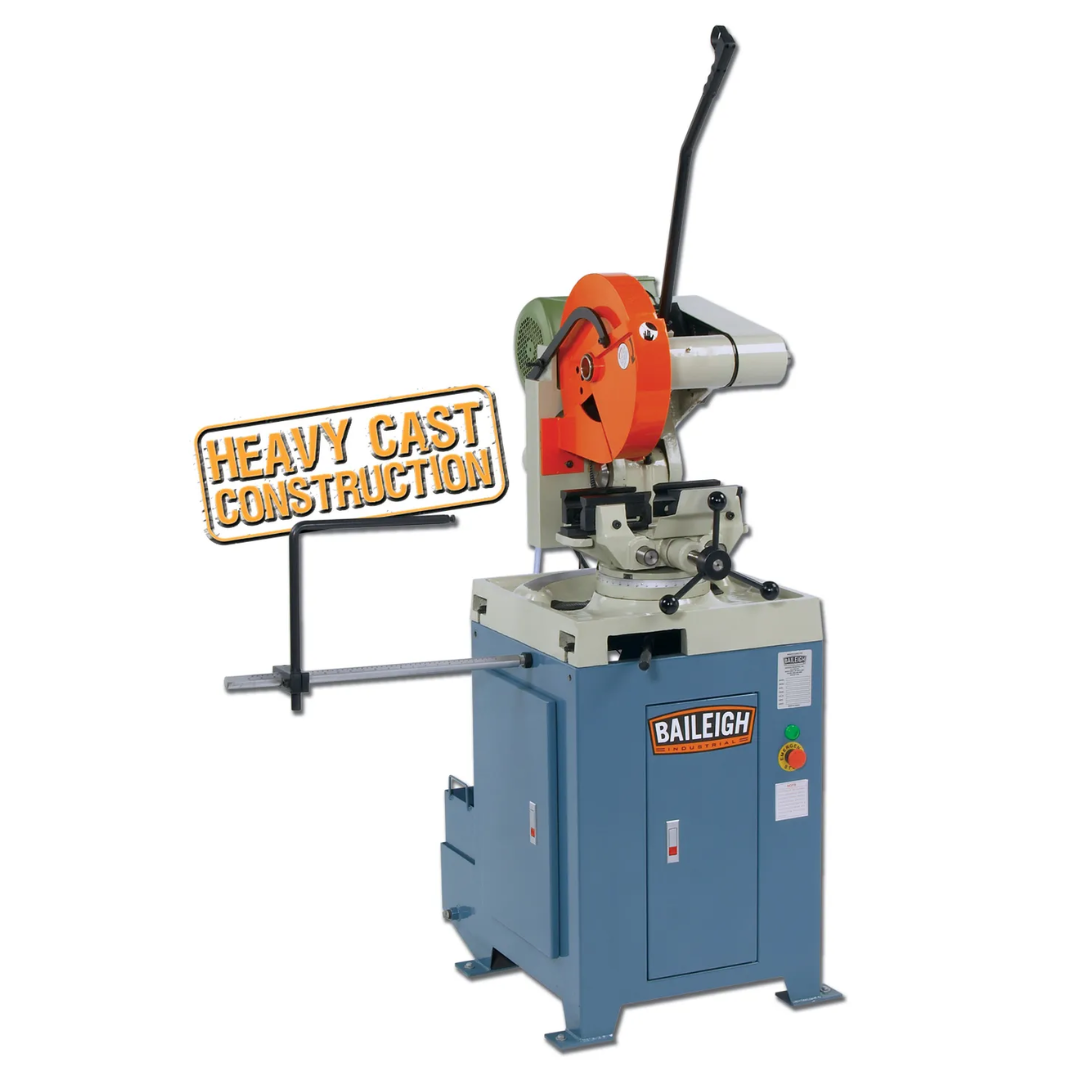

Baileigh Manual Cold Saw CS-355M 1002589 Applications
- High-speed cutting of aluminum tubing, pipe, and extrusions.
- Precision cutting of copper, brass, and other non-ferrous metals.
- Window, door, and storefront fabrication.
- Automotive and motorsports aluminum fabrication.
- Industrial manufacturing and production cutting.
- Custom fabrication requiring clean, burr-free cuts.
- Machine shops and professional metalworking facilities.
Designed for fabrication professionals who require fast, accurate, high-speed cutting of non-ferrous materials with outstanding surface finish and repeatable production accuracy.
Baileigh Manual Cold Saw CS-355M 1002589 Specifications
| Model | CS-355M |
|---|---|
| Product Number | 1002589 |
| Machine Type | Manual High-Speed Cold Saw |
| Motor Power | 5.5 HP |
| Input Power | 220V Three Phase |
| Motor Phase | Three Phase |
| Blade Size | 14 in. |
| Blade Speed | 3,200 RPM |
| Maximum Round Tube Capacity | 4.25 in. |
| Miter Range | 45° Right and 90° Left |
| Vise Type | Self-Centering American-Style Vise with Floating Clamp |
| Coolant System | Integrated Flood Coolant System |
| Repeat Cutting | Adjustable Stop Rod |

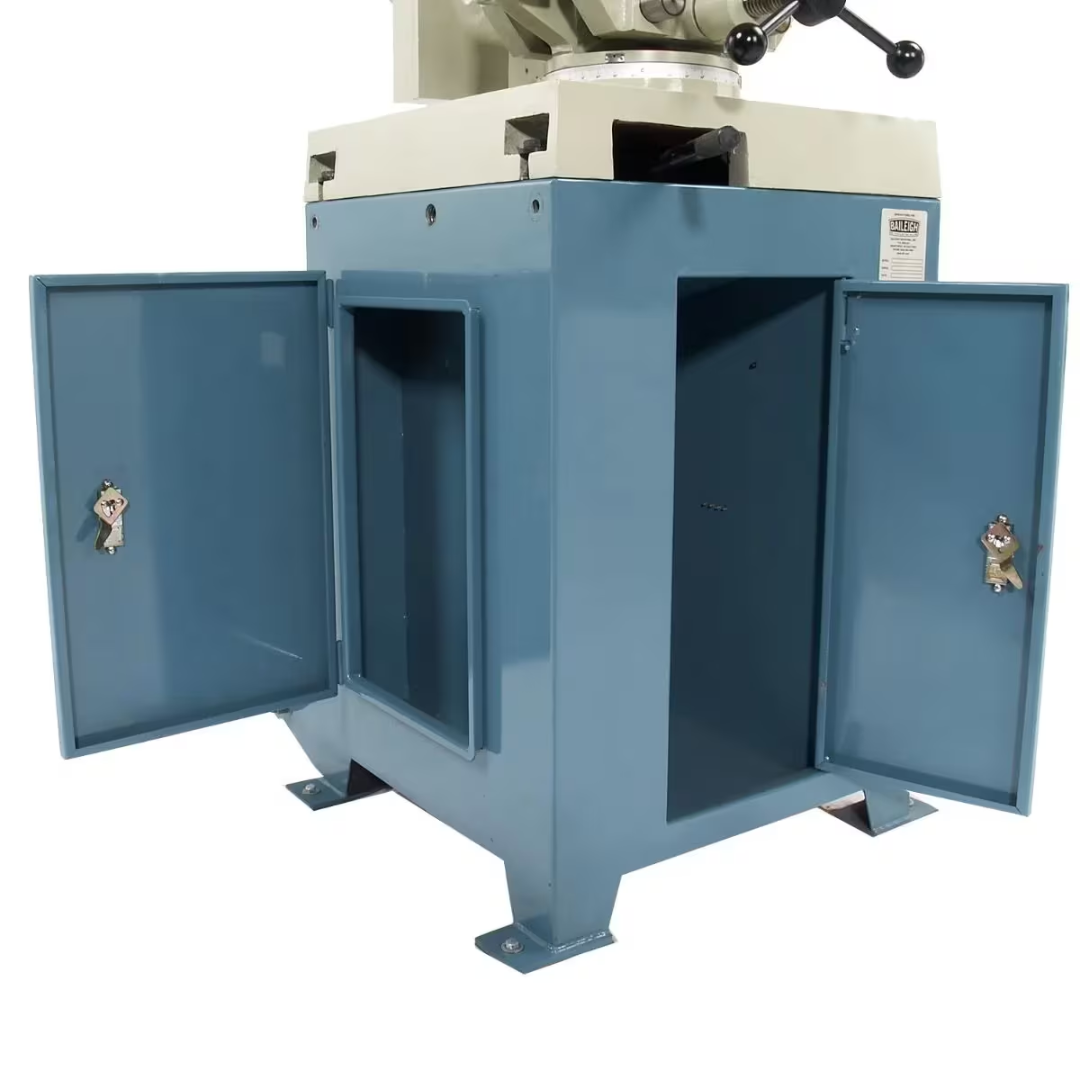

| Construction | Heavy Cast-Iron Base and Industrial Steel Cabinet |
| Net Weight | 847 lbs. |
| Gross Weight | 847 lbs. |
| UPC | 19907702979 |
Baileigh Manual Cold Saw CS-355M 1002589 Performance & Construction
- Powerful 5.5 HP industrial motor delivers the high output required for demanding non-ferrous cutting applications and continuous production use.
- High-speed 3,200 RPM blade rotation is optimized for aluminum, copper, brass, and other soft metals, producing clean cuts with minimal material distortion.
- 14-inch carbide cold saw blade capacity provides excellent cutting performance for tubing, pipe, solid stock, and aluminum extrusions.
- Maximum 4.25-inch round tube capacity allows efficient processing of larger diameter material commonly used in fabrication and manufacturing.

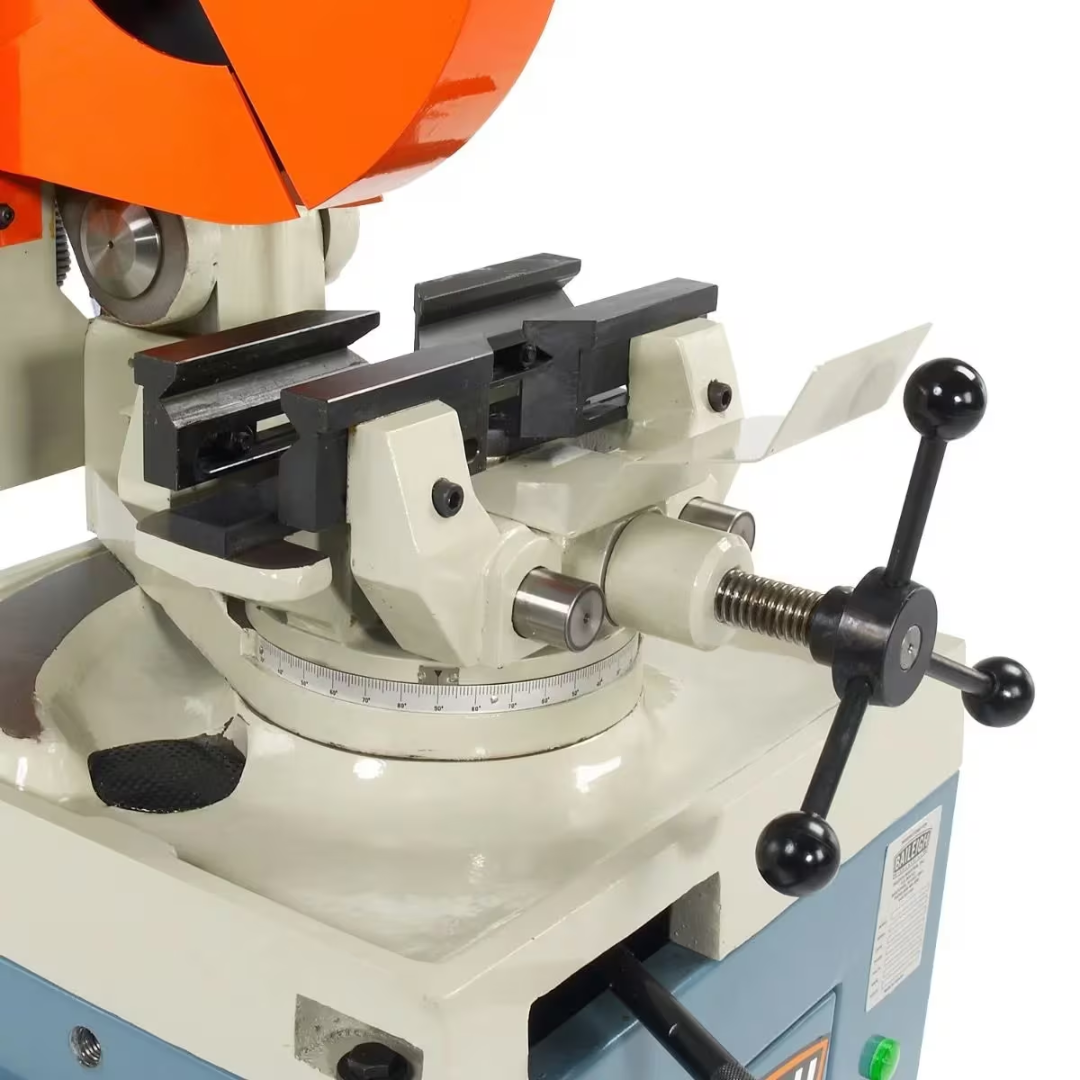

- Self-centering American-style vise automatically aligns workpieces to improve cutting accuracy and reduce setup time.
- Floating vise clamp securely holds material while maintaining consistent pressure throughout the cutting process for superior cut quality.
- Miter capability of 45° right and 90° left enables accurate angled cuts for frames, architectural assemblies, railings, and custom fabrication projects.

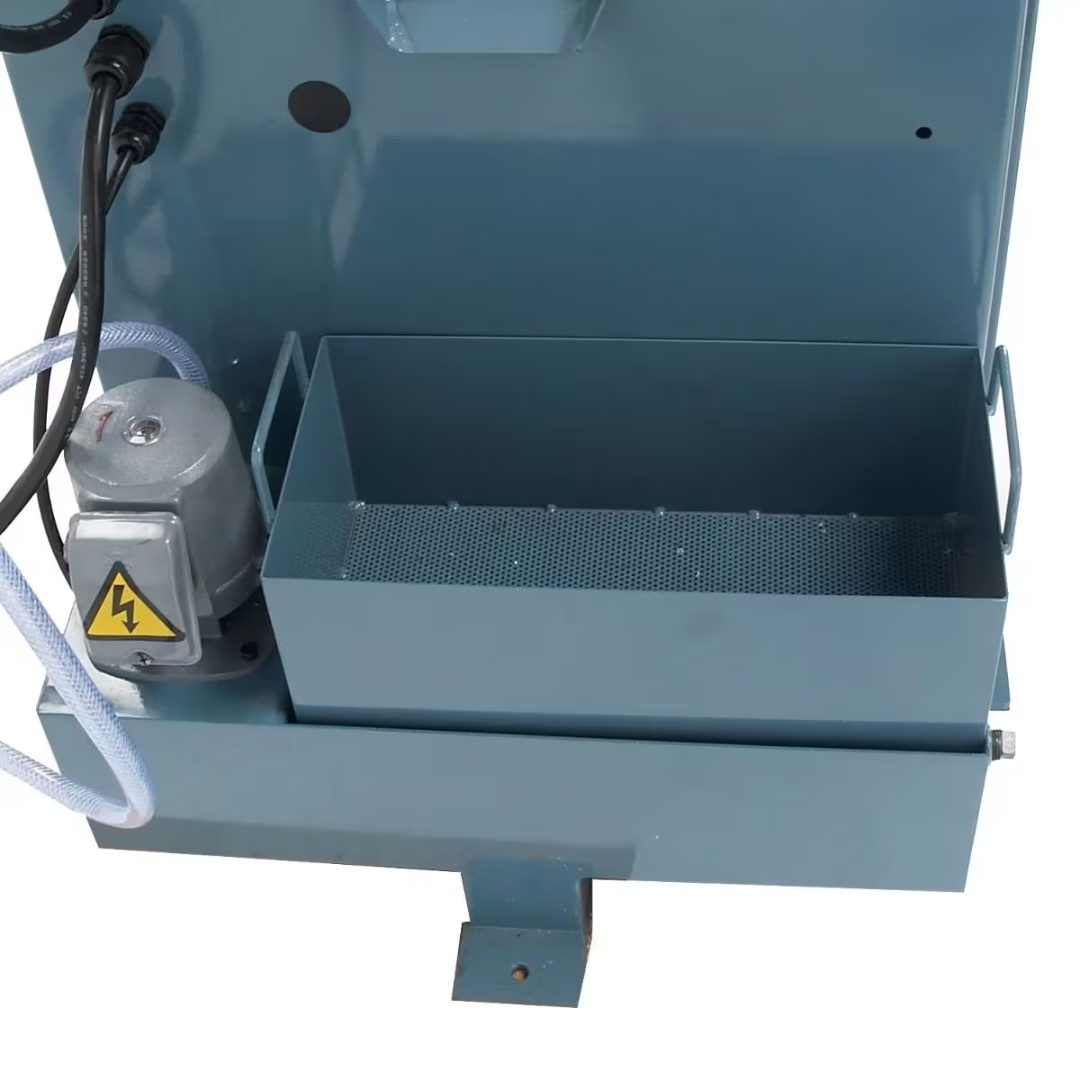

- Integrated flood coolant system continuously cools and lubricates the blade while removing chips to improve finish quality and extend blade life.

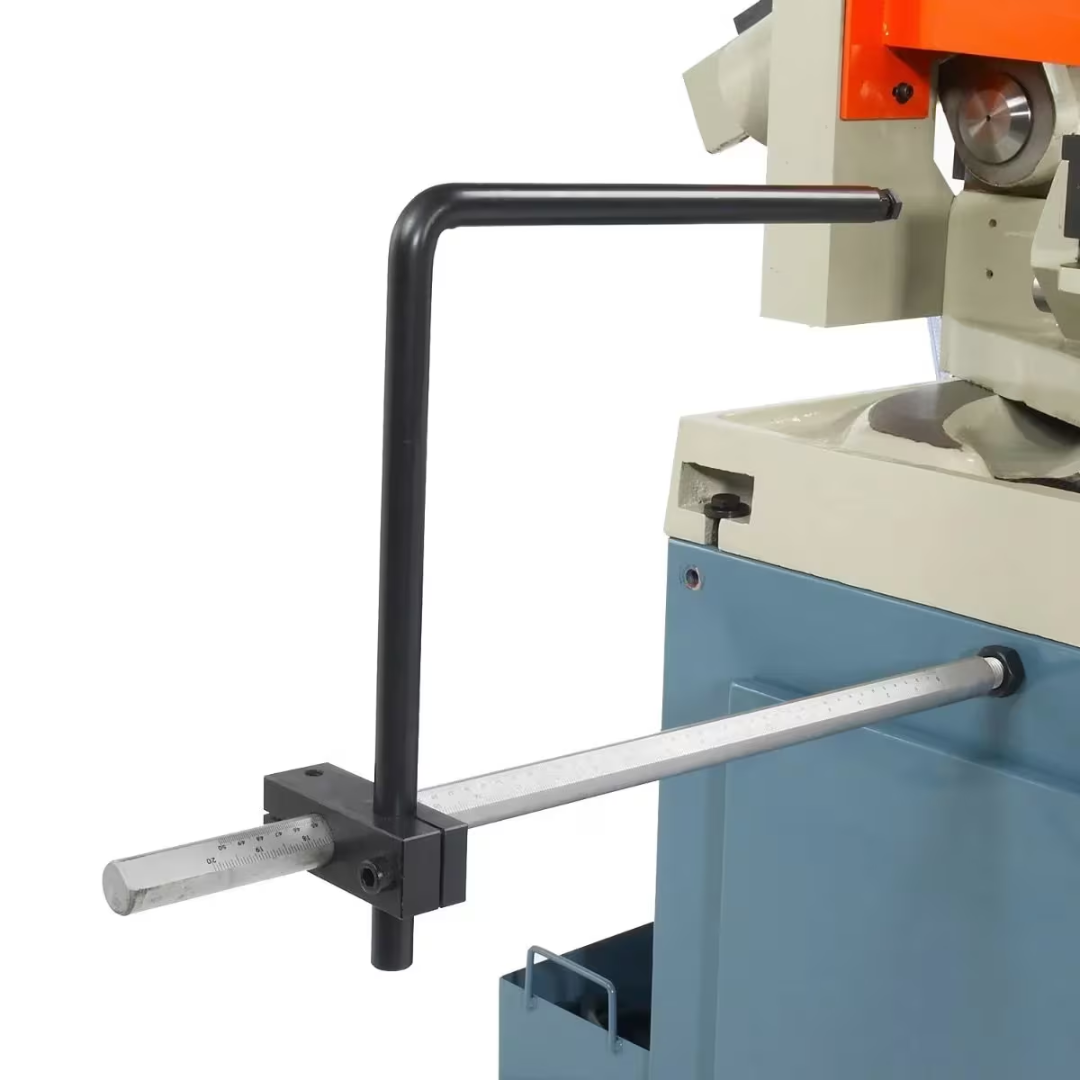

- Adjustable stop rod provides fast, repeatable positioning for consistent production cutting and reduced setup time.

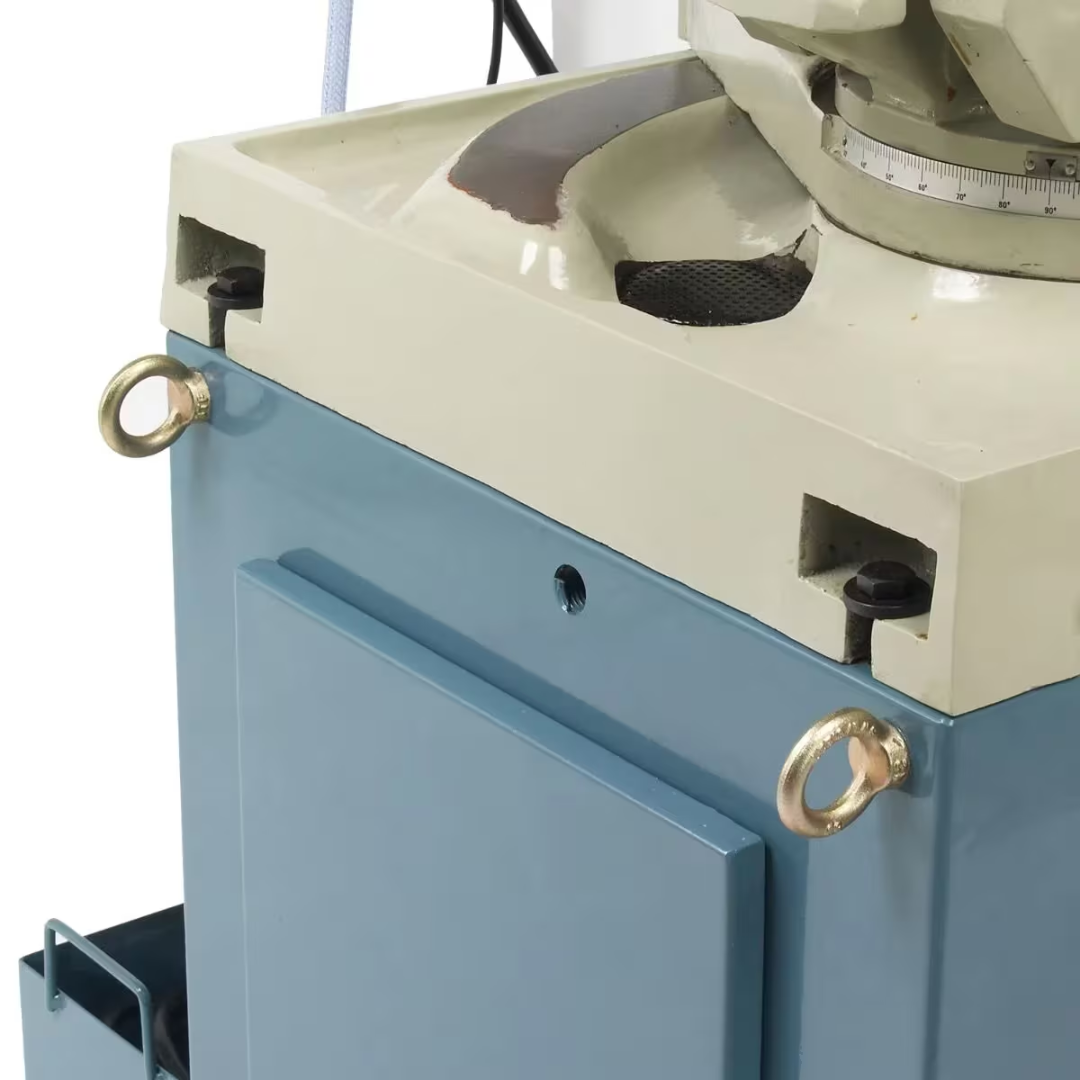

- Heavy cast-iron machine base minimizes vibration and maximizes stability to deliver precise, repeatable cutting performance.
- Industrial-grade construction is engineered for long service life in fabrication shops and manufacturing environments requiring dependable daily operation.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Manual Cold Saw CS-355M 1002589
- High-speed 3,200 RPM cutting optimized for non-ferrous metals.
- Powerful 5.5 HP motor delivers reliable industrial performance.
- Self-centering vise and floating clamp improve cutting accuracy.
- Flood coolant system extends blade life and enhances cut quality.
- Heavy cast-iron construction ensures long-term precision and durability.
- Adjustable stop rod increases productivity during repeat production runs.
- Ideal for aluminum fabrication, extrusion processing, machine shops, and industrial manufacturing.
The Baileigh Manual Cold Saw CS-355M 1002589 combines high-speed non-ferrous cutting performance, rugged industrial construction, and precision workholding into a dependable production-ready cold saw. Built for professionals, it delivers clean, accurate cuts, excellent repeatability, and the long-term reliability expected from Baileigh Industrial.
