Baileigh Manual Cold Saw CS-350P 1002574 Applications
- Precision cutting of steel pipe, tubing, and solid bar stock.
- Production fabrication of frames, railings, and structural components.
- Machine shops and industrial manufacturing facilities.
- Metal fabrication requiring repeatable, burr-free cuts.
- Miter cutting for brackets, supports, and welded assemblies.
- Maintenance departments and industrial repair operations.
- General-purpose ferrous metal cutting for professional fabrication shops.
Designed for professionals who require accurate manual cold saw performance, reliable pneumatic workholding, and industrial durability for daily production cutting.

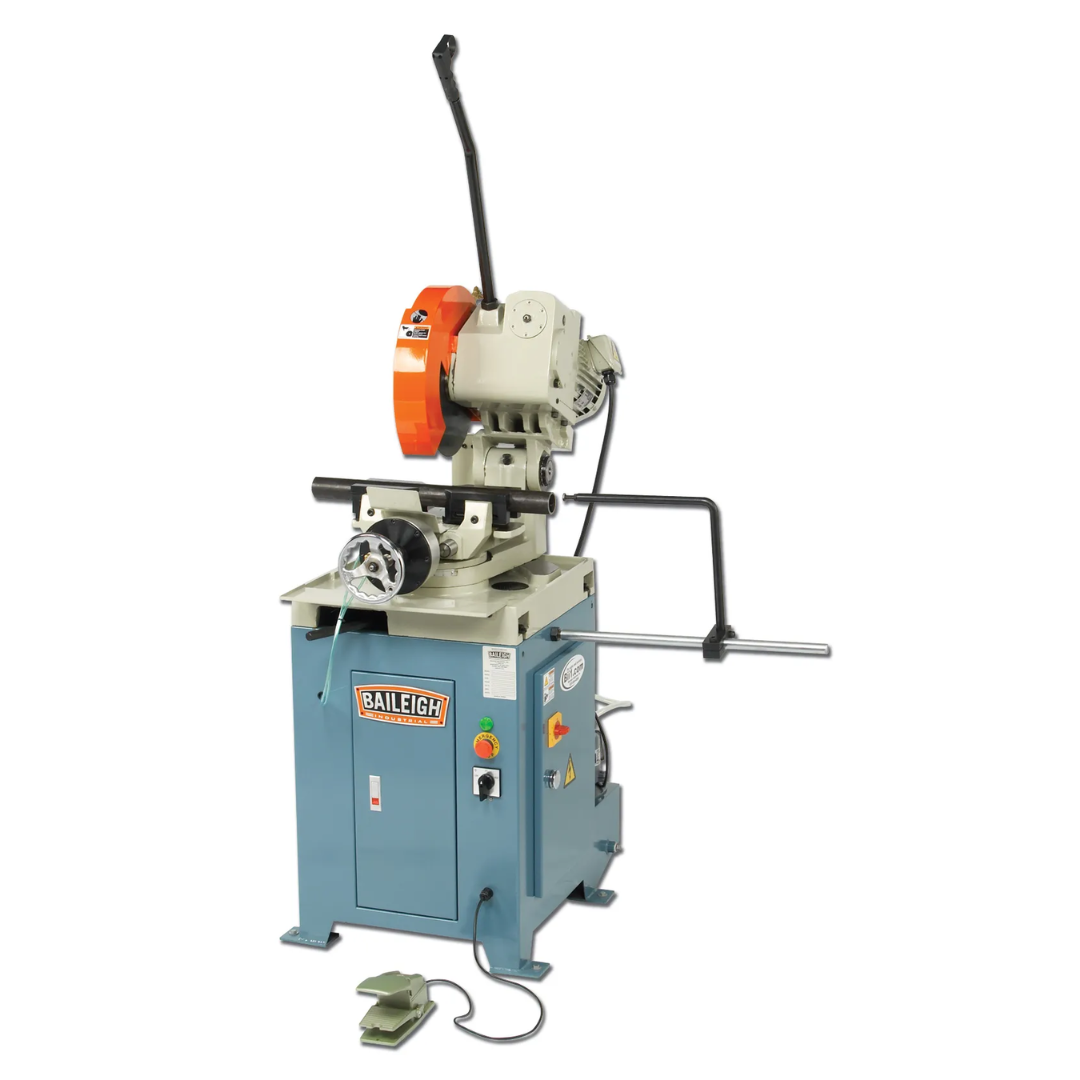

Baileigh Manual Cold Saw CS-350P 1002574 Specifications
| Model | CS-350P |
|---|---|
| Product Number | 1002574 |
| Machine Type | Manual Cold Saw |
| Motor Power | 4 HP |
| Input Power | 220V Three Phase |
| Motor Phase | Three Phase |
| Blade Size | 14 in. |
| Blade Speeds | 26 RPM / 52 RPM |
| Maximum Round Tube Capacity | 4.25 in. |
| Miter Range | 45° Left and 90° Right (135° Total) |
| Vise Type | Pneumatic Self-Centering Vise with Foot Pedal Control |
| Coolant System | Integrated Flood Coolant System |
| Construction | Heavy Cast-Iron Base with Folded Steel Stand |
| Repeatability | Adjustable Stop Rod for Consistent Cut Lengths |
| Net Weight | 850 lbs. |
| Gross Weight | 850 lbs. |
| UPC | 19907702955 |
Baileigh Manual Cold Saw CS-350P 1002574 Performance & Construction
- Powerful 4 HP industrial motor delivers dependable cutting performance for demanding fabrication and production environments.
- 220V three-phase electrical operation provides reliable power for continuous industrial metal cutting applications.

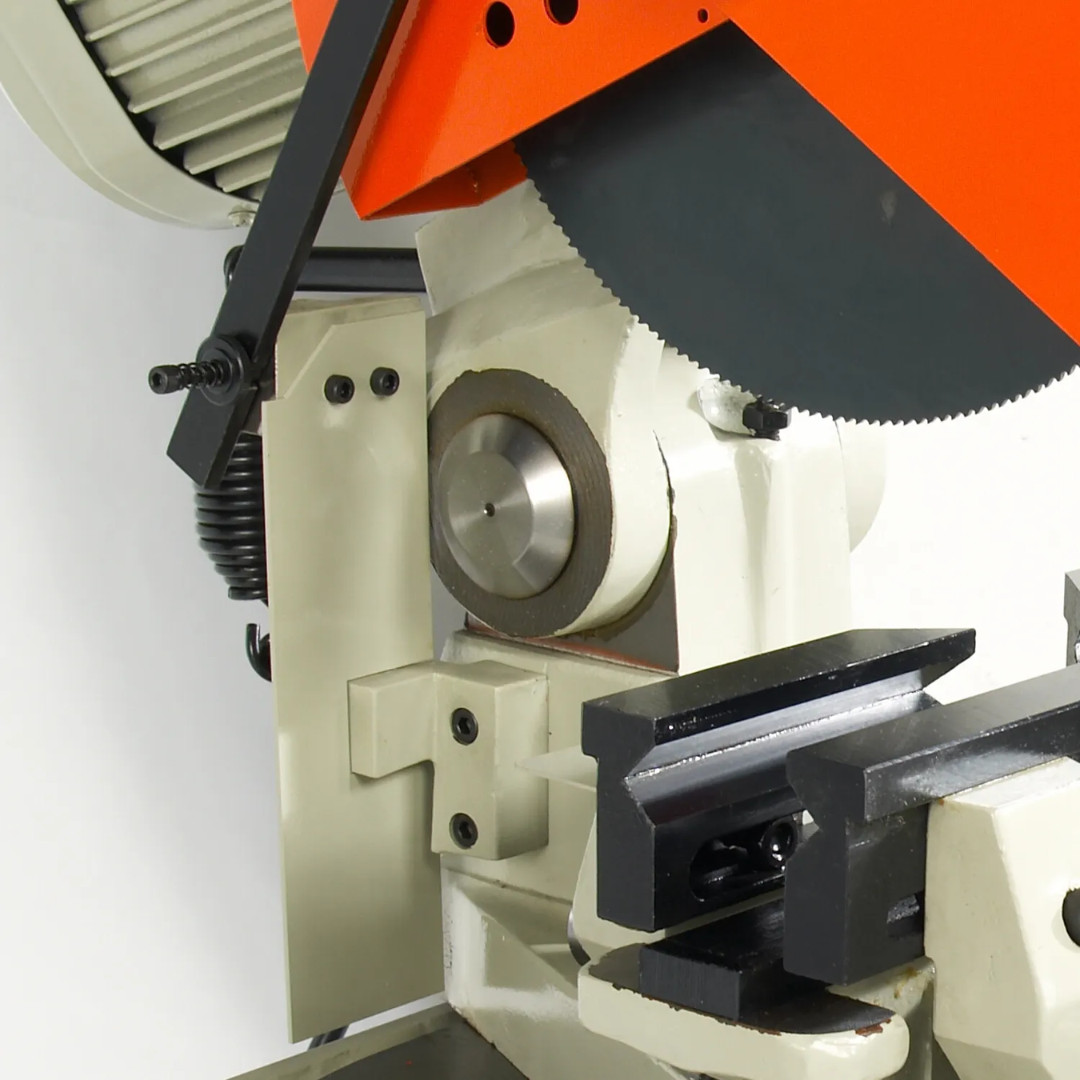

- 14-inch cold saw blade capacity produces clean, burr-free cuts with excellent dimensional accuracy and minimal heat buildup.
- Two selectable blade speeds (26 and 52 RPM) allow operators to optimize cutting performance based on material type and thickness.
- Maximum 4.25-inch round tube capacity accommodates a wide range of tubing, pipe, and solid stock used in fabrication and manufacturing.

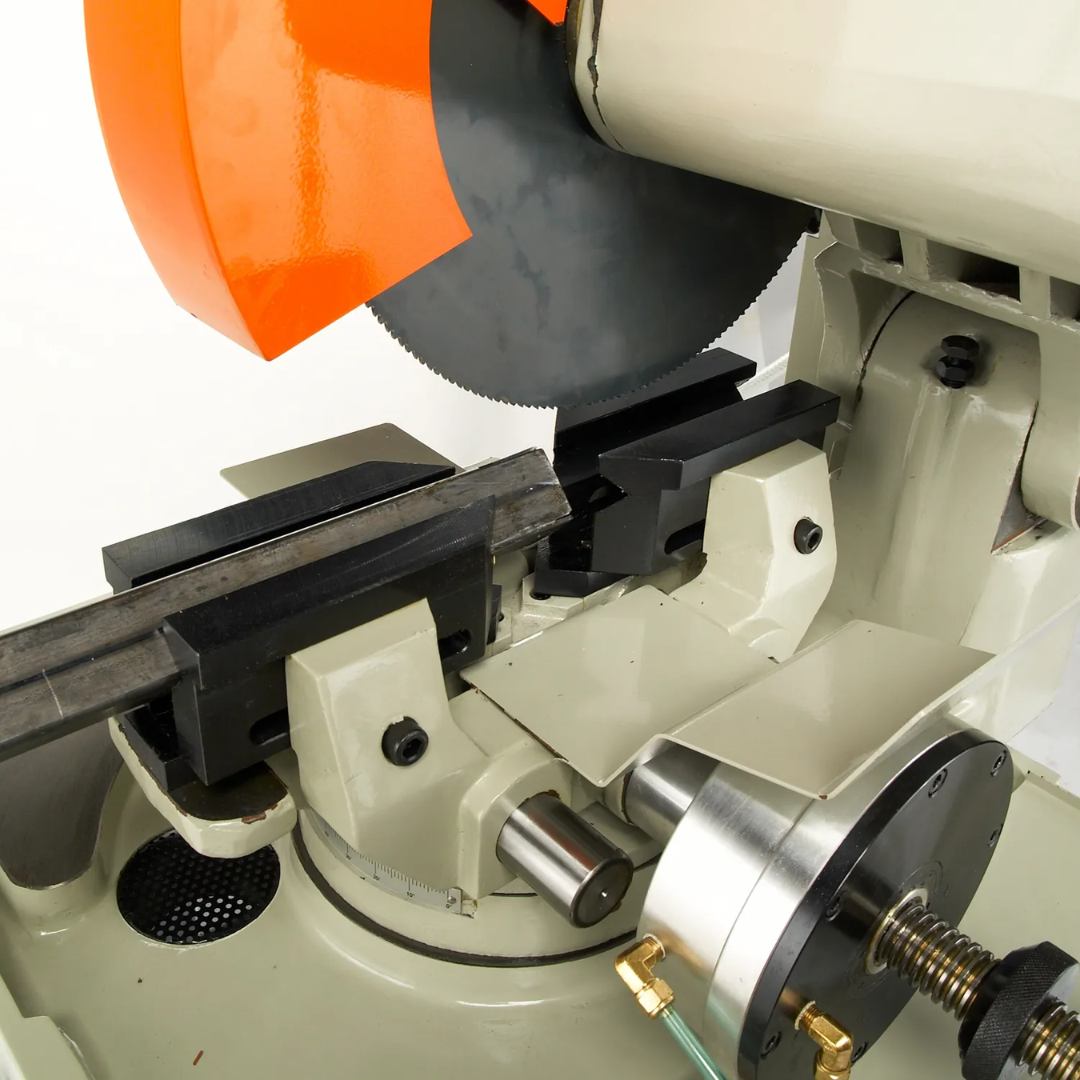

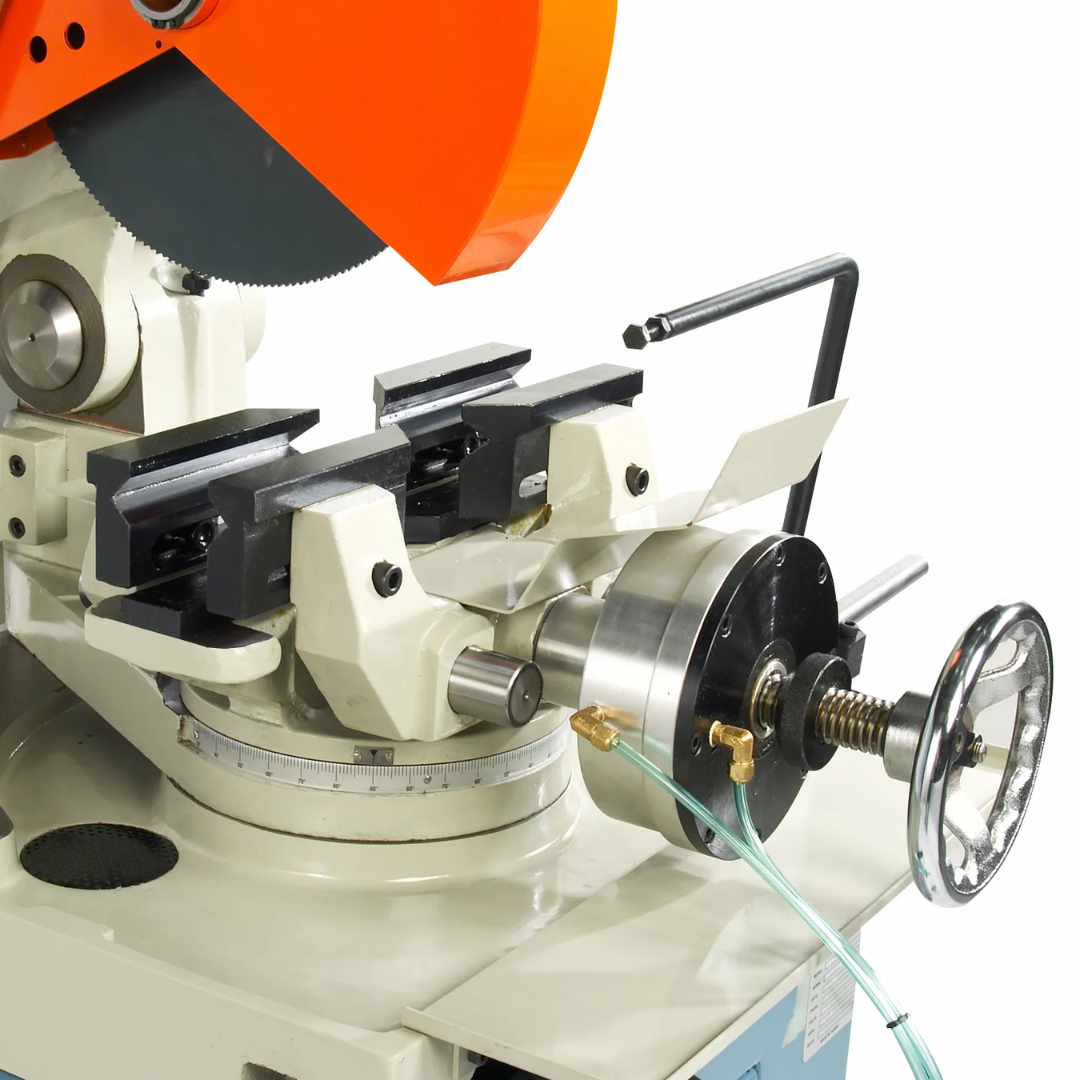

- Foot pedal-controlled pneumatic vise securely clamps workpieces while maintaining consistent holding pressure throughout the cutting cycle for improved safety and productivity.

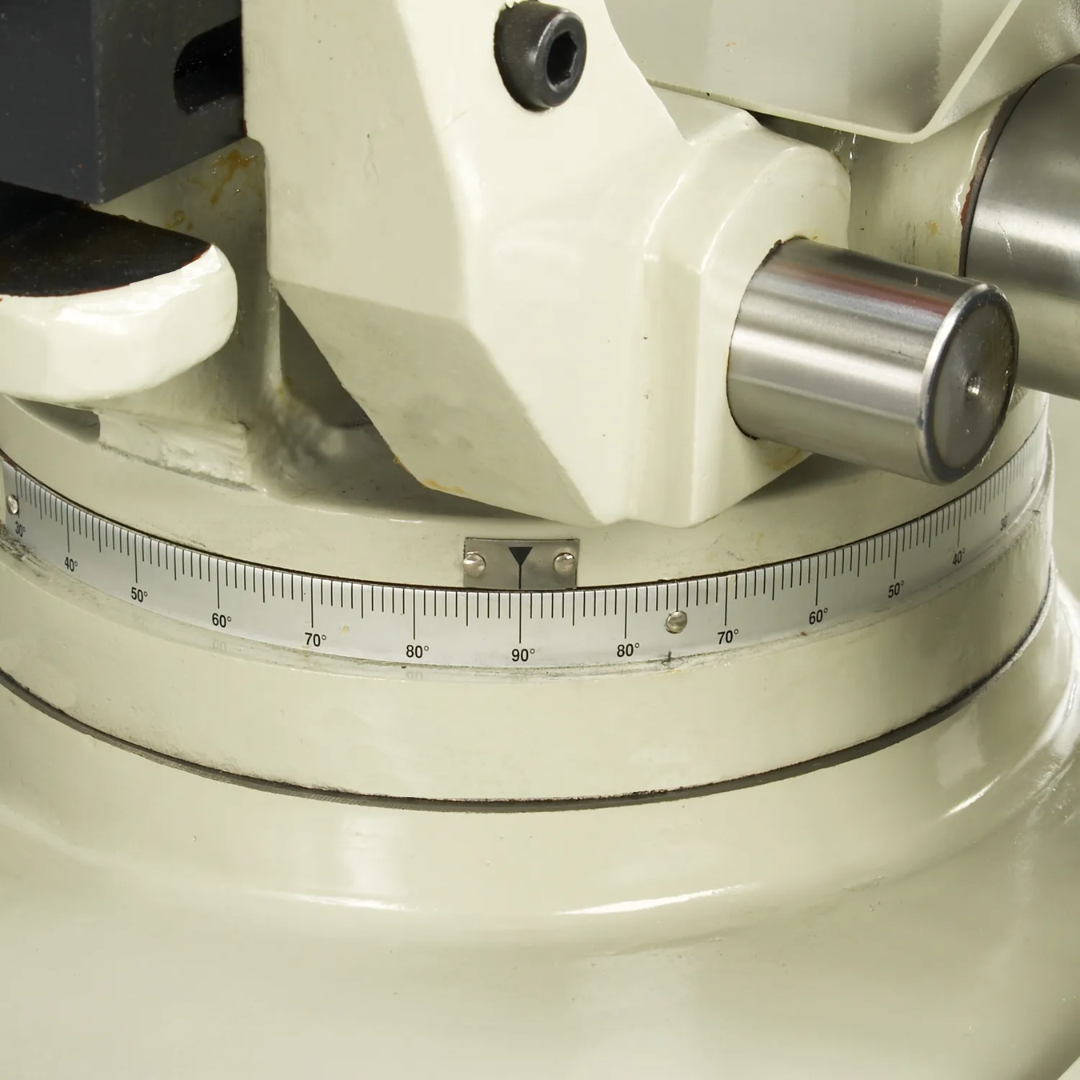

- Miter capability up to 45° left and 90° right enables precise angled cuts for structural fabrication, frame construction, and custom assemblies.

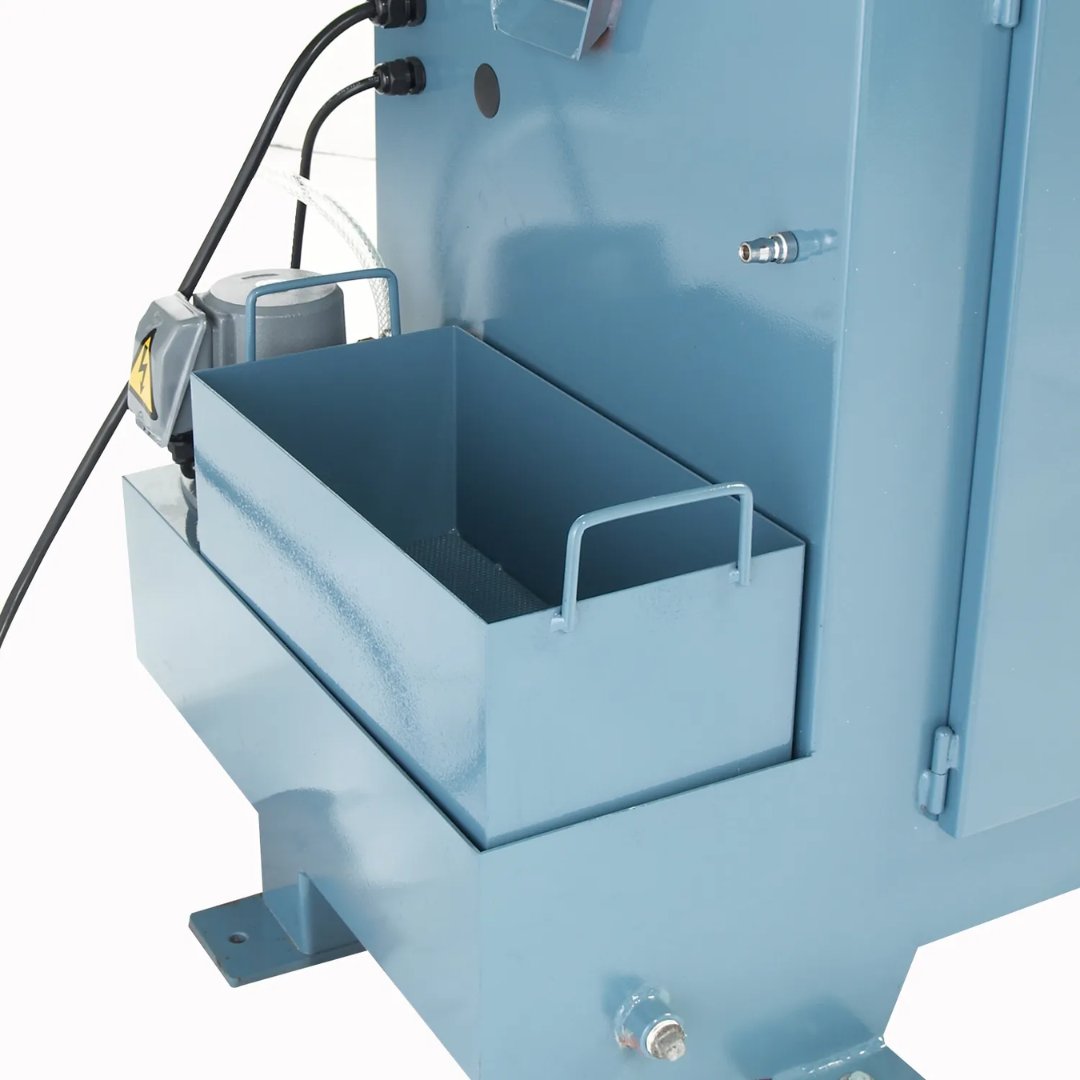

- Integrated flood coolant system continuously cools and lubricates the blade while flushing chips from the cutting area to improve cut quality and extend blade life.
- Adjustable stop rod provides repeatable material positioning for consistent cut lengths during production runs.
- Heavy cast-iron base and reinforced folded steel stand minimize vibration, improve stability, and ensure accurate cutting performance over years of industrial use.
- Industrial-grade construction is engineered for fabrication shops requiring dependable manual cold saw performance and long service life.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Manual Cold Saw CS-350P 1002574
- Heavy-duty manual cold saw built for professional metal fabrication.
- Pneumatic foot pedal-operated vise increases productivity and improves workholding.
- Two blade speeds optimize cutting performance across multiple material types.
- Flood coolant system extends blade life while improving cut quality.
- Heavy cast-iron construction delivers outstanding stability and long-term durability.
- Adjustable stop rod simplifies repeat production cutting.
- Ideal for fabrication shops, machine shops, manufacturers, and industrial maintenance facilities.
The Baileigh Manual Cold Saw CS-350P 1002574 combines industrial-grade construction, precision manual operation, and reliable pneumatic workholding to deliver clean, repeatable metal cutting performance. Designed for demanding fabrication environments, it offers the durability, accuracy, and productivity professionals expect from Baileigh Industrial.
