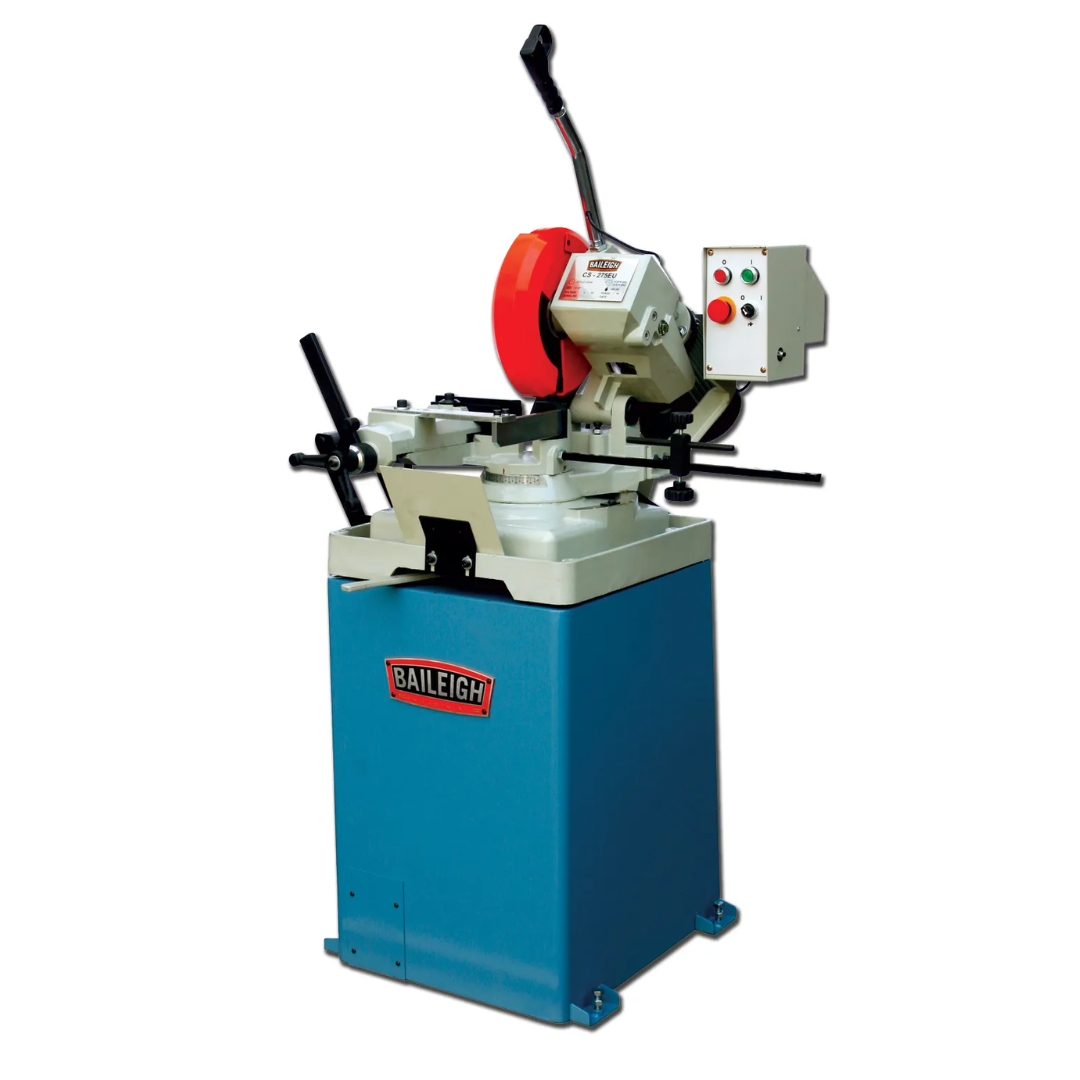

Baileigh Manual Cold Saw CS-275EU 1002434 Applications
- Metal fabrication and manufacturing operations.
- Automotive chassis and roll cage construction.
- Maintenance and repair departments.
- Tube, pipe, and profile cutting applications.
- Structural steel fabrication projects.
- Prototype development and custom fabrication work.
- Production environments requiring accurate repeat cuts.
- Industrial workshops seeking cleaner cuts than abrasive saws.
Ideal for fabricators and maintenance professionals who need accurate, low-burr metal cutting with dependable workpiece control and extended blade life.
Baileigh Manual Cold Saw CS-275EU 1002434 Specifications
| Model Number | CS-275EU |
|---|---|
| Product Number | 1002434 |
| Product Type | Manual Cold Saw |
| Motor Power | 1.5 HP |
| Motor Horsepower | 1.5 HP |
| Input Power | 110V Single Phase |
| Blade Capacity | 11" Cold Saw Blade |
| Blade Speed | 54 RPM |
| Round Tube Capacity | 3.25" OD at 90° |
| Notch Capacity OD | 3.25" |
| Miter Angle Range | 45° Left / 45° Right |
| Vise Type | European-Style Cam Lock Vise |
| Coolant System | Integrated Flood Coolant |
| Construction | Cast-Iron Base and Industrial Stand |
| Net Weight | 378 lbs |
| Gross Weight | 378 lbs |
| Warranty | 1 Year |
| UPC | 731325401943 |
Baileigh Manual Cold Saw CS-275EU 1002434 Performance & Construction

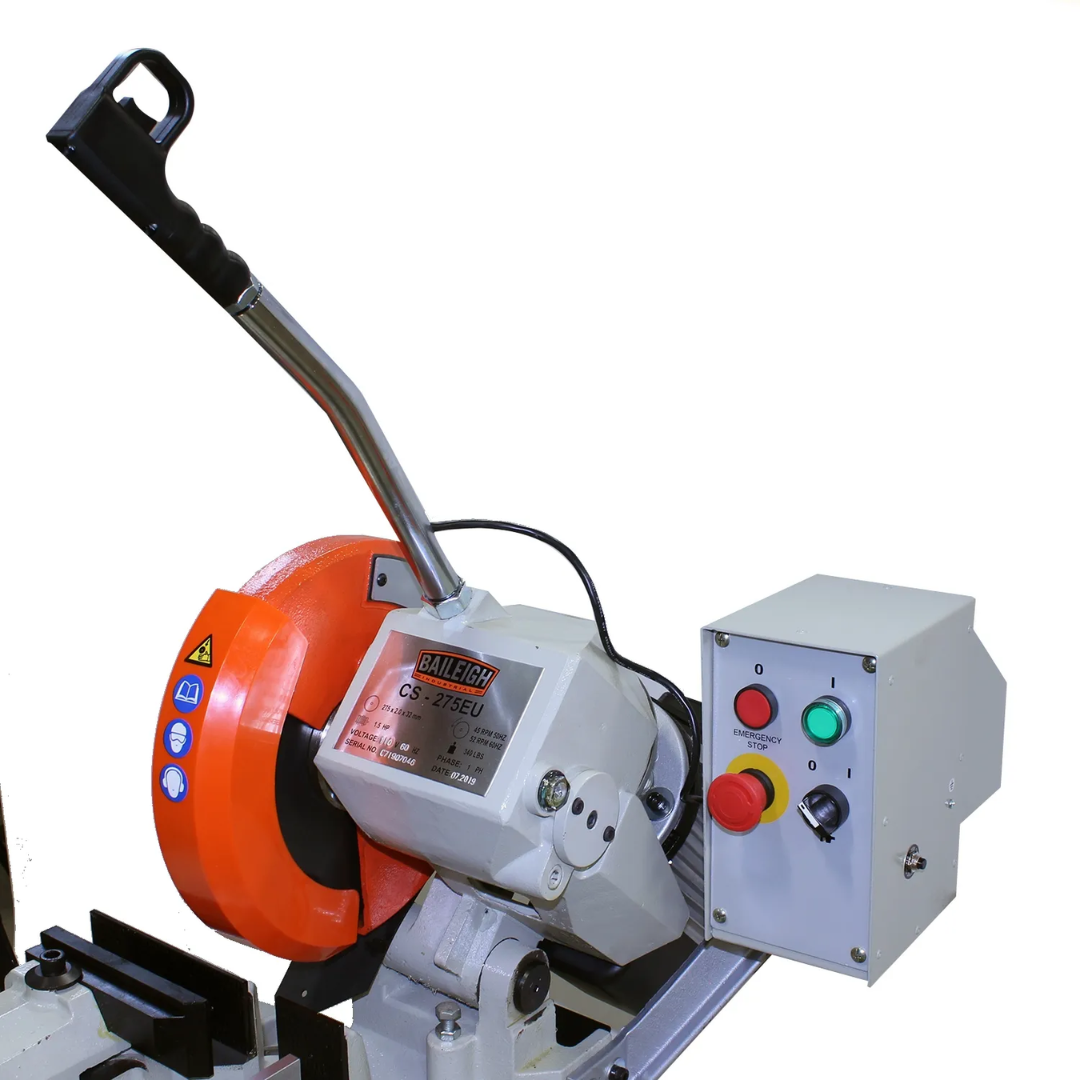

- Powerful 1.5 HP motor provides dependable cutting performance for a wide variety of metal fabrication applications.
- 110V single-phase operation allows installation in most shops without requiring specialized industrial power.
- 54 RPM blade speed delivers clean, precise cuts while minimizing heat generation and material distortion.
- 11-inch blade capacity supports efficient cutting of tubing, pipe, and structural materials.
- 3.25-inch round tube capacity handles common fabrication and manufacturing material sizes with ease.

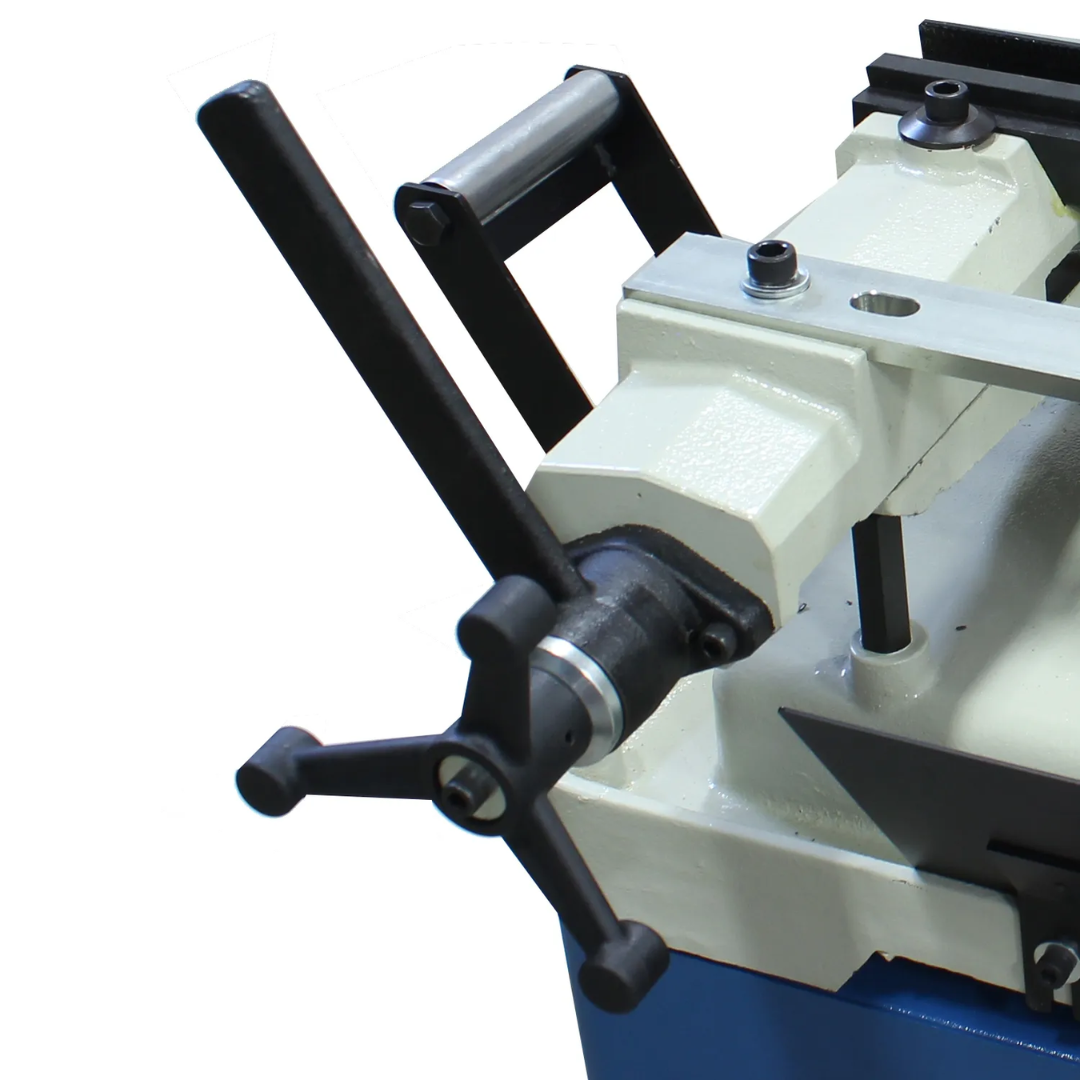

- 45° left and 45° right mitering capability enables accurate angle cuts for frames, supports, handrails, chassis components, and custom fabrication projects.

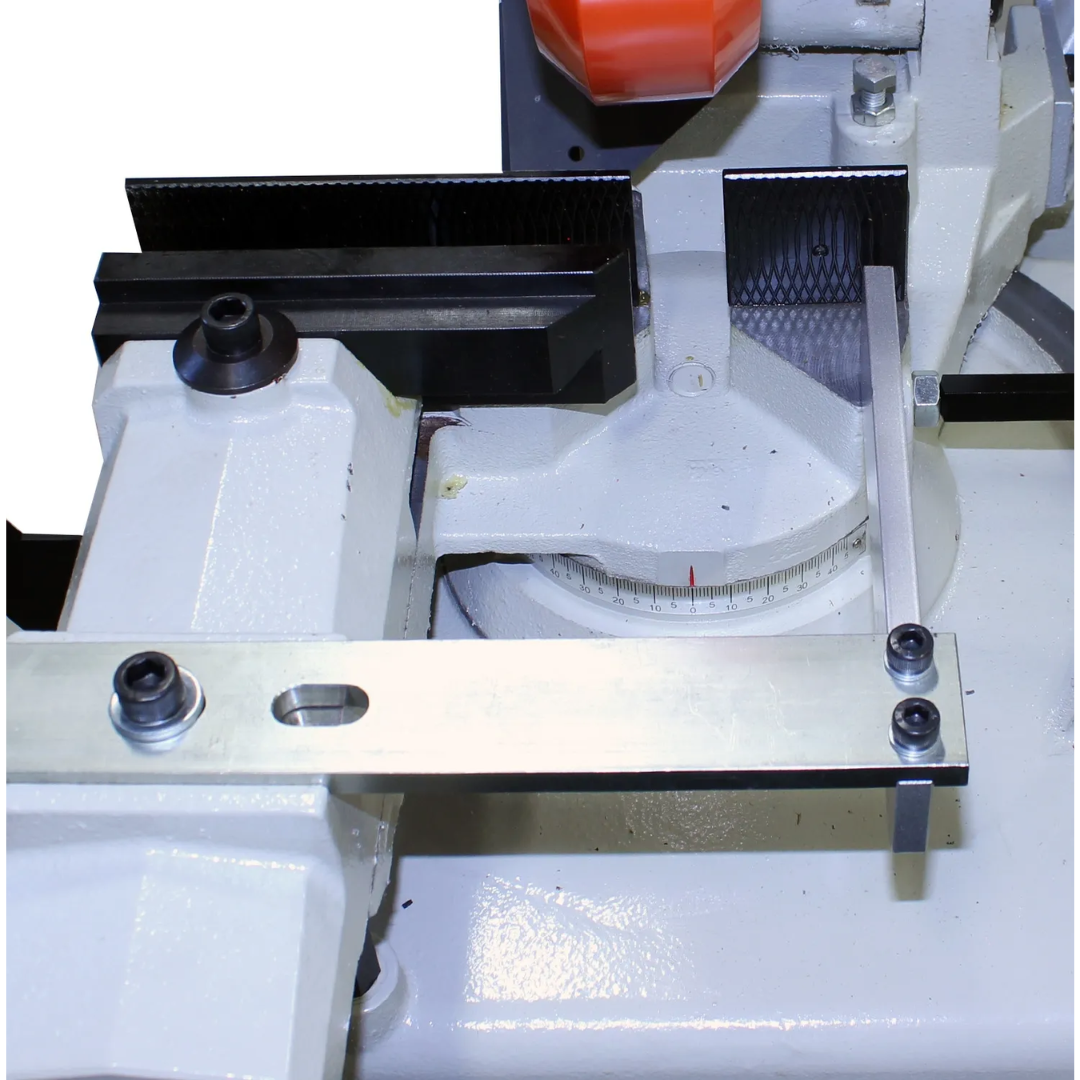

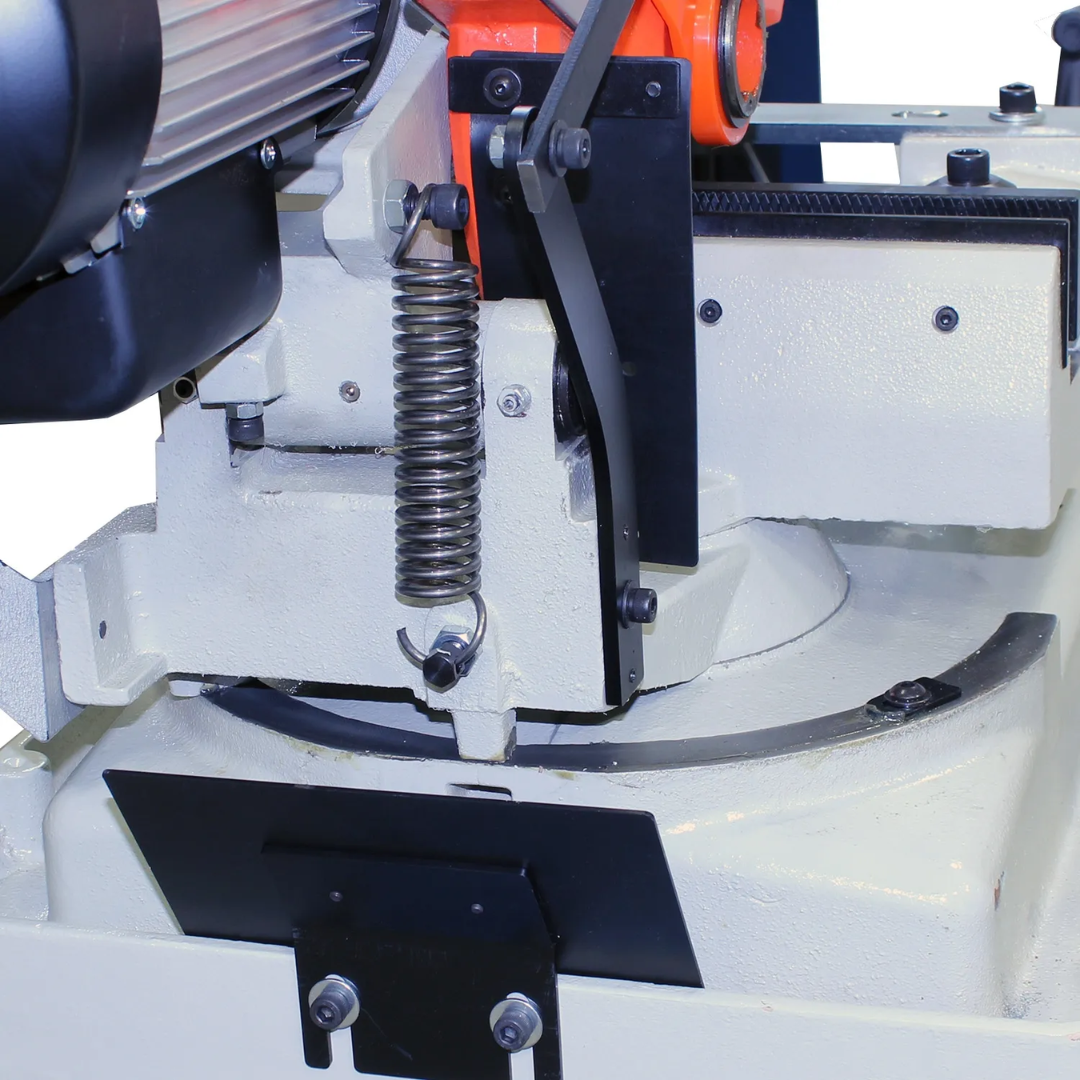

- European-style cam lock vise securely holds material in place for improved cut accuracy and repeatability.

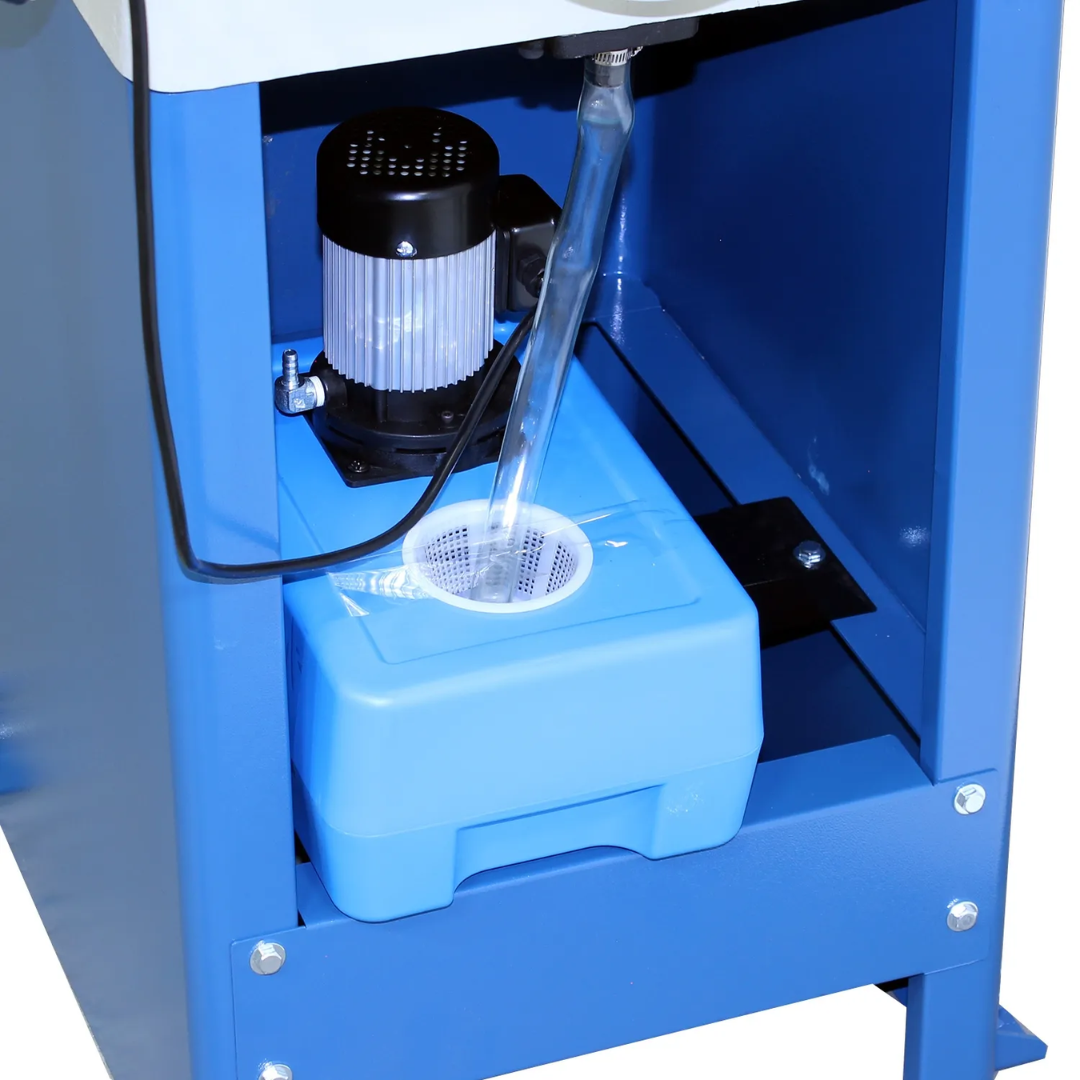

- Integrated flood coolant system continuously lubricates the blade while flushing away chips to improve cut quality and extend blade life.
- Heavy cast-iron base construction reduces vibration and enhances machine stability during cutting operations.
- Industrial pedestal stand provides a solid foundation for accurate cutting and long-term reliability.
- Material stop rod simplifies repetitive production cuts and improves efficiency when processing multiple workpieces.
- Cold saw cutting technology produces cleaner edges and significantly less heat compared to abrasive cutting methods.
Why Choose the Baileigh Manual Cold Saw CS-275EU 1002434
- Produces clean, accurate cuts with minimal burr formation.
- Heavy-duty cast-iron construction ensures long-term stability and durability.
- European-style vise improves workholding precision.
- Dual-direction 45° mitering expands fabrication versatility.
- Flood coolant system improves blade performance and longevity.
- 110V operation simplifies installation in most workshops.
- Material stop enables efficient repeat cutting operations.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Manual Cold Saw CS-275EU 1002434 delivers the precision, durability, and versatility demanded by professional fabricators, maintenance teams, and manufacturing operations. With clean cold-saw cutting performance, industrial-grade construction, and flexible mitering capability, it is an excellent choice for shops that require accurate metal cutting day after day.
