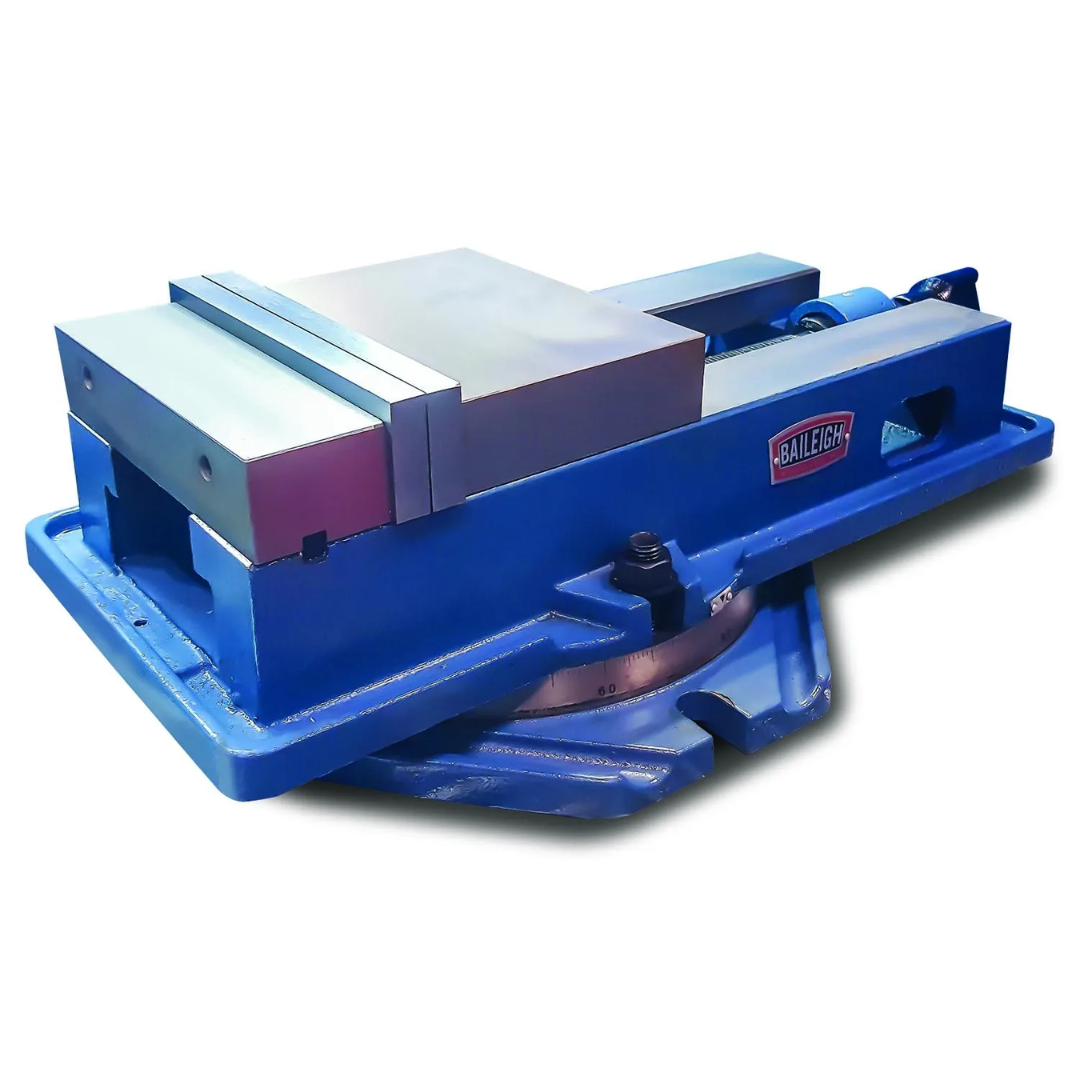

Baileigh Machine Vise - BV-8M 1019131 Applications
- Vertical and horizontal milling machine operations.
- Drilling, boring, and precision machining applications.
- General machine shop production environments.
- Fabrication and metalworking facilities.
- Tool room and maintenance department workholding.
- Prototype and custom manufacturing projects.
- External clamping applications using reversible jaws.
- Industrial repair and production machining operations.
Designed for machinists and fabricators who need a durable, accurate, and versatile milling vise capable of handling demanding daily shop workloads.
Baileigh Machine Vise - BV-8M 1019131 Specifications
| Model | BV-8M |
|---|---|
| Product Keyword | Baileigh Machine Vise - BV-8M 1019131 |
| Jaw Width | 7.5" |
| Maximum Jaw Opening | 9" |
| Jaw Depth | 9" |
| Construction | All Steel and Cast-Iron Body |
| Base Type | Swivel Base |
| Mounting Points | 2 |
| Mount Spacing | 12-9/16" (For 3/4" Bolts) |
| Reversible Jaws | Yes |
| Fixed Mount Capability | Yes (Swivel Base Removable) |
| Machine Weight | 95 lbs |
| Net Weight | 135 lbs |
| Gross Weight | 135 lbs |
| UPC | 731325478662 |
| Warranty | 1 Year |
Baileigh Machine Vise - BV-8M 1019131 Performance & Construction
- Large 7-1/2" jaw width provides excellent support and gripping power for larger workpieces.
- 9" maximum jaw opening accommodates a wide variety of material sizes and machining setups.
- Heavy-duty all steel and cast-iron construction delivers exceptional rigidity and long-term durability.
- Precision-machined surfaces help maintain consistent workholding accuracy during machining operations.
- Included swivel base allows convenient positioning and angular adjustment of workpieces.
- Removable swivel base provides the flexibility to convert the vise into a fixed-mount configuration when required.
- Reversible jaws enable external clamping and holding of oversized workpieces beyond the jaw capacity.
- Industrial-grade design built for daily production use in demanding machine shop environments.
- Wide mounting footprint offers enhanced stability during heavy machining operations.
- Dual mounting points provide secure installation on milling machine tables and workstations.
- Robust weight and construction help minimize vibration and improve machining consistency.
- Versatile workholding capability supports milling, drilling, boring, fabrication, and maintenance applications.
Why Choose the Baileigh Machine Vise - BV-8M 1019131
- Heavy-duty 7-1/2" milling vise designed for professional machine shops.
- Large 9" jaw opening handles a broad range of workpiece sizes.
- Reversible jaws provide expanded external clamping capabilities.
- Included swivel base offers fast setup and positioning flexibility.
- Can be converted to fixed mounting by removing the swivel base.
- Durable steel and cast-iron construction built for long service life.
- Excellent stability and rigidity for precision machining operations.
- Ideal for milling, drilling, fabrication, maintenance, and production work.
The Baileigh Machine Vise - BV-8M 1019131 combines precision workholding, industrial durability, and versatile clamping capabilities into a rugged milling vise designed for professional machining environments. With its swivel base, reversible jaws, and heavy-duty construction, it delivers the reliability and flexibility required for accurate machining and long-term shop performance.
