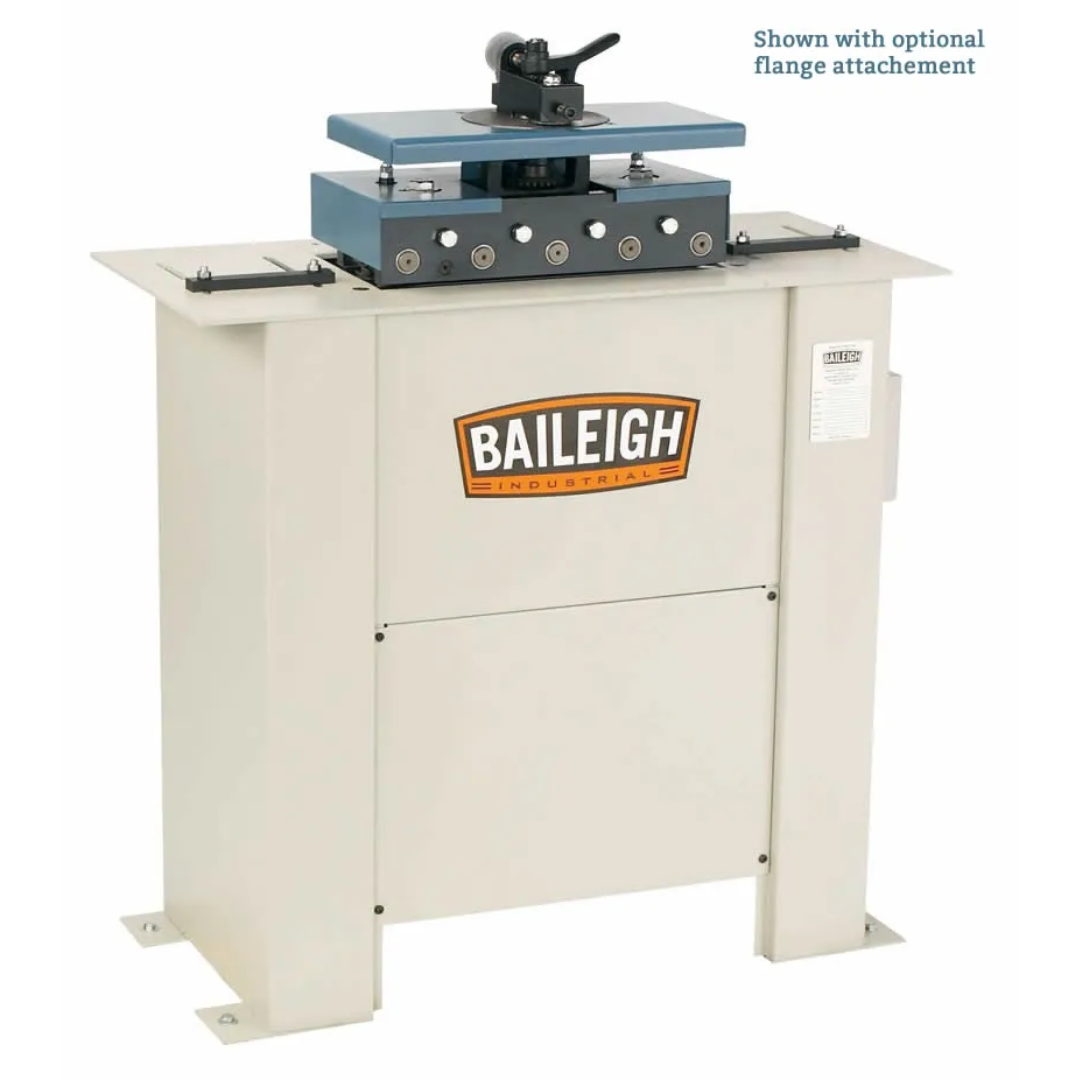

Baileigh Lock Former Pittsburgh Machine - (LF-20) 1004984 Applications
- HVAC duct fabrication and assembly.
- Production of Pittsburgh lock seams for rectangular ductwork.
- Commercial and industrial ventilation system manufacturing.
- Sheet metal fabrication shops producing custom duct components.
- Architectural sheet metal fabrication.
- Metal enclosure and panel manufacturing.
- Light-gauge steel forming operations.
- High-volume fabrication environments requiring consistent seam quality.
The Baileigh Lock Former Pittsburgh Machine - (LF-20) 1004984 is designed for fabricators who need fast, accurate, and repeatable Pittsburgh lock seam production while maximizing material efficiency.
Baileigh Lock Former Pittsburgh Machine - (LF-20) 1004984 Specifications
| Manufacturer | Baileigh Industrial |
|---|---|
| Model | LF-20 |
| Product Number | 1004984 |
| Product Type | Pittsburgh Lock Forming Machine |
| Material Capacity | 20 Gauge Mild Steel |
| Power Requirement | 220V Single Phase |
| Motor Power | 1 HP |
| Lock Material Usage | Approximately 1 in. Per Lock |
| Pocket Depth Adjustment | 5/16 in. – 3/8 in. |
| Forming Head | All-Steel Construction |
| Shaft Construction | Hardened and Ground Steel Shafts |
| Roll Material | Case-Hardened Steel |
| Bearing Type | Needle Bearings |
| Angle Shear Work Height | 39-7/8 in. |
| Gross Weight | 410 lbs. |
| Net Weight | 410 lbs. |
| UPC | 731325408171 |
| Warranty | 1 Year |
Baileigh Lock Former Pittsburgh Machine - (LF-20) 1004984 Performance & Construction
- Designed specifically for Pittsburgh lock seam production to create strong, consistent ductwork joints and sheet metal connections.
- Handles up to 20 gauge mild steel for a wide range of HVAC and fabrication applications.

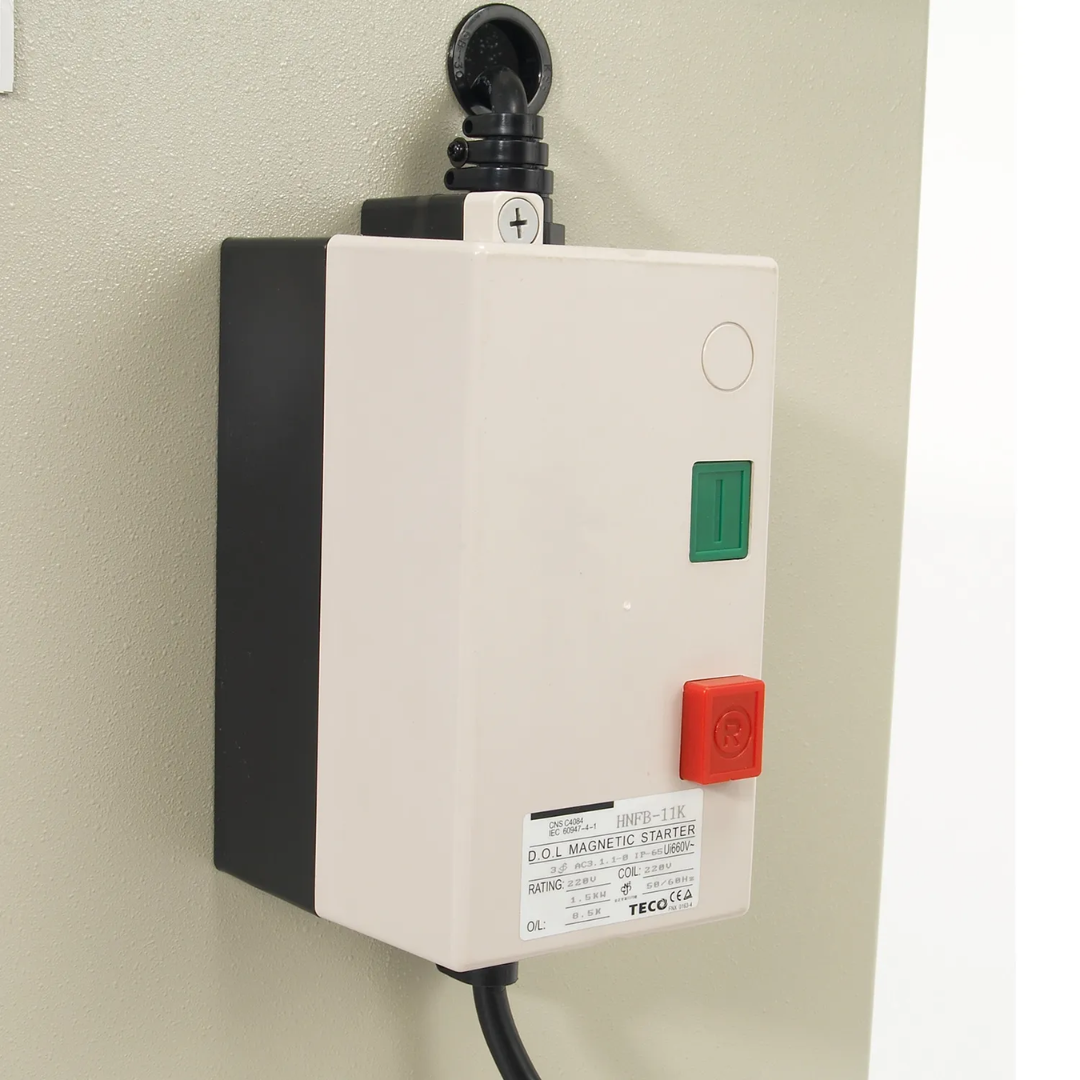

- 220V single-phase electrical operation allows installation in many commercial fabrication environments.
- Powerful 1 HP motor delivers reliable forming performance and continuous production capability.
- Uses approximately 1 inch of material per lock to maximize efficiency while reducing waste.

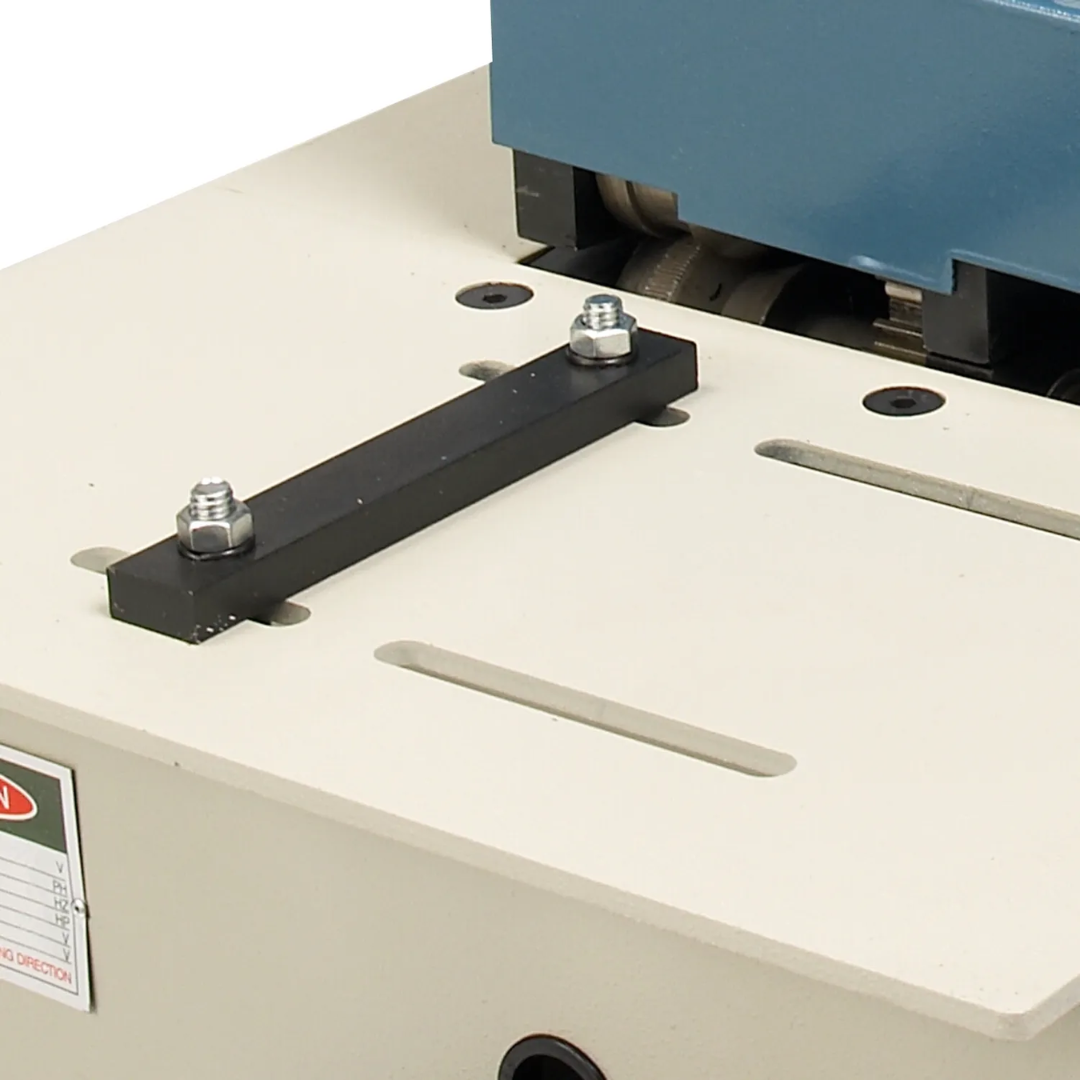

- Adjustable pocket depth from 5/16 inch to 3/8 inch allows customization based on project requirements.
- All-steel forming head provides exceptional durability and long-term accuracy.
- Hardened and precision-ground shafts improve machine longevity and forming consistency.

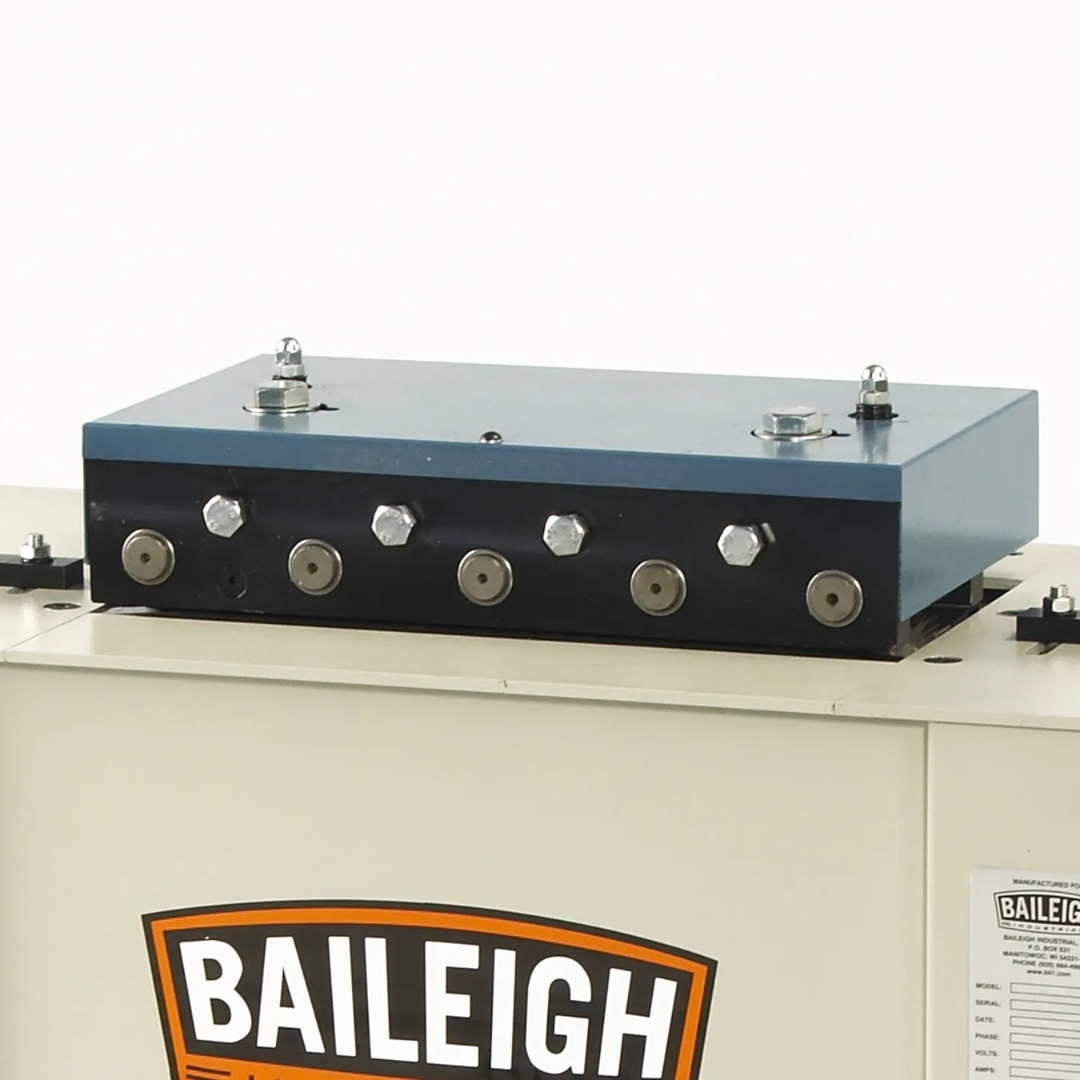

- Case-hardened steel forming rolls withstand continuous production use while maintaining precise profiles.
- Matched cut gears ensure smooth operation and accurate roll synchronization.
- Needle bearing support system reduces wear and promotes reliable long-term performance.
- Heavy-duty industrial frame resists vibration and supports accurate sheet metal forming.
- Continuous feed operation increases productivity for HVAC and duct fabrication shops.
- Industrial-grade construction built for daily production workloads and professional fabrication environments.
Why Choose the Baileigh Lock Former Pittsburgh Machine - (LF-20) 1004984
- Produces professional-quality Pittsburgh lock seams quickly and consistently.
- Built with hardened shafts and case-hardened forming rolls for extended service life.
- Adjustable pocket depth provides flexibility for various duct fabrication requirements.
- Efficient lock formation minimizes material waste.
- Heavy-duty frame construction supports long-term industrial use.
- Ideal for HVAC fabrication shops and sheet metal manufacturers.
- Reliable 220V single-phase operation simplifies installation.
- Continuous feed design improves production efficiency.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Lock Former Pittsburgh Machine - (LF-20) 1004984 delivers the durability, precision, and production efficiency required for professional HVAC and sheet metal fabrication. With its hardened steel construction, adjustable lock-forming capability, and industrial-grade drive system, this machine is an excellent solution for shops seeking dependable Pittsburgh seam production and long-term performance.
