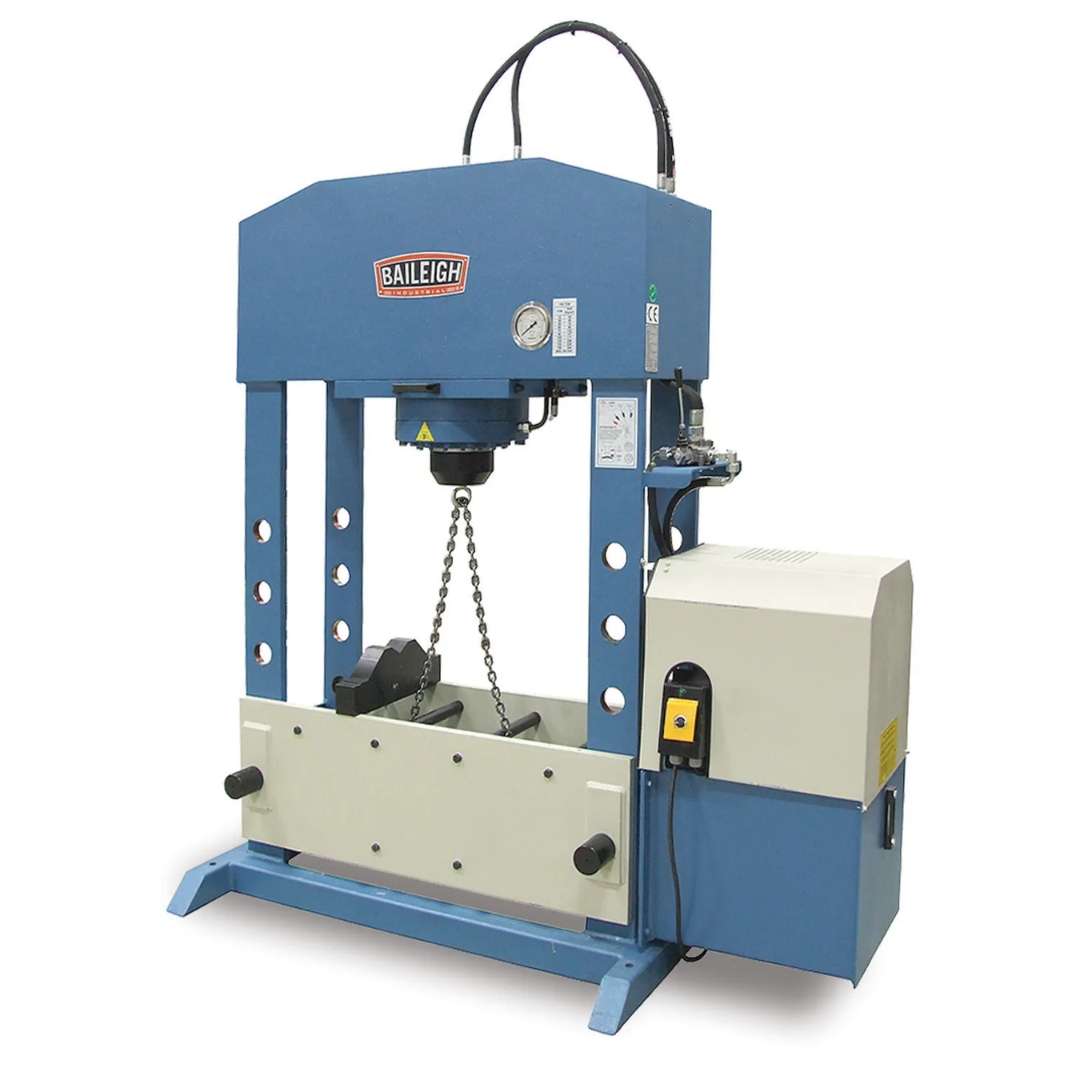

Baileigh Hydraulic Work Shop Press HSP-176M-HD 1012428 Applications
- Heavy industrial fabrication and manufacturing facilities
- Structural steel forming and straightening operations
- Bearing installation and removal applications
- Large component assembly and disassembly work
- Industrial maintenance and repair departments
- Hydraulic testing and load verification procedures
- Metal forming and shaping operations
- Agricultural, mining, and heavy equipment service centers
- Production environments requiring high-tonnage pressing capability
Designed for industrial users who require exceptional pressing force, flexible operation, and dependable performance under continuous production demands.
Baileigh Hydraulic Work Shop Press HSP-176M-HD 1012428 Specifications
| Model Number | HSP-176M-HD |
|---|---|
| Product Number | 1012428 |
| Maximum Capacity | 176 Tons |
| Motor Power | 14.75 HP |
| Input Power | 220V, Three Phase |
| Working Width | 43.3" |
| Cylinder Stroke | 11.8" |
| Frame Construction | Reinforced Welded Heavy-Duty Steel H-Frame |
| Hydraulic System | Industrial Two-Speed Hydraulic System |
| Control Modes | Automatic Motorized & Manual Hand Pump |
| Cylinder Movement | Movable Left/Right Ram Head |
| Included Accessories | V-Block Set |
| Gross Weight | 3,465 lbs. |
| Net Weight | 3,465 lbs. |
| UPC | 19907511144 |
| Warranty | 1 Year Parts Warranty |
Baileigh Hydraulic Work Shop Press HSP-176M-HD 1012428 Performance & Construction
- 176-ton industrial pressing capacity delivers exceptional force for the most demanding bending, straightening, forming, and assembly applications.
- Reinforced welded steel H-frame construction provides maximum rigidity and stability while minimizing deflection under extreme loads.
- Powerful 14.75 HP motor supplies consistent hydraulic performance for continuous operation in production environments.
- 220V three-phase electrical system integrates seamlessly into industrial facilities and fabrication shops.
- 43.3-inch working width accommodates larger components and provides greater flexibility for a wide range of applications.
- 11.8-inch hydraulic stroke allows deep pressing operations and enhanced workpiece accessibility.

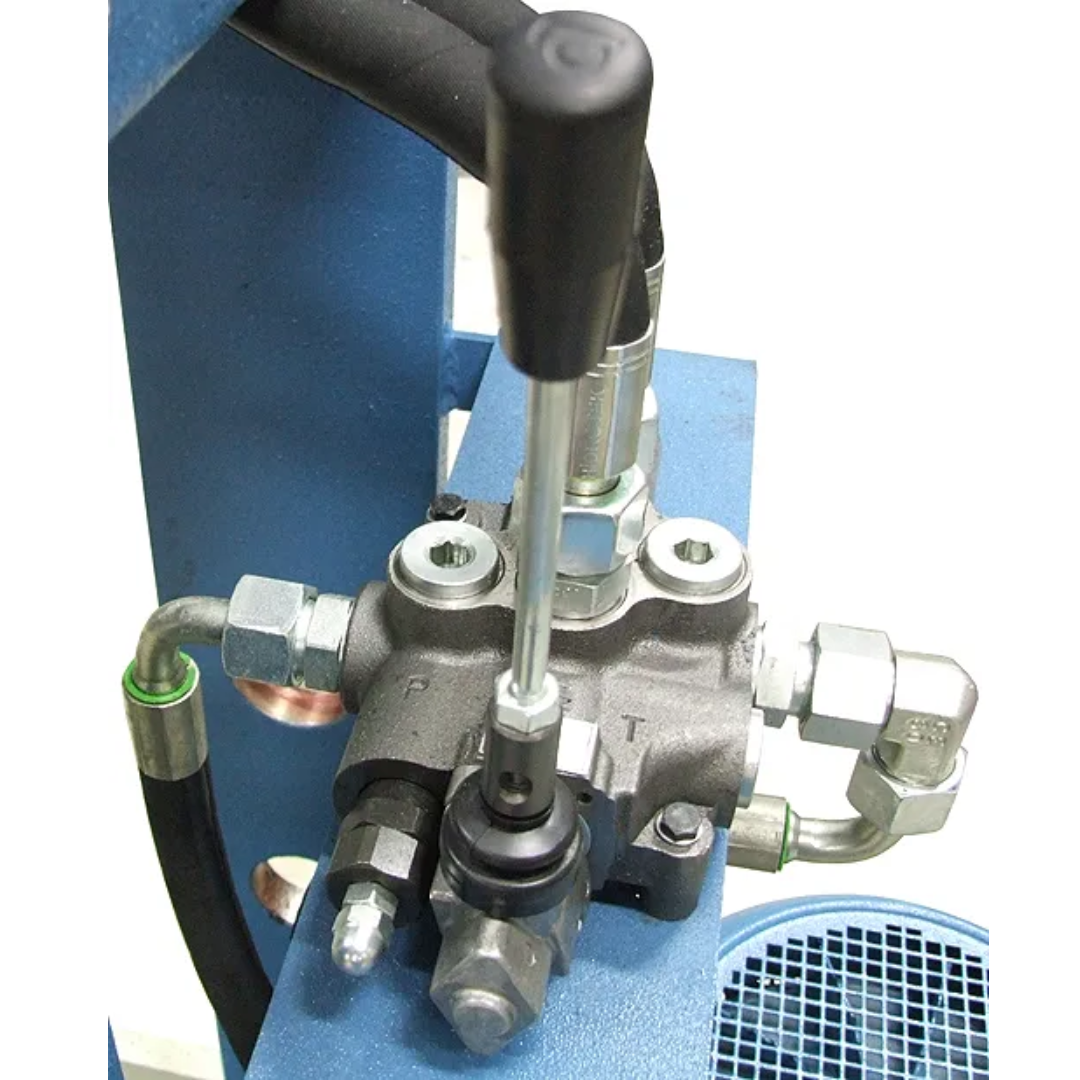

- Dual-mode operation gives operators the flexibility to choose between fully automatic motorized operation or manual control using the integrated hand pump.
- Two-speed hydraulic system combines rapid advance movement with slower controlled pressing speed for improved productivity and precision.
- Movable ram head shifts left and right within the frame, allowing efficient off-center pressing without repositioning large workpieces.

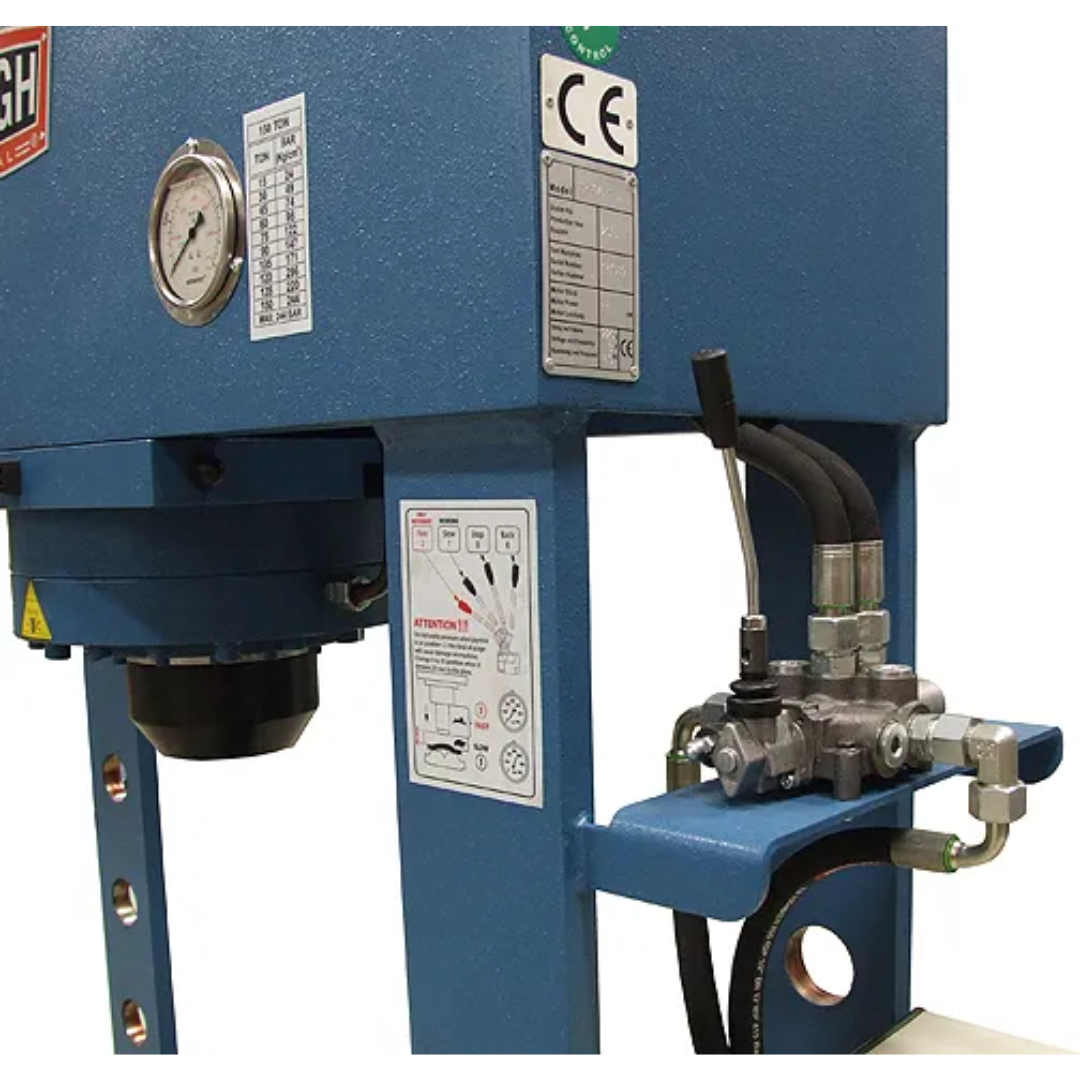

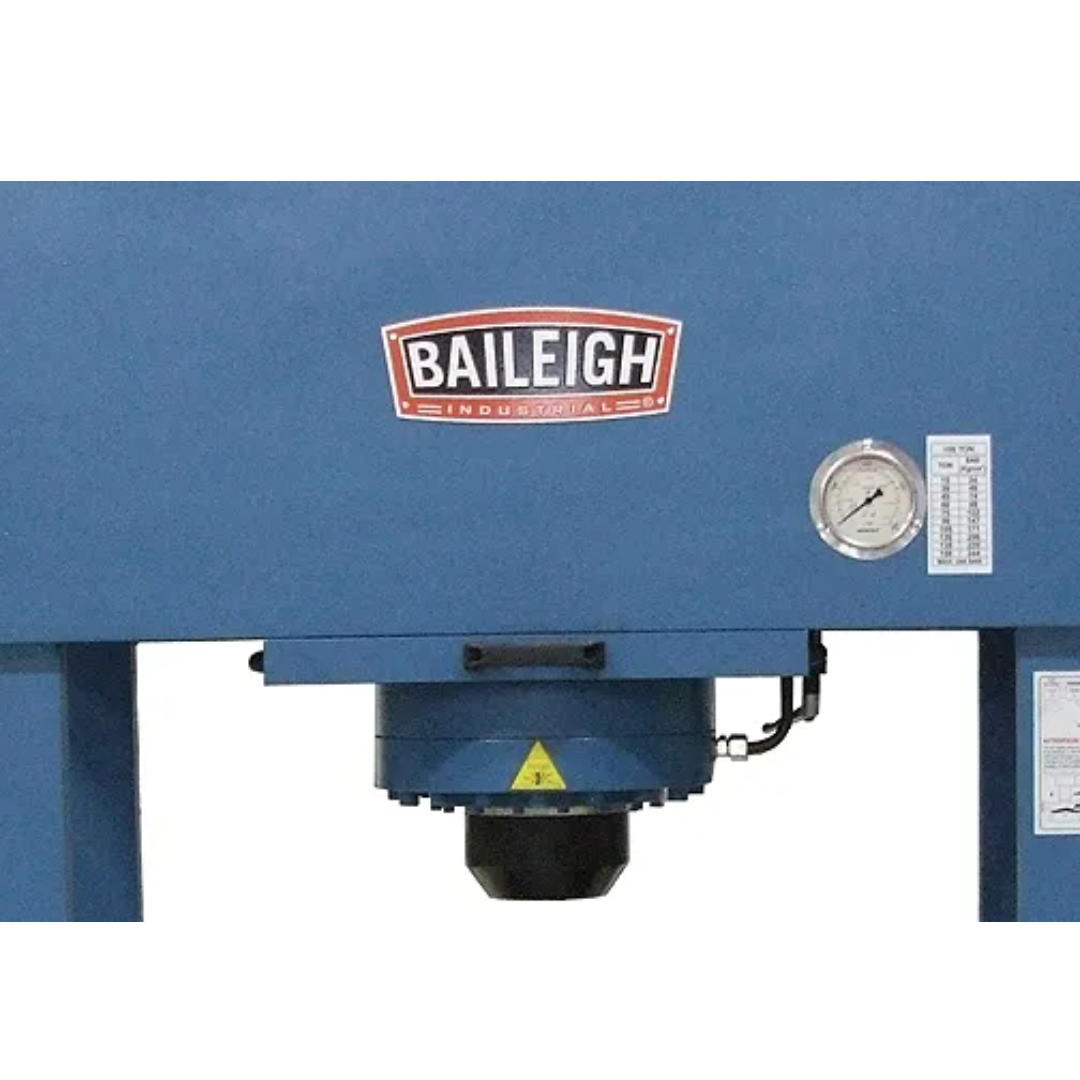

- Integrated pressure gauge enables accurate monitoring of applied force for repeatable and controlled operations.
- Adjustable worktable height allows operators to configure the workspace for different component sizes and pressing requirements.
- Included V-block set provides secure support for shafts, tubing, round stock, and other specialized workpieces.
- Industrial-grade hydraulic system is engineered for dependable daily performance in demanding workshop and manufacturing environments.
- Lifetime technical support from Baileigh provides ongoing assistance and long-term ownership confidence.
Why Choose the Baileigh Hydraulic Work Shop Press HSP-176M-HD 1012428
- Massive 176-ton pressing force for heavy industrial applications.
- Dual automatic and manual operating modes for maximum flexibility.
- Heavy-duty reinforced steel H-frame built for long-term durability.
- Movable ram head allows efficient off-center pressing operations.
- Two-speed hydraulic system improves productivity and control.
- Adjustable worktable accommodates a wide range of workpiece sizes.
- Includes V-blocks, pressure gauge, warranty coverage, and lifetime technical support.
The Baileigh Hydraulic Work Shop Press HSP-176M-HD 1012428 is a professional-grade industrial press that combines tremendous 176-ton capacity, advanced hydraulic control, and heavy-duty construction to deliver reliable performance for fabrication shops, maintenance departments, and production facilities that demand uncompromising strength and precision.
