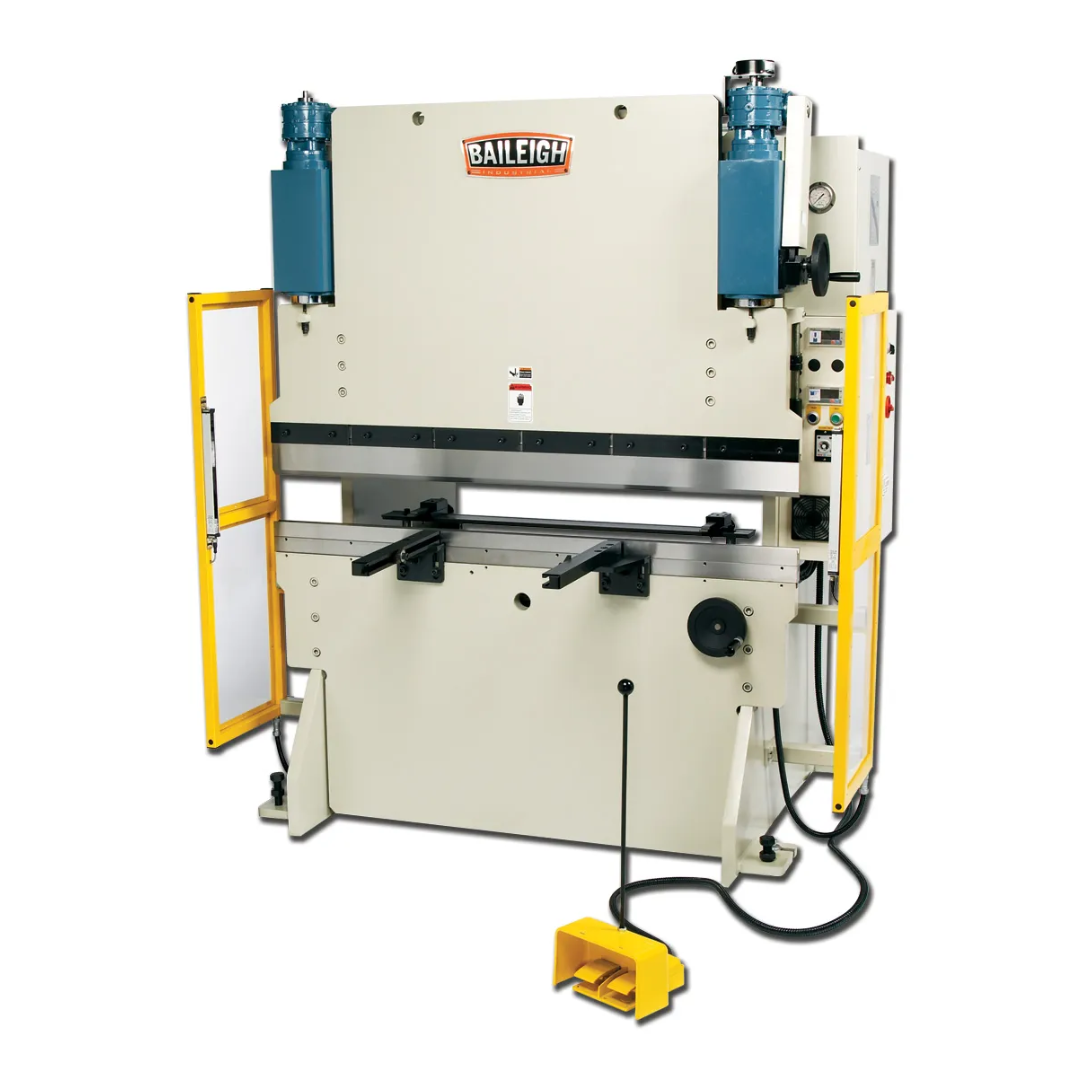

Baileigh Hydraulic Sheet Metal Press Brake - BP-5060NC 1000824 Applications
- Sheet metal fabrication and production bending operations.
- Manufacturing brackets, enclosures, cabinets, and panels.
- HVAC ductwork and ventilation component fabrication.
- Industrial maintenance and repair departments.
- Architectural metalworking and custom fabrication projects.
- Prototype development and short-run production work.
- Agricultural, transportation, and equipment manufacturing.
- Precision forming of steel, stainless steel, aluminum, and other sheet materials.
Ideal for fabrication facilities seeking a versatile hydraulic press brake with digital positioning controls, repeatable accuracy, and production-ready performance.
Baileigh Hydraulic Sheet Metal Press Brake - BP-5060NC 1000824 Specifications
| Model | BP-5060NC |
|---|---|
| Product Type | Hydraulic Sheet Metal Press Brake |
| Bending Capacity | 50 Tons |
| Bending Width | 60 in. |
| Maximum Bend Angle | 135° |
| Throat Depth | 7.75 in. |
| Distance from Table to Ram | 11.81 in. |
| Stroke Length | 5.9 in. |
| Approach Speed | 3.14 in./sec. |
| Main Motor Power | 5 HP |
| Back Gauge Motor | 1/2 HP |
| Input Power | 220V Three Phase |
| Control System | Encoder-Controlled Digital Readouts |
| Back Gauge Type | Motorized Ball Screw Back Gauge |
| Operating Modes | Jog, Manual, and Automatic |
| Foot Pedal Control | Included |
| Accessories | Yes |
| Net Weight | 6,160 lbs. |
| Gross Weight | 6,160 lbs. |
| Warranty | 1 Year |
| UPC | 731325394504 |
Baileigh Hydraulic Sheet Metal Press Brake - BP-5060NC 1000824 Features & Performance
- 50 Tons of Hydraulic Bending Force provides the power needed for demanding sheet metal forming applications while maintaining precision and control.
- 60" Working Width accommodates larger panels and fabricated components, expanding production capabilities across a wide range of projects.
- Encoder-Controlled Hydraulic Cylinders ensure smooth ram movement, accurate positioning, and repeatable bending performance.
- Dual Digital Readout System includes dedicated DROs for bend depth and back gauge positioning, helping operators achieve highly accurate results.
- Motorized Ball Screw Back Gauge enhances positioning precision while reducing setup times and improving production efficiency.
- Jog, Manual, and Automatic Operating Modes provide flexibility for setup work, custom bending applications, and production runs.
- Heavy Electro-Welded Steel Frame delivers exceptional structural rigidity and long-term durability under heavy workloads.
- Synchronized Parallel Beam Design maintains balanced ram movement across the working width for improved bend consistency.
- 7.75" Throat Depth allows operators to work with larger flanges and more complex part geometries.
- 11.81" Open Height Between Table and Ram provides ample clearance for tooling and workpiece positioning.
- 5.9" Stroke Length supports a wide variety of bending applications and tooling configurations.
- Foot Pedal Control System allows hands-free machine operation for improved safety, productivity, and material handling.
- 5 HP Hydraulic Drive System delivers dependable industrial-grade performance for continuous production environments.
- 220V Three-Phase Power supports efficient operation in commercial and industrial fabrication facilities.
- Industrial Weight Construction at 6,160 lbs. provides outstanding machine stability and vibration resistance.
- Baileigh Warranty & Technical Support includes a 1-year parts warranty and lifetime technical assistance.
Why Choose the Baileigh Hydraulic Sheet Metal Press Brake - BP-5060NC 1000824
- 50-ton hydraulic capacity handles demanding sheet metal bending applications.
- 60" working width provides excellent versatility for fabrication projects.
- Encoder-controlled DRO system delivers precision and repeatability.
- Motorized ball screw back gauge improves positioning accuracy and productivity.
- Heavy-duty electro-welded frame ensures long-term durability.
- Multiple operating modes support both custom work and production environments.
- Foot pedal operation enhances safety and workflow efficiency.
- Ideal for fabrication shops, manufacturers, maintenance facilities, and industrial metalworking operations.
The Baileigh Hydraulic Sheet Metal Press Brake - BP-5060NC 1000824 combines industrial-strength hydraulic performance, advanced encoder-controlled positioning, and rugged construction to deliver highly accurate and repeatable bending results. With 50 tons of force, a 60-inch bending width, and precision digital controls, this machine is an excellent solution for professional sheet metal fabrication environments.
