Baileigh Hydraulic Rotary Draw Bender, DRO with Auto Stop (RDB-175) BA9-RDB175B Applications
- Automotive chassis and roll cage fabrication.
- Handrail and architectural metalwork production.
- Industrial pipe and tube fabrication projects.
- Custom off-road vehicle and motorsports construction.
- Manufacturing of frames, supports, and structural assemblies.
- Marine and transportation fabrication applications.
- Production environments requiring repeatable bend angles.
- General metal fabrication and custom tube forming operations.

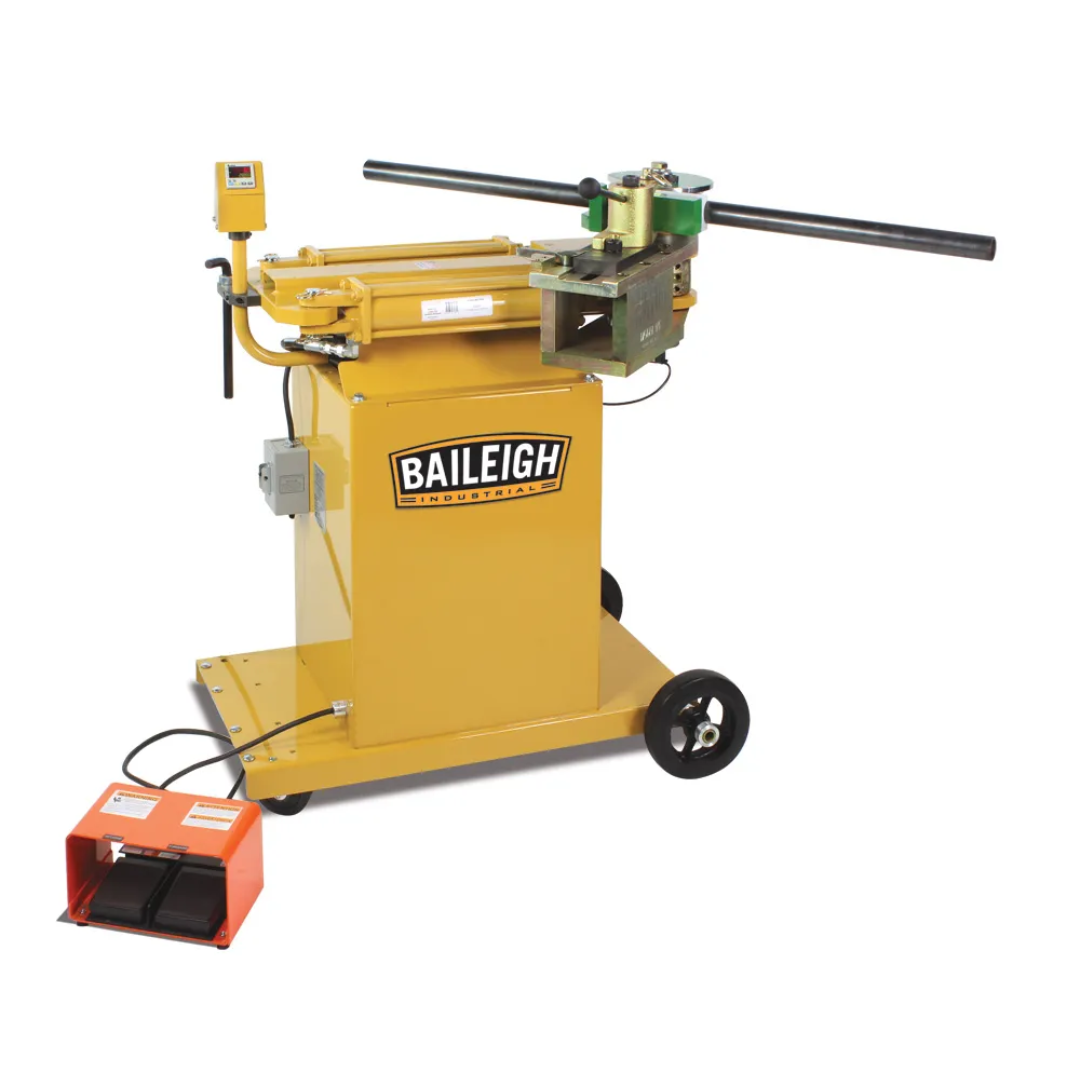

The Baileigh Hydraulic Rotary Draw Bender, DRO with Auto Stop (RDB-175) BA9-RDB175B is designed to produce smooth, accurate bends with exceptional repeatability, making it ideal for fabrication professionals who require production-quality results.
Baileigh Hydraulic Rotary Draw Bender, DRO with Auto Stop (RDB-175) BA9-RDB175B Specifications
| Model Number | RDB-175 |
|---|---|
| Product Keyword | Baileigh Hydraulic Rotary Draw Bender, DRO with Auto Stop (RDB-175) BA9-RDB175B |
| Machine Type | Hydraulic Rotary Draw Tube & Pipe Bender |
| Input Power | 110V |
| Drive System | Hydraulic Rotary Draw |
| Round Tube Capacity | 2.5" OD (.125" Wall) |
| Pipe Capacity | 2" Schedule 40 Pipe |
| Aluminum Pipe Capacity | 2.5" Schedule 40 (.156" Wall) |
| Center Line Radius (CLR) | 9" |
| Minimum Material OD | 0.25" |
| Maximum Bend Angle | 205° |
| Digital Readout (DRO) | Included |
| Auto-Stop Function | Programmable |
| Counter Die Holder | Ratcheting Design |
| Control Method | Foot Pedal Operation |
| Net Weight | 700 lbs |
| Gross Weight | 700 lbs |
| UPC | 19907577263 |
| Warranty | 1 Year |
| Product Type | Machine |
| California Proposition 65 | Cancer and Reproductive Harm Warning |
Baileigh Hydraulic Rotary Draw Bender, DRO with Auto Stop (RDB-175) BA9-RDB175B Performance & Construction

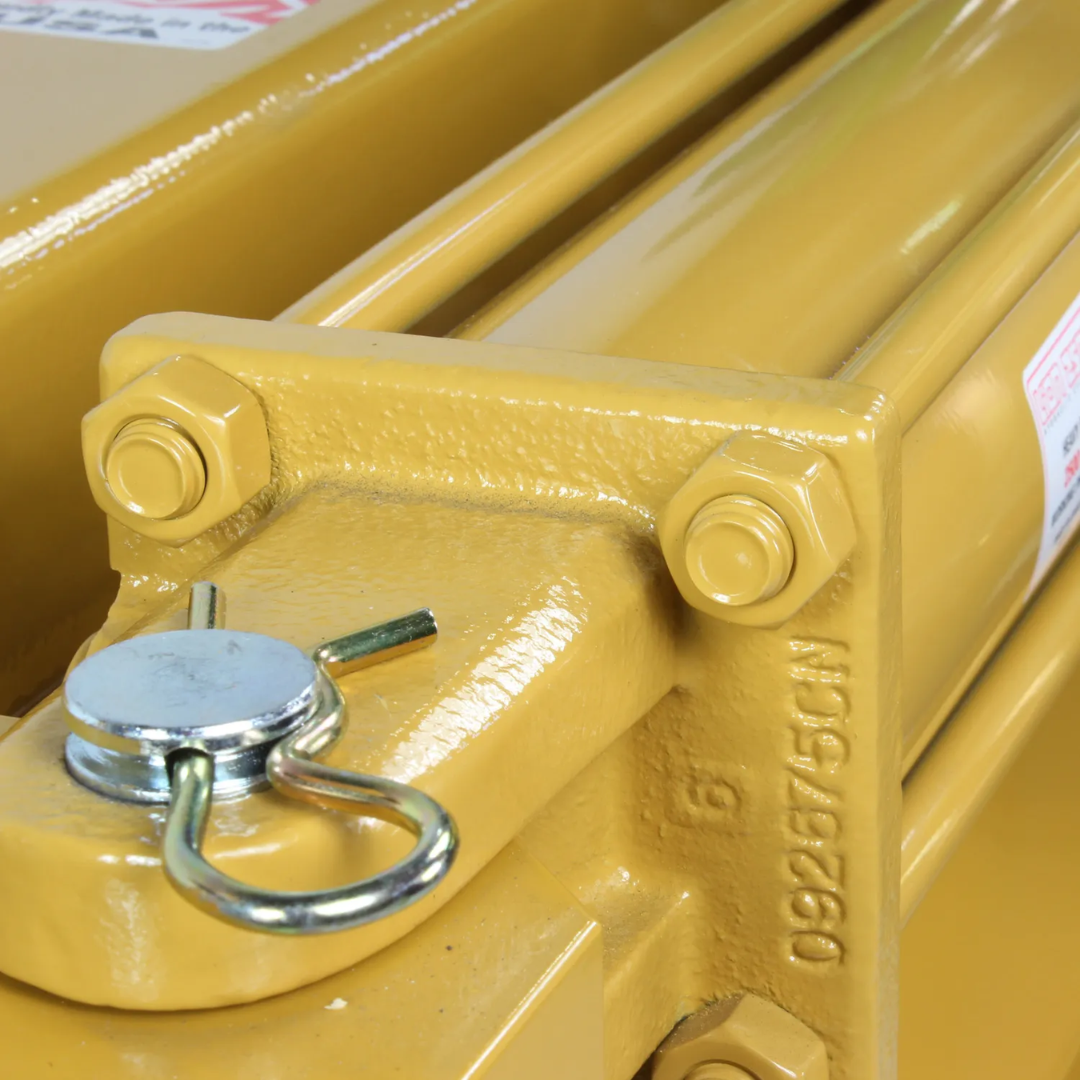

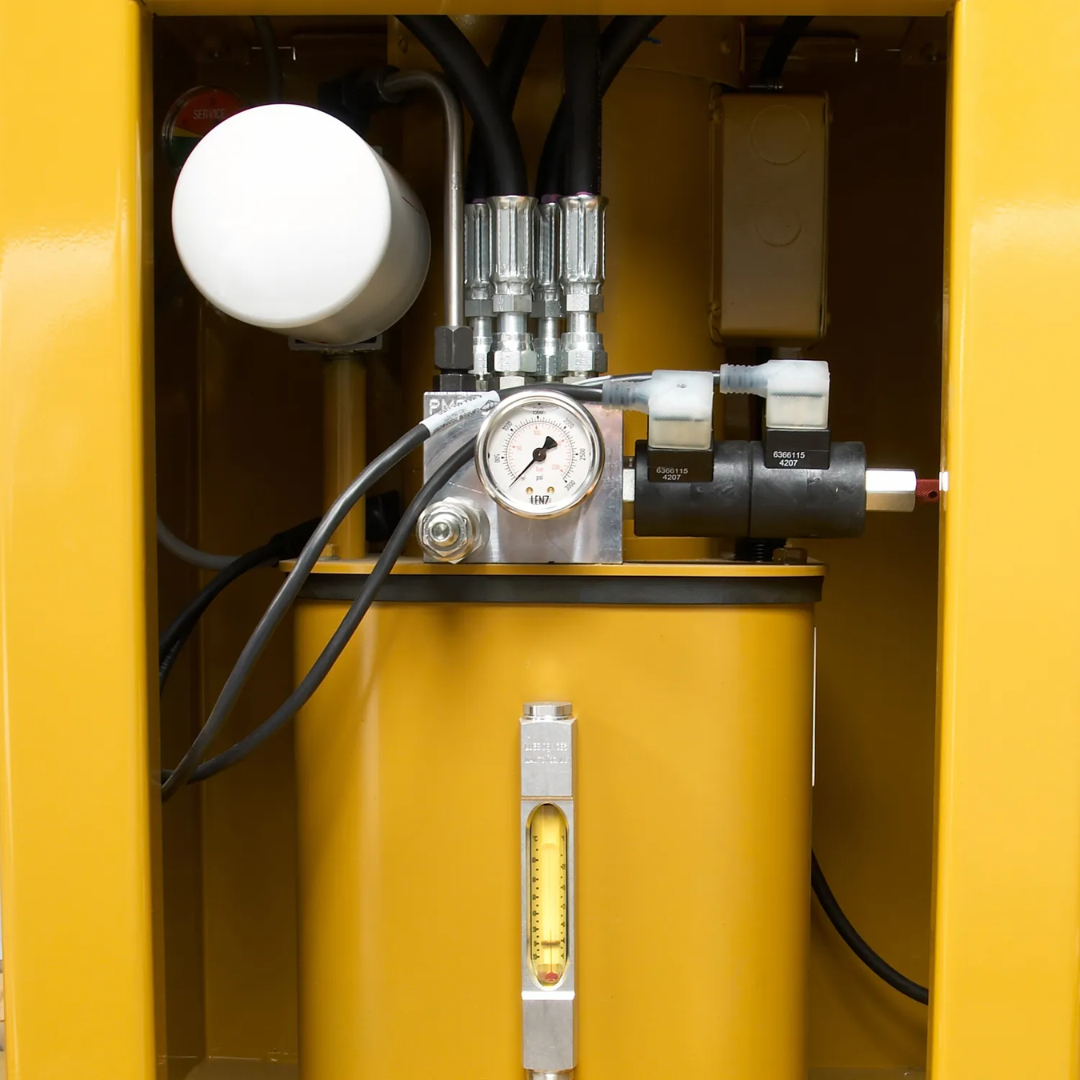

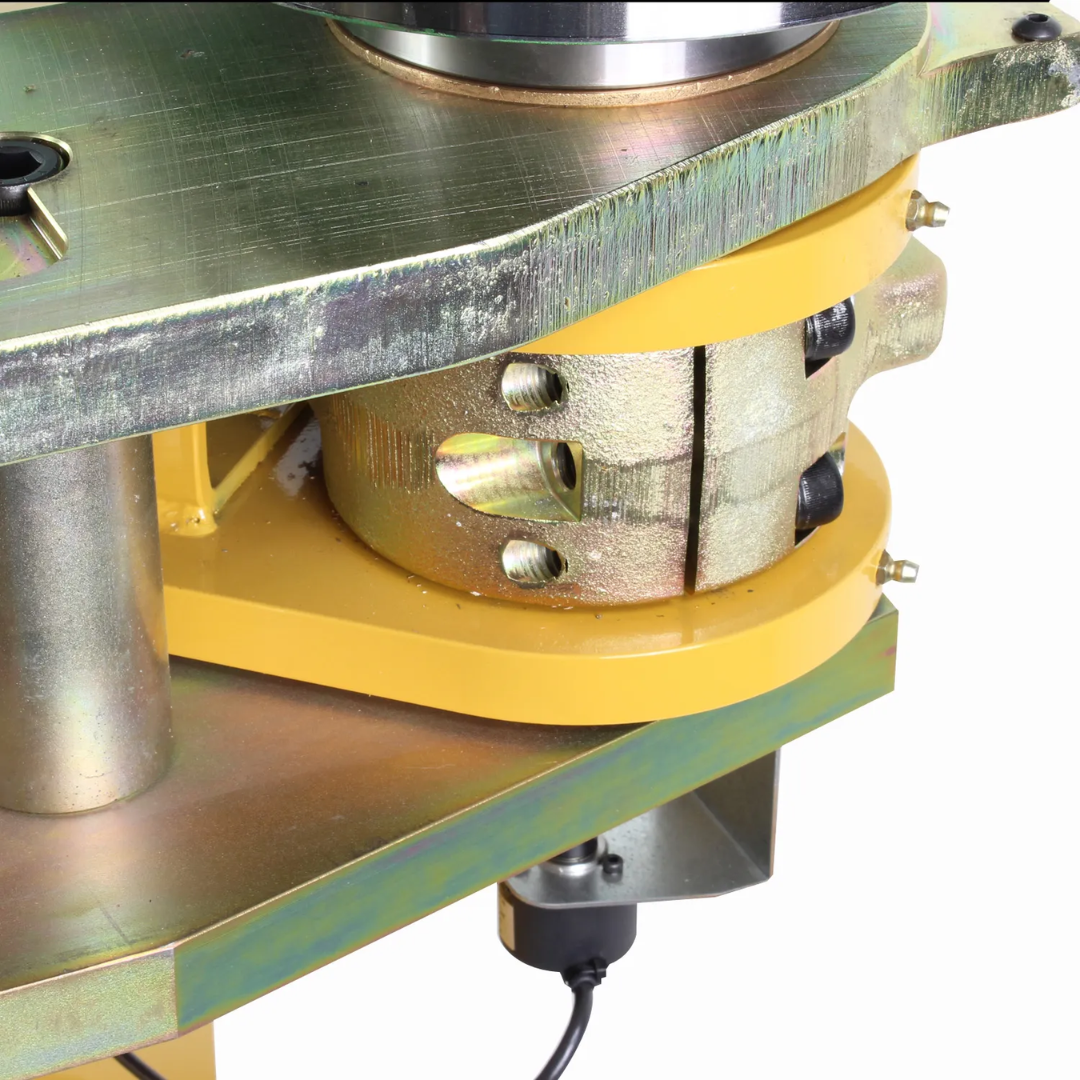

- 110V hydraulic drive system delivers powerful bending force while operating on common shop electrical service.

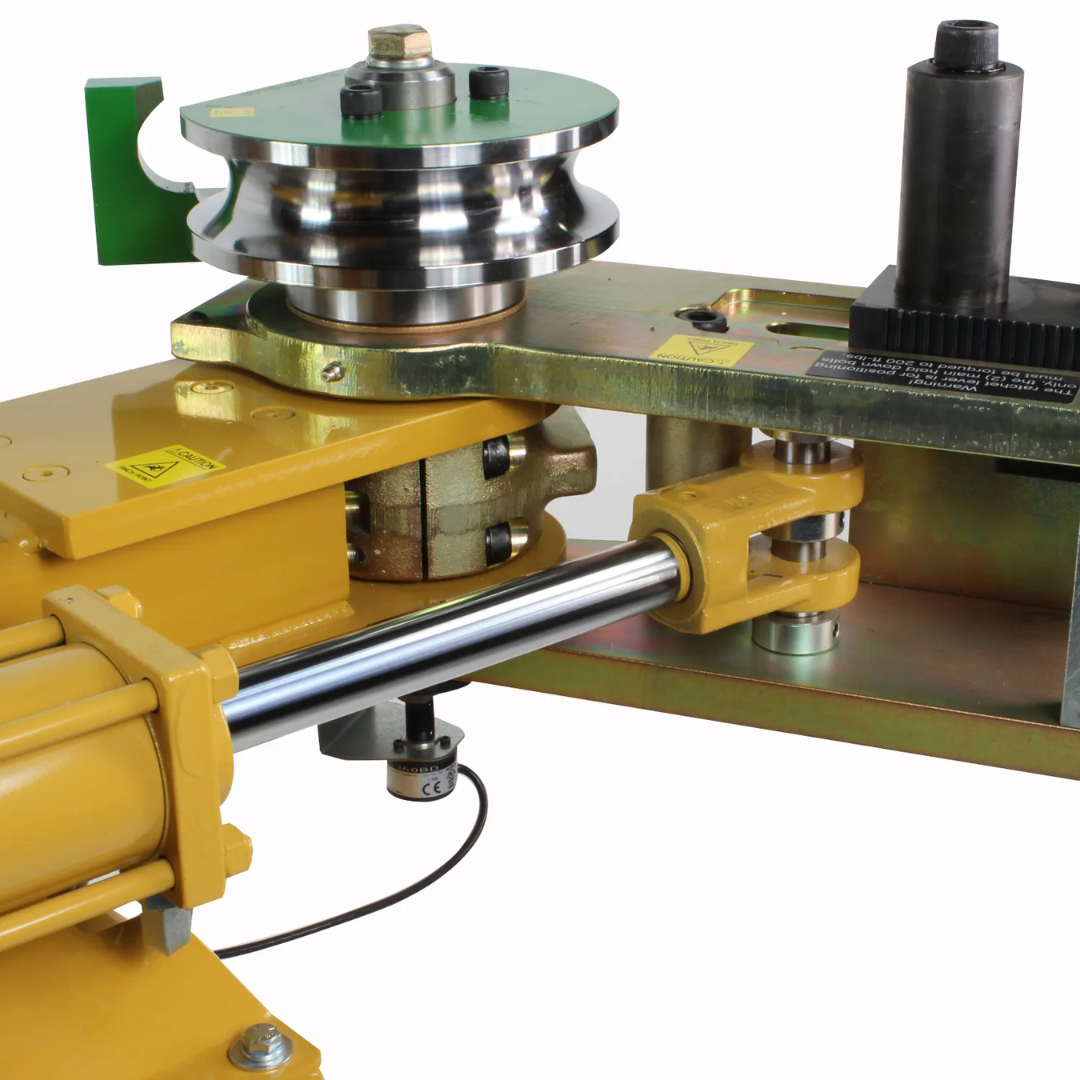

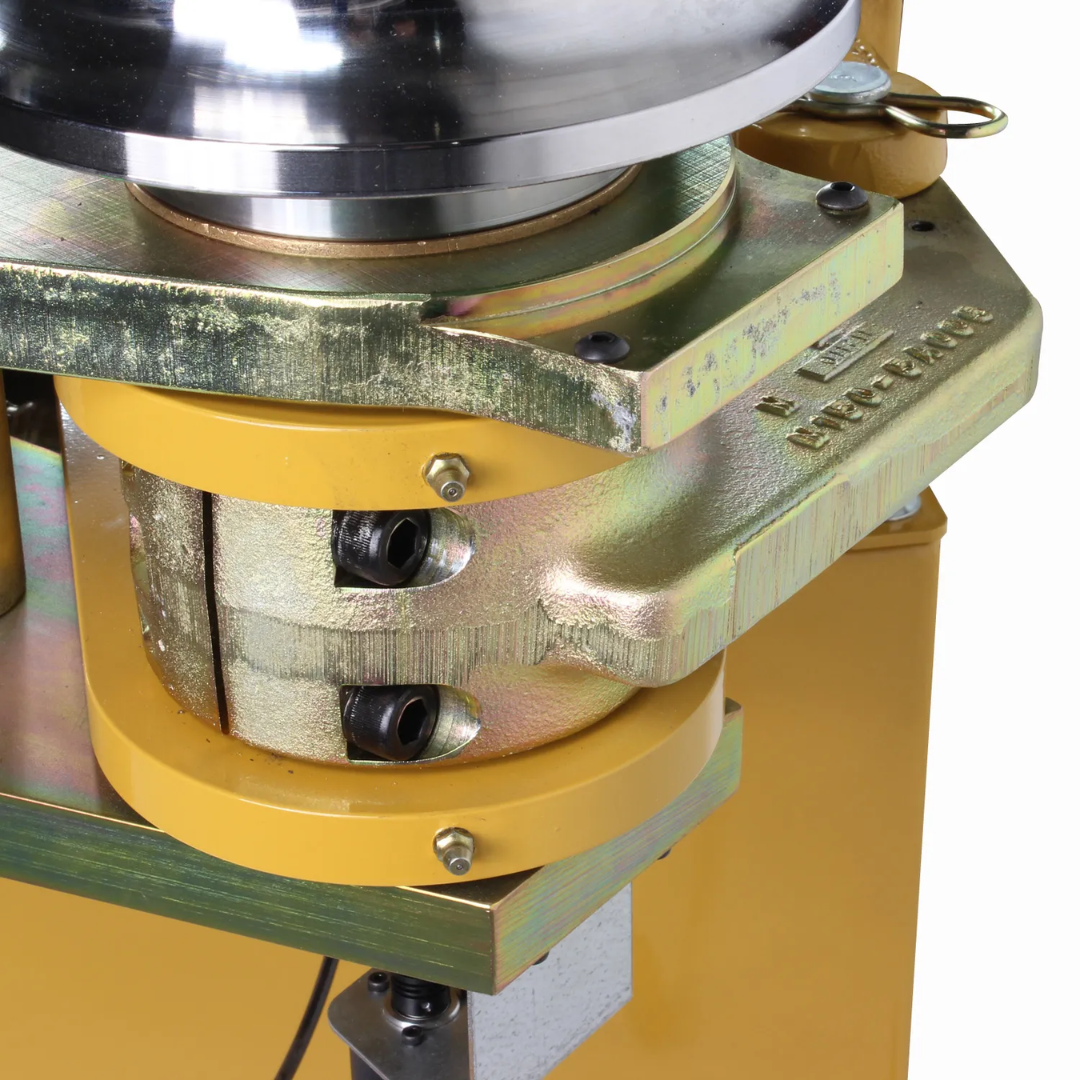

- Hydraulic rotary draw bending technology produces smooth, consistent bends with minimal material distortion.

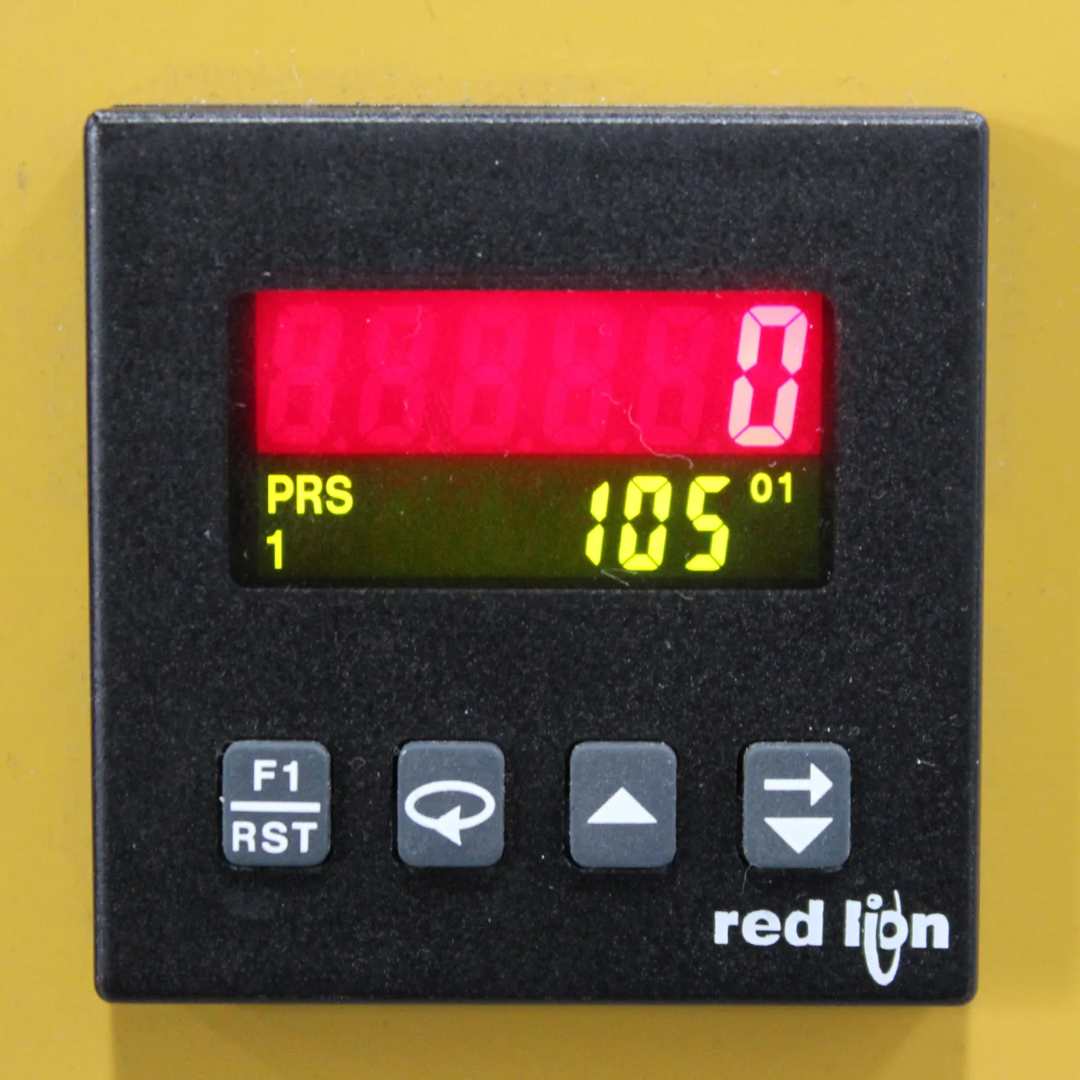

- Digital Readout (DRO) provides accurate bend angle monitoring for improved precision and repeatability.
- Programmable auto-stop feature automatically stops the machine at preset bend angles for production consistency.
- 2.5-inch OD tube capacity accommodates larger tubing commonly used in chassis, handrail, and fabrication applications.
- 2-inch Schedule 40 pipe capacity provides the strength and versatility required for industrial pipe bending projects.
- 9-inch center line radius capability supports a wide variety of bending applications and tooling setups.
- Maximum bend angle of 205° allows the creation of complex bends without repositioning material.

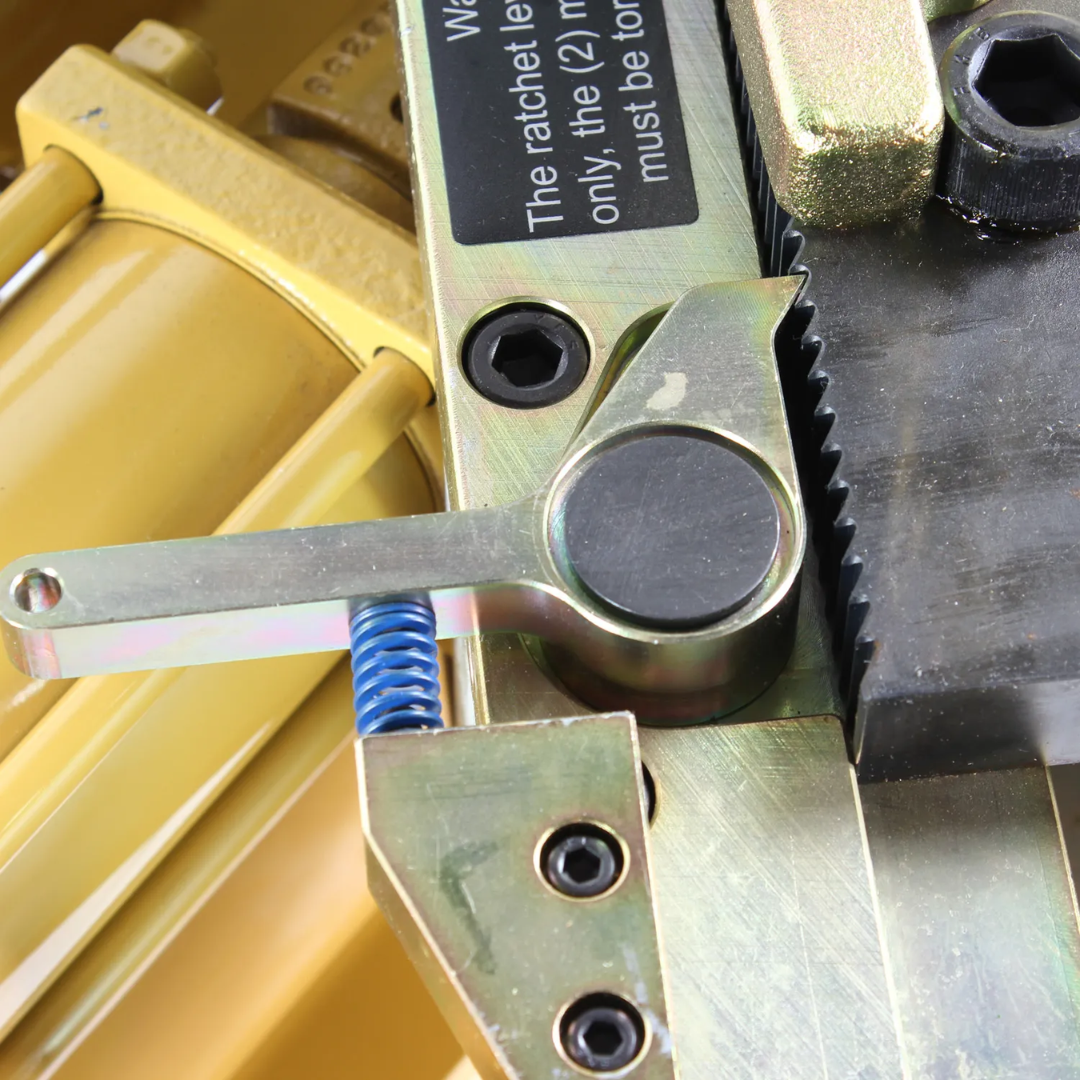

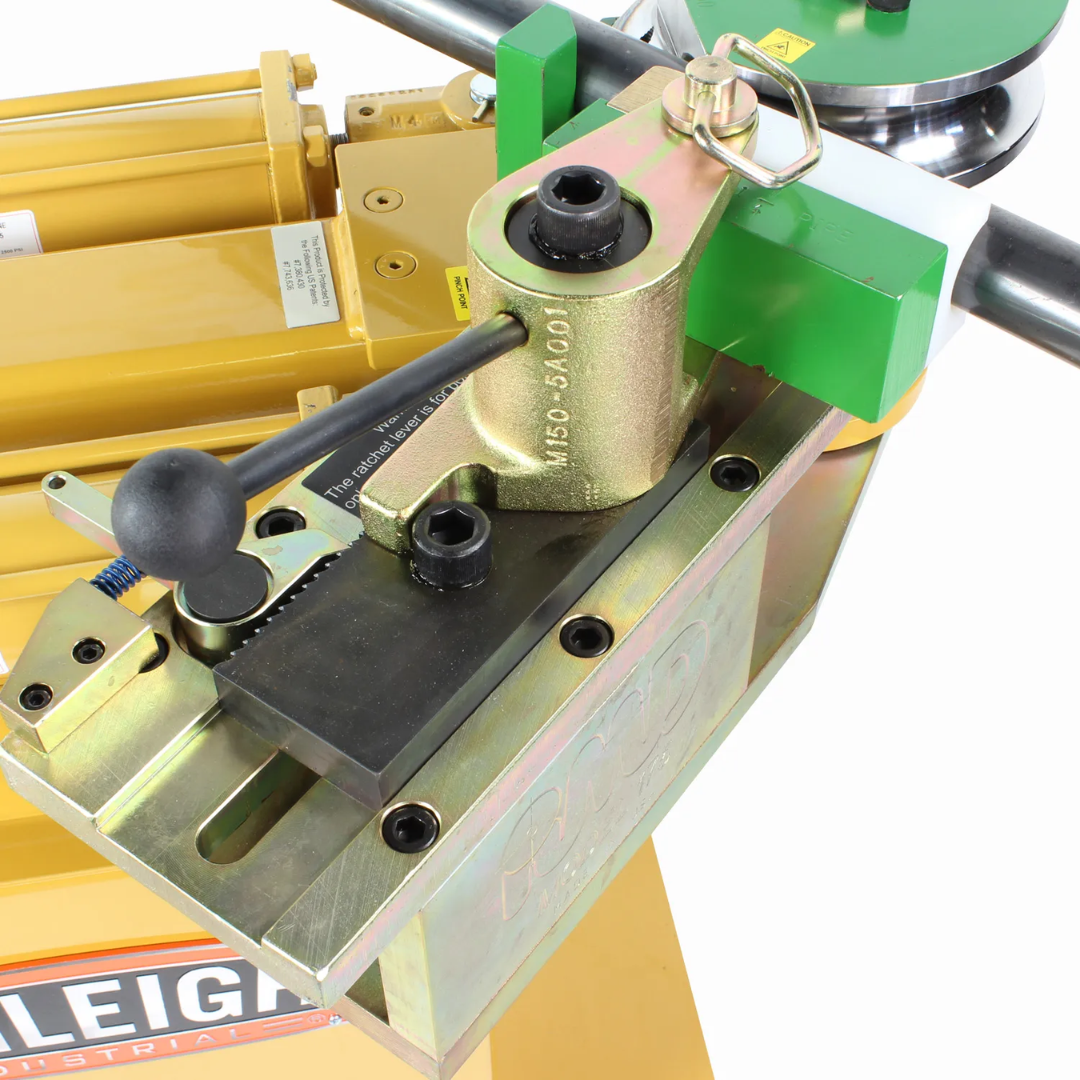

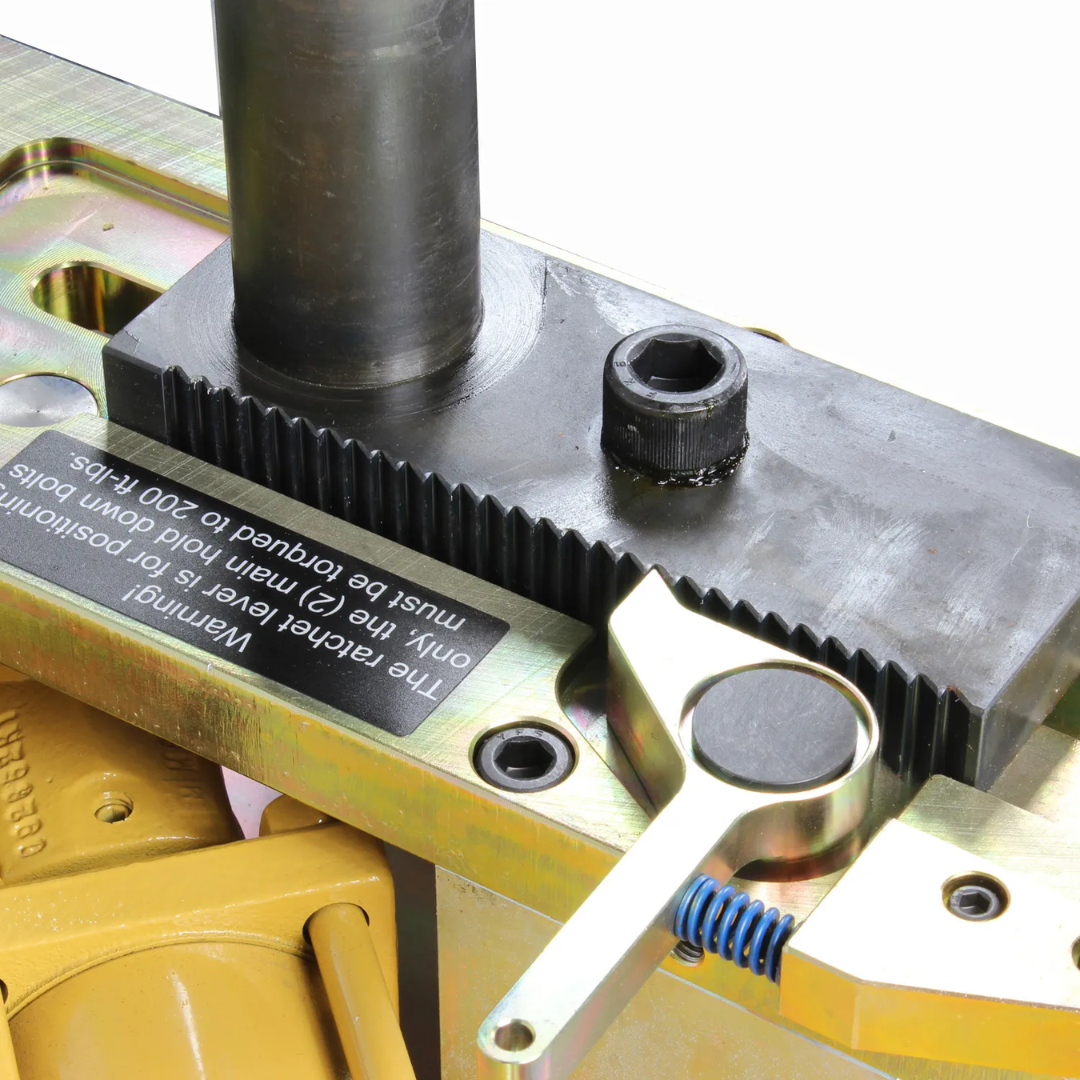

- Ratcheting counter die holder improves workflow efficiency and material control during bending operations.

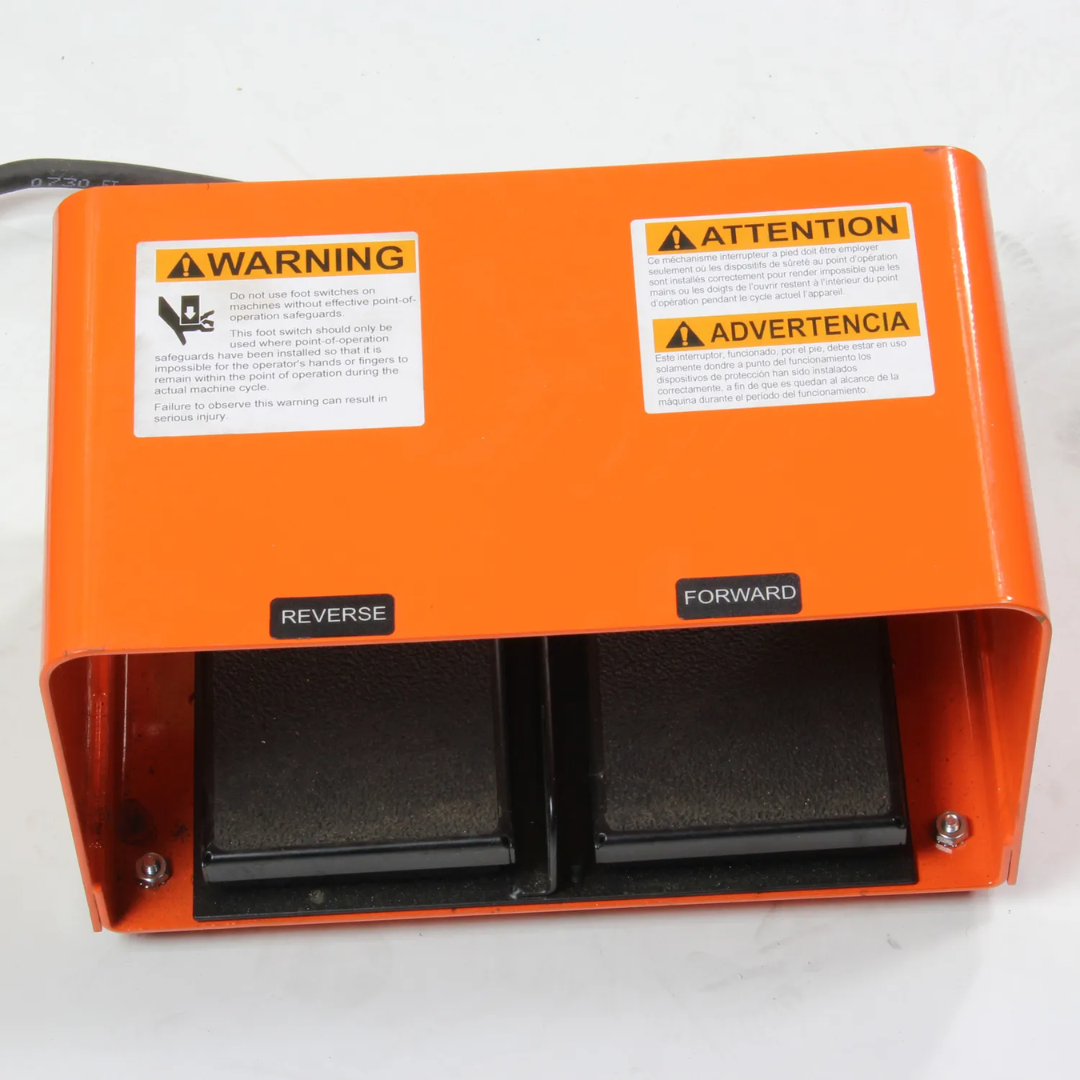

- Foot pedal controls provide hands-free operation, allowing operators to focus on material positioning.
- Heavy-duty steel frame construction withstands demanding fabrication environments and continuous operation.
- Suitable for repeat production bending where consistent angles and high-quality finished parts are essential.
- Low-effort hydraulic operation significantly reduces operator fatigue compared to manual bending systems.
- Professional-grade design built for fabrication shops, industrial manufacturers, and custom metalworking businesses.
Why Choose the Baileigh Hydraulic Rotary Draw Bender, DRO with Auto Stop (RDB-175) BA9-RDB175B
- Hydraulic power delivers smooth and accurate tube and pipe bending.
- Digital readout and programmable auto-stop ensure repeatable production results.
- Large 2.5-inch tube capacity handles demanding fabrication projects.
- Foot pedal operation improves safety, control, and productivity.
- Ratcheting counter die holder streamlines setup and operation.
- Heavy-duty construction built for industrial and professional use.
- Capable of producing bends up to 205° for complex fabrication requirements.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Hydraulic Rotary Draw Bender, DRO with Auto Stop (RDB-175) BA9-RDB175B combines hydraulic power, digital precision, and industrial durability to deliver fast, accurate, and repeatable tube and pipe bending performance for professional fabrication environments.
