Baileigh Hydraulic Radial Drill Press RD-1600H 1008486 Applications
- Heavy fabrication and structural steel manufacturing.
- Machine shops producing large fabricated components.
- Industrial maintenance and repair facilities.
- Manufacturing plants machining oversized workpieces.
- Tool and die shops requiring flexible spindle positioning.
- Equipment manufacturing and heavy machinery production.
- Large plate drilling, tapping, and precision hole machining.
- General industrial drilling where moving the workpiece is impractical.

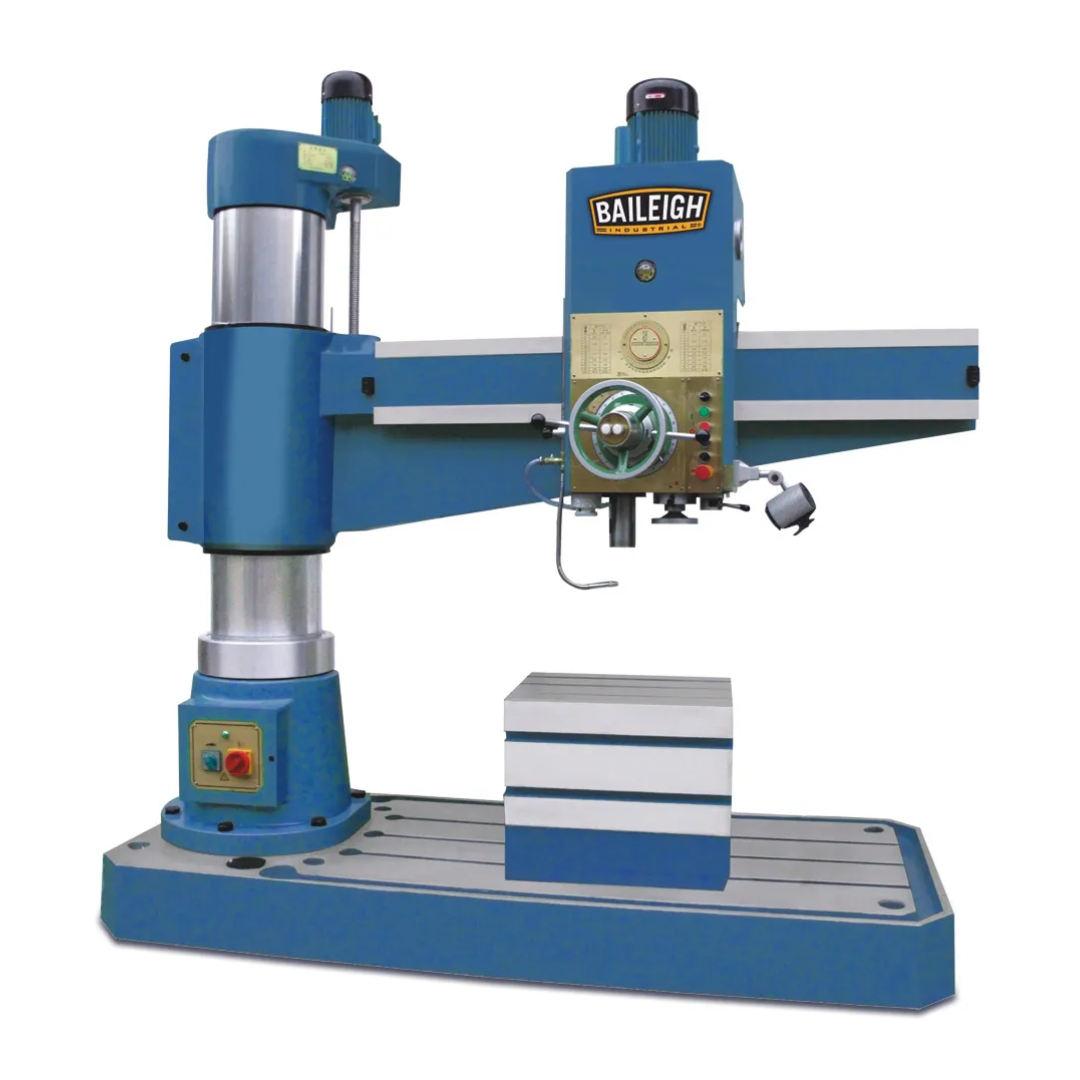

The Baileigh Hydraulic Radial Drill Press RD-1600H 1008486 is engineered for shops requiring maximum drilling reach, powerful cutting performance, and precision spindle positioning on large, heavy, or awkward workpieces.
Baileigh Hydraulic Radial Drill Press RD-1600H 1008486 Specifications
| Model | RD-1600H |
|---|---|
| Part Number | 1008486 |
| Machine Type | Hydraulic Radial Drill Press |
| Motor Power | 5.25 HP |
| Power Requirement | 220V Three-Phase |
| Maximum Drilling Capacity (Mild Steel) | 2" |
| Spindle Taper | MT5 |
| Spindle Speed Range | 38 – 2000 RPM |
| Hydraulic Feed | Hydraulic Downfeed System |
| Maximum Column Reach | 63" |
| Swing | Adjustable |
| Worktable | Heavy-Duty Box-Shape Worktable Included |
| Included Accessories | Quick Chuck, Tapping Chuck, Spindle Protection Cover, Industrial Coolant System, Work Light |
| Net Weight | 9,500 lbs. |
| Gross Weight | 9,500 lbs. |
| UPC | 731325420999 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh Hydraulic Radial Drill Press RD-1600H 1008486 Performance & Construction
- Industrial 5.25 HP motor provides exceptional drilling power for heavy-duty production, maintenance, and fabrication applications.
- 220V three-phase electrical operation delivers reliable performance for demanding industrial environments and continuous-duty operation.
- 2-inch drilling capacity in mild steel enables efficient machining of large holes in heavy structural components and fabricated assemblies.
- MT5 spindle taper accepts a wide variety of industrial drill tooling, boring heads, tapping attachments, and other precision accessories.
- Wide spindle speed range from 38 to 2000 RPM allows operators to optimize cutting speeds for various drill sizes and material types.
- Hydraulic downfeed system provides smooth, controlled spindle feed for improved surface finish, extended tooling life, and consistent drilling performance.
- Adjustable radial arm with up to 63 inches of reach allows the spindle to be positioned anywhere across oversized workpieces without relocating the material.
- Heavy cast-steel column and radial arm construction maximize rigidity while minimizing vibration during demanding drilling operations.
- Large box-style worktable provides stable support for fixtures, tooling, and oversized components during drilling and tapping operations.
- Complete accessory package includes a quick chuck, tapping chuck, spindle protection cover, industrial coolant system, and integrated work light for enhanced productivity.
- Adjustable swing configuration increases machine flexibility when working on large plates, weldments, and heavy machinery components.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support by phone for dependable long-term ownership.
Why Choose the Baileigh Hydraulic Radial Drill Press RD-1600H 1008486
- Powerful 5.25 HP motor delivers industrial drilling performance.
- Hydraulic downfeed ensures smooth, consistent drilling and tapping operations.
- 2-inch drilling capacity easily handles demanding heavy-duty applications.
- MT5 spindle accepts a wide range of professional tooling.
- Wide 38–2000 RPM spindle speed range supports numerous machining operations.
- Adjustable radial arm with 63-inch reach simplifies machining oversized workpieces.
- Heavy-duty cast construction provides exceptional rigidity and long-term durability.
- Includes quick chuck, tapping chuck, coolant system, work light, and spindle protection cover.
- Ideal for fabrication shops, manufacturers, maintenance facilities, and heavy industrial machining.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Hydraulic Radial Drill Press RD-1600H 1008486 combines industrial-strength construction, hydraulic precision, large-capacity drilling performance, and exceptional spindle reach into a premium radial drilling solution built for the most demanding fabrication and production environments.
