Baileigh Hydraulic Press HSP-66M-HD 1012402 Applications
- Pressing and removing bearings, bushings, sleeves, and gears.
- Straightening shafts, structural members, brackets, and fabricated components.
- Heavy-duty metal forming and fabrication operations.
- Industrial assembly and disassembly procedures.
- Maintenance and repair shop applications.
- Manufacturing and production support operations.
- Equipment rebuilding and refurbishment projects.
- Custom fabrication and component modification work.
The Baileigh Hydraulic Press HSP-66M-HD 1012402 is ideal for facilities that require industrial pressing force, precise hydraulic control, and a durable frame capable of handling demanding workloads day after day.
Baileigh Hydraulic Press HSP-66M-HD 1012402 Specifications
| Manufacturer | Baileigh Industrial |
|---|---|
| Model | HSP-66M-HD |
| Product Number | 1012402 |
| Product Type | Hydraulic H-Frame Press |
| Hydraulic Capacity | 66 Tons |
| Working Width | 40.94 in. |
| Stroke Length | 9.85 in. |
| Maximum Stroke Length (Specification) | 10 in. |
| Power Requirement | 220V Three Phase |
| Motor Power | 5.3 HP |
| Motor Speed | 3000 RPM |
| Hydraulic Operation | Dual-Speed Electric Hydraulic System |
| Ram Configuration | Movable Ram Head |
| Control Method | Foot Pedal Operation |
| Frame Construction | Fully Welded Heavy-Gauge Steel |
| Gross Weight | 2360 lbs. |
| Net Weight | 2360 lbs. |
| UPC | 19907687054 |
| Warranty | 1 Year |
Baileigh Hydraulic Press HSP-66M-HD 1012402 Performance & Construction
- 66-ton hydraulic pressing capacity provides substantial force for heavy-duty industrial applications.

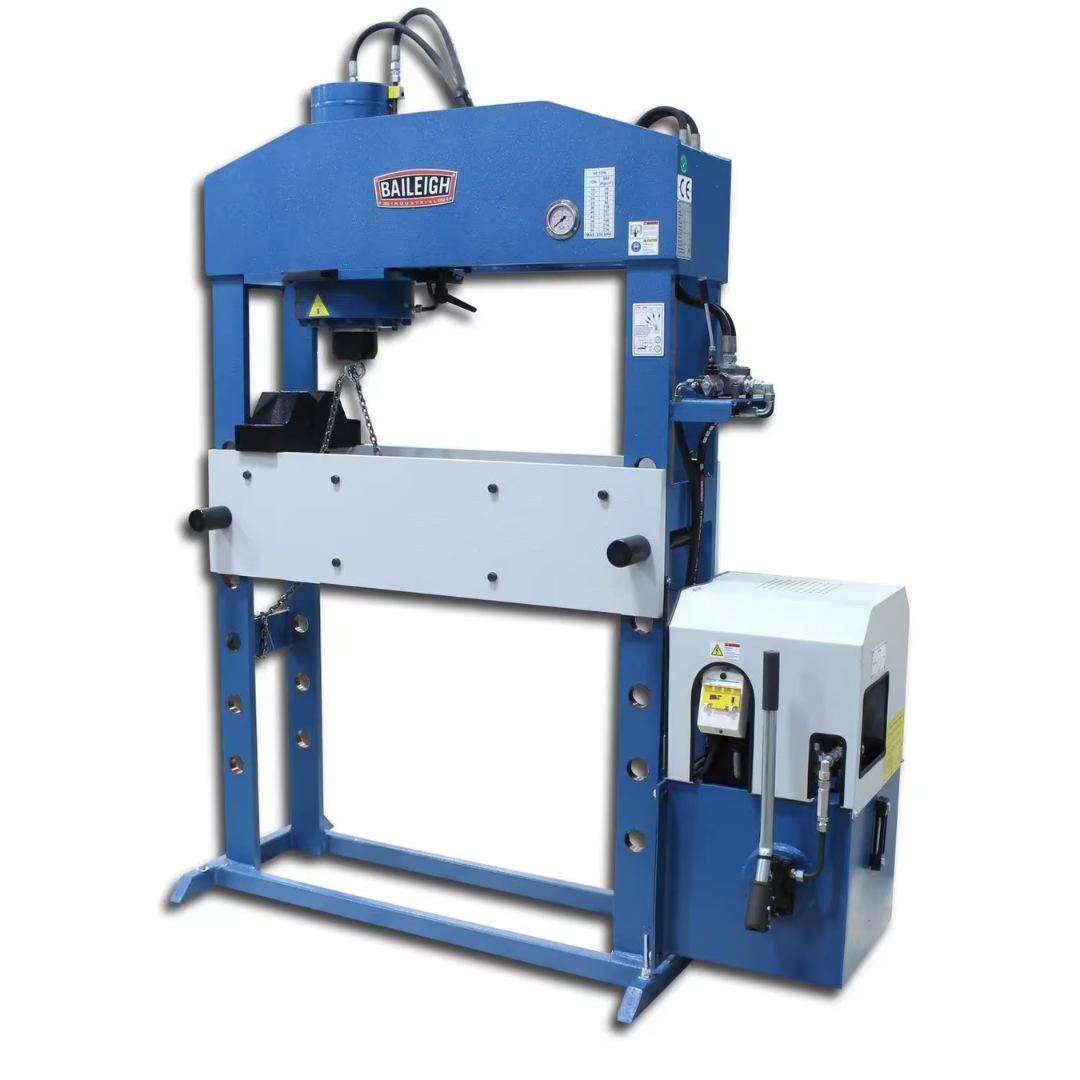

- Fully welded heavy-gauge steel H-frame delivers outstanding rigidity and minimizes deflection under load.
- 40.94-inch working width accommodates larger parts and increases application versatility.
- 9.85-inch hydraulic stroke allows deep pressing operations and greater working flexibility.
- Powerful 5.3 HP hydraulic motor delivers dependable force and continuous-duty performance.
- 220V three-phase electrical system supports industrial shop installations and reliable operation.

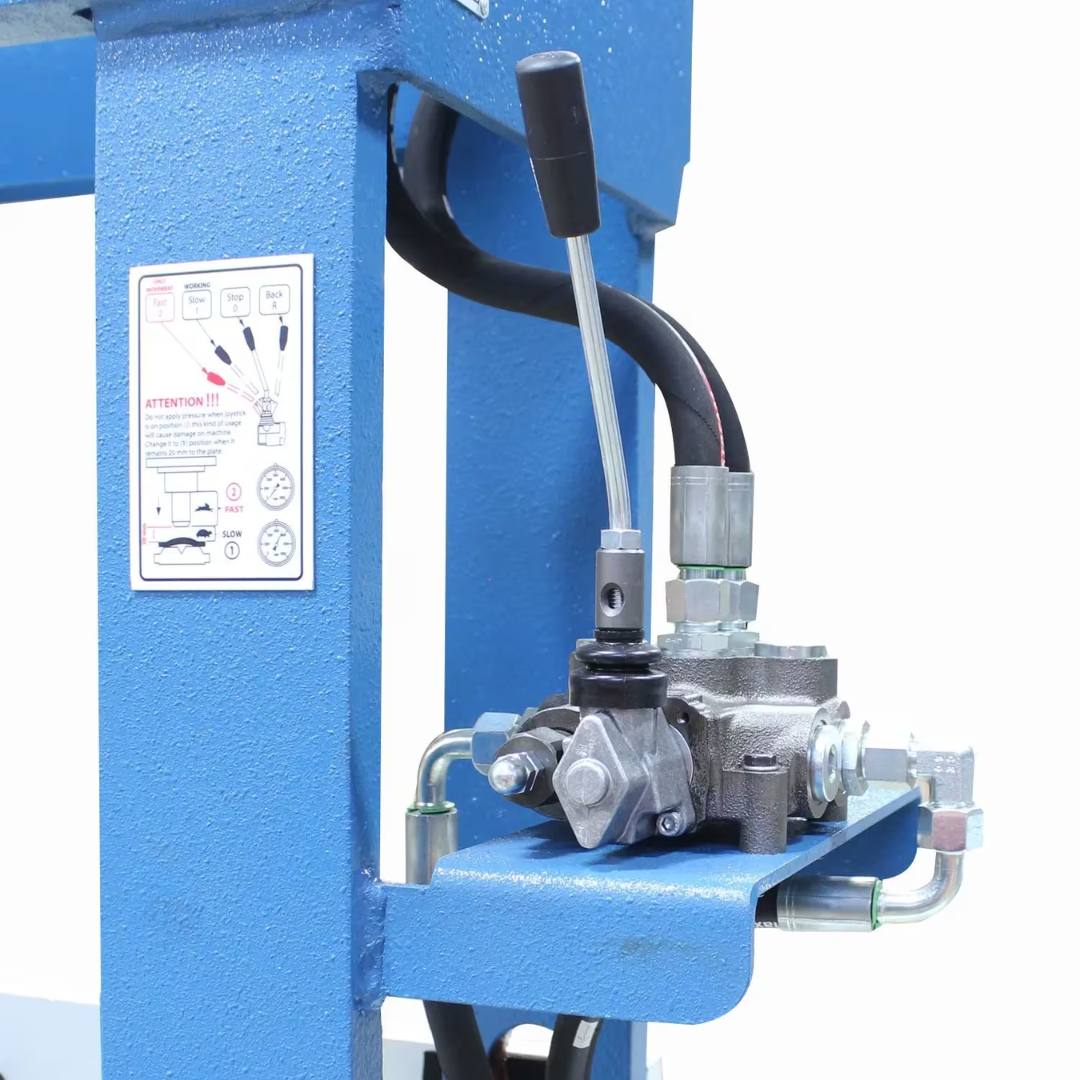

- Dual-speed hydraulic operation combines rapid approach speed with controlled pressing speed for improved efficiency.

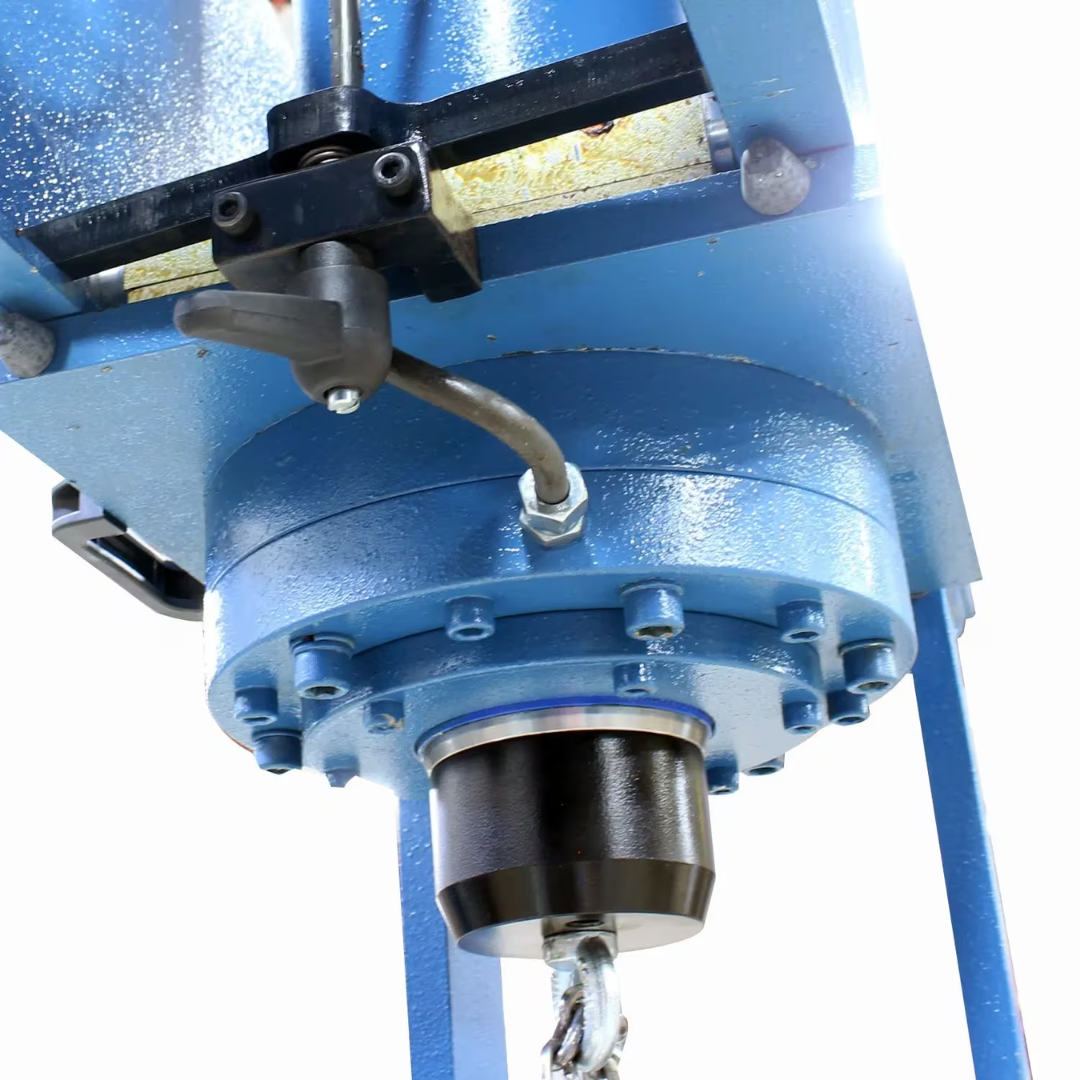

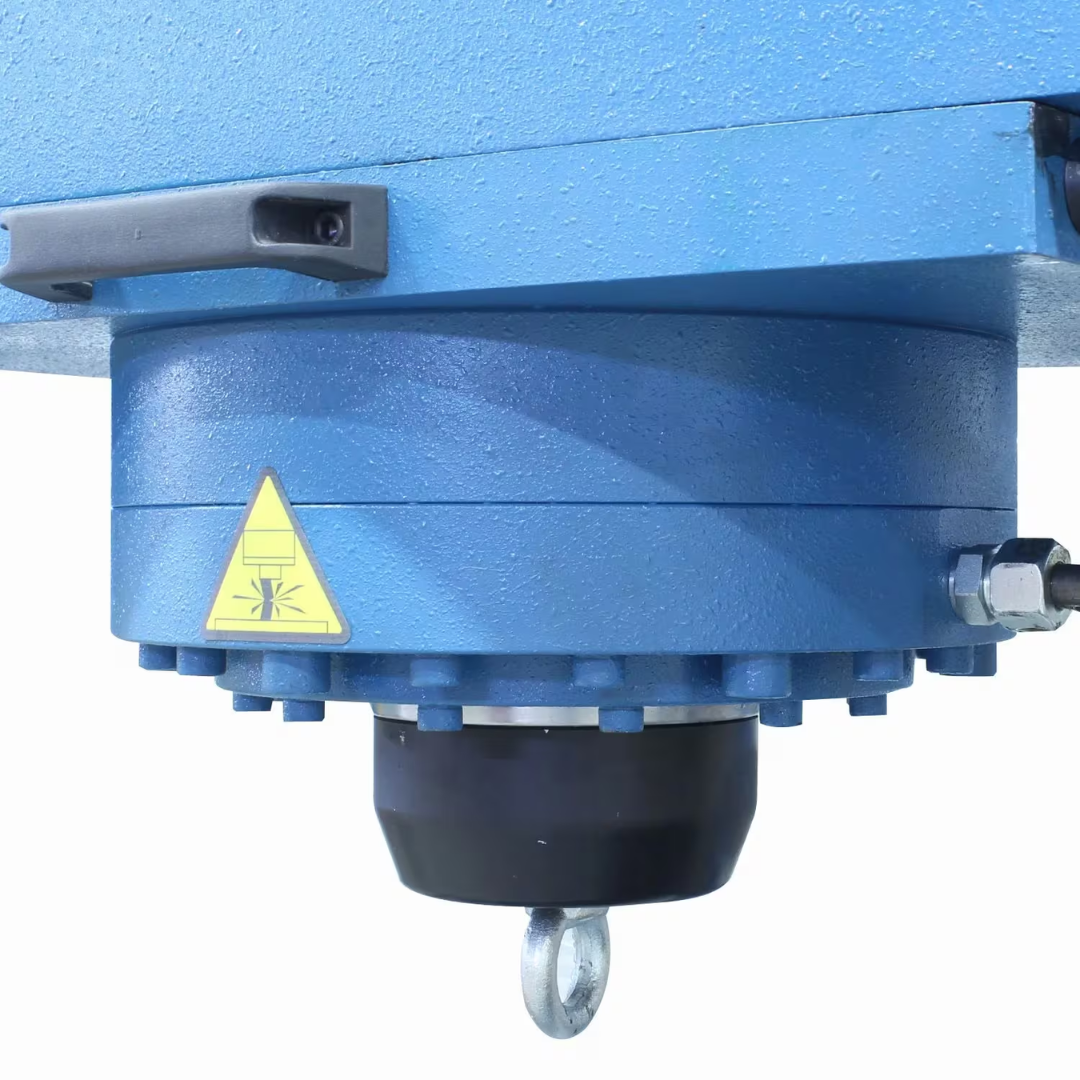

- Movable ram head enables off-center pressing and more flexible workpiece positioning.

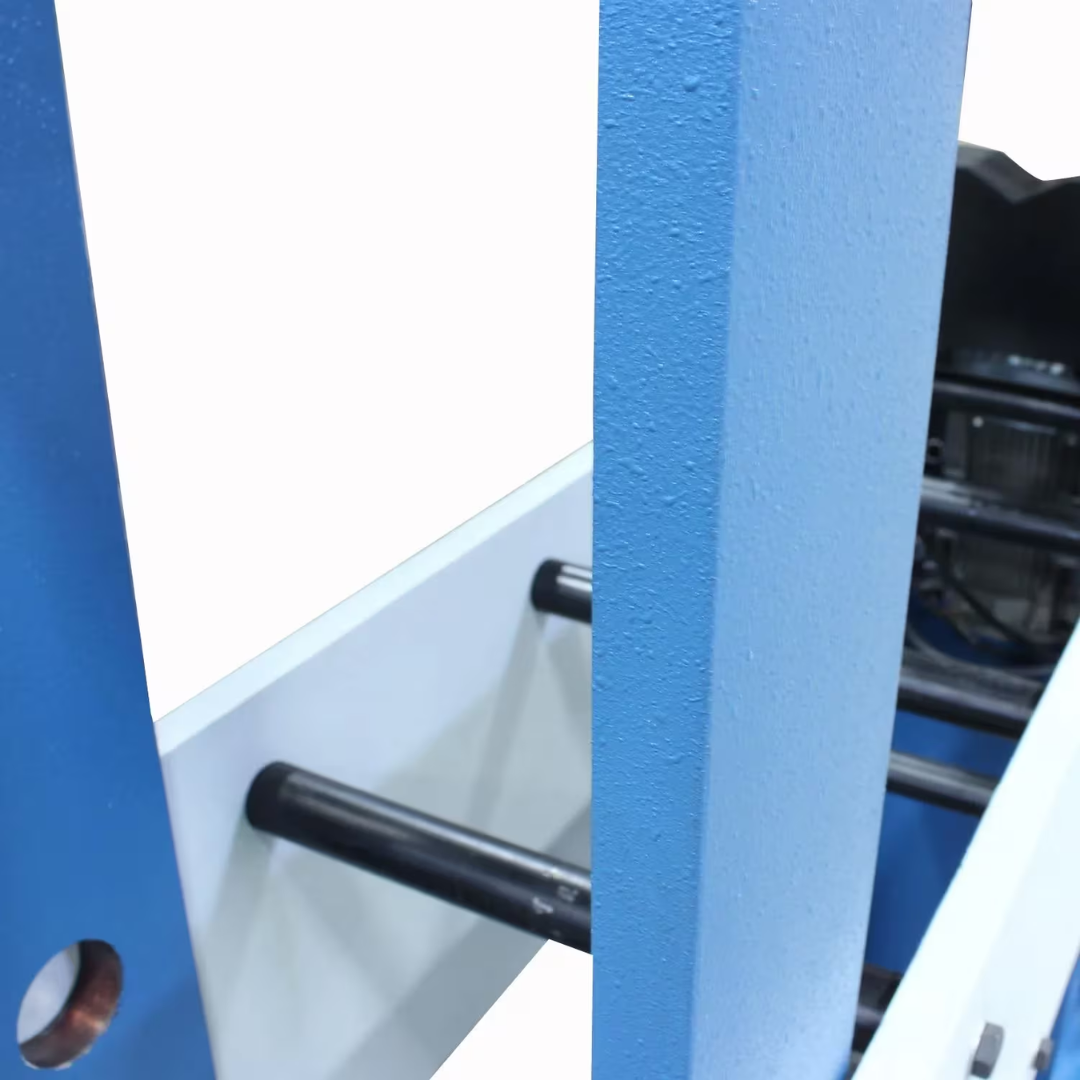

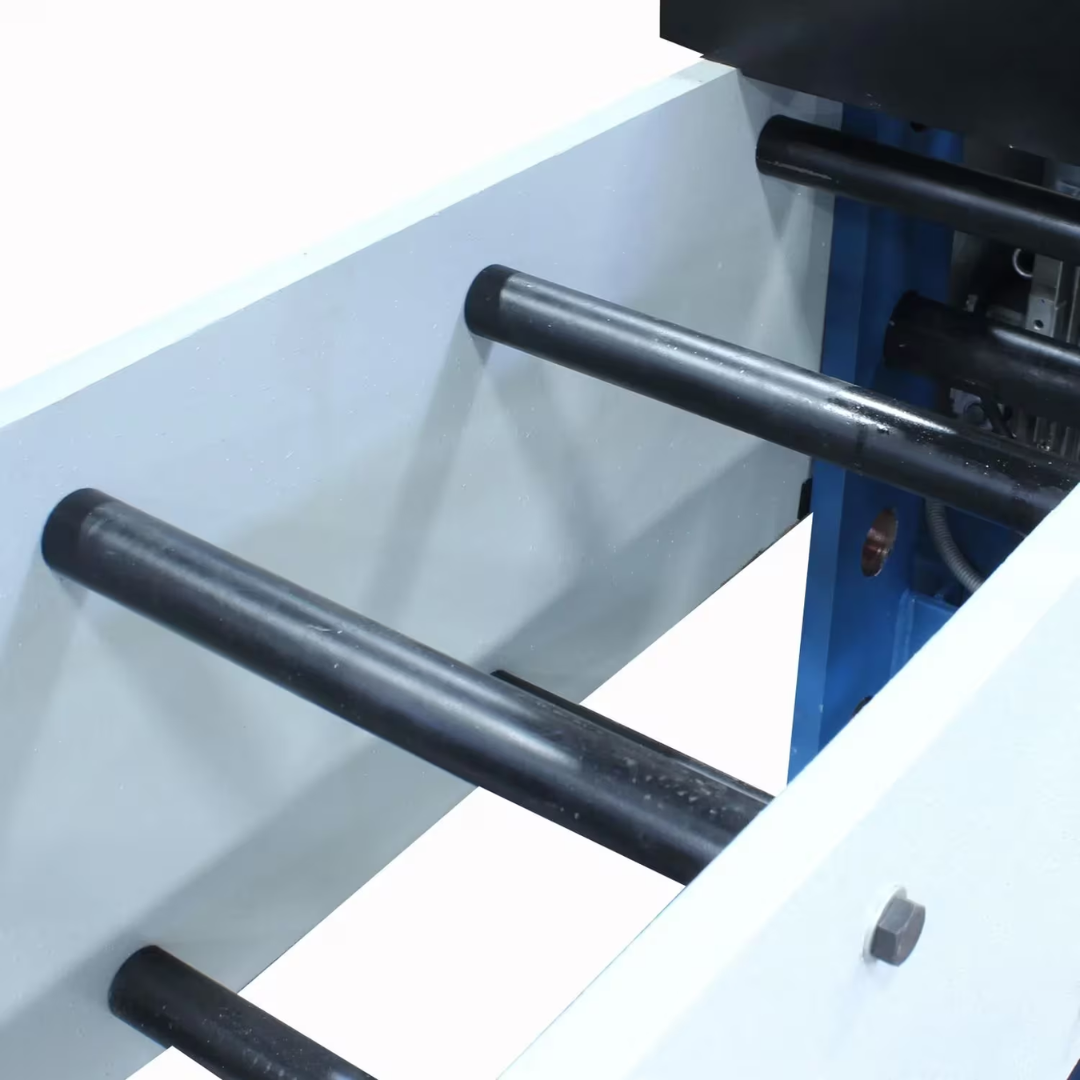

- Adjustable work table easily adapts to varying component sizes and setup requirements.
- Foot pedal controls allow hands-free operation and improve operator safety and productivity.
- Integrated hydraulic pressure gauge provides accurate force monitoring during pressing operations.
- Industrial-grade hydraulic system delivers smooth, repeatable, and consistent performance.
- Heavy-duty frame construction designed for demanding fabrication, maintenance, and production environments.
- Professional shop design engineered for long-term durability and dependable daily use.
Why Choose the Baileigh Hydraulic Press HSP-66M-HD 1012402
- Industrial 66-ton hydraulic capacity for demanding applications.
- Heavy-gauge welded steel frame maximizes stability and accuracy.
- Dual-speed hydraulic operation improves efficiency and control.
- Movable ram head supports off-center pressing tasks.
- Large 40.94-inch working width accommodates oversized components.
- Foot pedal controls enhance operator convenience and safety.
- Adjustable work table increases flexibility for diverse projects.
- Built for fabrication shops, maintenance facilities, and industrial manufacturers.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Hydraulic Press HSP-66M-HD 1012402 combines 66 tons of hydraulic force, dual-speed operation, and rugged welded steel construction into a versatile industrial press designed for demanding fabrication, maintenance, repair, and manufacturing applications. Its adjustable work area, movable ram head, and precision hydraulic controls provide the performance and flexibility required for professional metalworking environments.
