Baileigh Hydraulic Press HSP-30M 1012401 Applications
- Pressing bearings, bushings, sleeves, and gears.
- Straightening bent shafts, brackets, and fabricated components.
- Automotive repair and drivetrain service operations.
- Metal forming and fabrication applications.
- Assembly and disassembly of mechanical components.
- Maintenance and repair shop operations.
- Industrial manufacturing and production support tasks.
- Custom fabrication and equipment rebuilding projects.
The Baileigh Hydraulic Press HSP-30M 1012401 provides the force, flexibility, and durability required for professional shops that routinely perform pressing, forming, and repair operations.
Baileigh Hydraulic Press HSP-30M 1012401 Specifications
| Manufacturer | Baileigh Industrial |
|---|---|
| Model | HSP-30M |
| Product Number | 1012401 |
| Product Type | Hydraulic H-Frame Press |
| Hydraulic Capacity | 30 Tons |
| Working Width | 27.5 in. |
| Cylinder Stroke | 9.8 in. |
| Stroke Length | 10 in. |
| Cylinder Diameter | 5.74 in. |
| Distance from Table to Ram | 9.84 in. – 41.34 in. |
| Power Requirement | 220V Single Phase |
| Motor Power | 3 HP |
| Cylinder Configuration | Movable Left/Right Hydraulic Cylinder |
| Accessories Included | 2-Piece V-Block and Pressure Gauge |
| Gross Weight | 1060 lbs. |
| Net Weight | 1060 lbs. |
| UPC | 19907703006 |
| Warranty | 1 Year |
Baileigh Hydraulic Press HSP-30M 1012401 Performance & Construction
- 30-ton hydraulic pressing capacity provides ample force for fabrication, repair, and industrial pressing applications.

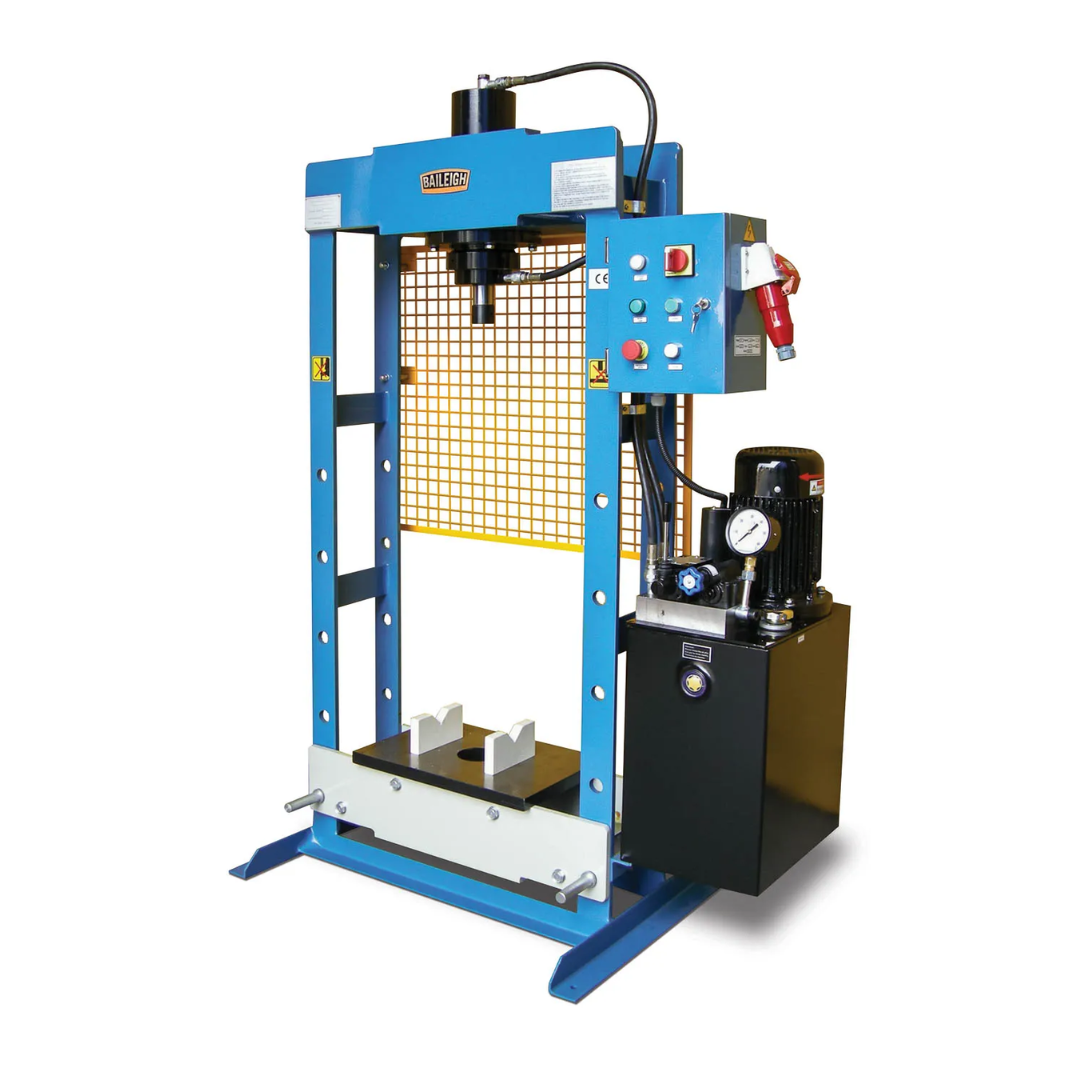

- Heavy-duty welded steel H-frame delivers exceptional rigidity and long-term structural durability.
- 27.5-inch working width accommodates a wide variety of workpieces and fabrication projects.
- 9.8-inch hydraulic cylinder stroke allows greater operational flexibility for deep pressing applications.
- Powerful 3 HP motor supplies reliable hydraulic performance for demanding shop environments.
- 220V single-phase electrical operation simplifies installation while delivering industrial-grade performance.

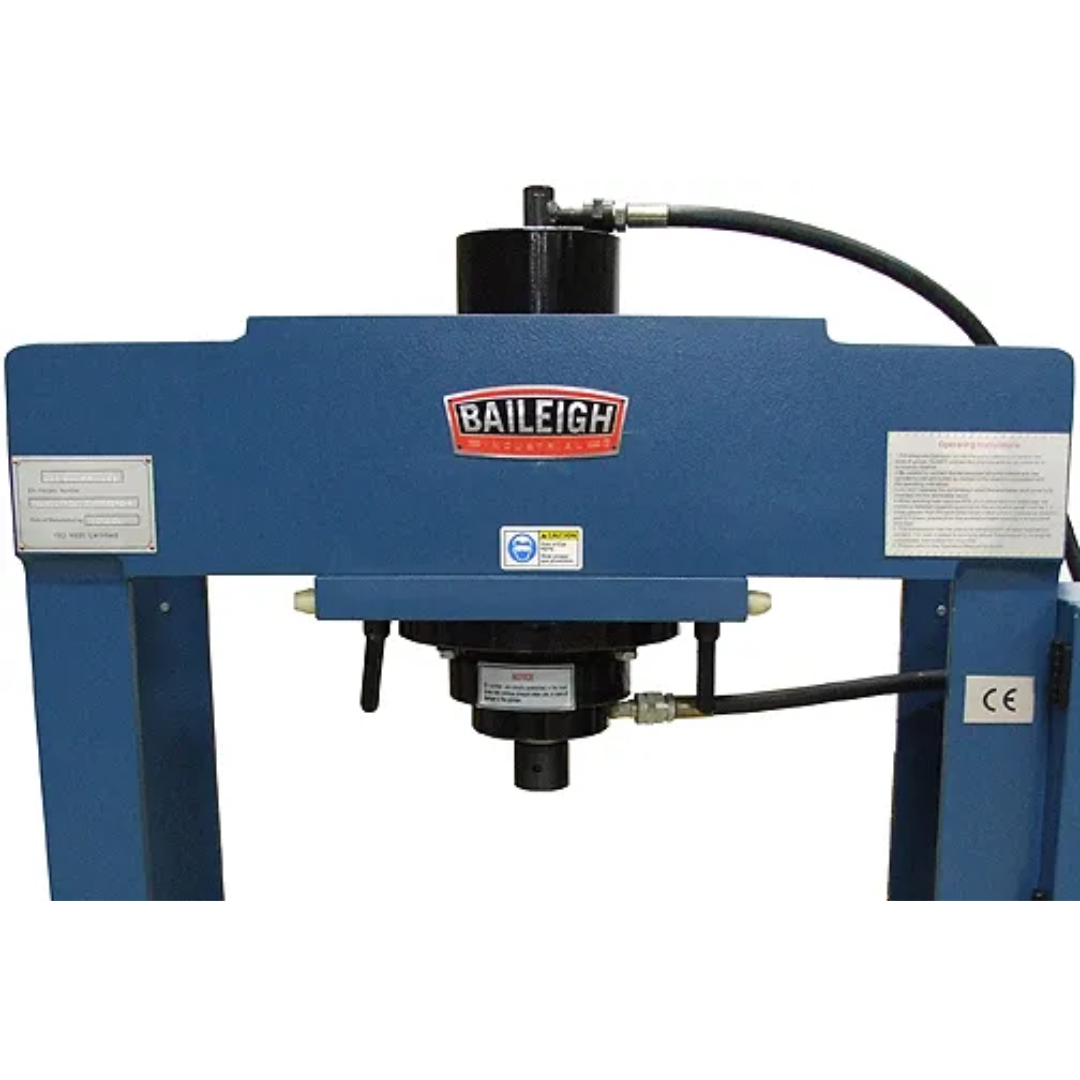

- Movable hydraulic cylinder enables left-to-right positioning for off-center pressing and increased versatility.
- 5.74-inch diameter hydraulic cylinder delivers consistent force throughout the pressing cycle.
- Adjustable working height range from 9.84 inches to 41.34 inches accommodates a wide variety of component sizes.
- Integrated pressure gauge provides accurate monitoring of hydraulic force during operation.
- Included 2-piece V-block set assists with positioning round stock, shafts, and cylindrical components.
- Industrial hydraulic system delivers smooth, repeatable, and controlled pressing performance.
- Professional-grade construction engineered for continuous use in fabrication and maintenance facilities.
Why Choose the Baileigh Hydraulic Press HSP-30M 1012401
- Industrial 30-ton hydraulic capacity for versatile pressing applications.
- Movable cylinder design improves flexibility for off-center work.
- Heavy-duty welded steel frame maximizes strength and stability.
- Wide 27.5-inch opening accommodates numerous workpiece sizes.
- Adjustable work area supports diverse fabrication and repair tasks.
- Includes pressure gauge and V-block accessories as standard equipment.
- Powered by a dependable 3 HP hydraulic system.
- Ideal for fabrication shops, maintenance departments, and automotive facilities.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Hydraulic Press HSP-30M 1012401 combines 30 tons of hydraulic force, rugged welded steel construction, and flexible movable-cylinder operation into a dependable shop press built for professional fabrication, maintenance, assembly, and repair applications. Its durable design and versatile work area make it an essential machine for demanding industrial environments.
