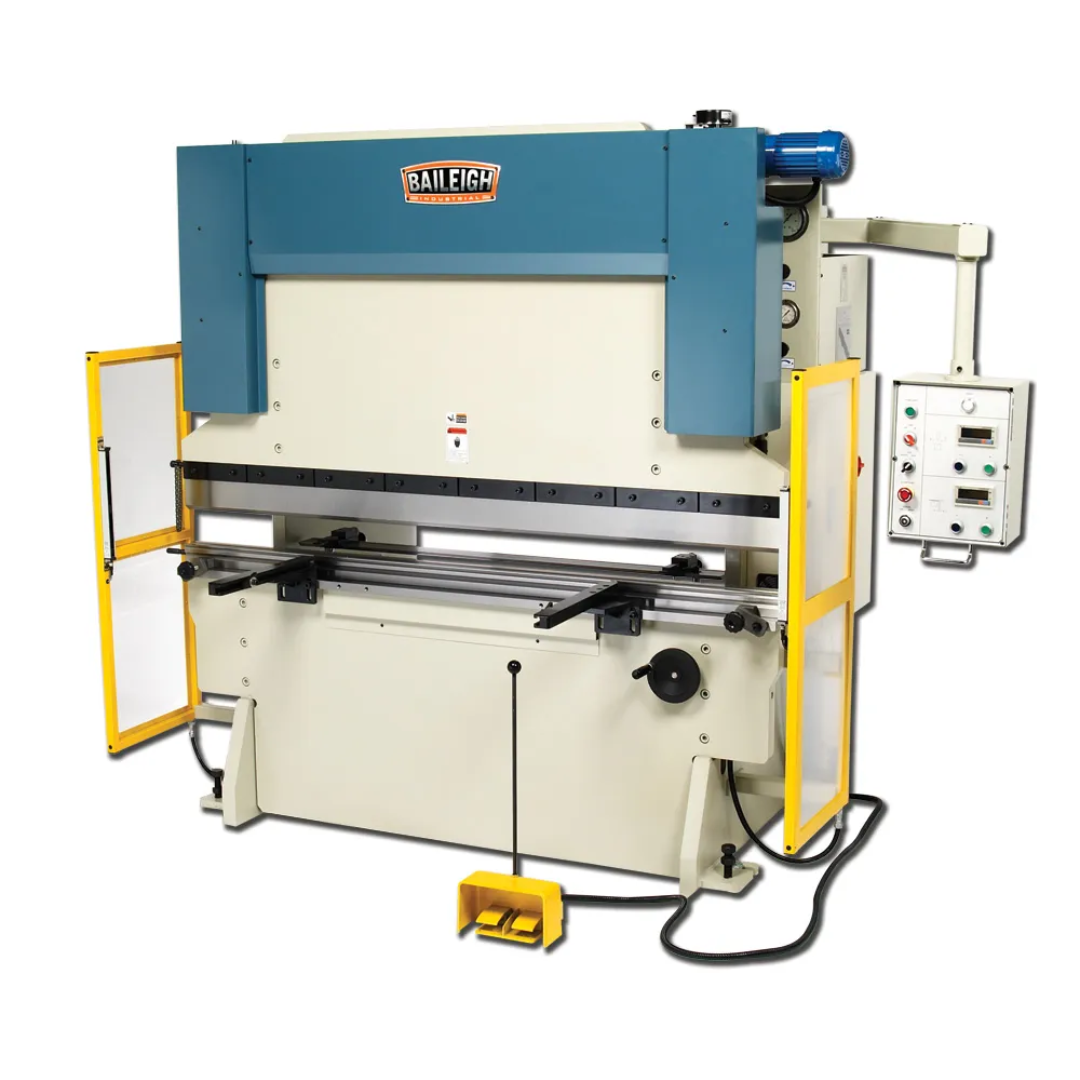

Baileigh Hydraulic Press Brake BP-9078NC 1000839 Applications
- Industrial sheet metal fabrication
- Production bending of steel, stainless steel, and aluminum components
- HVAC duct and enclosure manufacturing
- Electrical cabinet and control box fabrication
- Agricultural and construction equipment components
- Custom metal fabrication and prototype development
- Maintenance and repair shop forming operations
- Architectural metalworking and structural fabrication
- Medium- to high-volume manufacturing environments
Designed for fabricators requiring a combination of heavy-duty bending power, repeatable accuracy, and user-friendly hydraulic controls.
Baileigh Hydraulic Press Brake BP-9078NC 1000839 Specifications
| Model Number | BP-9078NC |
|---|---|
| Product Number | 1000839 |
| Bending Capacity | 90 Tons |
| Bending Width | 78" |
| Main Motor | 10 HP |
| Input Power | 220V, Three Phase |
| Back Gauge Motor | 1/2 HP |
| Approach Speed | 3.14 in./sec. |
| Stroke Length | 5.9" |
| Distance from Table to Ram | 11.81" |
| Throat Depth | 7.75" |
| Maximum Bend Angle | 135° |
| Control System | Encoder-Controlled Hydraulic System |
| Back Gauge | Motorized with Ball Screw & DRO |
| Operating Modes | Jog, Manual, Automatic |
| Gross Weight | 8,800 lbs. |
| Net Weight | 8,800 lbs. |
| UPC | 731325394634 |
| Warranty | 1 Year Parts Warranty |
Baileigh Hydraulic Press Brake BP-9078NC 1000839 Performance & Construction
- 90 tons of hydraulic bending force provides the power required for demanding sheet metal forming applications in industrial and fabrication environments.
- 78-inch working width accommodates larger panels, long bends, and oversized fabrication projects while maintaining excellent accuracy.
- 10 HP industrial motor delivers dependable hydraulic performance and smooth operation throughout production cycles.
- 220V three-phase electrical system provides reliable power delivery suitable for professional fabrication facilities.
- Encoder-controlled hydraulic system improves bending precision and repeatability for consistent production results.

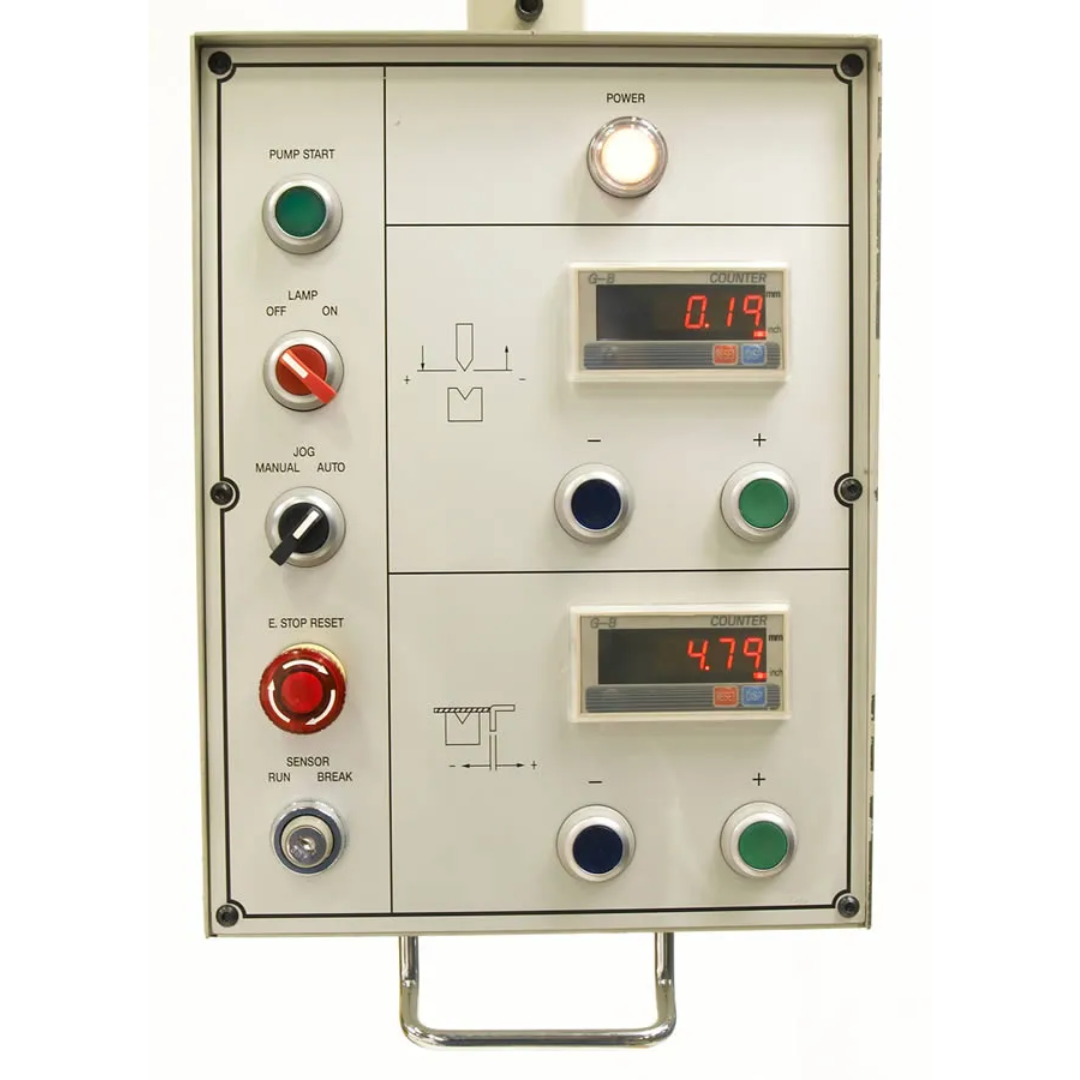

- Dual digital readouts (DROs) provide accurate monitoring of both ram stroke position and back gauge location for enhanced operator control.
- Motorized back gauge with ball screw drive allows precise material positioning and repeatable bend setups, reducing production time and operator error.
- Multiple operating modes including jog, manual, and automatic functions give operators flexibility for setup work, prototype fabrication, and production runs.

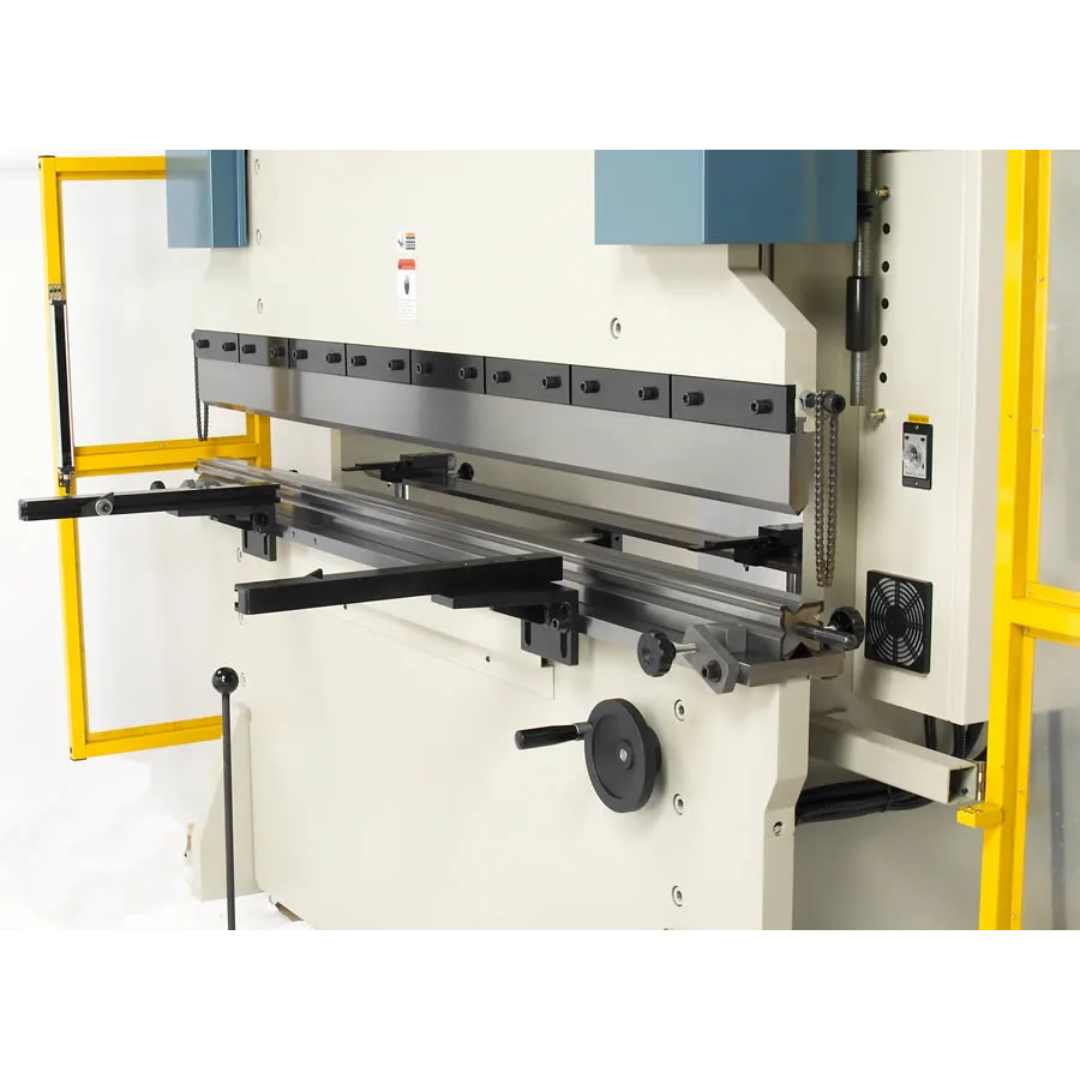

- Heavy welded steel frame construction ensures structural rigidity and minimizes deflection during high-force bending operations.
- 7.75-inch throat depth provides increased clearance and versatility when forming deeper components.
- 5.9-inch stroke length supports a broad range of bending applications while maintaining efficient cycle times.

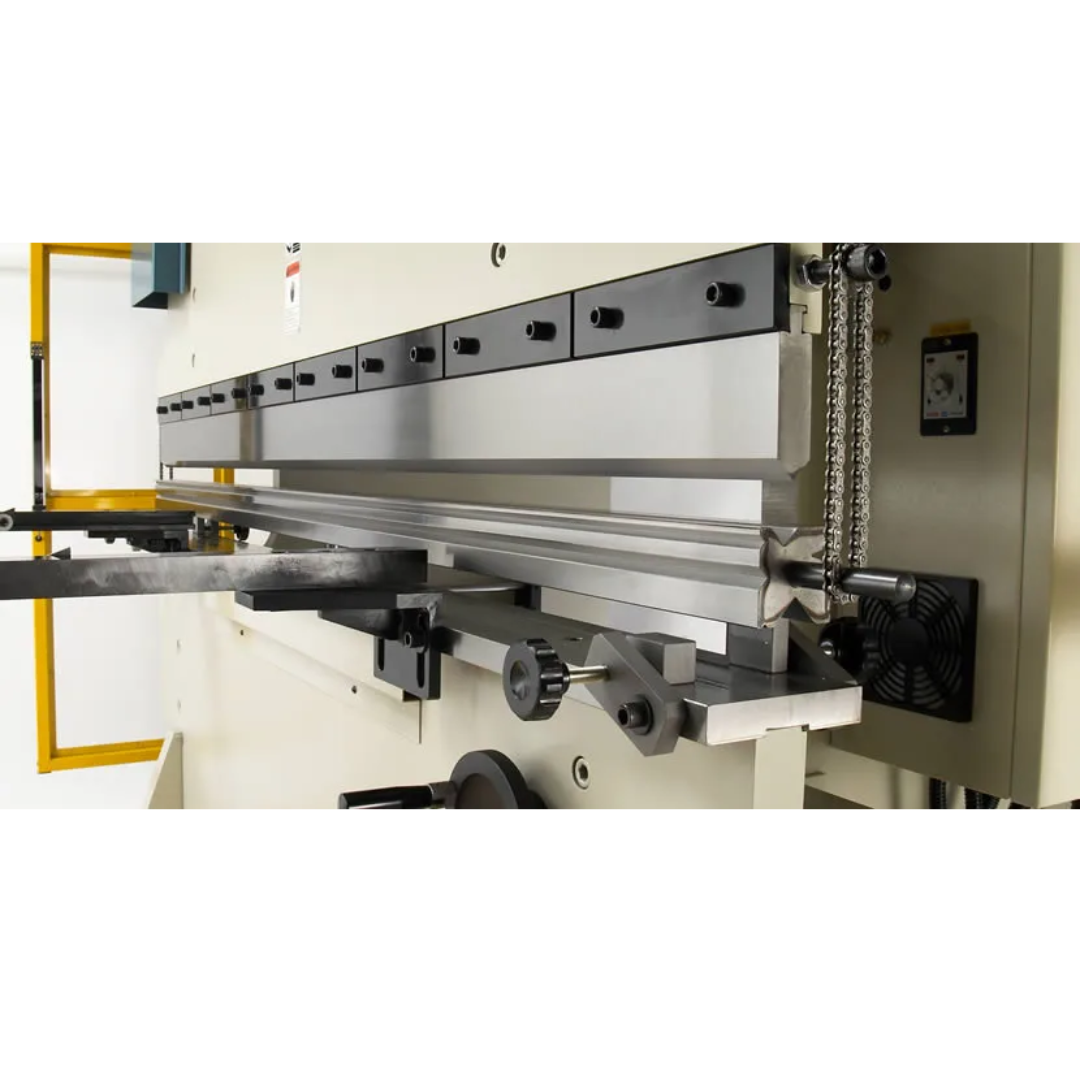

- 11.81-inch distance from table to ram accommodates a variety of tooling configurations and workpiece sizes.
- Industrial stabilization and frame reinforcement help maintain long-term bending accuracy and machine durability.
- Suitable for production and custom fabrication work where precision, repeatability, and consistent hydraulic performance are essential.
- Lifetime technical support from Baileigh provides long-term operational confidence and professional assistance when needed.
Why Choose the Baileigh Hydraulic Press Brake BP-9078NC 1000839
- 90-ton hydraulic capacity handles demanding sheet metal bending applications.
- 78-inch bed length accommodates larger workpieces and fabrication projects.
- Dual DRO system improves setup accuracy and repeatability.
- Motorized back gauge with ball screw enhances productivity and precision.
- Heavy-duty welded frame designed for industrial service life.
- Multiple operating modes provide flexibility for various production requirements.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Hydraulic Press Brake BP-9078NC 1000839 combines industrial-grade 90-ton forming power, advanced digital positioning controls, and rugged welded-steel construction to deliver accurate, repeatable bending performance for fabrication shops and manufacturers that demand professional results every day.
