Baileigh Hydraulic H-Frame Press HSP-110M-HD 1012426 Applications
- Heavy-duty fabrication and metal forming operations.
- Straightening bent steel components, shafts, and structural members.
- Press-fitting bearings, bushings, sleeves, and gears.
- Industrial assembly and disassembly procedures.
- Bending and forming large metal workpieces.
- Maintenance and repair shop operations.
- Manufacturing environments requiring high-force pressing capabilities.
- Equipment rebuilding, restoration, and component refurbishment projects.

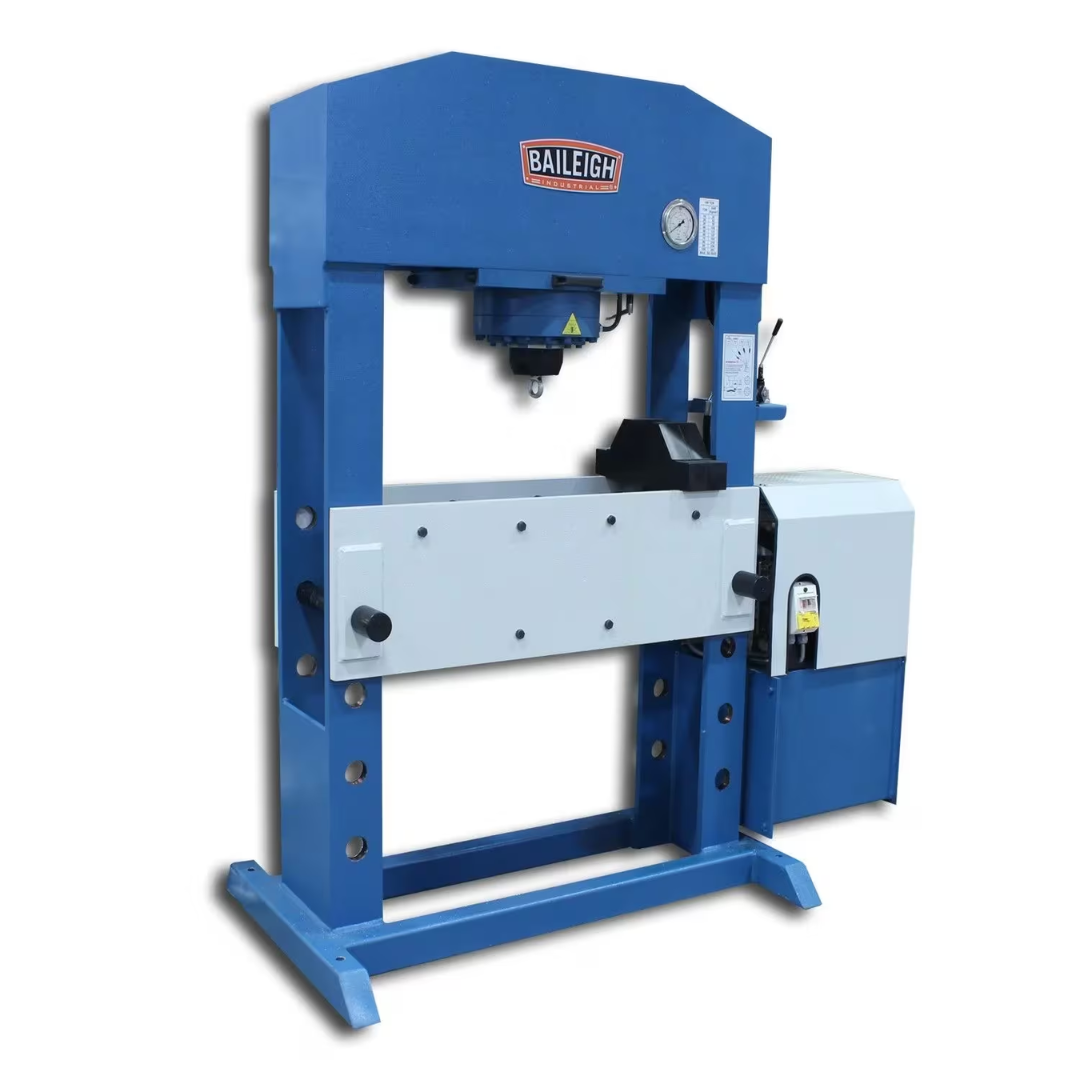

The Baileigh Hydraulic H-Frame Press HSP-110M-HD 1012426 is designed for industrial users who require maximum pressing force, precision control, and exceptional frame rigidity for large-scale metalworking applications.
Baileigh Hydraulic H-Frame Press HSP-110M-HD 1012426 Specifications
| Manufacturer | Baileigh Industrial |
|---|---|
| Model | HSP-110M-HD |
| Product Number | 1012426 |
| Product Type | Hydraulic H-Frame Press |
| Hydraulic Capacity | 110 Tons |
| Working Width | 42.12 in. |
| Stroke Length | 11.8 in. |
| Power Requirement | 220V Three Phase |
| Motor Power | 7.5 HP |
| Hydraulic Cylinder | Movable Cylinder Design |
| Control System | 2-Speed Down Movement with Pressure Regulator |
| Piston Type | 6.3 in. Chrome Piston with Automatic Return |
| Operating Speed | 3000 RPM |
| Gross Weight | 3400 lbs. |
| Net Weight | 3400 lbs. |
| UPC | 19907511120 |
| Warranty | 1 Year |
Baileigh Hydraulic H-Frame Press HSP-110M-HD 1012426 Performance & Construction
- Massive 110-ton hydraulic capacity delivers the force required for demanding industrial pressing and forming applications.

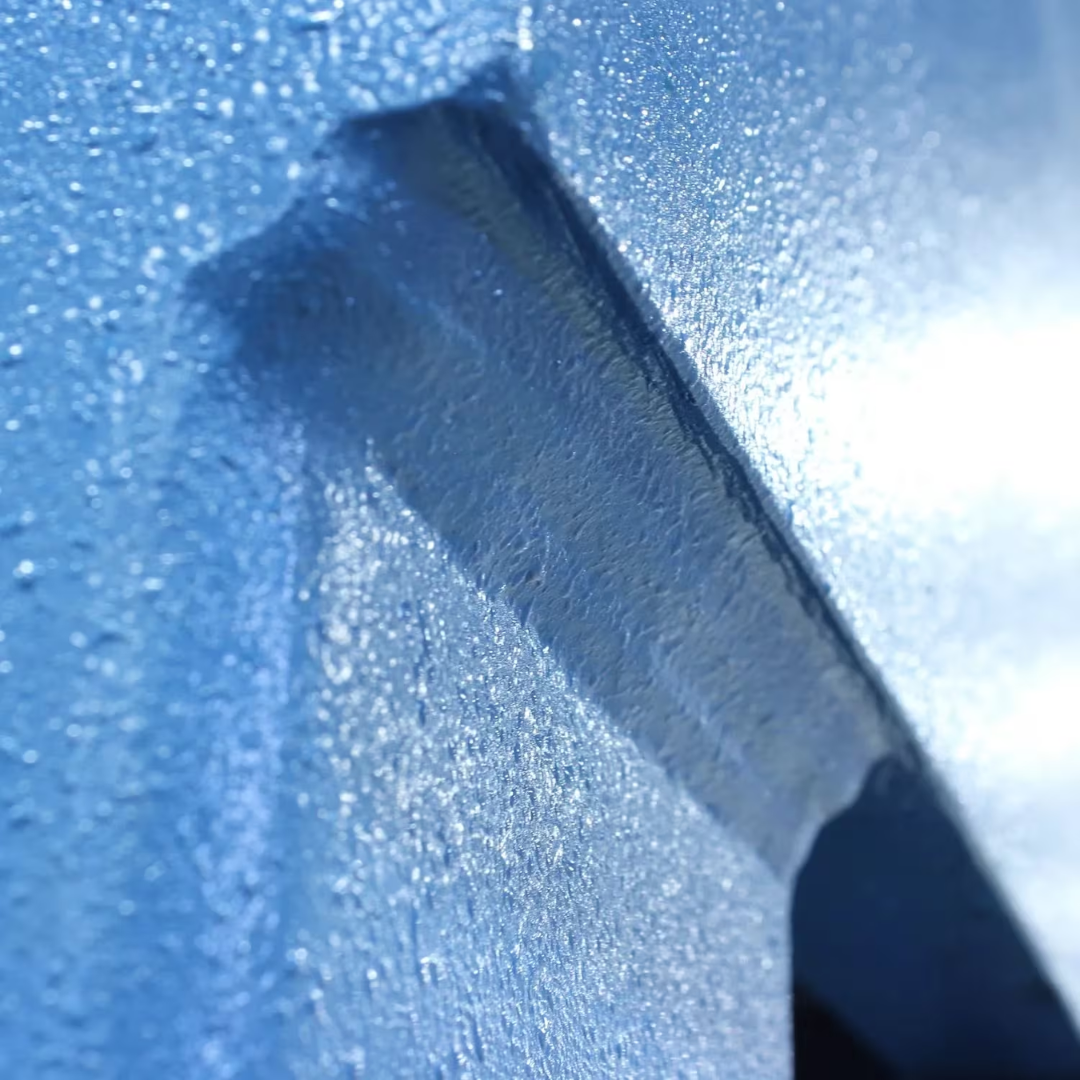

- Reinforced heavy-duty H-frame construction provides maximum structural rigidity and minimizes deflection under extreme loads.
- 42.12-inch working width accommodates larger workpieces and expands operational flexibility.
- 11.8-inch stroke length allows deep pressing operations and increased versatility across a broad range of applications.
- Powerful 7.5 HP hydraulic motor provides consistent performance and full-capacity force delivery.
- 220V three-phase electrical system supports industrial installation and continuous-duty operation.
- Movable hydraulic cylinder enables off-center pressing and improves positioning flexibility for irregular workpieces.
- Precision pressure gauge allows operators to monitor force application accurately during critical operations.

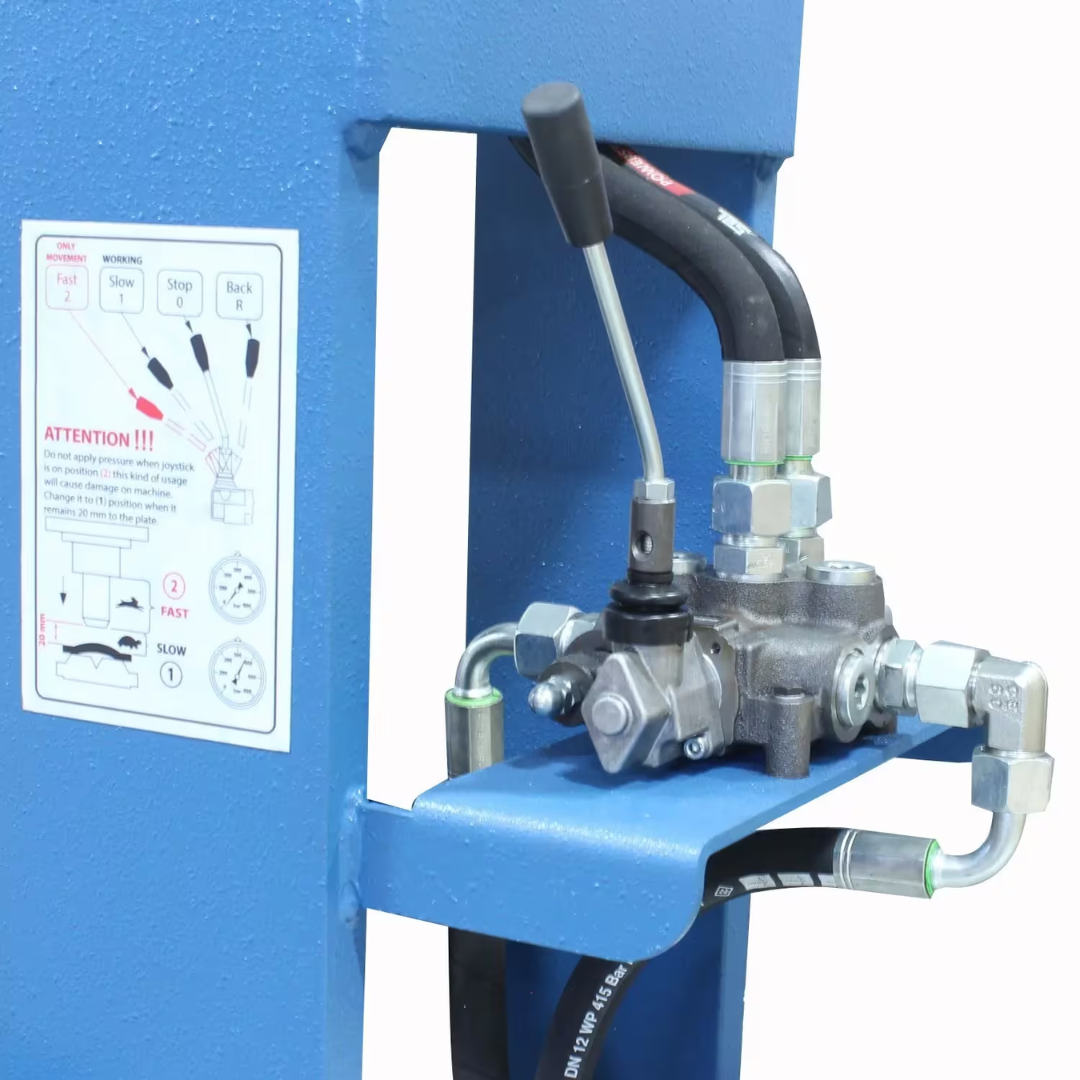

- Pressure regulator system provides enhanced control for sensitive pressing and forming tasks.
- Two-speed down movement improves productivity by balancing rapid positioning with controlled pressing performance.

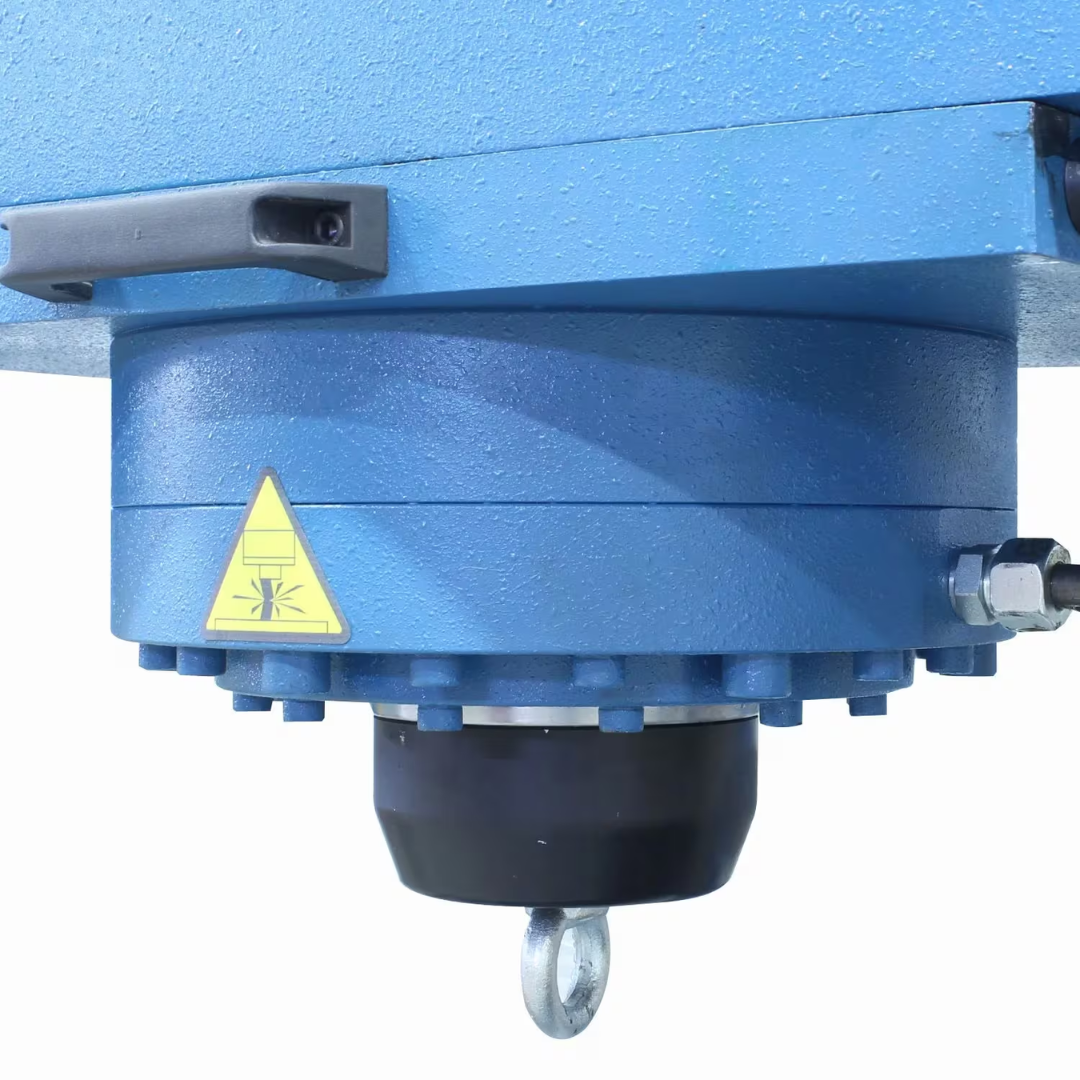

- 6.3-inch chrome piston delivers smooth operation, corrosion resistance, and long service life.
- Automatic piston return streamlines workflow and increases operational efficiency.

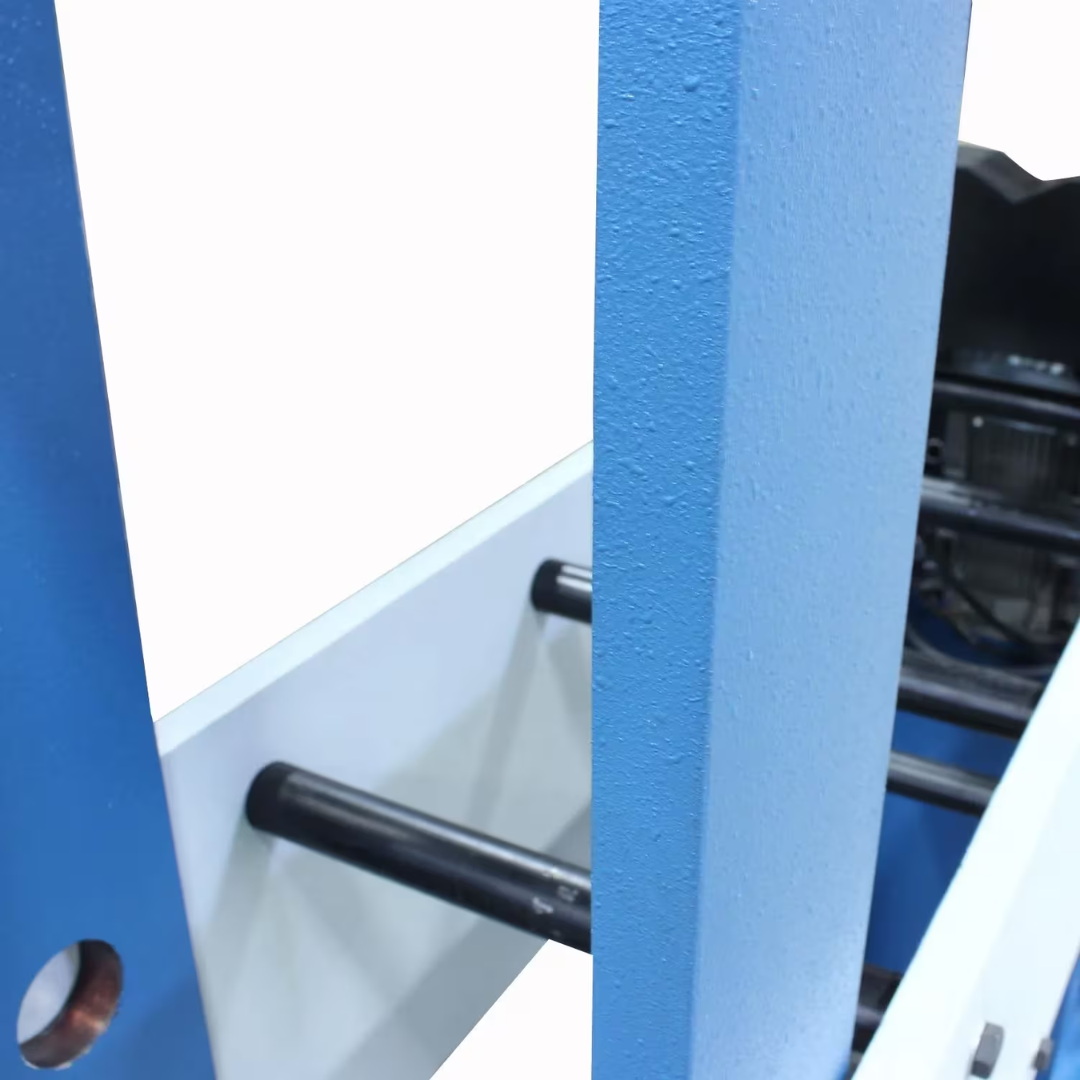

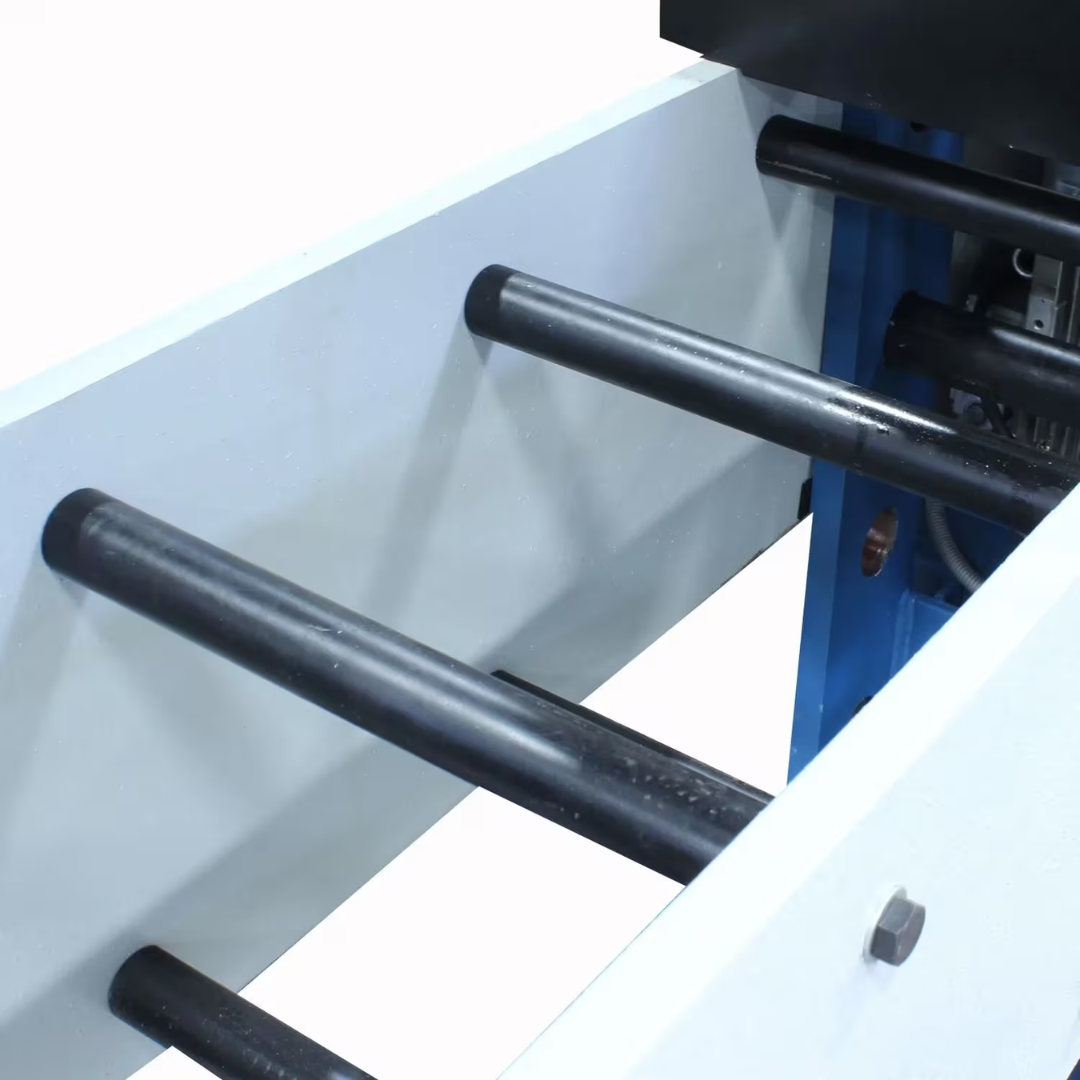

- Adjustable work table accommodates varying workpiece sizes and fabrication requirements.
- Industrial-grade hydraulic components are designed for long-term reliability in demanding shop environments.
Why Choose the Baileigh Hydraulic H-Frame Press HSP-110M-HD 1012426
- Powerful 110-ton hydraulic capacity for heavy industrial applications.
- Reinforced H-frame construction engineered for maximum strength and stability.
- Movable cylinder design provides superior flexibility for off-center work.
- Large 42.12-inch working width supports oversized components.
- Precision pressure control with regulator and gauge.
- Two-speed hydraulic operation improves efficiency and control.
- Automatic-return chrome piston reduces operator effort and cycle times.
- Built for fabrication shops, maintenance facilities, manufacturing plants, and repair operations.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Hydraulic H-Frame Press HSP-110M-HD 1012426 combines industrial-strength 110-ton pressing power, precision hydraulic control, and rugged reinforced construction to handle the most demanding fabrication, straightening, forming, and assembly applications. Designed for professional metalworking environments, this machine delivers the reliability, versatility, and performance required for high-force production and maintenance operations.
