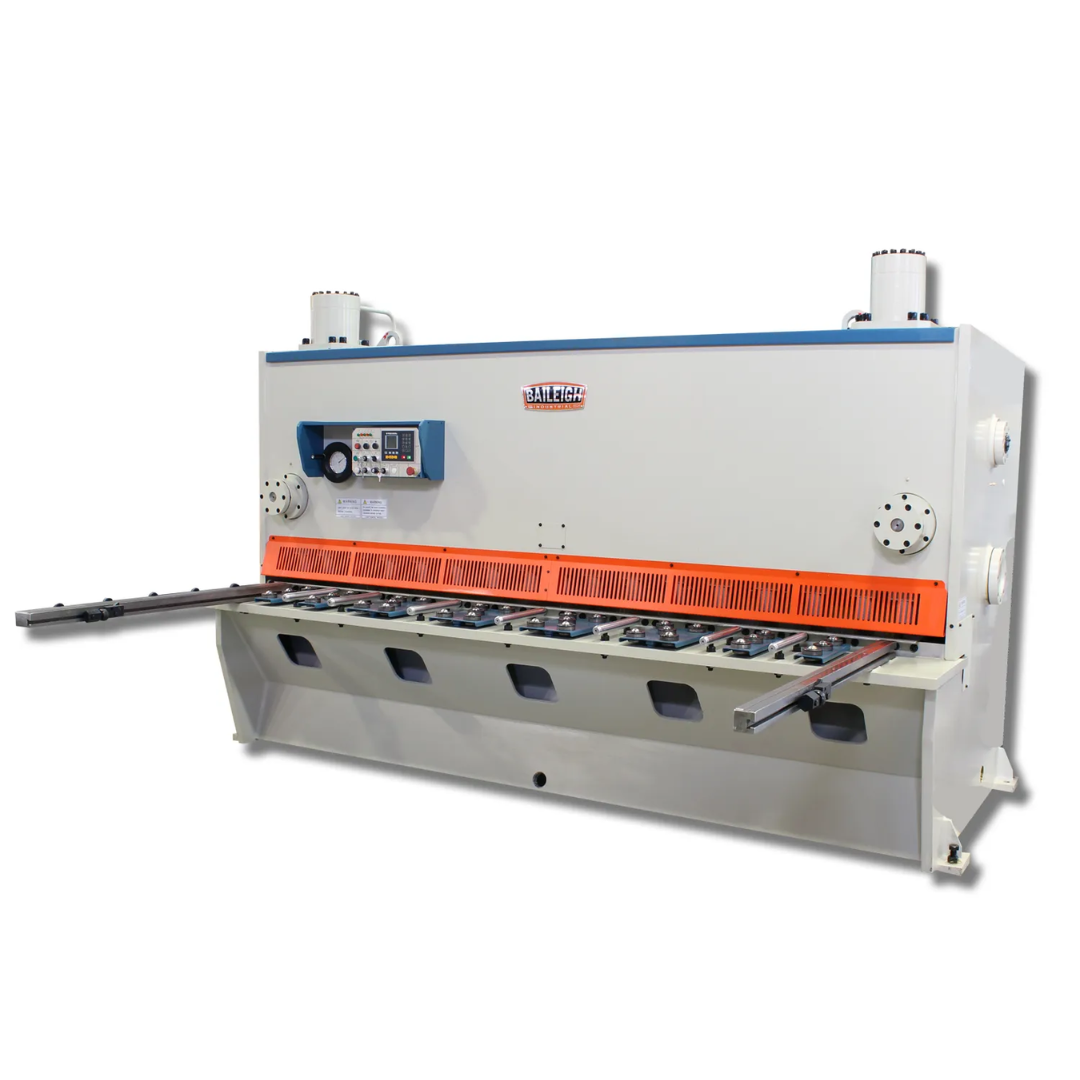

Baileigh Hydraulic Floor Shear: 120" Shear Length 1007085 Applications
- Industrial sheet metal fabrication facilities.
- Steel service centers and processing operations.
- Heavy equipment and machinery manufacturing.
- Structural steel fabrication projects.
- HVAC and ductwork manufacturing operations.
- Agricultural equipment production facilities.
- OEM metal component manufacturing.
- High-volume production environments requiring long sheet processing capability.
Ideal for manufacturers and fabrication facilities that need the capacity to process large sheets of steel while maintaining exceptional cut quality, accuracy, and production efficiency.
Baileigh Hydraulic Floor Shear: 120" Shear Length 1007085 Specifications
| Model Number | SH-120500-HD |
|---|---|
| Product Number | 1007085 |
| Product Type | Hydraulic Floor Shear |
| Shearing Length Capacity | 120" |
| Shear Capacity | 120" |
| Mild Steel Capacity | 1/2" Mild Steel |
| Minimum Material Thickness | 18 Gauge |
| Motor Power | 30 HP |
| Input Power | 220V Three Phase |
| Motor Phase | Three Phase |
| Backgauge Accuracy | ±0.01 mm |
| Backgauge Memory Capacity | 100 Programs |
| Squaring Arm Length | 48" (Usable on Right or Left Side) |
| Bump Stops | 4 Included |
| Blade Gap Adjustment | Adjustable |
| Rake Angle | Adjustable |
| Net Weight | 21,000 lbs |
| Gross Weight | 21,000 lbs |
| Warranty | 1 Year |
| UPC | 731325413397 |
Baileigh Hydraulic Floor Shear: 120" Shear Length 1007085 Performance & Construction
- Massive 120-inch shearing capacity allows processing of full-length 10-foot sheets, improving productivity and reducing secondary handling requirements.
- Cuts up to 1/2-inch mild steel across the full cutting width, making it suitable for demanding industrial fabrication applications.
- Powerful 30 HP hydraulic drive system delivers smooth, consistent cutting performance while minimizing operator effort.
- 220V three-phase electrical system provides dependable power delivery for continuous production environments.
- Fully welded heavy-duty steel frame eliminates flex and vibration, ensuring consistent cut quality and long-term machine accuracy.

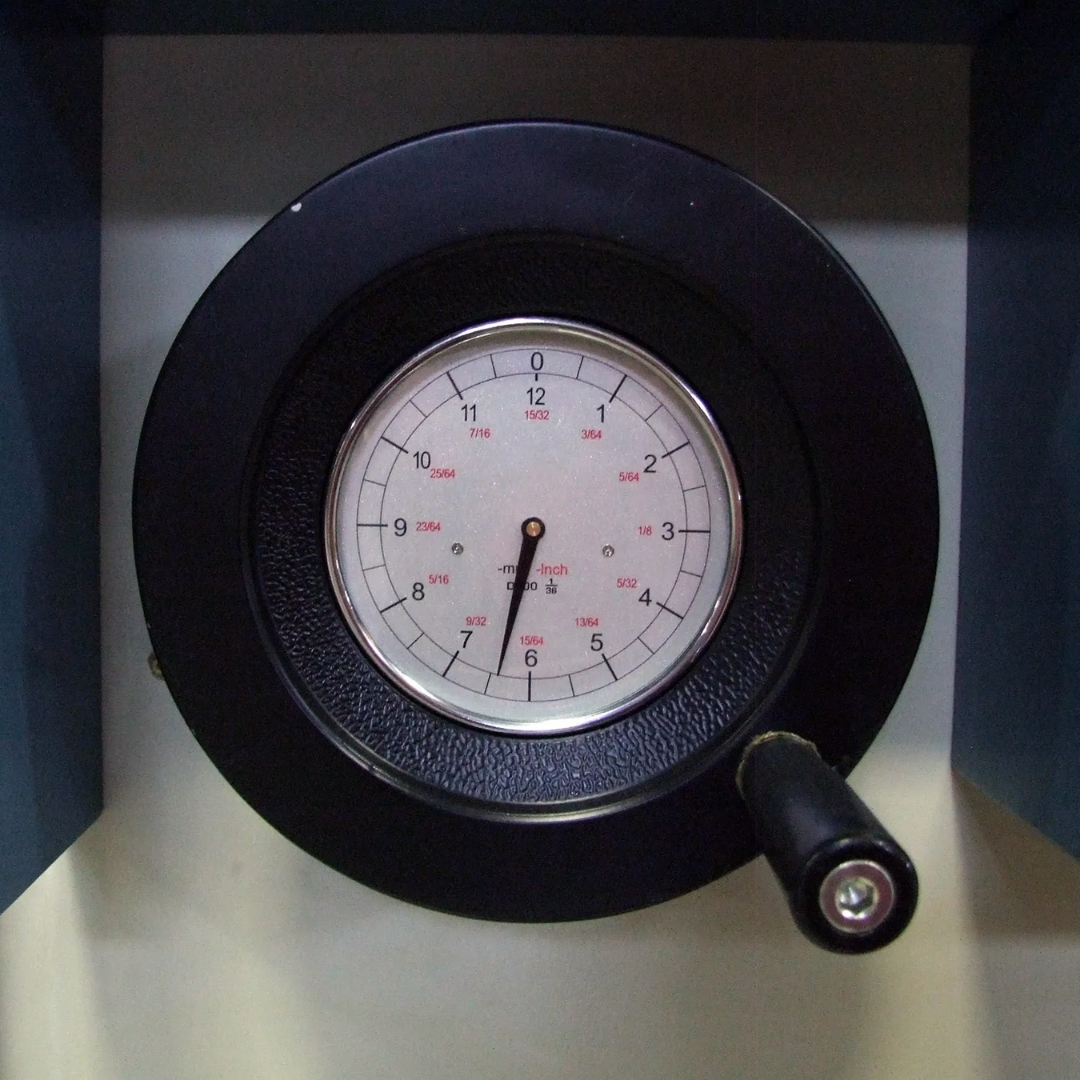

- Adjustable blade gap allows optimization for different material thicknesses, helping improve cut quality and extend blade life.

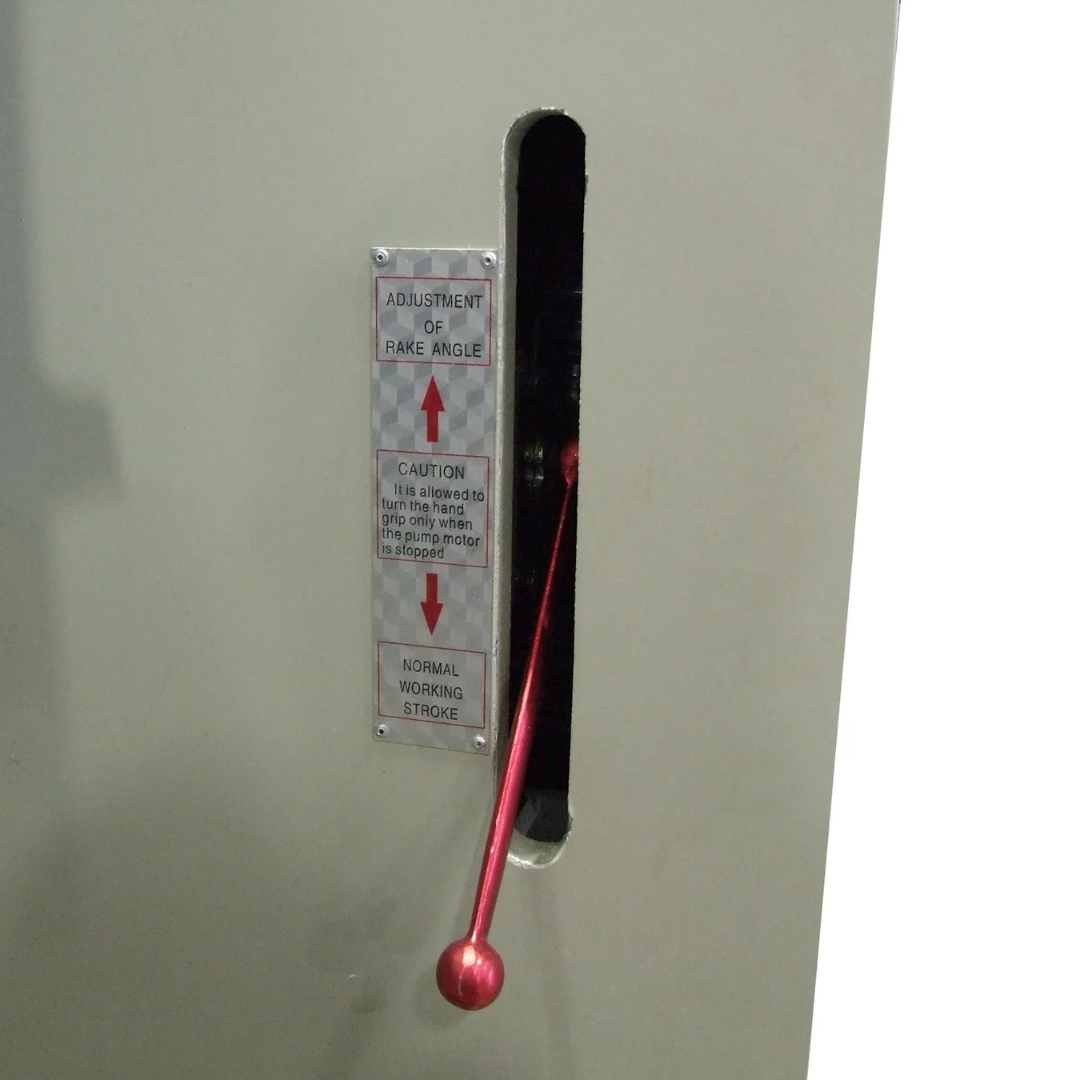

- Adjustable rake angle provides additional control over cutting performance and reduces cutting force requirements on thicker materials.

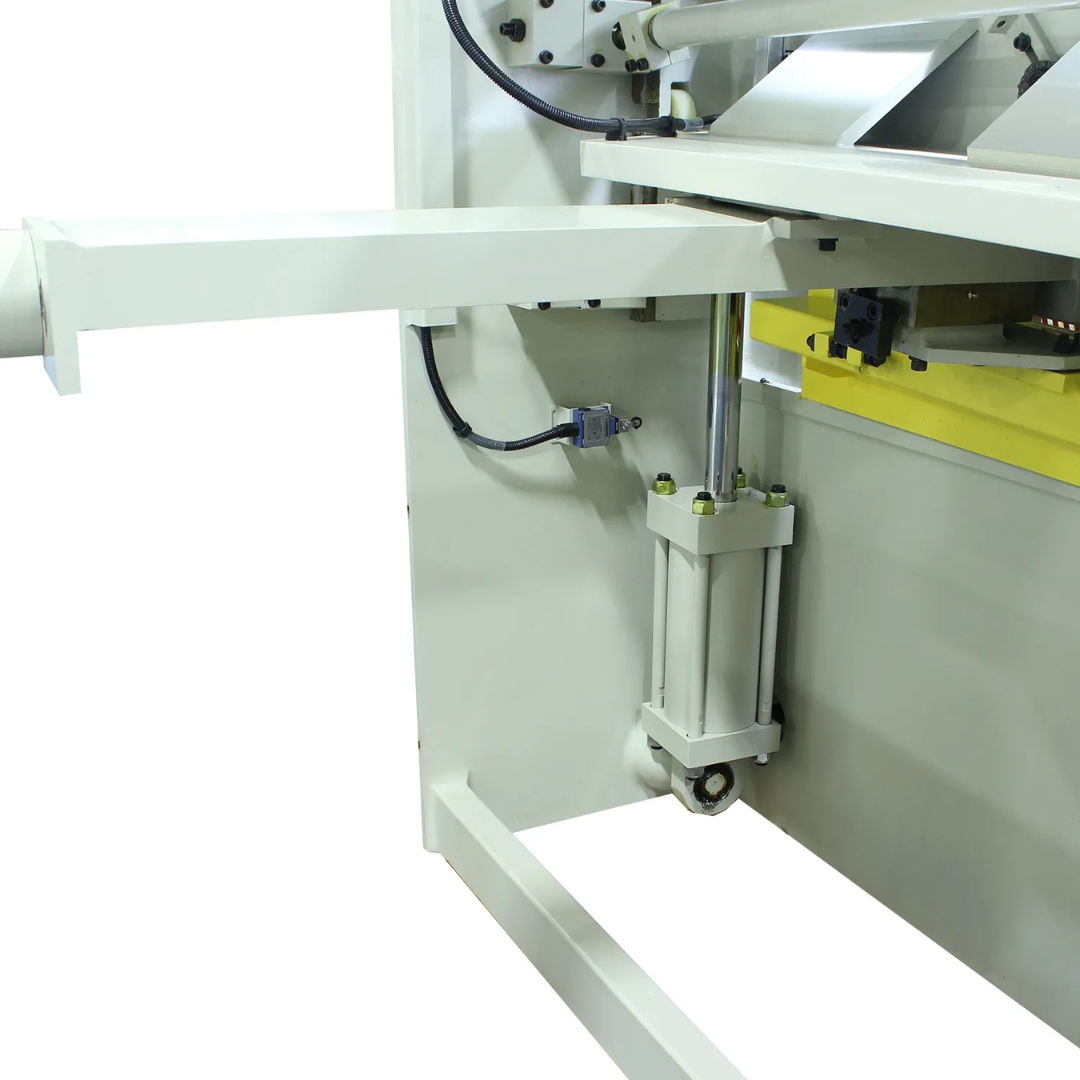

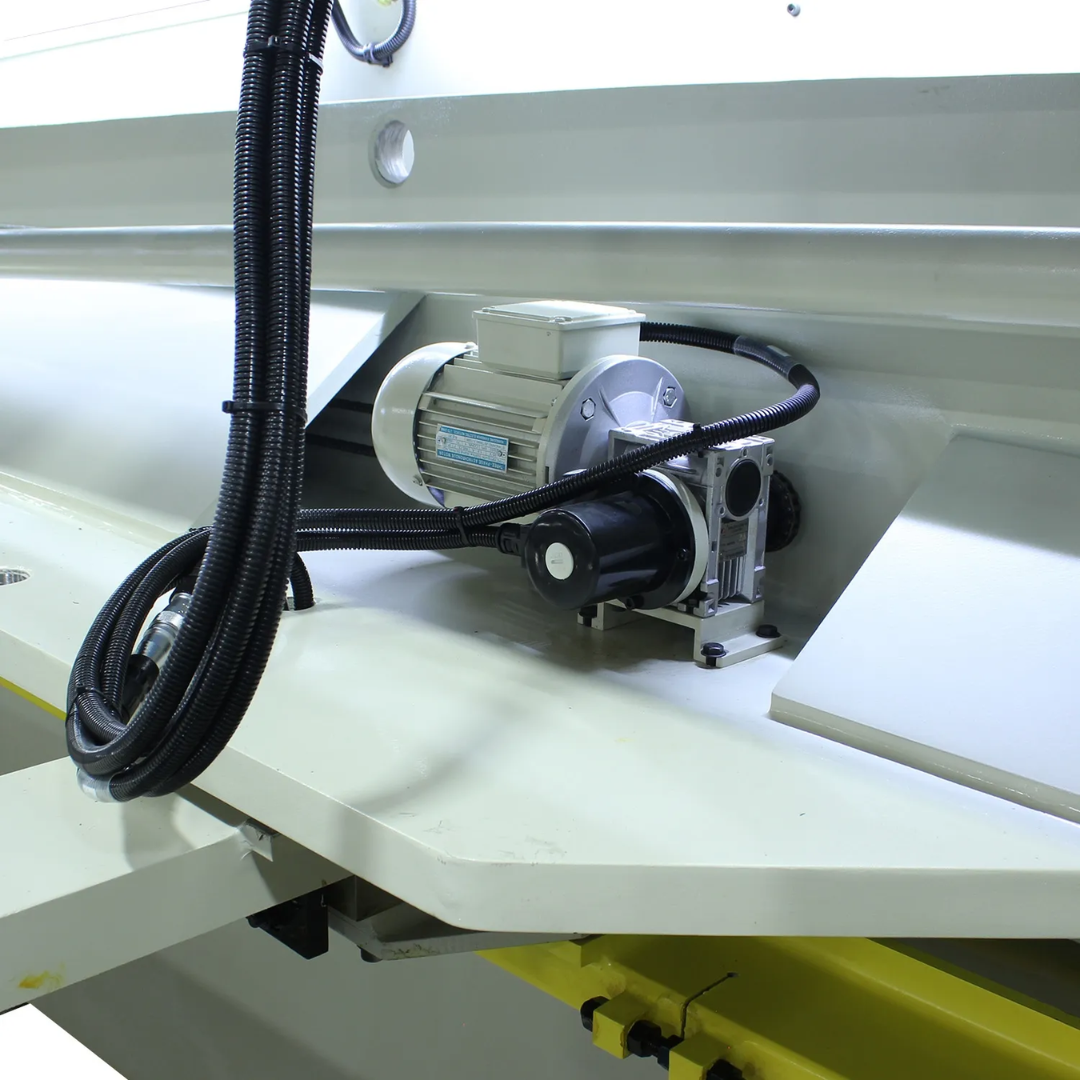

- Programmable backgauge system delivers exceptional positioning accuracy with repeatability to ±0.01 mm for production cutting operations.

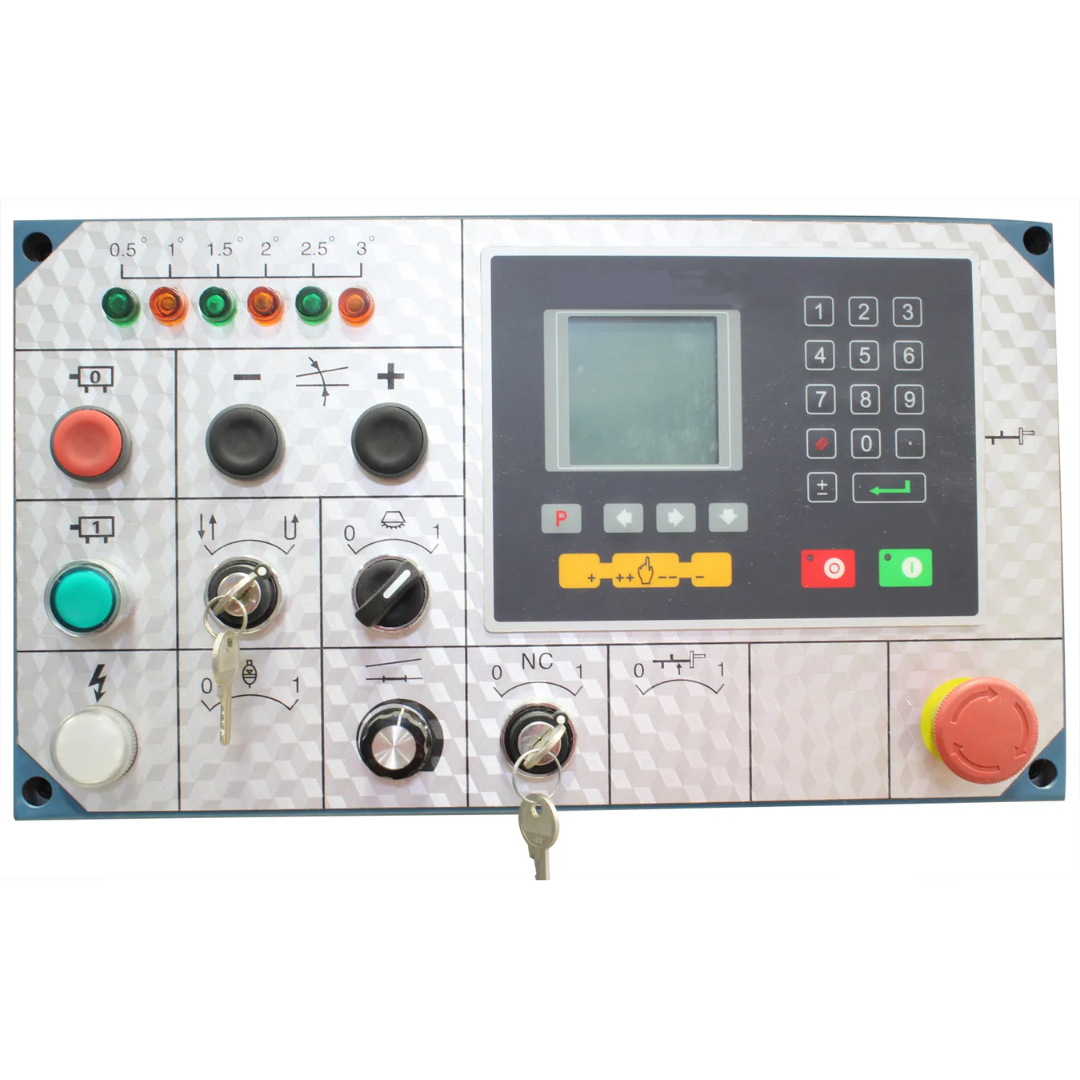

- Internal memory capable of storing up to 100 programs increases efficiency by allowing operators to quickly recall commonly used cutting setups.

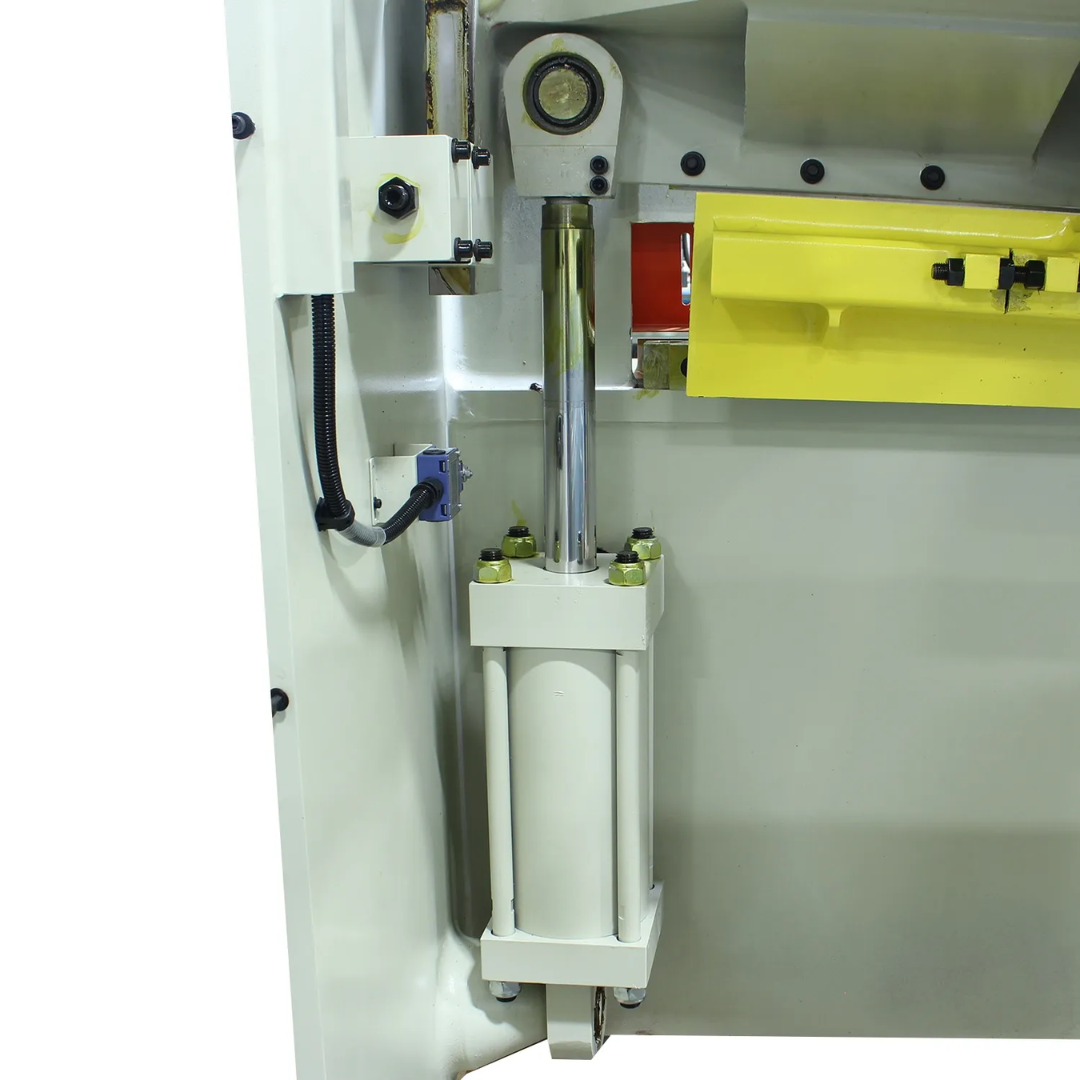

- Adjustable hydraulic hold-downs securely clamp material during cutting to minimize movement and improve cut accuracy.

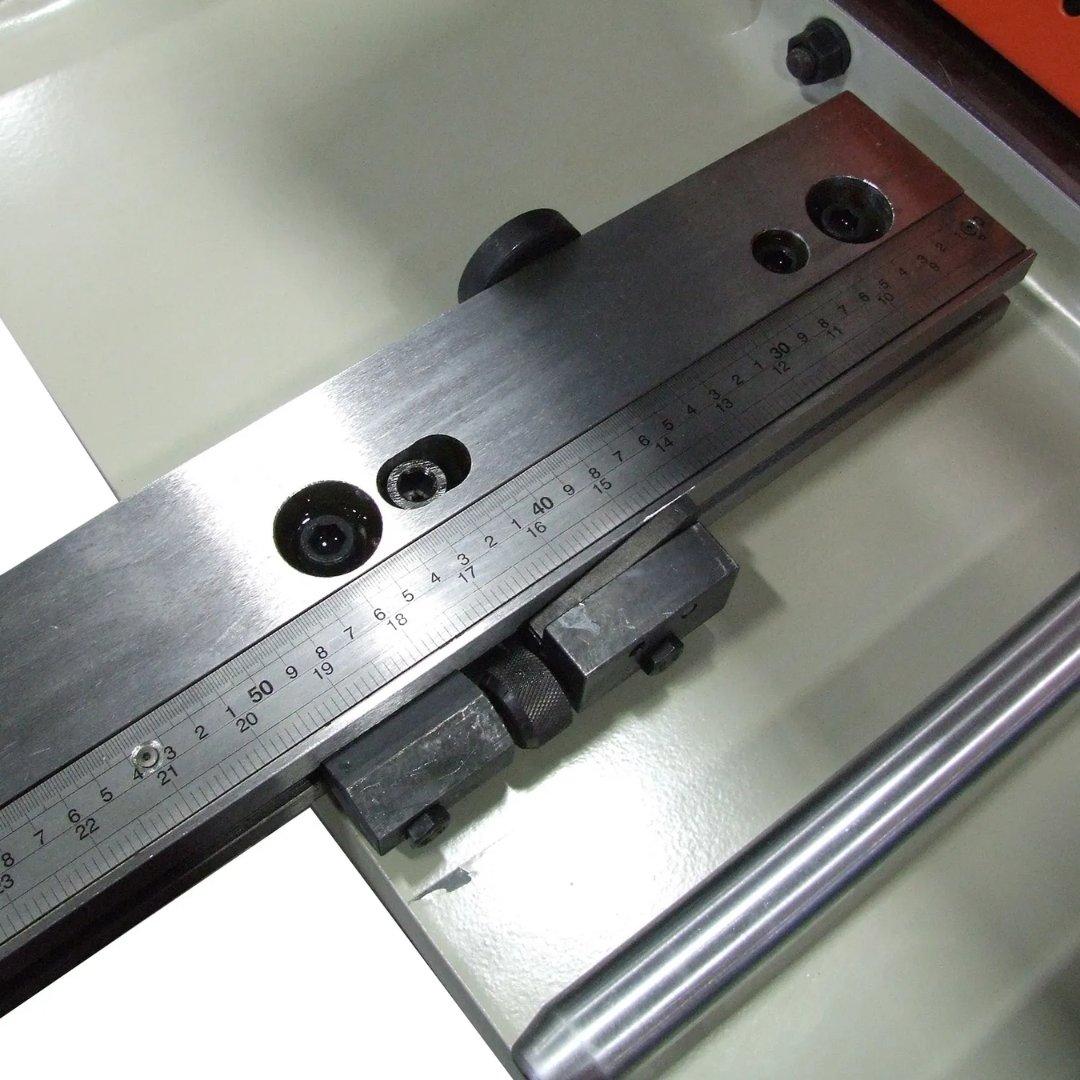

- 48-inch squaring arm can be mounted on either side of the machine and includes four bump stops for fast, repeatable material positioning.

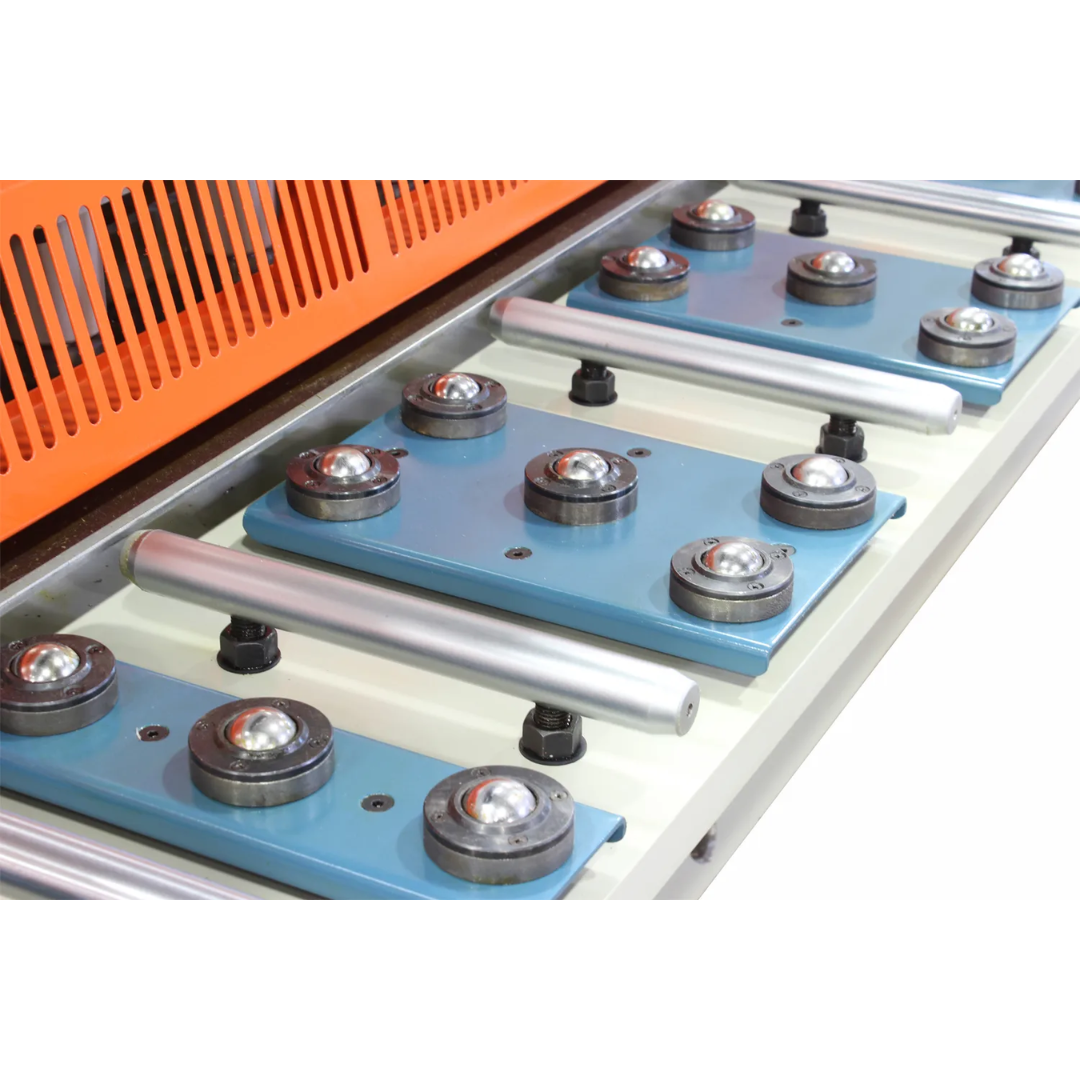

- Front support arms and guide system simplify handling and alignment of large sheets while reducing operator fatigue.
- Integrated safety systems include protective guards and interlocks designed to enhance operator protection.
- Industrial hydraulic shearing action produces clean, straight cuts with reduced burr formation and excellent edge quality.
Why Choose the Baileigh Hydraulic Floor Shear: 120" Shear Length 1007085
- Handles full 120" sheets and materials up to 1/2" thick.
- Heavy-duty welded steel construction ensures long-term durability.
- Programmable backgauge improves productivity and repeatability.
- Adjustable blade gap and rake angle optimize performance for varying materials.
- 30 HP hydraulic system delivers powerful, smooth cutting action.
- Front supports and squaring arm simplify large-sheet processing.
- Built for demanding industrial and production environments.
- Backed by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Hydraulic Floor Shear: 120" Shear Length 1007085 combines industrial-grade power, programmable precision, and rugged construction to deliver exceptional cutting performance for manufacturers and fabrication facilities that require reliable processing of large-format sheet metal every day.
