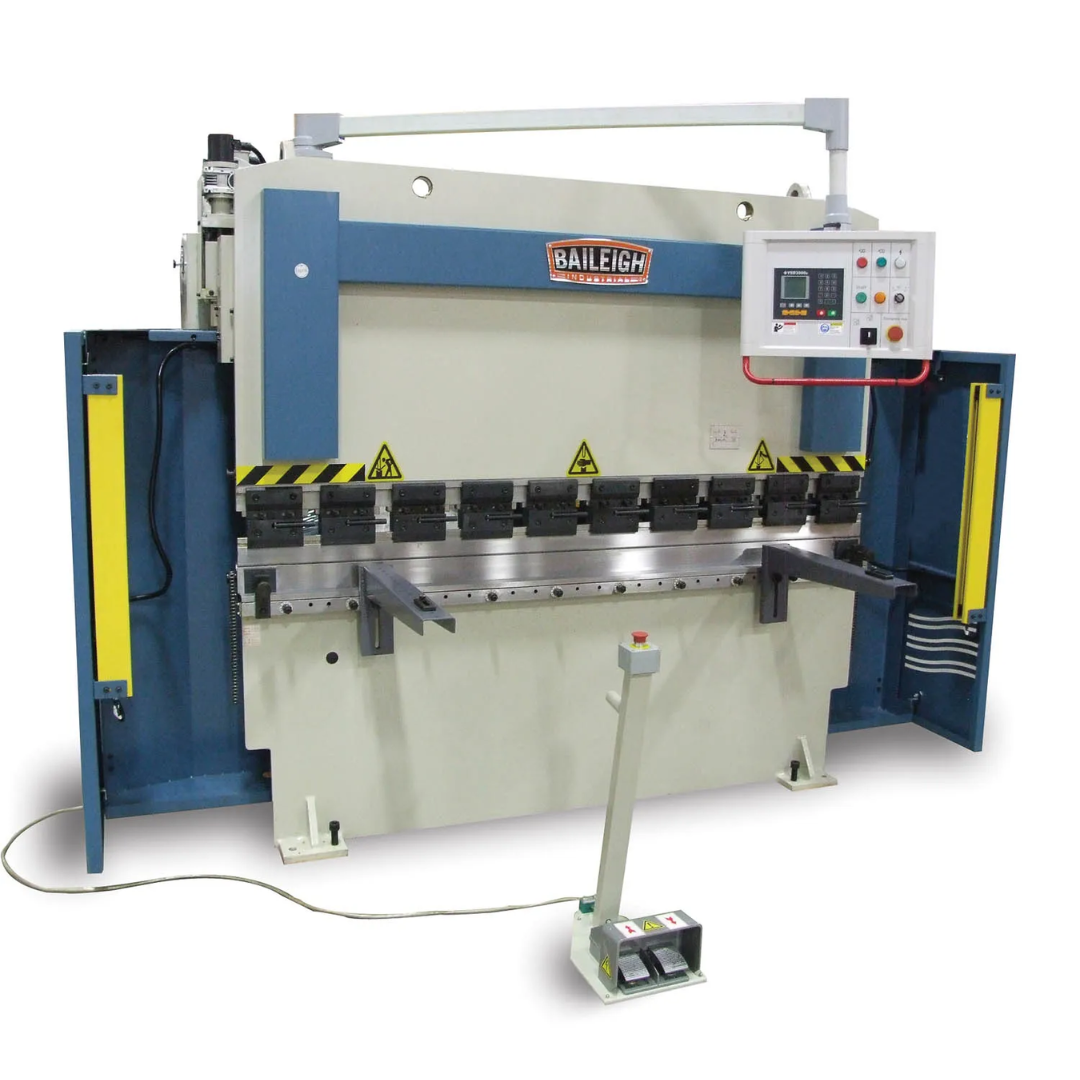

Baileigh Hydraulic Brake Press - (BP-5078CNC) 1010285 Applications
- General sheet metal fabrication and production bending operations.
- Manufacturing facilities producing brackets, panels, enclosures, and formed metal components.
- HVAC ductwork fabrication and custom sheet metal projects.
- Agricultural, transportation, construction, and industrial equipment manufacturing.
- Maintenance and repair departments requiring precision metal forming capabilities.
- Job shops handling short-run, prototype, and repeat production work.
- Metalworking operations requiring programmable bend sequences and repeatable accuracy.
Ideal for fabrication shops that require CNC-controlled precision, industrial-grade hydraulic performance, and the flexibility to handle both custom and production bending applications.
Baileigh Hydraulic Brake Press - (BP-5078CNC) 1010285 Specifications
| Model Number | BP-5078CNC |
|---|---|
| Product Keyword | Baileigh Hydraulic Brake Press - (BP-5078CNC) 1010285 |
| Bending Capacity | 50 Tons |
| Bending Length | 78 in. |
| Maximum Bend Angle | 135° |
| Input Power | 220V Three Phase |
| Motor Phase | Three Phase |
| Approach Speed | 3.93 in./sec. |
| Bending Speed | 0.393 in./sec. |
| Stroke Length | 3.93 in. |
| Distance Between Housings | 64.5 in. |
| Distance from Table to Ram | 11.81 in. |
| Throat Depth | 7.75 in. |
| Back Gauge Length | 15.7 in. |
| Back Gauge Motor | 1/2 HP |
| Controller Memory | 40 Programs / Up to 25 Bends Per Program |
| Net Weight | 7,700 lbs. |
| Gross Weight | 7,700 lbs. |
| Accessories Included | Yes |
| Warranty | 1 Year |
| UPC | 19907011309 |
Baileigh Hydraulic Brake Press - (BP-5078CNC) 1010285 Performance & Construction
- 50-ton hydraulic capacity provides the power required for precision forming and bending operations across the machine's full working length.
- 78-inch bed length accommodates large sheet metal sections, making the machine suitable for a wide range of fabrication projects.

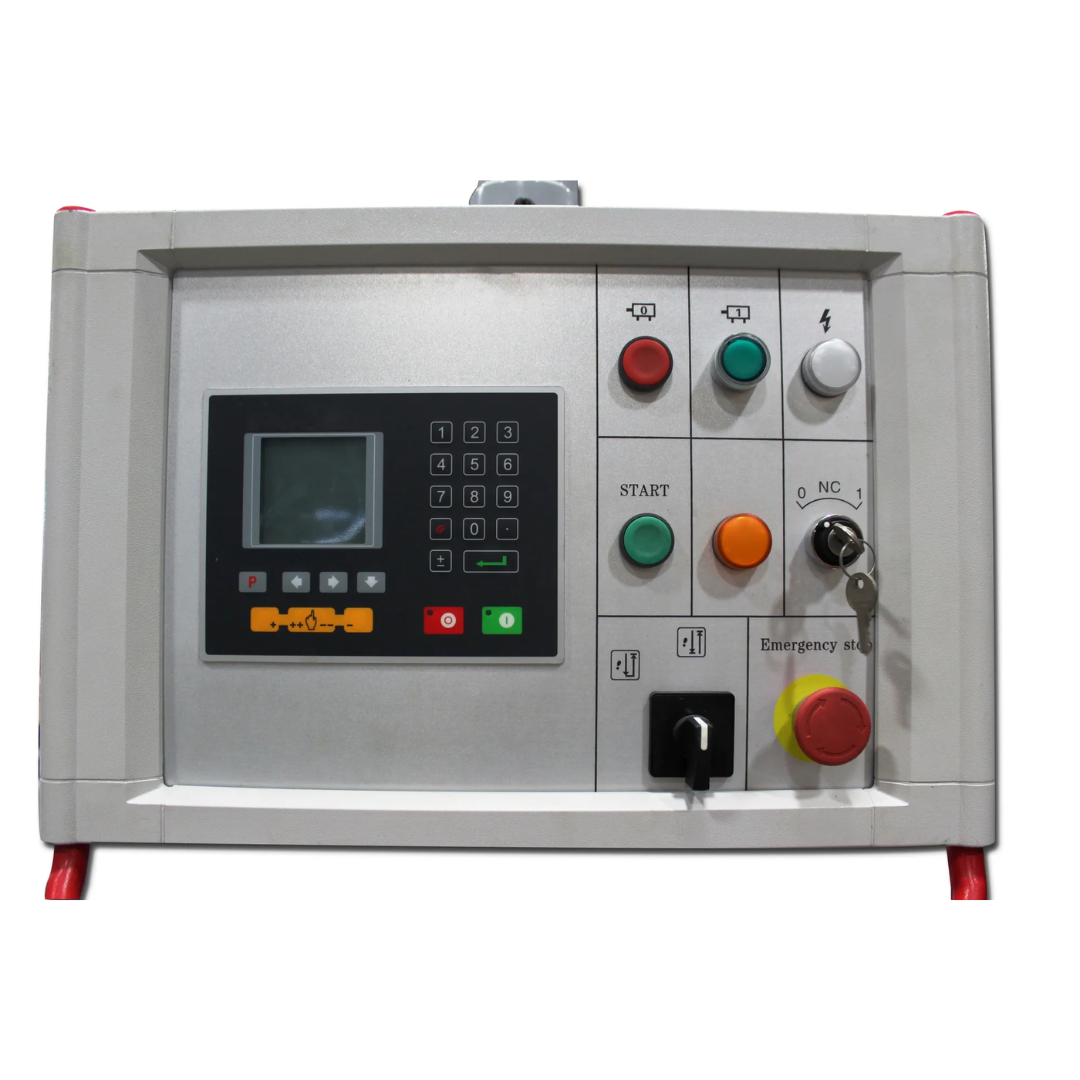

- Advanced CNC control system allows operators to program bend depth and back gauge positions for repeatable production accuracy.
- Stores up to 40 programs with as many as 25 bends per program, reducing setup time and increasing workflow efficiency.

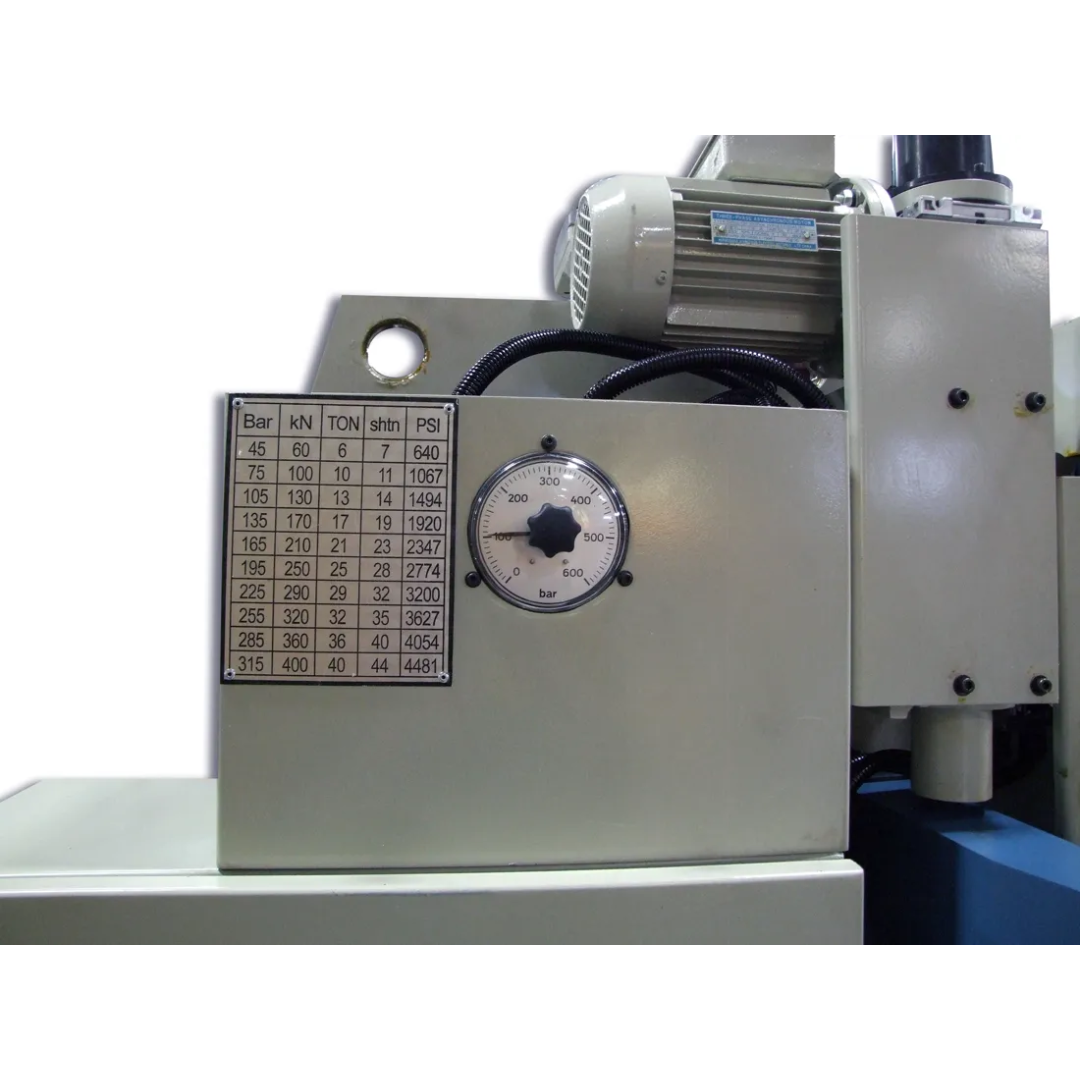

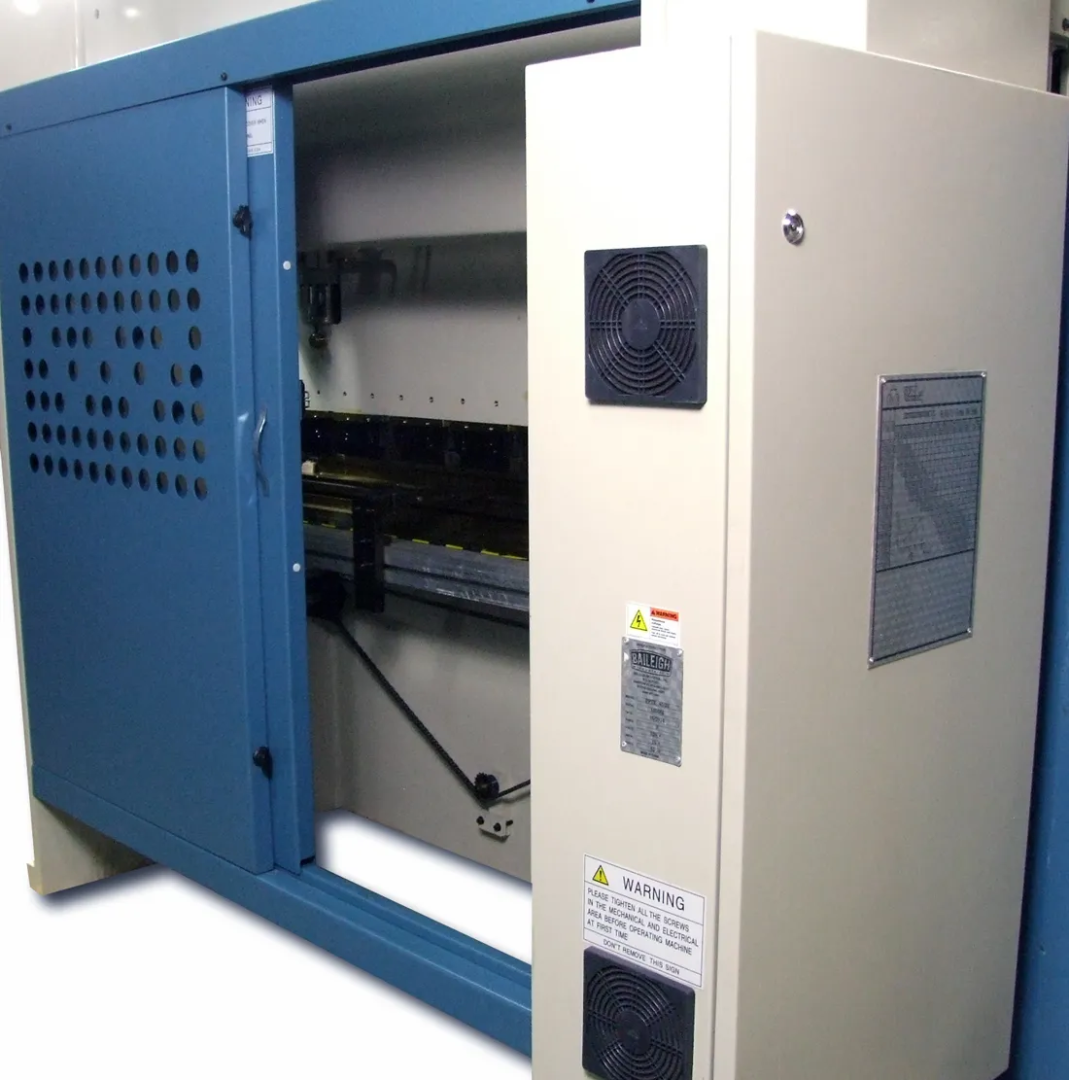

- Industrial Vickers/Eaton® hydraulic pump delivers dependable hydraulic performance and long-term reliability.
- NOK® hydraulic seals help maintain system integrity while minimizing leakage and maintenance requirements.
- 2-axis programmable control provides precise management of ram stroke and back gauge positioning.
- Chain-driven back gauge system offers smooth positioning and retractable travel for versatile material handling.

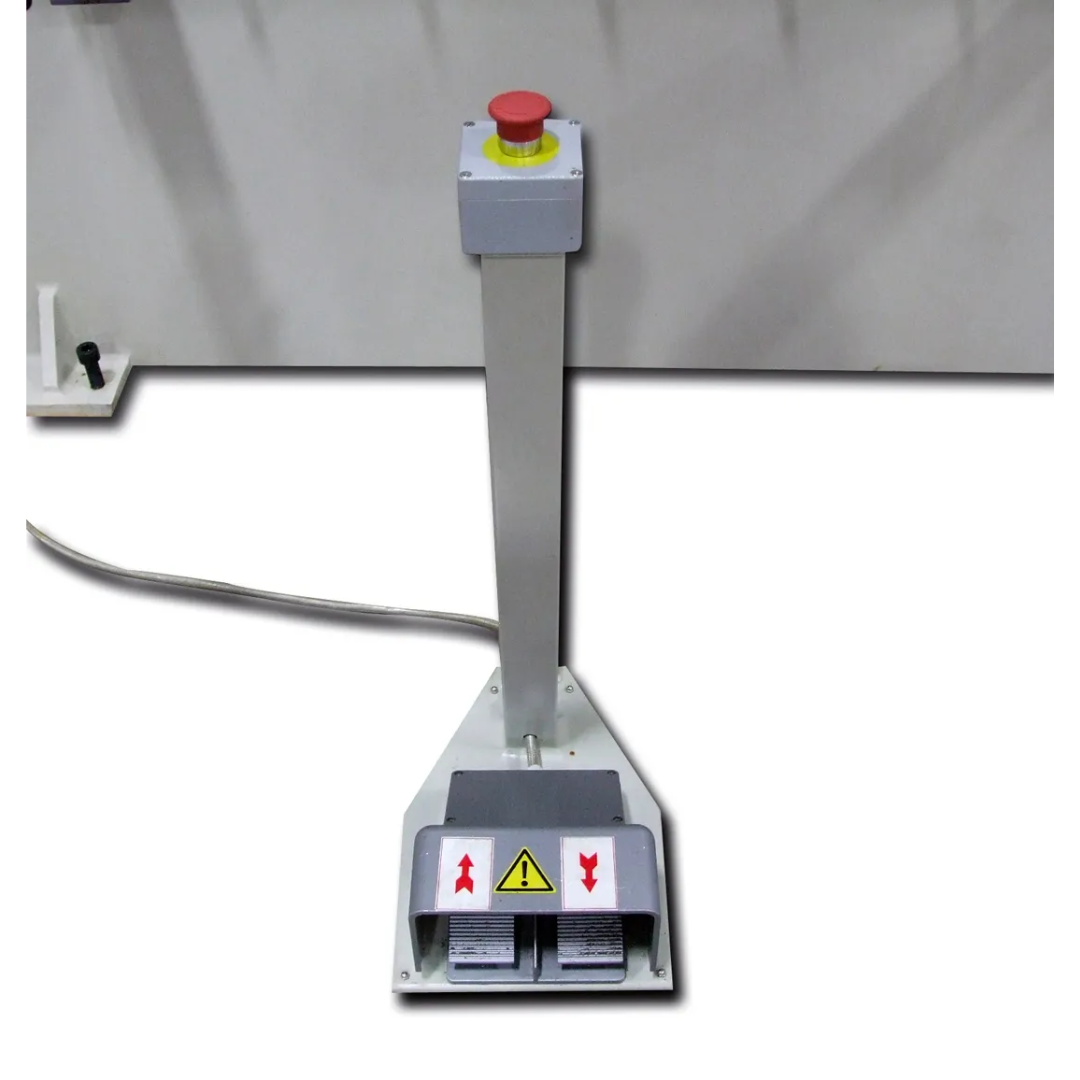

- Foot pedal operation enables hands-free control, improving operator convenience and productivity.

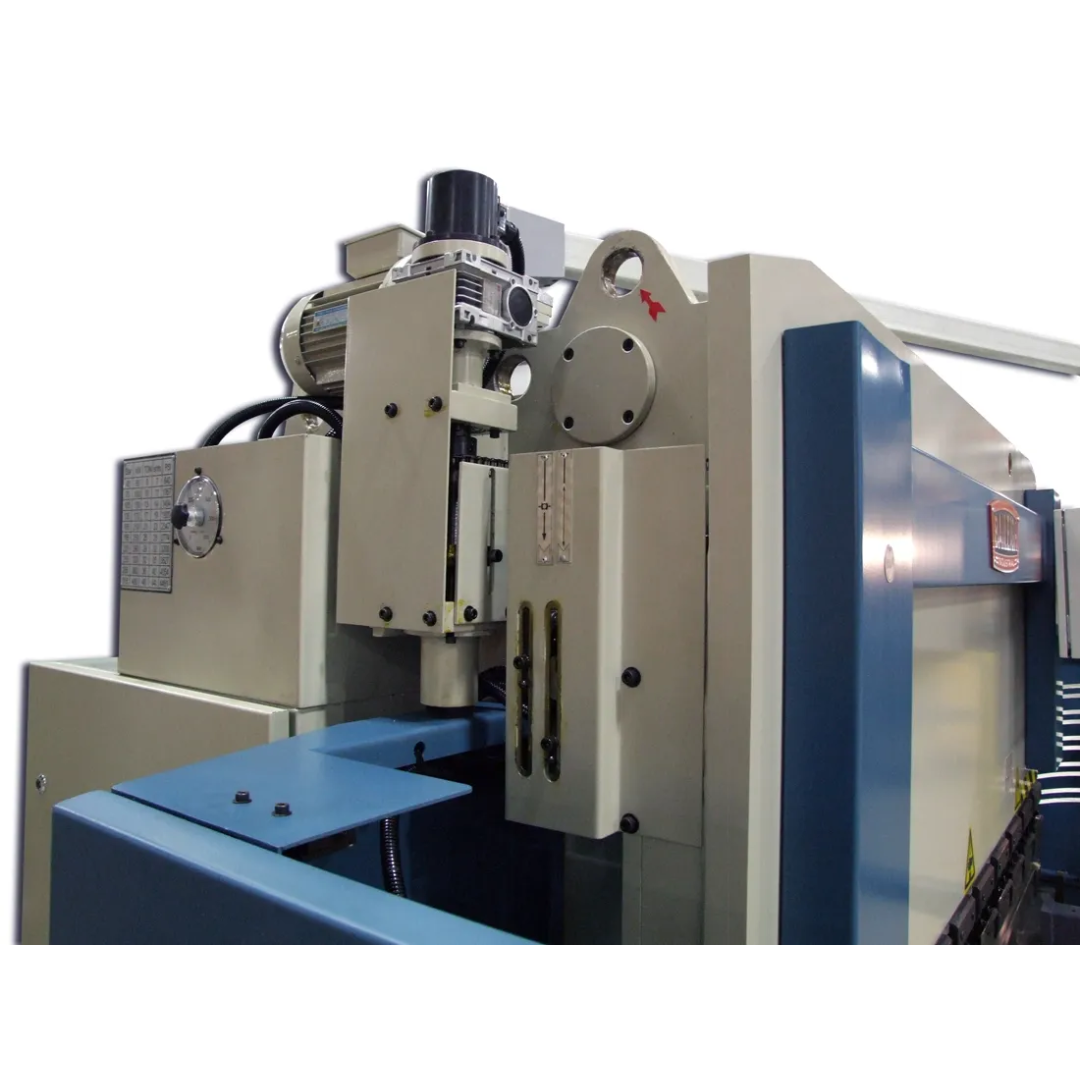

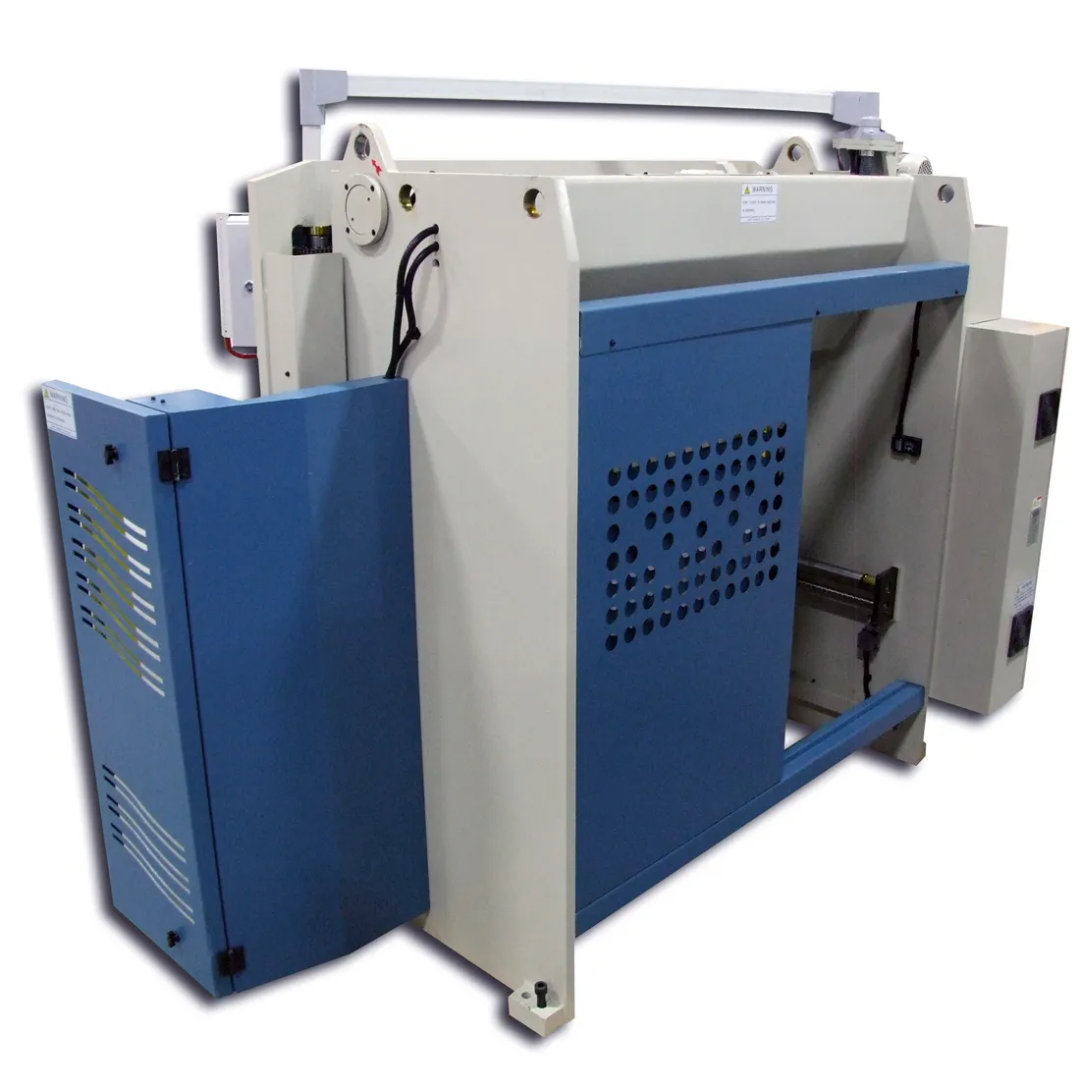

- Fully welded steel framework minimizes deflection while maintaining structural rigidity under load.

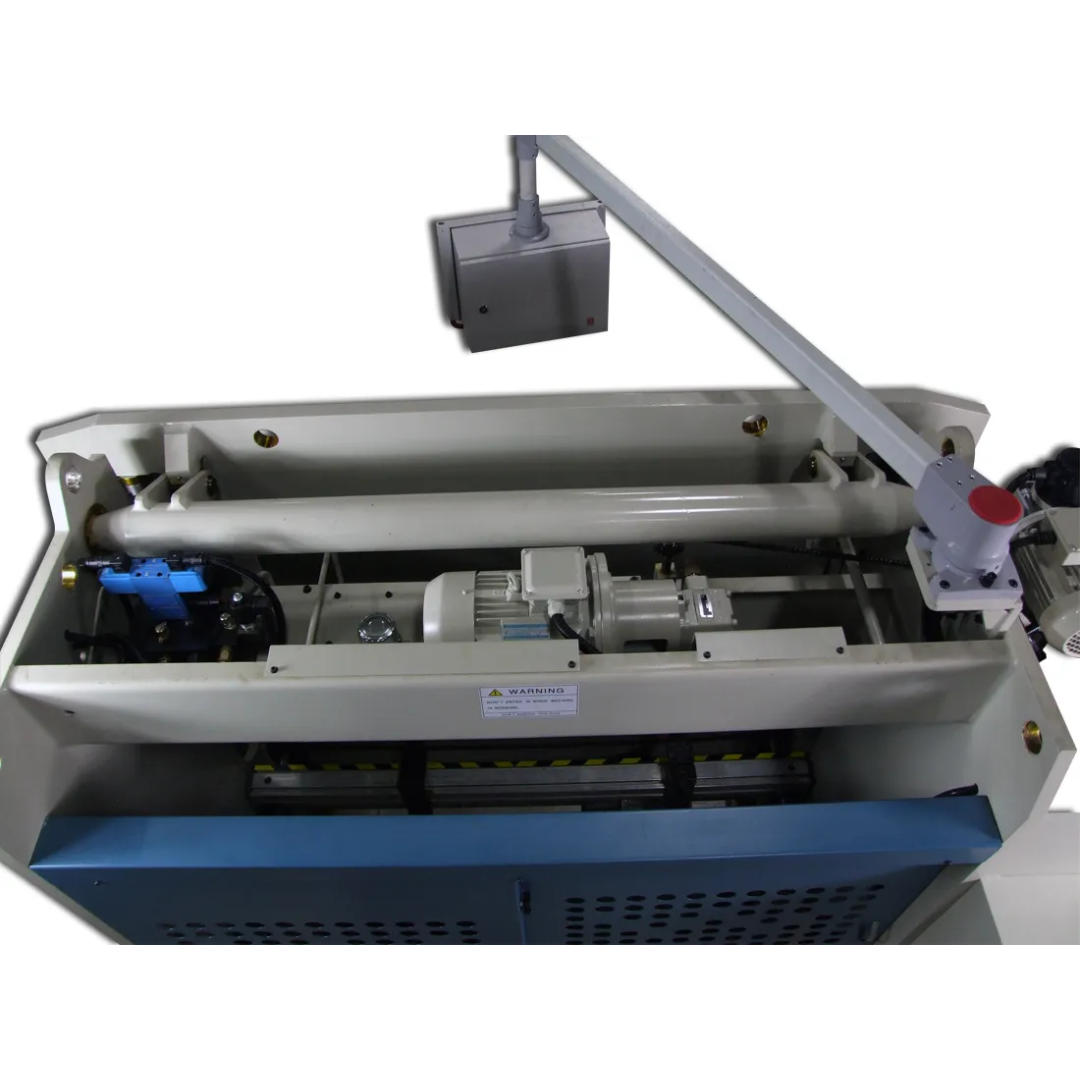

- Synchronized torque tube design enhances bending consistency and accuracy across the machine width.
- 220V three-phase electrical configuration supports demanding industrial applications and continuous-duty operation.
Why Choose the Baileigh Hydraulic Brake Press - (BP-5078CNC) 1010285
- Delivers 50 tons of hydraulic bending force for professional fabrication applications.
- Large 78-inch bending length supports oversized workpieces and long sheet sections.
- Programmable CNC control improves repeatability, efficiency, and production consistency.
- Stores multiple bending programs for fast job changeovers and reduced setup time.
- Built with premium hydraulic components including Vickers/Eaton® pumps and NOK® seals.
- Heavy-duty welded steel construction provides long-term durability in industrial environments.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Hydraulic Brake Press - (BP-5078CNC) 1010285 combines industrial-grade hydraulic power, precision CNC programmability, and robust steel-frame construction to deliver dependable sheet metal bending performance for fabrication shops, manufacturers, and production facilities seeking accuracy, efficiency, and long-term reliability.
