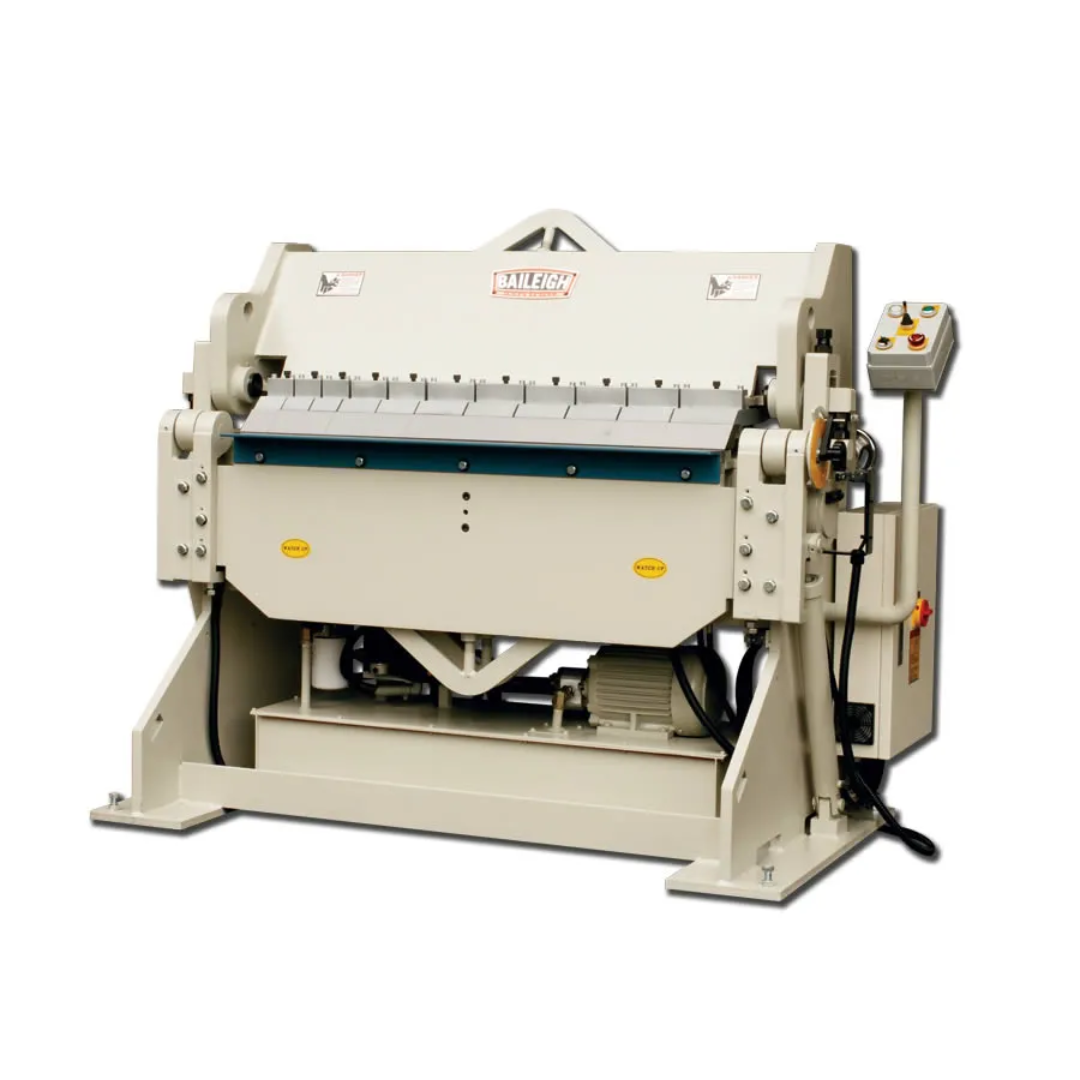

Baileigh Hydraulic Box and Pan Finger Brake BB-4810H 10005403 Applications
- Industrial sheet metal fabrication shops
- HVAC duct and ventilation system manufacturing
- Electrical enclosure and control box fabrication
- Cabinet and panel manufacturing
- Architectural sheet metal fabrication
- Custom boxes, pans, channels, and formed components
- Production environments requiring repeatable precision bends
- General fabrication and repair facilities handling heavier gauge materials
Built for fabricators who require hydraulic power, precision control, and the flexibility to produce a wide variety of box and pan configurations with excellent repeatability.
Baileigh Hydraulic Box and Pan Finger Brake BB-4810H 10005403 Specifications
| Model Number | BB-4810H |
|---|---|
| Product Number | 10005403 |
| Machine Type | Hydraulic Box and Pan Finger Brake |
| Working Width | 48" (4 ft) |
| Bending Capacity | 48" |
| Mild Steel Capacity | 10 Gauge |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6" |
| Finger Configuration | 11 Segmented Fingers (3 × 3", 2 × 4", 5 × 5", 1 × 6") |
| Main Motor | 3 HP Hydraulic Motor |
| Input Power | 220 Volt, Three Phase |
| Operation Modes | Manual and Semi-Automatic |
| Controls | Programmable Bend Auto-Stop with Removable Bending Support |
| Frame Construction | Fully Welded Steel Frame with Truss Rod Stabilization |
| Net Weight | 3,850 lbs |
| Gross Weight | 3,850 lbs |
| UPC | 731325392296 |
| Warranty | 1-Year Parts Warranty |
| Technical Support | Lifetime Technical Support |
Baileigh Hydraulic Box and Pan Finger Brake BB-4810H 10005403 Performance & Construction
- Heavy-duty hydraulic operation provides smooth clamping and bending performance for demanding production environments.
- 48-inch working width accommodates larger sheet metal sections while maintaining excellent bending accuracy.
- 10 gauge mild steel capacity delivers reliable performance on heavier materials commonly used in industrial fabrication.
- 3 HP hydraulic motor supplies consistent power for full-capacity bending applications.
- 220 V three-phase electrical system integrates seamlessly into professional fabrication and manufacturing facilities.
- Fully welded steel frame with truss rod stabilization minimizes frame deflection and helps maintain bending precision under heavy loads.
- Maximum 135° bend angle allows the production of a wide variety of formed sheet metal components.
- 6-inch maximum box depth provides flexibility for manufacturing deeper boxes, pans, and enclosed components.
- 11 removable segmented fingers enable quick tooling changes for creating custom box and pan configurations of various sizes.
- Manual and semi-automatic operating modes give operators flexibility for both custom work and repetitive production jobs.
- Programmable bend auto-stop improves repeatability while reducing setup time and operator fatigue.
- Removable bending support allows closer bends and increased versatility for complex fabrication projects.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Hydraulic Box and Pan Finger Brake BB-4810H 10005403
- Hydraulic operation for powerful, consistent bending performance.
- 48-inch working width handles large sheet metal sections.
- Bends up to 10 gauge mild steel with excellent precision.
- 11 segmented fingers provide outstanding flexibility for box and pan fabrication.
- 135° maximum bend angle expands forming capabilities.
- Programmable bend auto-stop increases production accuracy and repeatability.
- Heavy-duty welded steel frame minimizes deflection during full-capacity bending.
- Manual and semi-automatic operation adapts to both custom and production work.
- Supported by Baileigh's 1-year parts warranty and lifetime technical support.
The Baileigh Hydraulic Box and Pan Finger Brake BB-4810H 10005403 combines hydraulic power, industrial-grade construction, and precision control to deliver reliable sheet metal bending for professional fabrication shops. Whether producing electrical enclosures, HVAC ductwork, custom boxes, or precision sheet metal components, this hydraulic finger brake offers the durability, flexibility, and repeatable accuracy required for demanding industrial applications.
