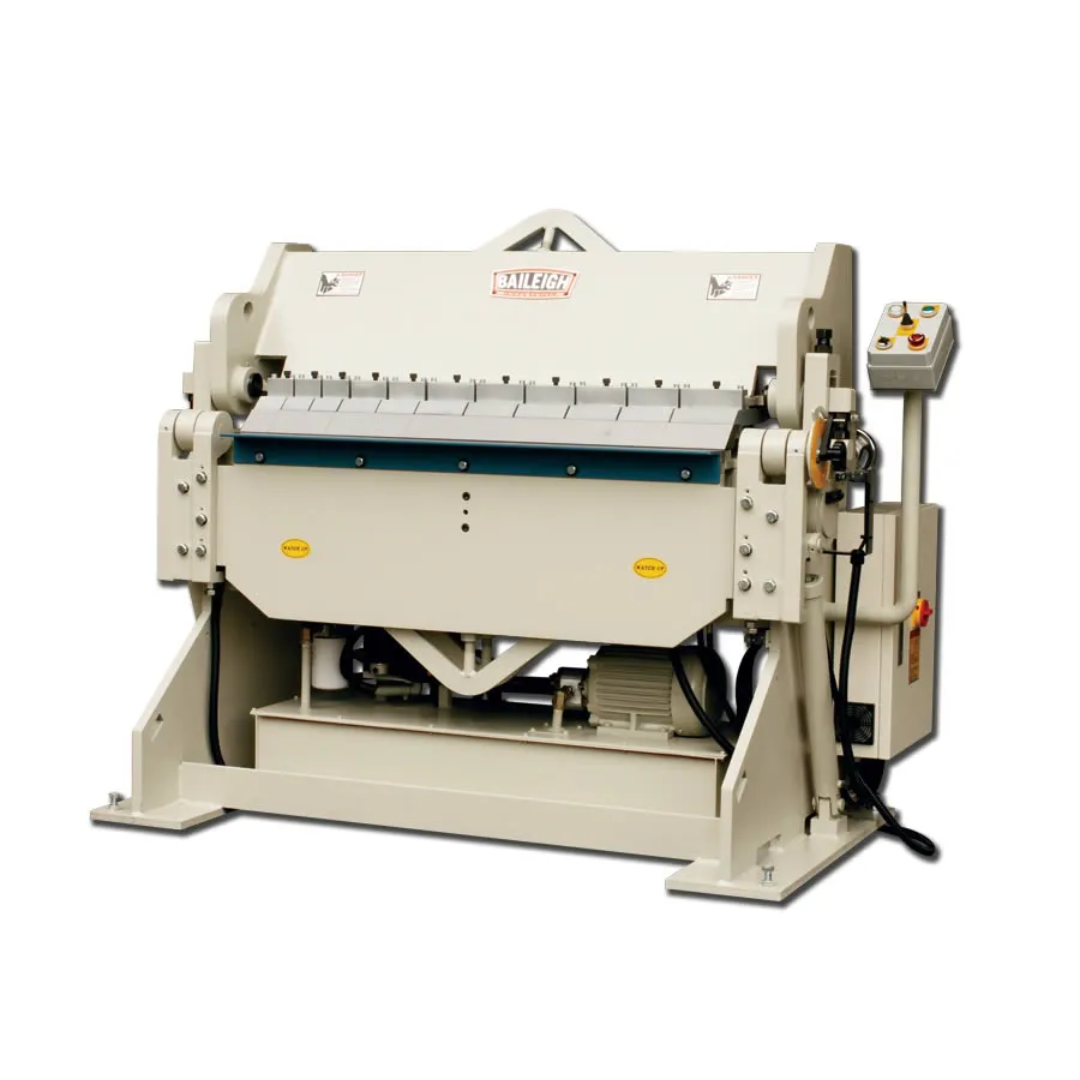

Baileigh Hydraulic Box and Pan Finger Brake (BB-4810H) Applications
- Industrial sheet metal fabrication.
- HVAC ductwork and ventilation manufacturing.
- Electrical enclosures and control cabinet fabrication.
- Custom metal boxes, pans, trays, and channels.
- Architectural sheet metal fabrication.
- Commercial manufacturing and production facilities.
- Heavy-gauge metal forming requiring repeatable precision.
Designed for professional fabrication shops that demand hydraulic power, consistent accuracy, and high-capacity box and pan forming on heavy-gauge sheet metal.
Baileigh Hydraulic Box and Pan Finger Brake (BB-4810H) Specifications
| Model | BB-4810H |
|---|---|
| Product Number | 1000403 |
| Operation | Hydraulic (Manual or Semi-Automatic Modes) |
| Working Width | 48 in. (4 ft.) |
| Material Capacity | 10 Gauge Mild Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6 in. |
| Motor | 3 HP Hydraulic Motor |
| Power Requirement | 220V Three Phase |
| Finger Configuration | 11 Segmented Fingers (3 × 3", 2 × 4", 5 × 5", 1 × 6") |
| Control Features | Programmable Bend Auto-Stop |
| Support | Removable Bending Support |
| Net Weight | 3,850 lb |
| Gross Weight | 3,850 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 731325392296 |
Baileigh Hydraulic Box and Pan Finger Brake (BB-4810H) Performance & Construction
- Industrial 3 HP hydraulic system delivers consistent lifting and clamping force for bending heavy-gauge sheet metal with exceptional precision.
- 48-inch working width provides ample capacity for forming full-width sheet metal panels used in fabrication, HVAC, and manufacturing applications.
- 10-gauge mild steel capacity allows fabrication of thicker components while maintaining excellent bend quality and dimensional accuracy.
- Fully welded steel frame with truss rod stabilization minimizes frame deflection under heavy loads to ensure accurate bends across the entire working length.
- Hydraulic operation with manual and semi-automatic modes gives operators flexibility for both custom fabrication and repeat production work.
- Maximum 135° bending capability supports a wide variety of standard, acute, and specialty bends for complex sheet metal projects.
- 11 removable segmented fingers allow quick tooling configuration changes for producing boxes, pans, trays, channels, and custom-shaped components.
- 6-inch maximum box depth expands forming capabilities for larger fabricated enclosures and deep pan applications.
- Programmable bend auto-stop improves production consistency by automatically repeating programmed bend angles throughout production runs.
- Removable bending support enables tighter bends while simplifying handling of larger workpieces and improving operator efficiency.
- Heavy-duty 3,850-pound construction provides outstanding rigidity, vibration resistance, and long-term durability in demanding industrial environments.
Baileigh Hydraulic Box and Pan Finger Brake (BB-4810H) Features & Benefits
- 48-inch (4-foot) hydraulic bending capacity.
- Handles up to 10-gauge mild steel.
- Industrial 3 HP hydraulic motor powered by 220V three-phase electricity.
- Manual and semi-automatic operating modes for greater flexibility.
- Maximum 135° bend angle for versatile forming applications.
- 6-inch box depth accommodates larger fabricated parts.
- Includes 11 segmented fingers for creating boxes, pans, channels, and custom bends.
- Programmable bend auto-stop increases repeatability during production.
- Removable bending support improves accessibility for close bends.
- Heavy welded steel frame with truss rod reinforcement minimizes deflection.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh Hydraulic Box and Pan Finger Brake (BB-4810H)
- Hydraulic power delivers consistent heavy-duty bending performance.
- Large 48-inch capacity accommodates demanding fabrication projects.
- 10-gauge capability handles thicker materials with ease.
- Programmable controls improve production efficiency and repeatability.
- Segmented finger tooling allows exceptional forming versatility.
- Industrial-grade construction ensures years of dependable service.
The Baileigh Hydraulic Box and Pan Finger Brake (BB-4810H) is a production-ready hydraulic finger brake built for professionals who require power, precision, and versatility. Combining a rigid welded frame, industrial hydraulic system, programmable controls, removable segmented fingers, and heavy-duty 10-gauge capacity, the BB-4810H delivers reliable performance for demanding sheet metal fabrication and manufacturing applications.
