Baileigh High Speed Drill Press DP-1250VS-HS 1002871 Applications
- Industrial fabrication and metalworking facilities.
- Machine shops requiring precision drilling and tapping.
- Thermal friction drilling applications.
- Production manufacturing environments.
- Maintenance and repair departments.
- Tool rooms and prototype manufacturing.
- Fixture and tooling fabrication.
- General-purpose precision drilling of mild steel and other metals.

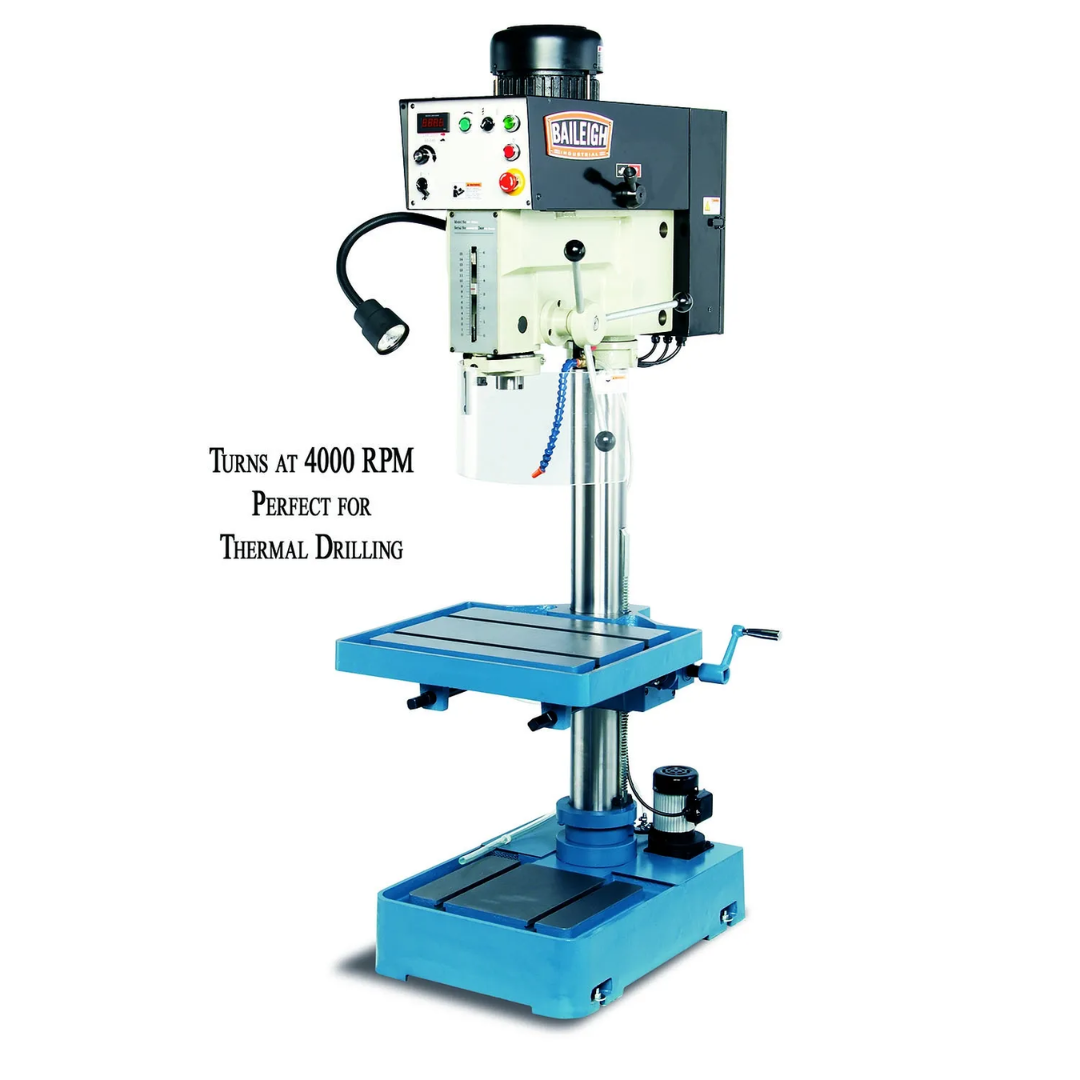

The Baileigh High Speed Drill Press DP-1250VS-HS 1002871 combines high-speed inverter technology, precision spindle control, and industrial construction to deliver exceptional drilling performance for both conventional and specialized machining applications.
Baileigh High Speed Drill Press DP-1250VS-HS 1002871 Specifications
| Model | DP-1250VS-HS |
|---|---|
| Part Number | 1002871 |
| Machine Type | High-Speed Inverter-Driven Drill Press |
| Motor Power | 2 HP |
| Power Requirement | 220V Single-Phase |
| Motor Type | Inverter-Driven Variable Speed |
| Maximum Drilling Capacity (Mild Steel) | 1.25" |
| Maximum Tapping Capacity (Mild Steel) | 0.625" |
| Swing | 20" |
| Spindle Speed Range | 100 – 4,000 RPM |
| Spindle Taper | #4 Morse Taper (MT4) |
| Coolant Pump Motor | 1/8 HP |
| Coolant System | Integrated Industrial Coolant System |
| Worktable | Machined and Polished Cast Iron Table with Large 0.625" T-Slots |
| Safety Features | Protective Spindle Shield with Integrated Safety Limit Switch |
| Lighting | Integrated Halogen Work Light |
| Auto Tapping | Automatic Reverse Tapping Function |
| Net Weight | 752 lbs. |
| Gross Weight | 752 lbs. |
| UPC | 731325404357 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh High Speed Drill Press DP-1250VS-HS 1002871 Performance & Construction

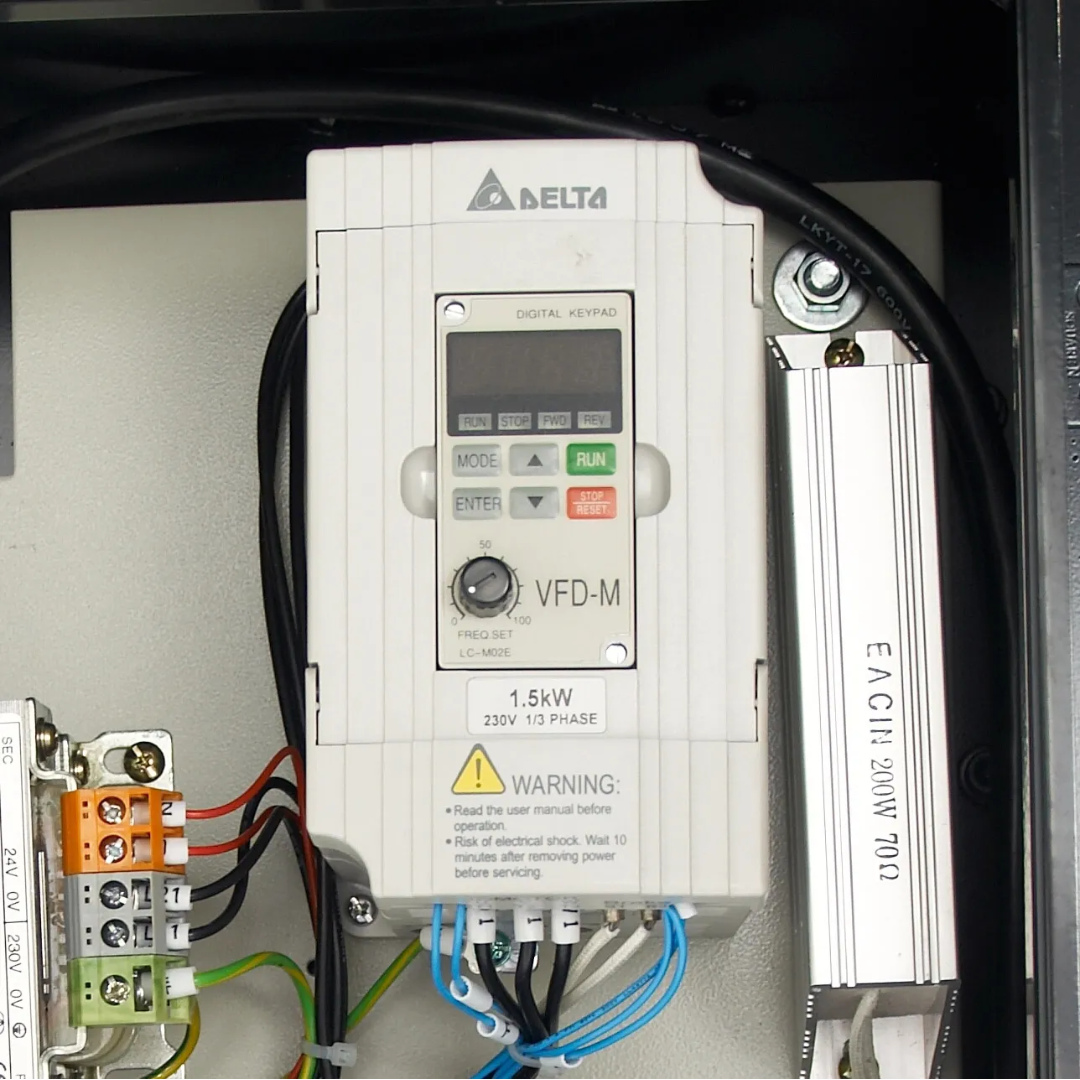

- Powerful 2 HP inverter-driven motor delivers smooth, efficient power with continuously variable spindle speed control for a broad range of drilling and tapping applications.

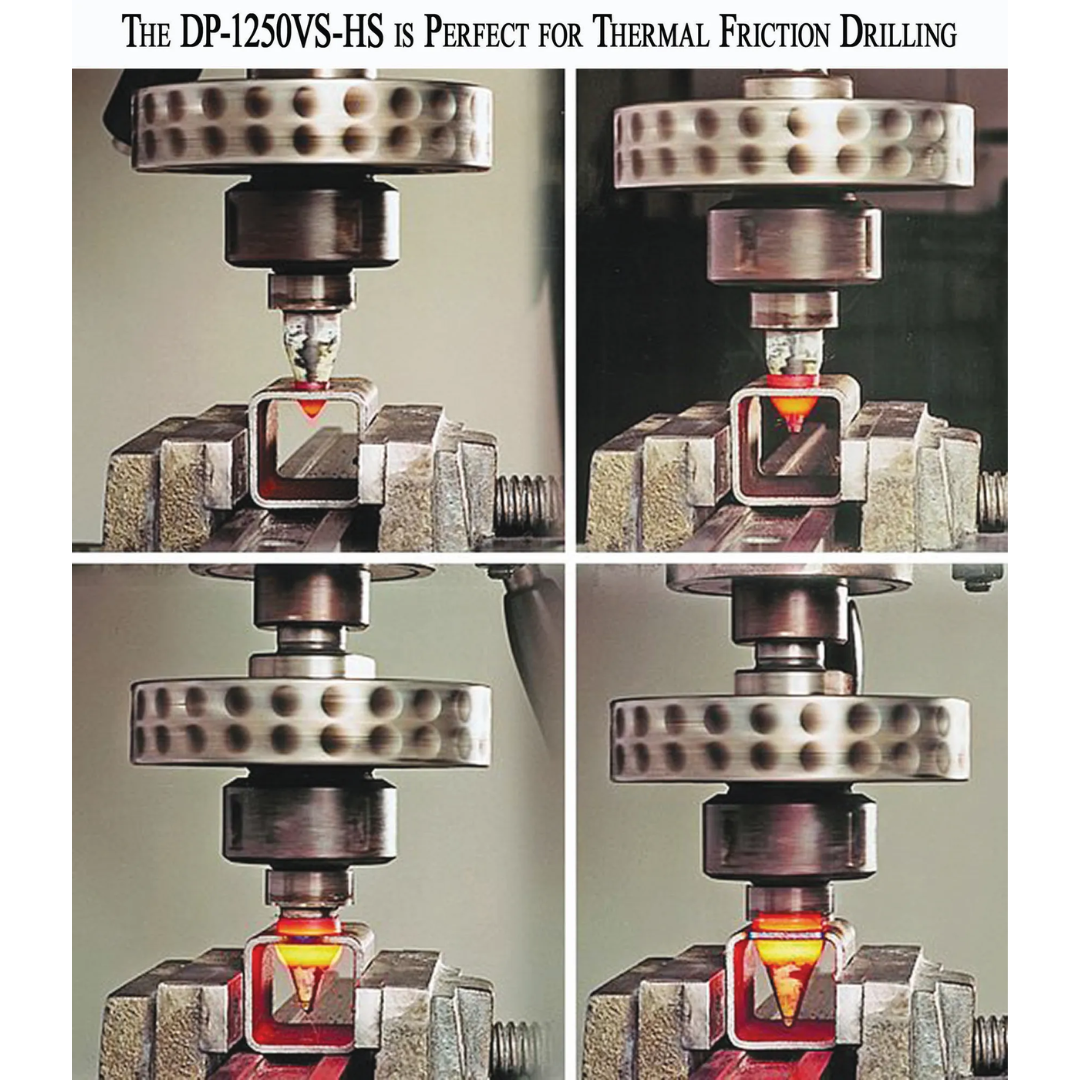

- Wide variable speed range of 100 to 4,000 RPM makes the machine ideal for conventional drilling, precision machining, and thermal friction drilling.
- Heavy-duty cast iron base and oversized column minimize vibration and machine flex, ensuring superior drilling accuracy and long-term durability.
- 1.25-inch drilling capacity in mild steel provides the power needed for demanding industrial drilling operations.
- 20-inch swing capacity accommodates larger workpieces while expanding machining versatility.
- #4 Morse taper spindle accepts a wide range of industrial drill tooling, tapping heads, and specialty accessories.
- Automatic reversing tapping feature simplifies tapping operations while improving efficiency and reducing operator fatigue.

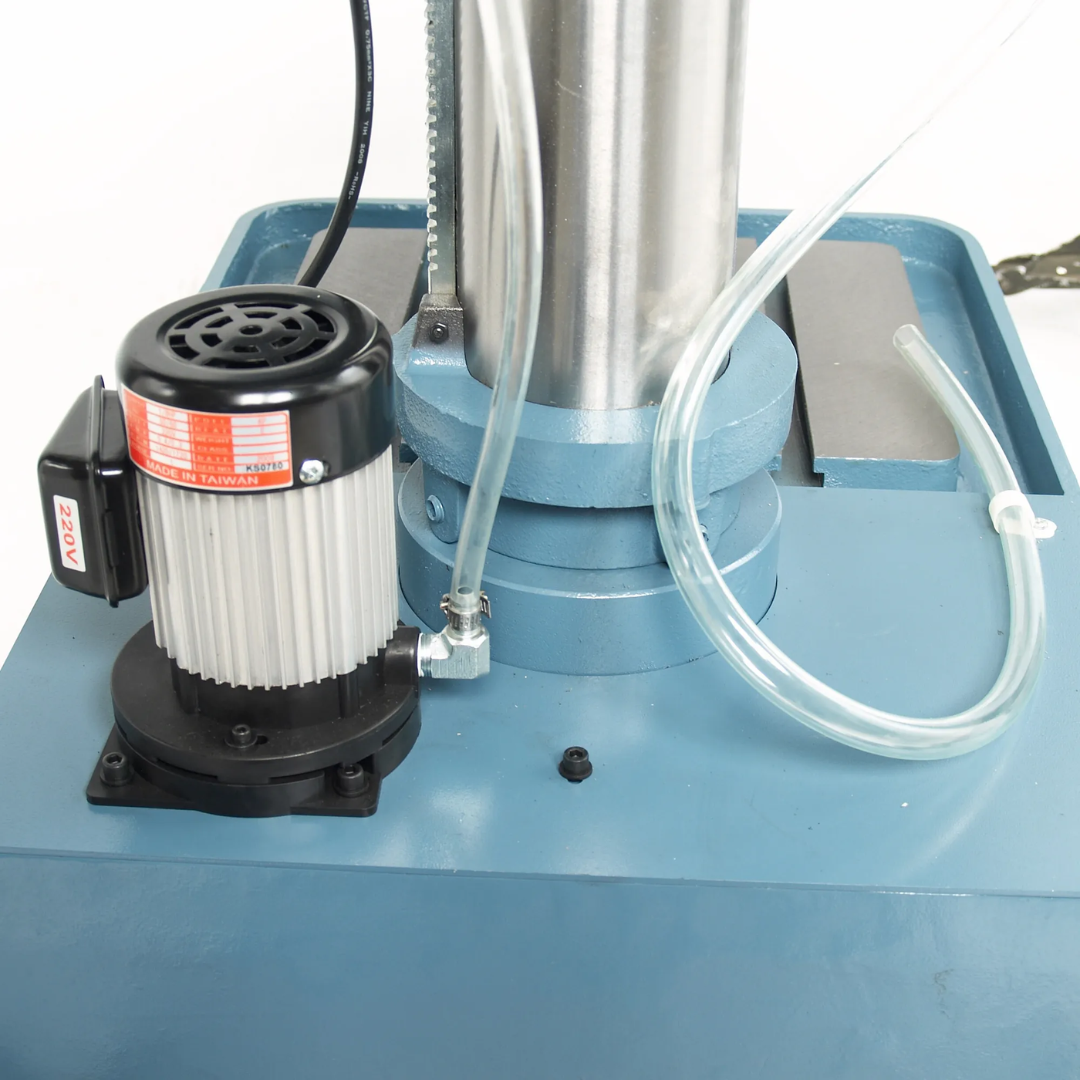

- Integrated coolant system with 1/8 HP coolant pump helps control cutting temperatures, improve surface finish, and extend tooling life during prolonged machining.

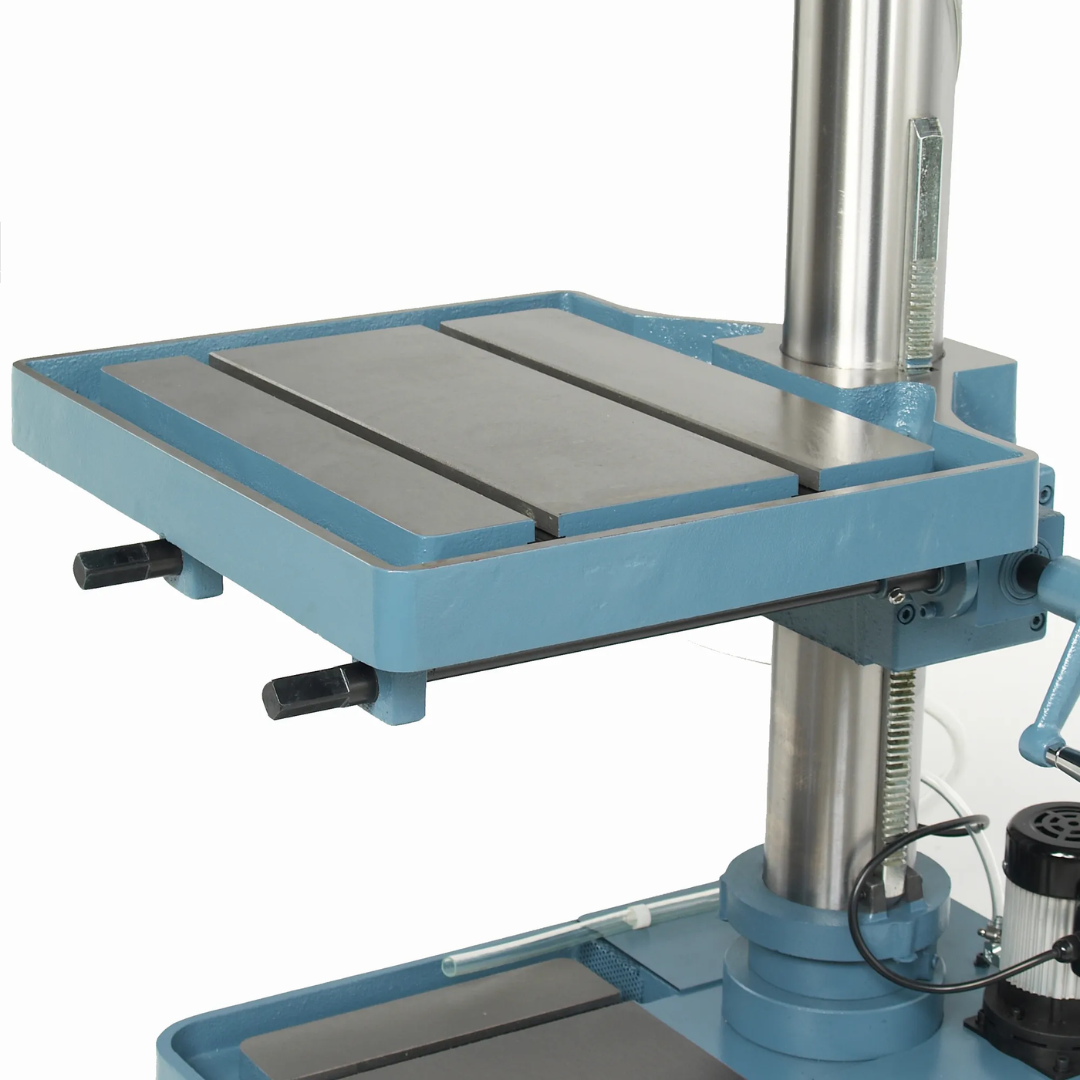

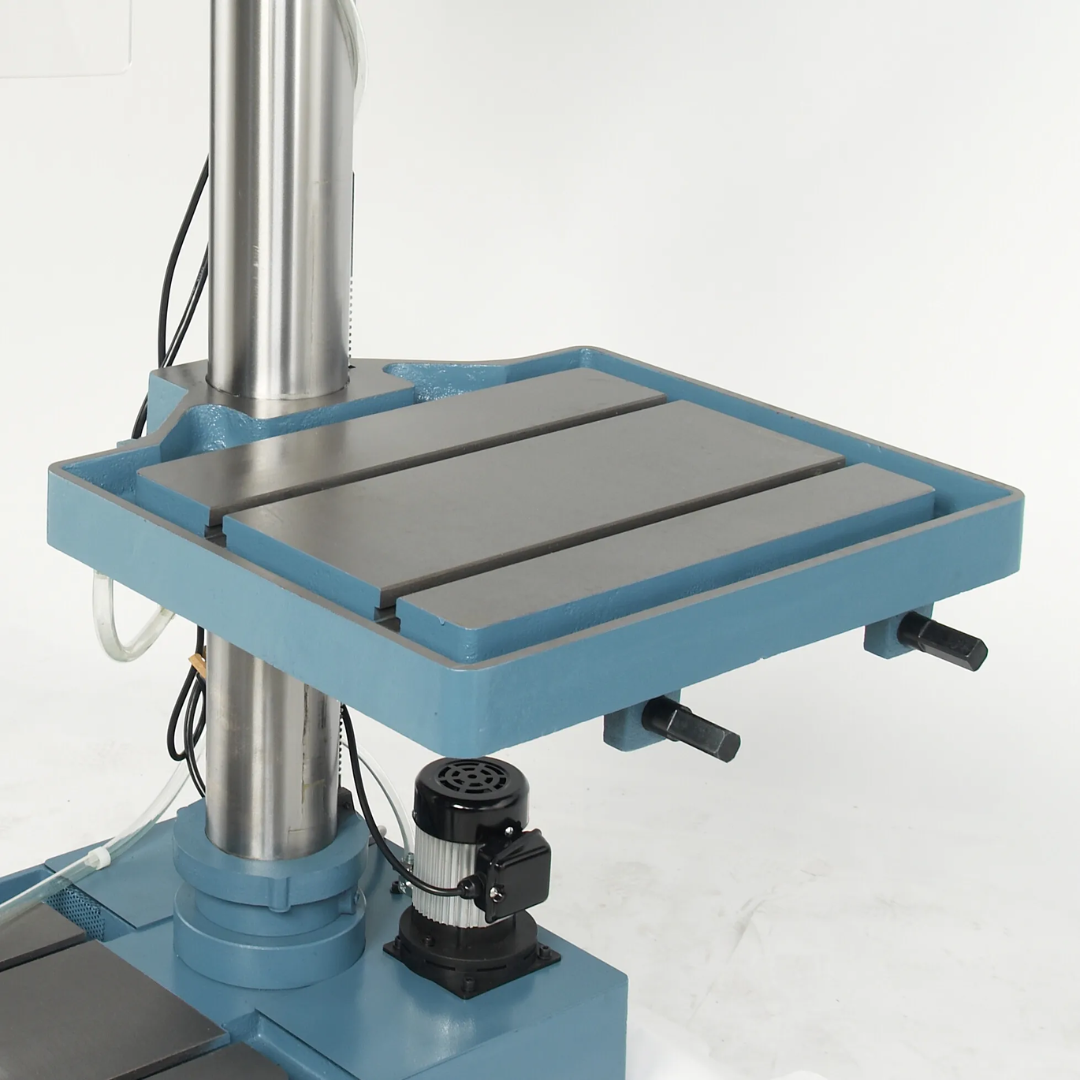

- Precision-machined cast iron worktable includes large 0.625-inch T-slots for secure fixture mounting and stable workholding.
- Protective spindle guard with safety limit switch enhances operator protection by preventing machine operation when the guard is not properly positioned.

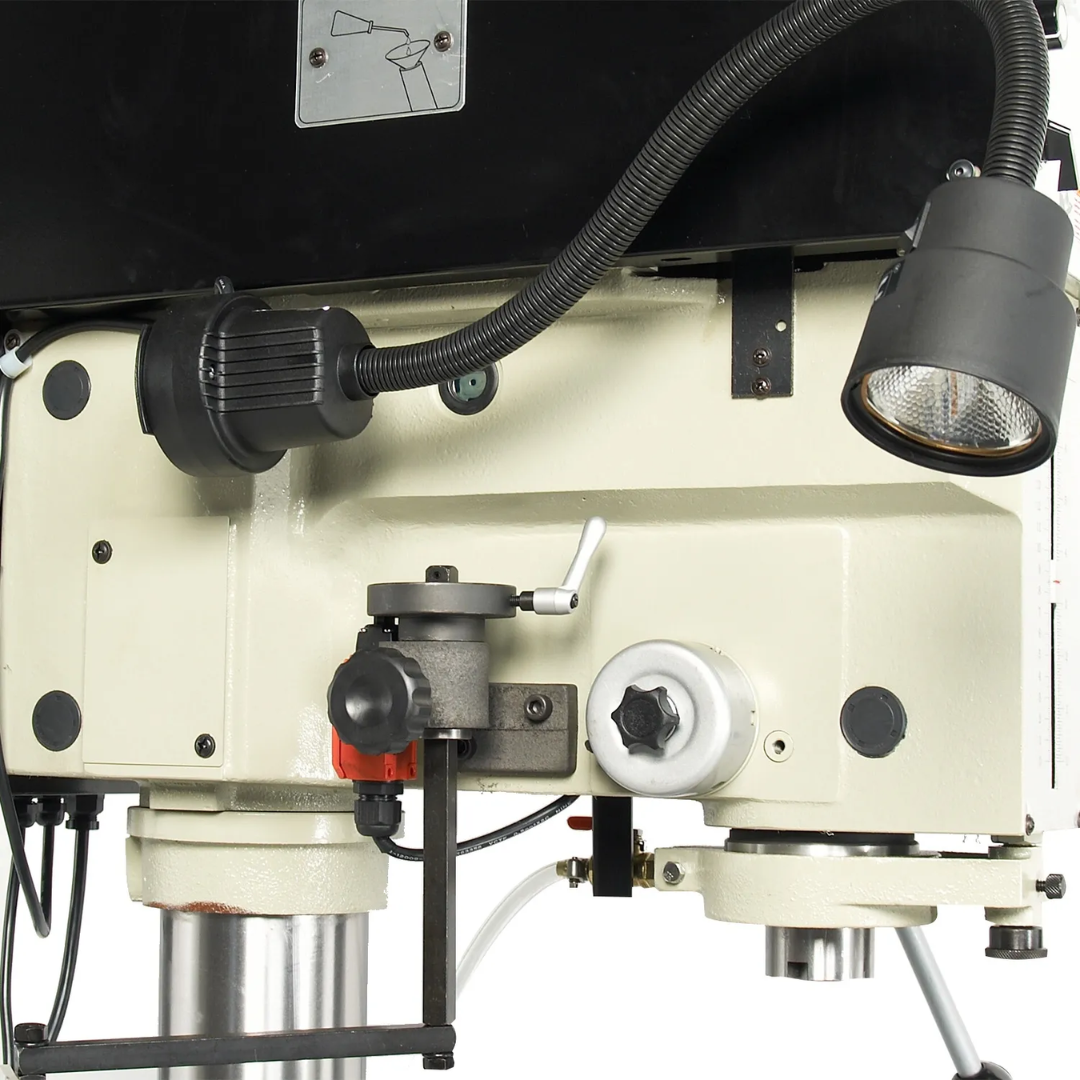

- Integrated halogen work light provides improved visibility of the cutting area for greater machining accuracy.
- Designed for production environments where precision, repeatability, and high spindle speeds are essential for daily operation.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh High Speed Drill Press DP-1250VS-HS 1002871
- Powerful 2 HP inverter-driven motor provides smooth variable-speed performance.
- Wide 100–4,000 RPM spindle range supports conventional drilling and thermal friction drilling.
- 1.25-inch drilling capacity handles demanding industrial applications.
- 20-inch swing increases flexibility for larger workpieces.
- Automatic reverse tapping improves productivity and threading accuracy.
- Integrated coolant system extends tooling life and improves machining performance.
- Precision-machined worktable with large T-slots provides secure workholding.
- Heavy-duty cast iron construction delivers exceptional rigidity and stability.
- Spindle safety shield and work light enhance operator safety and visibility.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh High Speed Drill Press DP-1250VS-HS 1002871 delivers industrial-grade precision, high-speed inverter-driven performance, and advanced drilling versatility in a robust floor-standing machine built for fabrication shops, production machining, and high-performance drilling applications.
