Baileigh Heavy Duty Disc Grinder - (DG-500HD) 1019164 Applications
- Deburring laser-cut, plasma-cut, and machined metal components.
- Chamfering and edge preparation prior to welding operations.
- Cleaning castings and fabricated metal parts.
- Surface finishing and material blending applications.
- Grinding and shaping steel, stainless steel, aluminum, and other metals.
- Fabrication shop production work and industrial manufacturing processes.
- Tool room finishing and custom metalworking projects.
- General-purpose metal finishing and preparation tasks.
Designed for high-production environments where fast material removal, precise edge preparation, and dependable industrial performance are essential.
Baileigh Heavy Duty Disc Grinder - (DG-500HD) 1019164 Specifications
| Model Number | DG-500HD |
|---|---|
| Product Keyword | Baileigh Heavy Duty Disc Grinder - (DG-500HD) 1019164 |
| Disc Diameter | 20 in. |
| Motor Power | 2 HP |
| Motor Speed | 1,750 RPM |
| Motor Voltage | 220V |
| Input Power | 220V Single Phase |
| Motor Phase | Single Phase |
| Disc Table Tilt | 45° Down, 15° Up |
| Dust Port Diameter | 4 in. |
| Net Weight | 422 lbs. |
| Gross Weight | 422 lbs. |
| Warranty | 1 Year |
| UPC | 19907409922 |
Baileigh Heavy Duty Disc Grinder - (DG-500HD) 1019164 Performance & Construction

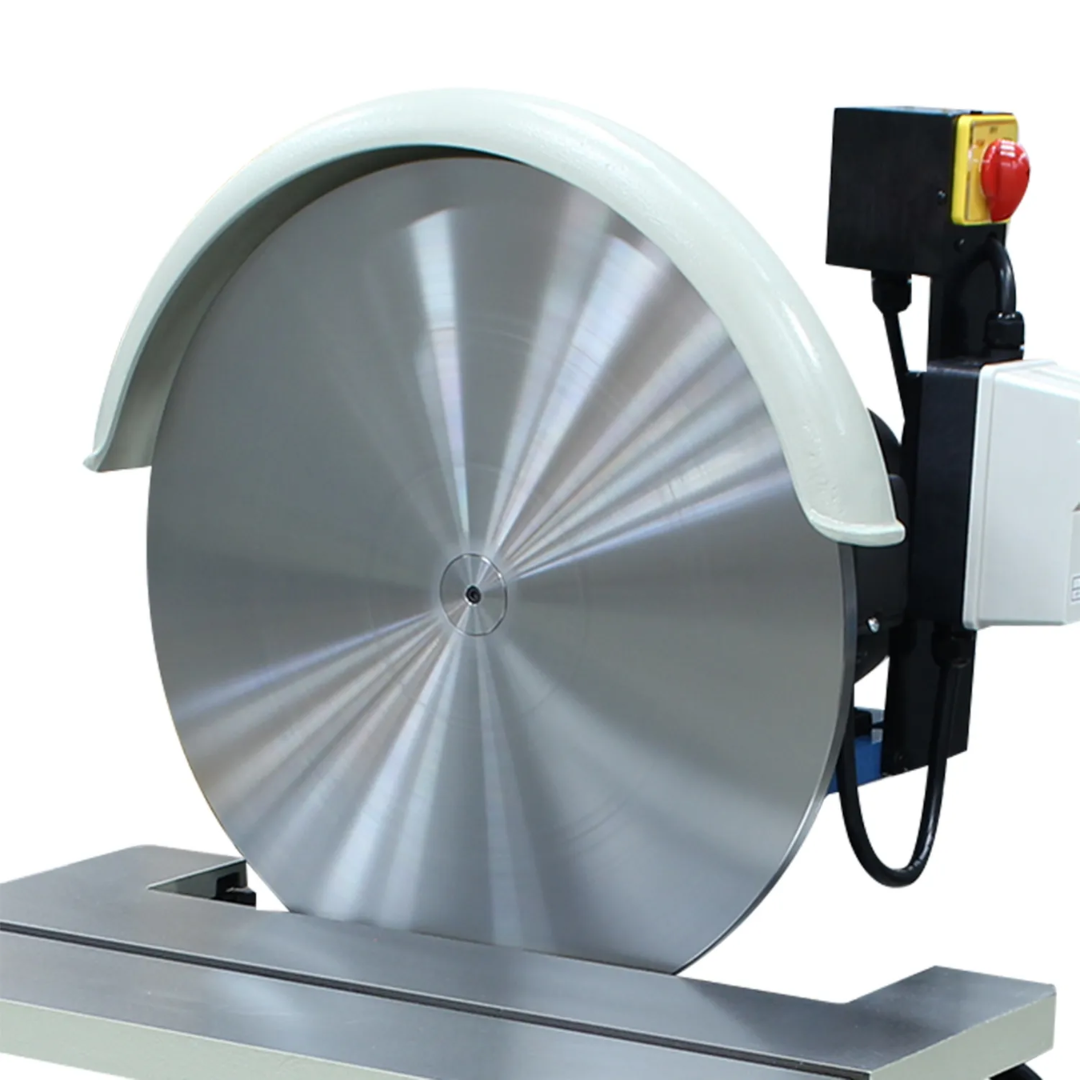

- Large 20-inch grinding disc provides substantial grinding surface area for efficient material removal and improved productivity.
- Powerful 2 HP motor delivers consistent torque and dependable grinding performance for industrial fabrication applications.
- 1,750 RPM operating speed offers an ideal balance between aggressive stock removal and controlled finishing.
- 220V single-phase operation allows installation in many fabrication shops and industrial workspaces without requiring three-phase power.

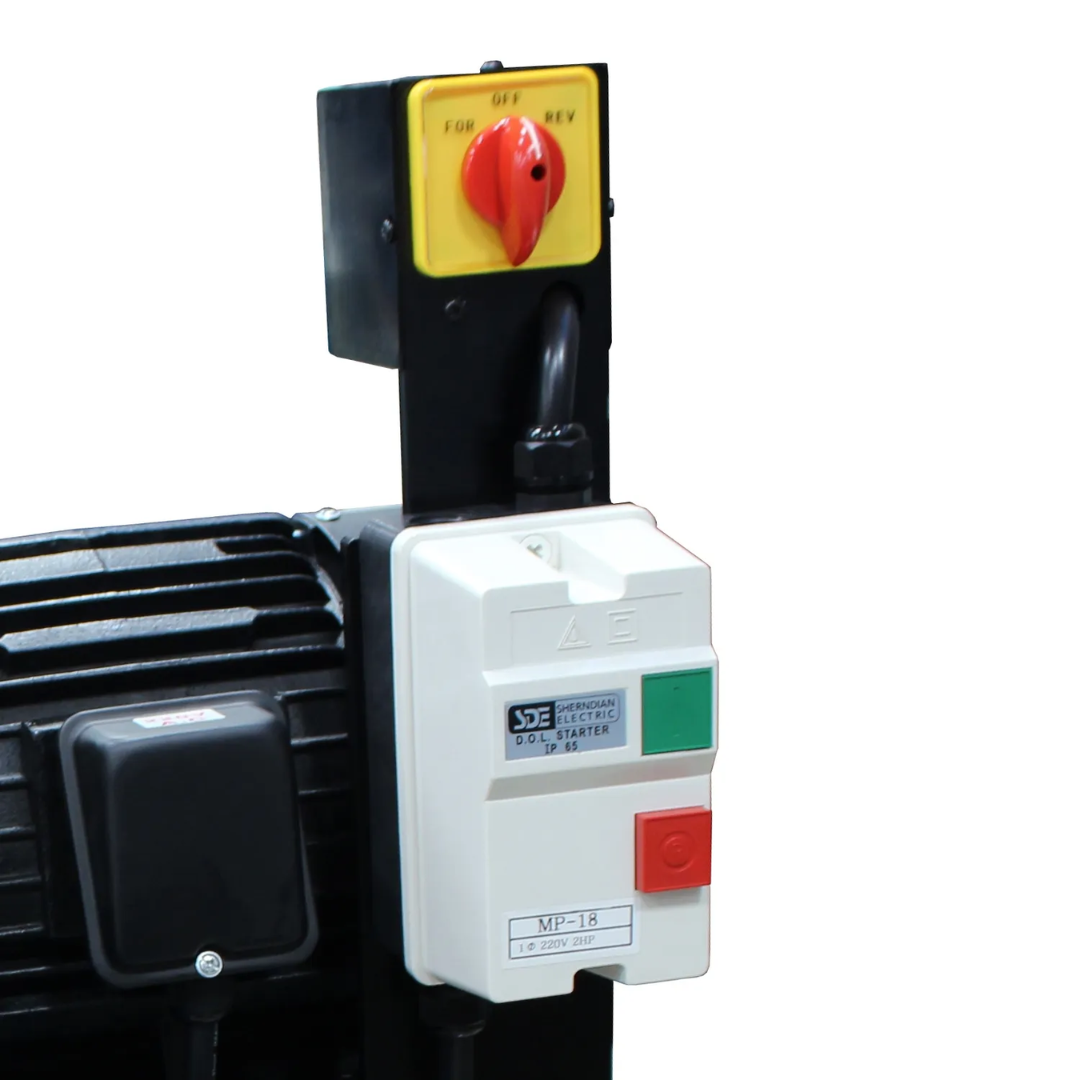

- Reversing switch functionality enables both clockwise and counterclockwise disc rotation, allowing operators to optimize grinding direction for specific applications.

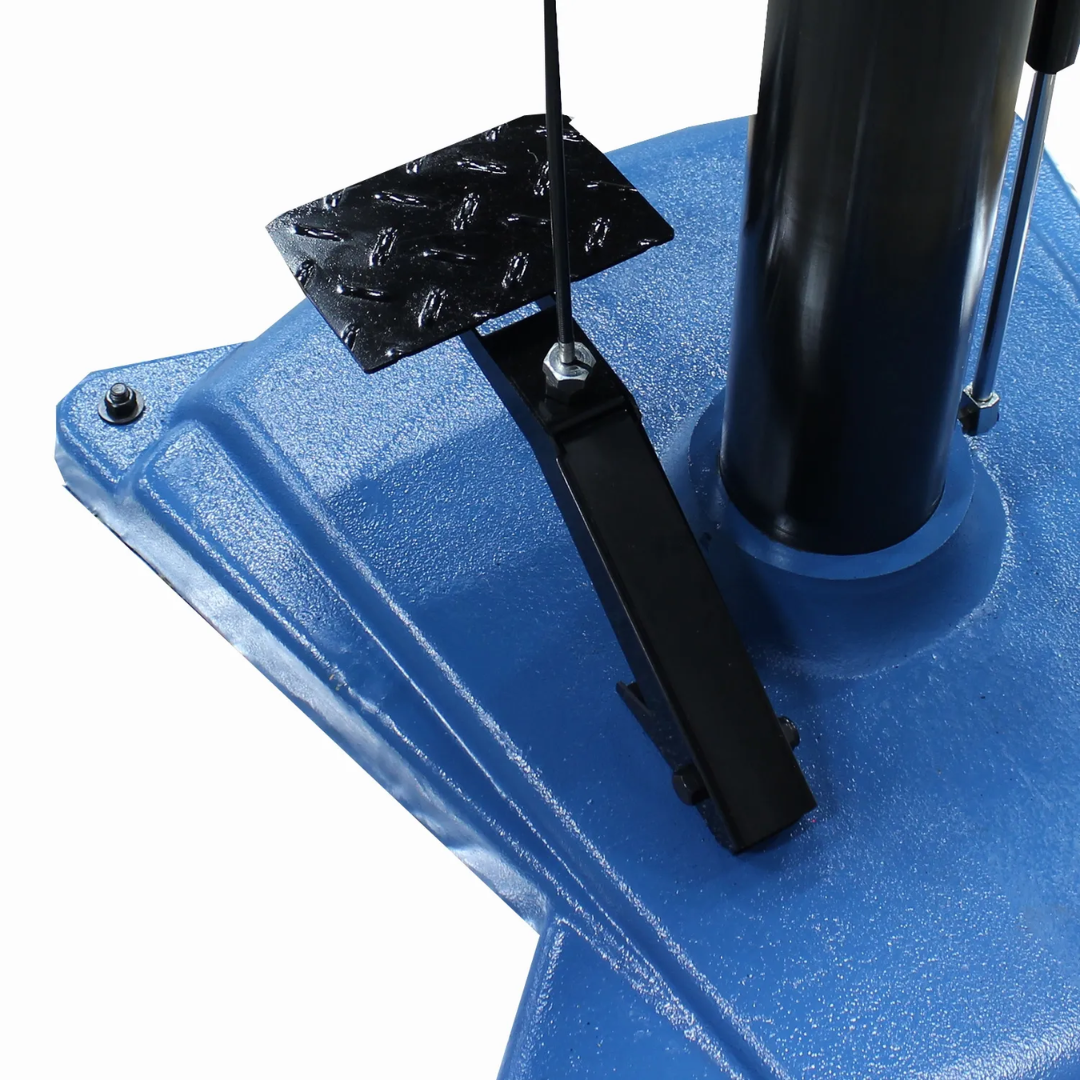

- Integrated foot brake system quickly stops the grinding disc, reducing downtime between operations and improving workplace efficiency.

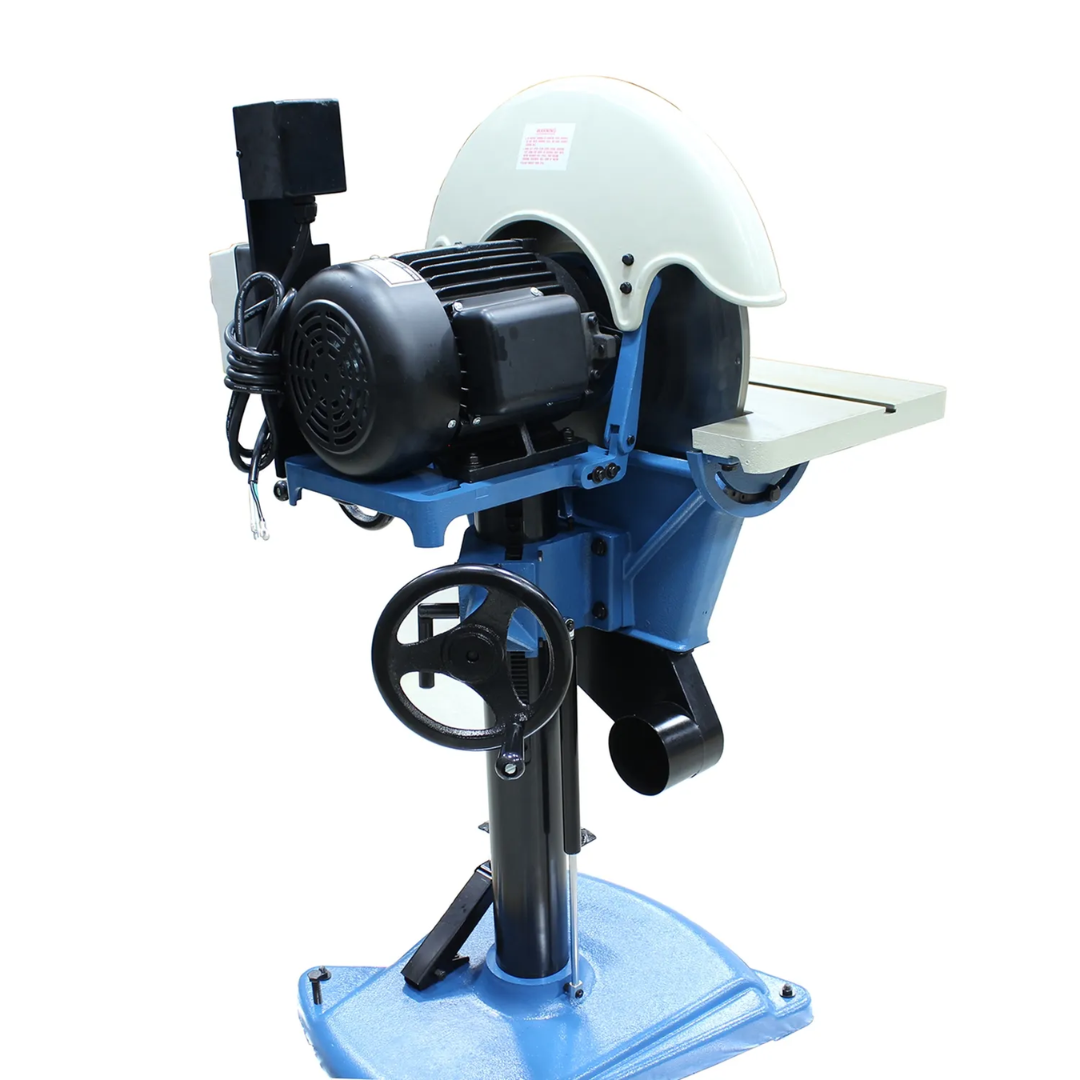

- Adjustable worktable tilts 45 degrees downward and 15 degrees upward to accommodate a variety of grinding angles and finishing requirements.

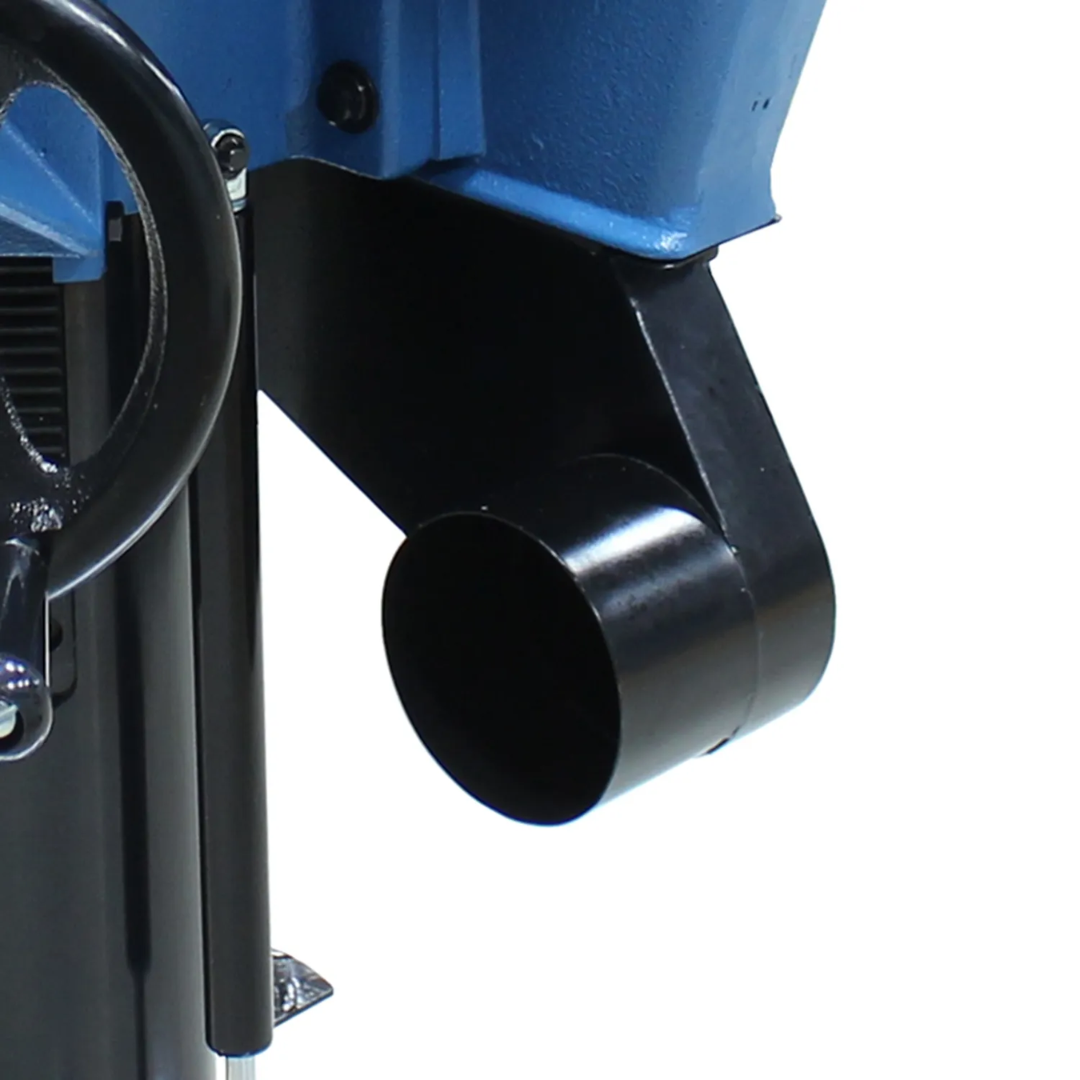

- 4-inch dust collection port connects to extraction systems to help maintain a cleaner work environment and improve visibility during grinding operations.
- Included miter gauge assists with accurate positioning and repeatable grinding of workpieces.

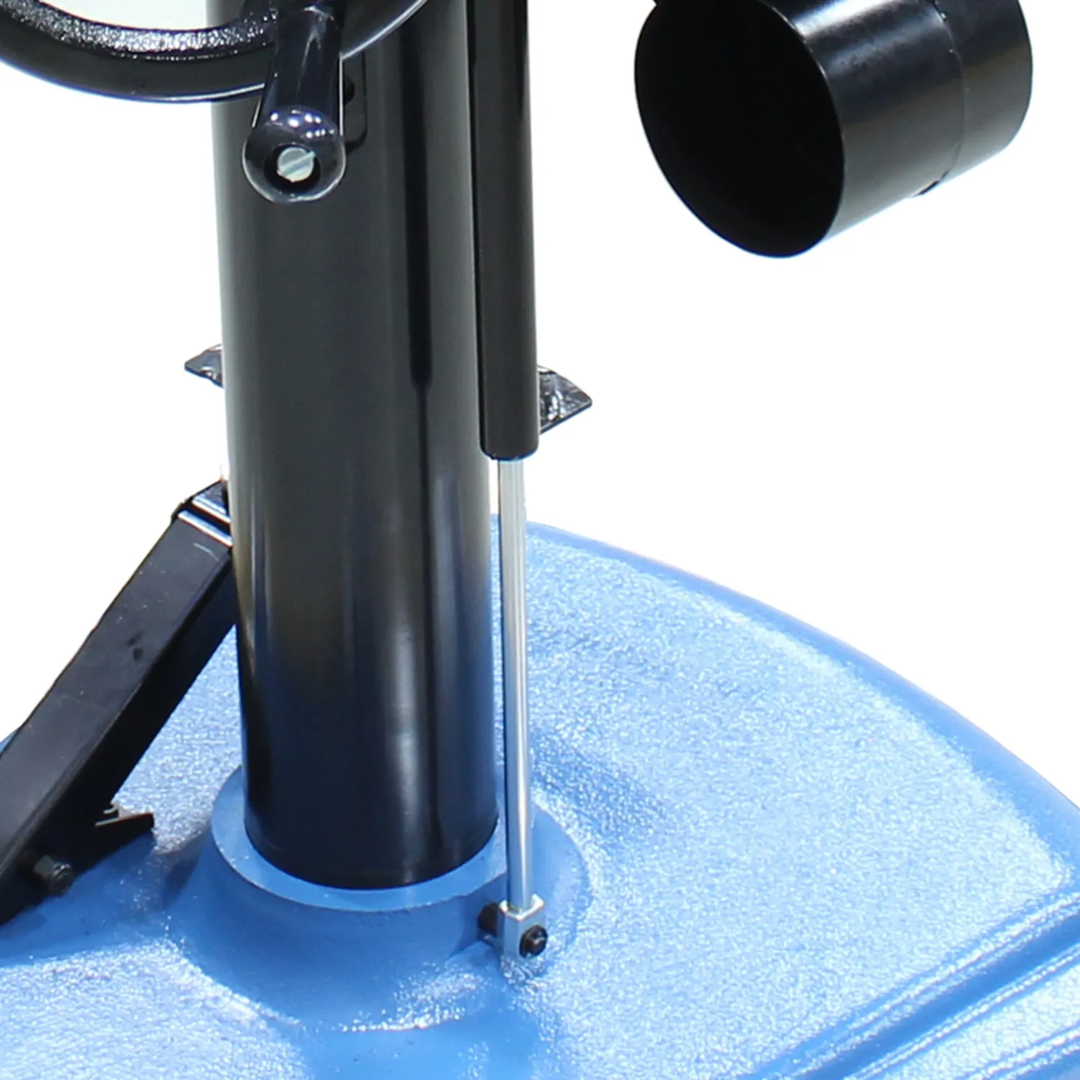

- Heavy-duty industrial construction minimizes vibration while enhancing stability, durability, and long-term grinding accuracy.
- Versatile grinding capabilities support deburring, edge preparation, weld cleanup, chamfering, blending, and surface finishing operations.
- Designed for production environments where reliability, precision, and continuous operation are critical.
- Backed by Baileigh support with a 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh Heavy Duty Disc Grinder - (DG-500HD) 1019164
- Large 20-inch disc maximizes grinding efficiency and productivity.
- Powerful 2 HP motor provides reliable industrial grinding performance.
- Reversing switch increases versatility across multiple grinding applications.
- Foot brake improves workflow efficiency and operator control.
- Adjustable worktable supports precise angle grinding and finishing.
- Dust collection port helps maintain a cleaner work environment.
- Heavy-duty construction delivers long-term durability in production settings.
- Ideal for fabrication shops, manufacturers, welders, and industrial maintenance departments.
The Baileigh Heavy Duty Disc Grinder - (DG-500HD) 1019164 combines industrial-grade power, versatile grinding capabilities, and operator-focused features to deliver exceptional performance for deburring, edge preparation, surface finishing, and fabrication work in demanding metalworking environments.
