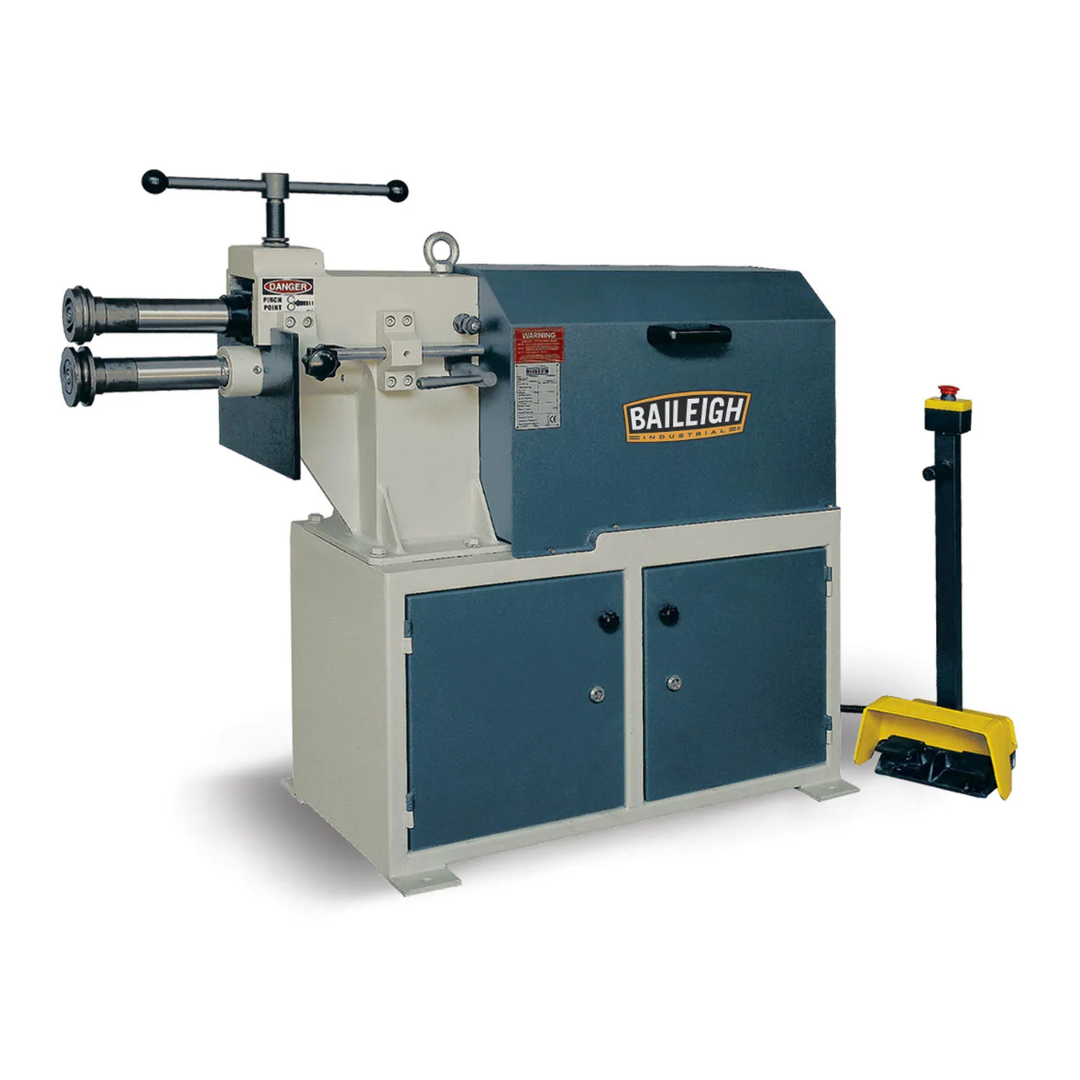

Baileigh Heavy Duty Bead Rolling Machine BR-12E-10 1012430 Applications
- HVAC ductwork and ventilation component fabrication.
- Automotive restoration and custom body panel strengthening.
- Industrial sheet metal fabrication and production work.
- Architectural metal panels and decorative sheet metal forming.
- Tank, enclosure, cabinet, and equipment manufacturing.
- General fabrication shops requiring precise bead, step, crimp, and shear operations.
An excellent production bead roller for shops requiring heavy-duty construction, electric operation, and consistent bead placement across a wide range of sheet metal applications.
Baileigh Heavy Duty Bead Rolling Machine BR-12E-10 1012430 Specifications
| Model | BR-12E-10 |
|---|---|
| Manufacturer | Baileigh Industrial |
| Part Number | 1012430 |
| Operation | Electric |
| Motor Power | 2 HP |
| Input Power | 220V Single Phase |
| Mild Steel Capacity | 12 Gauge |
| Throat Depth | 10 in. |

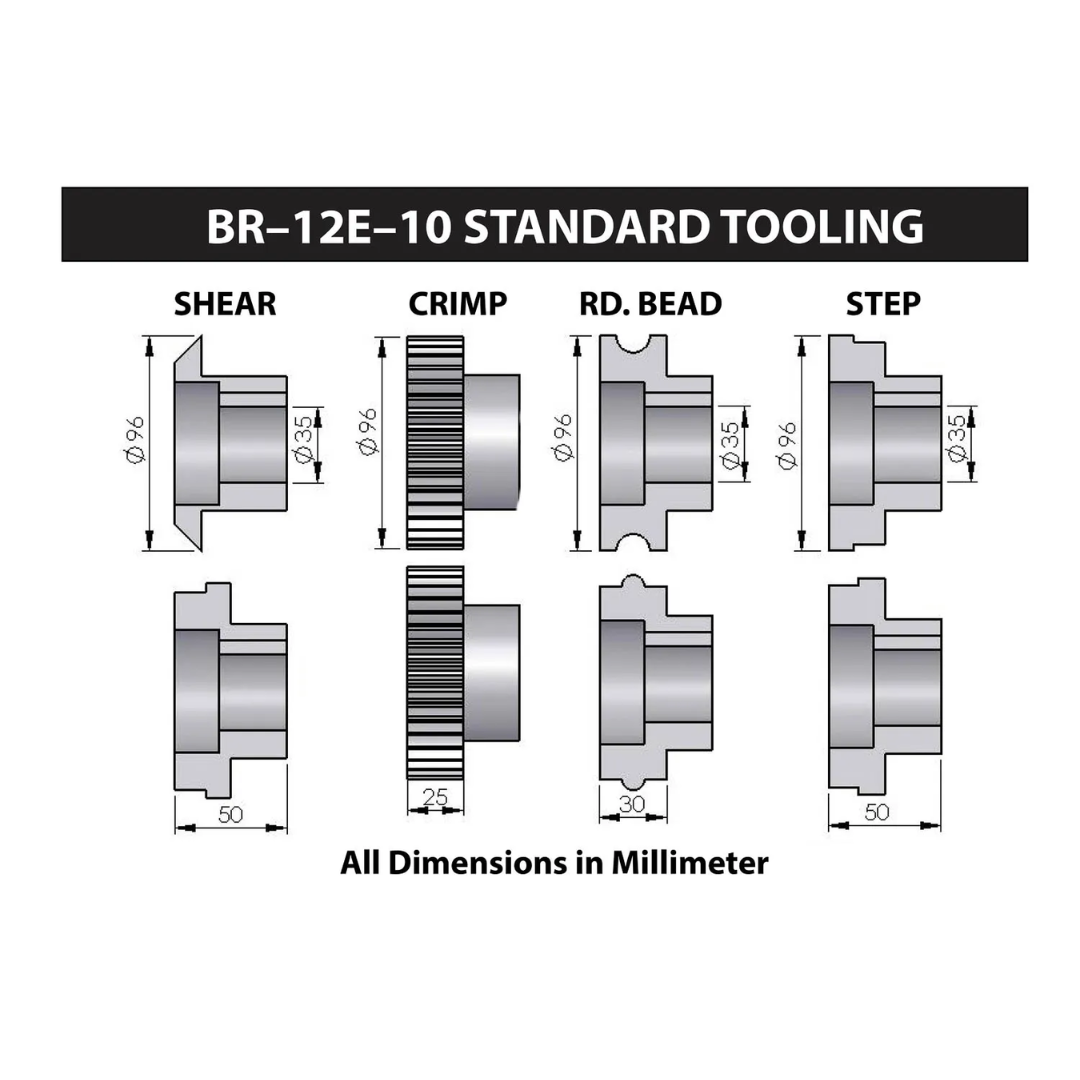

| Standard Tooling Included | Round, Shear, Step, and Crimp Rolls |
| Depth Stop | Adjustable Depth Stop Included |
| Frame Construction | Fully Welded Plate Steel Frame |
| Controls | Forward & Reverse Foot Pedals |
| Net Weight | 820 lbs |
| Gross Weight | 820 lbs |
| Warranty | 1 Year |
Baileigh Heavy Duty Bead Rolling Machine BR-12E-10 1012430 Performance & Construction
- Heavy-duty fully welded plate steel frame provides exceptional rigidity and minimizes deflection for precise, repeatable forming.
- Powerful 2 HP electric motor delivers smooth, reliable torque for demanding sheet metal forming applications.
- 220V single-phase electrical operation makes installation convenient while providing industrial-grade performance.
- Forms material up to 12 gauge mild steel, making it suitable for a wide range of fabrication and production projects.
- 10-inch throat depth allows operators to create bead patterns farther into large panels and workpieces.
- Hands-free forward and reverse foot pedal controls improve material handling by allowing both hands to remain on the workpiece during forming.
- Includes four standard roll profiles—round, shear, step, and crimp rolls—providing immediate versatility for multiple forming applications.
- Adjustable depth stop ensures consistent bead depth and repeatable positioning across production runs.
- Designed for production efficiency with smooth electric drive and ergonomic controls that reduce operator fatigue.
- Ideal for forming strengthening beads, decorative profiles, steps, crimps, and edge details in automotive, HVAC, architectural, and industrial sheet metal work.
- Backed by Baileigh's 1-year warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Heavy Duty Bead Rolling Machine BR-12E-10 1012430
- Industrial 2 HP electric drive delivers dependable forming performance.
- 12 gauge mild steel capacity handles demanding fabrication applications.
- 10-inch throat depth provides excellent panel access and versatility.
- Forward and reverse foot pedals improve operator control and productivity.
- Standard round, shear, step, and crimp tooling allows multiple forming operations immediately after installation.
- Rigid welded steel construction ensures long-term durability and forming accuracy.
- An ideal solution for HVAC shops, automotive fabrication, industrial production, and custom sheet metal manufacturing.
The Baileigh Heavy Duty Bead Rolling Machine BR-12E-10 1012430 combines industrial-strength construction, powerful electric operation, and versatile tooling into a dependable bead rolling system for professional fabrication environments. Designed to produce accurate, repeatable beads and formed profiles in heavy-gauge sheet metal, the BR-12E-10 offers the performance, durability, and ease of operation demanded by modern production shops.
