Baileigh Hand Bender RDB-10 1006772 Applications
- Hydraulic line fabrication and repair.
- Brake line and fuel line manufacturing.
- Air line installation and fabrication.
- Automotive restoration and custom vehicle builds.
- Race car chassis and plumbing fabrication.
- Industrial maintenance departments.
- Machine building and OEM production.
- General metal fabrication requiring accurate tube bending.
The Baileigh Hand Bender RDB-10 1006772 is ideal for fabricators who require clean, repeatable tube bends without the complexity of powered bending equipment, making it perfect for precision fluid transfer and control line fabrication.
Baileigh Hand Bender RDB-10 1006772 Specifications
| Model | RDB-10 |
|---|---|
| Part Number | 1006772 |
| Machine Type | Manual Rotary Draw Tube Bender |
| Operation | Manual |
| Maximum Recommended Bend Angle | 180° |
| Maximum Machine Bend Capability | 205° |
| Tube Capacity | 1/4" to 5/8" Outside Diameter |
| Included Die Sets | 10 Interchangeable Die Sets |
| Die Radius Options | 3×D and 5×D Radii for Each Tube Size |
| Center Line Radius | 3" |
| Compatible Materials | Mild Steel, Stainless Steel, Select Aluminum, and Copper Tubing |
| Pedestal Stand | Included |
| Integrated Tooling Rack | Included |
| Adjustable Tooling Storage | Roll Holder Included |
| Net Weight | 155 lbs. |
| Gross Weight | 155 lbs. |
| UPC | 731325411416 |
| Warranty | 1-Year Parts Warranty with Lifetime Technical Support |
Baileigh Hand Bender RDB-10 1006772 Performance & Construction

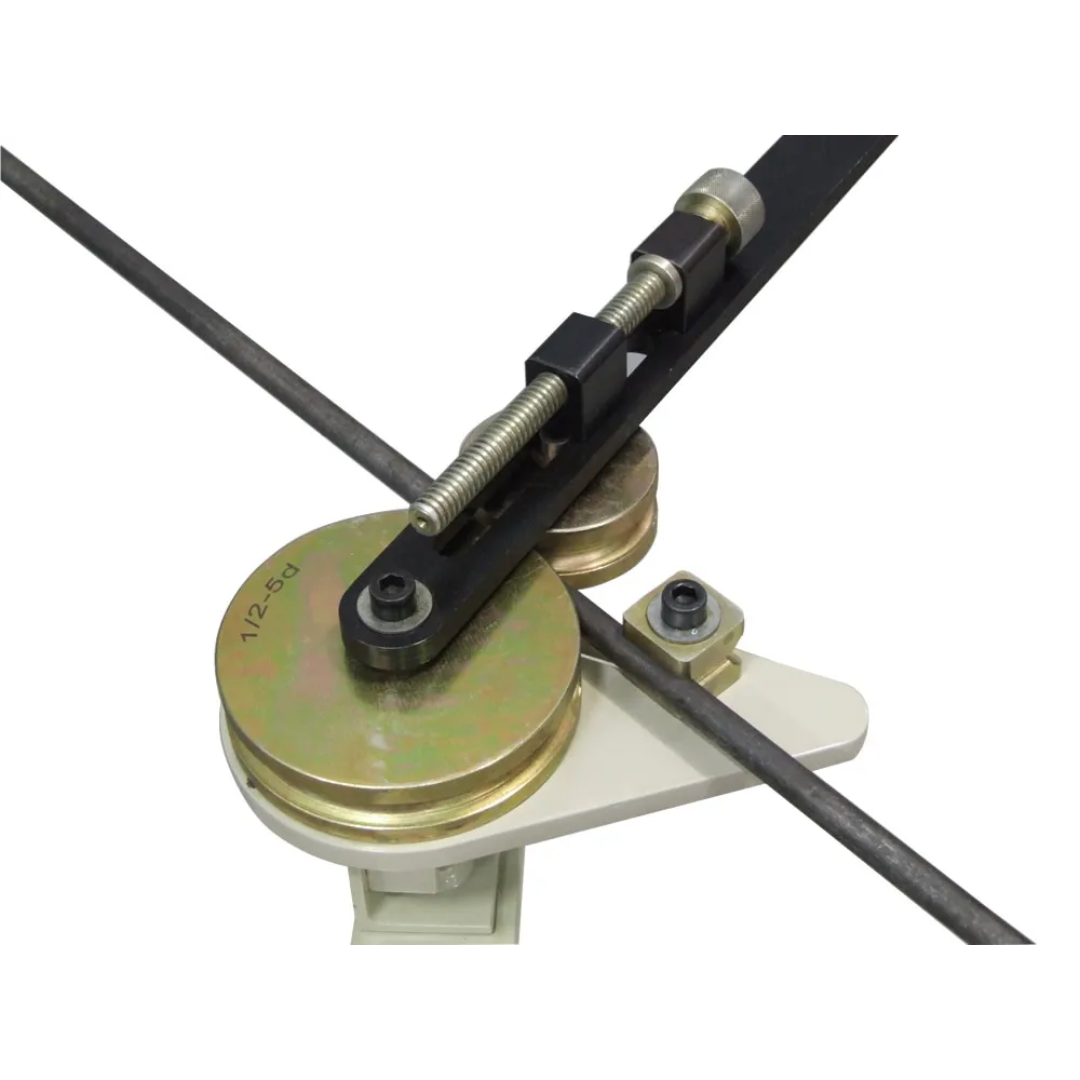

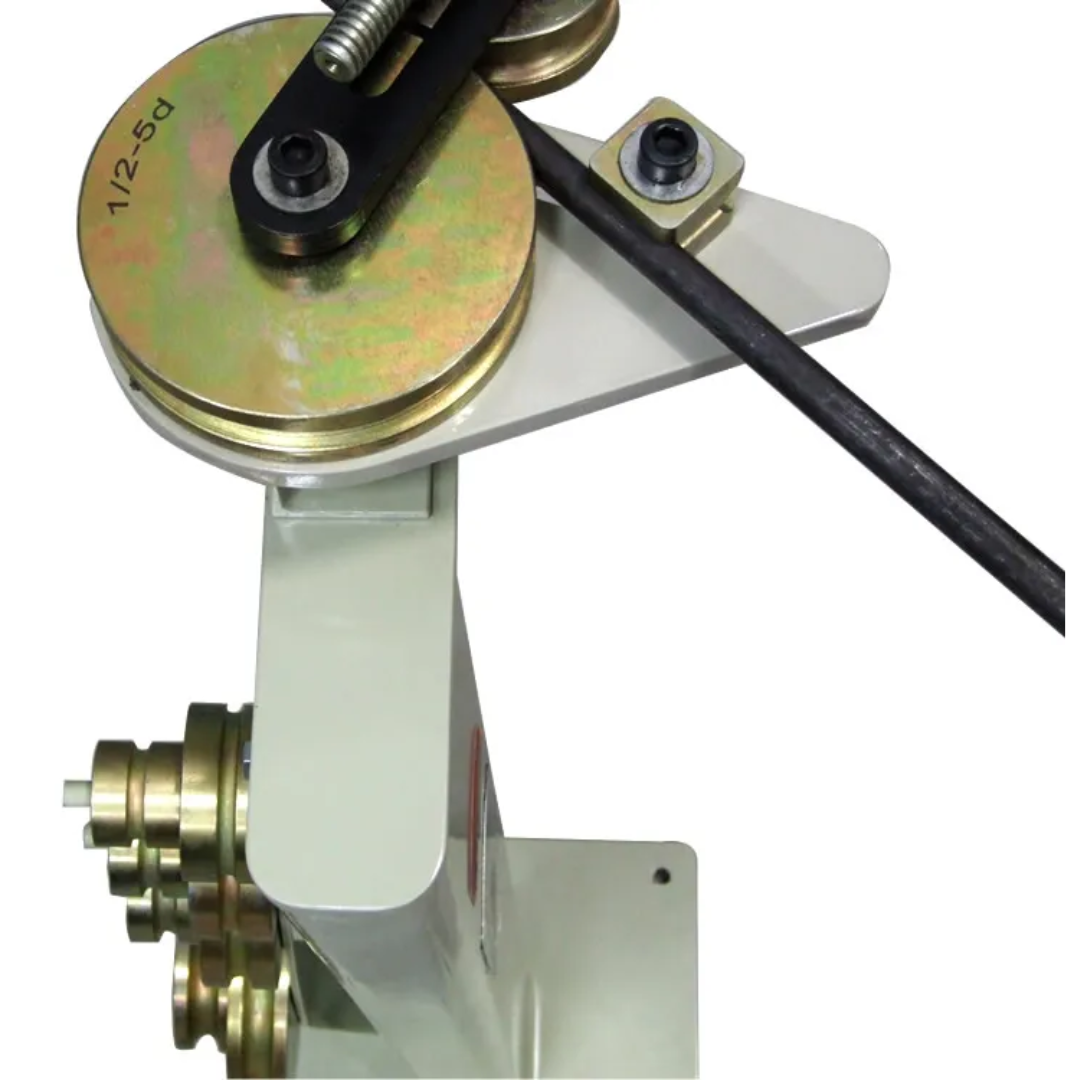

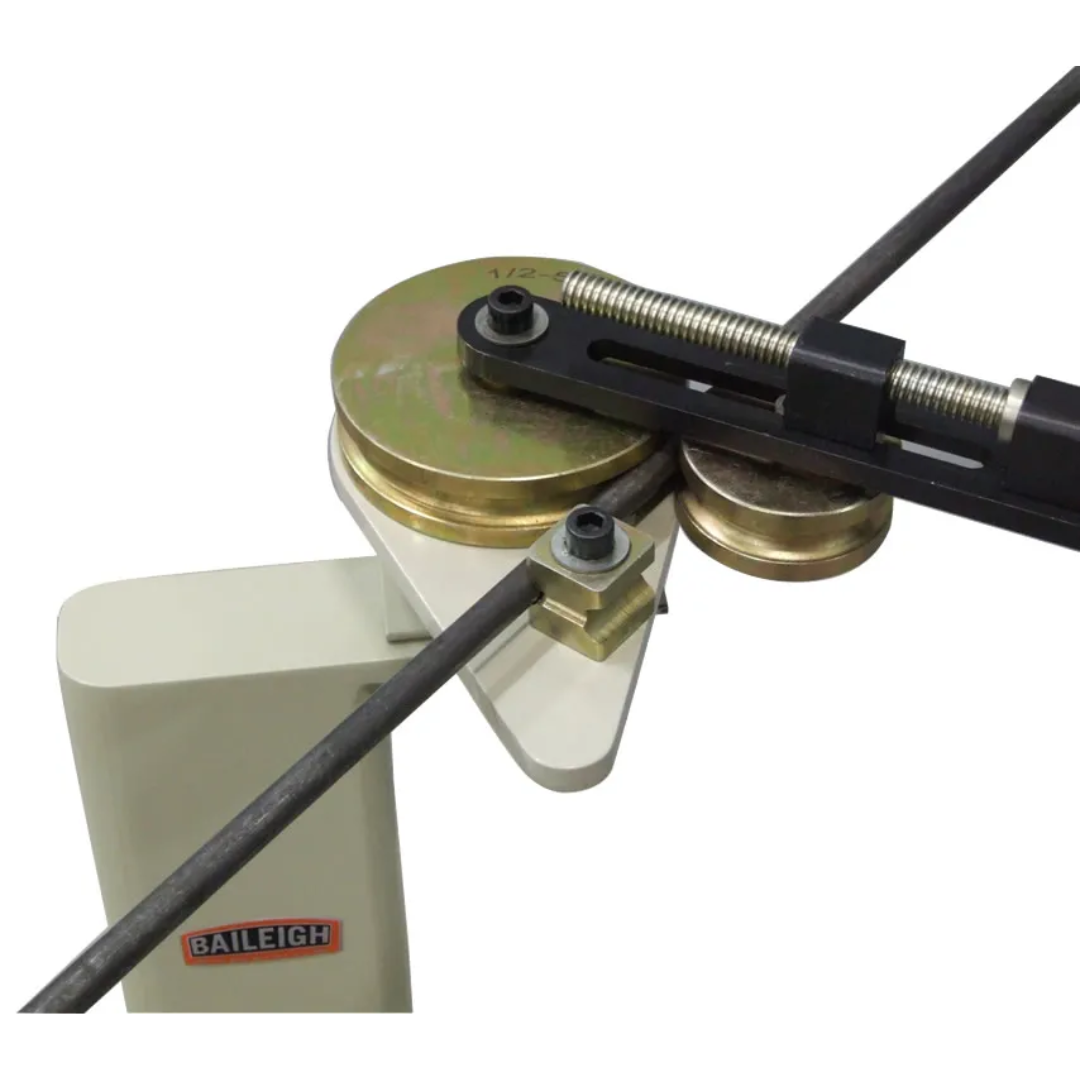

- Manual rotary draw bending system provides excellent control for producing smooth, accurate bends with minimal tube distortion.

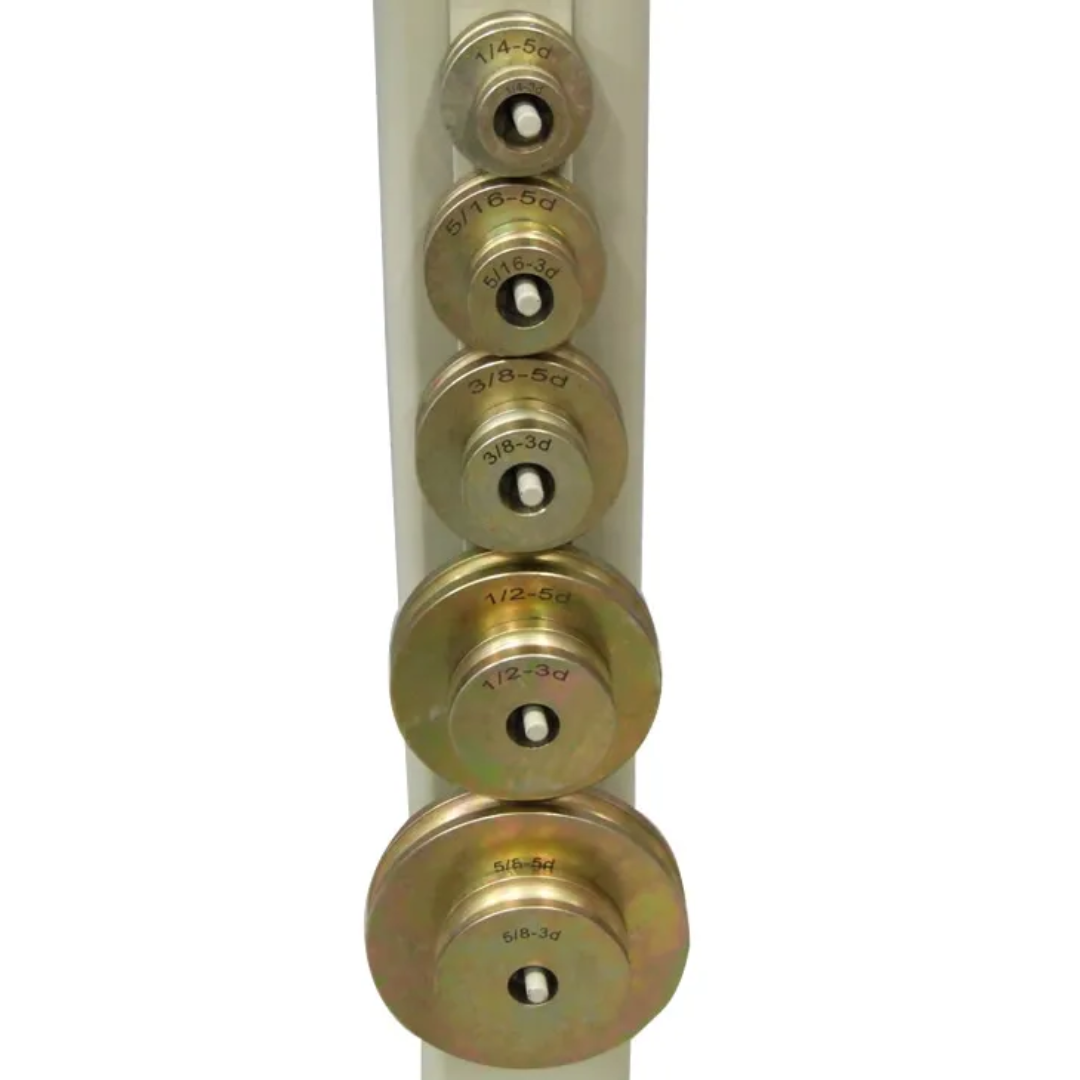

- Ten included die combinations cover tubing sizes from 1/4" through 5/8" outside diameter for exceptional versatility across multiple fabrication applications.
- 3×D and 5×D bending radii are included for every tubing size, allowing fabricators to select the appropriate bend radius for each project.
- Bends tubing up to 180° with excellent repeatability, while the machine itself offers a maximum mechanical bend capability of 205°.
- Designed for hydraulic, brake, fuel, and air line fabrication, making it ideal for automotive, industrial, and maintenance applications.

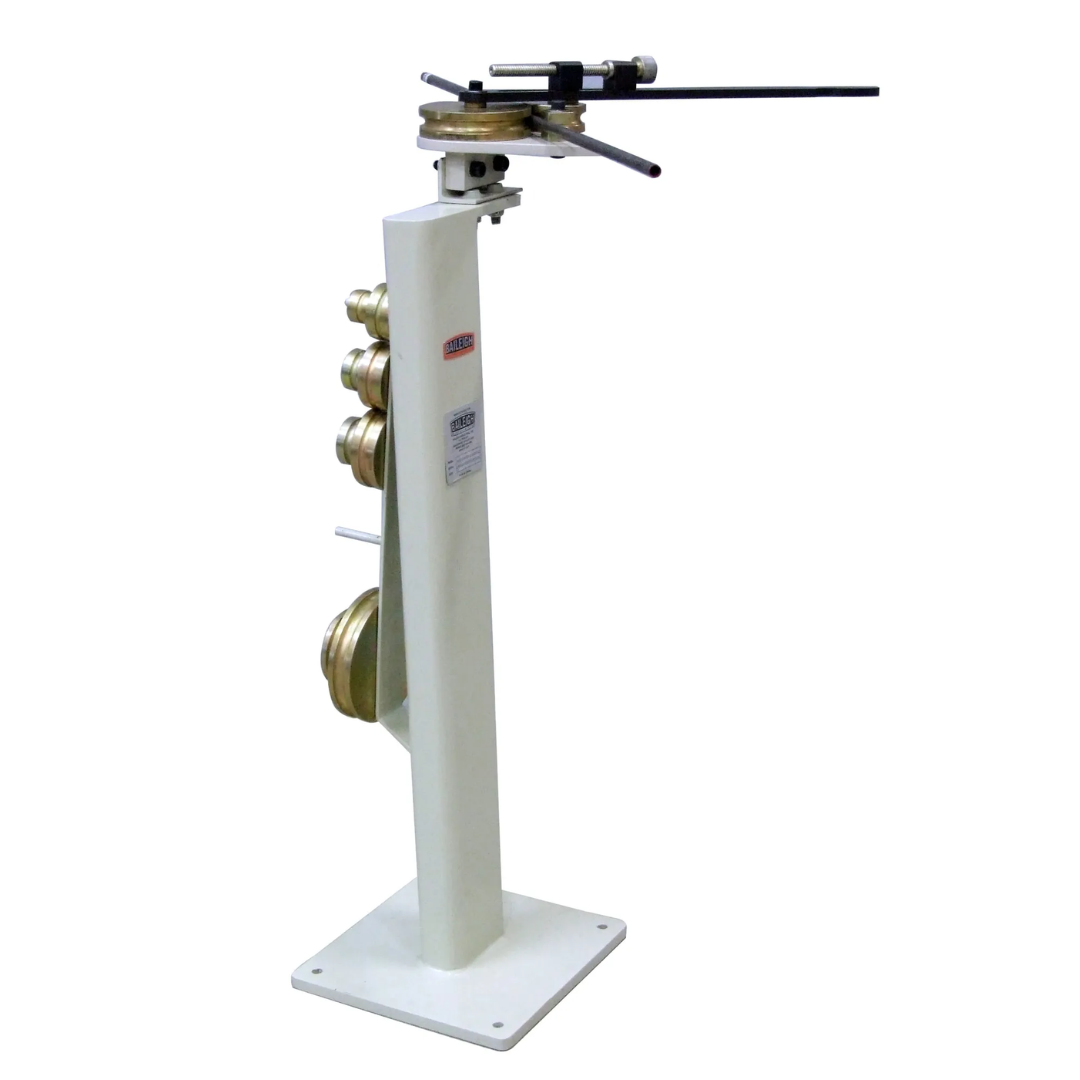

- Heavy-duty pedestal-mounted construction provides exceptional rigidity and stability during demanding bending operations.

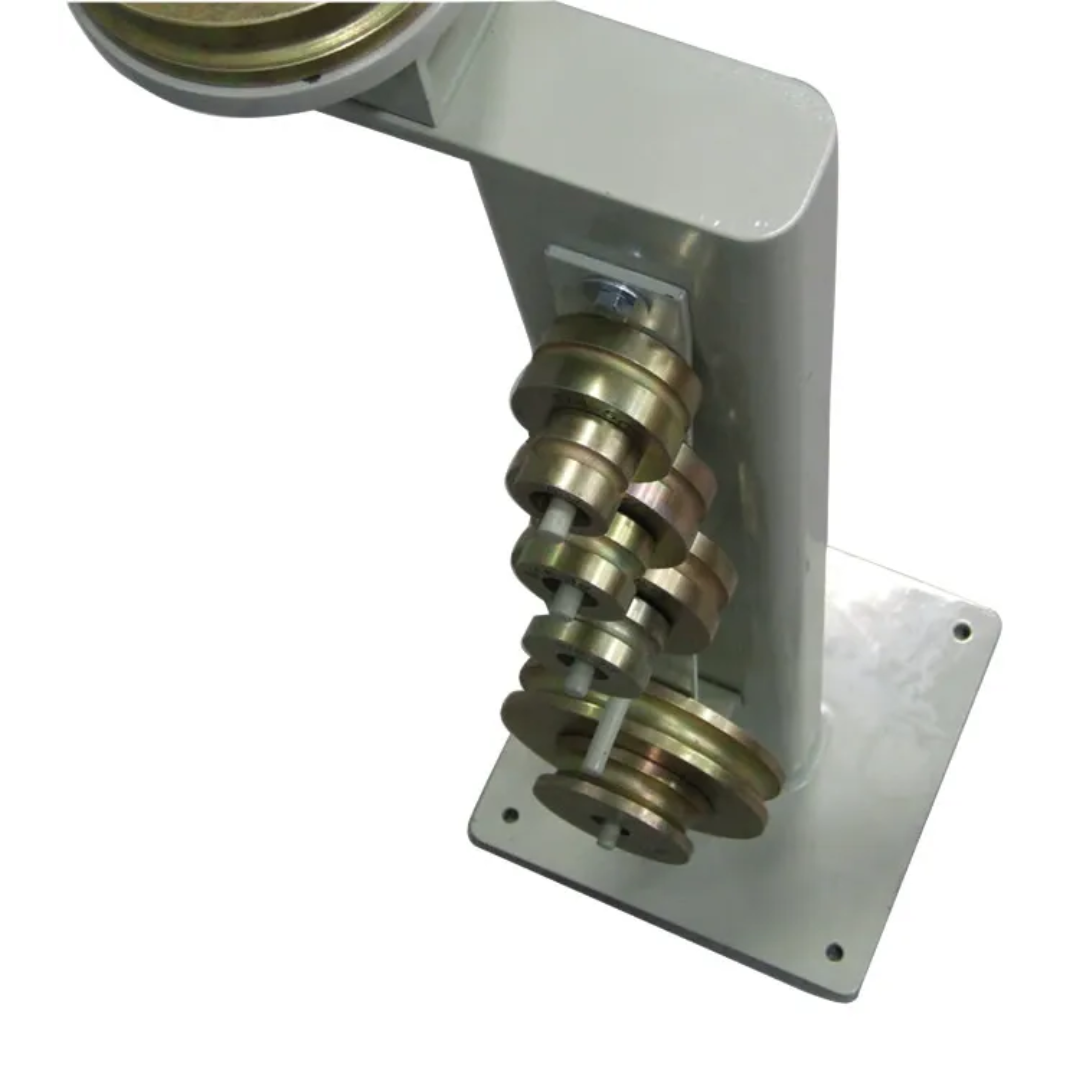

- Integrated tooling rack keeps dies organized and readily accessible, reducing setup time between different tubing sizes.
- Approximate 3" center line radius capability supports clean, professional bends while maintaining tubing integrity.
- Compatible with mild steel, stainless steel, select aluminum, and copper tubing, allowing one machine to handle a broad range of fabrication projects.
- No electrical or hydraulic power required, making the RDB-10 easy to install and operate virtually anywhere in the shop.
- Professional-grade construction ensures years of dependable performance in fabrication shops, restoration facilities, and industrial maintenance environments.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for long-term reliability.
Why Choose the Baileigh Hand Bender RDB-10 1006772
- Produces accurate manual bends up to 180° for professional tube fabrication.
- Includes 10 die sets covering tubing sizes from 1/4" to 5/8" OD.
- Offers both 3×D and 5×D bend radii for maximum application flexibility.
- Ideal for brake lines, hydraulic lines, fuel lines, and air line fabrication.
- Heavy-duty pedestal stand provides stable, repeatable bending performance.
- Integrated tooling rack keeps dies organized and easily accessible.
- Compatible with mild steel, stainless steel, aluminum, and copper tubing.
- Manual operation eliminates the need for electrical or hydraulic power.
- Compact footprint makes it suitable for fabrication shops and maintenance departments.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Hand Bender RDB-10 1006772 delivers professional-quality manual tube bending performance with exceptional versatility, precision tooling, and durable construction. Complete with ten die sets, multiple bend radii, and a heavy-duty pedestal stand, it is an outstanding solution for fabricators producing accurate hydraulic, brake, fuel, and air line bends every day.
