Baileigh Gear Driven Drill Press - DP-1850G 1020697 Applications
- Industrial machine shops.
- Heavy-duty fabrication and welding facilities.
- Production drilling and tapping operations.
- Tool and die manufacturing.
- Maintenance and repair departments.
- Equipment manufacturing and assembly.
- Agricultural and construction equipment repair.
- General industrial metalworking environments.

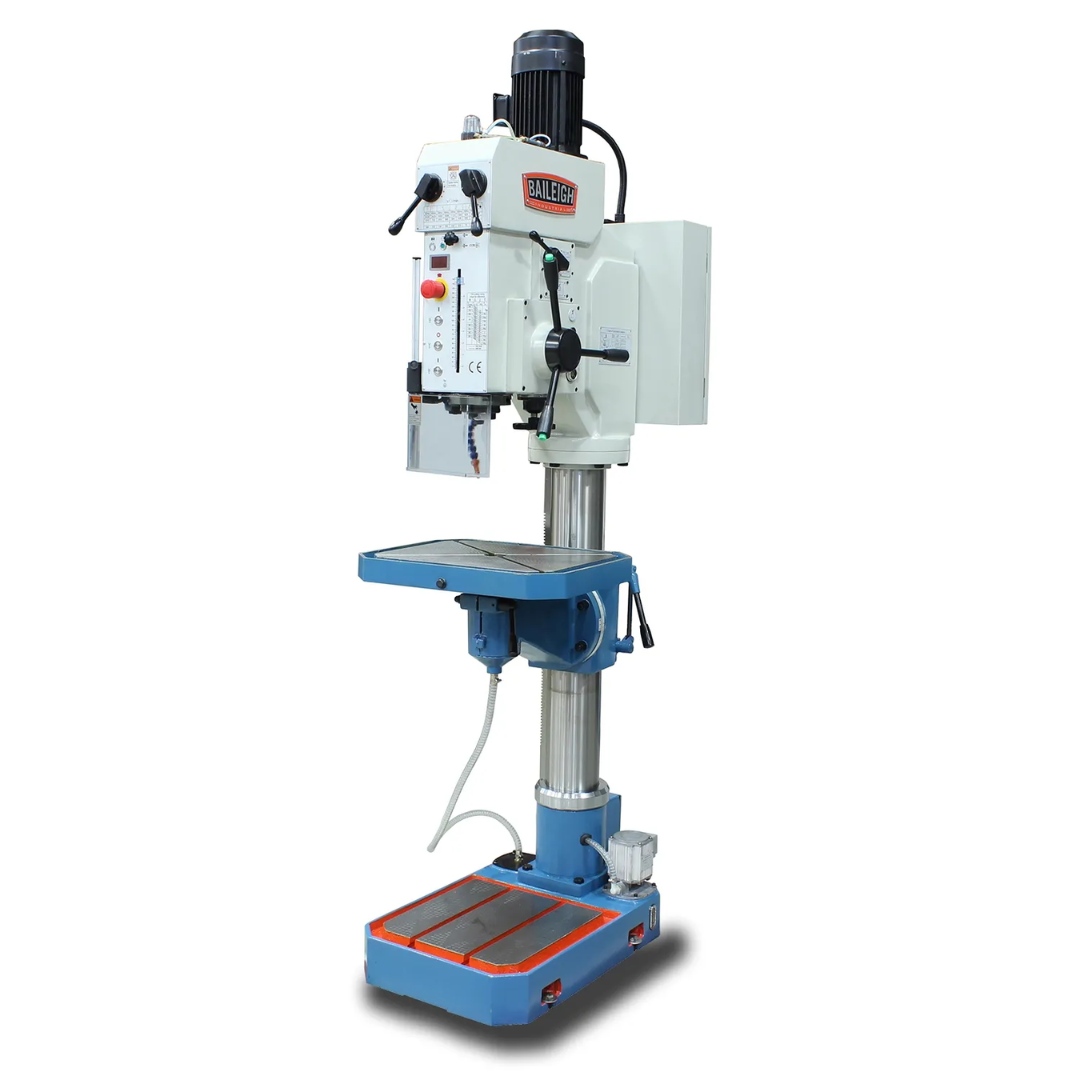

The Baileigh Gear Driven Drill Press - DP-1850G 1020697 combines gear-driven power, industrial rigidity, and precision drilling performance for demanding production environments where reliability and repeatability are essential.
Baileigh Gear Driven Drill Press - DP-1850G 1020697 Specifications
| Model | DP-1850G |
|---|---|
| Manufacturer | Baileigh Industrial |
| Product Number | 1020697 |
| Machine Type | Gear Driven Floor Drill Press |
| Motor Power | 2 HP |
| Input Power | 220V Three Phase |
| Drive System | 12-Speed Gear Drive |
| Spindle Speed Range | 90 – 2,425 RPM |
| Number of Spindle Speeds | 12 |
| Maximum Drilling Capacity (Mild Steel) | 1.57 in. |
| Maximum Tapping Capacity (Mild Steel) | 0.875 in. |
| Swing Capacity | 26.75 in. |
| Spindle Taper | MT-4 |
| Spindle Travel | 7-3/4 in. |
| Work Table Size | 17.25 in. × 21.25 in. with T-Slots |
| Power Feed | Electric Power-Down Feed |
| Coolant Provision | Integrated Coolant System Support |
| Frame Construction | Heavy Cast Steel Base and Massive Column |
| Net Weight | 1,225 lbs. |
| Gross Weight | 1,225 lbs. |
| Warranty | 1 Year |
| UPC | 19907768692 |
Baileigh Gear Driven Drill Press - DP-1850G 1020697 Performance & Construction
- Heavy-duty 2 HP industrial motor delivers dependable torque and consistent drilling performance for demanding machining applications.
- 220V three-phase electrical operation provides reliable industrial power for continuous production environments.

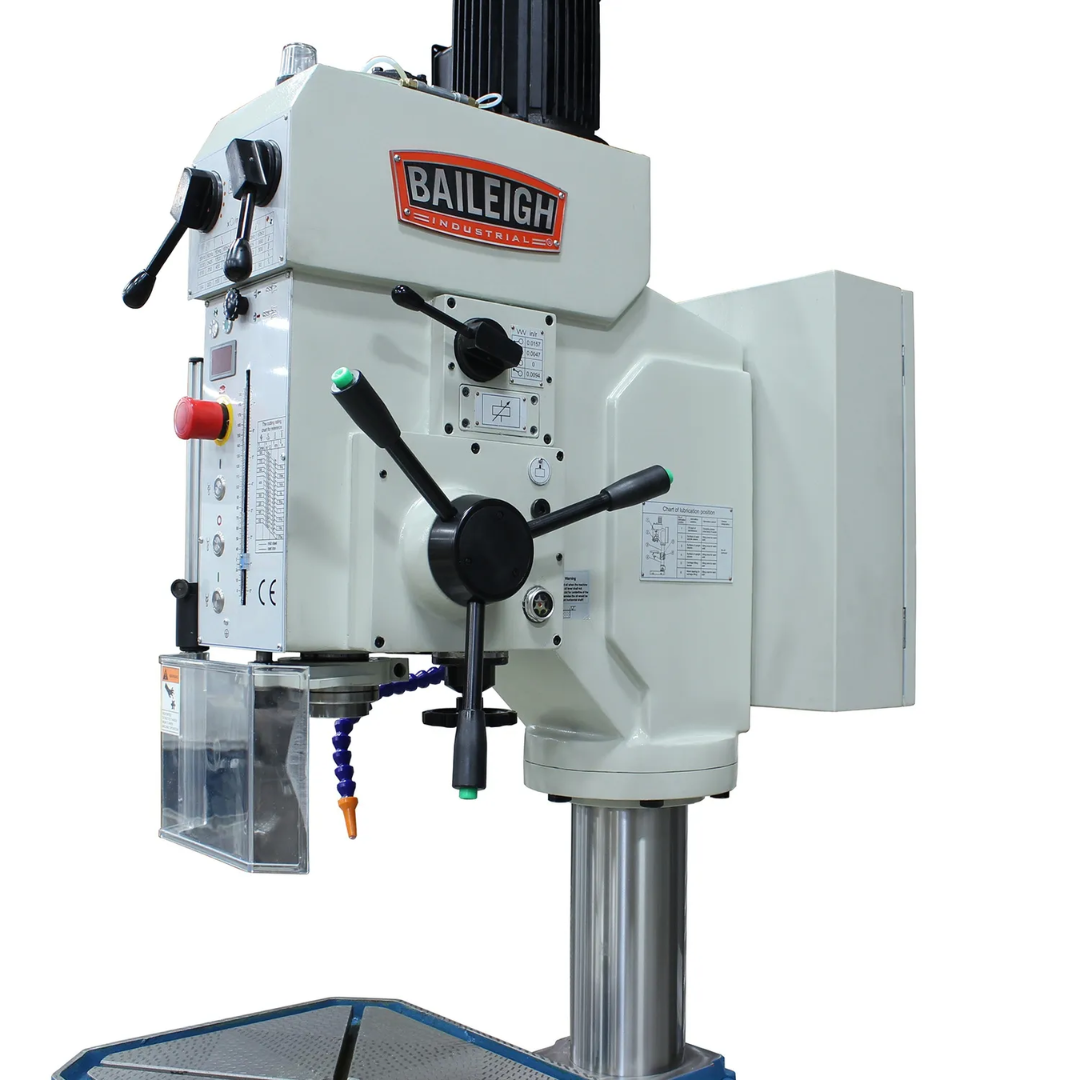

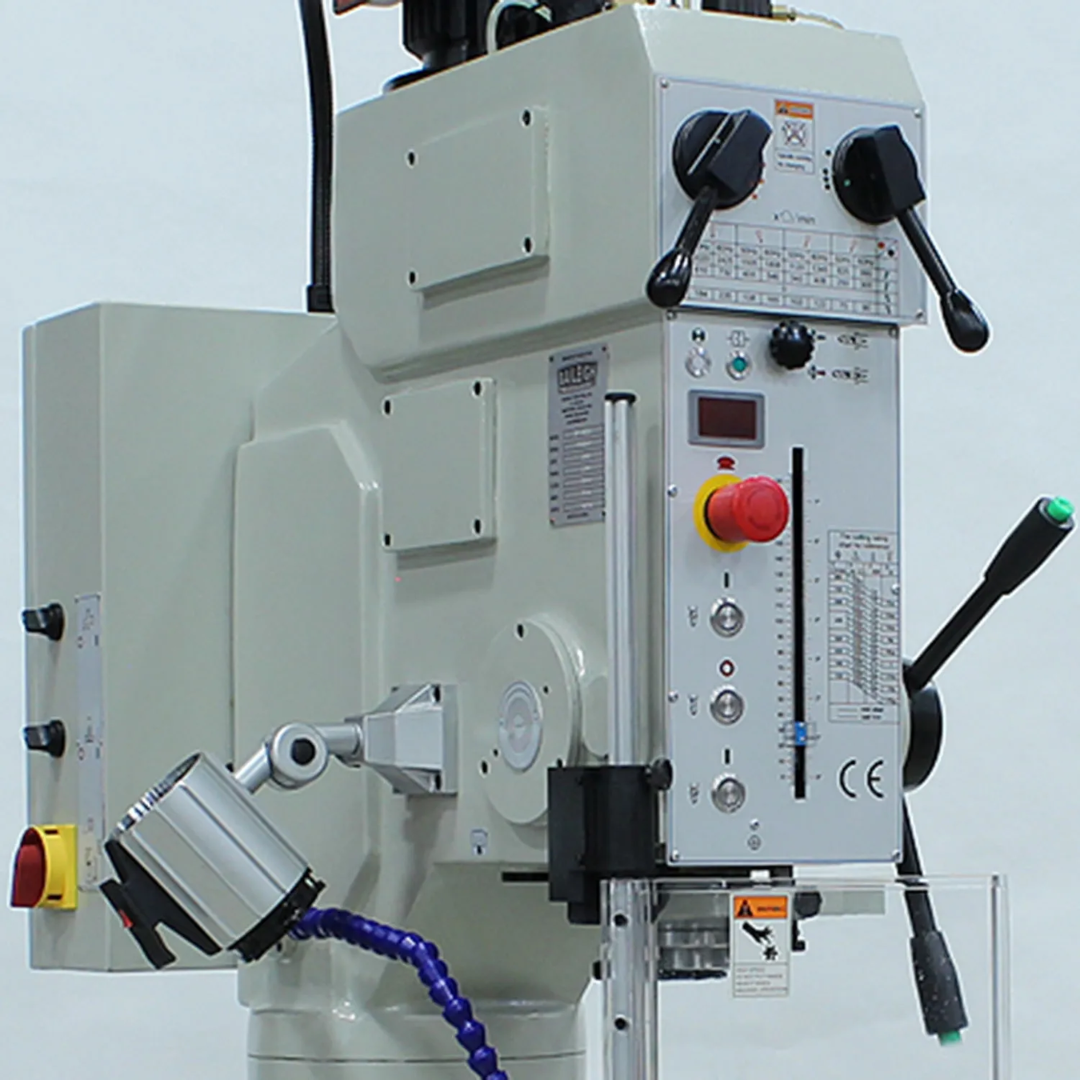

- Gear-driven spindle head delivers greater torque transmission and durability than traditional belt-driven drill presses.

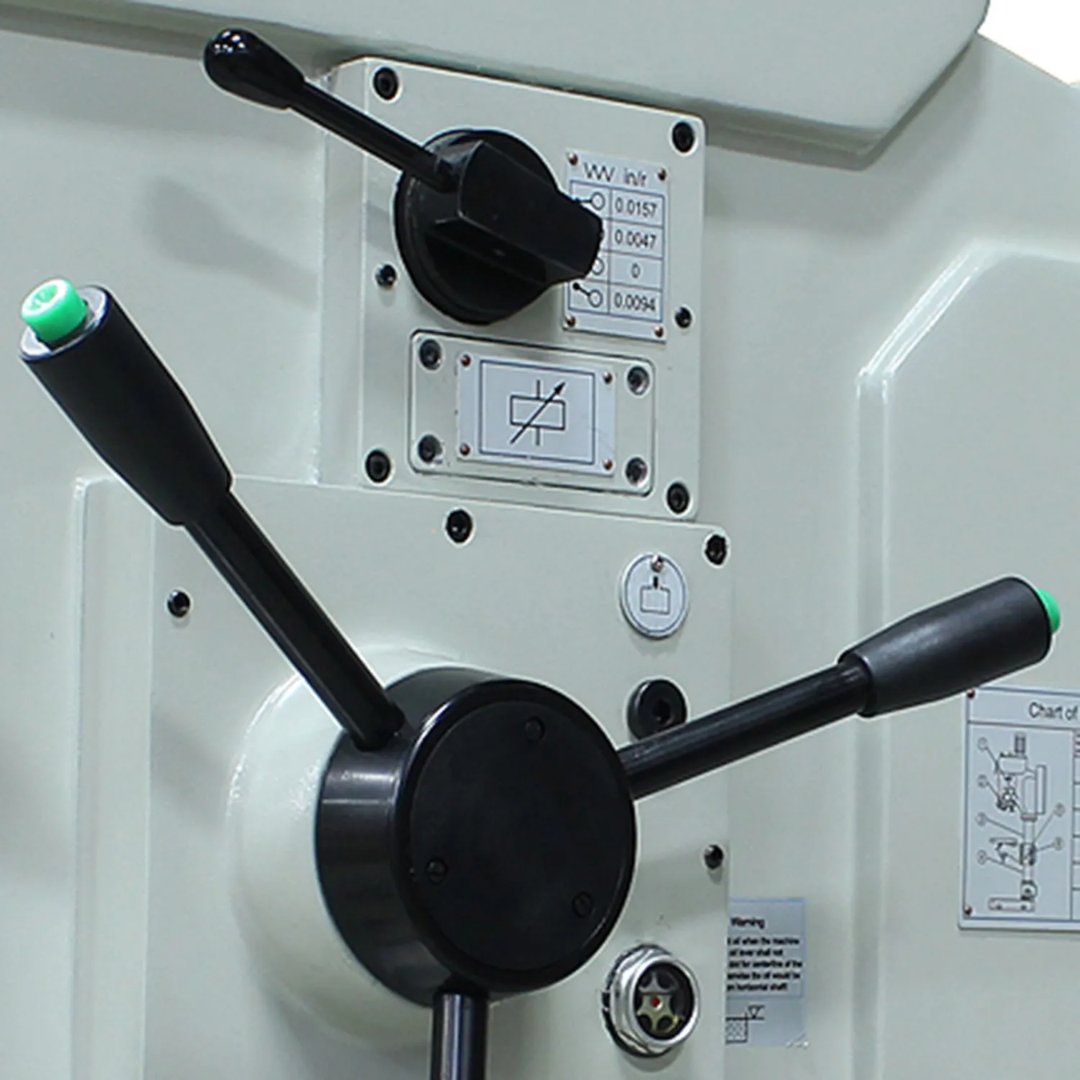

- 12 selectable spindle speeds ranging from 90 to 2,425 RPM allow operators to match cutting speed to tooling and material requirements.
- Maximum drilling capacity of 1.57 inches in mild steel supports heavy-duty drilling applications with excellent accuracy.
- Maximum tapping capacity of 0.875 inch in mild steel expands machine versatility for threading operations.
- 26.75-inch swing accommodates larger workpieces commonly found in industrial fabrication and manufacturing.
- MT-4 spindle taper provides secure tooling engagement and compatibility with a wide range of industrial drilling accessories.
- 7-3/4-inch spindle travel allows deep-hole drilling and improved machining flexibility.

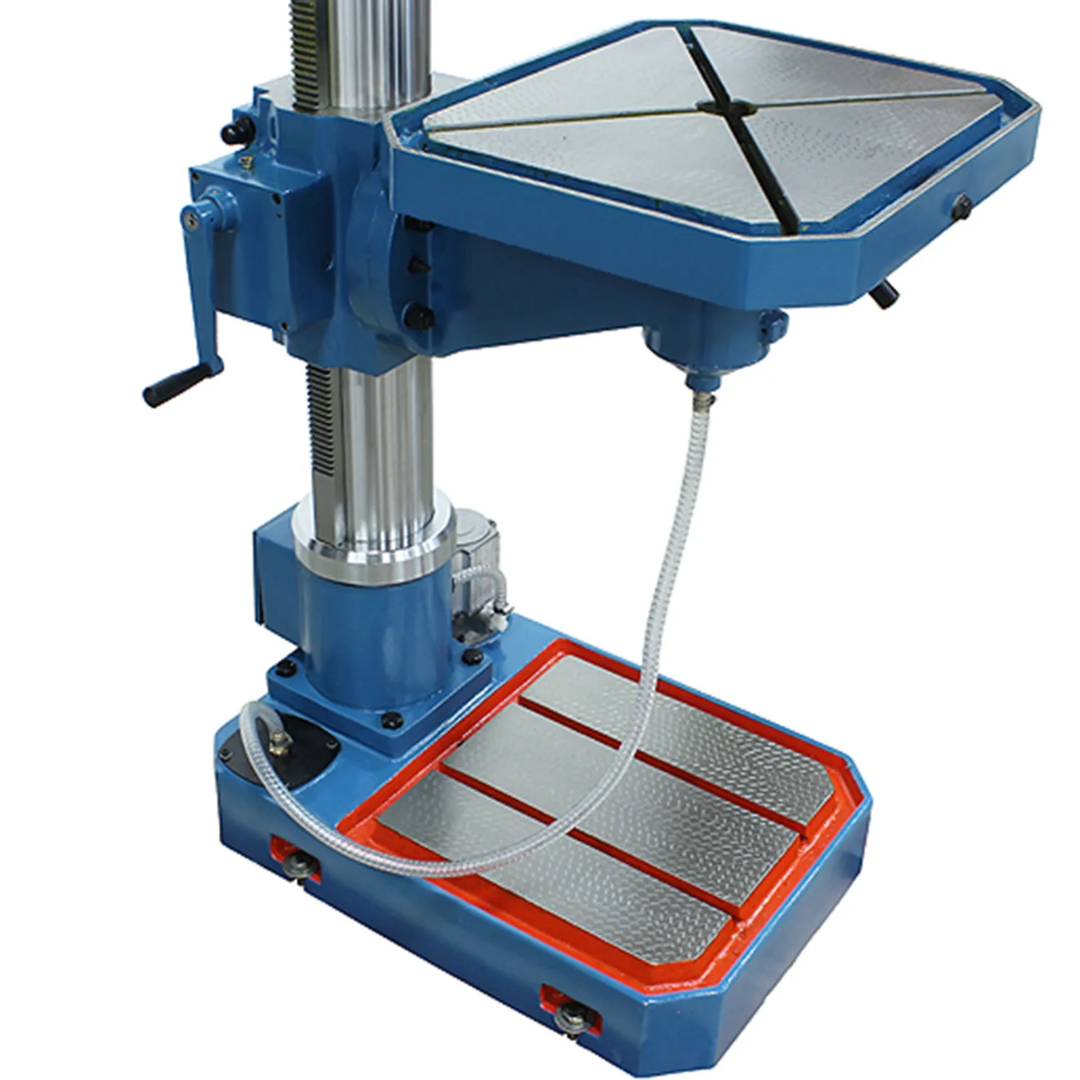

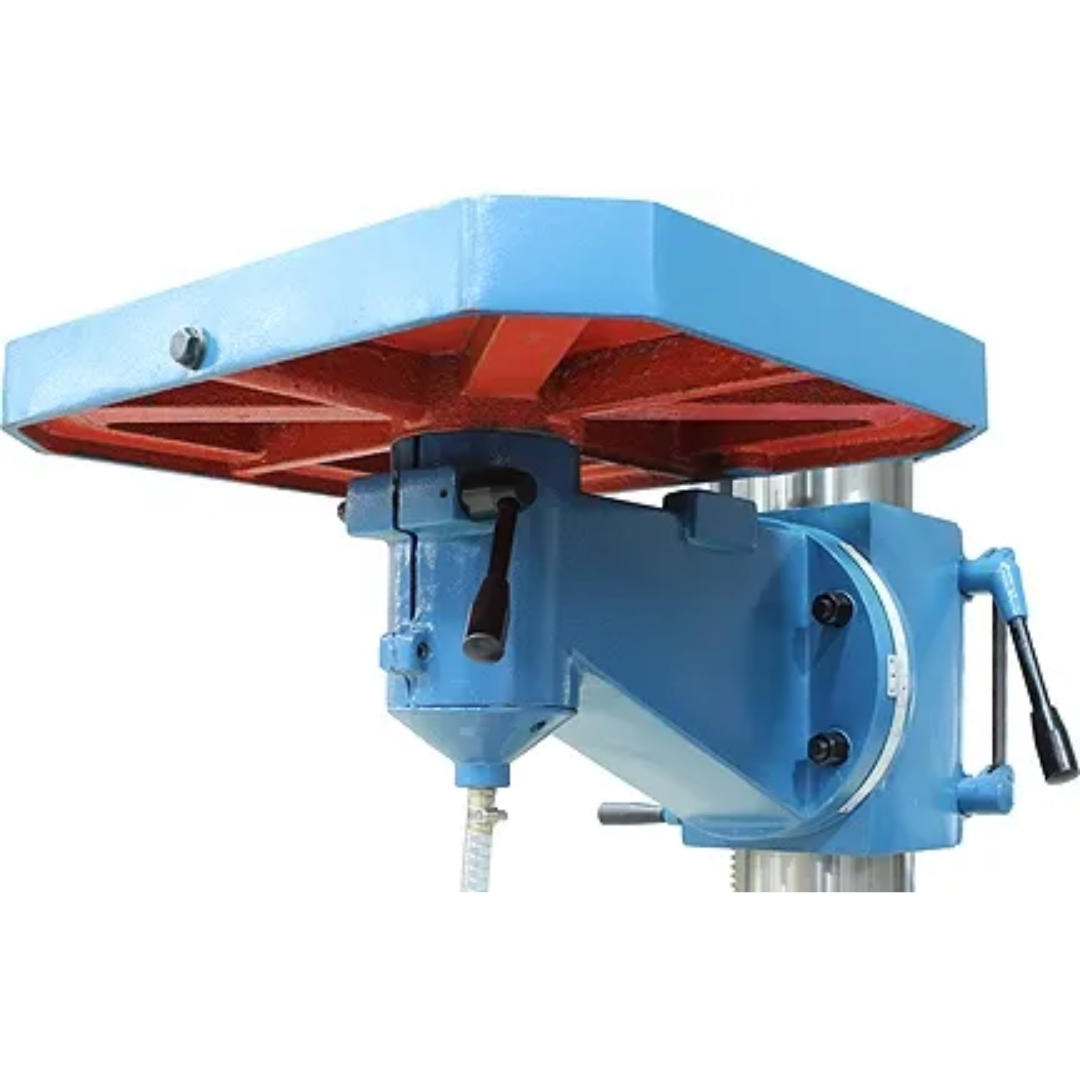

- Large 17.25-inch × 21.25-inch cast work table features integrated T-slots for secure clamping, fixtures, vises, and custom workholding solutions.

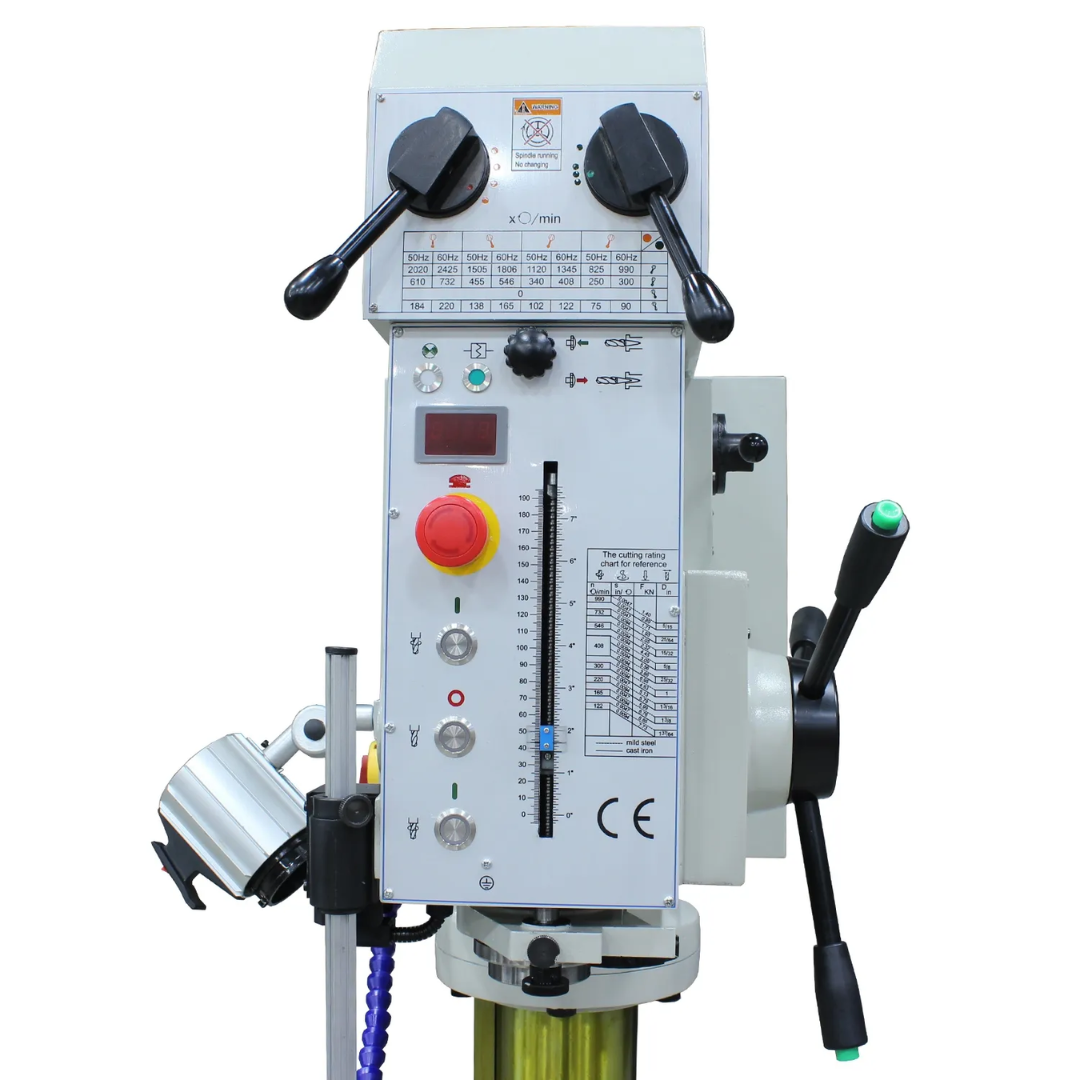

- Electric power-down feed improves drilling consistency while reducing operator effort during repetitive production work.
- Coolant system provisions support extended tool life, improved surface finish, and more efficient machining during prolonged operation.

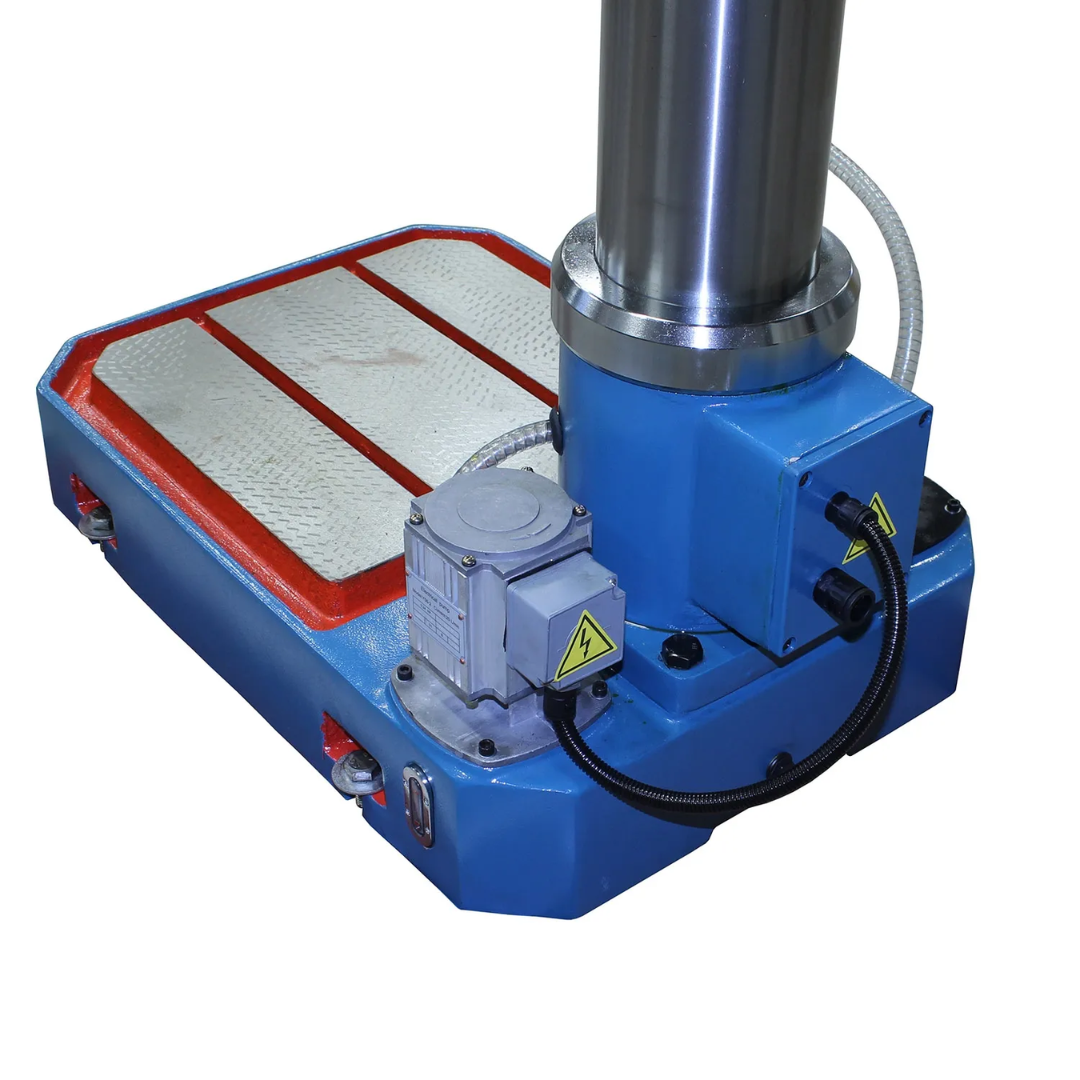

- Massive cast steel base and oversized column minimize vibration and structural deflection for superior drilling precision under heavy loads.
- Industrial construction is engineered for long service life in fabrication shops, machine shops, and production facilities.
- Backed by Baileigh's 1-year warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Gear Driven Drill Press - DP-1850G 1020697
- Heavy-duty gear-driven head delivers maximum torque and industrial durability.
- 12 spindle speeds from 90–2,425 RPM provide excellent machining versatility.
- Drills up to 1.57-inch holes and taps up to 0.875 inch in mild steel.
- Large 26.75-inch swing accommodates oversized workpieces.
- Electric power-down feed increases productivity and drilling consistency.
- MT-4 spindle taper supports a wide range of industrial tooling.
- Large T-slot work table simplifies secure fixturing and workholding.
- Rigid cast steel construction minimizes vibration for exceptional drilling accuracy.
- Ideal for fabrication shops, machine shops, manufacturing facilities, and industrial maintenance operations.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Gear Driven Drill Press - DP-1850G 1020697 is a professional-grade industrial drill press built for high-capacity drilling, tapping, and production machining. Combining a powerful gear-driven transmission, heavy cast steel construction, electric power-down feed, and a wide 12-speed range, this machine delivers the precision, durability, and long-term reliability required by today's demanding metalworking professionals.
