Baileigh Gear Driven Drill Press - DP-1000G 1002827 Applications
- General metal fabrication and production drilling.
- Machine shop drilling and tapping operations.
- Maintenance and repair departments.
- Agricultural equipment repair and fabrication.
- Automotive restoration and custom fabrication.
- Prototype development and low-volume manufacturing.
- Educational and vocational training facilities.
- Industrial workshops requiring reliable drilling performance.
Ideal for shops that need a rugged gear-driven drill press capable of handling daily drilling and tapping operations while operating on standard 110V power.
Baileigh Gear Driven Drill Press - DP-1000G 1002827 Specifications
| Model Number | DP-1000G |
|---|---|
| Product Number | 1002827 |
| Motor Power | 1.5 HP |
| Power Requirement | 110V Single Phase |
| Swing Capacity | 16 in. |
| Drilling Capacity - Mild Steel | 1 in. |
| Tapping Capacity - Mild Steel | 0.625 in. |
| Spindle Speed Range | 125 - 1740 RPM |
| Number of Spindle Speeds | 4 |
| Spindle Taper | MT 3 |
| Work Table Size | 19.75 in. × 13.75 in. |
| Column Diameter | 4 in. |
| Net Weight | 500 lbs. |
| Gross Weight | 500 lbs. |
| UPC | 731325403947 |
| Warranty | 1 Year |
Baileigh Gear Driven Drill Press - DP-1000G 1002827 Performance & Construction
- 1.5 HP industrial motor provides reliable power for drilling and tapping applications in fabrication and machine shop environments.

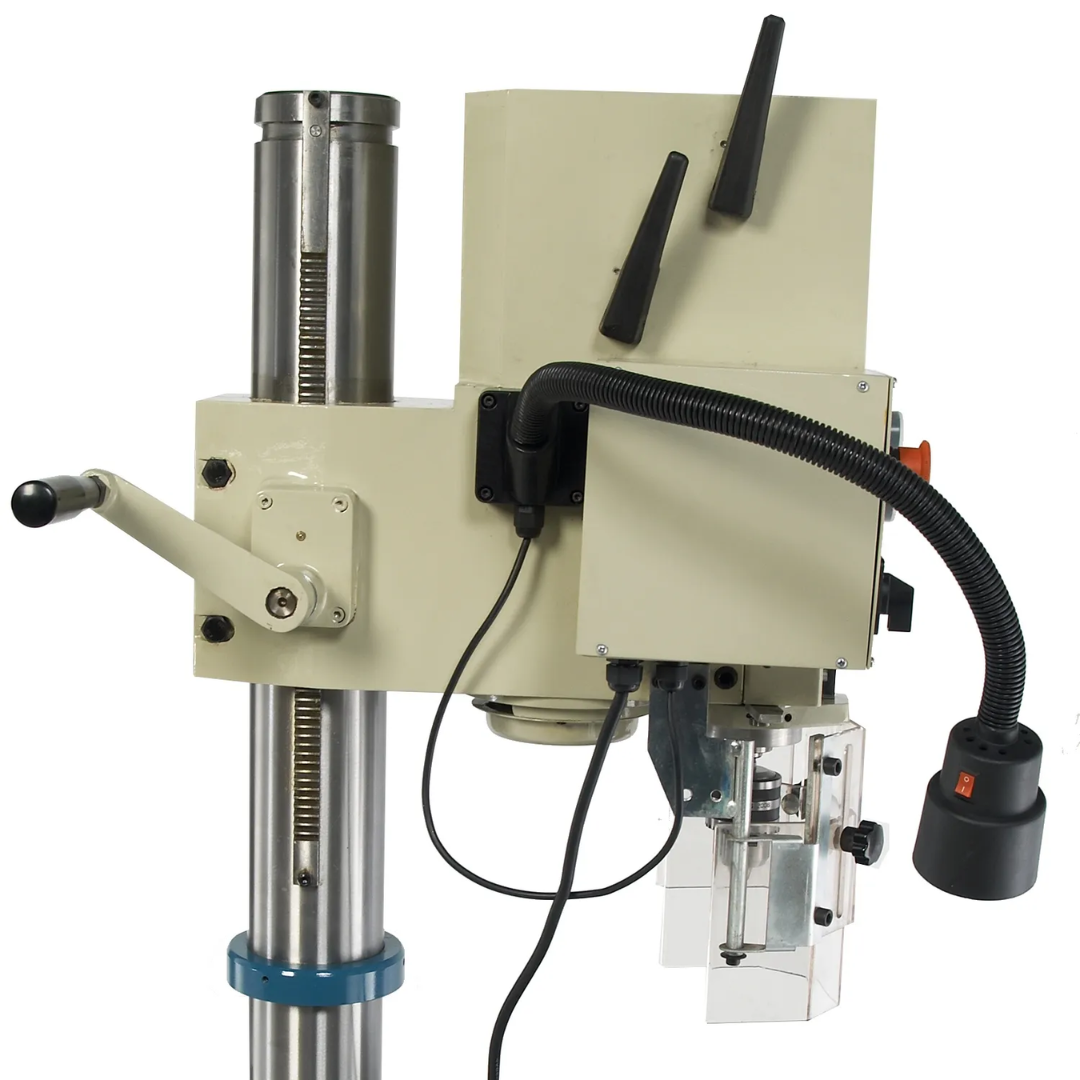

- Gear-driven head design delivers positive power transmission, reduced maintenance, and dependable drilling performance under load.
- 16-inch swing capacity accommodates larger workpieces while providing greater flexibility for a variety of drilling tasks.
- 1-inch drilling capacity in mild steel allows the machine to handle common fabrication and production drilling requirements.
- 0.625-inch tapping capacity expands machine functionality for threading operations and secondary machining processes.
- Four selectable spindle speeds provide versatility for matching cutting conditions to material type and drill size.
- Wide spindle speed range from 125 to 1740 RPM supports both low-speed torque-intensive drilling and higher-speed finishing operations.
- MT 3 spindle taper ensures secure tool holding and compatibility with a wide range of industrial drilling accessories.

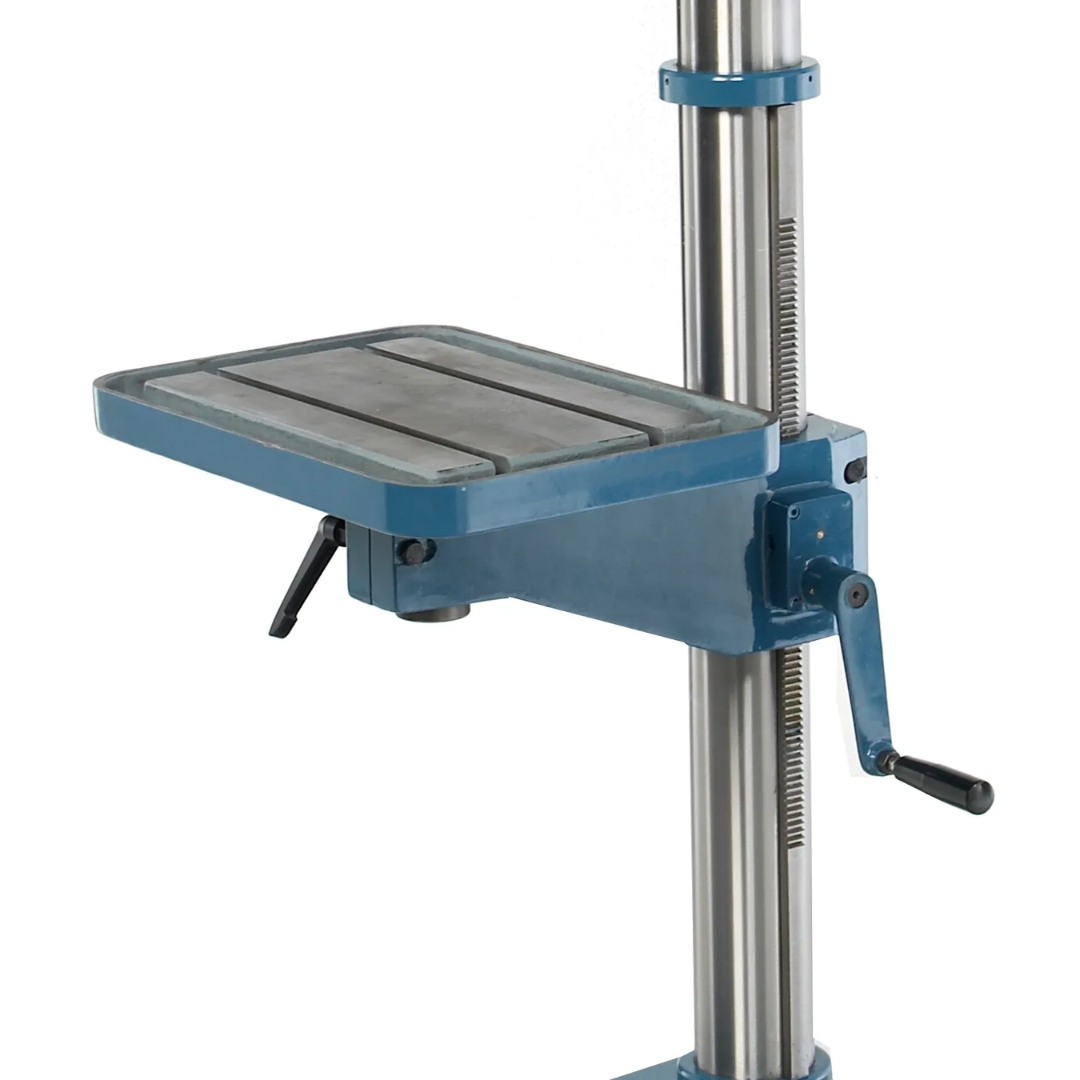

- Large adjustable work table measuring 19.75 inches by 13.75 inches provides ample support for workholding fixtures and larger components.
- Heavy-duty 4-inch diameter column minimizes flexing and vibration, helping maintain drilling accuracy and extending tool life.
- Cast iron base construction enhances machine stability and absorbs vibration during demanding drilling operations.

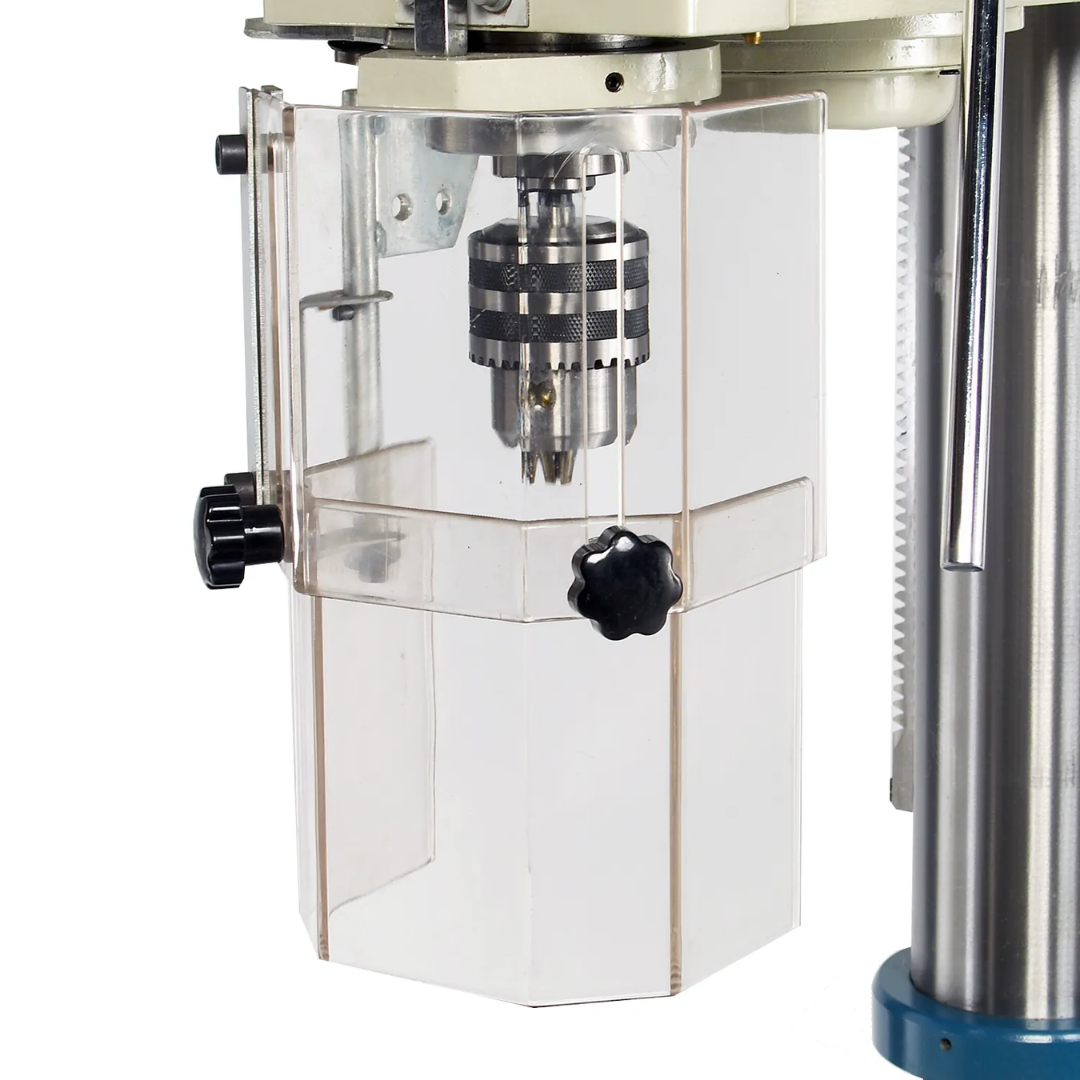

- Protective spindle guard improves operator safety while maintaining visibility of the cutting area.

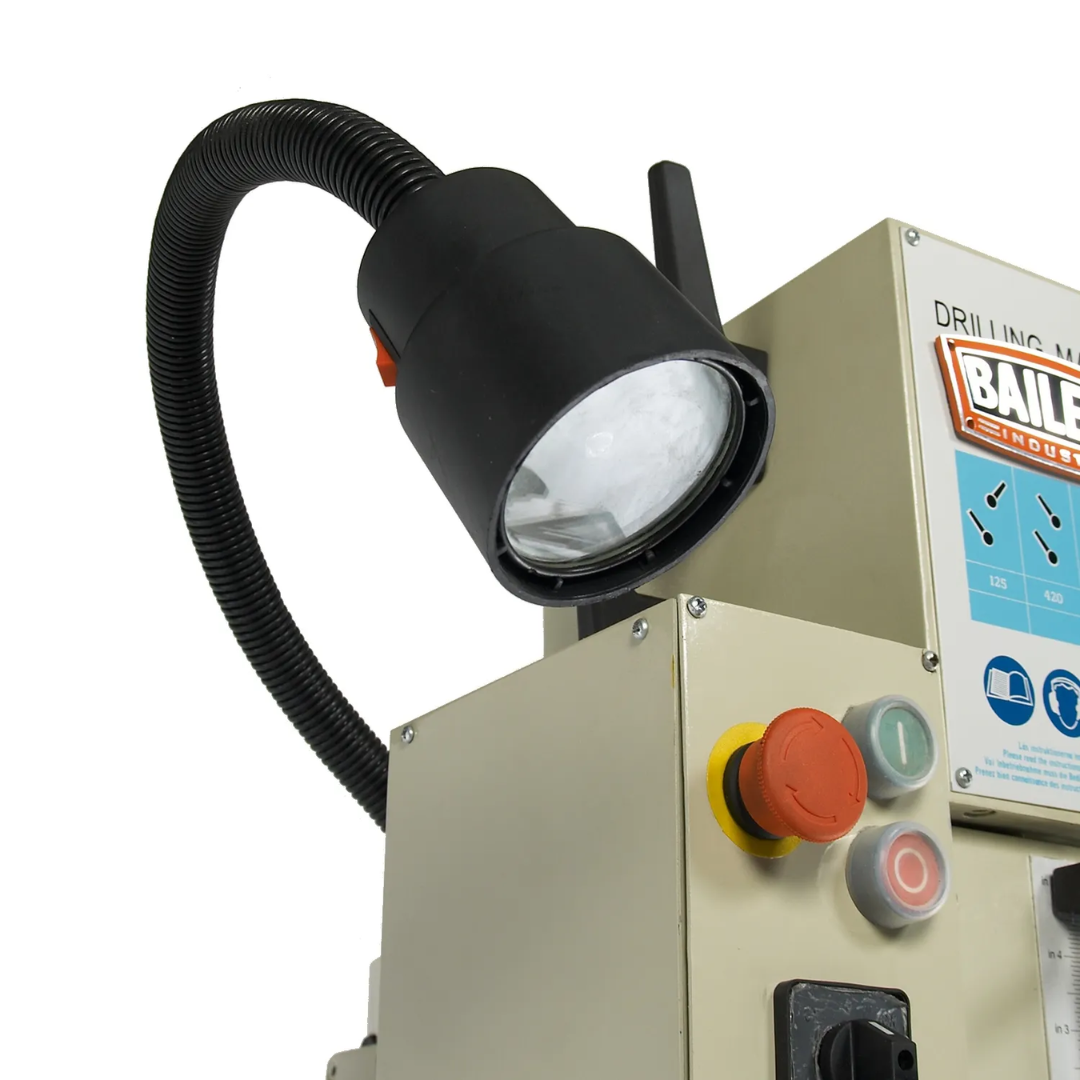

- Integrated halogen work light illuminates the work zone for improved accuracy and easier setup.
- 110V operation allows installation in many commercial and workshop environments without requiring specialized electrical service.
- Industrial-grade construction is designed for long-term durability and dependable daily operation.
- Backed by Baileigh support including a 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh Gear Driven Drill Press - DP-1000G 1002827
- Heavy-duty gear-driven drill press built for professional fabrication and machine shop environments.
- 1.5 HP motor delivers dependable drilling performance while operating on standard 110V power.
- 16-inch swing capacity accommodates larger workpieces and fabrication projects.
- Four spindle speeds provide flexibility across a variety of drilling applications.
- Rigid cast iron construction and 4-inch column improve stability and accuracy.
- Includes work light, spindle guard, and adjustable table for enhanced productivity.
- Designed for drilling and tapping operations with industrial-grade reliability.
The Baileigh Gear Driven Drill Press - DP-1000G 1002827 combines rugged cast iron construction, dependable gear-driven performance, and versatile drilling capabilities to provide fabrication professionals with a reliable solution for precision drilling and tapping applications.
